#include <BFPostpassLoopDRE.hh>

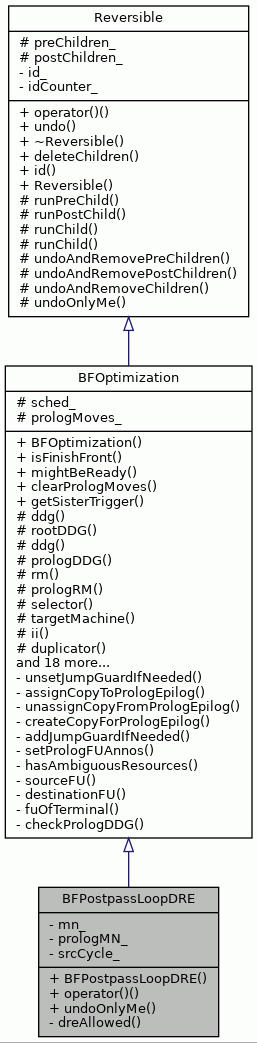

Inheritance diagram for BFPostpassLoopDRE:

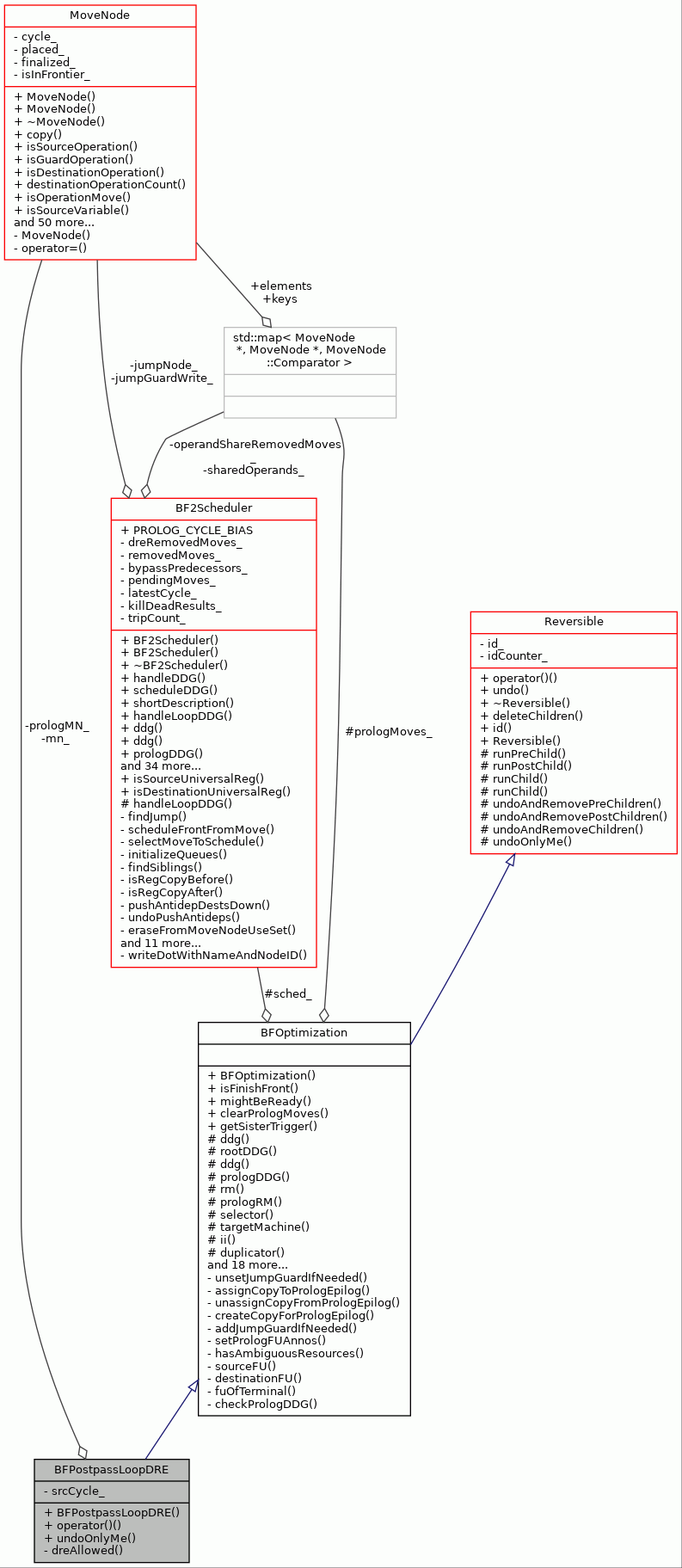

Collaboration diagram for BFPostpassLoopDRE:

Public Member Functions
	BFPostpassLoopDRE (BF2Scheduler &sched, MoveNode &mn, int srcCycle)

bool	operator() () override

void	undoOnlyMe () override

Public Member Functions inherited from BFOptimization
	BFOptimization (BF2Scheduler &sched)

virtual bool	isFinishFront ()

virtual void	mightBeReady (MoveNode &mn)

Public Member Functions inherited from Reversible
virtual void	undo ()

virtual	~Reversible ()

void	deleteChildren (std::stack< Reversible * > &children)

int	id ()

	Reversible ()

Private Member Functions
bool	dreAllowed ()

Private Attributes
MoveNode &	mn_

MoveNode *	prologMN_

int	srcCycle_

Additional Inherited Members
Static Public Member Functions inherited from BFOptimization
static void	clearPrologMoves ()

static MoveNode *	getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

Protected Member Functions inherited from BFOptimization
DataDependenceGraph &	ddg ()

DataDependenceGraph *	rootDDG ()

const DataDependenceGraph &	ddg () const

DataDependenceGraph *	prologDDG ()

SimpleResourceManager &	rm () const

SimpleResourceManager *	prologRM () const

BUMoveNodeSelector &	selector ()

const TTAMachine::Machine &	targetMachine () const

unsigned int	ii () const

MoveNodeDuplicator &	duplicator () const

virtual bool	assign (int cycle, MoveNode &, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU_=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void	unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int	rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int	rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool	canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus bus=nullptr, const TTAMachine::FunctionUnit srcFU=nullptr, const TTAMachine::FunctionUnit dstFU=nullptr, const TTAMachine::Bus prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool	putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void	setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void	setJumpGuard (MoveNode &mn)

void	unsetJumpGuard (MoveNode &mn)

bool	needJumpGuard (const MoveNode &mn, int cycle)

int	jumpGuardAvailableCycle (const MoveNode &mn)

bool	canBeSpeculated (const Operation &op)

bool	canBeSpeculated (const MoveNode &mn)

bool	usePrologMove (const MoveNode &mn)

bool	canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile *	RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool	immCountPreventsScheduling (const MoveNode &mn)

Protected Member Functions inherited from Reversible
bool	runPreChild (Reversible *preChild)

bool	runPostChild (Reversible *preChild)

bool	runChild (std::stack< Reversible * > &children, Reversible *child)

bool	runChild (Reversible *child, bool pre)

void	undoAndRemovePreChildren ()

void	undoAndRemovePostChildren ()

void	undoAndRemoveChildren (std::stack< Reversible * > &children)

Protected Attributes inherited from BFOptimization
BF2Scheduler &	sched_

Protected Attributes inherited from Reversible
std::stack< Reversible * >	preChildren_

std::stack< Reversible * >	postChildren_

Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode , MoveNode , MoveNode::Comparator >	prologMoves_

Detailed Description

Definition at line 46 of file BFPostpassLoopDRE.hh.

Constructor & Destructor Documentation

◆ BFPostpassLoopDRE()

BFPostpassLoopDRE::BFPostpassLoopDRE	(	BF2Scheduler &	sched,
		MoveNode &	mn,
		int	srcCycle
	)

inline

Definition at line 48 of file BFPostpassLoopDRE.hh.

48 :

49 BFOptimization(sched), mn_(mn), srcCycle_(srcCycle) {}

Member Function Documentation

◆ dreAllowed()

bool BFPostpassLoopDRE::dreAllowed ( )

private

Definition at line 88 of file BFPostpassLoopDRE.cc.

                                    {
     DataDependenceGraph::EdgeSet edges = ddg().outEdges(mn_);
     for (auto edge: edges) {
         if (edge->edgeReason() == DataDependenceEdge::EDGE_OPERATION) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
             std::cerr << "DRE not allowed due op edge: "
                       << edge->toString()  << std::endl;
 #endif
             return false;
         }
         if ((edge->edgeReason() == DataDependenceEdge::EDGE_REGISTER ||
              edge->edgeReason() ==DataDependenceEdge::EDGE_RA) &&
             edge->dependenceType() == DataDependenceEdge::DEP_RAW) {
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
             std::cerr << "DRE not allowed due edge: "
                       << edge->toString()  << std::endl;
 #endif
             return false;
         }
     }
     return true;
 }

References BFOptimization::ddg(), DataDependenceEdge::DEP_RAW, DataDependenceEdge::EDGE_OPERATION, DataDependenceEdge::EDGE_RA, DataDependenceEdge::EDGE_REGISTER, mn_, and BoostGraph< GraphNode, GraphEdge >::outEdges().

Referenced by operator()().

Here is the call graph for this function:

◆ operator()()

bool BFPostpassLoopDRE::operator() ( )

overridevirtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 54 of file BFPostpassLoopDRE.cc.

                               {
     if (!sched_.killDeadResults()) {
         return false;
     }

     if (!dreAllowed()) {
         return false;
     }

     // Create a copy to prolog.
     prologMN_ = duplicator().getMoveNode(mn_);
     if (prologMN_ == NULL) {
         return false;
     }

     int prologCycle = BF2Scheduler::PROLOG_CYCLE_BIAS + srcCycle_;
     if (prologRM()->canAssign(prologCycle, *prologMN_)) {
         prologRM()->assign(prologCycle, *prologMN_);

         // then remove
         ddg().copyDepsOver(mn_, true, false);
         ddg().dropNode(mn_);
         sched_.nodeKilled(mn_);
         return true;
 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
     } else {
         std::cerr << "\t\t\t\tProlog cycle assign fail for loop-dre: "
                   << prologMN_->toString()
                   << " prolog cycle: " << prologCycle << std::endl;
 #endif
     }
     return false;
 }

References SimpleResourceManager::assign(), BFOptimization::canAssign(), DataDependenceGraph::copyDepsOver(), BFOptimization::ddg(), dreAllowed(), BoostGraph< GraphNode, GraphEdge >::dropNode(), BFOptimization::duplicator(), MoveNodeDuplicator::getMoveNode(), BF2Scheduler::killDeadResults(), mn_, BF2Scheduler::nodeKilled(), BF2Scheduler::PROLOG_CYCLE_BIAS, prologMN_, BFOptimization::prologRM(), BFOptimization::sched_, srcCycle_, and MoveNode::toString().

Here is the call graph for this function:

◆ undoOnlyMe()

void BFPostpassLoopDRE::undoOnlyMe ( )

overridevirtual

Undoes the operations done by this class but not children. This method should be overloaded by most derived classes.

Reimplemented from Reversible.

Definition at line 111 of file BFPostpassLoopDRE.cc.

                                    {
     ddg().restoreNodeFromParent(mn_);
     sched_.nodeResurrected(mn_);
     prologRM()->unassign(*prologMN_);
 }

References BFOptimization::ddg(), mn_, BF2Scheduler::nodeResurrected(), prologMN_, BFOptimization::prologRM(), BoostGraph< GraphNode, GraphEdge >::restoreNodeFromParent(), BFOptimization::sched_, and SimpleResourceManager::unassign().

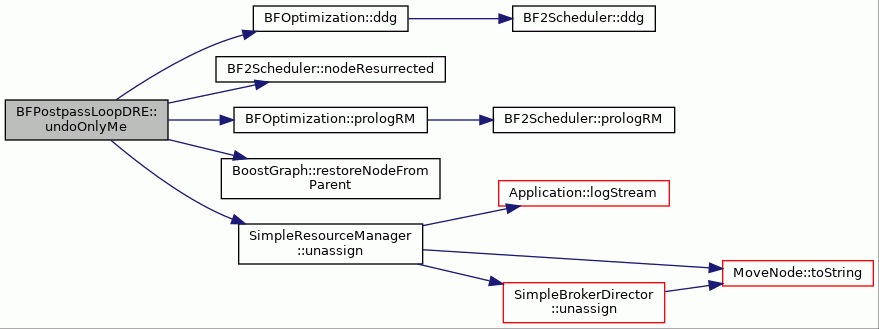

Here is the call graph for this function:

Member Data Documentation

◆ mn_

MoveNode& BFPostpassLoopDRE::mn_

private

Definition at line 55 of file BFPostpassLoopDRE.hh.

Referenced by dreAllowed(), operator()(), and undoOnlyMe().

◆ prologMN_

MoveNode* BFPostpassLoopDRE::prologMN_

private

Definition at line 56 of file BFPostpassLoopDRE.hh.

Referenced by operator()(), and undoOnlyMe().

◆ srcCycle_

int BFPostpassLoopDRE::srcCycle_

private

Definition at line 57 of file BFPostpassLoopDRE.hh.

Referenced by operator()().

The documentation for this class was generated from the following files:
