BFPushDepsUp Class Reference

#include <BFPushDepsUp.hh>

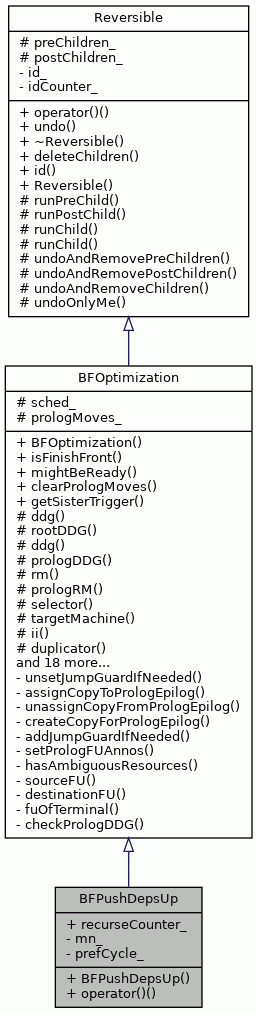

Inheritance diagram for BFPushDepsUp:
Inheritance graph

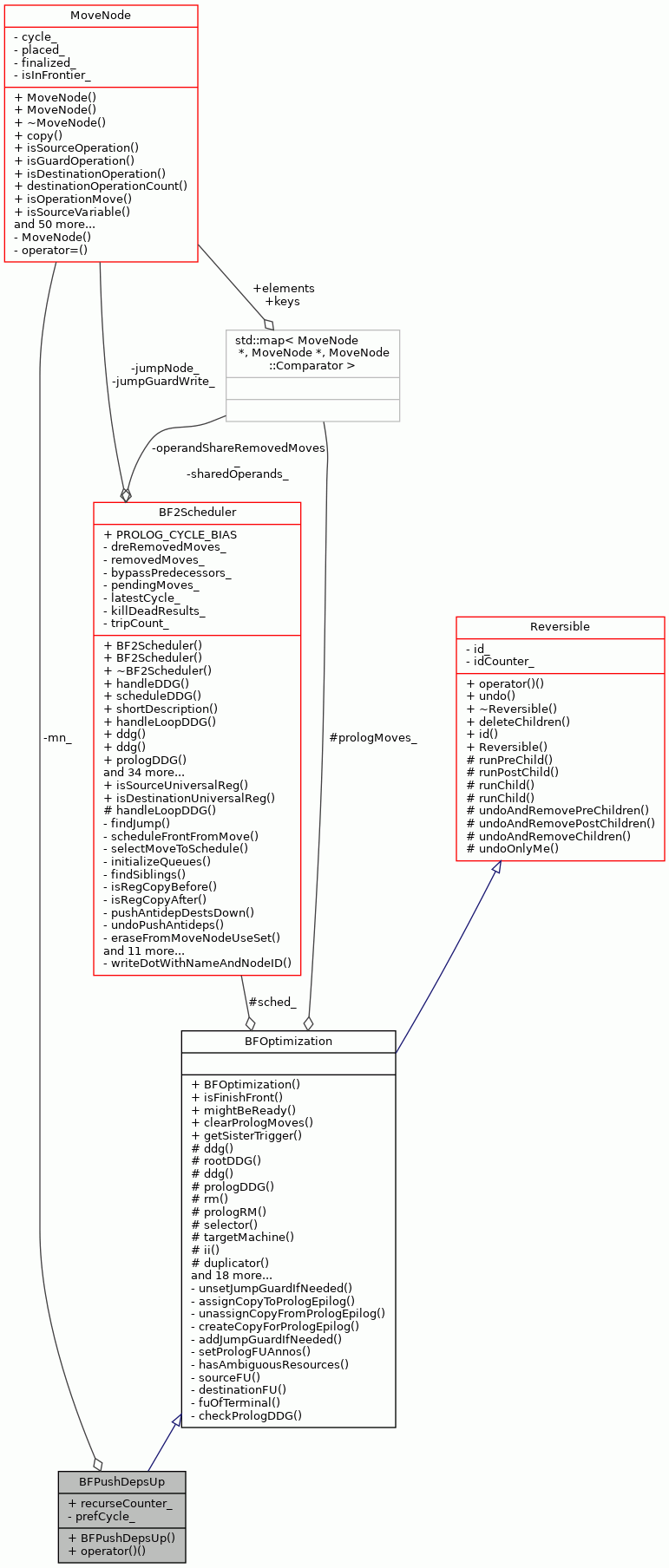

Collaboration diagram for BFPushDepsUp:
Collaboration graph

Public Member Functions

 BFPushDepsUp (BF2Scheduler &sched, MoveNode &mn, int prefCycle)

bool operator() ()

- Public Member Functions inherited from BFOptimization
 BFOptimization (BF2Scheduler &sched)

virtual bool isFinishFront ()

virtual void mightBeReady (MoveNode &mn)

- Public Member Functions inherited from Reversible
virtual void undo ()

virtual ~Reversible ()

void deleteChildren (std::stack< Reversible * > &children)

int id ()

 Reversible ()


Static Public Attributes

static int recurseCounter_ = 0


Private Attributes

MoveNode & mn_

int prefCycle_


Additional Inherited Members

- Static Public Member Functions inherited from BFOptimization
static void clearPrologMoves ()

static MoveNode * getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

- Protected Member Functions inherited from BFOptimization
DataDependenceGraph & ddg ()

DataDependenceGraph * rootDDG ()

const DataDependenceGraph & ddg () const

DataDependenceGraph * prologDDG ()

SimpleResourceManager & rm () const

SimpleResourceManager * prologRM () const

BUMoveNodeSelector & selector ()

const TTAMachine::Machine & targetMachine () const

unsigned int ii () const

MoveNodeDuplicator & duplicator () const

virtual bool assign (int cycle, MoveNode &, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU_=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setJumpGuard (MoveNode &mn)

void unsetJumpGuard (MoveNode &mn)

bool needJumpGuard (const MoveNode &mn, int cycle)

int jumpGuardAvailableCycle (const MoveNode &mn)

bool canBeSpeculated (const Operation &op)

bool canBeSpeculated (const MoveNode &mn)

bool usePrologMove (const MoveNode &mn)

bool canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile * RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool immCountPreventsScheduling (const MoveNode &mn)

- Protected Member Functions inherited from Reversible
bool runPreChild (Reversible *preChild)

bool runPostChild (Reversible *preChild)

bool runChild (std::stack< Reversible * > &children, Reversible *child)

bool runChild (Reversible *child, bool pre)

void undoAndRemovePreChildren ()

void undoAndRemovePostChildren ()

void undoAndRemoveChildren (std::stack< Reversible * > &children)

virtual void undoOnlyMe ()

- Protected Attributes inherited from BFOptimization
BF2Scheduler & sched_

- Protected Attributes inherited from Reversible
std::stack< Reversible * > preChildren_

std::stack< Reversible * > postChildren_

- Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode *, MoveNode *, MoveNode::Comparator > prologMoves_


Detailed Description

Definition at line 43 of file BFPushDepsUp.hh.

Constructor & Destructor Documentation

◆ BFPushDepsUp()

BFPushDepsUp::BFPushDepsUp ( BF2Scheduler &  sched,
MoveNode &  mn,
int  prefCycle
)
inline

Definition at line 46 of file BFPushDepsUp.hh.

47  :
48  BFOptimization(sched),
49  mn_(mn), prefCycle_(prefCycle) {}

Member Function Documentation

◆ operator()()

bool BFPushDepsUp::operator() ( )
virtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 41 of file BFPushDepsUp.cc.

41  {
42
43  if (prefCycle_ < 0) {
44  std::cerr << "push deps up prefcycle negative! "
45  << prefCycle_ << " move: " << mn_.toString() << std::endl;
46  assert(false);
47  }
48 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
49  recurseCounter_++;
50  for (int i = 0; i < recurseCounter_*2; i++)
51  std::cerr << "\t";
52  std::cerr << "\tPushing loop deps up: " << mn_.toString() << std::endl;
53 #endif
54
55  bool pushed = false;
56  DataDependenceGraph::EdgeSet inEdges = ddg().inEdges(mn_);
57  for (auto e : inEdges) {
58  MoveNode& loopDepTail = ddg().tailNode(*e);
59  if (loopDepTail.isScheduled()) {
60  int eLat = ddg().edgeLatency(*e, ii(), &loopDepTail, &mn_);
61  int prefTailCycle = prefCycle_ - eLat;
62 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
63  std::cerr << "\t\t\tmy prefcycle is: " << prefCycle_
64  << " latency is: " << eLat
65  << " so preftailcycle is: " << prefTailCycle
66  << std::endl;
67  std::cerr << "\t\t\t\tedge: " <<e->toString() << std::endl;
68 #endif
69  if (loopDepTail.cycle() > prefTailCycle) {
70  if (prefTailCycle < 0) {
71 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
72  recurseCounter_--;
73 #endif
74  undoAndRemovePreChildren();
75  return false;
76  }
77  BFOptimization* pushMoveUp;
78  if (loopDepTail.isSourceOperation()) {
79  pushMoveUp =
80  new BFPushMoveUp2(sched_, loopDepTail, prefTailCycle);
81  } else {
82  pushMoveUp =
83  new BFPushMoveUp(sched_, loopDepTail, prefTailCycle);
84  }
85  if (runPreChild(pushMoveUp)) {
86 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
87  for (int i = 0; i < recurseCounter_*2; i++)
88  std::cerr << "\t";
89  std::cerr << "\tpushed up succesfully: "
90  << loopDepTail.toString()
91  << " preChildren size: "
92  << preChildren_.size() << std::endl;
93 #endif
94  pushed = true;
95  } else {
96 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
97  for (int i = 0; i < recurseCounter_*2; i++)
98  std::cerr << "\t";
99  std::cerr << "\t\tpushing up fail: "
100  << loopDepTail.toString()
101  << " preChildren size: "
102  << preChildren_.size() << std::endl;
103 #endif
104  undoAndRemovePreChildren();
105 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
106  recurseCounter_--;
107 #endif
108  return false;
109  }
110  }
111  }
112  }
113 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
114  recurseCounter_--;
115 #endif
116
117  return pushed;
118 }

References assert, MoveNode::cycle(), BFOptimization::ddg(), DataDependenceGraph::edgeLatency(), BFOptimization::ii(), BoostGraph< GraphNode, GraphEdge >::inEdges(), MoveNode::isScheduled(), MoveNode::isSourceOperation(), mn_, Reversible::preChildren_, prefCycle_, recurseCounter_, Reversible::runPreChild(), BFOptimization::sched_, BoostGraph< GraphNode, GraphEdge >::tailNode(), MoveNode::toString(), and Reversible::undoAndRemovePreChildren().

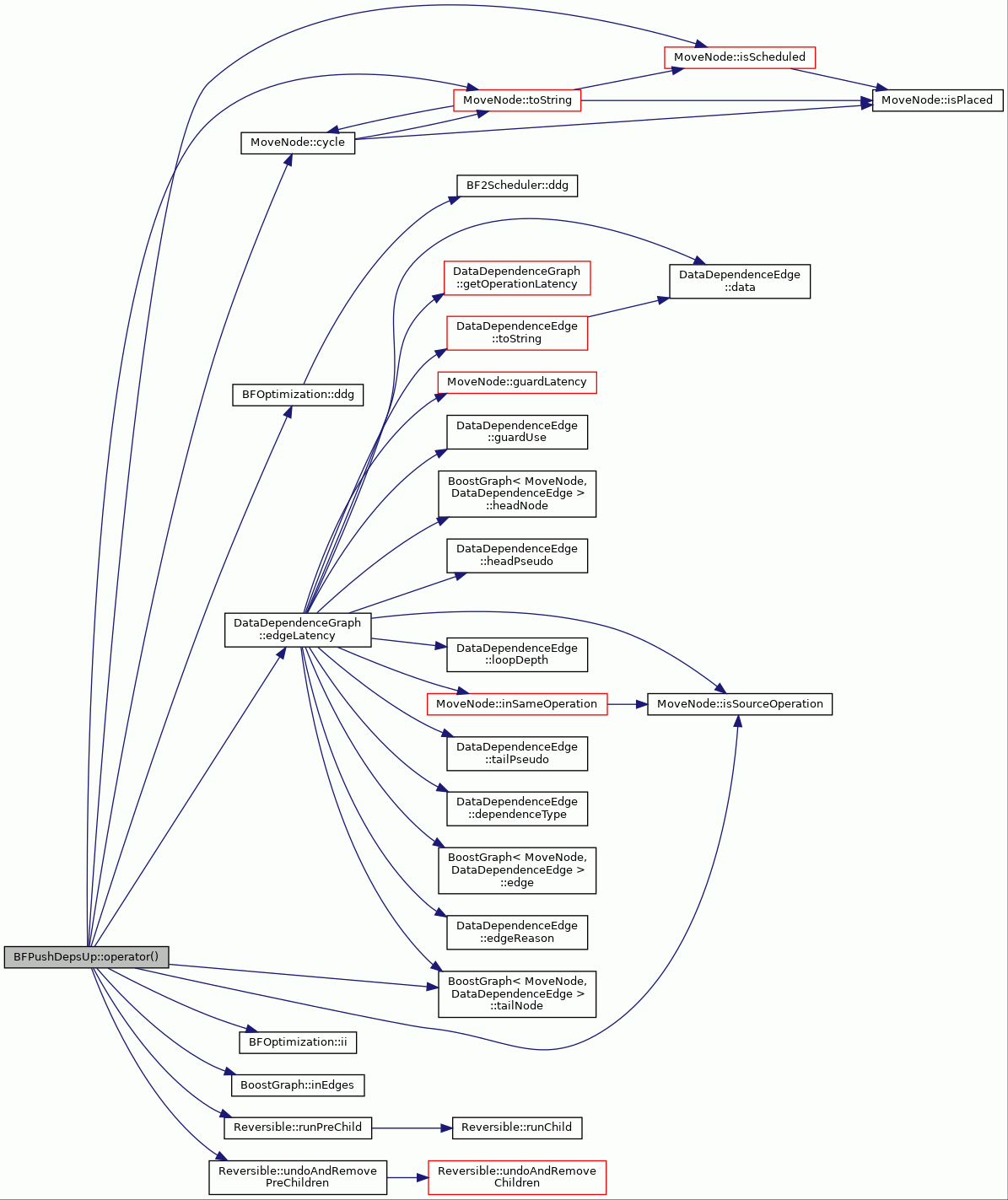

Here is the call graph for this function:

Member Data Documentation

◆ mn_

MoveNode& BFPushDepsUp::mn_
private

Definition at line 52 of file BFPushDepsUp.hh.

Referenced by operator()().

◆ prefCycle_

int BFPushDepsUp::prefCycle_
private

Definition at line 53 of file BFPushDepsUp.hh.

Referenced by operator()().

◆ recurseCounter_

int BFPushDepsUp::recurseCounter_ = 0
static

Definition at line 45 of file BFPushDepsUp.hh.

Referenced by operator()().

The documentation for this class was generated from the following files:
