BFPushMoveUp2 Class Reference

#include <BFPushMoveUp2.hh>

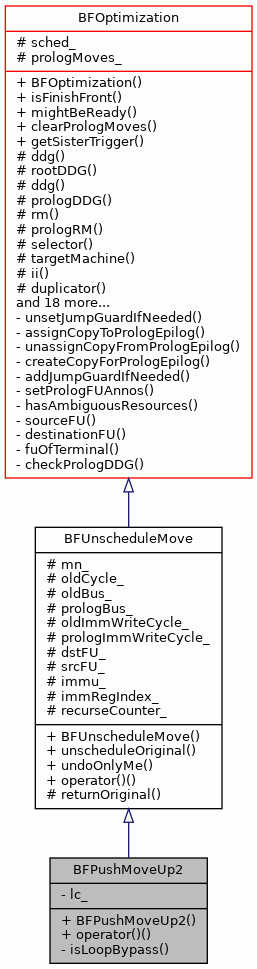

Inheritance diagram for BFPushMoveUp2:
Inheritance graph

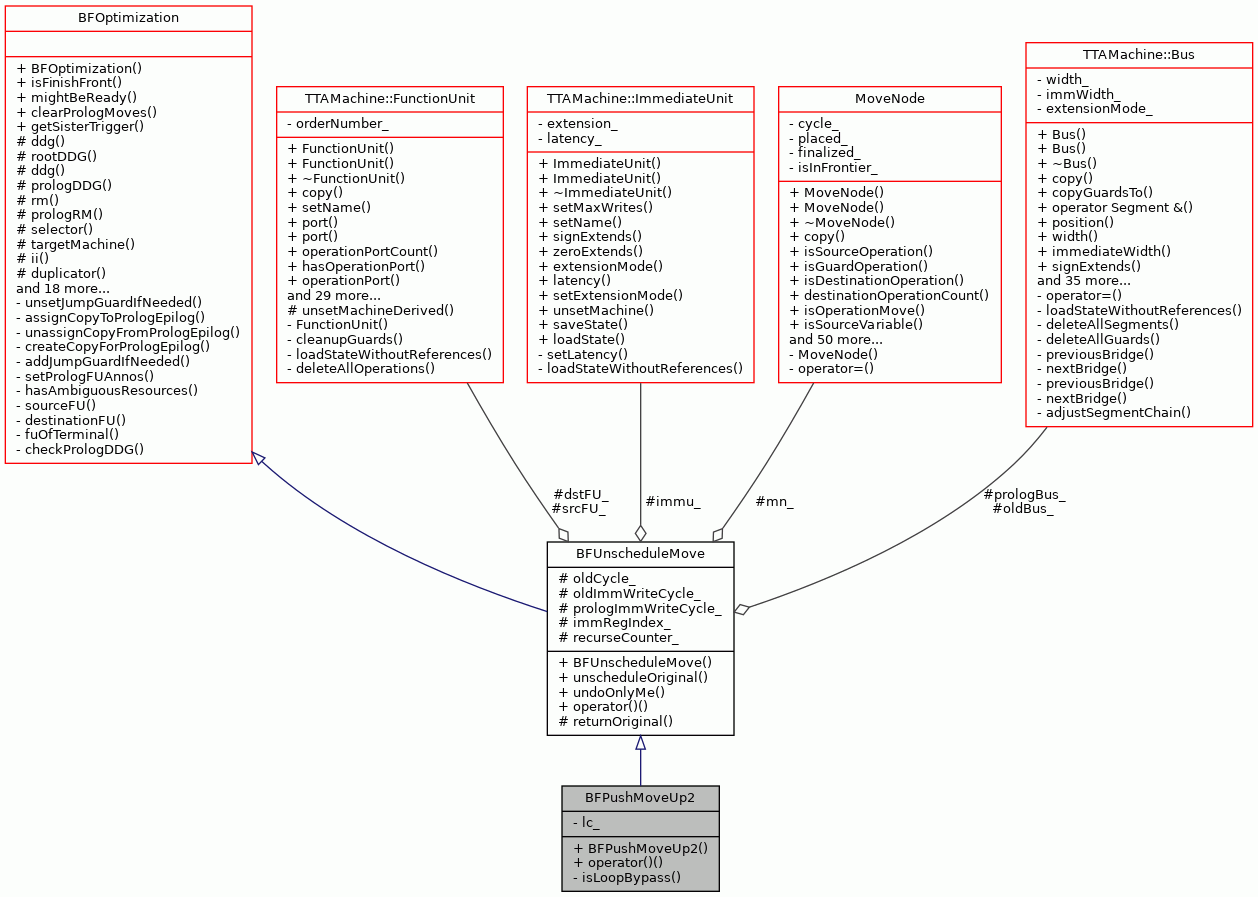

Collaboration diagram for BFPushMoveUp2:
Collaboration graph

Public Member Functions

 BFPushMoveUp2 (BF2Scheduler &sched, MoveNode &mn, int lc)

bool operator() ()

- Public Member Functions inherited from BFUnscheduleMove
 BFUnscheduleMove (BF2Scheduler &sched, MoveNode &mn)

void unscheduleOriginal ()

void undoOnlyMe ()

bool operator() ()

- Public Member Functions inherited from BFOptimization
 BFOptimization (BF2Scheduler &sched)

virtual bool isFinishFront ()

virtual void mightBeReady (MoveNode &mn)

- Public Member Functions inherited from Reversible
virtual void undo ()

virtual ~Reversible ()

void deleteChildren (std::stack< Reversible * > &children)

int id ()

 Reversible ()


Private Member Functions

bool isLoopBypass (MoveNode &mn)


Private Attributes

int lc_


Additional Inherited Members

- Static Public Member Functions inherited from BFOptimization
static void clearPrologMoves ()

static MoveNode * getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

- Protected Member Functions inherited from BFUnscheduleMove
void returnOriginal ()

- Protected Member Functions inherited from BFOptimization
DataDependenceGraph & ddg ()

DataDependenceGraph * rootDDG ()

const DataDependenceGraph & ddg () const

DataDependenceGraph * prologDDG ()

SimpleResourceManager & rm () const

SimpleResourceManager * prologRM () const

BUMoveNodeSelector & selector ()

const TTAMachine::Machine & targetMachine () const

unsigned int ii () const

MoveNodeDuplicator & duplicator () const

virtual bool assign (int cycle, MoveNode &, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU_=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setJumpGuard (MoveNode &mn)

void unsetJumpGuard (MoveNode &mn)

bool needJumpGuard (const MoveNode &mn, int cycle)

int jumpGuardAvailableCycle (const MoveNode &mn)

bool canBeSpeculated (const Operation &op)

bool canBeSpeculated (const MoveNode &mn)

bool usePrologMove (const MoveNode &mn)

bool canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile * RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool immCountPreventsScheduling (const MoveNode &mn)

- Protected Member Functions inherited from Reversible
bool runPreChild (Reversible *preChild)

bool runPostChild (Reversible *preChild)

bool runChild (std::stack< Reversible * > &children, Reversible *child)

bool runChild (Reversible *child, bool pre)

void undoAndRemovePreChildren ()

void undoAndRemovePostChildren ()

void undoAndRemoveChildren (std::stack< Reversible * > &children)

- Protected Attributes inherited from BFUnscheduleMove
MoveNode & mn_

int oldCycle_

const TTAMachine::Bus * oldBus_

const TTAMachine::Bus * prologBus_

int oldImmWriteCycle_

int prologImmWriteCycle_

const TTAMachine::FunctionUnit * dstFU_

const TTAMachine::FunctionUnit * srcFU_

const TTAMachine::ImmediateUnit * immu_

int immRegIndex_

- Protected Attributes inherited from BFOptimization
BF2Scheduler & sched_

- Protected Attributes inherited from Reversible
std::stack< Reversible * > preChildren_

std::stack< Reversible * > postChildren_

- Static Protected Attributes inherited from BFUnscheduleMove
static int recurseCounter_ = 0

- Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode *, MoveNode *, MoveNode::Comparator > prologMoves_


Detailed Description

Definition at line 51 of file BFPushMoveUp2.hh.

Constructor & Destructor Documentation

◆ BFPushMoveUp2()

BFPushMoveUp2::BFPushMoveUp2 ( BF2Scheduler &  sched,
MoveNode &  mn,
int  lc
)
inline

Definition at line 54 of file BFPushMoveUp2.hh.

55  :
56  BFUnscheduleMove(sched, mn), lc_(lc) {}

Member Function Documentation

◆ isLoopBypass()

bool BFPushMoveUp2::isLoopBypass ( MoveNode &  mn)
private

Definition at line 181 of file BFPushMoveUp2.cc.

181  {
182  auto inEdges = ddg().operationInEdges(mn);
183  for (auto e: inEdges) {
184  if (e->isBackEdge()) {
185  return true;
186  }
187  }
188
189  return false;
190 }

References BFOptimization::ddg(), and DataDependenceGraph::operationInEdges().

Referenced by operator()().

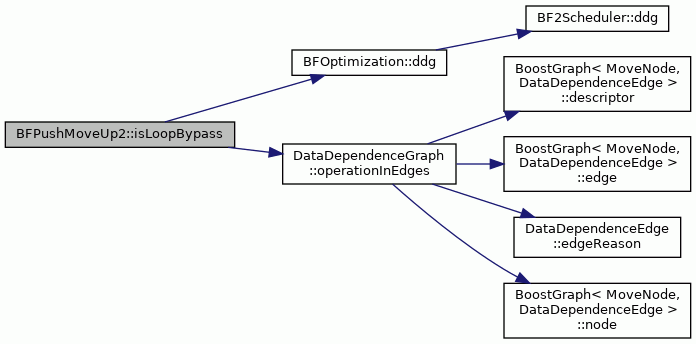

Here is the call graph for this function:

◆ operator()()

bool BFPushMoveUp2::operator() ( )
virtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 48 of file BFPushMoveUp2.cc.

48  {
49
50  if (lc_ == -1) {
51  std::cerr << "incoming lc -1 on pushmoveup!" << std::endl;
52  assert(false);
53  }
54  if (mn_.move().isControlFlowMove()) {
55 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
56  std::cerr << "\t\t|TCannot reschedule control flow move!" << std::endl;
57 #endif
58  return false;
59  }
60
61  if (&mn_ == sched_.guardWriteNode()) {
62 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
63  std::cerr << "\t\t|TCannot reschedule guard write move!" << std::endl;
64 #endif
65  return false;
66  }
67
68  if (!mn_.isSourceOperation()) {
69  return false;
70  }
71
72  // unschedule this (result) move
73  ProgramOperation& po = mn_.sourceOperation();
74  MoveNode* trigger = po.triggeringMove();
75  unscheduleOriginal();
76
77  int ddgLC = ddg().latestCycle(mn_,ii());
78  int ddgEC = ddg().earliestCycle(mn_,ii());
79
80  if (ddgLC == -1) {
81 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
82  std::cerr << "ddg latest cycle -1 in pushmoveup2 of:"
83  << mn_.toString() << std::endl;
84 #endif
85  returnOriginal();
86  return false;
87  }
88
89  int lc = std::min(lc_, ddgLC);
90
91  if (ddgEC > lc) {
92  DataDependenceGraph::NodeSet unschedOperands;
93  DataDependenceGraph::NodeSet unschedResults;
94  // undo the inputs
95  for (int i = 0; i < po.inputMoveCount(); i++) {
96  MoveNode& operand = po.inputMove(i);
97  if (operand.isScheduled()) {
98  if (!runPostChild(new BFUnscheduleMove(sched_, operand))) {
99  undo();
100  return false;
101  } else {
102  unschedOperands.insert(&operand);
103  }
104  }
105  }
106
107  for (int i = 0; i < po.outputMoveCount(); i++) {
108  MoveNode& res = po.outputMove(i);
109  if (res.isScheduled() &&
110  (res.cycle() > lc ||
111  (isLoopBypass(res) && res.cycle()+((signed)ii()) > lc))) {
112  if (!runPostChild(new BFUnscheduleMove(sched_, res))) {
113  undo();
114  return false;
115  } else {
116  unschedResults.insert(&res);
117  }
118 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
119  } else {
120  std::cerr << "res which is not scheduled:" << res.toString()
121  << std::endl;
122 #endif
123  }
124  }
125
126  // now whole op is not scheduled?
127
128  // reschedule other results
129  for (int i = po.outputMoveCount()-1; i >= 0; i--) {
130  MoveNode& res = po.outputMove(i);
131  if (AssocTools::containsKey(unschedResults, &res)) {
132  int myLC = lc - isLoopBypass(res) * ii();
133  if (!runPostChild(
134  new BFScheduleBU(
135  sched_, res, myLC, false, false, false))) {
136  undo();
137  return false;
138  }
139  }
140  }
141
142  // reschedule me.
143  if (!runPostChild(
144  new BFScheduleBU(sched_, mn_, lc, false, false, false))) {
145  undo();
146  return false;
147  }
148
149  // reschdule trigger
150  if (AssocTools::containsKey(unschedOperands, trigger)) {
151  if (!runPostChild(
152  new BFScheduleBU(
153  sched_, *trigger, lc, false, false, false))) {
154  undo();
155  return false;
156  }
157  }
158
159  // reschedule other operands
160  for (int i = 0; i < po.inputMoveCount(); i++) {
161  MoveNode& operand = po.inputMove(i);
162  if (&operand != trigger) {
163  if (AssocTools::containsKey(unschedOperands, &operand)) {
164  if (!runPostChild(
165  new BFScheduleBU(
166  sched_, operand, lc, false, false, false))) {
167  undo();
168  return false;
169  }
170  }
171  }
172  }
173  } else {
174  undo();
175  return false;
176  }
177  assert(mn_.isScheduled());
178  return true;
179 }

References assert, BFUnscheduleMove::BFUnscheduleMove(), AssocTools::containsKey(), MoveNode::cycle(), BFOptimization::ddg(), DataDependenceGraph::earliestCycle(), BF2Scheduler::guardWriteNode(), BFOptimization::ii(), ProgramOperation::inputMove(), ProgramOperation::inputMoveCount(), TTAProgram::Move::isControlFlowMove(), isLoopBypass(), MoveNode::isScheduled(), MoveNode::isSourceOperation(), DataDependenceGraph::latestCycle(), lc_, BFUnscheduleMove::mn_, MoveNode::move(), ProgramOperation::outputMove(), ProgramOperation::outputMoveCount(), BFUnscheduleMove::returnOriginal(), Reversible::runPostChild(), BFOptimization::sched_, MoveNode::sourceOperation(), MoveNode::toString(), ProgramOperation::triggeringMove(), Reversible::undo(), and BFUnscheduleMove::unscheduleOriginal().

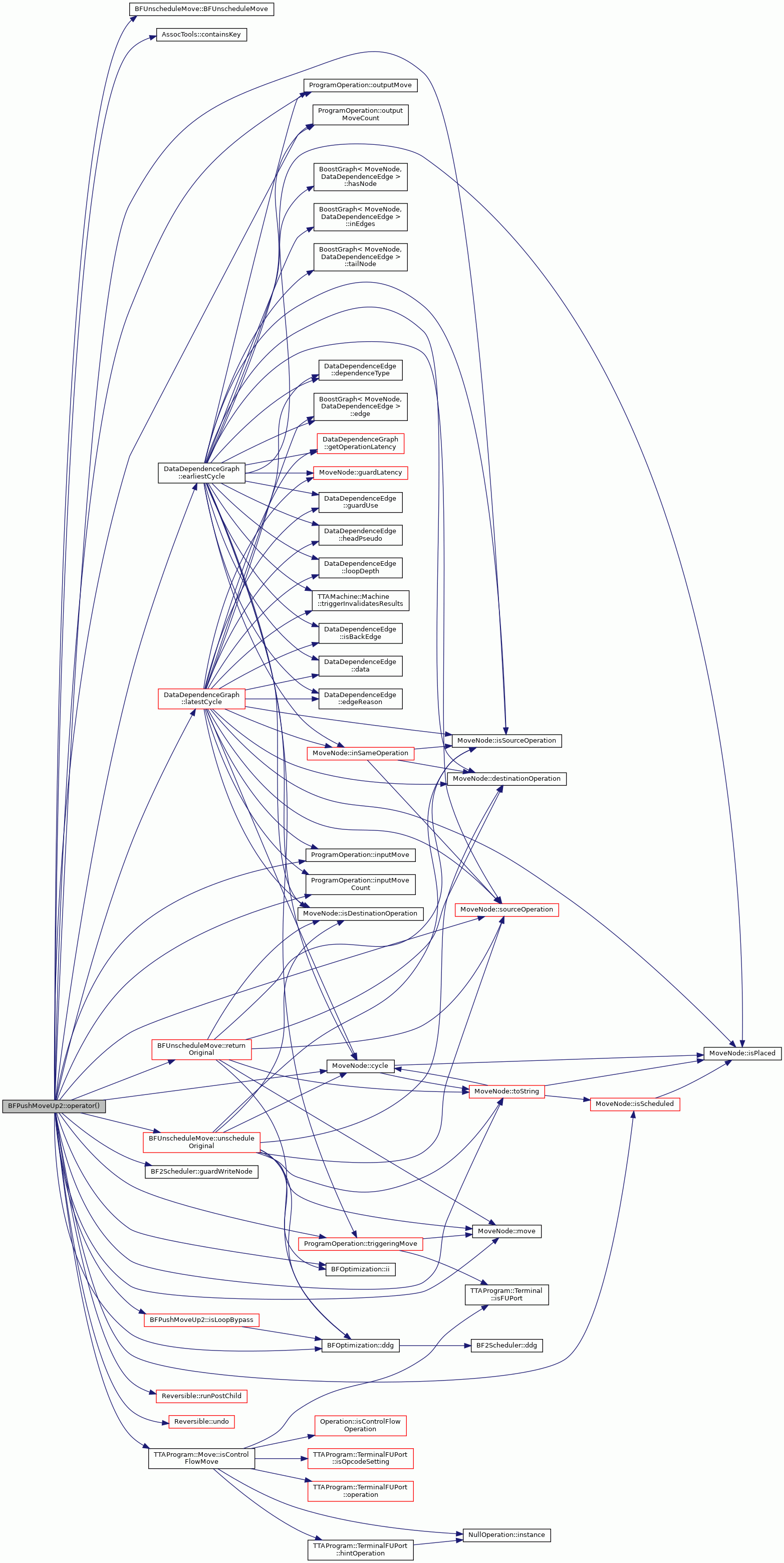

Here is the call graph for this function:

Member Data Documentation

◆ lc_

int BFPushMoveUp2::lc_
private

Definition at line 62 of file BFPushMoveUp2.hh.

Referenced by operator()().
