BFRegCopyAfter Class Reference

#include <BFRegCopyAfter.hh>

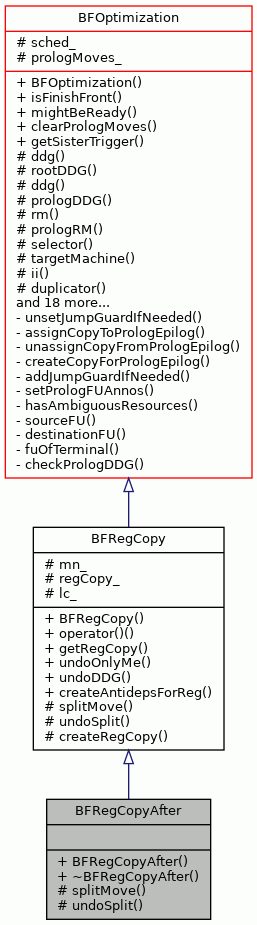

Inheritance diagram for BFRegCopyAfter:
Inheritance graph

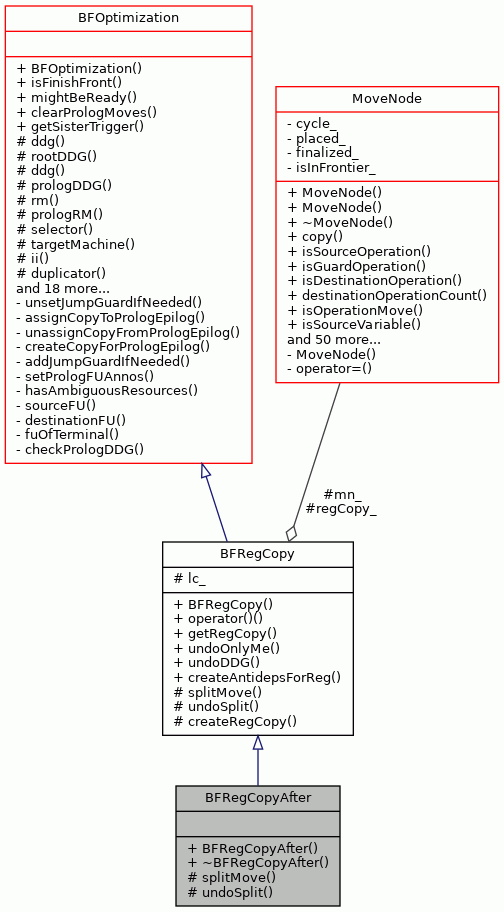

Collaboration diagram for BFRegCopyAfter:
Collaboration graph

Public Member Functions

 BFRegCopyAfter (BF2Scheduler &sched, MoveNode &mn, int lc)

virtual ~BFRegCopyAfter ()

- Public Member Functions inherited from BFRegCopy
 BFRegCopy (BF2Scheduler &sched, MoveNode &mn, int lc)

bool operator() ()

MoveNode * getRegCopy ()

void undoOnlyMe ()

void undoDDG ()

void createAntidepsForReg (MoveNode &firstMove, MoveNode &lastMove, const TTAMachine::RegisterFile &rf, int index, TCEString regName, BasicBlockNode &bbn, bool loopScheduling)

- Public Member Functions inherited from BFOptimization
 BFOptimization (BF2Scheduler &sched)

virtual bool isFinishFront ()

virtual void mightBeReady (MoveNode &mn)

- Public Member Functions inherited from Reversible
virtual void undo ()

virtual ~Reversible ()

void deleteChildren (std::stack< Reversible * > &children)

int id ()

 Reversible ()


Protected Member Functions

bool splitMove (BasicBlockNode &bbn)

void undoSplit ()

- Protected Member Functions inherited from BFRegCopy
MoveNode * createRegCopy (bool after)

- Protected Member Functions inherited from BFOptimization
DataDependenceGraph & ddg ()

DataDependenceGraph * rootDDG ()

const DataDependenceGraph & ddg () const

DataDependenceGraph * prologDDG ()

SimpleResourceManager & rm () const

SimpleResourceManager * prologRM () const

BUMoveNodeSelector & selector ()

const TTAMachine::Machine & targetMachine () const

unsigned int ii () const

MoveNodeDuplicator & duplicator () const

virtual bool assign (int cycle, MoveNode &, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU_=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setJumpGuard (MoveNode &mn)

void unsetJumpGuard (MoveNode &mn)

bool needJumpGuard (const MoveNode &mn, int cycle)

int jumpGuardAvailableCycle (const MoveNode &mn)

bool canBeSpeculated (const Operation &op)

bool canBeSpeculated (const MoveNode &mn)

bool usePrologMove (const MoveNode &mn)

bool canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile * RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool immCountPreventsScheduling (const MoveNode &mn)

- Protected Member Functions inherited from Reversible
bool runPreChild (Reversible *preChild)

bool runPostChild (Reversible *preChild)

bool runChild (std::stack< Reversible * > &children, Reversible *child)

bool runChild (Reversible *child, bool pre)

void undoAndRemovePreChildren ()

void undoAndRemovePostChildren ()

void undoAndRemoveChildren (std::stack< Reversible * > &children)


Additional Inherited Members

- Static Public Member Functions inherited from BFOptimization
static void clearPrologMoves ()

static MoveNode * getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

- Protected Attributes inherited from BFRegCopy
MoveNode & mn_

MoveNode * regCopy_

int lc_

- Protected Attributes inherited from BFOptimization
BF2Scheduler & sched_

- Protected Attributes inherited from Reversible
std::stack< Reversible * > preChildren_

std::stack< Reversible * > postChildren_

- Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode *, MoveNode *, MoveNode::Comparator > prologMoves_


Detailed Description

Definition at line 44 of file BFRegCopyAfter.hh.

Constructor & Destructor Documentation

◆ BFRegCopyAfter()

BFRegCopyAfter::BFRegCopyAfter ( BF2Scheduler &  sched,
MoveNode &  mn,
int  lc
)
inline

Definition at line 46 of file BFRegCopyAfter.hh.

46  :
47  BFRegCopy(sched,mn,lc) {}

◆ ~BFRegCopyAfter()

virtual BFRegCopyAfter::~BFRegCopyAfter ( )
inlinevirtual

Definition at line 48 of file BFRegCopyAfter.hh.

48 {}

Member Function Documentation

◆ splitMove()

bool BFRegCopyAfter::splitMove ( BasicBlockNode &  bbn)
protectedvirtual

Implements BFRegCopy.

Definition at line 51 of file BFRegCopyAfter.cc.

51  {
52
53 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
54  std::cerr << "\t\tBFRegCopyAfter splitting move: "
55  << mn_.toString() << std::endl;
56 #endif
57
58  std::set<const TTAMachine::RegisterFile*,
59  TTAMachine::MachinePart::Comparator>
60  rfs = sched_.possibleTempRegRFs(mn_, true);
61
62  // cannot create reg copy if no temp regs available.
63  if (rfs.empty()) {
64  return false;
65  }
66
67  const TTAMachine::RegisterFile& rf = **rfs.rbegin();
68
69  int lastRegisterIndex = rf.size()-1;
70  TTAMachine::Port* dstRFPort = rf.firstWritePort();
71  TTAMachine::Port* srcRFPort = rf.firstReadPort();
72
73  TTAProgram::TerminalRegister* tempWrite =
74  new TTAProgram::TerminalRegister(*dstRFPort, lastRegisterIndex);
75
76  TTAProgram::TerminalRegister* tempRead =
77  new TTAProgram::TerminalRegister(*srcRFPort, lastRegisterIndex);
78
79  regCopy_->move().setSource(tempRead);
80  mn_.move().setDestination(tempWrite);
81
82  auto iEdges = ddg().rootGraph()->inEdges(mn_);
83  for (auto iEdge : iEdges) {
84  if (!iEdge->isRegisterOrRA() || iEdge->headPseudo()) {
85  continue;
86  }
87
88  //copy guard use edge to the regcopy.
89  if (iEdge->guardUse() &&
90  iEdge->dependenceType() == DataDependenceEdge::DEP_RAW) {
91  MoveNode& tail = ddg().rootGraph()->tailNode(*iEdge);
92  runPostChild(
93  new BFConnectNodes(sched_, tail, *regCopy_, iEdge, true));
94  } else if (iEdge->isFalseDep()) {
95  MoveNode& tail = ddg().rootGraph()->tailNode(*iEdge);
96  runPostChild(new BFRemoveEdge(sched_, tail, mn_, *iEdge));
97  runPostChild(new BFConnectNodes(sched_, tail, *regCopy_, iEdge));
98  }
99  }
100
101  auto oEdges = ddg().rootGraph()->outEdges(mn_);
102  for (auto oEdge : oEdges) {
103  if (!oEdge->isRegisterOrRA() || oEdge->tailPseudo()) {
104  continue;
105  }
106
107  if (oEdge->dependenceType() == DataDependenceEdge::DEP_WAW ||
108  oEdge->dependenceType() == DataDependenceEdge::DEP_RAW) {
109
110  MoveNode& head = ddg().rootGraph()->headNode(*oEdge);
111  runPostChild(new BFRemoveEdge(sched_, mn_, head, *oEdge));
112  runPostChild(new BFConnectNodes(sched_, *regCopy_, head, oEdge));
113  }
114
115  if (oEdge->dependenceType() == DataDependenceEdge::DEP_WAR &&
116  oEdge->guardUse()) {
117  MoveNode& head = ddg().rootGraph()->headNode(*oEdge);
118  runPostChild(
119  new BFConnectNodes(sched_, *regCopy_, head, oEdge, true));
120  }
121  }
122
123  TCEString tempRegName = rf.name() + '.' +
124  Conversion::toString(lastRegisterIndex);
125
126  DataDependenceEdge* newEdge =
127  new DataDependenceEdge(
128  DataDependenceEdge::EDGE_REGISTER,
129  DataDependenceEdge::DEP_RAW, tempRegName);
130
131  runPostChild(new BFConnectNodes(sched_, mn_, *regCopy_, newEdge));
132
133  createAntidepsForReg(
134  mn_, *regCopy_, rf, lastRegisterIndex,
135  tempRegName, bbn, ii()!= 0);
136
137 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
138  std::cerr << " \t\t\tMoves after split: " << mn_.toString() << " and " <<
139  regCopy_->toString() << std::endl;
140 #endif
141 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
142 // writeDotWithNameAndNodeID(ddg(), "regcopy_created_after", mn_);
143
144 // assert(ddg_->maxSourceDistance(mn) != -1);
145 // assert(ddg_->maxSourceDistance(*copyNode) != -1);
146 // std::cerr << "\t\tmn source distance: " << ddg_->maxSourceDistance(mn) << std::endl;
147 // std::cerr << "\t\tmn regcopy source distance: " << ddg_->maxSourceDistance(*copyNode) << std::endl;
148 #endif
149
150  // TODO: bypass regcopies??
151  BFScheduleBU* regCopySched =
152  new BFScheduleBU(sched_,*regCopy_, lc_, true, true, false);
153  bool ok = runPostChild(regCopySched);
154  if (!ok) {
155  undoAndRemovePostChildren();
156  undoSplit();
157  return false;
158  }
159  return true;
160 }

References BFRegCopy::createAntidepsForReg(), BFOptimization::ddg(), DataDependenceEdge::DEP_RAW, DataDependenceEdge::DEP_WAR, DataDependenceEdge::DEP_WAW, DataDependenceEdge::EDGE_REGISTER, TTAMachine::RegisterFile::firstReadPort(), TTAMachine::RegisterFile::firstWritePort(), BoostGraph< GraphNode, GraphEdge >::headNode(), BFOptimization::ii(), BoostGraph< GraphNode, GraphEdge >::inEdges(), BFRegCopy::lc_, BFRegCopy::mn_, MoveNode::move(), TTAMachine::Component::name(), BoostGraph< GraphNode, GraphEdge >::outEdges(), BF2Scheduler::possibleTempRegRFs(), BFRegCopy::regCopy_, BoostGraph< GraphNode, GraphEdge >::rootGraph(), Reversible::runPostChild(), BFOptimization::sched_, TTAProgram::Move::setDestination(), TTAProgram::Move::setSource(), TTAMachine::BaseRegisterFile::size(), BoostGraph< GraphNode, GraphEdge >::tailNode(), Conversion::toString(), MoveNode::toString(), Reversible::undoAndRemovePostChildren(), and undoSplit().

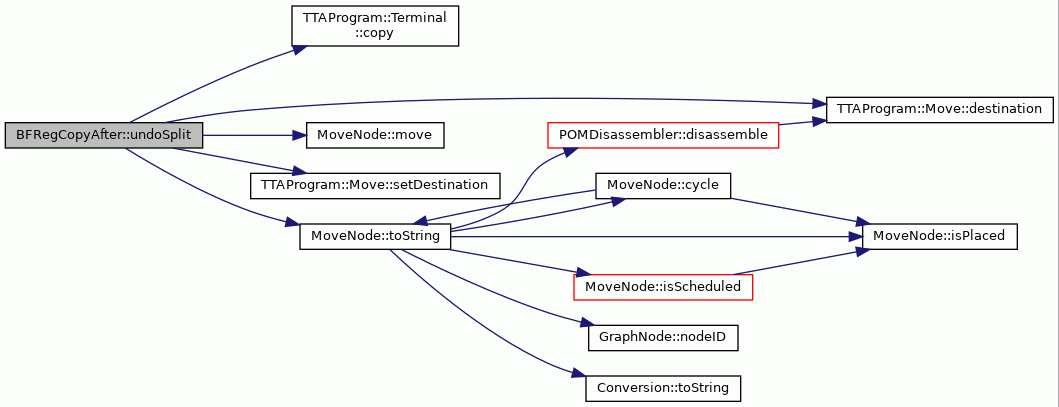

Here is the call graph for this function:

◆ undoSplit()

void BFRegCopyAfter::undoSplit ( )
protectedvirtual

Implements BFRegCopy.

Definition at line 163 of file BFRegCopyAfter.cc.

163  {
164 #ifdef DEBUG_BUBBLEFISH_SCHEDULER
165  std::cerr << "\t\tBFRegCopyAfter undoing split move: " << mn_.toString()
166  << " and " << regCopy_->toString() << std::endl;
167 #endif
168  mn_.move().setDestination(regCopy_->move().destination().copy());
169 }

References TTAProgram::Terminal::copy(), TTAProgram::Move::destination(), BFRegCopy::mn_, MoveNode::move(), BFRegCopy::regCopy_, TTAProgram::Move::setDestination(), and MoveNode::toString().

Referenced by splitMove().

Here is the call graph for this function:
The documentation for this class was generated from the following files:
