BFRemoveGuardsFromSuccs Class Reference

#include <BFRemoveGuardsFromSuccs.hh>

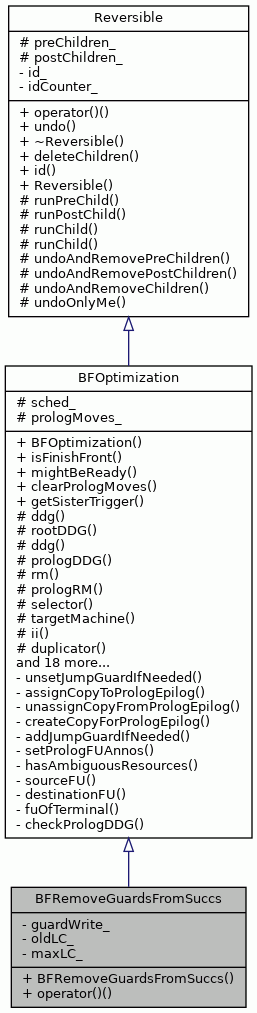

Inheritance diagram for BFRemoveGuardsFromSuccs:
Inheritance graph

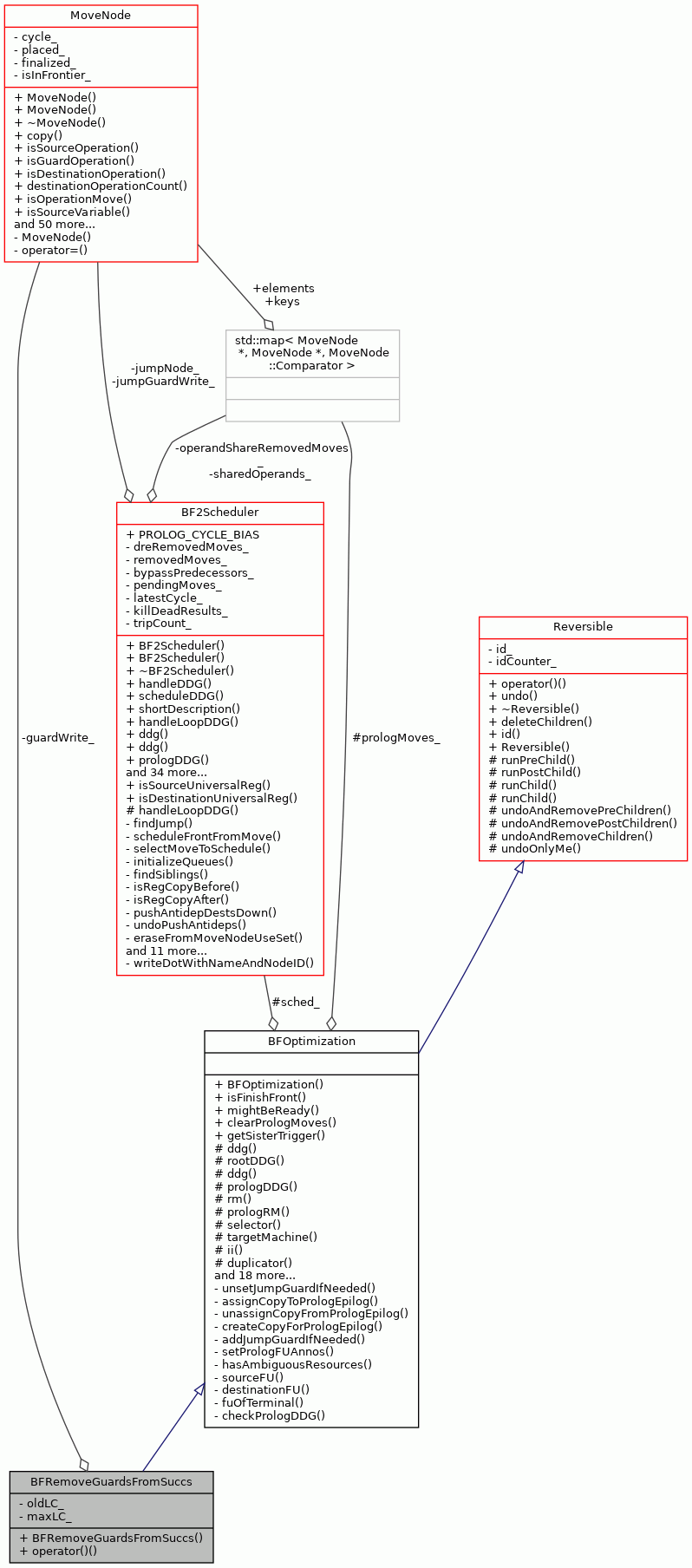

Collaboration diagram for BFRemoveGuardsFromSuccs:
Collaboration graph

Public Member Functions

 BFRemoveGuardsFromSuccs (BF2Scheduler &sched, MoveNode &guardWrite, int oldLC, int maxLC)

bool operator() () override

- Public Member Functions inherited from BFOptimization
 BFOptimization (BF2Scheduler &sched)

virtual bool isFinishFront ()

virtual void mightBeReady (MoveNode &mn)

- Public Member Functions inherited from Reversible
virtual void undo ()

virtual ~Reversible ()

void deleteChildren (std::stack< Reversible * > &children)

int id ()

 Reversible ()


Private Attributes

MoveNode & guardWrite_

int oldLC_

int maxLC_


Additional Inherited Members

- Static Public Member Functions inherited from BFOptimization
static void clearPrologMoves ()

static MoveNode * getSisterTrigger (const MoveNode &mn, const TTAMachine::Machine &mach)

- Protected Member Functions inherited from BFOptimization
DataDependenceGraph & ddg ()

DataDependenceGraph * rootDDG ()

const DataDependenceGraph & ddg () const

DataDependenceGraph * prologDDG ()

SimpleResourceManager & rm () const

SimpleResourceManager * prologRM () const

BUMoveNodeSelector & selector ()

const TTAMachine::Machine & targetMachine () const

unsigned int ii () const

MoveNodeDuplicator & duplicator () const

virtual bool assign (int cycle, MoveNode &, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU_=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGuardWriteCycle=false)

virtual void unassign (MoveNode &mn, bool disposePrologCopy=true)

virtual int rmEC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual int rmLC (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1)

virtual bool canAssign (int cycle, MoveNode &mn, const TTAMachine::Bus *bus=nullptr, const TTAMachine::FunctionUnit *srcFU=nullptr, const TTAMachine::FunctionUnit *dstFU=nullptr, const TTAMachine::Bus *prologBus=nullptr, int immWriteCycle=-1, int prologImmWriteCycle=-1, const TTAMachine::ImmediateUnit *immu=nullptr, int immRegIndex=-1, bool ignoreGWN=false)

bool putAlsoToPrologEpilog (int cycle, MoveNode &mn)

void setPrologSrcFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setPrologDstFUAnno (MoveNode &prologMN, MoveNode &loopMN)

void setJumpGuard (MoveNode &mn)

void unsetJumpGuard (MoveNode &mn)

bool needJumpGuard (const MoveNode &mn, int cycle)

int jumpGuardAvailableCycle (const MoveNode &mn)

bool canBeSpeculated (const Operation &op)

bool canBeSpeculated (const MoveNode &mn)

bool usePrologMove (const MoveNode &mn)

bool canBeScheduled (const MoveNode &mn)

const TTAMachine::RegisterFile * RFReadPortCountPreventsScheduling (const MoveNode &mn)

bool immCountPreventsScheduling (const MoveNode &mn)

- Protected Member Functions inherited from Reversible
bool runPreChild (Reversible *preChild)

bool runPostChild (Reversible *preChild)

bool runChild (std::stack< Reversible * > &children, Reversible *child)

bool runChild (Reversible *child, bool pre)

void undoAndRemovePreChildren ()

void undoAndRemovePostChildren ()

void undoAndRemoveChildren (std::stack< Reversible * > &children)

virtual void undoOnlyMe ()

- Protected Attributes inherited from BFOptimization
BF2Scheduler & sched_

- Protected Attributes inherited from Reversible
std::stack< Reversible * > preChildren_

std::stack< Reversible * > postChildren_

- Static Protected Attributes inherited from BFOptimization
static std::map< MoveNode *, MoveNode *, MoveNode::Comparator > prologMoves_


Detailed Description

Definition at line 45 of file BFRemoveGuardsFromSuccs.hh.

Constructor & Destructor Documentation

◆ BFRemoveGuardsFromSuccs()

BFRemoveGuardsFromSuccs::BFRemoveGuardsFromSuccs ( BF2Scheduler &  sched,
MoveNode &  guardWrite,
int  oldLC,
int  maxLC
)
inline

Definition at line 47 of file BFRemoveGuardsFromSuccs.hh.

48  :
49  BFOptimization(sched),
50  guardWrite_(guardWrite), oldLC_(oldLC), maxLC_(maxLC) {}

Member Function Documentation

◆ operator()()

bool BFRemoveGuardsFromSuccs::operator() ( )
overridevirtual

This performs the operation. Returns true if success, false if fail.

Implements Reversible.

Definition at line 45 of file BFRemoveGuardsFromSuccs.cc.

45  {
46
47  DataDependenceGraph::EdgeSet outEdges = ddg().outEdges(guardWrite_);
48
49 // std::list<BFRemoveGuardFromSucc*> guardRemoves;
50  std::list<MoveNode*> guardRemoveNodes;
51
52  for (auto e: outEdges) {
53  if (e->guardUse() &&
54  e->dependenceType() == DataDependenceEdge::DEP_RAW) {
55  MoveNode& head = ddg().headNode(*e);
56  if (head.move().isUnconditional()) {
57  std::cerr << "guard edge to uncond move?" << head.toString()
58  << std::endl;
59  continue;
60  }
61  if (head.isScheduled()) {
62  // this is not in critical path.
63  int cycle = head.cycle();
64  if (cycle > maxLC_ + head.guardLatency()) {
65  continue;
66  } else {
67  if (canBeSpeculated(head)) {
68  guardRemoveNodes.push_back(&head);
69  } else {
70  maxLC_ = std::min(
71  maxLC_, head.cycle() - head.guardLatency());
72  continue;
73  }
74  }
75  }
76  }
77  }
78
79  for (auto i: guardRemoveNodes) {
80  MoveNode& mn = *i;
81  if (mn.cycle() - mn.guardLatency() < maxLC_) {
82  runPostChild(new BFRemoveGuardFromSucc(sched_, mn));
83  }
84  }
85  if (postChildren_.empty()) {
86  return false;
87  }
88
89  // if could not improve schedule, return everything back the way it was
90  int ddglc = ddg().latestCycle(guardWrite_, ii(), false, false);
91  int rmlc = rm().latestCycle(ddglc, guardWrite_);
92  if (rmlc <= oldLC_) {
93  undo();
94  return false;
95  }
96
97  return true;
98 }

References BFOptimization::canBeSpeculated(), MoveNode::cycle(), BFOptimization::ddg(), DataDependenceEdge::DEP_RAW, MoveNode::guardLatency(), guardWrite_, BoostGraph< GraphNode, GraphEdge >::headNode(), BFOptimization::ii(), MoveNode::isScheduled(), TTAProgram::Move::isUnconditional(), SimpleResourceManager::latestCycle(), DataDependenceGraph::latestCycle(), maxLC_, MoveNode::move(), oldLC_, BoostGraph< GraphNode, GraphEdge >::outEdges(), Reversible::postChildren_, BFOptimization::rm(), Reversible::runPostChild(), BFOptimization::sched_, MoveNode::toString(), and Reversible::undo().

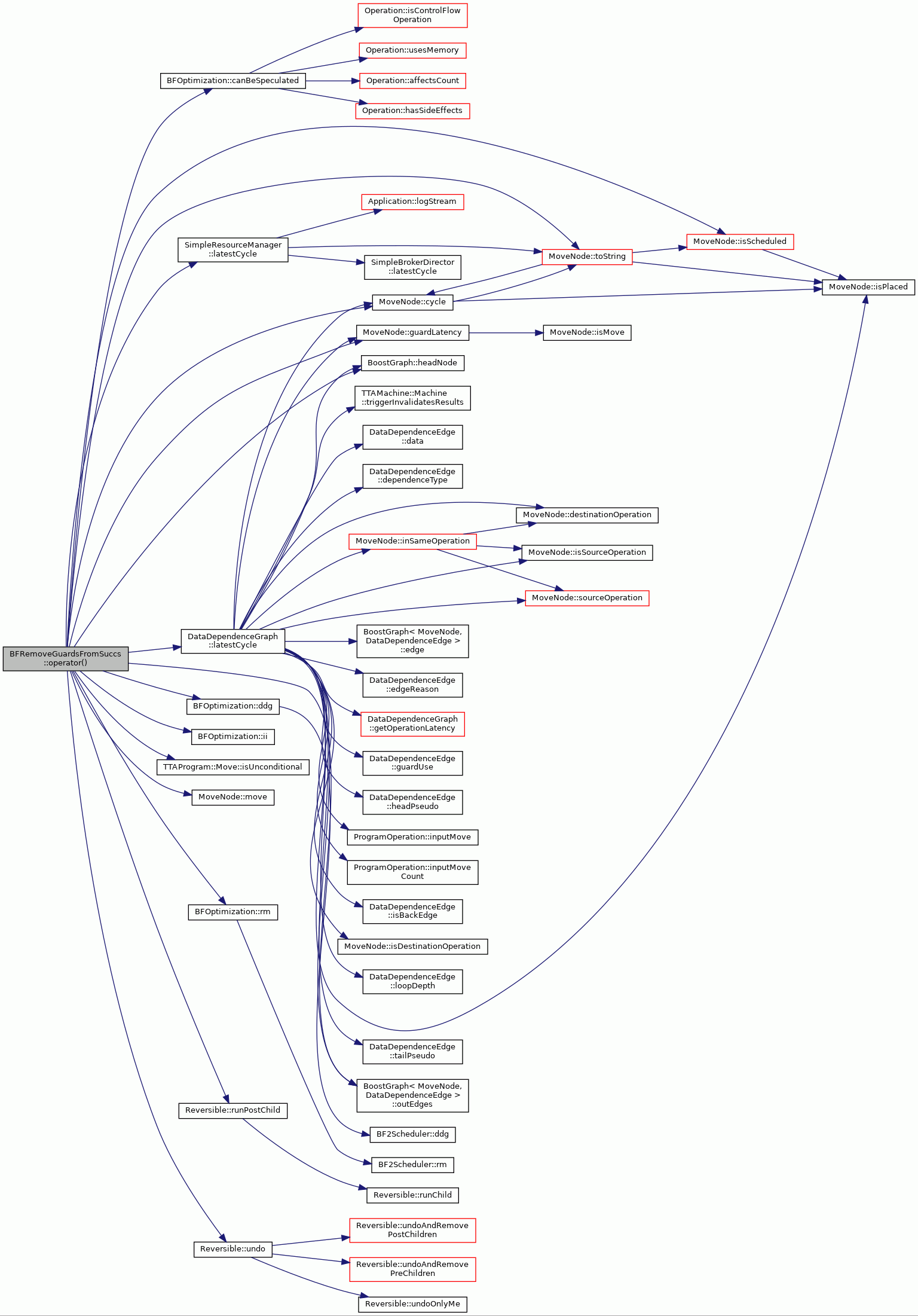

Here is the call graph for this function:

Member Data Documentation

◆ guardWrite_

MoveNode& BFRemoveGuardsFromSuccs::guardWrite_
private

Definition at line 53 of file BFRemoveGuardsFromSuccs.hh.

Referenced by operator()().

◆ maxLC_

int BFRemoveGuardsFromSuccs::maxLC_
private

Definition at line 55 of file BFRemoveGuardsFromSuccs.hh.

Referenced by operator()().

◆ oldLC_

int BFRemoveGuardsFromSuccs::oldLC_
private

Definition at line 54 of file BFRemoveGuardsFromSuccs.hh.

Referenced by operator()().
