#include <BlocksLSU.hh>

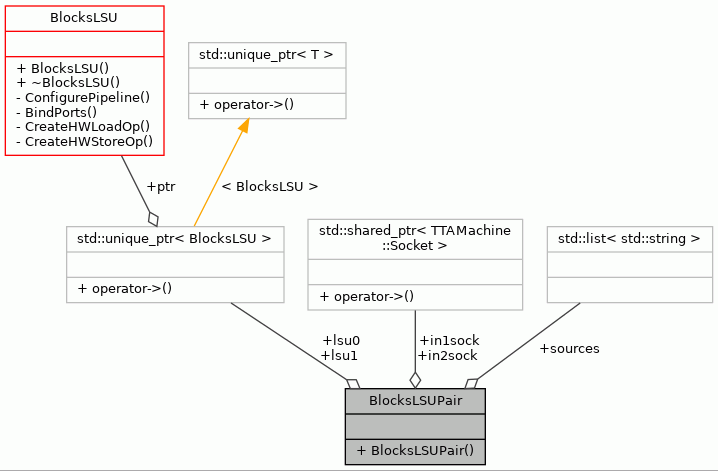

Collaboration diagram for BlocksLSUPair:

Public Member Functions
	BlocksLSUPair (TTAMachine::Machine &mach, const std::string &name, std::list< std::string > sources, TTAMachine::AddressSpace &asData, bool usesOut0, bool usesOut1)

Public Attributes
std::unique_ptr< BlocksLSU >	lsu0

std::unique_ptr< BlocksLSU >	lsu1

std::shared_ptr< TTAMachine::Socket >	in1sock

std::shared_ptr< TTAMachine::Socket >	in2sock

std::list< std::string >	sources

Detailed Description

Definition at line 68 of file BlocksLSU.hh.

Constructor & Destructor Documentation

◆ BlocksLSUPair()

BlocksLSUPair::BlocksLSUPair	(	TTAMachine::Machine &	mach,
		const std::string &	name,
		std::list< std::string >	sources,
		TTAMachine::AddressSpace &	asData,
		bool	usesOut0,
		bool	usesOut1
	)

Constructor for BlocksLSUPair

Parameters

mach	The TTA machine where the LSU pair needs to be added.
name	The name of the LSU pair.
sources	A list of sources that are attached to this unit's input.
asData	The address space containing the program data.
usesOut0	A boolean that indicates whether output port 0 of the FU is used in the Blocks.
usesOut1	A boolean that indicates whether output port 1 of the FU is used in the Blocks.

Definition at line 79 of file BlocksLSU.cc.

     : sources(sources) {
     in1sock = std::make_shared<TTAMachine::Socket>(name + "_in1t");
     in2sock = std::make_shared<TTAMachine::Socket>(name + "_in2");
     mach.addSocket(*(in1sock.get()));
     mach.addSocket(*(in2sock.get()));
     if (usesOut0)
         lsu0.reset(new BlocksLSU(
             mach, name + "_out0", sources, asData, in1sock, in2sock));
     if (usesOut1)
         lsu1.reset(new BlocksLSU(
             mach, name + "_out1", sources, asData, in1sock, in2sock));
 }
