Breakpoint Class Reference

#include <Breakpoint.hh>

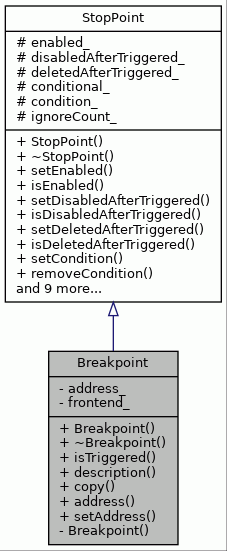

Inheritance diagram for Breakpoint:

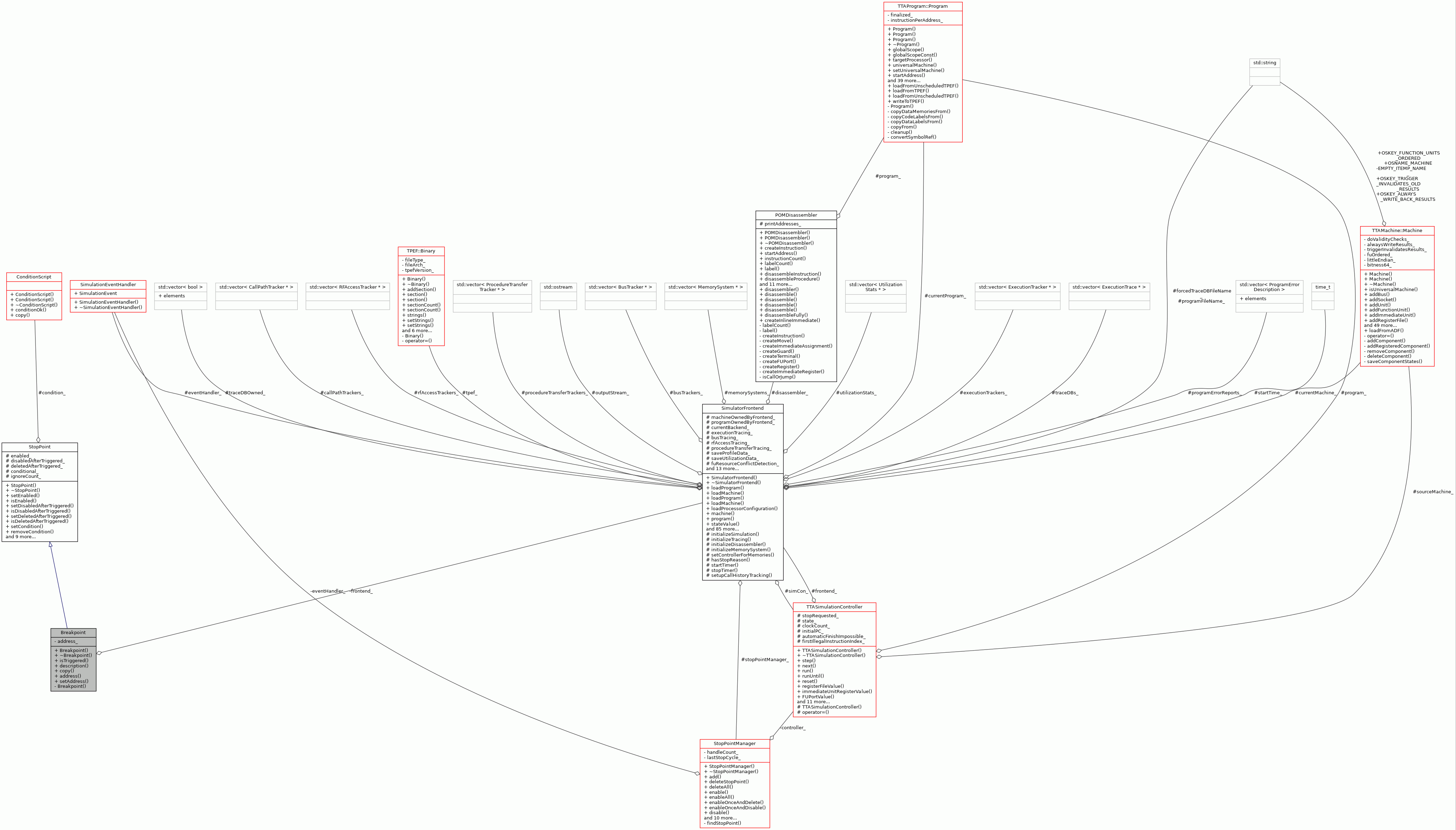

Collaboration diagram for Breakpoint:

Public Member Functions
	Breakpoint (SimulatorFrontend &frontend, InstructionAddress address)
virtual	~Breakpoint ()
virtual bool	isTriggered () const
virtual std::string	description () const
virtual StopPoint *	copy () const
virtual InstructionAddress	address () const
virtual void	setAddress (InstructionAddress newAddress)
Public Member Functions inherited from StopPoint
	StopPoint ()
virtual	~StopPoint ()
virtual void	setEnabled (bool flag)
virtual bool	isEnabled () const
virtual void	setDisabledAfterTriggered (bool flag)
virtual bool	isDisabledAfterTriggered () const
virtual void	setDeletedAfterTriggered (bool flag)
virtual bool	isDeletedAfterTriggered () const
virtual void	setCondition (const ConditionScript &condition)
virtual void	removeCondition ()
virtual const ConditionScript &	condition () const
virtual bool	isConditional () const
virtual void	setIgnoreCount (unsigned int count)
virtual unsigned int	ignoreCount () const
virtual bool	isConditionOK ()
virtual void	decreaseIgnoreCount ()

Private Member Functions
	Breakpoint (const Breakpoint &source)
	Static copying not allowed (should use copy()). More...

Private Attributes
InstructionAddress	address_
	The address of the breakpoint. A breakpoint is fired when PC equals this address. More...
SimulatorFrontend &	frontend_
	The simulator frontend which is used to fetch the current PC. More...

Additional Inherited Members
Protected Attributes inherited from StopPoint
bool	enabled_
	Tells whether the breakpoint is enabled or disabled. More...
bool	disabledAfterTriggered_
	Tells if the breakpoint is disabled after it is triggered the next time. More...
bool	deletedAfterTriggered_
	Tells if the breakpoint is deleted after it is triggered the next time. More...
bool	conditional_
	Tells whether the breakpoint is conditional or not. More...
ConditionScript *	condition_
	The condition which is used to determine whether the breakpoint should be fired or not. More...
unsigned int	ignoreCount_
	The number of times the condition is to be ignored before enabling the breakpoint. More...

Detailed Description

Represents a breakpoint in simulation.

Breakpoint stops simulation when simulation has reached the user set instruction address and general condition for stopping is true.

Definition at line 50 of file Breakpoint.hh.

Constructor & Destructor Documentation

Breakpoint() [1/2]

Breakpoint::Breakpoint	(	SimulatorFrontend &	frontend,
		InstructionAddress	address
	)

Constructor.

Parameters

address

The address.

Definition at line 47 of file Breakpoint.cc.

                                :
    StopPoint(), address_(address), frontend_(frontend) {
}

Referenced by copy().

~Breakpoint()

Breakpoint::~Breakpoint ( )

virtual

Destructor.

Definition at line 56 of file Breakpoint.cc.

                        {
}

Breakpoint() [2/2]

Breakpoint::Breakpoint ( const Breakpoint &  source )

private

Static copying not allowed (should use copy()).

Member Function Documentation

address()

InstructionAddress Breakpoint::address ( ) const

virtual

Returns the address the breakpoint is watching.

Returns

The address.

Definition at line 86 of file Breakpoint.cc.

                          {
    return address_;
}

References address_.

Referenced by ProximDisassemblyGridTable::GetValue(), ProximBreakpointWindow::onBreakpointLookup(), ProximDisassemblyWindow::onRightClick(), and ProximBreakpointWindow::refreshStopPoints().

copy()

StopPoint * Breakpoint::copy ( ) const

virtual

Copy method for dynamically bound copies.

Implements StopPoint.

Definition at line 63 of file Breakpoint.cc.

                       {
    StopPoint* aCopy = new Breakpoint(frontend_, address_);
    if (conditional_) {
        assert(condition_ != NULL);
        ConditionScript* conditionCopy = condition_->copy();
        assert(conditionCopy != NULL);
        aCopy->setCondition(*conditionCopy);
    } else {
        aCopy->removeCondition();
    }
    aCopy->setEnabled(enabled_);
    aCopy->setDisabledAfterTriggered(disabledAfterTriggered_);
    aCopy->setDeletedAfterTriggered(deletedAfterTriggered_);
    aCopy->setIgnoreCount(ignoreCount_);
    return aCopy;
}

References address_, assert, Breakpoint(), StopPoint::condition_, StopPoint::conditional_, ConditionScript::copy(), StopPoint::deletedAfterTriggered_, StopPoint::disabledAfterTriggered_, StopPoint::enabled_, frontend_, StopPoint::ignoreCount_, StopPoint::removeCondition(), StopPoint::setCondition(), StopPoint::setDeletedAfterTriggered(), StopPoint::setDisabledAfterTriggered(), StopPoint::setEnabled(), and StopPoint::setIgnoreCount().

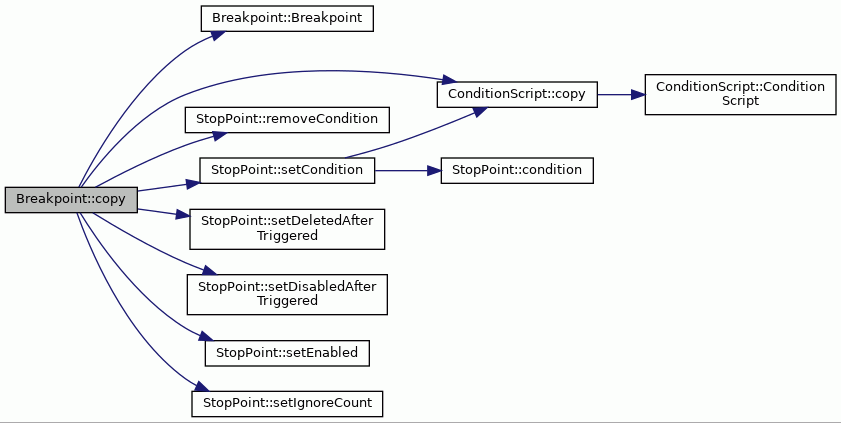

Here is the call graph for this function:

description()

std::string Breakpoint::description ( ) const

virtual

Prints the description string of the stop point.

Each subclass overrides this method to construct a descripting string of itself.

Implements StopPoint.

Definition at line 120 of file Breakpoint.cc.

                              {
    return std::string("at address ") + Conversion::toString(address_) +
        std::string(" ") + StopPoint::description();
}

References address_, StopPoint::description(), and Conversion::toString().

Here is the call graph for this function:

isTriggered()

bool Breakpoint::isTriggered ( ) const

virtual

Returns true in case this break point is triggered.

In case the current program counter is the address this break point is watching, and the general condition is ok, this method returns true.

Returns

The status of the breakpoint.

Implements StopPoint.

Definition at line 109 of file Breakpoint.cc.

                              {
    return frontend_.programCounter() == address_;
}

References address_, frontend_, and SimulatorFrontend::programCounter().

Here is the call graph for this function:

setAddress()

void Breakpoint::setAddress ( InstructionAddress  newAddress )

virtual

Sets the address the breakpoint is watching.

Parameters

newAddress

The address.

Definition at line 96 of file Breakpoint.cc.

                                                    {
    address_ = newAddress;
}

References address_.

Referenced by SimControlLanguageCommand::parseBreakpoint().

Member Data Documentation

address_

InstructionAddress Breakpoint::address_

private

The address of the breakpoint. A breakpoint is fired when PC equals this address.

Definition at line 67 of file Breakpoint.hh.

Referenced by address(), copy(), description(), isTriggered(), and setAddress().

frontend_

SimulatorFrontend& Breakpoint::frontend_

private

The simulator frontend which is used to fetch the current PC.

Definition at line 69 of file Breakpoint.hh.

Referenced by copy(), and isTriggered().

---

The documentation for this class was generated from the following files:

• Breakpoint.hh
• Breakpoint.cc
