#include <CollisionMatrix.hh>

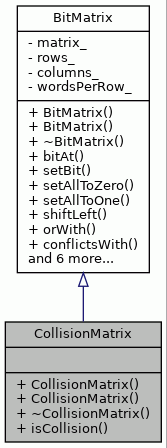

Inheritance diagram for CollisionMatrix:

Collaboration diagram for CollisionMatrix:

Public Member Functions
	CollisionMatrix (FUReservationTableIndex &reservationTables, std::size_t index)

	CollisionMatrix (std::size_t width, std::size_t height, bool value)

virtual	~CollisionMatrix ()

virtual bool	isCollision (std::size_t row, std::size_t column) const

Public Member Functions inherited from BitMatrix
	BitMatrix (int width, int height, bool initialValue)

	BitMatrix (const BitMatrix &another)

virtual	~BitMatrix ()

bool	bitAt (int column, int row) const

void	setBit (int column, int row, bool value)

void	setAllToZero ()

void	setAllToOne ()

void	shiftLeft ()

void	orWith (const BitMatrix &another)

bool	conflictsWith (const BitMatrix &another) const

int	rowCount () const

int	columnCount () const

std::string	toString () const

std::string	toDotString () const

bool	operator== (const BitMatrix &other) const

bool	operator< (const BitMatrix &rightHand) const

Detailed Description

Represents a collision matrix.

Definition at line 49 of file CollisionMatrix.hh.

Constructor & Destructor Documentation

◆ CollisionMatrix() [1/2]

CollisionMatrix::CollisionMatrix	(	FUReservationTableIndex &	reservationTables,
		std::size_t	index
	)

Builds a collision matrix out of a set of reservation tables and an index that points to a row in the index.

The first column is included, that is, it is possible to test whether an operation can be issued at the same cycle than other operation. This is useful for the scheduler.

Parameters

reservationTables	Reservation tables of all operations in the FU.
index	Index of reservation table we compute the matrix for.

Definition at line 62 of file CollisionMatrix.cc.

                      :
     BitMatrix(
         reservationTables.at(index).columnCount(),
         reservationTables.size(), false) {

     ReservationTable& thisOperation = reservationTables.at(index);

     for (int row = 0; row < rowCount(); ++row) {
         const ReservationTable& other = reservationTables.at(row);

         for (int column = 0; column < columnCount(); ++column) {
             BitMatrix::setBit(
                 column, row, thisOperation.conflictsWith(other, column));
         }
     }
 }

References FUReservationTableIndex::at(), BitMatrix::columnCount(), ReservationTable::conflictsWith(), BitMatrix::rowCount(), and BitMatrix::setBit().

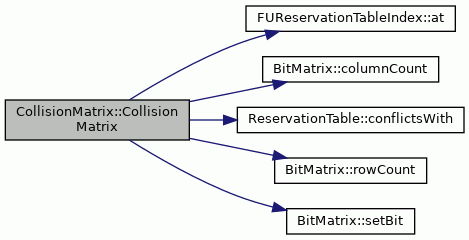

Here is the call graph for this function:

◆ CollisionMatrix() [2/2]

CollisionMatrix::CollisionMatrix	(	std::size_t	width,
		std::size_t	height,
		bool	value = `false`
	)

Constructor.

Builds a collision matrix with given dimensions and with each value the same.

Definition at line 87 of file CollisionMatrix.cc.

                                                            :
     BitMatrix(width, height, value) {
 }

◆ ~CollisionMatrix()

CollisionMatrix::~CollisionMatrix ( )

virtual

Destructor.

Definition at line 95 of file CollisionMatrix.cc.

95 {

96 }

Member Function Documentation

◆ isCollision()

bool CollisionMatrix::isCollision	(	std::size_t	row,
		std::size_t	column
	)		const

virtual

Returns the value of the collision matrix at the given location.

Parameters

row	The row number (operation).
column	The column number (cycle).

Returns: The value.

Definition at line 106 of file CollisionMatrix.cc.

                                                                   {
     return BitMatrix::bitAt(column, row);
 }

References BitMatrix::bitAt().

Referenced by FUFiniteStateAutomaton::resolveState().
