CompiledSimulationPimpl Class Reference

#include <CompiledSimulationPimpl.hh>

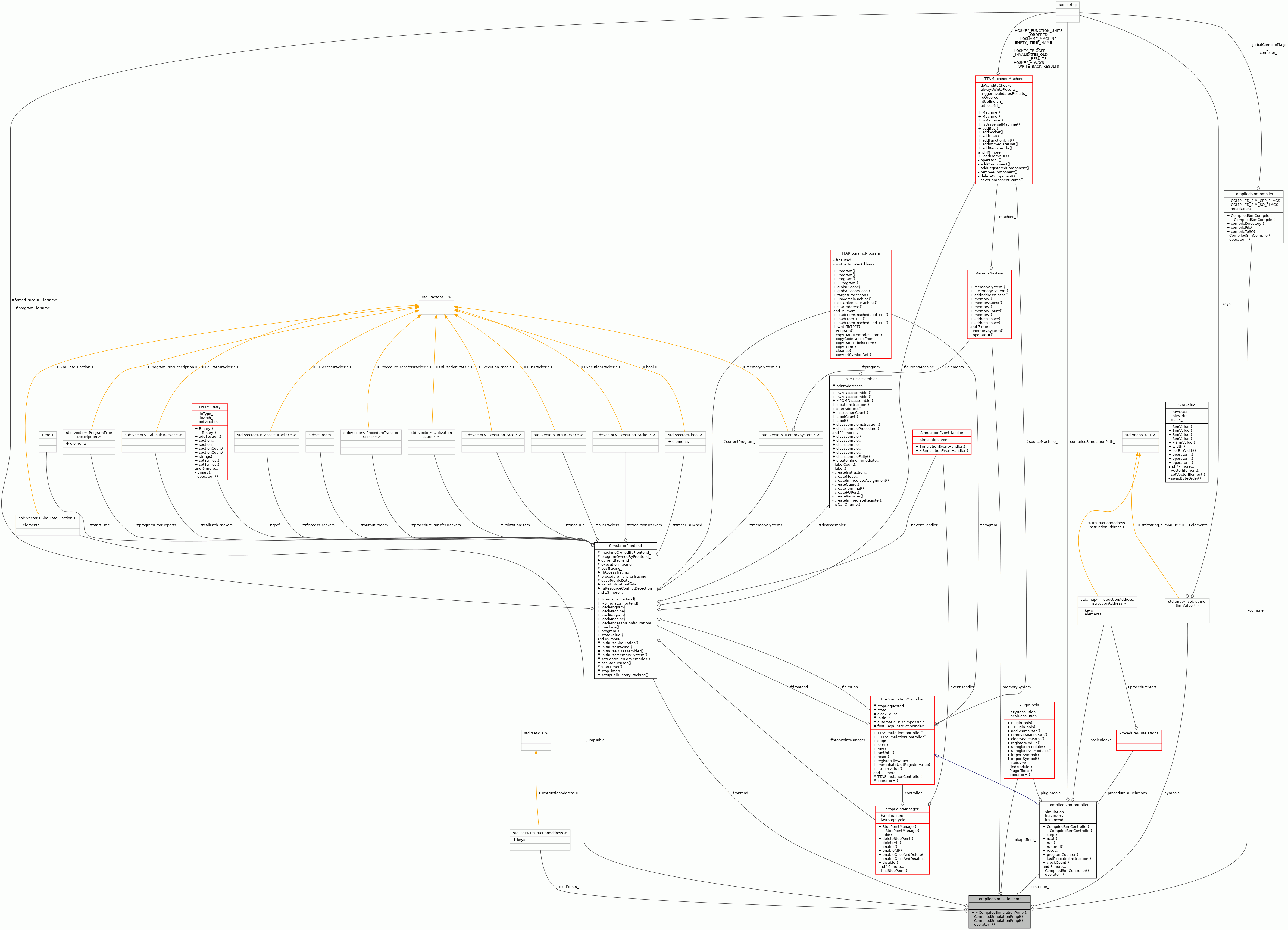

Collaboration diagram for CompiledSimulationPimpl:

Public Member Functions
	~CompiledSimulationPimpl ()

Private Types
typedef std::map< std::string, SimValue * >	Symbols
	Type for symbol map: string = symbolname, SimValue* = value location. More...

Private Member Functions
	CompiledSimulationPimpl ()
	CompiledSimulationPimpl (const CompiledSimulationPimpl &)
	Copying not allowed. More...
CompiledSimulationPimpl &	operator= (const CompiledSimulationPimpl &)
	Assignment not allowed. More...

Private Attributes
MemorySystem *	memorySystem_
	The memory system. More...
SimulatorFrontend *	frontend_
	The simulator frontend. More...
CompiledSimController *	controller_
	Simulation controller. More...
Symbols	symbols_
	A Symbol map for easily getting the SimValues out of the simulation. More...
JumpTable	jumpTable_
	The jump table. More...
std::set< InstructionAddress >	exitPoints_
	Program exit points in a set. More...
CompiledSimCompiler	compiler_
	The Compiled Simulation compiler. More...
PluginTools	pluginTools_
	Plugintools used to load the compiled .so files. More...

Friends
class	CompiledSimulation

Detailed Description

Definition at line 53 of file CompiledSimulationPimpl.hh.

Member Typedef Documentation

Symbols

typedef std::map<std::string, SimValue*> CompiledSimulationPimpl::Symbols

private

Type for symbol map: string = symbolname, SimValue* = value location.

Definition at line 72 of file CompiledSimulationPimpl.hh.

Constructor & Destructor Documentation

~CompiledSimulationPimpl()

CompiledSimulationPimpl::~CompiledSimulationPimpl

(

)

Default destructor

Definition at line 51 of file CompiledSimulationPimpl.cc.

                                                  {
}

CompiledSimulationPimpl() [1/2]

CompiledSimulationPimpl::CompiledSimulationPimpl ( )

private

Default constructor

The simulation plugins must be loaded globally and lazily. Lazily because the plugins might not be loaded in a correct order (symbols referred from a plugin that are going to be imported from a latter plugin).

Definition at line 44 of file CompiledSimulationPimpl.cc.

                                                 :
    pluginTools_(true, false) {
}

CompiledSimulationPimpl() [2/2]

CompiledSimulationPimpl::CompiledSimulationPimpl ( const CompiledSimulationPimpl &  )

private

Copying not allowed.

Member Function Documentation

operator=()

CompiledSimulationPimpl& CompiledSimulationPimpl::operator= ( const CompiledSimulationPimpl &  )

private

Assignment not allowed.

Friends And Related Function Documentation

CompiledSimulation

friend class CompiledSimulation

friend

Definition at line 55 of file CompiledSimulationPimpl.hh.

Member Data Documentation

compiler_

CompiledSimCompiler CompiledSimulationPimpl::compiler_

private

The Compiled Simulation compiler.

Definition at line 82 of file CompiledSimulationPimpl.hh.

Referenced by CompiledSimulation::compileAndLoadFunction().

controller_

CompiledSimController* CompiledSimulationPimpl::controller_

private

Simulation controller.

Definition at line 69 of file CompiledSimulationPimpl.hh.

Referenced by CompiledSimulation::basicBlockStart(), CompiledSimulation::compileAndLoadFunction(), CompiledSimulation::CompiledSimulation(), CompiledSimulation::FUPortValue(), CompiledSimulation::immediateUnitRegisterValue(), CompiledSimulation::moveExecutionCount(), and CompiledSimulation::registerFileValue().

exitPoints_

std::set<InstructionAddress> CompiledSimulationPimpl::exitPoints_

private

Program exit points in a set.

Definition at line 79 of file CompiledSimulationPimpl.hh.

Referenced by CompiledSimulation::CompiledSimulation(), and CompiledSimulation::moveExecutionCount().

frontend_

SimulatorFrontend* CompiledSimulationPimpl::frontend_

private

The simulator frontend.

Definition at line 67 of file CompiledSimulationPimpl.hh.

Referenced by CompiledSimulation::CompiledSimulation(), CompiledSimulation::cycleEnd(), and CompiledSimulation::frontend().

jumpTable_

JumpTable CompiledSimulationPimpl::jumpTable_

private

The jump table.

Definition at line 76 of file CompiledSimulationPimpl.hh.

Referenced by CompiledSimulation::getSimulateFunction(), CompiledSimulation::resizeJumpTable(), and CompiledSimulation::setJumpTargetFunction().

memorySystem_

MemorySystem* CompiledSimulationPimpl::memorySystem_

private

The memory system.

Definition at line 65 of file CompiledSimulationPimpl.hh.

Referenced by CompiledSimulation::CompiledSimulation(), and CompiledSimulation::memorySystem().

pluginTools_

PluginTools CompiledSimulationPimpl::pluginTools_

private

Plugintools used to load the compiled .so files.

Definition at line 84 of file CompiledSimulationPimpl.hh.

Referenced by CompiledSimulation::compileAndLoadFunction().

symbols_

Symbols CompiledSimulationPimpl::symbols_

private

A Symbol map for easily getting the SimValues out of the simulation.

Definition at line 74 of file CompiledSimulationPimpl.hh.

Referenced by CompiledSimulation::addSymbol(), CompiledSimulation::FUPortValue(), CompiledSimulation::getSymbolValue(), CompiledSimulation::immediateUnitRegisterValue(), and CompiledSimulation::registerFileValue().

---

The documentation for this class was generated from the following files:

• CompiledSimulationPimpl.hh
• CompiledSimulationPimpl.cc
