MemorySystem Class Reference

#include <MemorySystem.hh>

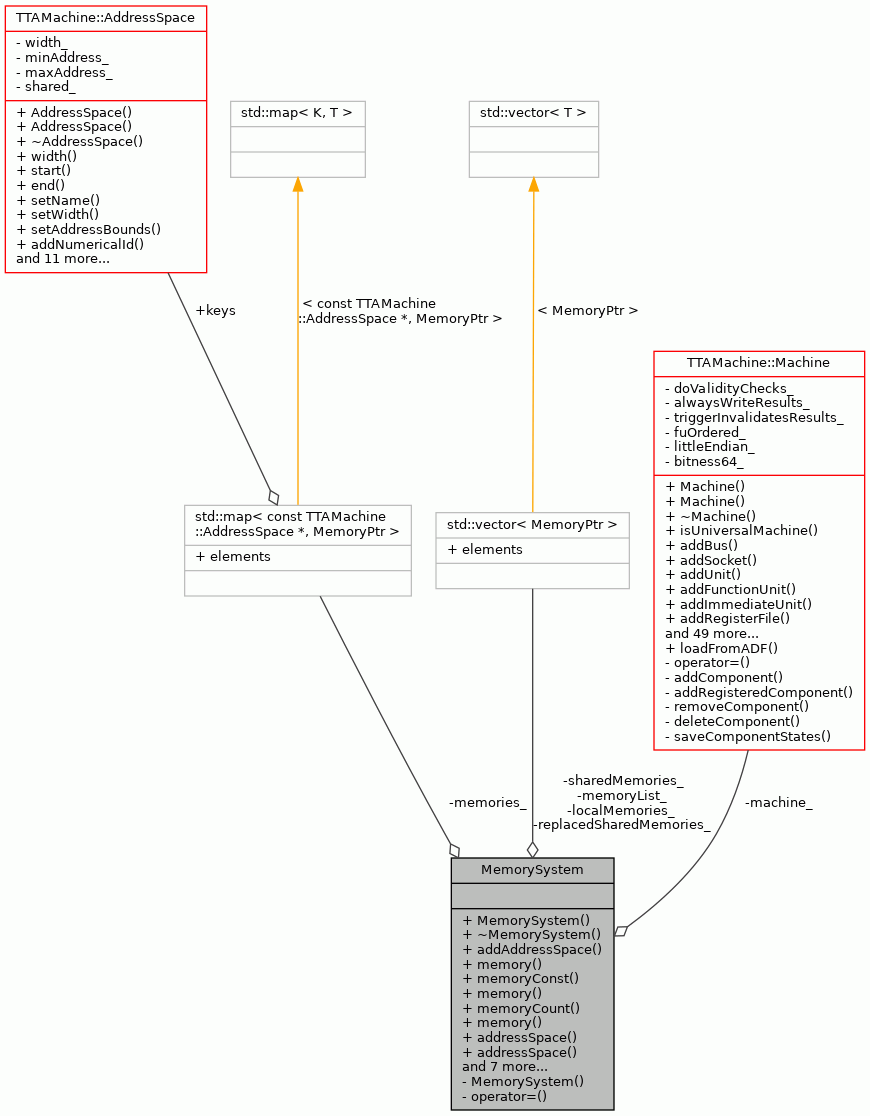

Collaboration diagram for MemorySystem:

Public Types
typedef boost::shared_ptr< Memory >	MemoryPtr

Public Member Functions
	MemorySystem (const TTAMachine::Machine &machine)
virtual	~MemorySystem ()
void	addAddressSpace (const TTAMachine::AddressSpace &as, MemoryPtr mem, bool shared=true)
MemoryPtr	memory (const TTAMachine::AddressSpace &as)
const MemoryPtr	memoryConst (const TTAMachine::AddressSpace &as) const
MemoryPtr	memory (const std::string &addressSpaceName)
unsigned int	memoryCount () const
MemoryPtr	memory (unsigned int i)
const TTAMachine::AddressSpace &	addressSpace (unsigned int i)
const TTAMachine::AddressSpace &	addressSpace (const std::string &name)
void	shareMemoriesWith (MemorySystem &other)
void	advanceClockOfLocalMemories ()
void	advanceClockOfSharedMemories ()
void	resetAllMemories ()
void	fillAllMemoriesWithZero ()
void	deleteSharedMemories ()
bool	hasMemory (const TCEString &aSpaceName) const

Private Types
typedef std::map< const TTAMachine::AddressSpace *, MemoryPtr >	MemoryMap
	Maps address spaces to memory instances. More...
typedef std::vector< MemoryPtr >	MemoryContainer
	Container for memory instances for faster traversal. More...

Private Member Functions
	MemorySystem (const MemorySystem &)
	Copying not allowed. More...
MemorySystem &	operator= (const MemorySystem &)
	Assignment not allowed. More...

Private Attributes
const TTAMachine::Machine *	machine_
	Machine in which MemorySystem belongs to. More...
MemoryMap	memories_
	Contains all memories indexed by AddressSpaces. More...
MemoryContainer	memoryList_
	List of all the memories for faster traversal. More...
MemoryContainer	sharedMemories_
	All memories shared between multiple cores. More...
MemoryContainer	localMemories_
	All private/local memories used by a single core only. More...
MemoryContainer	replacedSharedMemories_
	Shared memories which have been replaced with a shared memory from another core. Just for garbage removal. More...

Detailed Description

The collection of memory simulation models seen by a single core.

Definition at line 55 of file MemorySystem.hh.

Member Typedef Documentation

MemoryContainer

typedef std::vector<MemoryPtr> MemorySystem::MemoryContainer

private

Container for memory instances for faster traversal.

Definition at line 95 of file MemorySystem.hh.

MemoryMap

typedef std::map<const TTAMachine::AddressSpace*, MemoryPtr> MemorySystem::MemoryMap

private

Maps address spaces to memory instances.

Definition at line 92 of file MemorySystem.hh.

MemoryPtr

typedef boost::shared_ptr<Memory> MemorySystem::MemoryPtr

Definition at line 57 of file MemorySystem.hh.

Constructor & Destructor Documentation

MemorySystem() [1/2]

MemorySystem::MemorySystem ( const TTAMachine::Machine &  machine )

explicit

Constructor.

Parameters

machine

Machine in which MemorySystem belongs to.

Definition at line 54 of file MemorySystem.cc.

                                                 :
    machine_(&machine) {
}

~MemorySystem()

MemorySystem::~MemorySystem ( )

virtual

Destructor.

Deletes all the Memory instances.

Definition at line 73 of file MemorySystem.cc.

                            {
    localMemories_.clear();
    replacedSharedMemories_.clear();
}

References localMemories_, and replacedSharedMemories_.

MemorySystem() [2/2]

MemorySystem::MemorySystem ( const MemorySystem &  )

private

Copying not allowed.

Member Function Documentation

addAddressSpace()

void MemorySystem::addAddressSpace	(	const TTAMachine::AddressSpace &	as,
		MemoryPtr	mem,
		bool	shared = true
	)

Adds AddressSpace and corresponding memory to data structure.

Parameters

as	AddressSpace to be added.
mem	Memory to be added. Becomes property of the MemorySystem, that is, MemorySystems is responsible for deallocating it.
shared	If the given Memory instace is shared by multiple MemorySystems (cores).

Exceptions

IllegalRegistration

If the AddressSpace does not belong to the target machine.

Definition at line 90 of file MemorySystem.cc.

                                                        {
    Machine::AddressSpaceNavigator nav = machine_->addressSpaceNavigator();
    if (!nav.hasItem(as.name())) {
        string msg = "Address space doesn't belong to the target machine";
        throw IllegalRegistration(__FILE__, __LINE__, __func__, msg);
    }

    memories_[&as] = mem;

    if (shared) {
        sharedMemories_.push_back(mem);
    } else {
        localMemories_.push_back(mem);
    }
    memoryList_.push_back(mem);
}

References __func__, TTAMachine::Machine::addressSpaceNavigator(), TTAMachine::Machine::Navigator< ComponentType >::hasItem(), localMemories_, machine_, memories_, memoryList_, TTAMachine::Component::name(), and sharedMemories_.

Referenced by SimulatorFrontend::initializeMemorySystem().

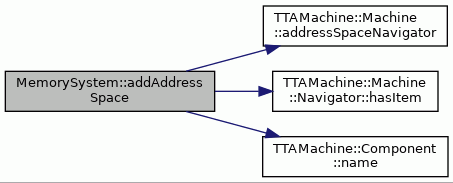

Here is the call graph for this function:

addressSpace() [1/2]

const AddressSpace & MemorySystem::addressSpace

(

const std::string &

name

)

Returns the address space with the given name.

Parameters

name	The name of the address space.

Returns

AddressSpace.

Exceptions

InstanceNotFound

if the address space is not found.

Definition at line 286 of file MemorySystem.cc.

                                                {
    MemoryMap::const_iterator iter = memories_.begin();
    while (iter != memories_.end()) {
        if ((*iter).first->name() == name)
            return *((*iter).first);
        ++iter;
    }

    throw InstanceNotFound(
        __FILE__, __LINE__, __func__,
        "Address space with the given name not found.");
}

References __func__, and memories_.

addressSpace() [2/2]

const AddressSpace & MemorySystem::addressSpace

(

unsigned int

i

)

Returns the address space of the ith Memory instance in the memory system.

Returns

Address Space of the memory instance.

Exceptions

OutOfRange

if i is out of bounds.

Definition at line 261 of file MemorySystem.cc.

                                         {
    if (i > memories_.size() - 1) {
        const string msg =
        "Index out of bounds. Count of memories is " +
        Conversion::toString(memoryCount());
        throw OutOfRange(__FILE__, __LINE__, __func__, msg);
    }

    unsigned int foundCount = 0;
    MemoryMap::const_iterator iter = memories_.begin();
    while (iter != memories_.end() && foundCount < i) {
        ++iter;
        ++foundCount;
    }
    return *((*iter).first);
}

References __func__, memories_, memoryCount(), and Conversion::toString().

Referenced by MemDumpCommand::execute(), SimulatorFrontend::initializeDataMemories(), ProximMemoryWindow::loadProgramMemory(), ProximMemoryWindow::onASChoice(), and shareMemoriesWith().

Here is the call graph for this function:

advanceClockOfLocalMemories()

void MemorySystem::advanceClockOfLocalMemories

(

)

Referenced by OTASimulationController::advanceMachineCycle(), and SimulationController::simulateCycle().

advanceClockOfSharedMemories()

void MemorySystem::advanceClockOfSharedMemories

(

)

Referenced by OTASimulationController::advanceMachineCycle(), and SimulationController::simulateCycle().

deleteSharedMemories()

void MemorySystem::deleteSharedMemories

(

)

Deletes all shared memory instances.

Must be called only once for all MemorySystems sharing the memories.

Definition at line 64 of file MemorySystem.cc.

                                   {
    sharedMemories_.clear();
}

References sharedMemories_.

fillAllMemoriesWithZero()

void MemorySystem::fillAllMemoriesWithZero

(

)

Referenced by SimulatorFrontend::initializeDataMemories().

hasMemory()

bool MemorySystem::hasMemory

(

const TCEString &

aSpaceName

)

const

Definition at line 109 of file MemorySystem.cc.

                                                         {
    MemoryMap::const_iterator iter = memories_.begin();
    while (iter != memories_.end()) {
        const AddressSpace& space = *((*iter).first);
        if (space.name() == aSpaceName) {
            return true;
        }
        ++iter;
    }
    return false;
}

References memories_, and TTAMachine::Component::name().

Referenced by shareMemoriesWith().

Here is the call graph for this function:

memory() [1/3]

MemorySystem::MemoryPtr MemorySystem::memory

(

const std::string &

addressSpaceName

)

Returns Memory instance bound to an address space with the given name.

The returned memory instance is writable.

Parameters

addressSpaceName

The name of the address space.

Returns

Memory bound to AddressSpace.

Exceptions

InstanceNotFound

If no memory is found with the name.

Definition at line 184 of file MemorySystem.cc.

                                                      {
    MemoryMap::const_iterator iter = memories_.begin();
    while (iter != memories_.end()) {
        const AddressSpace& space = *((*iter).first);
        MemoryPtr mem = ((*iter).second);
        if (space.name() == addressSpaceName) {
            return mem;
        }
        ++iter;
    }
    string msg = "No memory model found for address space " + addressSpaceName;
    throw InstanceNotFound(__FILE__, __LINE__, __func__, msg);
}

References __func__, memories_, and TTAMachine::Component::name().

Here is the call graph for this function:

memory() [2/3]

MemorySystem::MemoryPtr MemorySystem::memory

(

const TTAMachine::AddressSpace &

as

)

Returns Memory instance bound to the given AddressSpace.

The returned memory instance is writable.

Parameters

as	AddressSpace in which memory is asked.

Returns

Memory bound to AddressSpace.

Exceptions

InstanceNotFound

If no memory is bound to the given AddressSpace.

Definition at line 170 of file MemorySystem.cc.

                                           {
    return memory(as.name());
}

References TTAMachine::Component::name().

Referenced by MachineStateBuilder::buildMachineState(), CompiledSimulation::FUMemory(), SimulatorFrontend::initializeDataMemories(), SimulatorFrontend::initializeMemorySystem(), ProximMemoryWindow::loadMemory(), ProximMemoryWindow::onSimulationStop(), SimulatorFrontend::setControllerForMemories(), SimControlLanguageCommand::setMemoryPointer(), and shareMemoriesWith().

Here is the call graph for this function:

memory() [3/3]

MemorySystem::MemoryPtr MemorySystem::memory

(

unsigned int

i

)

Returns the ith Memory instance in the memory system.

Returns

The Memory instance.

Exceptions

OutOfRange

if i is out of bounds.

Definition at line 237 of file MemorySystem.cc.

                                   {
    if (i > memories_.size() - 1) {
        const string msg =
        "Index out of bounds. Count of memories is " +
        Conversion::toString(memoryCount());
        throw OutOfRange(__FILE__, __LINE__, __func__, msg);
    }

    unsigned int foundCount = 0;
    MemoryMap::const_iterator iter = memories_.begin();
    while (iter != memories_.end() && foundCount < i) {
        ++iter;
        ++foundCount;
    }
    return ((*iter).second);
}

References __func__, memories_, memoryCount(), and Conversion::toString().

Here is the call graph for this function:

memoryConst()

const MemorySystem::MemoryPtr MemorySystem::memoryConst

(

const TTAMachine::AddressSpace &

as

)

const

Returns Memory instance bound to the given AddressSpace.

The returned memory instance is read-only.

Parameters

as	AddressSpace in which memory is asked.

Returns

Memory bound to AddressSpace.

Exceptions

InstanceNotFound

If no memory is bound to the given AddressSpace.

Todo:

These methods need to be changed to compare with the AS attributes not with AS pointer!

Definition at line 211 of file MemorySystem.cc.

                                                      {
    MemoryMap::const_iterator iter = memories_.find(&as);
    if (iter == memories_.end()) {
        string msg = "No memory found for address space " + as.name();
        throw InstanceNotFound(__FILE__, __LINE__, __func__, msg);
    }
    return ((*iter).second);
}

References __func__, memories_, and TTAMachine::Component::name().

Here is the call graph for this function:

memoryCount()

unsigned int MemorySystem::memoryCount

(

)

const

Returns the count of Memory instances in this memory system.

Returns

The count of Memory instances.

Definition at line 226 of file MemorySystem.cc.

                                {
    return memories_.size();
}

References memories_.

Referenced by addressSpace(), ProximMemoryWindow::loadProgramMemory(), memory(), SimulatorFrontend::setControllerForMemories(), and shareMemoriesWith().

operator=()

MemorySystem& MemorySystem::operator= ( const MemorySystem &  )

private

Assignment not allowed.

resetAllMemories()

void MemorySystem::resetAllMemories

(

)

Referenced by SimulatorFrontend::initializeDataMemories().

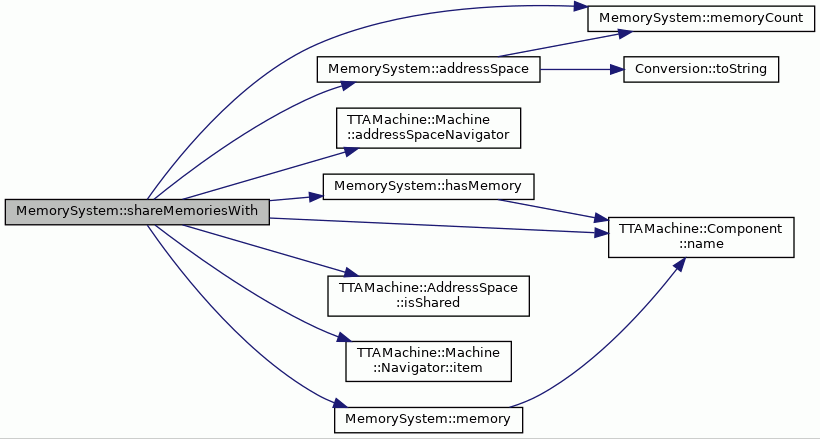

shareMemoriesWith()

void MemorySystem::shareMemoriesWith

(

MemorySystem &

other

)

In case two TTA simulation models share memories in an heterogeneous multicore simulation, this method should be called after initializing the simulation frontends between all such pairs to fix the memory model references to point to the same memory model.

The matching is done by the address space name. The shared address space must have the 'shared' attribute set.

@fixme An untested method.

remove the replaced memory as it should not be controlled by this MemorySystem anymore

Definition at line 133 of file MemorySystem.cc.

                                                   {
    for (std::size_t i = 0; i < other.memoryCount(); ++i) {
        const AddressSpace& as = other.addressSpace(i);
        if (!as.isShared() || !hasMemory(as.name())) continue;

        Machine::AddressSpaceNavigator nav = machine_->addressSpaceNavigator();
        AddressSpace* thisAS = nav.item(as.name());
        /// remove the replaced memory as it should not be controlled
        /// by this MemorySystem anymore
        memoryList_.erase(
            std::find(
                memoryList_.begin(), memoryList_.end(),
                memories_[thisAS]));

        sharedMemories_.erase(
            std::find(
                sharedMemories_.begin(), sharedMemories_.end(),
                memories_[thisAS]));

        replacedSharedMemories_.push_back(memories_[thisAS]);

        memories_[thisAS] = other.memory(i);

    }
}

References addressSpace(), TTAMachine::Machine::addressSpaceNavigator(), hasMemory(), TTAMachine::AddressSpace::isShared(), TTAMachine::Machine::Navigator< ComponentType >::item(), machine_, memories_, memory(), memoryCount(), memoryList_, TTAMachine::Component::name(), replacedSharedMemories_, and sharedMemories_.

Here is the call graph for this function:

Member Data Documentation

localMemories_

MemoryContainer MemorySystem::localMemories_

private

All private/local memories used by a single core only.

Definition at line 106 of file MemorySystem.hh.

Referenced by addAddressSpace(), and ~MemorySystem().

machine_

const TTAMachine::Machine* MemorySystem::machine_

private

Machine in which MemorySystem belongs to.

Definition at line 98 of file MemorySystem.hh.

Referenced by addAddressSpace(), and shareMemoriesWith().

memories_

MemoryMap MemorySystem::memories_

private

Contains all memories indexed by AddressSpaces.

Definition at line 100 of file MemorySystem.hh.

Referenced by addAddressSpace(), addressSpace(), hasMemory(), memory(), memoryConst(), memoryCount(), and shareMemoriesWith().

memoryList_

MemoryContainer MemorySystem::memoryList_

private

List of all the memories for faster traversal.

Definition at line 102 of file MemorySystem.hh.

Referenced by addAddressSpace(), and shareMemoriesWith().

replacedSharedMemories_

MemoryContainer MemorySystem::replacedSharedMemories_

private

Shared memories which have been replaced with a shared memory from another core. Just for garbage removal.

Definition at line 109 of file MemorySystem.hh.

Referenced by shareMemoriesWith(), and ~MemorySystem().

sharedMemories_

MemoryContainer MemorySystem::sharedMemories_

private

All memories shared between multiple cores.

Definition at line 104 of file MemorySystem.hh.

Referenced by addAddressSpace(), deleteSharedMemories(), and shareMemoriesWith().

---

The documentation for this class was generated from the following files:

• MemorySystem.hh
• MemorySystem.cc
