#include <ConflictDetectingOperationExecutor.hh>

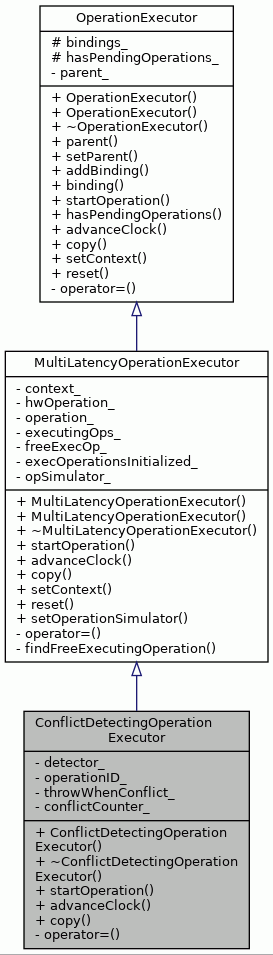

Inheritance diagram for ConflictDetectingOperationExecutor:

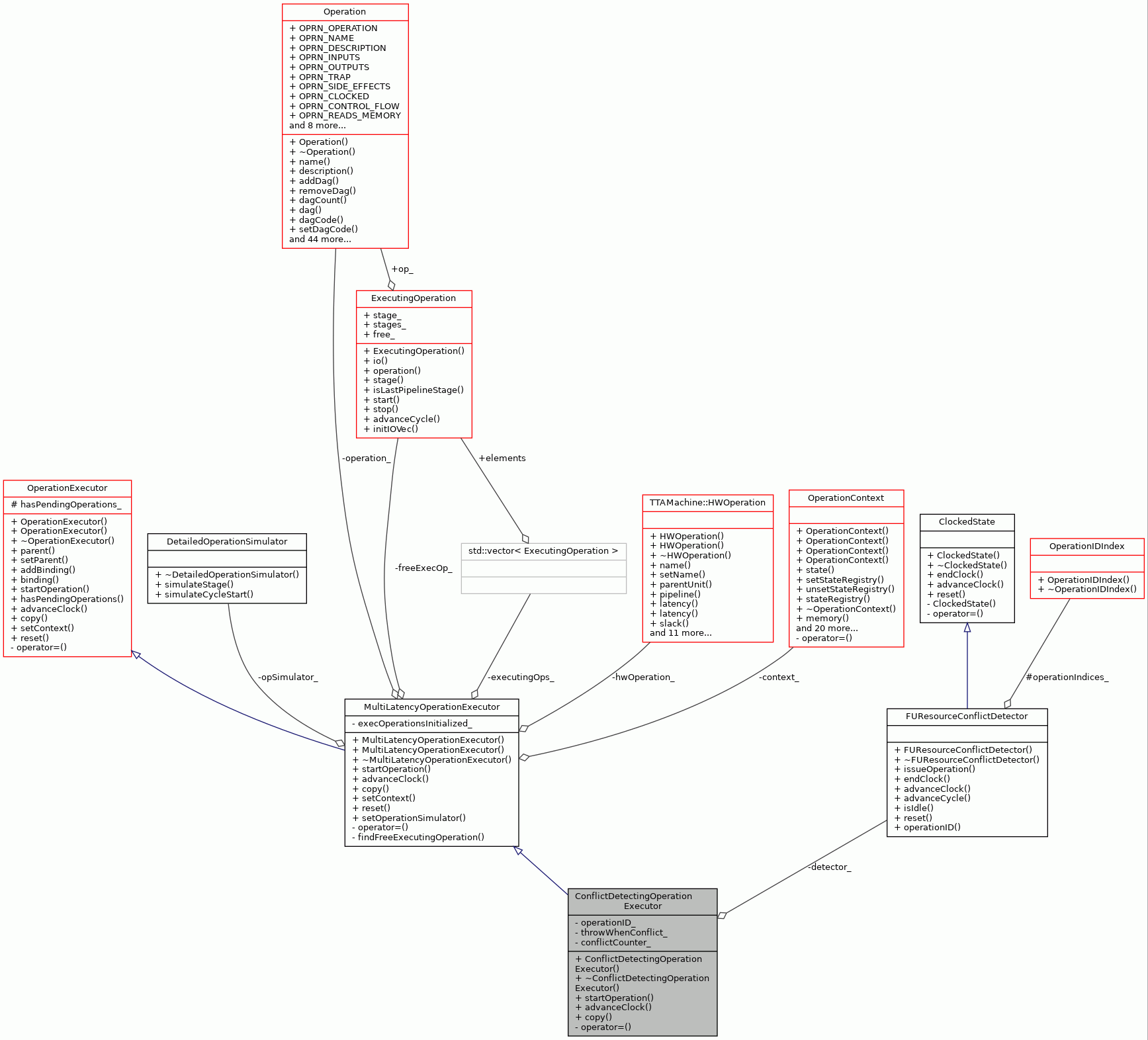

Collaboration diagram for ConflictDetectingOperationExecutor:

Public Member Functions
	ConflictDetectingOperationExecutor (FUResourceConflictDetector &detector, FUResourceConflictDetector::OperationID operationID, FUState &parent, TTAMachine::HWOperation &hwOp, bool throwWhenConflict)

virtual	~ConflictDetectingOperationExecutor ()

virtual void	startOperation (Operation &op)

virtual void	advanceClock ()

virtual OperationExecutor *	copy ()

Public Member Functions inherited from MultiLatencyOperationExecutor
	MultiLatencyOperationExecutor (FUState &parent, TTAMachine::HWOperation &hwOp)

	MultiLatencyOperationExecutor ()

virtual	~MultiLatencyOperationExecutor ()

virtual void	setContext (OperationContext &context)

virtual void	reset ()

virtual void	setOperationSimulator (DetailedOperationSimulator &sim)

Public Member Functions inherited from OperationExecutor
	OperationExecutor ()

	OperationExecutor (FUState &parent)

virtual	~OperationExecutor ()

FUState &	parent () const

void	setParent (FUState &parent)

void	addBinding (int io, PortState &port)

PortState &	binding (int io) const

bool	hasPendingOperations () const

Private Member Functions
ConflictDetectingOperationExecutor &	operator= (const ConflictDetectingOperationExecutor &)
	Assignment not allowed. More...

Private Attributes
FUResourceConflictDetector &	detector_
	The conflict detector used to test whether starting operation is legal. More...

const FUResourceConflictDetector::OperationID	operationID_
	The conflict detector ID of the operation executed with this executor. More...

const bool	throwWhenConflict_
	True in case an exception should be thrown in case of a resource conflict. More...

ClockCycleCount	conflictCounter_
	Counter for detected conflicts. More...

Additional Inherited Members
Protected Attributes inherited from OperationExecutor
std::vector< PortState * >	bindings_
	PortStates that are bound to a certain input or output operand. More...

bool	hasPendingOperations_
	This is set to true if the OperationExecutor is not in 'idle' mode. More...

Detailed Description

OperationExecutor that checks for FU resource conflicts.

This kind of OperationExecutor is created for each operation in the simulated FU. This is purely for optimization purposes: as we need to check the resource conflicts using a per operation ID, it's faster to use a constant ID for requesting the conflict detection data instead of first fetching the constant from a map for the executed operation.

Definition at line 49 of file ConflictDetectingOperationExecutor.hh.

Constructor & Destructor Documentation

◆ ConflictDetectingOperationExecutor()

ConflictDetectingOperationExecutor::ConflictDetectingOperationExecutor	(	FUResourceConflictDetector &	detector,
		FUResourceConflictDetector::OperationID	operationID,
		FUState &	parent,
		TTAMachine::HWOperation &	hwOp,
		bool	throwWhenConflict
	)

Constructor.

Parameters

detector	The conflict detector.
operationID	The conflict detector ID of the operation executed by this operation executor.
parent	Parent of the OperationExecutor.
throwWhenConflict	In case an exception should be thrown in case of a resource conflict (otherwise the conflicts are only counted).

Definition at line 53 of file ConflictDetectingOperationExecutor.cc.

                             :
     MultiLatencyOperationExecutor(parent, hwOp), detector_(detector),
     operationID_(operationID), throwWhenConflict_(throwWhenConflict),
     conflictCounter_(0) {
 }

Referenced by copy().

◆ ~ConflictDetectingOperationExecutor()

ConflictDetectingOperationExecutor::~ConflictDetectingOperationExecutor ( )

virtual

Destructor.

Definition at line 67 of file ConflictDetectingOperationExecutor.cc.

                                                                         {
 #if 0
     if (conflictCounter_ > 0)
         std::cout << " (" << conflictCounter_ << " conflicts) ";
 #endif
 }

References conflictCounter_.

Member Function Documentation

◆ advanceClock()

void ConflictDetectingOperationExecutor::advanceClock ( )

virtual

Advances clock by one cycle.

Updates the resource conflict model.

Reimplemented from MultiLatencyOperationExecutor.

Definition at line 109 of file ConflictDetectingOperationExecutor.cc.

                                                  {

     MultiLatencyOperationExecutor::advanceClock();
     // we need to receive the advanceClock() on every clock advance to update
     // the resource conflict model
     hasPendingOperations_ = true;
 }

References MultiLatencyOperationExecutor::advanceClock(), and OperationExecutor::hasPendingOperations_.

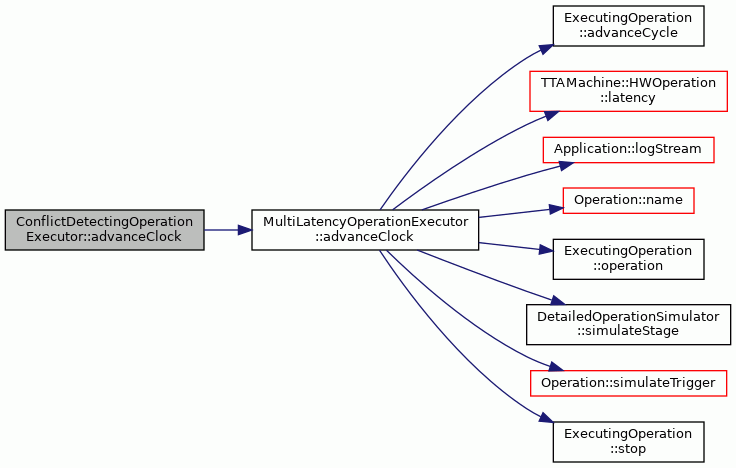

Here is the call graph for this function:

◆ copy()

OperationExecutor * ConflictDetectingOperationExecutor::copy ( )

virtual

Copies OperationExecutor.

Returns: The copied OperationExecutor.

Reimplemented from MultiLatencyOperationExecutor.

Definition at line 123 of file ConflictDetectingOperationExecutor.cc.

                                          {
     return new ConflictDetectingOperationExecutor(*this);
 }

References ConflictDetectingOperationExecutor().

Here is the call graph for this function:

◆ operator=()

ConflictDetectingOperationExecutor& ConflictDetectingOperationExecutor::operator= ( const ConflictDetectingOperationExecutor & )

private

Assignment not allowed.

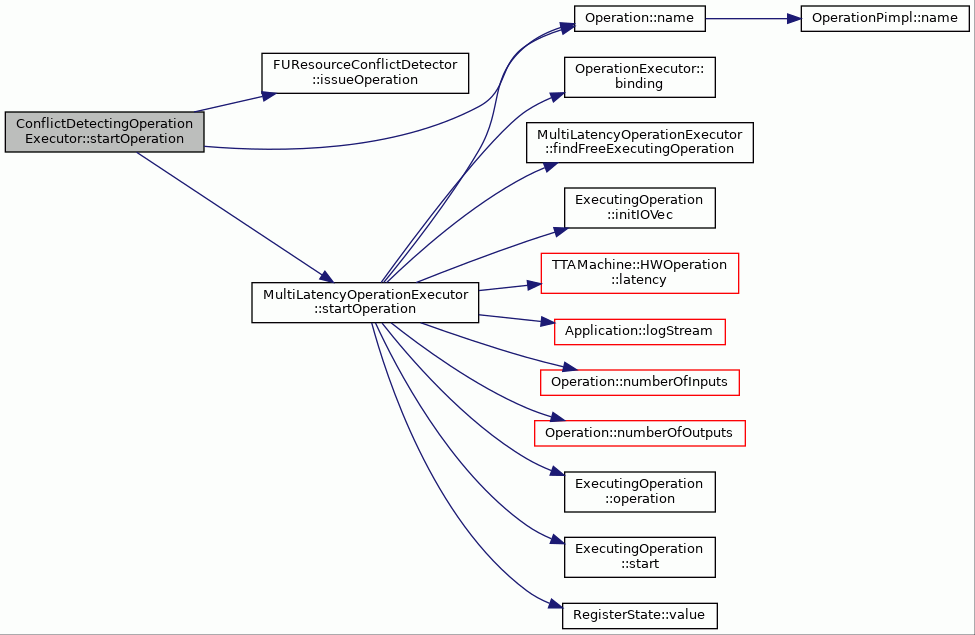

◆ startOperation()

void ConflictDetectingOperationExecutor::startOperation ( Operation & op )

virtual

Starts new operation.

Checks for resource conflicts before actually simulating the operation using the parent class implementation.

Parameters

op	Operation to be triggered.

Reimplemented from MultiLatencyOperationExecutor.

Definition at line 83 of file ConflictDetectingOperationExecutor.cc.

                                                                 {

     if (!detector_.issueOperation(operationID_)) {
         ++conflictCounter_;
         if (throwWhenConflict_)
             throw SimulationExecutionError(
                 __FILE__, __LINE__, __func__,
                 (boost::format(
                     "Resource conflict detected: operation %s.")
                  % op.name()).str());
         return;
     }

     MultiLatencyOperationExecutor::startOperation(op);

     // we need to receive the advanceClock() on every clock advance to update
     // the resource conflict model
     hasPendingOperations_ = true;
 }
