#include <ControlDependenceGraphPass.hh>

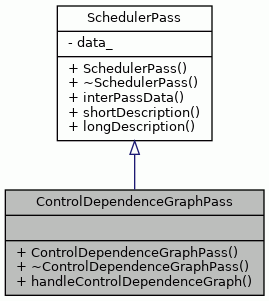

Inheritance diagram for ControlDependenceGraphPass:

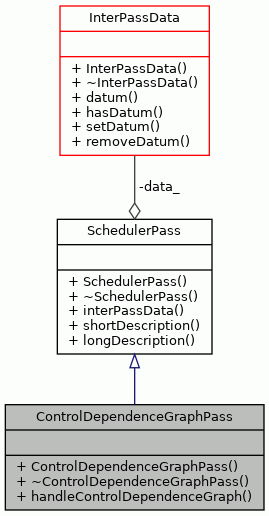

Collaboration diagram for ControlDependenceGraphPass:

Public Member Functions
	ControlDependenceGraphPass (InterPassData &data)

virtual	~ControlDependenceGraphPass ()

virtual void	handleControlDependenceGraph (ControlDependenceGraph &cdg, const TTAMachine::Machine &targetMachine)=0

Public Member Functions inherited from SchedulerPass
	SchedulerPass (InterPassData &data)

virtual	~SchedulerPass ()

InterPassData &	interPassData ()

virtual std::string	shortDescription () const =0

virtual std::string	longDescription () const

Detailed Description

Interface for scheduler passes that handle control dependence graphs.

Definition at line 55 of file ControlDependenceGraphPass.hh.

Constructor & Destructor Documentation

◆ ControlDependenceGraphPass()

ControlDependenceGraphPass::ControlDependenceGraphPass ( InterPassData & data )

Constructor.

Definition at line 47 of file ControlDependenceGraphPass.cc.

                                                                           :
     SchedulerPass(data) {
 }

◆ ~ControlDependenceGraphPass()

ControlDependenceGraphPass::~ControlDependenceGraphPass ( )

virtual

Destructor.

Definition at line 54 of file ControlDependenceGraphPass.cc.

54 {

55 }

Member Function Documentation

◆ handleControlDependenceGraph()

void ControlDependenceGraphPass::handleControlDependenceGraph	(	ControlDependenceGraph &	cdg,
		const TTAMachine::Machine &	targetMachine
	)

pure virtual

Handles a single control dependence graph.

The pass should work with any kind of control dependence graph, it should not assume the CDG represents a whole procedure, for example.

Parameters

cdg	The control dependence graph to handle.
machine	The target machine if any. (NullMachine::instance() if target machine is irrelevant).

Exceptions

In	case handling is unsuccesful for any reason (cdg might still get modified).

Definition at line 70 of file ControlDependenceGraphPass.cc.

                                                                          {
     //Trivial handling so far, just compute analysis info for serialization
     // Throws exception in case there is indirect jump
     cdg.nodeCount();
     try {
         cdg.analyzeCDG();
     } catch (const InvalidData& e) {
         // CFG had indirect jump
     } catch (const Exception& e) {
         throw ModuleRunTimeError(
             __FILE__, __LINE__, __func__, e.errorMessageStack());
     }
     targetMachine.machineTester();
 }

References __func__, ControlDependenceGraph::analyzeCDG(), Exception::errorMessageStack(), TTAMachine::Machine::machineTester(), and BoostGraph< GraphNode, GraphEdge >::nodeCount().

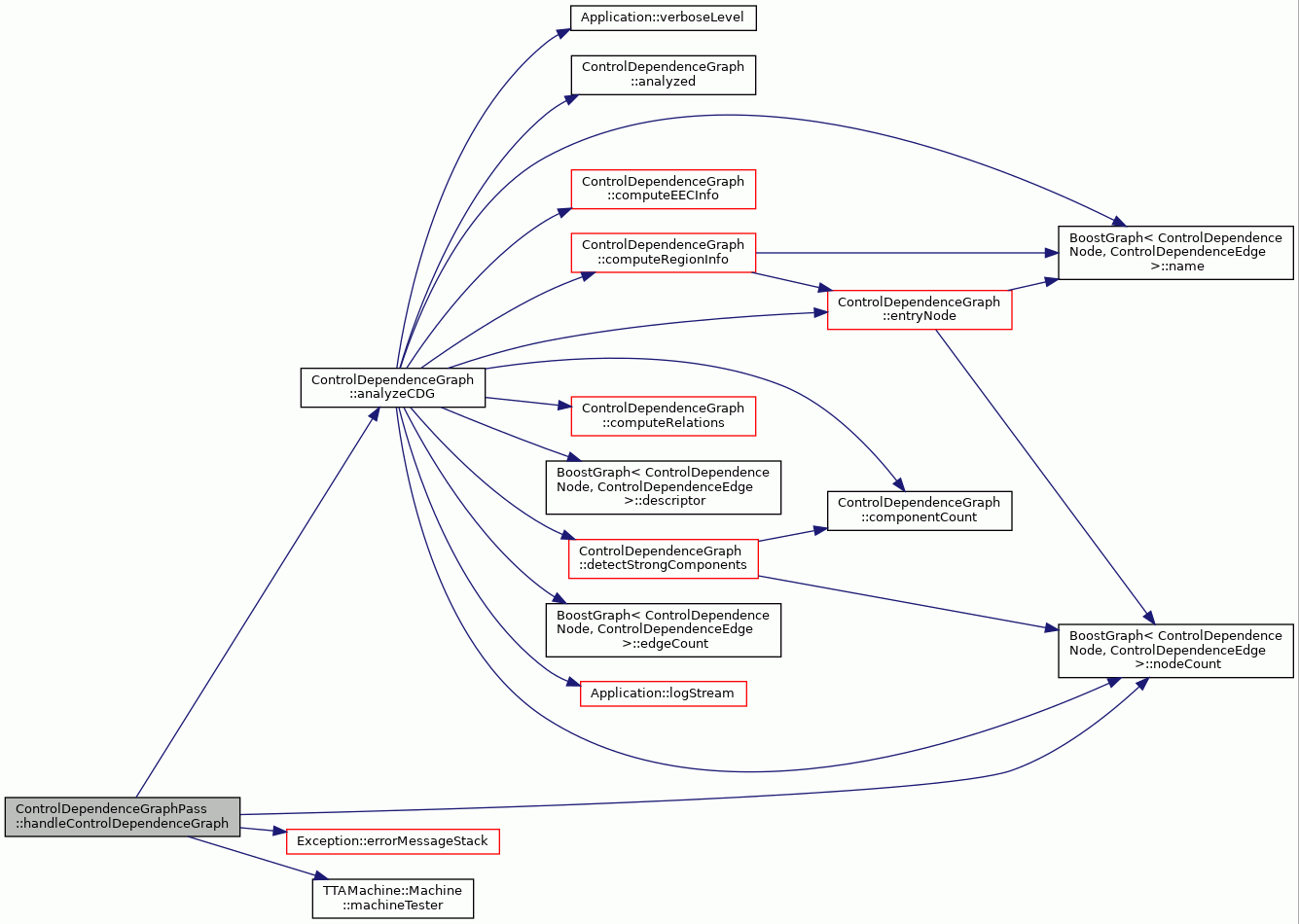

Here is the call graph for this function:

The documentation for this class was generated from the following files:
