Exception Class Reference

#include <Exception.hh>

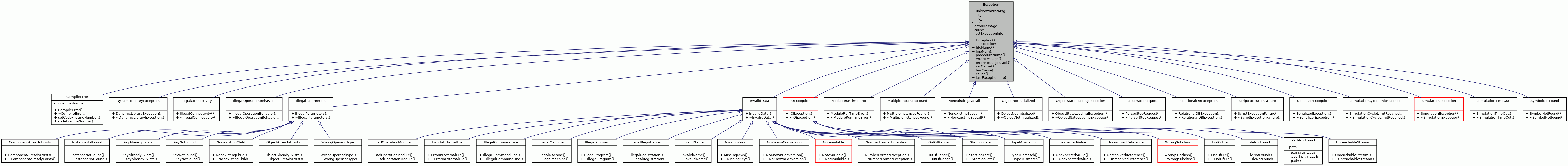

Inheritance diagram for Exception:

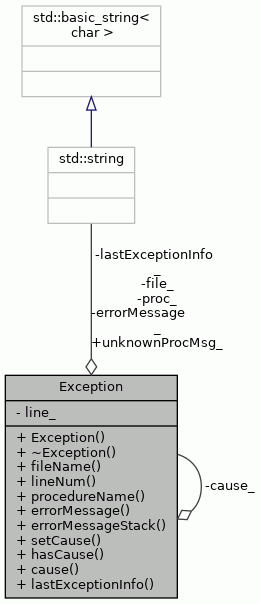

Collaboration diagram for Exception:

Public Member Functions
	Exception (std::string filename, int linenum, std::string procname=unknownProcMsg_, std::string errorMessage="")
virtual	~Exception ()
std::string	fileName () const
int	lineNum () const
std::string	procedureName () const
std::string	errorMessage () const
std::string	errorMessageStack (bool messagesOnly=false) const
void	setCause (const Exception &cause)
bool	hasCause () const
const Exception &	cause () const

Static Public Member Functions
static std::string	lastExceptionInfo ()
	Returns information of the last thrown exception. More...

Static Public Attributes
static const std::string	unknownProcMsg_ = "(unknown)"
	Used when no procedure name is given. More...

Private Attributes
std::string	file_
	Name of the file where exception occurred. More...
int	line_
	Line number in the file. More...
std::string	proc_
	Procedure name. More...
std::string	errorMessage_
	Error message. More...
const Exception *	cause_
	Exception that caused current exception. More...

Static Private Attributes
static std::string	lastExceptionInfo_ = ""
	Information of the last thrown exception for easing the debugging. More...

Detailed Description

Base class for all exceptions of the system.

It contains information common to all exceptions that identifies the spot in the source code in which the execption was thrown: name of the source file, line number and name of the procedure. Also, it may contain an error message.

Definition at line 54 of file Exception.hh.

Constructor & Destructor Documentation

Exception()

Exception::Exception	(	std::string	filename,
		int	linenum,
		std::string	procname = unknownProcMsg_,
		std::string	errorMessage = ""
	)

The constructor.

Parameters

filename	Name of the file in which the exception occurred.
linenum	Line number in the file.
procname	Name of the procedure.
errorMessage	Error message.

Definition at line 57 of file Exception.cc.

                            :
    file_(filename), line_(linenum), proc_(procname),
    errorMessage_(errorMessage), cause_(NULL) {
    lastExceptionInfo_ =
        filename + ", line " + Conversion::toString(linenum) + ". Message: " +
        errorMessage;
}

References errorMessage(), lastExceptionInfo_, and Conversion::toString().

Referenced by setCause().

Here is the call graph for this function:

~Exception()

Exception::~Exception ( )

virtual

The destructor. Nothing specific to do in the destructor.

Definition at line 116 of file Exception.cc.

                      {
}

Member Function Documentation

cause()

const Exception & Exception::cause

(

)

const

Returns Exception that caused throwing current exception.

Returns

Exception that caused throwing current exception.

Definition at line 95 of file Exception.cc.

                       {
    return *cause_;
}

References cause_.

Referenced by errorMessageStack().

errorMessage()

string Exception::errorMessage

(

)

const

Returns the exception's error message.

Definition at line 123 of file Exception.cc.

                              {
    return errorMessage_;
}

References errorMessage_.

Referenced by DSDBManager::addApplication(), DSDBManager::addArchitecture(), ProGe::NetlistGenerator::addBaseRFToNetlist(), CodeCompressorPlugin::addBitsForDstRegisterField(), CodeCompressorPlugin::addBitsForICField(), HDB::HDBManager::addBooleanColumn(), ExecutionTrace::addBusActivity(), HDB::HDBManager::addBusCostEstimationData(), HDB::HDBManager::addBusEntry(), ExecutionTrace::addBusWriteCount(), ExecutionTrace::addConcurrentRegisterFileAccessCount(), DSDBManager::addConfiguration(), DesignSpaceExplorer::addConfToDSDB(), HDB::HDBManager::addCostEstimationData(), HDB::HDBManager::addCostFunctionPlugin(), HDB::HDBManager::addDataPortsToImplementation(), HDB::HDBManager::addFUArchitecture(), HDB::HDBManager::addFUCostEstimationData(), HDB::HDBManager::addFUEntry(), HDB::HDBManager::addFUExternalPortsToImplementation(), HDB::HDBManager::addFUImplementation(), ExecutionTrace::addFunctionUnitOperationTriggerCount(), ProGe::NetlistGenerator::addFUToNetlist(), DSDBManager::addImplementation(), ImmediateGenerator::addInsTemplate(), ExecutionTrace::addInstructionExecution(), ExecutionTrace::addInstructionExecutionCount(), CodeSectionCreator::addMove(), HDB::HDBManager::addPortsAndBindingsToFUArchitecture(), ExecutionTrace::addProcedureAddressRange(), TTAProgram::TPEFProgramFactory::addProcedures(), ProcedureTransferTracker::addProcedureTransfer(), ExecutionTrace::addRegisterAccessCount(), TTAMachine::ExecutionPipeline::addResourceUsage(), HDB::HDBManager::addRFArchitecture(), HDB::HDBManager::addRFCostEstimationData(), HDB::HDBManager::addRFEntry(), HDB::HDBManager::addRFExternalPortsToImplementation(), HDB::HDBManager::addRFImplementation(), HDB::HDBManager::addSocketCostEstimationData(), HDB::HDBManager::addSocketEntry(), ExecutionTrace::addSocketWriteCount(), ImmediateGenerator::addSplitInsTemplate(), MachineStateBuilder::addVirtualOpcodeSettingPortsToFU(), TTAMachine::Bus::adjustSegmentChain(), ResourceConstraintAnalyzer::analyzeRegisterAntideps(), DSDBManager::applicationCostEstimatesByConf(), DSDBManager::applicationCount(), DSDBManager::applicationIDs(), DSDBManager::applicationPath(), DSDBManager::archConfigurationIDs(), DSDBManager::architectureId(), DSDBManager::architectureIDs(), DSDBManager::architectureString(), DSDBManager::areaEstimate(), MachineStateBuilder::bindPortsToOperands(), HDB::HDBManager::blockSourceFile(), BridgeEncoding::BridgeEncoding(), SimProgramBuilder::build(), MachineStateBuilder::buildMachineState(), HDB::HDBManager::busCostEstimationData(), HDB::HDBManager::busCostEstimationDataIDs(), HDB::HDBManager::busCostEstimationDataList(), HDB::HDBManager::busEntryIDs(), ExecutionPipelineResource::canAssignDestination(), HDB::HDBManager::canRemoveFUArchitecture(), HDB::HDBManager::canRemoveRFArchitecture(), SimpleBrokerDirector::canTransportImmediate(), ProGe::ProcessorGenerator::checkIULatencies(), TPEF::RawSection::chunk(), Assembler::compile(), TTAMachine::Component::Component(), DEFAULT_Compressor::compress(), InstructionDictionary::compress(), DSDBManager::configuration(), DSDBManager::configurationId(), DSDBManager::configurationIDs(), UniversalMachine::construct(), OSEdTreeView::constructTree(), HDB::HDBManager::containsFUArchitecture(), HDB::HDBManager::containsImplementationFile(), HDB::HDBManager::containsOperation(), HDB::HDBManager::containsRFArchitecture(), ProGe::BlockSourceCopier::copyFiles(), copyImageToTb(), HDB::HDBManager::costEstimationData(), HDB::HDBManager::costEstimationDataIDs(), HDB::HDBManager::costEstimationDataValue(), HDB::HDBManager::costFunctionPluginByID(), HDB::HDBManager::costFunctionPluginDataIDs(), HDB::HDBManager::costFunctionPluginIDs(), HDB::HDBManager::createCostFunctionOfFU(), HDB::HDBManager::createCostFunctionOfRF(), OSEd::createDefaultOptions(), HDBEditorMainFrame::createHDB(), HDB::HDBManager::createImplementationOfFU(), HDB::HDBManager::createNew(), DSDBManager::createNew(), LLVMBackend::createPlugin(), DSDBManager::cycleCount(), OperationPimpl::dag(), DefaultICDecoderEstimator::delayOfBus(), DefaultICDecoderEstimator::delayOfSocket(), HDBEditorModifyCmd::Do(), AddFUArchFromADFCmd::Do(), AddRFImplementationCmd::Do(), AddFUImplementationCmd::Do(), SaveOptionsCmd::Do(), ProximQuitCmd::Do(), OSEdAddOperationCmd::Do(), PasteComponentCmd::Do(), ProcessorImplementationWindow::doSaveIDF(), DSDBManager::DSDBManager(), Encoding::Encoding(), DSDBManager::energyEstimate(), errorMessageStack(), StrictMatchFUEstimator::estimateArea(), StrictMatchRFEstimator::estimateArea(), StrictMatchFUEstimator::estimateEnergy(), StrictMatchRFEstimator::estimateEnergy(), InterpolatingFUEstimator::estimateEnergy(), InterpolatingRFEstimator::estimateEnergy(), DefaultICDecoderEstimator::estimateICArea(), DefaultICDecoderEstimator::estimateICDelayOfPath(), DefaultICDecoderEstimator::estimateICEnergy(), StrictMatchFUEstimator::estimateMaximumComputationDelay(), StrictMatchRFEstimator::estimateMaximumComputationDelay(), StrictMatchFUEstimator::estimatePortReadDelay(), StrictMatchRFEstimator::estimatePortReadDelay(), StrictMatchFUEstimator::estimatePortWriteDelay(), StrictMatchRFEstimator::estimatePortWriteDelay(), CostEstimator::Estimator::estimateSocketToSocketDelayOfPath(), Exception(), ProgCommand::execute(), SettingCommand::execute(), CmdTrigger::execute(), Evaluate::explore(), MinimalOpSet::explore(), RemoveUnconnectedComponents::explore(), GrowMachine::explore(), ComponentAdder::explore(), ImplementationSelector::explore(), ImmediateGenerator::explore(), SimpleICOptimizer::explore(), DataSectionCreator::finalize(), HDB::HDBManager::fuArchitectureID(), HDB::HDBManager::fuArchitectureIDs(), HDB::HDBManager::fuArchitectureIDsByOperationSet(), HDB::HDBManager::fuByEntryID(), HDB::HDBManager::fuCostEstimationData(), HDB::HDBManager::fuCostEstimationDataIDs(), CostEstimator::Estimator::fuCostFunctionPluginOfImplementation(), HDB::HDBManager::fuEntriesByArchitecture(), HDB::HDBManager::fuEntryHasArchitecture(), HDB::HDBManager::fuEntryIDOfImplementation(), HDB::HDBManager::fuEntryIDs(), FUGuardEncoding::FUGuardEncoding(), CostEstimator::Estimator::functionUnitArea(), CostEstimator::Estimator::functionUnitEnergy(), CostEstimator::Estimator::functionUnitMaximumComputationDelay(), ExecutionTrace::functionUnitOperationTriggerCounts(), CostEstimator::Estimator::functionUnitPortReadDelay(), CostEstimator::Estimator::functionUnitPortWriteDelay(), ProGeTestBenchGenerator::generate(), DefaultICDecoderGenerator::generate(), ProgramImageGenerator::generateDataImage(), GenerateProcessor::generateProcessor(), ProGe::ProGeUI::generateProcessor(), GPRGuardEncoding::GPRGuardEncoding(), GuardEncoding::GuardEncoding(), ExecutionTracker::handleEvent(), HDB::HDBManager::hasColumn(), HDB::HDBManager::HDBManager(), TTAMachine::HWOperation::HWOperation(), CostEstimator::Estimator::icArea(), CostEstimator::Estimator::icEnergy(), ImmediateEncoding::ImmediateEncoding(), DSDBManager::implementationString(), ExecutionTrace::initialize(), SimulatorFrontend::initializeDataMemories(), XMLSerializer::initializeParser(), HDBTester::initializeTester(), HDB::HDBManager::insertFileFormats(), ExecutionTrace::instructionExecutions(), SimpleScriptInterpreter::interpret(), StopPoint::isConditionOK(), DSDBManager::isUnschedulable(), GenerateProcessor::listICDecPluginParameters(), llvm::LLVMTCERISCVIntrinsicsLowering::LLVMTCERISCVIntrinsicsLowering(), llvm::LLVMTCEScheduler::LLVMTCEScheduler(), loadExplorerPlugin(), HDB::HDBRegistry::loadFromSearchPaths(), AddIUFromHDBDialog::loadHDB(), GenerateProcessorDialog::loadICDecoderGeneratorPlugin(), ProcessorImplementationWindow::loadICDecoderPlugin(), loadInputs(), OperationPropertyLoader::loadModule(), OperationPropertyLoader::loadOperationProperties(), Proxim::loadOptions(), loadPluginParameters(), SimulatorFrontend::loadProgram(), OSEdOptions::loadState(), OperationTriggeredField::loadState(), OperationTriggeredEncoding::loadState(), TTAMachine::OperationTriggeredOperand::loadState(), IDF::UnitImplementationLocation::loadState(), TTAMachine::Bridge::loadState(), TTAMachine::OperationTriggeredFormat::loadState(), InstructionField::loadState(), SourceField::loadState(), TTAMachine::Guard::loadState(), TTAMachine::Port::loadState(), InstructionFormat::loadState(), TTAMachine::AddressSpace::loadState(), TTAMachine::HWOperation::loadState(), ImmediateControlField::loadState(), LImmDstRegisterField::loadState(), SlotField::loadState(), TTAMachine::InstructionTemplate::loadState(), MoveSlot::loadState(), TTAMachine::ExecutionPipeline::loadState(), GuardField::loadState(), TTAMachine::Socket::loadState(), TTAMachine::FunctionUnit::loadState(), TTAMachine::Bus::loadState(), TTAMachine::PortGuard::loadState(), OperationPimpl::loadState(), IDF::MachineImplementation::loadState(), Operand::loadState(), TTAMachine::Machine::loadState(), TTAMachine::RegisterGuard::loadState(), TTAMachine::BaseFUPort::loadStateWithoutReferences(), TTAMachine::ImmediateUnit::loadStateWithoutReferences(), TTAMachine::FUPort::loadStateWithoutReferences(), TTAMachine::Unit::loadStateWithoutReferences(), TTAMachine::ControlUnit::loadStateWithoutReferences(), TTAMachine::Segment::loadStateWithoutReferences(), TTAMachine::Port::loadStateWithoutReferences(), TTAMachine::RegisterFile::loadStateWithoutReferences(), TTAMachine::FunctionUnit::loadStateWithoutReferences(), TTAMachine::Bus::loadStateWithoutReferences(), DSDBManager::longestPathDelayEstimate(), main(), HDB::HDBManager::modifyCostEstimationData(), HDB::HDBManager::modifyCostFunctionPlugin(), numbersToAscending(), AddFUFromHDBDialog::onAdd(), FUDialog::onAddOperationFromOpset(), GenerateProcessorDialog::onBrowseBEMLoad(), AutoSelectImplementationsDialog::onFind(), BlockImplementationDialog::onHDBSelection(), ProDe::OnInit(), ProcessorImplementationWindow::onLoadIDF(), RFDialog::onOK(), GenerateProcessorDialog::onOK(), GCUDialog::onOK(), CallExplorerPluginWindow::onRun(), MDFDocument::OnSaveDocument(), BusDialog::onUnconditionalGuard(), ValidateMachineDialog::onValidate(), ExecutionTrace::open(), MDFDocument::openADF(), MDFDocument::openCFG(), ImplementationTester::openHdb(), OperationIndex::operationCount(), HDB::HDBManager::OperationImplementationByID(), HDB::HDBManager::OperationImplementationIDs(), HDB::HDBManager::OperationImplementationResourceByID(), HDB::HDBManager::OperationImplementationResourceIDs(), OperationIndex::operationName(), TTAMachine::OperationTriggeredOperand::OperationTriggeredOperand(), ProGe::ICDecoderGeneratorPlugin::parameterDescription(), DSDBManager::paretoSetConnectivityAndCycles(), InlineAsmParser::parse(), SimProgramBuilder::processBidirTerminal(), SimProgramBuilder::processInstruction(), PlatformIntegrator::progeOutputHdlFiles(), readAdf(), TPEF::BinaryReader::readBinary(), XMLSerializer::readFile(), readIdf(), OSEdOptionsSerializer::readState(), OperationSerializer::readState(), ExecutionTrace::registerFileAccessCounts(), CostEstimator::Estimator::registerFileArea(), CostEstimator::Estimator::registerFileEnergy(), CostEstimator::Estimator::registerFileMaximumComputationDelay(), CostEstimator::Estimator::registerFilePortReadDelay(), CostEstimator::Estimator::registerFilePortWriteDelay(), DSDBManager::removeApplication(), HDB::HDBManager::removeBusEntry(), DSDBManager::removeConfiguration(), HDB::HDBManager::removeCostEstimationData(), HDB::HDBManager::removeCostFunctionPlugin(), HDB::HDBManager::removeFUArchitecture(), HDB::HDBManager::removeFUEntry(), HDB::HDBManager::removeFUImplementation(), HDB::HDBManager::removeRFArchitecture(), HDB::HDBManager::removeRFEntry(), HDB::HDBManager::removeRFImplementation(), HDB::HDBManager::removeSocketEntry(), DataSectionCreator::resolveDataAreaSizesAndLabelAddresses(), LabelManager::resolveExpressionValue(), HDB::HDBManager::rfArchitectureByID(), HDB::HDBManager::rfArchitectureID(), HDB::HDBManager::rfArchitectureIDs(), HDB::HDBManager::rfByEntryID(), HDB::HDBManager::rfCostEstimationData(), HDB::HDBManager::rfCostEstimationDataIDs(), CostEstimator::Estimator::rfCostFunctionPluginOfImplementation(), HDB::HDBManager::rfEntriesByArchitecture(), HDB::HDBManager::rfEntryHasArchitecture(), HDB::HDBManager::rfEntryIDOfImplementation(), HDB::HDBManager::rfEntryIDs(), MachineResourceManager::rFPortOrFUIndexReference(), SQLiteConnection::rowCountInTable(), DesignSpaceExplorer::schedule(), DesignSpaceExplorer::selectComponents(), ComponentImplementationSelector::selectComponentsToConf(), ComponentImplementationSelector::selectFUs(), ComponentImplementationSelector::selectIUs(), ComponentImplementationSelector::selectRFs(), HDB::HDBManager::setArchitectureForFU(), HDB::HDBManager::setArchitectureForRF(), HDB::HDBManager::setCostFunctionPluginForFU(), HDB::HDBManager::setCostFunctionPluginForRF(), HDBEditorMainFrame::setHDB(), SimpleSimulatorFrontend::setOperationSimulator(), ExecutionTrace::setSimulatedCycleCount(), SimpleSimulatorFrontend::SimpleSimulatorFrontend(), OTASimulationController::simulateCycle(), SimulationController::simulateCycle(), ExecutionTrace::simulatedCycleCount(), OperationSimulator::simulateTrigger(), HDB::HDBManager::socketCostEstimationData(), HDB::HDBManager::socketCostEstimationDataIDs(), HDB::HDBManager::socketCostEstimationDataList(), SocketEncoding::SocketEncoding(), HDB::HDBManager::socketEntryIDs(), CodeCompressorPlugin::startNewProgram(), SQLiteConnection::tableExistsInDB(), tandemSimulate(), TTAProgram::TerminalFUPort::TerminalFUPort(), TTAProgram::ProgramWriter::terminalResource(), TestApplication::TestApplication(), ProGe::TestBenchBlock::TestBenchBlock(), ProximToolbox::testCondition(), ProximToolbox::testExpression(), HDBTester::testFU(), HDBTester::testRF(), OperationSerializer::toOperation(), OperationSerializer::toXMLFormat(), HDB::HDBManager::unsetArchitectureForFU(), HDB::HDBManager::unsetArchitectureForRF(), HDB::HDBManager::unsetCostFunctionPluginForFU(), HDB::HDBManager::unsetCostFunctionPluginForRF(), ProcessorImplementationWindow::updateFUList(), ProcessorImplementationWindow::updateImplementationLists(), OperationPropertyDialog::updateOperation(), ProcessorImplementationWindow::updateRFList(), OperationBuilder::verifyXML(), SQLiteConnection::version(), DSDBManager::writeArchitectureToFile(), TPEF::BinaryWriter::writeBinary(), writeCustomOpMacros(), DSDBManager::writeImplementationToFile(), OSEdOptionsSerializer::writeState(), OperationSerializer::writeState(), ExecutionTrace::~ExecutionTrace(), and SQLiteQueryResult::~SQLiteQueryResult().

errorMessageStack()

string Exception::errorMessageStack

(

bool

messagesOnly = false

)

const

Returns error message of exception and all error messages of exceptions that caused current exception.

Parameters

messagesOnly

if true, only returns error messages, not the exception names and line numbers

Returns

error message of exception and all error messages of exceptions that caused current exception.

Definition at line 138 of file Exception.cc.

                                                    {

    string result = messagesOnly ?
        errorMessage() :
        (boost::format("%s:%d '%s'\n") %
         fileName() % lineNum() % errorMessage()).str();

    const Exception* exception = this;

    while (exception->hasCause()) {
        exception = &exception->cause();
        assert(exception != NULL);
        result += messagesOnly ?
            exception->errorMessage() :
            (boost::format("%s:%d '%s'\n") %
             exception->fileName() % exception->lineNum() %
             exception->errorMessage()).str();
    }

    return result;
}

References assert, cause(), errorMessage(), fileName(), hasCause(), and lineNum().

Referenced by InputFUBroker::allAvailableResources(), BusBroker::allAvailableResources(), DataDependenceGraphBuilder::build(), CycleLookBackSoftwareBypasser::bypass(), LLVMBackend::compile(), ControlDependenceGraph::createControlDependenceEdge(), MoveNode::earliestResultReadCycle(), DesignSpaceExplorer::evaluate(), MachCommand::execute(), ConfCommand::execute(), BBSchedulerController::executeDDGPass(), Evaluate::explore(), MinimalOpSet::explore(), VectorLSGenerator::explore(), GrowMachine::explore(), SimpleICOptimizer::explore(), ADFCombiner::explore(), ControlDependenceGraphPass::handleControlDependenceGraph(), BusBroker::isAvailable(), llvm::LLVMTCEScheduler::LLVMTCEScheduler(), Operand::loadState(), main(), ProgramDependenceGraph::ProgramDependenceGraph(), ProgramDependenceGraph::removeGuardedJump(), BasicBlockScheduler::scheduleMove(), BasicBlockScheduler::scheduleOperation(), ExecutionPipelineBroker::setupResourceLinks(), OutputFUBroker::setupResourceLinks(), InputPSocketBroker::setupResourceLinks(), OutputPSocketBroker::setupResourceLinks(), ITemplateBroker::setupResourceLinks(), and IUBroker::setupResourceLinks().

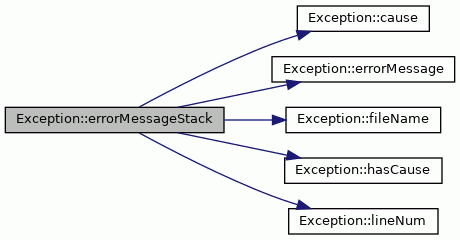

Here is the call graph for this function:

fileName()

std::string Exception::fileName

(

)

const

Referenced by DataDependenceGraphBuilder::build(), AddFUImplementationCmd::Do(), HDBEditorModifyCmd::Do(), AddRFImplementationCmd::Do(), errorMessageStack(), InterpolatingRFEstimator::estimateArea(), ComponentAdder::explore(), ImplementationSelector::explore(), GenerateProcessor::generateProcessor(), main(), SimProgramBuilder::processInstruction(), SimpleSimulatorFrontend::setOperationSimulator(), and SimpleSimulatorFrontend::SimpleSimulatorFrontend().

hasCause()

bool Exception::hasCause

(

)

const

Returns true if cause is set for current exception.

Returns

True if cause is set for current exception.

Definition at line 85 of file Exception.cc.

                          {
    return (cause_ != NULL);
}

References cause_.

Referenced by errorMessageStack().

lastExceptionInfo()

std::string Exception::lastExceptionInfo ( )

static

Returns information of the last thrown exception.

Returns information of the last exception thrown.

This is useful in debugging. It's used in Application.hh's unexpected exception handler.

Returns

A string describing the last thrown exception.

Definition at line 108 of file Exception.cc.

                             {
    return lastExceptionInfo_;
}

References lastExceptionInfo_.

Referenced by Application::unexpectedExceptionHandler().

lineNum()

int Exception::lineNum

(

)

const

Referenced by DataDependenceGraphBuilder::build(), AddFUImplementationCmd::Do(), HDBEditorModifyCmd::Do(), AddRFImplementationCmd::Do(), errorMessageStack(), InterpolatingRFEstimator::estimateArea(), ComponentAdder::explore(), ImplementationSelector::explore(), GenerateProcessor::generateProcessor(), main(), SimProgramBuilder::processInstruction(), CompileError::setCodeFileLineNumber(), SimpleSimulatorFrontend::setOperationSimulator(), and SimpleSimulatorFrontend::SimpleSimulatorFrontend().

procedureName()

std::string Exception::procedureName

(

)

const

Referenced by GenerateProcessor::generateProcessor(), main(), SimProgramBuilder::processInstruction(), SimpleSimulatorFrontend::setOperationSimulator(), SimpleSimulatorFrontend::SimpleSimulatorFrontend(), and TPEF::BinaryWriter::writeBinary().

setCause()

void Exception::setCause

(

const Exception &

aCause

)

Sets cause of exception.

Parameters

aCause

Exception that resulted current exception.

Definition at line 75 of file Exception.cc.

                                           {
    cause_ = new Exception(aCause);
}

References cause_, and Exception().

Referenced by CodeSectionCreator::addMove(), TTAProgram::TPEFProgramFactory::addProcedures(), BUMoveNodeSelector::BUMoveNodeSelector(), TTAProgram::TPEFProgramFactory::createLabels(), LLVMBackend::createPlugin(), TTAProgram::TPEFProgramFactory::createTerminal(), CriticalPathBBMoveNodeSelector::CriticalPathBBMoveNodeSelector(), TPEF::BinaryStream::endOfFile(), DataSectionCreator::finalize(), CodeSectionCreator::finalize(), OperationBehaviorLoader::importBehavior(), XMLSerializer::initializeParser(), SimulatorFrontend::loadMachine(), SimulatorFrontend::loadProgram(), OperationPimpl::loadState(), Operand::loadState(), main(), TPEF::BinaryReader::readBinary(), TPEF::BinaryStream::readByte(), TPEF::BinaryStream::readByteBlock(), TPEF::BinaryStream::readHalfWord(), TPEF::BinaryStream::readHalfWordBlock(), TPEF::BinaryStream::readPosition(), OperationSerializer::readState(), TPEF::BinaryStream::readWord(), TPEF::BinaryStream::readWordBlock(), DataSectionCreator::resolveDataAreaSizesAndLabelAddresses(), LabelManager::resolveExpressionValue(), TTAMachine::ResourceVectorSet::ResourceVectorSet(), MachineResourceManager::rFPortOrFUIndexReference(), DesignSpaceExplorer::schedule(), ComponentImplementationSelector::selectComponentsToConf(), ComponentImplementationSelector::selectFUs(), ComponentImplementationSelector::selectIUs(), ComponentImplementationSelector::selectRFs(), TPEF::BinaryStream::setReadPosition(), TPEF::BinaryStream::setWritePosition(), TPEF::BinaryStream::sizeOfFile(), TTAProgram::TerminalFUPort::TerminalFUPort(), TTAProgram::ProgramWriter::terminalResource(), OperationSerializer::toOperation(), OperationSerializer::toXMLFormat(), TPEF::BinaryStream::writeByte(), TPEF::BinaryStream::writeByteBlock(), TPEF::BinaryStream::writeHalfWord(), TPEF::BinaryStream::writeHalfWordBlock(), TPEF::BinaryStream::writePosition(), OperationSerializer::writeState(), TPEF::BinaryStream::writeWord(), and TPEF::BinaryStream::writeWordBlock().

Here is the call graph for this function:

Member Data Documentation

cause_

const Exception* Exception::cause_

private

Exception that caused current exception.

Definition at line 91 of file Exception.hh.

Referenced by cause(), hasCause(), and setCause().

errorMessage_

std::string Exception::errorMessage_

private

Error message.

Definition at line 89 of file Exception.hh.

Referenced by errorMessage().

file_

std::string Exception::file_

private

Name of the file where exception occurred.

Definition at line 83 of file Exception.hh.

lastExceptionInfo_

std::string Exception::lastExceptionInfo_ = ""

staticprivate

Information of the last thrown exception for easing the debugging.

Definition at line 81 of file Exception.hh.

Referenced by Exception(), and lastExceptionInfo().

line_

int Exception::line_

private

Line number in the file.

Definition at line 85 of file Exception.hh.

proc_

std::string Exception::proc_

private

Procedure name.

Definition at line 87 of file Exception.hh.

unknownProcMsg_

const string Exception::unknownProcMsg_ = "(unknown)"

static

Used when no procedure name is given.

Definition at line 70 of file Exception.hh.

---

The documentation for this class was generated from the following files:

• Exception.hh
• Exception.cc
