CostFunctionPluginDialog Class Reference

#include <CostFunctionPluginDialog.hh>

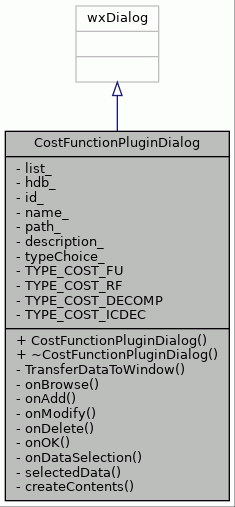

Inheritance diagram for CostFunctionPluginDialog:

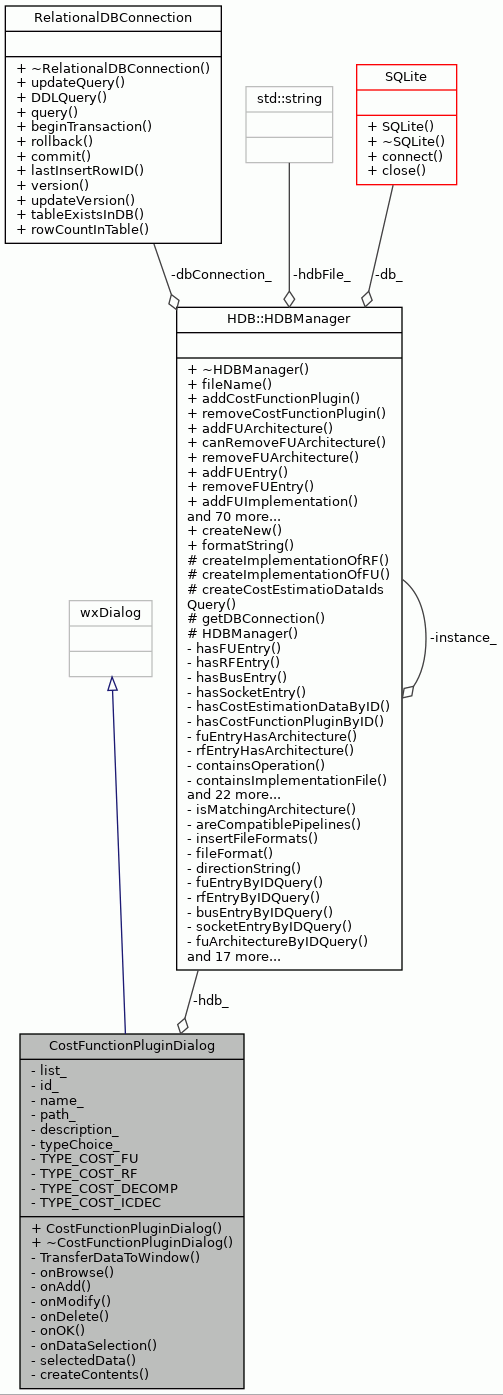

Collaboration diagram for CostFunctionPluginDialog:

Public Member Functions
	CostFunctionPluginDialog (wxWindow *parent, wxWindowID id, HDB::HDBManager &hdb, int pluginID)
virtual	~CostFunctionPluginDialog ()

Private Types
enum	{   ID_LIST = 10000 , ID_NAME , ID_PATH , ID_TYPE ,   ID_BROWSE , ID_DESCRIPTION , ID_ADD , ID_MODIFY ,   ID_DELETE , ID_TEXT , ID_LINE }
	Widget ids. More...

Private Member Functions
virtual bool	TransferDataToWindow ()
void	onBrowse (wxCommandEvent &event)
void	onAdd (wxCommandEvent &event)
void	onModify (wxCommandEvent &event)
void	onDelete (wxCommandEvent &event)
void	onOK (wxCommandEvent &event)
void	onDataSelection (wxListEvent &event)
int	selectedData ()
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)

Private Attributes
wxListCtrl *	list_
	Pointer to the data list widget.
HDB::HDBManager &	hdb_
	HDB containing the plugin.
int	id_
	Plugin id in the HDB.
wxString	name_
	Plugin name.
wxString	path_
	Plugin file path.
wxString	description_
	Plugin description string.
wxChoice *	typeChoice_
	Pointer to the type choice widget.

Static Private Attributes
static const wxString	TYPE_COST_FU
	FU Cost estimator string for the type choicer widget.
static const wxString	TYPE_COST_RF
	RF Cost estimator string for the type choicer widget.
static const wxString	TYPE_COST_DECOMP
	Decompressor cost estimator string for the type choicer widget.
static const wxString	TYPE_COST_ICDEC
	IC&decoder Cost estimator string for the type choicer widget.

Detailed Description

Dialog for modifying CostFunctionPlugins.

Definition at line 46 of file CostFunctionPluginDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Widget ids.

Enumerator
ID_LIST
ID_NAME
ID_PATH
ID_TYPE
ID_BROWSE
ID_DESCRIPTION
ID_ADD
ID_MODIFY
ID_DELETE
ID_TEXT
ID_LINE

Definition at line 92 of file CostFunctionPluginDialog.hh.

         {
        ID_LIST = 10000,
        ID_NAME,
        ID_PATH,
        ID_TYPE,
        ID_BROWSE,
        ID_DESCRIPTION,
        ID_ADD,
        ID_MODIFY,
        ID_DELETE,
        ID_TEXT,
        ID_LINE
    };

Constructor & Destructor Documentation

CostFunctionPluginDialog()

CostFunctionPluginDialog::CostFunctionPluginDialog	(	wxWindow *	parent,
		wxWindowID	id,
		HDB::HDBManager &	hdb,
		int	pluginID
	)

The Constructor.

Parameters

parent	Parent window of the dialog.
id	Dialog window ID.
hdb	HDB containing the cost function plugin.
pluginID	Row ID of the plugin in the HDB.

Definition at line 79 of file CostFunctionPluginDialog.cc.

                                                                       :
    wxDialog(parent, id, _T("Cost Function Plugin")),
    hdb_(hdb), id_(pluginID) {

    createContents(this, true, true);

    list_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_LIST));
    typeChoice_ = dynamic_cast<wxChoice*>(FindWindow(ID_TYPE));

    list_->InsertColumn(0, _T("Type"), wxLIST_FORMAT_LEFT, 50);
    list_->InsertColumn(1, _T("ID"), wxLIST_FORMAT_LEFT, 50);
    list_->InsertColumn(2, _T("Name"), wxLIST_FORMAT_LEFT, 200);
    list_->InsertColumn(3, _T("Data"), wxLIST_FORMAT_RIGHT, 200);

    typeChoice_->Append(TYPE_COST_RF);
    typeChoice_->Append(TYPE_COST_FU);
    typeChoice_->Append(TYPE_COST_DECOMP);
    typeChoice_->Append(TYPE_COST_ICDEC);

    FindWindow(ID_NAME)->SetValidator(wxGenericValidator(&name_));
    FindWindow(ID_PATH)->SetValidator(wxGenericValidator(&path_));
    FindWindow(
        ID_DESCRIPTION)->SetValidator(wxGenericValidator(&description_));

    const CostFunctionPlugin* plugin = hdb_.costFunctionPluginByID(id_);

    name_ = WxConversion::toWxString(plugin->name());
    path_ = WxConversion::toWxString(plugin->pluginFilePath());
    description_ = WxConversion::toWxString(plugin->description());

    if (plugin->type() == CostFunctionPlugin::COST_FU) {
        typeChoice_->SetStringSelection(TYPE_COST_FU);
    } else if (plugin->type() == CostFunctionPlugin::COST_RF) {
        typeChoice_->SetStringSelection(TYPE_COST_RF);
    } else if (plugin->type() == CostFunctionPlugin::COST_DECOMP) {
        typeChoice_->SetStringSelection(TYPE_COST_DECOMP);
    } else if (plugin->type() == CostFunctionPlugin::COST_ICDEC) {
        typeChoice_->SetStringSelection(TYPE_COST_ICDEC);
    }
    delete plugin;

    FindWindow(ID_DELETE)->Disable();
    FindWindow(ID_MODIFY)->Disable();
}

References HDB::CostFunctionPlugin::COST_DECOMP, HDB::CostFunctionPlugin::COST_FU, HDB::CostFunctionPlugin::COST_ICDEC, HDB::CostFunctionPlugin::COST_RF, HDB::CostFunctionPlugin::description(), HDB::CostFunctionPlugin::name(), HDB::CostFunctionPlugin::pluginFilePath(), WxConversion::toWxString(), and HDB::CostFunctionPlugin::type().

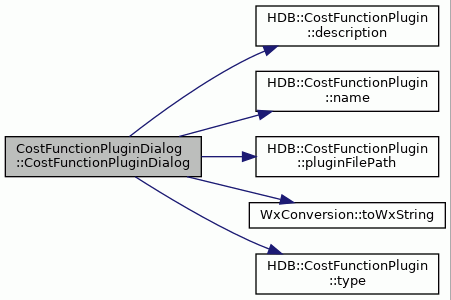

Here is the call graph for this function:

~CostFunctionPluginDialog()

CostFunctionPluginDialog::~CostFunctionPluginDialog ( )

virtual

y * The Destructor.

Definition at line 128 of file CostFunctionPluginDialog.cc.

                                                    {
}

Member Function Documentation

createContents()

wxSizer * CostFunctionPluginDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the dialog widgets.

Parameters

parent

Parent window of the dialog widgets.

Definition at line 302 of file CostFunctionPluginDialog.cc.

                                                     {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    wxFlexGridSizer *item1 = new wxFlexGridSizer( 3, 0, 0 );

    wxStaticText *item2 = new wxStaticText( parent, ID_TEXT, wxT("Name:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item2, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxTextCtrl *item3 = new wxTextCtrl( parent, ID_NAME, wxT(""), wxDefaultPosition, wxSize(300,-1), 0 );
    item1->Add( item3, 0, wxALIGN_CENTER|wxALL, 5 );

    item1->Add( 20, 20, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticText *item4 = new wxStaticText( parent, ID_TEXT, wxT("Plugin file path:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item4, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxTextCtrl *item5 = new wxTextCtrl( parent, ID_PATH, wxT(""), wxDefaultPosition, wxSize(80,-1), 0 );
    item1->Add( item5, 0, wxGROW|wxALL, 5 );

    wxButton *item6 = new wxButton( parent, ID_BROWSE, wxT("Browse..."), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item6, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticText *item7 = new wxStaticText( parent, ID_TEXT, wxT("Plugin type:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item7, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxString *strs8 = (wxString*) NULL;
    wxChoice *item8 = new wxChoice( parent, ID_TYPE, wxDefaultPosition, wxSize(100,-1), 0, strs8, 0 );
    item1->Add( item8, 0, wxGROW|wxALL, 5 );

    item1->Add( 20, 20, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticText *item9 = new wxStaticText( parent, ID_TEXT, wxT("Description:"), wxDefaultPosition, wxDefaultSize, 0 );
    item1->Add( item9, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxTextCtrl *item10 = new wxTextCtrl( parent, ID_DESCRIPTION, wxT(""), wxDefaultPosition, wxSize(200,60), wxTE_MULTILINE );
    item1->Add( item10, 0, wxGROW|wxALL, 5 );

    item0->Add( item1, 0, wxGROW|wxALL, 5 );

    wxStaticBox *item12 = new wxStaticBox( parent, -1, wxT("Plugin data:") );
    wxStaticBoxSizer *item11 = new wxStaticBoxSizer( item12, wxVERTICAL );

    wxListCtrl *item13 = new wxListCtrl( parent, ID_LIST, wxDefaultPosition, wxSize(500,300), wxLC_REPORT|wxSUNKEN_BORDER );
    item11->Add( item13, 0, wxGROW|wxALL, 5 );

    item0->Add( item11, 0, wxGROW|wxALL, 5 );

    wxBoxSizer *item14 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item15 = new wxButton( parent, ID_ADD, wxT("Add..."), wxDefaultPosition, wxDefaultSize, 0 );
    item14->Add( item15, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item16 = new wxButton( parent, ID_MODIFY, wxT("Modify..."), wxDefaultPosition, wxDefaultSize, 0 );
    item14->Add( item16, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item17 = new wxButton( parent, ID_DELETE, wxT("Delete"), wxDefaultPosition, wxDefaultSize, 0 );
    item14->Add( item17, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item14, 0, wxALIGN_CENTER, 5 );

    wxStaticLine *item18 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(20,-1), wxLI_HORIZONTAL );
    item0->Add( item18, 0, wxGROW|wxALL, 5 );

    wxBoxSizer *item19 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item20 = new wxButton( parent, wxID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0 );
    item19->Add( item20, 0, wxALIGN_CENTER|wxALL, 5 );

    wxButton *item21 = new wxButton( parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
    item19->Add( item21, 0, wxALL, 5 );

    item0->Add( item19, 0, 0, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References ID_ADD, ID_BROWSE, ID_DELETE, ID_DESCRIPTION, ID_LINE, ID_LIST, ID_MODIFY, ID_NAME, ID_PATH, ID_TEXT, and ID_TYPE.

onAdd()

void CostFunctionPluginDialog::onAdd ( wxCommandEvent &  event )

private

Event handler for the add button.

Definition at line 224 of file CostFunctionPluginDialog.cc.

                                               {
    TransferDataFromWindow();
    CostEstimationDataDialog dialog(this, -1, hdb_, id_, -1);
    dialog.ShowModal();
    TransferDataFromWindow();
    TransferDataToWindow();

}

References hdb_, id_, and TransferDataToWindow().

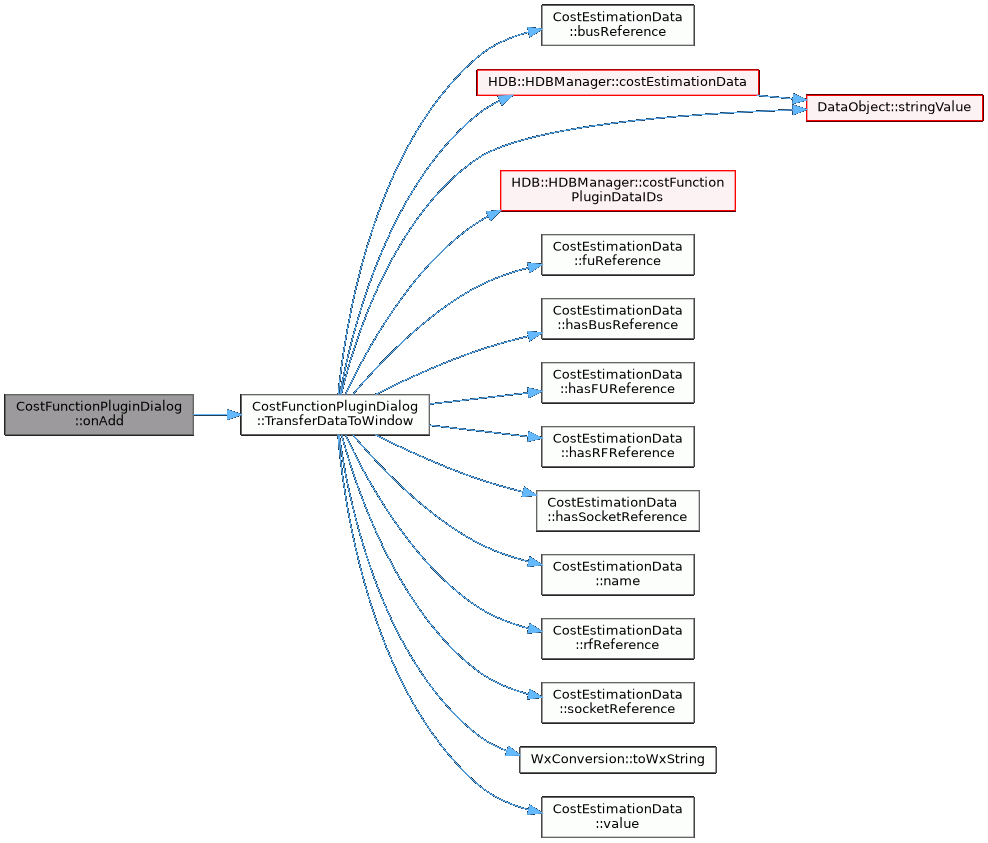

Here is the call graph for this function:

onBrowse()

void CostFunctionPluginDialog::onBrowse ( wxCommandEvent &  event )

private

Event handler for the browse plugin file path button.

Definition at line 210 of file CostFunctionPluginDialog.cc.

                                                  {
    wxFileDialog dialog(
        this, _T("Choose a plugin file."), _T(""), _T(""),
        _T("Plugin files (*.so)|*.so|All Files|*.*"),
        wxOPEN | wxFILE_MUST_EXIST);
    if (dialog.ShowModal() == wxID_OK) {
        dynamic_cast<wxTextCtrl*>(
            FindWindow(ID_PATH))->SetValue(dialog.GetPath());
    }
}

References ID_PATH.

onDataSelection()

void CostFunctionPluginDialog::onDataSelection ( wxListEvent &  event )

private

Event handler for the plugin data list selection changes.

Updates the delete and modify button enabled/disabled states.

Definition at line 196 of file CostFunctionPluginDialog.cc.

                                                      {
    if (selectedData() == -1) {
        FindWindow(ID_DELETE)->Disable();
        FindWindow(ID_MODIFY)->Disable();
    } else {
        FindWindow(ID_DELETE)->Enable();
        FindWindow(ID_MODIFY)->Enable();
    }
}

References ID_DELETE, ID_MODIFY, and selectedData().

Here is the call graph for this function:

onDelete()

void CostFunctionPluginDialog::onDelete ( wxCommandEvent &  event )

private

Event handler for the Delete button.

Definition at line 251 of file CostFunctionPluginDialog.cc.

                                                  {
    TransferDataFromWindow();
    int selected = selectedData();
    if (selected >= 0) {
        hdb_.removeCostEstimationData(selected);
        TransferDataToWindow();
    }
}

References hdb_, HDB::HDBManager::removeCostEstimationData(), selectedData(), and TransferDataToWindow().

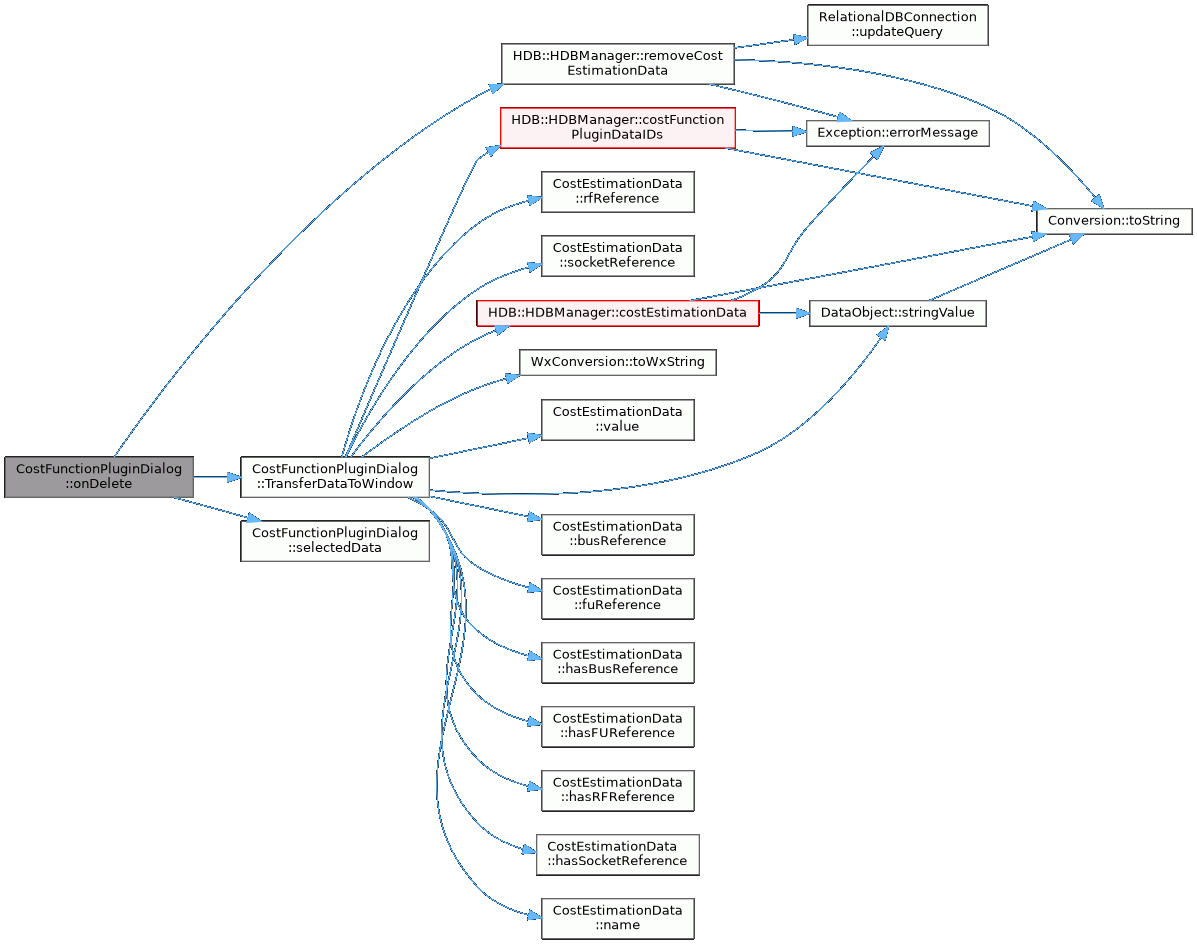

Here is the call graph for this function:

onModify()

void CostFunctionPluginDialog::onModify ( wxCommandEvent &  event )

private

Event handler for the modify button.

Definition at line 237 of file CostFunctionPluginDialog.cc.

                                                  {
    TransferDataFromWindow();
    int selected = selectedData();
    if (selected >= 0) {
        CostEstimationDataDialog dialog(this, -1, hdb_, id_, selected);
        dialog.ShowModal();
        TransferDataToWindow();
    }
}

References hdb_, id_, selectedData(), and TransferDataToWindow().

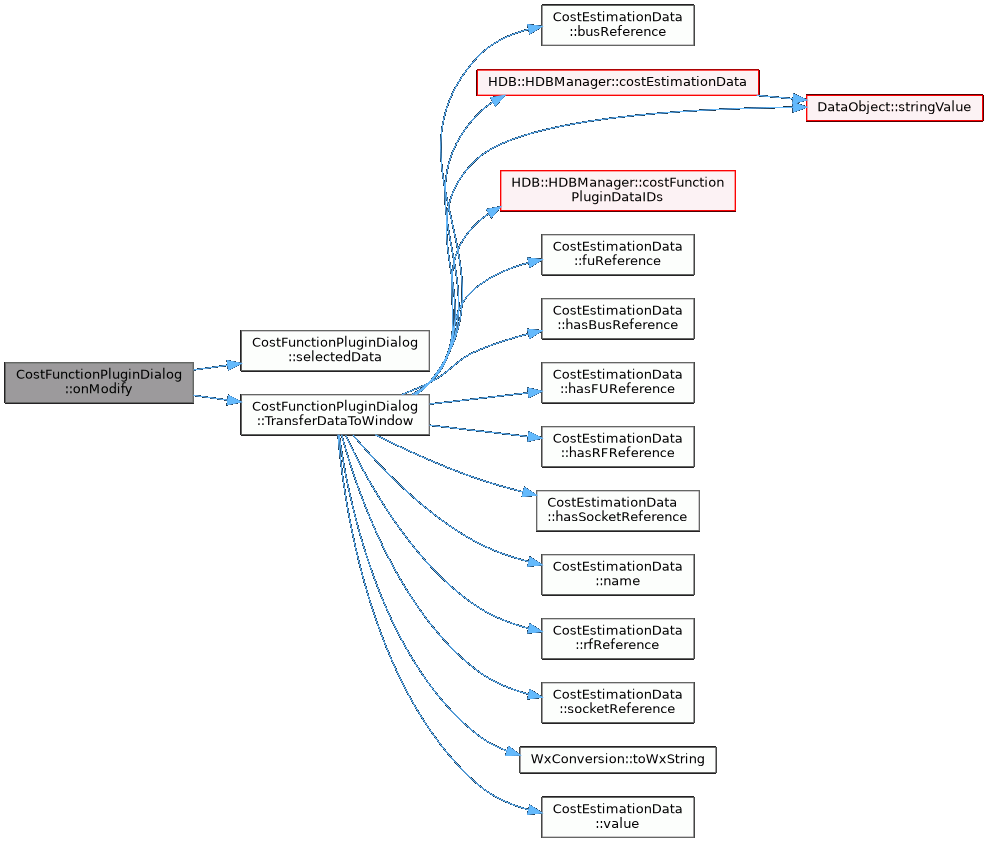

Here is the call graph for this function:

onOK()

void CostFunctionPluginDialog::onOK ( wxCommandEvent &  event )

private

Event handler for the Close button.

Definition at line 264 of file CostFunctionPluginDialog.cc.

                                              {

    TransferDataFromWindow();

     if (name_.IsEmpty()) {
             wxString message(_T("Plugin name not set."));
             ErrorDialog dialog(this, message);
             dialog.ShowModal();
             return;
     }

    CostFunctionPlugin::CostFunctionPluginType type =
        CostFunctionPlugin::COST_FU;

    if (typeChoice_->GetStringSelection() == TYPE_COST_RF) {
        type = CostFunctionPlugin::COST_RF;
    } else if (typeChoice_->GetStringSelection() == TYPE_COST_DECOMP) {
        type = CostFunctionPlugin::COST_DECOMP;
    } else if (typeChoice_->GetStringSelection() == TYPE_COST_ICDEC) {
        type = CostFunctionPlugin::COST_ICDEC;
    } else {
        assert(typeChoice_->GetStringSelection() == TYPE_COST_FU);
    }

    std::string description = WxConversion::toString(description_);
    std::string name = WxConversion::toString(name_);
    std::string path = WxConversion::toString(path_);
    CostFunctionPlugin modified(-1, description, name, path, type);
    hdb_.modifyCostFunctionPlugin(id_, modified);
    EndModal(wxID_OK);
}

References assert, HDB::CostFunctionPlugin::COST_DECOMP, HDB::CostFunctionPlugin::COST_FU, HDB::CostFunctionPlugin::COST_ICDEC, HDB::CostFunctionPlugin::COST_RF, description_, hdb_, id_, HDB::HDBManager::modifyCostFunctionPlugin(), name_, path_, WxConversion::toString(), TYPE_COST_DECOMP, TYPE_COST_FU, TYPE_COST_ICDEC, TYPE_COST_RF, and typeChoice_.

Here is the call graph for this function:

selectedData()

int CostFunctionPluginDialog::selectedData ( )

private

Returns RowID of the cost estimation data selected in the list.

Returns -1 if no data is selected.

Returns

RowID of the selected cost estiamtion data.

Definition at line 180 of file CostFunctionPluginDialog.cc.

                                       {
    int item = list_->GetNextItem(-1, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);

    if (item < 0) {
        return -1;
    }

    return list_->GetItemData(item);
}

References list_.

Referenced by onDataSelection(), onDelete(), and onModify().

TransferDataToWindow()

bool CostFunctionPluginDialog::TransferDataToWindow ( )

privatevirtual

Transfers data to the dilaog widgets.

Definition at line 135 of file CostFunctionPluginDialog.cc.

                                               {

    list_->DeleteAllItems();

    // Plugin cost estimation data.
    const std::set<RowID> pluginDataIDs = hdb_.costFunctionPluginDataIDs(id_);
    std::set<RowID>::const_iterator iter = pluginDataIDs.begin();
    for (; iter != pluginDataIDs.end(); iter++) {
        const CostEstimationData data = hdb_.costEstimationData(*iter);
        if (data.hasFUReference()) {
            list_->InsertItem(0, _T("FU"));
            list_->SetItem(0, 1, WxConversion::toWxString(data.fuReference()));
        } else if (data.hasRFReference()) {
            list_->InsertItem(0, _T("RF"));
            list_->SetItem(0, 1, WxConversion::toWxString(data.rfReference()));
        } else if (data.hasBusReference()) {
            list_->InsertItem(0, _T("Bus"));
            list_->SetItem(
                0, 1, WxConversion::toWxString(data.busReference()));
        } else if (data.hasSocketReference()) {
            list_->InsertItem(0, _T("Socket"));
            list_->SetItem(
                0, 1, WxConversion::toWxString(data.socketReference()));
        } else {
            list_->InsertItem(0, _T("-"));
            list_->SetItem(0, 1, _T("-"));
        }

        list_->SetItem(0, 2, WxConversion::toWxString(data.name()));
        list_->SetItem(
            0, 3, WxConversion::toWxString(data.value().stringValue()));
        list_->SetItemData(0, *iter);
    }

    return wxDialog::TransferDataToWindow();
}

References CostEstimationData::busReference(), HDB::HDBManager::costEstimationData(), HDB::HDBManager::costFunctionPluginDataIDs(), CostEstimationData::fuReference(), CostEstimationData::hasBusReference(), CostEstimationData::hasFUReference(), CostEstimationData::hasRFReference(), CostEstimationData::hasSocketReference(), hdb_, id_, list_, CostEstimationData::name(), CostEstimationData::rfReference(), CostEstimationData::socketReference(), DataObject::stringValue(), WxConversion::toWxString(), and CostEstimationData::value().

Referenced by onAdd(), onDelete(), and onModify().

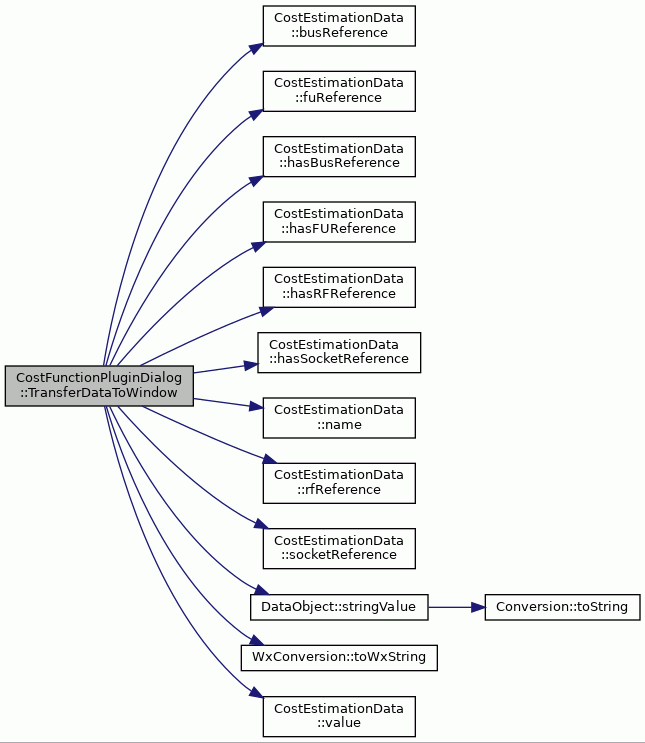

Here is the call graph for this function:

Member Data Documentation

description_

wxString CostFunctionPluginDialog::description_

private

Plugin description string.

Definition at line 77 of file CostFunctionPluginDialog.hh.

Referenced by onOK().

hdb_

HDB::HDBManager& CostFunctionPluginDialog::hdb_

private

HDB containing the plugin.

Definition at line 69 of file CostFunctionPluginDialog.hh.

Referenced by onAdd(), onDelete(), onModify(), onOK(), and TransferDataToWindow().

id_

int CostFunctionPluginDialog::id_

private

Plugin id in the HDB.

Definition at line 71 of file CostFunctionPluginDialog.hh.

Referenced by onAdd(), onModify(), onOK(), and TransferDataToWindow().

list_

wxListCtrl* CostFunctionPluginDialog::list_

private

Pointer to the data list widget.

Definition at line 66 of file CostFunctionPluginDialog.hh.

Referenced by selectedData(), and TransferDataToWindow().

name_

wxString CostFunctionPluginDialog::name_

private

Plugin name.

Definition at line 73 of file CostFunctionPluginDialog.hh.

Referenced by onOK().

path_

wxString CostFunctionPluginDialog::path_

private

Plugin file path.

Definition at line 75 of file CostFunctionPluginDialog.hh.

Referenced by onOK().

TYPE_COST_DECOMP

const wxString CostFunctionPluginDialog::TYPE_COST_DECOMP

staticprivate

Initial value:

=
    _T("Decompressor Cost Estimator")

Decompressor cost estimator string for the type choicer widget.

Definition at line 87 of file CostFunctionPluginDialog.hh.

Referenced by onOK().

TYPE_COST_FU

const wxString CostFunctionPluginDialog::TYPE_COST_FU

staticprivate

Initial value:

=
    _T("FU Cost Estimator")

FU Cost estimator string for the type choicer widget.

Definition at line 83 of file CostFunctionPluginDialog.hh.

Referenced by onOK().

TYPE_COST_ICDEC

const wxString CostFunctionPluginDialog::TYPE_COST_ICDEC

staticprivate

Initial value:

=
    _T("IC & Decoder Cost Estimator")

IC&decoder Cost estimator string for the type choicer widget.

Definition at line 89 of file CostFunctionPluginDialog.hh.

Referenced by onOK().

TYPE_COST_RF

const wxString CostFunctionPluginDialog::TYPE_COST_RF

staticprivate

Initial value:

=
    _T("RF Cost Estimator")

RF Cost estimator string for the type choicer widget.

Definition at line 85 of file CostFunctionPluginDialog.hh.

Referenced by onOK().

typeChoice_

wxChoice* CostFunctionPluginDialog::typeChoice_

private

Pointer to the type choice widget.

Definition at line 80 of file CostFunctionPluginDialog.hh.

Referenced by onOK().

---

The documentation for this class was generated from the following files:

• CostFunctionPluginDialog.hh
• CostFunctionPluginDialog.cc
