DDGPass Class Reference

#include <DDGPass.hh>

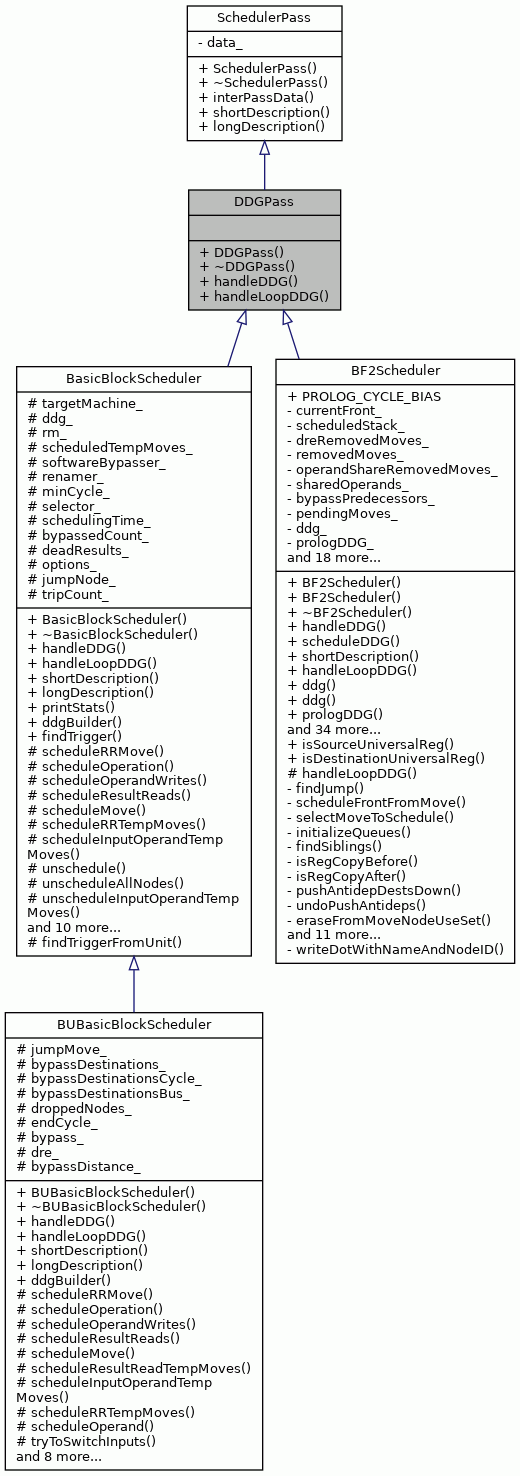

Inheritance diagram for DDGPass:

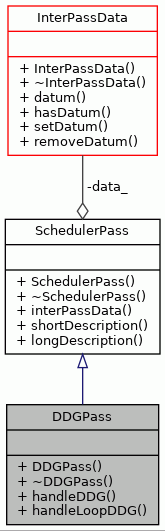

Collaboration diagram for DDGPass:

Public Member Functions
	DDGPass (InterPassData &data)
virtual	~DDGPass ()
virtual int	handleDDG (DataDependenceGraph &ddg, SimpleResourceManager &rm, const TTAMachine::Machine &targetMachine, int minCycle=0, bool testOnly=false)
virtual int	handleLoopDDG (DataDependenceGraph &, SimpleResourceManager &, const TTAMachine::Machine &, int tripCount, SimpleResourceManager *prologRM=NULL, bool testOnly=false)
Public Member Functions inherited from SchedulerPass
	SchedulerPass (InterPassData &data)
virtual	~SchedulerPass ()
InterPassData &	interPassData ()
virtual std::string	shortDescription () const =0
virtual std::string	longDescription () const

Detailed Description

Definition at line 51 of file DDGPass.hh.

Constructor & Destructor Documentation

DDGPass()

DDGPass::DDGPass

(

InterPassData &

data

)

Constructor.

Definition at line 42 of file DDGPass.cc.

                                    :
    SchedulerPass(data) {
}

~DDGPass()

DDGPass::~DDGPass ( )

virtual

Destructor.

Definition at line 49 of file DDGPass.cc.

                  {
}

Member Function Documentation

handleDDG()

int DDGPass::handleDDG ( DataDependenceGraph &  ddg, SimpleResourceManager &  rm, const TTAMachine::Machine &  targetMachine, int  minCycle = 0, bool  testOnly = false  )

virtual

Handles a given DDG.

Parameters

ddg	DDG to handle
rm	Resource manager that is to be used.
machine	The target machine if any. (NullMachine::instance() if target machine is irrelevant).

Exceptions

In	case handling is unsuccesful for any reason (basicBlock might still get modified).

Reimplemented in BasicBlockScheduler, BF2Scheduler, and BUBasicBlockScheduler.

Definition at line 63 of file DDGPass.cc.

                                                                  {
    // just to avoid warnings -- need to keep the argument names for
    // Doxygen comments ;)
    ddg.nodeCount();
    rm.largestCycle();
    targetMachine.machineTester();
    abortWithError("Should never call this.");
    minCycle++;
    return INT_MAX;
}

References abortWithError, SimpleResourceManager::largestCycle(), TTAMachine::Machine::machineTester(), and BoostGraph< GraphNode, GraphEdge >::nodeCount().

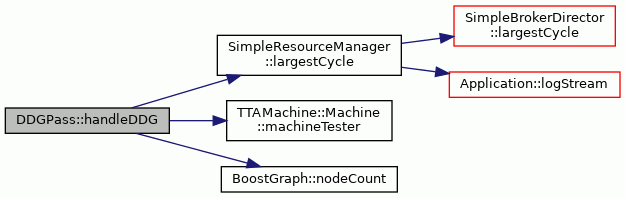

Here is the call graph for this function:

handleLoopDDG()

int DDGPass::handleLoopDDG ( DataDependenceGraph &  , SimpleResourceManager &  , const TTAMachine::Machine &  , int  tripCount, SimpleResourceManager *  prologRM = NULL, bool  testOnly = false  )

virtual

For BasicBlockPass to be able to call this method...

Reimplemented in BUBasicBlockScheduler, BasicBlockScheduler, and BF2Scheduler.

Definition at line 77 of file DDGPass.cc.

                                       {
    return -1;
}

---

The documentation for this class was generated from the following files:

• DDGPass.hh
• DDGPass.cc
