DisasmCmdLineOptions Class Reference

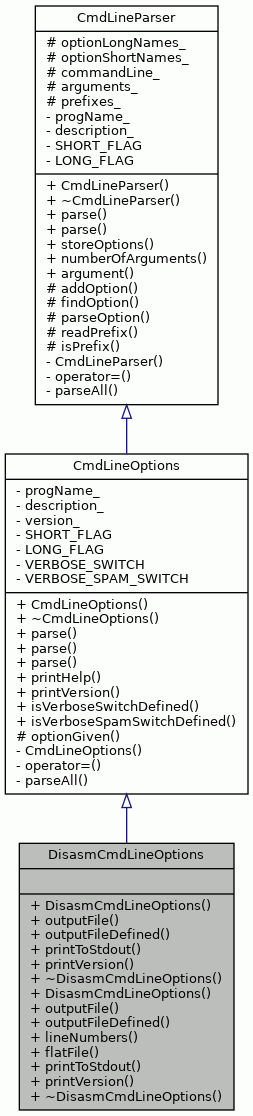

Inheritance diagram for DisasmCmdLineOptions:

Collaboration diagram for DisasmCmdLineOptions:

Public Member Functions
	DisasmCmdLineOptions ()
std::string	outputFile ()
bool	outputFileDefined ()
bool	printToStdout ()
void	printVersion () const
virtual	~DisasmCmdLineOptions ()
	DisasmCmdLineOptions ()
std::string	outputFile ()
bool	outputFileDefined ()
bool	lineNumbers ()
bool	flatFile ()
bool	printToStdout ()
void	printVersion () const
virtual	~DisasmCmdLineOptions ()
Public Member Functions inherited from CmdLineOptions
	CmdLineOptions (std::string description, std::string version="")
virtual	~CmdLineOptions ()
void	parse (char *argv[], int argc)
void	parse (std::string argv[], int argc)
void	parse (std::vector< std::string > argv)
virtual void	printHelp () const
virtual bool	isVerboseSwitchDefined () const
virtual bool	isVerboseSpamSwitchDefined () const
Public Member Functions inherited from CmdLineParser
	CmdLineParser (std::string description)
virtual	~CmdLineParser ()
virtual void	storeOptions (Options &options)
virtual int	numberOfArguments () const
virtual std::string	argument (int index) const

Additional Inherited Members
Protected Member Functions inherited from CmdLineOptions
bool	optionGiven (std::string key) const
Protected Member Functions inherited from CmdLineParser
void	addOption (CmdLineOptionParser *opt)
CmdLineOptionParser *	findOption (std::string name) const
bool	parseOption (std::string option, std::string &name, std::string &arguments, std::string &prefix, bool &hasArgument) const
bool	readPrefix (std::string &option, std::string &prefix, bool &longOption) const
bool	isPrefix (std::string name) const
Protected Attributes inherited from CmdLineParser
std::map< std::string, CmdLineOptionParser * >	optionLongNames_
	Database for holding options with their long names as a key. More...
std::map< std::string, CmdLineOptionParser * >	optionShortNames_
	Database for holding options with their short names as a key. More...
std::vector< std::string >	commandLine_
	Command line is stored here. More...
std::vector< std::string >	arguments_
	Command line arguments are stored here. More...
std::vector< std::string >	prefixes_
	Legal prefixes are stored here. More...

Detailed Description

Commandline options.

Definition at line 79 of file tpef2pasm.cc.

Constructor & Destructor Documentation

DisasmCmdLineOptions() [1/2]

DisasmCmdLineOptions::DisasmCmdLineOptions ( )

inline

Definition at line 81 of file tpef2pasm.cc.

        : CmdLineOptions("Usage: tpef2pasm [options] adffile tpeffile") {
        StringCmdLineOptionParser* outputFile = new StringCmdLineOptionParser(
            "outputfile", "Name of the output file.", "o");

        BoolCmdLineOptionParser* toStdout = new BoolCmdLineOptionParser(
            "stdout", "Print to standard output", "s");

        addOption(outputFile);
        addOption(toStdout);
    }

References CmdLineParser::addOption(), and outputFile().

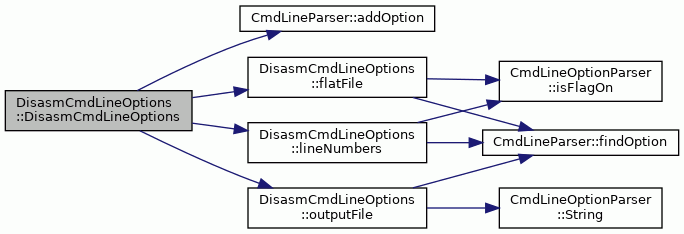

Here is the call graph for this function:

~DisasmCmdLineOptions() [1/2]

virtual DisasmCmdLineOptions::~DisasmCmdLineOptions ( )

inlinevirtual

Definition at line 114 of file tpef2pasm.cc.

{}

DisasmCmdLineOptions() [2/2]

DisasmCmdLineOptions::DisasmCmdLineOptions ( )

inline

Definition at line 62 of file tcedisasm.cc.

                           :
        CmdLineOptions("Usage: tcedisasm [options] adffile tpeffile") {

        StringCmdLineOptionParser* outputFile =
            new StringCmdLineOptionParser(
                "outputfile", "Name of the output file.", "o");

        BoolCmdLineOptionParser* lineNumbers =
            new BoolCmdLineOptionParser(
                "linenumbers", "Print line numbers","n");

        BoolCmdLineOptionParser* flatFile =
            new BoolCmdLineOptionParser(
                "flat", "The instructions only with file line numbers "
                "matching instruction indices","F");

        BoolCmdLineOptionParser* toStdout =
            new BoolCmdLineOptionParser(
                "stdout", "Print to standard output","s");

        addOption(lineNumbers);
        addOption(outputFile);
        addOption(flatFile);
        addOption(toStdout);
    }

References CmdLineParser::addOption(), flatFile(), lineNumbers(), and outputFile().

Here is the call graph for this function:

~DisasmCmdLineOptions() [2/2]

virtual DisasmCmdLineOptions::~DisasmCmdLineOptions ( )

inlinevirtual

Definition at line 113 of file tcedisasm.cc.

                                    {
    }

Member Function Documentation

flatFile()

bool DisasmCmdLineOptions::flatFile ( )

inline

Definition at line 100 of file tcedisasm.cc.

                    {
        return findOption("flat")->isFlagOn();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Referenced by DisasmCmdLineOptions().

Here is the call graph for this function:

lineNumbers()

bool DisasmCmdLineOptions::lineNumbers ( )

inline

Definition at line 96 of file tcedisasm.cc.

                       {
        return findOption("linenumbers")->isFlagOn();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Referenced by DisasmCmdLineOptions().

Here is the call graph for this function:

outputFile() [1/2]

std::string DisasmCmdLineOptions::outputFile ( )

inline

Definition at line 88 of file tcedisasm.cc.

                           {
        return findOption("outputfile")->String();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::String().

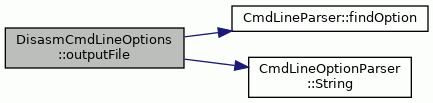

Here is the call graph for this function:

outputFile() [2/2]

std::string DisasmCmdLineOptions::outputFile ( )

inline

Definition at line 94 of file tpef2pasm.cc.

                 {
        return findOption("outputfile")->String();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::String().

Referenced by DisasmCmdLineOptions().

Here is the call graph for this function:

outputFileDefined() [1/2]

bool DisasmCmdLineOptions::outputFileDefined ( )

inline

Definition at line 92 of file tcedisasm.cc.

                             {
        return findOption("outputfile")->isDefined();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isDefined().

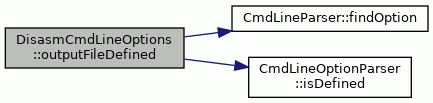

Here is the call graph for this function:

outputFileDefined() [2/2]

bool DisasmCmdLineOptions::outputFileDefined ( )

inline

Definition at line 99 of file tpef2pasm.cc.

                        {
        return findOption("outputfile")->isDefined();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isDefined().

Here is the call graph for this function:

printToStdout() [1/2]

bool DisasmCmdLineOptions::printToStdout ( )

inline

Definition at line 104 of file tcedisasm.cc.

                         {
        return findOption("stdout")->isFlagOn();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Here is the call graph for this function:

printToStdout() [2/2]

bool DisasmCmdLineOptions::printToStdout ( )

inline

Definition at line 104 of file tpef2pasm.cc.

                    {
        return findOption("stdout")->isFlagOn();
    }

References CmdLineParser::findOption(), and CmdLineOptionParser::isFlagOn().

Here is the call graph for this function:

printVersion() [1/2]

void DisasmCmdLineOptions::printVersion ( ) const

inlinevirtual

Implements CmdLineOptions.

Definition at line 108 of file tcedisasm.cc.

                              {
        std::cout << "tcedisasm - OpenASIP TTA parallel disassembler "
                  << Application::TCEVersionString() << std::endl;
    }

References Application::TCEVersionString().

Here is the call graph for this function:

printVersion() [2/2]

void DisasmCmdLineOptions::printVersion ( ) const

inlinevirtual

Implements CmdLineOptions.

Definition at line 109 of file tpef2pasm.cc.

                         {
        std::cout << "tcedisasm - OpenASIP TTA parallel disassembler "
                  << Application::TCEVersionString() << std::endl;
    }

References Application::TCEVersionString().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• tpef2pasm.cc
• tcedisasm.cc
