EditConnectionsCmd Class Reference

#include <EditConnectionsCmd.hh>

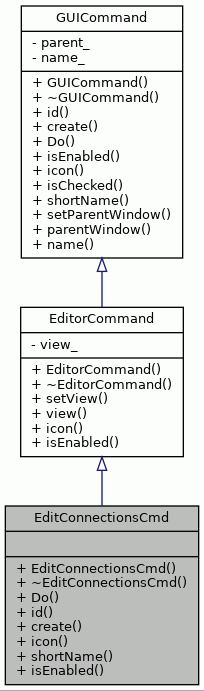

Inheritance diagram for EditConnectionsCmd:

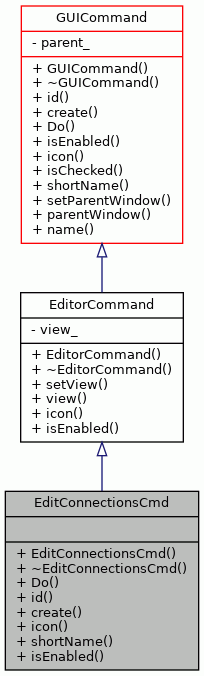

Collaboration diagram for EditConnectionsCmd:

Public Member Functions
	EditConnectionsCmd ()
virtual	~EditConnectionsCmd ()
virtual bool	Do ()
virtual int	id () const
virtual EditConnectionsCmd *	create () const
virtual std::string	icon () const
virtual std::string	shortName () const
virtual bool	isEnabled ()
Public Member Functions inherited from EditorCommand
	EditorCommand (std::string name, wxWindow *parent=NULL)
virtual	~EditorCommand ()
void	setView (wxView *view)
wxView *	view () const
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

wxCommand for editing connections.

Definition at line 42 of file EditConnectionsCmd.hh.

Constructor & Destructor Documentation

EditConnectionsCmd()

EditConnectionsCmd::EditConnectionsCmd

(

)

The Constructor.

Definition at line 47 of file EditConnectionsCmd.cc.

                                      :
    EditorCommand(ProDeConstants::CMD_NAME_EDIT_CONNECTIONS) {

}

Referenced by create().

~EditConnectionsCmd()

EditConnectionsCmd::~EditConnectionsCmd ( )

virtual

The Destructor.

Definition at line 56 of file EditConnectionsCmd.cc.

{}

Member Function Documentation

create()

EditConnectionsCmd * EditConnectionsCmd::create ( ) const

virtual

Creates and returns a new instance of this command.

Implements GUICommand.

Definition at line 89 of file EditConnectionsCmd.cc.

                                 {
    return new EditConnectionsCmd();
}

References EditConnectionsCmd().

Here is the call graph for this function:

Do()

bool EditConnectionsCmd::Do ( )

virtual

Executes the command.

Returns

True, if the command was succesfully executed, false otherwise.

Implements GUICommand.

Definition at line 65 of file EditConnectionsCmd.cc.

                       {
    MDFView* mdfView = dynamic_cast<MDFView*>(view());
    ChildFrame* frame = dynamic_cast<ChildFrame*>(mdfView->GetFrame());
    assert(frame != NULL);
    mdfView->clearSelection();
    ConnectTool* tool = new ConnectTool(frame, mdfView);
    mdfView->canvas()->setTool(tool);
    return true;
}

References assert, MDFView::canvas(), MDFView::clearSelection(), MachineCanvas::setTool(), and EditorCommand::view().

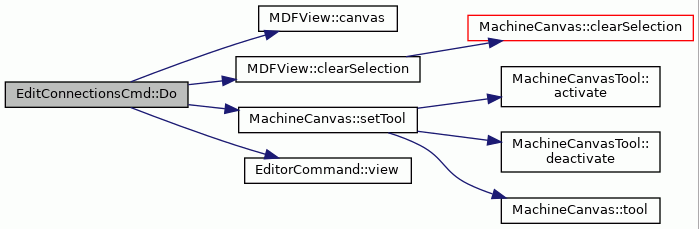

Here is the call graph for this function:

icon()

string EditConnectionsCmd::icon ( ) const

virtual

Returns path to the command's icon file.

Reimplemented from EditorCommand.

Definition at line 98 of file EditConnectionsCmd.cc.

                               {
    return ProDeConstants::CMD_ICON_EDIT_CONNECTIONS;
}

References ProDeConstants::CMD_ICON_EDIT_CONNECTIONS.

id()

int EditConnectionsCmd::id ( ) const

virtual

Returns id of this command.

Implements GUICommand.

Definition at line 80 of file EditConnectionsCmd.cc.

                             {
    return ProDeConstants::COMMAND_EDIT_CONNECTIONS;
}

References ProDeConstants::COMMAND_EDIT_CONNECTIONS.

isEnabled()

bool EditConnectionsCmd::isEnabled ( )

virtual

Returns true when the command is executable, false when not.

This command is executable when a document is open.

Returns

True, if a document is open.

Reimplemented from EditorCommand.

Definition at line 120 of file EditConnectionsCmd.cc.

                              {
    wxDocManager* manager = wxGetApp().docManager();
    if (manager->GetCurrentView() != NULL) {
    return true;
    }
    return false;
}

shortName()

string EditConnectionsCmd::shortName ( ) const

virtual

Returns short version of the command name.

Reimplemented from GUICommand.

Definition at line 107 of file EditConnectionsCmd.cc.

                                    {
    return ProDeConstants::CMD_SNAME_EDIT_CONNECTIONS;
}

References ProDeConstants::CMD_SNAME_EDIT_CONNECTIONS.

---

The documentation for this class was generated from the following files:

• EditConnectionsCmd.hh
• EditConnectionsCmd.cc
