FUPortImplementationDialog Class Reference

#include <FUPortImplementationDialog.hh>

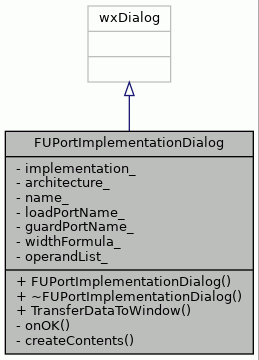

Inheritance diagram for FUPortImplementationDialog:

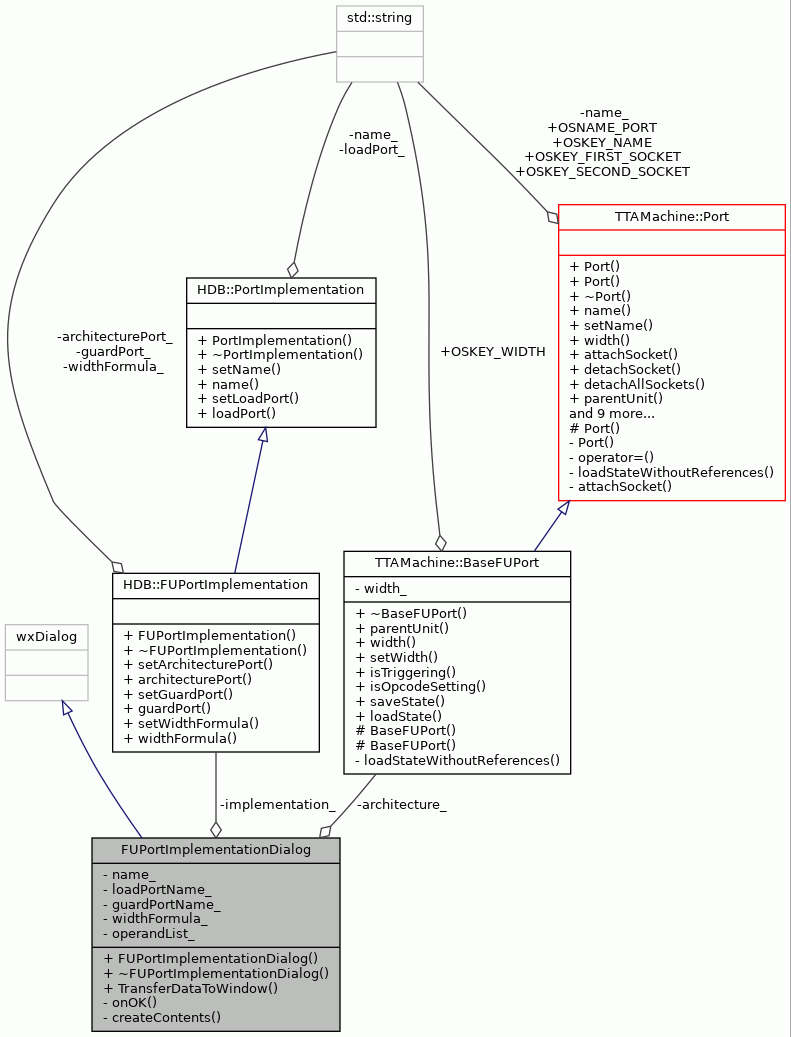

Collaboration diagram for FUPortImplementationDialog:

Public Member Functions
	FUPortImplementationDialog (wxWindow *parent, wxWindowID id, HDB::FUPortImplementation &implementation, const TTAMachine::BaseFUPort &architecture)
virtual	~FUPortImplementationDialog ()
virtual bool	TransferDataToWindow ()

Private Types
enum	{   ID_LABEL_NAME = 10000, ID_NAME, ID_LABEL_ARCHITECTURE_PORT, ID_ARCHITECTURE_PORT_NAME,   ID_LABEL_WIDTH, ID_WIDTH, ID_LOAD_PORT_LABEL, ID_LOAD_PORT,   ID_GUARD_PORT_LABEL, ID_GUARD_PORT, ID_OPERAND_LIST, ID_LINE }
	Enumerated IDs for dialog widgets. More...

Private Member Functions
void	onOK (wxCommandEvent &event)
wxSizer *	createContents (wxWindow *parent, bool call_fit, bool set_sizer)
	Creates the dialog contents. More...

Private Attributes
HDB::FUPortImplementation &	implementation_
	FU port implementation to modify. More...
const TTAMachine::BaseFUPort &	architecture_
	Architecture of the modified port. More...
wxString	name_
	Name of the port. More...
wxString	loadPortName_
	Name of the load port. More...
wxString	guardPortName_
	Name of the guard port. More...
wxString	widthFormula_
	Width formula string. More...
wxListCtrl *	operandList_
	List widget for the operand bindings. More...

Detailed Description

Dialog for editing FU port implementations.

Definition at line 49 of file FUPortImplementationDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerated IDs for dialog widgets.

Enumerator
ID_LABEL_NAME
ID_NAME
ID_LABEL_ARCHITECTURE_PORT
ID_ARCHITECTURE_PORT_NAME
ID_LABEL_WIDTH
ID_WIDTH
ID_LOAD_PORT_LABEL
ID_LOAD_PORT
ID_GUARD_PORT_LABEL
ID_GUARD_PORT
ID_OPERAND_LIST
ID_LINE

Definition at line 63 of file FUPortImplementationDialog.hh.

         {
        ID_LABEL_NAME = 10000,
        ID_NAME,
        ID_LABEL_ARCHITECTURE_PORT,
        ID_ARCHITECTURE_PORT_NAME,
        ID_LABEL_WIDTH,
        ID_WIDTH,
        ID_LOAD_PORT_LABEL,
        ID_LOAD_PORT,
        ID_GUARD_PORT_LABEL,
        ID_GUARD_PORT,
        ID_OPERAND_LIST,
        ID_LINE
    };

Constructor & Destructor Documentation

FUPortImplementationDialog()

FUPortImplementationDialog::FUPortImplementationDialog	(	wxWindow *	parent,
		wxWindowID	id,
		HDB::FUPortImplementation &	implementation,
		const TTAMachine::BaseFUPort &	architecture
	)

The Constructor.

Parameters

parent	Parent window of the dialog.
id	Window identifier for the dialog window.
implementation	FU port implementation to modify.
architecthre	Architecture of the modified port.

Definition at line 61 of file FUPortImplementationDialog.cc.

                                    :
    wxDialog(parent, id, _T("Function Unit Port Implementation"),
        wxDefaultPosition),
    implementation_(implementation), architecture_(architecture) {

    createContents(this, true, true);

    operandList_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_OPERAND_LIST));
    assert(operandList_ != NULL);
    operandList_->InsertColumn(
        0, _T("Operation"), wxLIST_FORMAT_LEFT, 140);

    operandList_->InsertColumn(
        1, _T("R/W"), wxLIST_FORMAT_LEFT, 60);

    operandList_->InsertColumn(
        2, _T("io"), wxLIST_FORMAT_LEFT, 60);

    name_ = WxConversion::toWxString(implementation_.name());
    loadPortName_ = WxConversion::toWxString(
        implementation_.loadPort());

    guardPortName_ = WxConversion::toWxString(
        implementation_.guardPort());

    widthFormula_ = WxConversion::toWxString(
        implementation_.widthFormula());

    FindWindow(ID_NAME)->SetValidator(wxTextValidator(wxFILTER_ASCII, &name_));
    FindWindow(ID_LOAD_PORT)->SetValidator(
        wxTextValidator(wxFILTER_ASCII, &loadPortName_));
    FindWindow(ID_GUARD_PORT)->SetValidator(
        wxTextValidator(wxFILTER_ASCII, &guardPortName_));
    FindWindow(ID_WIDTH)->SetValidator(
        wxTextValidator(wxFILTER_ASCII, &widthFormula_));

    dynamic_cast<wxStaticText*>(FindWindow(ID_ARCHITECTURE_PORT_NAME))->
        SetLabel(WxConversion::toWxString(implementation_.architecturePort()));

    TransferDataToWindow();
}

References assert, and WxConversion::toWxString().

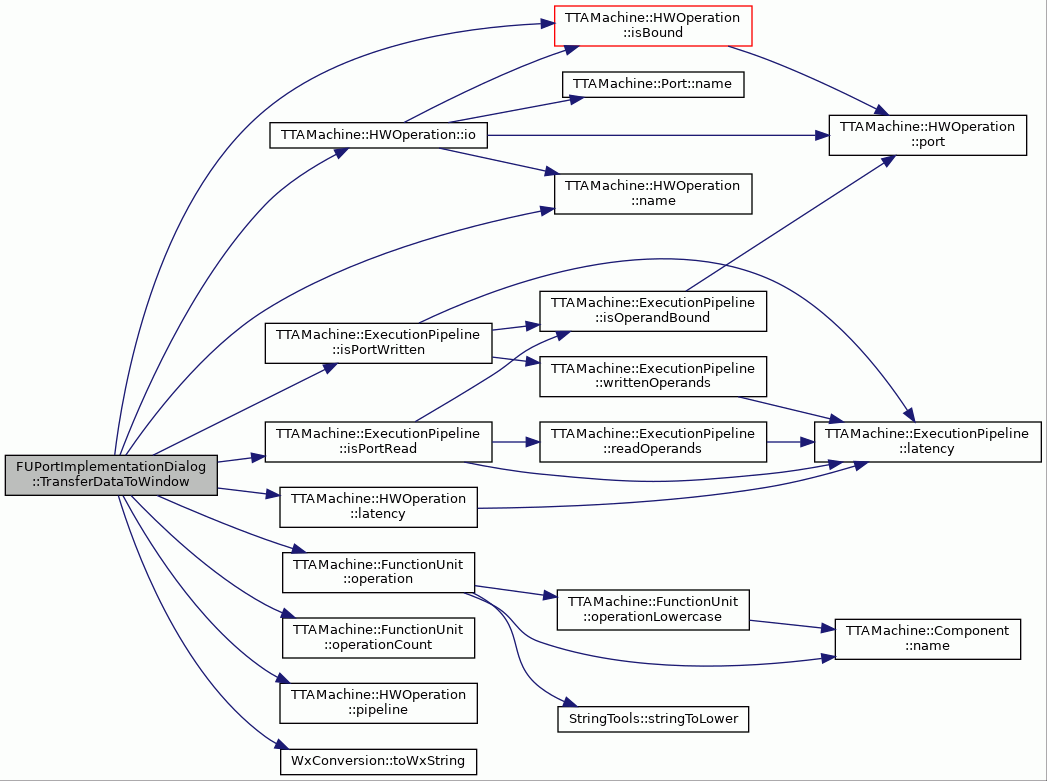

Here is the call graph for this function:

~FUPortImplementationDialog()

FUPortImplementationDialog::~FUPortImplementationDialog ( )

virtual

The Destructor.

Definition at line 108 of file FUPortImplementationDialog.cc.

                                                        {
}

Member Function Documentation

createContents()

wxSizer * FUPortImplementationDialog::createContents ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the dialog contents.

Creates the dialog contents.

Definition at line 199 of file FUPortImplementationDialog.cc.

                                                     {

    wxBoxSizer *item0 = new wxBoxSizer( wxVERTICAL );

    wxBoxSizer *item1 = new wxBoxSizer( wxVERTICAL );

    wxFlexGridSizer *item2 = new wxFlexGridSizer( 2, 0, 0 );

    wxStaticText *item3 = new wxStaticText( parent, ID_LABEL_ARCHITECTURE_PORT, wxT("Architecture port:"), wxDefaultPosition, wxDefaultSize, 0 );
    item2->Add( item3, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxStaticText *item4 = new wxStaticText( parent, ID_ARCHITECTURE_PORT_NAME, wxT(""), wxDefaultPosition, wxDefaultSize, 0 );
    item2->Add( item4, 0, wxGROW|wxALL, 5 );

    wxStaticText *item5 = new wxStaticText( parent, ID_LABEL_NAME, wxT("Name:"), wxDefaultPosition, wxDefaultSize, 0 );
    item2->Add( item5, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxTextCtrl *item6 = new wxTextCtrl( parent, ID_NAME, wxT(""), wxDefaultPosition, wxSize(200,-1), 0 );
    item2->Add( item6, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticText *item7 = new wxStaticText( parent, ID_LOAD_PORT_LABEL, wxT("Load port:"), wxDefaultPosition, wxDefaultSize, 0 );
    item2->Add( item7, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxTextCtrl *item8 = new wxTextCtrl( parent, ID_LOAD_PORT, wxT(""), wxDefaultPosition, wxSize(80,-1), 0 );
    item2->Add( item8, 0, wxGROW|wxALL, 5 );

    wxStaticText *item9 = new wxStaticText( parent, ID_GUARD_PORT_LABEL, wxT("Guard port:"), wxDefaultPosition, wxDefaultSize, 0 );
    item2->Add( item9, 0, wxALIGN_RIGHT|wxALL, 5 );

    wxTextCtrl *item10 = new wxTextCtrl( parent, ID_GUARD_PORT, wxT(""), wxDefaultPosition, wxSize(200,-1), 0 );
    item2->Add( item10, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticText *item11 = new wxStaticText( parent, ID_LABEL_WIDTH, wxT("Width formula:"), wxDefaultPosition, wxDefaultSize, 0 );
    item2->Add( item11, 0, wxALIGN_CENTER|wxALL, 5 );

    wxTextCtrl *item12 = new wxTextCtrl( parent, ID_WIDTH, wxT(""), wxDefaultPosition, wxSize(80,-1), 0 );
    item2->Add( item12, 0, wxGROW|wxALL, 5 );

    item1->Add( item2, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticBox *item14 = new wxStaticBox( parent, -1, wxT("Operand bindings:") );
    wxStaticBoxSizer *item13 = new wxStaticBoxSizer( item14, wxVERTICAL );

    wxListCtrl *item15 = new wxListCtrl( parent, ID_OPERAND_LIST, wxDefaultPosition, wxSize(200,120), wxLC_REPORT|wxSUNKEN_BORDER );
    item13->Add( item15, 0, wxGROW|wxALL, 5 );

    item1->Add( item13, 0, wxGROW|wxALL, 5 );

    item0->Add( item1, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticLine *item16 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(20,-1), wxLI_HORIZONTAL );
    item0->Add( item16, 0, wxGROW|wxALL, 5 );

    wxBoxSizer *item17 = new wxBoxSizer( wxHORIZONTAL );

    wxButton *item18 = new wxButton( parent, wxID_CANCEL, wxT("&Cancel"), wxDefaultPosition, wxDefaultSize, 0 );
    item17->Add( item18, 0, wxALIGN_CENTER, 5 );

    wxButton *item19 = new wxButton( parent, wxID_OK, wxT("&OK"), wxDefaultPosition, wxDefaultSize, 0 );
    item17->Add( item19, 0, wxALIGN_CENTER|wxALL, 5 );

    item0->Add( item17, 0, wxALL, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

onOK()

void FUPortImplementationDialog::onOK ( wxCommandEvent &  event )

private

Event handler for the dialog OK-button.

Definition at line 164 of file FUPortImplementationDialog.cc.

                                                {

    TransferDataFromWindow();

    name_ = name_.Trim(true).Trim(false);
    loadPortName_ = loadPortName_.Trim(true).Trim(false);
    guardPortName_ = guardPortName_.Trim(true).Trim(false);
    widthFormula_ = widthFormula_.Trim(true).Trim(false);

    if (name_.IsEmpty()) {
        wxString message = _T("Name field must not be empty.");
        ErrorDialog dialog(this, message);
        dialog.ShowModal();
        return;
    }

    if (widthFormula_.IsEmpty()) {
        wxString message = _T("Width formula field must not be empty.");
        ErrorDialog dialog(this, message);
        dialog.ShowModal();
        return;
    }

    implementation_.setName(WxConversion::toString(name_));
    implementation_.setLoadPort(WxConversion::toString(loadPortName_));
    implementation_.setGuardPort(WxConversion::toString(guardPortName_));
    implementation_.setWidthFormula(WxConversion::toString(widthFormula_));

    EndModal(wxID_OK);
}

References WxConversion::toString().

Here is the call graph for this function:

TransferDataToWindow()

bool FUPortImplementationDialog::TransferDataToWindow ( )

virtual

Transfers data from the dialog attributes to the dialog widgets.

Returns

True, if the data was succesfully transferred.

Definition at line 118 of file FUPortImplementationDialog.cc.

                                                 {

    operandList_->DeleteAllItems();
    const FunctionUnit* fu = architecture_.parentUnit();
    const FUPort* fuPort = dynamic_cast<const FUPort*>(&architecture_);
    assert(fu != NULL);
    int item = 0;
    for (int i = 0; i < fu->operationCount(); i++) {
        const HWOperation* operation = fu->operation(i);
        if (fuPort != NULL && operation->isBound(*fuPort)) {
            wxString rw;
            bool read = false;
            bool written = false;
            for (int cycle = 0; cycle < operation->latency(); cycle++) {
                if (operation->pipeline()->isPortRead(*fuPort, cycle)) {
                    read = true;
                }
                if (operation->pipeline()->isPortWritten(*fuPort, cycle)) {
                    written = true;
                }
            }
            if (read) {
                rw.Append(_T("R"));
            }
            if (written) {
                rw.Append(_T("W"));
            }
            operandList_->InsertItem(
                item, WxConversion::toWxString(operation->name()));

            operandList_->SetItem(item, 1, rw);

            operandList_->SetItem(
                item, 2, WxConversion::toWxString(operation->io(*fuPort)));

            item++;
        }
    }

    return wxDialog::TransferDataToWindow();
}

References assert, TTAMachine::HWOperation::io(), TTAMachine::HWOperation::isBound(), TTAMachine::ExecutionPipeline::isPortRead(), TTAMachine::ExecutionPipeline::isPortWritten(), TTAMachine::HWOperation::latency(), TTAMachine::HWOperation::name(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), TTAMachine::HWOperation::pipeline(), and WxConversion::toWxString().

Here is the call graph for this function:

Member Data Documentation

architecture_

const TTAMachine::BaseFUPort& FUPortImplementationDialog::architecture_

private

Architecture of the modified port.

Definition at line 84 of file FUPortImplementationDialog.hh.

guardPortName_

wxString FUPortImplementationDialog::guardPortName_

private

Name of the guard port.

Definition at line 91 of file FUPortImplementationDialog.hh.

implementation_

HDB::FUPortImplementation& FUPortImplementationDialog::implementation_

private

FU port implementation to modify.

Definition at line 82 of file FUPortImplementationDialog.hh.

loadPortName_

wxString FUPortImplementationDialog::loadPortName_

private

Name of the load port.

Definition at line 89 of file FUPortImplementationDialog.hh.

name_

wxString FUPortImplementationDialog::name_

private

Name of the port.

Definition at line 87 of file FUPortImplementationDialog.hh.

operandList_

wxListCtrl* FUPortImplementationDialog::operandList_

private

List widget for the operand bindings.

Definition at line 96 of file FUPortImplementationDialog.hh.

widthFormula_

wxString FUPortImplementationDialog::widthFormula_

private

Width formula string.

Definition at line 93 of file FUPortImplementationDialog.hh.

---

The documentation for this class was generated from the following files:

• FUPortImplementationDialog.hh
• FUPortImplementationDialog.cc
