HDB::FUPortImplementation Class Reference

#include <FUPortImplementation.hh>

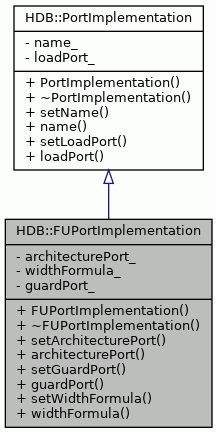

Inheritance diagram for HDB::FUPortImplementation:

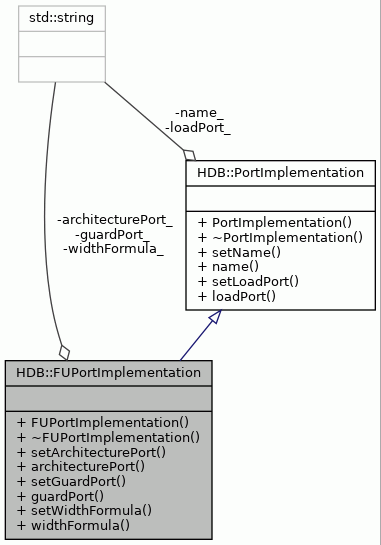

Collaboration diagram for HDB::FUPortImplementation:

Public Member Functions
	FUPortImplementation (const std::string &name, const std::string &architecturePort, const std::string &widthFormula, const std::string &loadPort, const std::string &guardPort, FUImplementation &parent)
virtual	~FUPortImplementation ()
void	setArchitecturePort (const std::string &name)
std::string	architecturePort () const
void	setGuardPort (const std::string &name)
std::string	guardPort () const
void	setWidthFormula (const std::string &formula)
std::string	widthFormula () const
Public Member Functions inherited from HDB::PortImplementation
	PortImplementation (const std::string &name, const std::string &loadPort)
virtual	~PortImplementation ()
void	setName (const std::string &name)
std::string	name () const
void	setLoadPort (const std::string &name)
std::string	loadPort () const

Private Attributes
std::string	architecturePort_
	Name of the corresponding port in architecture. More...
std::string	widthFormula_
	The formula for the width of the port. More...
std::string	guardPort_
	Name of the guard port. More...

Detailed Description

Represents an architectural port of an FU implementation in HDB.

Definition at line 46 of file FUPortImplementation.hh.

Constructor & Destructor Documentation

FUPortImplementation()

HDB::FUPortImplementation::FUPortImplementation	(	const std::string &	name,
		const std::string &	architecturePort,
		const std::string &	widthFormula,
		const std::string &	loadPort,
		const std::string &	guardPort,
		FUImplementation &	parent
	)

The constructor.

Adds the port automatically to the given FUImplementation.

Parameters

name	Name of the port.
architecturePort	Name of the corresponding port in architecture.
widthFormula	The formula for the width of the port.
loadPort	Name of the load enable port.
guardPort	Name of the guard port if the port is guarded.
parent	The parent FU implementation.

Definition at line 54 of file FUPortImplementation.cc.

                              :
    PortImplementation(name, loadPort),
    architecturePort_(architecturePort), widthFormula_(widthFormula),
    guardPort_(guardPort) {

    parent.addArchitecturePort(this);
}

References HDB::FUImplementation::addArchitecturePort().

Here is the call graph for this function:

~FUPortImplementation()

HDB::FUPortImplementation::~FUPortImplementation ( )

virtual

The destructor.

Definition at line 72 of file FUPortImplementation.cc.

                                            {
}

Member Function Documentation

architecturePort()

std::string HDB::FUPortImplementation::architecturePort

(

)

const

Returns the name of the corresponding port in the FU architecture.

Returns

The name of the port.

Definition at line 93 of file FUPortImplementation.cc.

                                             {
    return architecturePort_;
}

References architecturePort_.

Referenced by HDB::HDBManager::addFUImplementation(), ProGe::NetlistGenerator::addFUToNetlist(), FUTestbenchGenerator::createTbInstantiation(), HDBToHtml::fuImplToHtml(), ProGe::NetlistGenerator::isParameterizable(), FUImplementationDialog::onArchPortActivation(), FUImplementationDialog::onEditArchitecturePort(), and FUImplementationDialog::selectedArchPort().

guardPort()

std::string HDB::FUPortImplementation::guardPort

(

)

const

Returns the name of the guard port if the port is guarded.

Returns

The name of the guard port.

Definition at line 115 of file FUPortImplementation.cc.

                                      {
    return guardPort_;
}

References guardPort_.

Referenced by HDB::HDBManager::addFUImplementation(), ProGe::NetlistGenerator::addFUToNetlist(), and HDBToHtml::fuImplToHtml().

setArchitecturePort()

void HDB::FUPortImplementation::setArchitecturePort

(

const std::string &

name

)

Sets the corresponding port in the FU architecture.

Parameters

name	Name of the port.

Definition at line 82 of file FUPortImplementation.cc.

                                                               {
    architecturePort_ = name;
}

References architecturePort_, and HDB::PortImplementation::name().

Here is the call graph for this function:

setGuardPort()

void HDB::FUPortImplementation::setGuardPort

(

const std::string &

name

)

Sets the name of the guard port if the port is guarded.

Parameters

name	Name of the guard port.

Definition at line 104 of file FUPortImplementation.cc.

                                                        {
    guardPort_ = name;
}

References guardPort_, and HDB::PortImplementation::name().

Here is the call graph for this function:

setWidthFormula()

void HDB::FUPortImplementation::setWidthFormula

(

const std::string &

formula

)

Sets the width formula of the port.

Parameters

formula

The new formula.

Definition at line 126 of file FUPortImplementation.cc.

                                                              {
    widthFormula_ = formula;
}

References widthFormula_.

widthFormula()

std::string HDB::FUPortImplementation::widthFormula

(

)

const

Returns the formula for the width of the port.

Returns

The formula.

Definition at line 137 of file FUPortImplementation.cc.

                                         {
    return widthFormula_;
}

References widthFormula_.

Referenced by HDB::HDBManager::addFUImplementation(), ProGe::NetlistGenerator::addFUToNetlist(), HDBToHtml::fuImplToHtml(), and ProGe::NetlistGenerator::isParameterizable().

Member Data Documentation

architecturePort_

std::string HDB::FUPortImplementation::architecturePort_

private

Name of the corresponding port in architecture.

Definition at line 66 of file FUPortImplementation.hh.

Referenced by architecturePort(), and setArchitecturePort().

guardPort_

std::string HDB::FUPortImplementation::guardPort_

private

Name of the guard port.

Definition at line 70 of file FUPortImplementation.hh.

Referenced by guardPort(), and setGuardPort().

widthFormula_

std::string HDB::FUPortImplementation::widthFormula_

private

The formula for the width of the port.

Definition at line 68 of file FUPortImplementation.hh.

Referenced by setWidthFormula(), and widthFormula().

---

The documentation for this class was generated from the following files:

• FUPortImplementation.hh
• FUPortImplementation.cc
