#include <GCUState.hh>

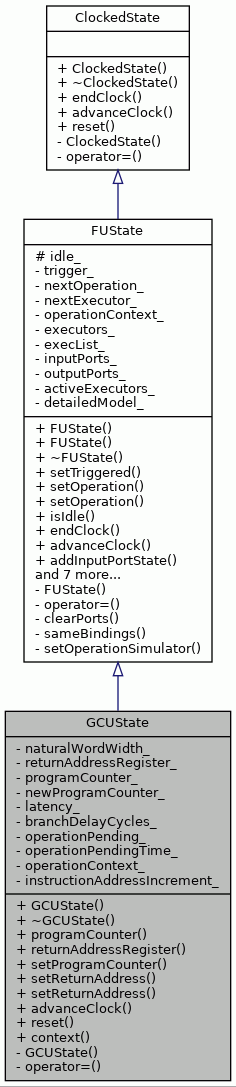

Inheritance diagram for GCUState:

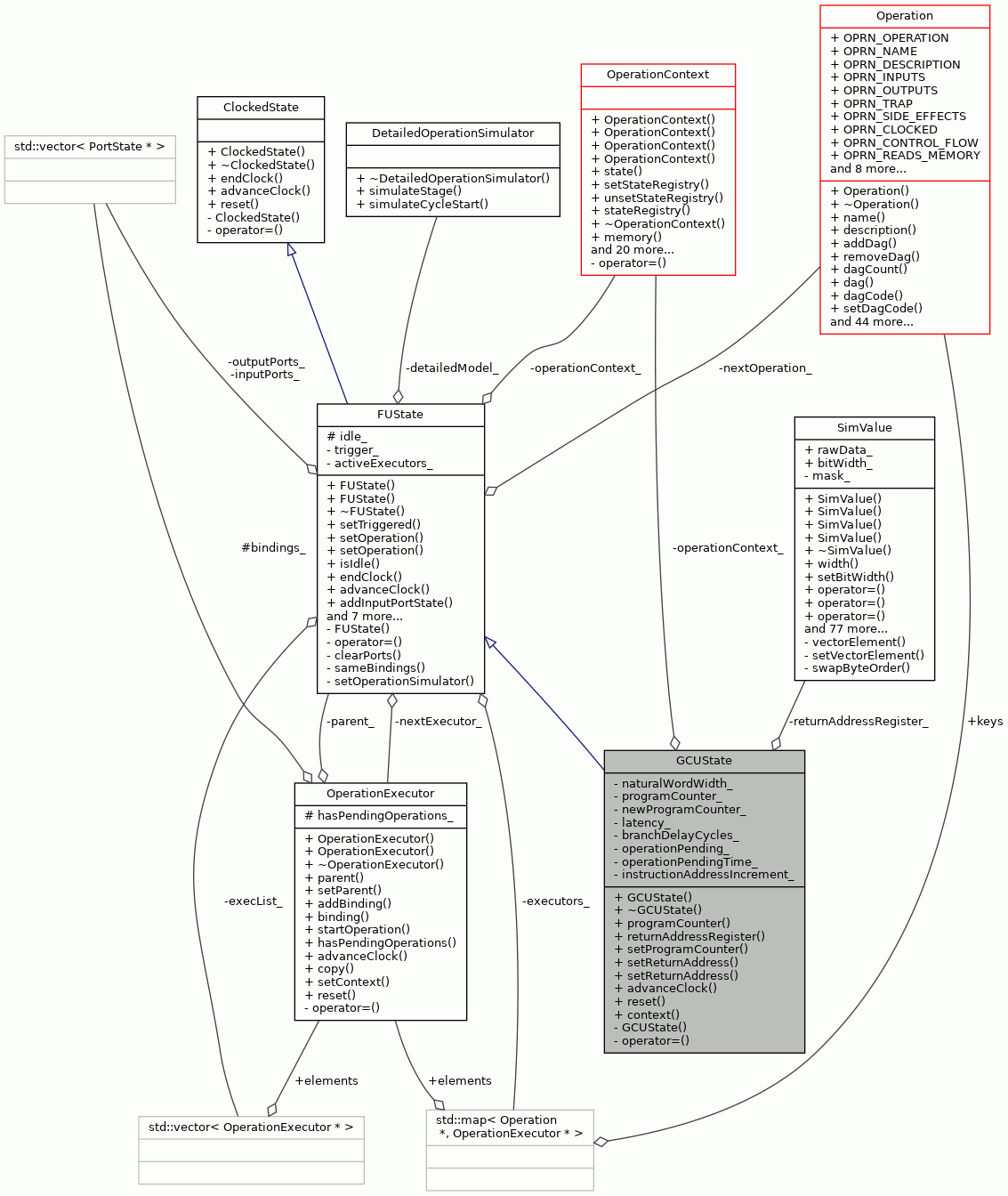

Collaboration diagram for GCUState:

Public Member Functions
	GCUState (int latency, int nww, int cuDelaySlots, int instructionAddressIncrement=1)

virtual	~GCUState ()

InstructionAddress &	programCounter ()

SimValue &	returnAddressRegister ()

void	setProgramCounter (const InstructionAddress &value)

void	setReturnAddress (const InstructionAddress &value)

void	setReturnAddress ()

virtual void	advanceClock ()

virtual void	reset ()
	this is called at (re)initialization of the simulation More...

virtual OperationContext &	context ()

Public Member Functions inherited from FUState
	FUState ()

	FUState (const TCEString &name)

virtual	~FUState ()

void	setTriggered ()

void	setOperation (Operation &operation)

void	setOperation (Operation &operation, OperationExecutor &executor)

bool	isIdle ()

virtual void	endClock ()

virtual void	addInputPortState (PortState &port)

virtual void	addOutputPortState (PortState &port)

virtual void	addOperationExecutor (OperationExecutor &opExec, Operation &op)

virtual void	setOperationSimulator (DetailedOperationSimulator &sim)

virtual void	replaceOperationExecutor (Operation &op, OperationExecutor *newExecutor)

virtual OperationExecutor *	executor (Operation &op)

Public Member Functions inherited from ClockedState
	ClockedState ()

virtual	~ClockedState ()

Private Member Functions
	GCUState (const GCUState &)
	Copying not allowed. More...

GCUState &	operator= (const GCUState &)
	Assignment not allowed. More...

Private Attributes
int	naturalWordWidth_
	Natural word width as minimum addressable units. More...

SimValue	returnAddressRegister_
	The return address register. More...

InstructionAddress	programCounter_
	Program counter. More...

InstructionAddress	newProgramCounter_
	In case an control flow operation is pending, this variable contains the program counter value that should be updated when the control stage counter goes down. More...

int	latency_
	The delay of the control flow operations to take place. More...

int	branchDelayCycles_
	The delay of branch operations in the pipeline, as opposed to this unit. More...

bool	operationPending_
	If this this is true, there's a control flow operation pending. More...

int	operationPendingTime_
	This indicates how many cycles the operation has been pending, when this reaches the latency, the PC is updated with the new value. More...

OperationContext	operationContext_
	The operation context for this FU. More...

int	instructionAddressIncrement_ = 1
	The increment to instruction address to retrieve next instruction. More...

Additional Inherited Members
Protected Attributes inherited from FUState
bool	idle_
	The idle status of the FU. The derived classes should alway set this to true when possible to avoid unnecessary advanceClock() and endClock() calls. More...

Detailed Description

Models the global control unit state.

Definition at line 46 of file GCUState.hh.

Constructor & Destructor Documentation

◆ GCUState() [1/2]

GCUState::GCUState	(	int	latency,
		int	nww,
		int	cuDelaySlots,
		int	instructionAddressIncrement = `1`
	)

Constructor.

Parameters

latency	Latency of the unit.
nww	Natural word width as MAUs.
lock	Global lock signal.

Definition at line 49 of file GCUState.cc.

                                      :
     naturalWordWidth_(nww), returnAddressRegister_(64),
     latency_(latency),
     branchDelayCycles_(cuDelaySlots),
     operationContext_(
         NULL, programCounter_, returnAddressRegister_,
         branchDelayCycles_),
         instructionAddressIncrement_(instructionAddressIncrement) {
     reset();
 }

References reset().

Here is the call graph for this function:

◆ ~GCUState()

GCUState::~GCUState ( )

virtual

Destructor.

Definition at line 76 of file GCUState.cc.

76 {

77 }

◆ GCUState() [2/2]

GCUState::GCUState ( const GCUState & )

private

Copying not allowed.

Member Function Documentation

◆ advanceClock()

void GCUState::advanceClock ( )

virtual

Handles the actions when clock is advanced.

The value of program counter is updated. Pipeline is advanced.

Reimplemented from FUState.

Definition at line 98 of file GCUState.cc.

                        {

     // For call and jump operations
     if (operationPending_) {
         operationPendingTime_--;
     }
     if (operationPending_ && operationPendingTime_ <= 0) {
         programCounter_ = newProgramCounter_;
         operationPending_ = false;
     }

     // Special handling for Loop Buffer Setup operation
     if (!context().isEmpty()) {
         idle_ = false;
         context().advanceClock();
     } else {
         idle_ = !operationPending_;
     }
 }

References OperationContext::advanceClock(), context(), FUState::idle_, newProgramCounter_, operationPending_, operationPendingTime_, and programCounter_.

Referenced by OTASimulationController::advanceMachineCycle(), and SimulationController::simulateCycle().

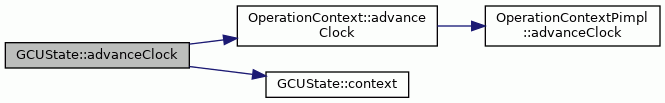

Here is the call graph for this function:

◆ context()

OperationContext & GCUState::context ( )

virtual

Returns the operation context.

This is basically a "template method" to allow differently initialized OperationContext-classes in FUState subclasses.

Returns: The operation context for the FU.

Reimplemented from FUState.

Definition at line 88 of file GCUState.cc.

                   {
     return operationContext_;
 }

References operationContext_.

Referenced by advanceClock().

◆ operator=()

GCUState& GCUState::operator= ( const GCUState & )

private

Assignment not allowed.

◆ programCounter()

InstructionAddress& GCUState::programCounter ( )

Referenced by OTASimulationController::advanceMachineCycle(), OTASimulationController::simulateCycle(), and SimulationController::simulateCycle().

◆ reset()

void GCUState::reset ( )

virtual

this is called at (re)initialization of the simulation

Reimplemented from FUState.

Definition at line 65 of file GCUState.cc.

                 {
     programCounter_ = 0;
     returnAddressRegister_ = 0;
     newProgramCounter_ = 0;
     operationPending_ = false;
     operationPendingTime_ = 0;
 }

References newProgramCounter_, operationPending_, operationPendingTime_, programCounter_, and returnAddressRegister_.

Referenced by GCUState().

◆ returnAddressRegister()

SimValue& GCUState::returnAddressRegister ( )

Referenced by MachineStateBuilder::buildMachineState().

◆ setProgramCounter()

void GCUState::setProgramCounter ( const InstructionAddress & value )

Referenced by TransportPipeline::startOperation().

◆ setReturnAddress() [1/2]

void GCUState::setReturnAddress ( )

◆ setReturnAddress() [2/2]

void GCUState::setReturnAddress ( const InstructionAddress & value )

Referenced by TransportPipeline::startOperation().

Member Data Documentation

◆ branchDelayCycles_

int GCUState::branchDelayCycles_

private

The delay of branch operations in the pipeline, as opposed to this unit.

Definition at line 85 of file GCUState.hh.

◆ instructionAddressIncrement_

int GCUState::instructionAddressIncrement_ = 1

private

The increment to instruction address to retrieve next instruction.

Definition at line 95 of file GCUState.hh.

◆ latency_

int GCUState::latency_

private

The delay of the control flow operations to take place.

Definition at line 83 of file GCUState.hh.

◆ naturalWordWidth_

int GCUState::naturalWordWidth_

private

Natural word width as minimum addressable units.

Definition at line 73 of file GCUState.hh.

◆ newProgramCounter_

InstructionAddress GCUState::newProgramCounter_

private

In case an control flow operation is pending, this variable contains the program counter value that should be updated when the control stage counter goes down.

Definition at line 81 of file GCUState.hh.

Referenced by advanceClock(), and reset().

◆ operationContext_

OperationContext GCUState::operationContext_

private

The operation context for this FU.

Definition at line 93 of file GCUState.hh.

Referenced by context().

◆ operationPending_

bool GCUState::operationPending_

private

If this this is true, there's a control flow operation pending.

Definition at line 87 of file GCUState.hh.

Referenced by advanceClock(), and reset().

◆ operationPendingTime_

int GCUState::operationPendingTime_

private

This indicates how many cycles the operation has been pending, when this reaches the latency, the PC is updated with the new value.

Definition at line 91 of file GCUState.hh.

Referenced by advanceClock(), and reset().

◆ programCounter_

InstructionAddress GCUState::programCounter_

private

Program counter.

Definition at line 77 of file GCUState.hh.

Referenced by advanceClock(), and reset().

◆ returnAddressRegister_

SimValue GCUState::returnAddressRegister_

private

The return address register.

Definition at line 75 of file GCUState.hh.

Referenced by reset().

The documentation for this class was generated from the following files:
