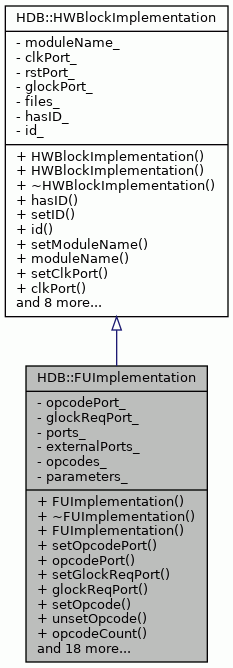

Inheritance diagram for HDB::FUImplementation:

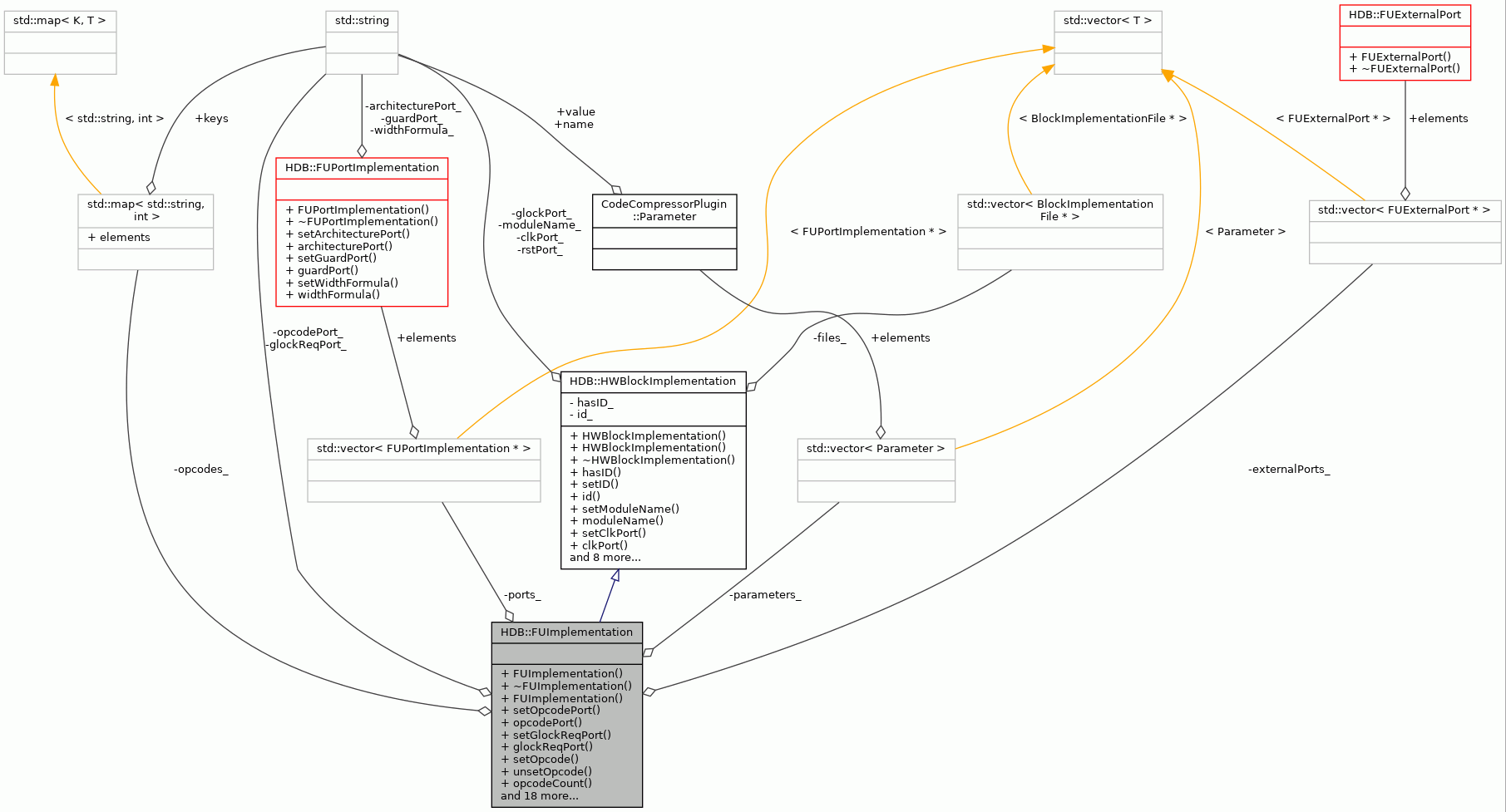

Collaboration diagram for HDB::FUImplementation:

Public Types
typedef HDB::Parameter	Parameter
	Parameter of FU implementation. More...

Public Member Functions
	FUImplementation (const std::string &name, const std::string &opcodePort, const std::string &clkPort, const std::string &rstPort, const std::string &glockPort, const std::string &glockReqPort)

virtual	~FUImplementation ()

	FUImplementation (const FUImplementation &o)

void	setOpcodePort (const std::string &name)

std::string	opcodePort () const

void	setGlockReqPort (const std::string &name)

std::string	glockReqPort () const

void	setOpcode (const std::string &operation, int opcode)

void	unsetOpcode (const std::string &operation)

int	opcodeCount () const

std::string	opcodeOperation (int index) const

bool	hasOpcode (const std::string &operation) const

int	opcode (const std::string &operation) const

int	maxOpcodeWidth () const

void	addArchitecturePort (FUPortImplementation *port)

void	deleteArchitecturePort (FUPortImplementation *port)

void	addExternalPort (FUExternalPort *port)

void	deleteExternalPort (FUExternalPort *port)

int	architecturePortCount () const

int	externalPortCount () const

FUPortImplementation &	architecturePort (int index) const

FUPortImplementation &	portImplementationByArchitectureName (const std::string &architectureName) const

FUExternalPort &	externalPort (int index) const

void	addParameter (const std::string &name, const std::string &type, const std::string &value)

void	removeParameter (const std::string &name)

int	parameterCount () const

Parameter	parameter (int index) const

bool	hasParameter (const std::string &name) const

Public Member Functions inherited from HDB::HWBlockImplementation
	HWBlockImplementation (const std::string &moduleName, const std::string &clkPort, const std::string &rstPort, const std::string &glockPort)

	HWBlockImplementation (const HWBlockImplementation &b)

virtual	~HWBlockImplementation ()

bool	hasID () const

void	setID (RowID id)

RowID	id () const

void	setModuleName (const std::string &name)

std::string	moduleName () const

void	setClkPort (const std::string &name)

std::string	clkPort () const

void	setRstPort (const std::string &name)

std::string	rstPort () const

void	setGlockPort (const std::string &name)

std::string	glockPort () const

void	addImplementationFile (BlockImplementationFile *file)

void	removeImplementationFile (const BlockImplementationFile &file)

int	implementationFileCount () const

BlockImplementationFile &	file (int index) const

Private Types
typedef std::vector< FUPortImplementation * >	PortTable
	Vector type for FUPortImplementation. More...

typedef std::vector< FUExternalPort * >	ExternalPortTable
	Vector type for FUExternalPort. More...

typedef std::map< std::string, int >	OpcodeMap
	Map type for operation codes. More...

typedef std::vector< Parameter >	ParameterTable
	Vector type for parameter names. More...

Private Attributes
std::string	opcodePort_
	Name of the opcode port. More...

std::string	glockReqPort_
	Name of the global lock request port. More...

PortTable	ports_
	Contains the architectural ports. More...

ExternalPortTable	externalPorts_
	Contains the external ports. More...

OpcodeMap	opcodes_
	Contains the operation codes. More...

ParameterTable	parameters_
	Contains the parameters. More...

Detailed Description

Represents the implementation specific properties of an FU in HDB.

Definition at line 53 of file FUImplementation.hh.

Member Typedef Documentation

◆ ExternalPortTable

typedef std::vector<FUExternalPort*> HDB::FUImplementation::ExternalPortTable

private

Vector type for FUExternalPort.

Definition at line 112 of file FUImplementation.hh.

◆ OpcodeMap

typedef std::map<std::string, int> HDB::FUImplementation::OpcodeMap

private

Map type for operation codes.

Definition at line 114 of file FUImplementation.hh.

◆ Parameter

typedef HDB::Parameter HDB::FUImplementation::Parameter

Parameter of FU implementation.

Definition at line 61 of file FUImplementation.hh.

◆ ParameterTable

typedef std::vector<Parameter> HDB::FUImplementation::ParameterTable

private

Vector type for parameter names.

Definition at line 116 of file FUImplementation.hh.

◆ PortTable

typedef std::vector<FUPortImplementation*> HDB::FUImplementation::PortTable

private

Vector type for FUPortImplementation.

Definition at line 110 of file FUImplementation.hh.

Constructor & Destructor Documentation

◆ FUImplementation() [1/2]

HDB::FUImplementation::FUImplementation	(	const std::string &	name,
		const std::string &	opcodePort,
		const std::string &	clkPort,
		const std::string &	rstPort,
		const std::string &	glockPort,
		const std::string &	glockReqPort
	)

The constructor.

Parameters

name	Name of the module.
opcodePort	Name of the opcode port.
clkPort	Name of the clock port.
rstPort	Name of the reset port.
glockPort	Name of the global lock port.
glockReqPort	Name of the global lock request port.

Definition at line 62 of file FUImplementation.cc.

                                    :
     HWBlockImplementation(name, clkPort, rstPort, glockPort),
     opcodePort_(opcodePort), glockReqPort_(glockReqPort) {
 }

◆ ~FUImplementation()

HDB::FUImplementation::~FUImplementation ( )

virtual

The destructor.

Deletes all the ports.

Definition at line 113 of file FUImplementation.cc.

                                     {
     SequenceTools::deleteAllItems(externalPorts_);
     SequenceTools::deleteAllItems(ports_);
 }

References SequenceTools::deleteAllItems(), externalPorts_, and ports_.

Here is the call graph for this function:

◆ FUImplementation() [2/2]

HDB::FUImplementation::FUImplementation ( const FUImplementation & original )

Copy constructor.

Parameters

original FUImplementation to copy.

Definition at line 79 of file FUImplementation.cc.

                                                                    :
     HWBlockImplementation(original) {

     opcodePort_ = original.opcodePort_;
     glockReqPort_ = original.glockReqPort_;
     opcodes_ = original.opcodes_;
     parameters_ = original.parameters_;

     // Deep copy architecture ports.
     for (int i = 0; i < original.architecturePortCount(); i++) {

         FUPortImplementation* portCopy =
             new FUPortImplementation(original.architecturePort(i));

         addArchitecturePort(portCopy);
     }

     // Deep copy external ports.
     for (int i = 0; i < original.externalPortCount(); i++) {

         FUExternalPort* portCopy =
             new FUExternalPort(original.externalPort(i));

         addExternalPort(portCopy);
     }
 }

References addArchitecturePort(), addExternalPort(), architecturePort(), architecturePortCount(), externalPort(), externalPortCount(), glockReqPort_, opcodePort_, opcodes_, and parameters_.

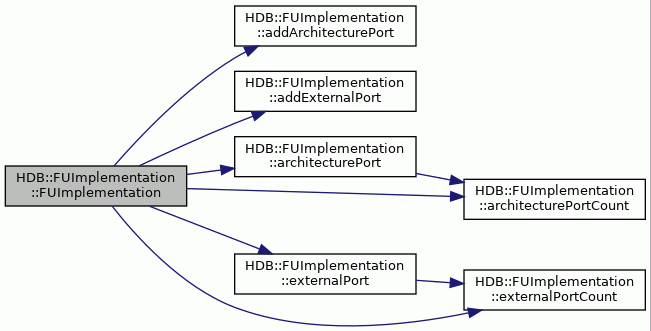

Here is the call graph for this function:

Member Function Documentation

◆ addArchitecturePort()

void HDB::FUImplementation::addArchitecturePort ( FUPortImplementation * port )

Adds the given architectural port.

Parameters

port	The port to be added.

Definition at line 274 of file FUImplementation.cc.

                                                                 {
     ports_.push_back(port);
 }

References ports_.

Referenced by FUImplementation(), and HDB::FUPortImplementation::FUPortImplementation().

◆ addExternalPort()

void HDB::FUImplementation::addExternalPort ( FUExternalPort * port )

Adds the given external port.

Parameters

port	The port to be added.

Definition at line 300 of file FUImplementation.cc.

                                                       {
     externalPorts_.push_back(port);
 }

References externalPorts_.

Referenced by HDB::FUExternalPort::FUExternalPort(), and FUImplementation().

◆ addParameter()

void HDB::FUImplementation::addParameter	(	const std::string &	name,
		const std::string &	type,
		const std::string &	value
	)

Adds the given parameter for the implementation.

Parameters

name	Name of the parameter.
type	Type of the parameter.
value	Value of the parameter.

Exceptions

IllegalParameters If the FU implementation contains a parameter with the same name already.

Definition at line 409 of file FUImplementation.cc.

                             {
     if (hasParameter(name)) {
         throw IllegalParameters(__FILE__, __LINE__, __func__);
     } else {
         Parameter param = {name, type, value};
         parameters_.push_back(param);
     }
 }

References __func__, hasParameter(), and parameters_.

Here is the call graph for this function:

◆ architecturePort()

FUPortImplementation & HDB::FUImplementation::architecturePort ( int index ) const

Returns the architectural port implementation at the given position.

Parameters

index The position index.

Returns: The port implementation.

Exceptions

OutOfRange If the given index is negative or not smaller the number of architectural ports.

Definition at line 351 of file FUImplementation.cc.

                                                   {
     if (index < 0 || index >= architecturePortCount()) {
         const string procName = "FUImplementation::architecturePort";
         throw OutOfRange(__FILE__, __LINE__, procName);
     }

     return *ports_[index];
 }

References architecturePortCount(), and ports_.

Referenced by HDB::HDBManager::addFUImplementation(), ProGe::NetlistGenerator::addFUToNetlist(), FUTestbenchGenerator::createTbInstantiation(), FUImplementation(), HDBToHtml::fuImplToHtml(), ProGe::NetlistGenerator::isParameterizable(), and portImplementationByArchitectureName().

Here is the call graph for this function:

◆ architecturePortCount()

int HDB::FUImplementation::architecturePortCount ( ) const

Returns the number of architectural ports.

Returns: The number of ports.

Definition at line 326 of file FUImplementation.cc.

                                               {
     return ports_.size();
 }

References ports_.

Referenced by HDB::HDBManager::addFUImplementation(), ProGe::NetlistGenerator::addFUToNetlist(), architecturePort(), FUTestbenchGenerator::createTbInstantiation(), ImplementationTester::fuHasOnePort(), FUImplementation(), HDBToHtml::fuImplToHtml(), ProGe::NetlistGenerator::isParameterizable(), and portImplementationByArchitectureName().

◆ deleteArchitecturePort()

void HDB::FUImplementation::deleteArchitecturePort ( FUPortImplementation * port )

Deletes the given architectural port.

Parameters

port	The port to delete.

Exceptions

InstanceNotFound If the given port is not in this FU implementation.

Definition at line 287 of file FUImplementation.cc.

                                                                    {
     bool removed = ContainerTools::deleteValueIfExists(ports_, port);
     if (!removed) {
         throw InstanceNotFound(__FILE__, __LINE__, __func__);
     }
 }

References __func__, ContainerTools::deleteValueIfExists(), and ports_.

Here is the call graph for this function:

◆ deleteExternalPort()

void HDB::FUImplementation::deleteExternalPort ( FUExternalPort * port )

Deletes the given external port.

Parameters

port	The port to delete.

Exceptions

InstanceNotFound If the given port is not in this FU implementation.

Definition at line 313 of file FUImplementation.cc.

                                                          {
     bool removed = ContainerTools::deleteValueIfExists(externalPorts_, port);
     if (!removed) {
         throw InstanceNotFound(__FILE__, __LINE__, __func__);
     }
 }

References __func__, ContainerTools::deleteValueIfExists(), and externalPorts_.

Here is the call graph for this function:

◆ externalPort()

FUExternalPort & HDB::FUImplementation::externalPort ( int index ) const

Returns the external port at the given position.

Parameters

index The position index.

Returns: The port.

Exceptions

OutOfRange If the given index is negative or not smaller the number of external ports.

Definition at line 390 of file FUImplementation.cc.

                                               {
     if (index < 0 || index >= externalPortCount()) {
         const string procName = "FUImplementation::externalPort";
         throw OutOfRange(__FILE__, __LINE__, procName);
     }

     return *externalPorts_[index];
 }

References externalPortCount(), and externalPorts_.

Referenced by ProGe::NetlistGenerator::addFUExternalPortsToNetlist(), HDB::HDBManager::addFUImplementation(), FUImplementation(), HDBToHtml::fuImplToHtml(), and ProGeTestBenchGenerator::generate().

Here is the call graph for this function:

◆ externalPortCount()

int HDB::FUImplementation::externalPortCount ( ) const

Returns the number of external ports.

Returns: The number of external ports.

Definition at line 337 of file FUImplementation.cc.

                                           {
     return externalPorts_.size();
 }

References externalPorts_.

Referenced by ProGe::NetlistGenerator::addFUExternalPortsToNetlist(), HDB::HDBManager::addFUImplementation(), externalPort(), ImplementationTester::fuHasExternalPorts(), FUImplementation(), HDBToHtml::fuImplToHtml(), and ProGeTestBenchGenerator::generate().

◆ glockReqPort()

std::string HDB::FUImplementation::glockReqPort ( ) const

Returns the name of the global lock request port.

Returns: The name of the global lock request port.

Definition at line 157 of file FUImplementation.cc.

                                      {
     return glockReqPort_;
 }

References glockReqPort_.

Referenced by HDB::HDBManager::addFUImplementation(), ProGe::NetlistGenerator::addFUToNetlist(), and HDBToHtml::fuImplToHtml().

◆ hasOpcode()

bool HDB::FUImplementation::hasOpcode ( const std::string & operation ) const

Tells whether there is an opcode defined for the given operation.

Parameters

operation Name of the operation.

Returns: True if there is an opcode, otherwise false.

Definition at line 227 of file FUImplementation.cc.

                                                             {
     string opName = StringTools::stringToUpper(operation);
     return MapTools::containsKey(opcodes_, opName);
 }

References MapTools::containsKey(), opcodes_, and StringTools::stringToUpper().

Referenced by HDB::HDBManager::addFUImplementation().

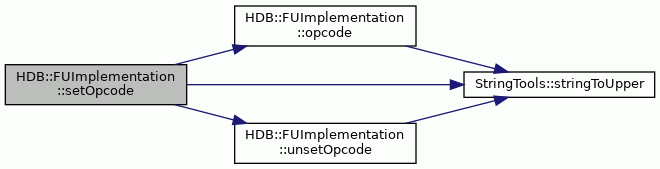

Here is the call graph for this function:

◆ hasParameter()

bool HDB::FUImplementation::hasParameter ( const std::string & name ) const

Tells whether the implementation has the given parameter.

Parameters

name	Name of the parameter.

Returns: True if the implementation has the parameter, otherwise false.

Definition at line 472 of file FUImplementation.cc.

                                                           {
     for (ParameterTable::const_iterator iter = parameters_.begin();
          iter != parameters_.end(); iter++) {
         if (iter->name == name) {
             return true;
         }
     }
     return false;
 }

References parameters_.

Referenced by addParameter().

◆ maxOpcodeWidth()

int HDB::FUImplementation::maxOpcodeWidth ( ) const

Returns the maximum bitwidth of an opcode in this FU implementation.

The bitwidth is not stored explicitly in HDB, this method is provided only for convenience.

Returns: The maximum bitwidth needed by an opcode in this FU.

Definition at line 257 of file FUImplementation.cc.

                                        {
     int maxFound = 0;
     for (OpcodeMap::const_iterator i = opcodes_.begin(); i != opcodes_.end();
          ++i) {
         maxFound = std::max(MathTools::requiredBits((*i).second), maxFound);
     }
     return maxFound;
 }

References opcodes_, and MathTools::requiredBits().

Referenced by FUTestbenchGenerator::createStimulusArrays(), and FUTestbenchGenerator::createTbInstantiation().

Here is the call graph for this function:

◆ opcode()

int HDB::FUImplementation::opcode ( const std::string & operation ) const

Returns the opcode of the given operation.

Parameters

operation The operation.

Returns: The operation code.

Exceptions

KeyNotFound If there is no opcode defined for the given operation.

Definition at line 242 of file FUImplementation.cc.

                                                          {
     string opName = StringTools::stringToUpper(operation);
     return MapTools::valueForKey<int>(opcodes_, opName);
 }

References opcodes_, and StringTools::stringToUpper().

Referenced by HDB::HDBManager::addFUImplementation(), FUTestbenchGenerator::createStimulusArrays(), HDBToHtml::fuImplToHtml(), and setOpcode().

Here is the call graph for this function:

◆ opcodeCount()

int HDB::FUImplementation::opcodeCount ( ) const

Returns the number of opcodes in the FU.

Returns: The number of opcodes.

Definition at line 194 of file FUImplementation.cc.

                                     {
     return opcodes_.size();
 }

References opcodes_.

Referenced by HDBToHtml::fuImplToHtml(), and opcodeOperation().

◆ opcodeOperation()

std::string HDB::FUImplementation::opcodeOperation ( int index ) const

By the given index, returns an operation that has an opcode.

Parameters

index The index.

Exceptions

OutOfRange If the given index is negative or not smaller than the number of opcodes.

Definition at line 207 of file FUImplementation.cc.

                                                  {
     if (index < 0 || index >= opcodeCount()) {
         throw OutOfRange(__FILE__, __LINE__, __func__);
     }

     OpcodeMap::const_iterator iter = opcodes_.begin();
     for (int i = 0; i < index; i++) {
         iter++;
     }

     return iter->first;
 }

References __func__, opcodeCount(), and opcodes_.

Referenced by HDBToHtml::fuImplToHtml().

Here is the call graph for this function:

◆ opcodePort()

std::string HDB::FUImplementation::opcodePort ( ) const

Returns the name of the opcode port.

Returns: The name of the opcode port.

Definition at line 135 of file FUImplementation.cc.

                                    {
     return opcodePort_;
 }

References opcodePort_.

Referenced by HDB::HDBManager::addFUImplementation(), ProGe::NetlistGenerator::addFUToNetlist(), FUTestbenchGenerator::createStimulusArrays(), FUTestbenchGenerator::createTbCode(), FUTestbenchGenerator::createTbInstantiation(), and HDBToHtml::fuImplToHtml().

◆ parameter()

FUImplementation::Parameter HDB::FUImplementation::parameter ( int index ) const

Returns a parameter by the given index.

Parameters

index The index.

Returns: The parameter.

Exceptions

OutOfRange If the index is negative or not smaller than the number of parameters.

Definition at line 457 of file FUImplementation.cc.

                                            {
     if (index < 0 || index >= parameterCount()) {
         throw OutOfRange(__FILE__, __LINE__, __func__);
     }

     return parameters_[index];
 }

References __func__, parameterCount(), and parameters_.

Referenced by HDB::HDBManager::addFUImplementation(), ProGe::NetlistGenerator::addFUToNetlist(), HDBToHtml::fuImplToHtml(), and ProGeTestBenchGenerator::generate().

Here is the call graph for this function:

◆ parameterCount()

int HDB::FUImplementation::parameterCount ( ) const

Returns the number of parameters.

Returns: The number of parameters.

Definition at line 443 of file FUImplementation.cc.

                                        {
     return parameters_.size();
 }

References parameters_.

Referenced by HDB::HDBManager::addFUImplementation(), ProGe::NetlistGenerator::addFUToNetlist(), HDBToHtml::fuImplToHtml(), ProGeTestBenchGenerator::generate(), and parameter().

◆ portImplementationByArchitectureName()

FUPortImplementation & HDB::FUImplementation::portImplementationByArchitectureName ( const std::string & architectureName ) const

Returns the implementation of a port for the given port architecture name.

Parameters

architectureName Name of the port in architecture table.

Returns: The port implementation.

Exceptions

InstanceNotFound If no port with the given architecture name is found.

Definition at line 370 of file FUImplementation.cc.

                                              {
     for (int i = 0; i < architecturePortCount(); ++i) {
         if (ports_[i]->architecturePort() == architectureName)
             return *ports_[i];
     }
     throw InstanceNotFound(
         __FILE__, __LINE__, __func__,
         "No port implementation with the given architecture name found.");
 }

References __func__, architecturePort(), architecturePortCount(), and ports_.

Referenced by FUTestbenchGenerator::createStimulusArrays(), and FUTestbenchGenerator::createTbCode().

Here is the call graph for this function:

◆ removeParameter()

void HDB::FUImplementation::removeParameter ( const std::string & name )

Removes the parameter of the given name.

Parameters

name	Name of the parameter.

Definition at line 426 of file FUImplementation.cc.

                                                        {
     for (ParameterTable::iterator iter = parameters_.begin();
          iter != parameters_.end(); iter++) {
         if (iter->name == name) {
             parameters_.erase(iter);
             return;
         }
     }
 }

References parameters_.

◆ setGlockReqPort()

void HDB::FUImplementation::setGlockReqPort ( const std::string & name )

Sets the name of the global lock request port.

Parameters

name	Name of the port.

Definition at line 146 of file FUImplementation.cc.

                                                        {
     glockReqPort_ = name;
 }

References glockReqPort_.

◆ setOpcode()

void HDB::FUImplementation::setOpcode	(	const std::string &	operation,
		int	opcode
	)

Sets operation code for the given operation.

Parameters

operation	Name of the operation.
opcode	The operation code.

Definition at line 169 of file FUImplementation.cc.

                                                                   {
     unsetOpcode(operation);
     string opName = StringTools::stringToUpper(operation);
     opcodes_.insert(std::pair<std::string, int>(opName, opcode));
 }

References opcode(), opcodes_, StringTools::stringToUpper(), and unsetOpcode().

Here is the call graph for this function:

◆ setOpcodePort()

void HDB::FUImplementation::setOpcodePort ( const std::string & name )

Sets the name of the opcode port.

Parameters

name	Name of the port.

Definition at line 124 of file FUImplementation.cc.

                                                      {
     opcodePort_ = name;
 }

References opcodePort_.

◆ unsetOpcode()

void HDB::FUImplementation::unsetOpcode ( const std::string & operation )

Unsets the opcode of the given operation.

Parameters

operation Name of the operation.

Definition at line 182 of file FUImplementation.cc.

                                                         {
     string opName = StringTools::stringToUpper(operation);
     opcodes_.erase(opName);
 }

References opcodes_, and StringTools::stringToUpper().

Referenced by setOpcode().

Here is the call graph for this function:

Member Data Documentation

◆ externalPorts_

ExternalPortTable HDB::FUImplementation::externalPorts_

private

Contains the external ports.

Definition at line 126 of file FUImplementation.hh.

Referenced by addExternalPort(), deleteExternalPort(), externalPort(), externalPortCount(), and ~FUImplementation().

◆ glockReqPort_

std::string HDB::FUImplementation::glockReqPort_

private

Name of the global lock request port.

Definition at line 121 of file FUImplementation.hh.

Referenced by FUImplementation(), glockReqPort(), and setGlockReqPort().

◆ opcodePort_

std::string HDB::FUImplementation::opcodePort_

private

Name of the opcode port.

Definition at line 119 of file FUImplementation.hh.

Referenced by FUImplementation(), opcodePort(), and setOpcodePort().

◆ opcodes_

OpcodeMap HDB::FUImplementation::opcodes_

private

Contains the operation codes.

Definition at line 128 of file FUImplementation.hh.

Referenced by FUImplementation(), hasOpcode(), maxOpcodeWidth(), opcode(), opcodeCount(), opcodeOperation(), setOpcode(), and unsetOpcode().

◆ parameters_

ParameterTable HDB::FUImplementation::parameters_

private

Contains the parameters.

Definition at line 130 of file FUImplementation.hh.

Referenced by addParameter(), FUImplementation(), hasParameter(), parameter(), parameterCount(), and removeParameter().

◆ ports_

PortTable HDB::FUImplementation::ports_

private

Contains the architectural ports.

Definition at line 124 of file FUImplementation.hh.

Referenced by addArchitecturePort(), architecturePort(), architecturePortCount(), deleteArchitecturePort(), portImplementationByArchitectureName(), and ~FUImplementation().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

◆ ExternalPortTable

◆ OpcodeMap

◆ Parameter

◆ ParameterTable

◆ PortTable

Constructor & Destructor Documentation

◆ FUImplementation() [1/2]

◆ ~FUImplementation()

◆ FUImplementation() [2/2]

Member Function Documentation

◆ addArchitecturePort()

◆ addExternalPort()

◆ addParameter()

◆ architecturePort()

◆ architecturePortCount()

◆ deleteArchitecturePort()

◆ deleteExternalPort()

◆ externalPort()

◆ externalPortCount()

◆ glockReqPort()

◆ hasOpcode()

◆ hasParameter()

◆ maxOpcodeWidth()

◆ opcode()

◆ opcodeCount()

◆ opcodeOperation()

◆ opcodePort()

◆ parameter()

◆ parameterCount()

◆ portImplementationByArchitectureName()

◆ removeParameter()

◆ setGlockReqPort()

◆ setOpcode()

◆ setOpcodePort()

◆ unsetOpcode()

Member Data Documentation

◆ externalPorts_

◆ glockReqPort_

◆ opcodePort_

◆ opcodes_

◆ parameters_

◆ ports_
