#include <ImmediateControlField.hh>

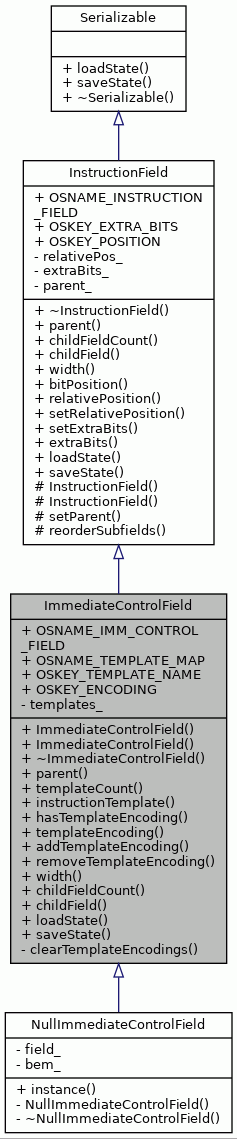

Inheritance diagram for ImmediateControlField:

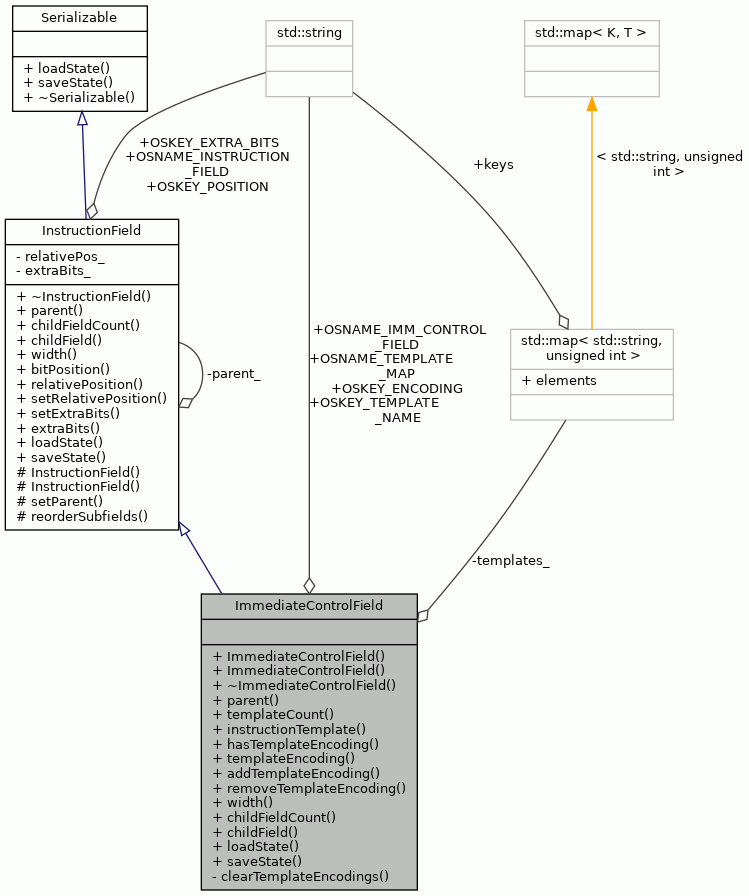

Collaboration diagram for ImmediateControlField:

Public Member Functions
	ImmediateControlField (BinaryEncoding &parent)

	ImmediateControlField (const ObjectState *state, BinaryEncoding &parent)

virtual	~ImmediateControlField ()

BinaryEncoding *	parent () const

int	templateCount () const

std::string	instructionTemplate (int index) const

bool	hasTemplateEncoding (const std::string &name) const

unsigned int	templateEncoding (const std::string &name) const

void	addTemplateEncoding (const std::string &name, unsigned int encoding)

void	removeTemplateEncoding (const std::string &name)

virtual int	width () const

virtual int	childFieldCount () const

virtual InstructionField &	childField (int) const

virtual void	loadState (const ObjectState *state)

virtual ObjectState *	saveState () const

Public Member Functions inherited from InstructionField
virtual	~InstructionField ()

InstructionField *	parent () const

int	bitPosition () const

int	relativePosition () const

virtual void	setRelativePosition (int position)

void	setExtraBits (int bits)

int	extraBits () const

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_IMM_CONTROL_FIELD = "ic_field"
	ObjectState name for immediate control field. More...

static const std::string	OSNAME_TEMPLATE_MAP = "temp_map"
	ObjectState name for a template mapping. More...

static const std::string	OSKEY_TEMPLATE_NAME = "temp_name"
	ObjectState attribute key for the name of the instruction template. More...

static const std::string	OSKEY_ENCODING = "encoding"
	ObjectState attribute key for the encoding of the instruction template. More...

Static Public Attributes inherited from InstructionField
static const std::string	OSNAME_INSTRUCTION_FIELD = "instr_field"
	ObjectState name for instruction field. More...

static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits. More...

static const std::string	OSKEY_POSITION = "position"
	ObjectState attribute key for the relative position of the field. More...

Private Types
typedef std::map< std::string, unsigned int >	EncodingMap
	A map type for binary encodings. More...

Private Member Functions
void	clearTemplateEncodings ()

Private Attributes
EncodingMap	templates_
	Binary encodings for instruction templates. More...

Additional Inherited Members
Protected Member Functions inherited from InstructionField
	InstructionField (InstructionField *parent)

	InstructionField (const ObjectState state, InstructionField parent)

void	setParent (InstructionField *parent)

Static Protected Member Functions inherited from InstructionField
static void	reorderSubfields (ObjectState *state)

Detailed Description

ImmediateControlField is a specialised InstructionField and represents the field of the TTA instruction that contains the long immediate control tag.

This tag defines the template of the instruction. A TTA instruction template specifies which move slots are used to program data transports and which are used to encode immediate bits. An ImmediateControlField object can never exist alone. It is always registered to a BinaryEncoding object.

Definition at line 57 of file ImmediateControlField.hh.

Member Typedef Documentation

◆ EncodingMap

typedef std::map<std::string, unsigned int> ImmediateControlField::EncodingMap

private

A map type for binary encodings.

Definition at line 95 of file ImmediateControlField.hh.

Constructor & Destructor Documentation

◆ ImmediateControlField() [1/2]

ImmediateControlField::ImmediateControlField ( BinaryEncoding & parent )

The constructor.

Registers the immediate control field to the parent BinaryEncoding automatically. The field is added as the leftmost field of the TTA instruction.

Parameters

parent The parent encoding map.

Exceptions

ObjectAlreadyExists If the given encoding map has an immediate control field already.

Definition at line 61 of file ImmediateControlField.cc.

     : InstructionField(&parent) {
     setParent(NULL);
     parent.setImmediateControlField(*this);
     setParent(&parent);
 }

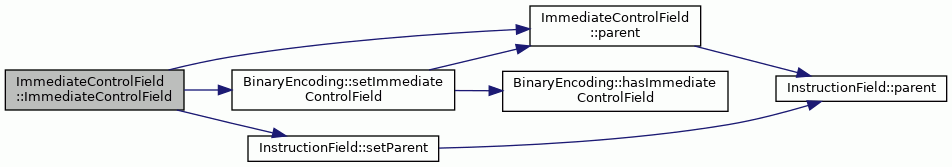

References parent(), BinaryEncoding::setImmediateControlField(), and InstructionField::setParent().

Here is the call graph for this function:

◆ ImmediateControlField() [2/2]

ImmediateControlField::ImmediateControlField	(	const ObjectState *	state,
		BinaryEncoding &	parent
	)

The constructor.

Loads the state of the object from the given ObjectState tree.

Parameters

state	The ObjectState tree.
parent	The parent encoding map.

Exceptions

ObjectStateLoadingException	If an error occurs while loading the state.
ObjectAlreadyExists	If the given encoding map has an immediate control field already.

Definition at line 80 of file ImmediateControlField.cc.

     : InstructionField(state, &parent) {
     loadState(state);
     setParent(NULL);
     parent.setImmediateControlField(*this);
     setParent(&parent);
 }

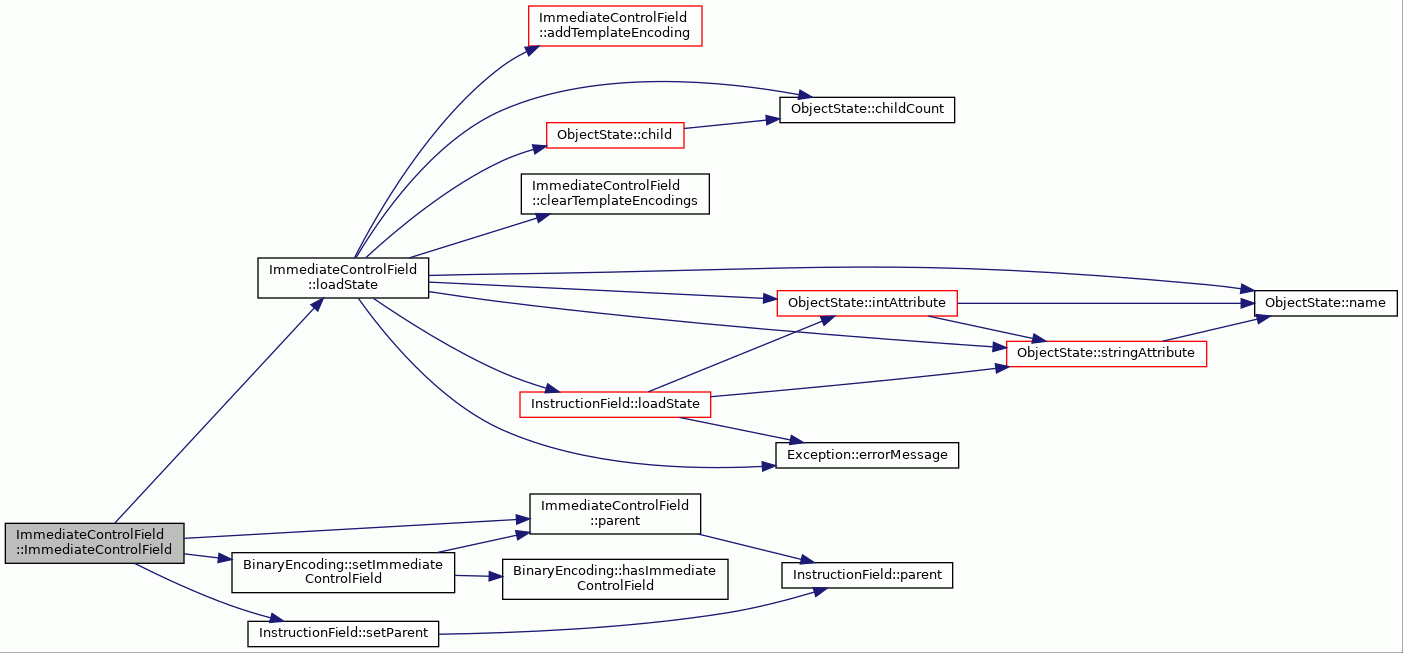

References loadState(), parent(), BinaryEncoding::setImmediateControlField(), and InstructionField::setParent().

Here is the call graph for this function:

◆ ~ImmediateControlField()

ImmediateControlField::~ImmediateControlField ( )

virtual

The destructor.

Definition at line 92 of file ImmediateControlField.cc.

                                               {
     BinaryEncoding* oldParent = parent();
     assert(oldParent != NULL);
     setParent(NULL);
     oldParent->unsetImmediateControlField();
 }

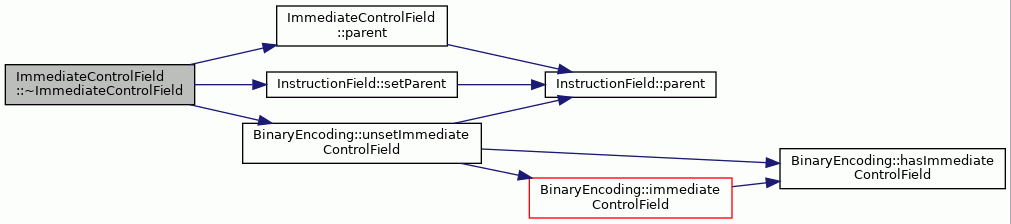

References assert, parent(), InstructionField::setParent(), and BinaryEncoding::unsetImmediateControlField().

Here is the call graph for this function:

Member Function Documentation

◆ addTemplateEncoding()

void ImmediateControlField::addTemplateEncoding	(	const std::string &	name,
		unsigned int	encoding
	)

Assings the given code to the instruction template identified by the given name.

If the given instruction template has an encoding already, replaces the encoding with the given one.

Parameters

name	Name of the instruction template.
encoding	The code to be assigned.

Exceptions

ObjectAlreadyExists If the given code is already assigned to another instruction template.

Definition at line 206 of file ImmediateControlField.cc.

                                                   {
     if (MapTools::containsValue(templates_, encoding) &&
     MapTools::keyForValue<string>(templates_, encoding) != name) {
     const string procName = "ImmediateControlField::addTemplateEncoding";
     throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
     }


     pair<EncodingMap::iterator, bool> result =
     templates_.insert(pair<string, int>(name, encoding));

     if (!result.second) {
     // if there is a code for the template already
     EncodingMap::iterator iter = templates_.find(name);
     assert(iter != templates_.end());
     iter->second = encoding;
     }
 }

References assert, MapTools::containsValue(), and templates_.

Referenced by BEMGenerator::addEncodings(), and loadState().

Here is the call graph for this function:

◆ childField()

InstructionField & ImmediateControlField::childField ( int ) const

virtual

Always throws OutOfRange exception because immediate control field does not have any child fields.

Returns: Never returns.

Exceptions

OutOfRange Always thrown.

Reimplemented from InstructionField.

Definition at line 276 of file ImmediateControlField.cc.

                                            {
     const string procName = "ImmediateControlField::childField";
     throw OutOfRange(__FILE__, __LINE__, procName);
 }

◆ childFieldCount()

int ImmediateControlField::childFieldCount ( ) const

virtual

Always returns 0.

Returns: 0.

Implements InstructionField.

Definition at line 263 of file ImmediateControlField.cc.

                                              {
     return 0;
 }

◆ clearTemplateEncodings()

void ImmediateControlField::clearTemplateEncodings ( )

private

Clears all the template encodings from the immediate control field.

Definition at line 346 of file ImmediateControlField.cc.

                                               {
     templates_.clear();
 }

References templates_.

Referenced by loadState().

◆ hasTemplateEncoding()

bool ImmediateControlField::hasTemplateEncoding ( const std::string & name ) const

Tells whether the instruction template with the given name has has a binary encoding in this field.

Parameters

name	Name of the instruction template.

Returns: True if the template has a binary encoding, otherwise false.

Definition at line 167 of file ImmediateControlField.cc.

                                                                       {
     return MapTools::containsKey(templates_, name);
 }

References MapTools::containsKey(), and templates_.

Referenced by BEMValidator::checkImmediateControlField(), DefaultDecoderGenerator::instructionTemplateCondition(), and templateEncoding().

Here is the call graph for this function:

◆ instructionTemplate()

std::string ImmediateControlField::instructionTemplate ( int index ) const

Returns the name of the instruction template encoded in this field at the given position.

Parameters

index The position index.

Exceptions

OutOfRange If the given index is negative or not smaller than the number of encodings of instruction templates.

Definition at line 138 of file ImmediateControlField.cc.

                                                           {
     if (index < 0 || index >= templateCount()) {
     const string procName = "ImmediateControlField::instructionTemplate";
     throw OutOfRange(__FILE__, __LINE__, procName);
     }

     int counter(0);
     for (EncodingMap::const_iterator iter = templates_.begin();
      iter != templates_.end(); iter++) {

     if (counter == index) {
         return iter->first;
     } else {
         counter++;
     }
     }

     assert(false);
     return "";
 }

References assert, templateCount(), and templates_.

Referenced by BinaryEncoding::longestTemplateExtraBits(), printImmediateControlField(), saveState(), and BinaryEncoding::width().

Here is the call graph for this function:

◆ loadState()

void ImmediateControlField::loadState ( const ObjectState * state )

virtual

Loads the state of the immediate control field from the given ObjectState tree.

Parameters

state The ObjectState tree.

Exceptions

ObjectStateLoadingException If an error occurs while loading the state.

Reimplemented from InstructionField.

Definition at line 290 of file ImmediateControlField.cc.

                                                          {
     clearTemplateEncodings();
     InstructionField::loadState(state);
     const string procName = "ImmediateControlField::loadState";

     if (state->name() != OSNAME_IMM_CONTROL_FIELD) {
     throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
     }

     try {
     for (int i = 0; i < state->childCount(); i++) {
         ObjectState* child = state->child(i);
         if (child->name() != OSNAME_TEMPLATE_MAP) {
         throw ObjectStateLoadingException(
             __FILE__, __LINE__, procName);
         }
         string tempName = child->stringAttribute(OSKEY_TEMPLATE_NAME);
         int encoding = child->intAttribute(OSKEY_ENCODING);
         addTemplateEncoding(tempName, encoding);
     }

     } catch (const Exception& exception) {
     throw ObjectStateLoadingException(
         __FILE__, __LINE__, procName, exception.errorMessage());
     }
 }

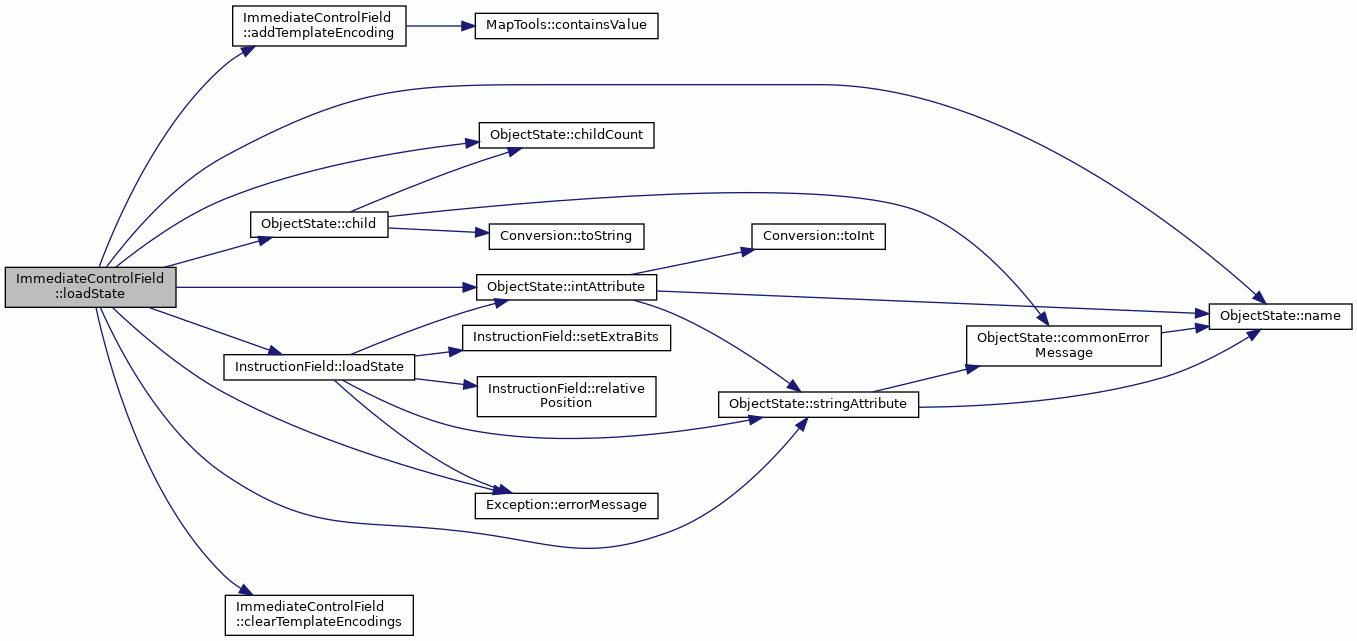

References addTemplateEncoding(), ObjectState::child(), ObjectState::childCount(), clearTemplateEncodings(), Exception::errorMessage(), ObjectState::intAttribute(), InstructionField::loadState(), ObjectState::name(), OSKEY_ENCODING, OSKEY_TEMPLATE_NAME, OSNAME_IMM_CONTROL_FIELD, OSNAME_TEMPLATE_MAP, and ObjectState::stringAttribute().

Referenced by ImmediateControlField().

Here is the call graph for this function:

◆ parent()

BinaryEncoding * ImmediateControlField::parent ( ) const

Returns the parent encoding map.

Returns: The parent encoding map.

Definition at line 106 of file ImmediateControlField.cc.

                                     {
     InstructionField* parent = InstructionField::parent();
     if (parent == NULL) {
     return NULL;
     } else {
     BinaryEncoding* encoding = dynamic_cast<BinaryEncoding*>(parent);
     assert(encoding != NULL);
     return encoding;
     }
 }

References assert, and InstructionField::parent().

Referenced by ImmediateControlField(), BinaryEncoding::setImmediateControlField(), and ~ImmediateControlField().

Here is the call graph for this function:

◆ removeTemplateEncoding()

void ImmediateControlField::removeTemplateEncoding ( const std::string & name )

Removes the code of the instruction template with the given name.

Parameters

name	Name of the instruction template.

Definition at line 232 of file ImmediateControlField.cc.

                                                                    {
     templates_.erase(name);
 }

References templates_.

◆ saveState()

ObjectState * ImmediateControlField::saveState ( ) const

virtual

Saves the state of the immediate control field to an ObjectState tree.

Returns: The newly created ObjectState tree.

Reimplemented from InstructionField.

Definition at line 323 of file ImmediateControlField.cc.

                                        {

     ObjectState* state = InstructionField::saveState();
     state->setName(OSNAME_IMM_CONTROL_FIELD);
     state->setAttribute(OSKEY_POSITION, relativePosition());

     for (int i = 0; i < templateCount(); i++) {
     string temp = instructionTemplate(i);
     int encoding = templateEncoding(temp);
     ObjectState* tempMap = new ObjectState(OSNAME_TEMPLATE_MAP);
     state->addChild(tempMap);
     tempMap->setAttribute(OSKEY_TEMPLATE_NAME, temp);
     tempMap->setAttribute(OSKEY_ENCODING, encoding);
     }

     return state;
 }

References ObjectState::addChild(), instructionTemplate(), OSKEY_ENCODING, InstructionField::OSKEY_POSITION, OSKEY_TEMPLATE_NAME, OSNAME_IMM_CONTROL_FIELD, OSNAME_TEMPLATE_MAP, InstructionField::relativePosition(), InstructionField::saveState(), ObjectState::setAttribute(), ObjectState::setName(), templateCount(), and templateEncoding().

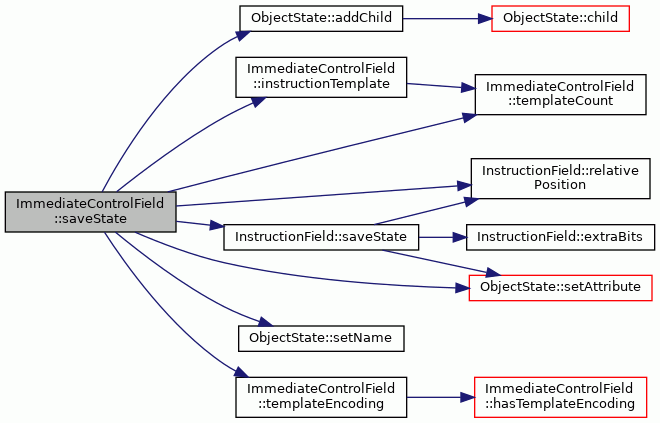

Here is the call graph for this function:

◆ templateCount()

int ImmediateControlField::templateCount ( ) const

Returns the number of instruction templates with a binary encoding assigned.

Returns: The number of instruction templates.

Definition at line 124 of file ImmediateControlField.cc.

                                            {
     return templates_.size();
 }

References templates_.

Referenced by instructionTemplate(), BinaryEncoding::longestTemplateExtraBits(), printImmediateControlField(), saveState(), and BinaryEncoding::width().

◆ templateEncoding()

unsigned int ImmediateControlField::templateEncoding ( const std::string & name ) const

Returns the code that identifies the instruction template with the given name.

Parameters

name	Name of the instruction template.

Returns: The code that identifies the given instruction template.

Exceptions

InstanceNotFound If the given instruction template does not have a binary encoding in this field.

Definition at line 182 of file ImmediateControlField.cc.

                                                                    {
     if (!hasTemplateEncoding(name)) {
     const string procName = "ImmediateControlField::templateEncoding";
     throw InstanceNotFound(__FILE__, __LINE__, procName);
     }

     EncodingMap::const_iterator iter = templates_.find(name);
     assert(iter != templates_.end());
     return iter->second;
 }

References assert, hasTemplateEncoding(), and templates_.

Referenced by CodeCompressorPlugin::addBitsForICField(), DefaultDecoderGenerator::instructionTemplateCondition(), printImmediateControlField(), saveState(), and DefaultDecoderGenerator::writeSquashSignalGenerationProcess().

Here is the call graph for this function:

◆ width()

int ImmediateControlField::width ( ) const

virtual

Returns the bit width of the immediate control field.

Returns: The bit width of the field.

Implements InstructionField.

Definition at line 243 of file ImmediateControlField.cc.

                                    {
     int minWidth(0);
     for (EncodingMap::const_iterator iter = templates_.begin();
      iter != templates_.end(); iter++) {
     int encoding = iter->second;
     int requiredBits = MathTools::bitLength(encoding);
     if (requiredBits > minWidth) {
         minWidth = requiredBits;
     }
     }
     return minWidth + extraBits();
 }

References MathTools::bitLength(), InstructionField::extraBits(), and templates_.

Referenced by CodeCompressorPlugin::addBitsForICField(), CodeCompressorPlugin::bemInstructionBits(), CodeCompressorPlugin::firstMoveSlotIndex(), printImmediateControlField(), BinaryEncoding::width(), DefaultDecoderGenerator::writeInstructionDismembering(), and DefaultDecoderGenerator::writeLongImmediateTagSignal().

Here is the call graph for this function:

Member Data Documentation

◆ OSKEY_ENCODING

const std::string ImmediateControlField::OSKEY_ENCODING = "encoding"

static

ObjectState attribute key for the encoding of the instruction template.

Definition at line 91 of file ImmediateControlField.hh.

Referenced by loadState(), BEMSerializer::longImmTagToFile(), BEMSerializer::longImmTagToOM(), and saveState().

◆ OSKEY_TEMPLATE_NAME

const std::string ImmediateControlField::OSKEY_TEMPLATE_NAME = "temp_name"

static

ObjectState attribute key for the name of the instruction template.

Definition at line 88 of file ImmediateControlField.hh.

Referenced by loadState(), BEMSerializer::longImmTagToFile(), BEMSerializer::longImmTagToOM(), and saveState().

◆ OSNAME_IMM_CONTROL_FIELD

const std::string ImmediateControlField::OSNAME_IMM_CONTROL_FIELD = "ic_field"

static

ObjectState name for immediate control field.

Definition at line 84 of file ImmediateControlField.hh.

Referenced by BEMSerializer::convertToFileFormat(), loadState(), BinaryEncoding::loadState(), BEMSerializer::longImmTagToOM(), and saveState().

◆ OSNAME_TEMPLATE_MAP

const std::string ImmediateControlField::OSNAME_TEMPLATE_MAP = "temp_map"

static

ObjectState name for a template mapping.

Definition at line 86 of file ImmediateControlField.hh.

Referenced by loadState(), BEMSerializer::longImmTagToFile(), BEMSerializer::longImmTagToOM(), and saveState().

◆ templates_

EncodingMap ImmediateControlField::templates_

private

Binary encodings for instruction templates.

Definition at line 100 of file ImmediateControlField.hh.

Referenced by addTemplateEncoding(), clearTemplateEncodings(), hasTemplateEncoding(), instructionTemplate(), removeTemplateEncoding(), templateCount(), templateEncoding(), and width().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Attributes

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ EncodingMap

Constructor & Destructor Documentation

◆ ImmediateControlField() [1/2]

◆ ImmediateControlField() [2/2]

◆ ~ImmediateControlField()

Member Function Documentation

◆ addTemplateEncoding()

◆ childField()

◆ childFieldCount()

◆ clearTemplateEncodings()

◆ hasTemplateEncoding()

◆ instructionTemplate()

◆ loadState()

◆ parent()

◆ removeTemplateEncoding()

◆ saveState()

◆ templateCount()

◆ templateEncoding()

◆ width()

Member Data Documentation

◆ OSKEY_ENCODING

◆ OSKEY_TEMPLATE_NAME

◆ OSNAME_IMM_CONTROL_FIELD

◆ OSNAME_TEMPLATE_MAP

◆ templates_
