InstructionMemory Class Reference

#include <InstructionMemory.hh>

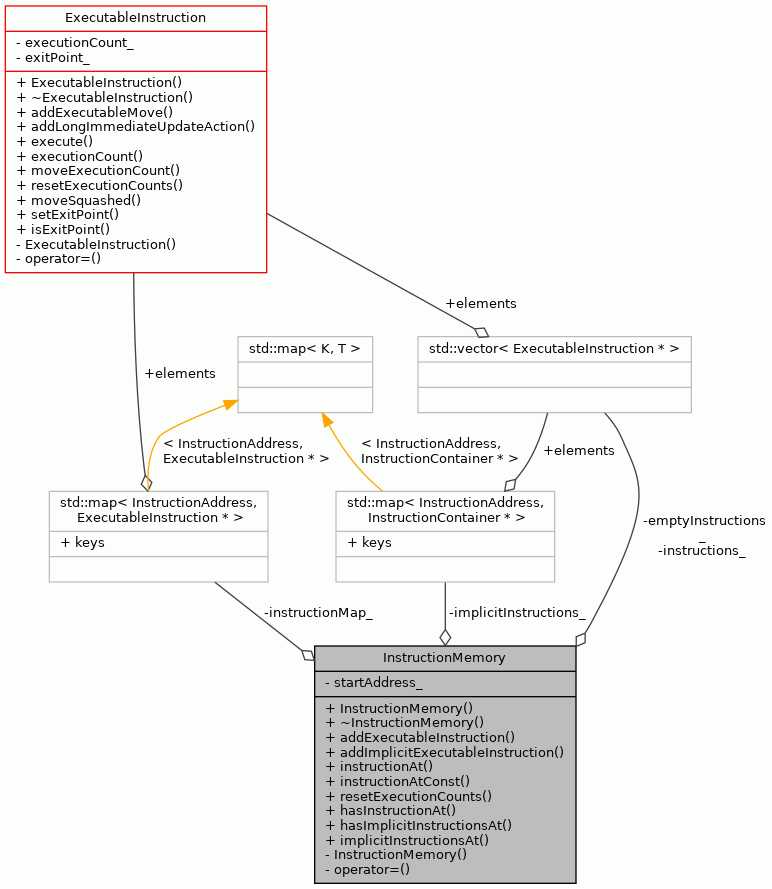

Collaboration diagram for InstructionMemory:

Public Types
typedef std::vector< ExecutableInstruction * >	InstructionContainer
	Container for instructions. More...

Public Member Functions
	InstructionMemory (InstructionAddress startAddress)
virtual	~InstructionMemory ()
void	addExecutableInstruction (InstructionAddress addr, ExecutableInstruction *instruction)
void	addImplicitExecutableInstruction (InstructionAddress addr, ExecutableInstruction *instruction)
ExecutableInstruction &	instructionAt (InstructionAddress address)
const ExecutableInstruction &	instructionAtConst (InstructionAddress address) const
void	resetExecutionCounts ()
bool	hasInstructionAt (InstructionAddress addr) const
bool	hasImplicitInstructionsAt (InstructionAddress addr) const
const InstructionContainer &	implicitInstructionsAt (InstructionAddress addr) const

Private Member Functions
	InstructionMemory (const InstructionMemory &)
	Copying not allowed. More...
InstructionMemory &	operator= (const InstructionMemory &)
	Assignment not allowed. More...

Private Attributes
InstructionAddress	startAddress_
	The starting address of the instruction memory address space. More...
InstructionContainer	instructions_
	All the instructions of the memory. More...
InstructionContainer	emptyInstructions_
std::map< InstructionAddress, ExecutableInstruction * >	instructionMap_
	Stores the explicit instruction addresses. More...
std::map< InstructionAddress, InstructionContainer * >	implicitInstructions_
	Stores implicit instructions that should be executed after the explicit one in the same address. More...

Detailed Description

Container for ExecutableInstructions which represent the actions performed by the simulated program's instructions to the machine's state.

Definition at line 54 of file InstructionMemory.hh.

Member Typedef Documentation

InstructionContainer

typedef std::vector<ExecutableInstruction*> InstructionMemory::InstructionContainer

Container for instructions.

Definition at line 57 of file InstructionMemory.hh.

Constructor & Destructor Documentation

InstructionMemory() [1/2]

InstructionMemory::InstructionMemory

(

InstructionAddress

startAddress

)

Constructor.

This constructor is for constant width instructions only.

Parameters

startAddress

The starting address of the instruction memory.

Definition at line 47 of file InstructionMemory.cc.

                                     :
    startAddress_(startAddress) {
}

~InstructionMemory()

InstructionMemory::~InstructionMemory ( )

virtual

Destructor.

Definition at line 55 of file InstructionMemory.cc.

                                      {

    for (InstructionContainer::const_iterator i = instructions_.begin();
         i != instructions_.end();  ++i) {
        delete (*i);
    }
    instructions_.clear();

    for (auto Pair : implicitInstructions_) {
        InstructionContainer* C = Pair.second;
        delete C;
    }
    implicitInstructions_.clear();
}

References implicitInstructions_, and instructions_.

InstructionMemory() [2/2]

InstructionMemory::InstructionMemory ( const InstructionMemory &  )

private

Copying not allowed.

Member Function Documentation

addExecutableInstruction()

void InstructionMemory::addExecutableInstruction	(	InstructionAddress	addr,
		ExecutableInstruction *	instruction
	)

Adds new ExecutableInstruction to memory.

Parameters

instruction

Instruction to be added.

Definition at line 76 of file InstructionMemory.cc.

                                                                 {

    instructions_.push_back(instruction);
    instructionMap_[addr] = instruction;
}

References instructionMap_, and instructions_.

Referenced by SimProgramBuilder::build().

addImplicitExecutableInstruction()

void InstructionMemory::addImplicitExecutableInstruction	(	InstructionAddress	addr,
		ExecutableInstruction *	instruction
	)

Adds an "implicit instruction" used to simulate effects triggered by operation-triggered instructions as side-effects, but which are not controlled by the programmer.

Should be added after the explicit instruction in the order of how the effects should be done.

Definition at line 92 of file InstructionMemory.cc.

                                                                 {
    if (implicitInstructions_.find(addr) == implicitInstructions_.end()) {
        implicitInstructions_[addr] = new InstructionContainer;
    }
    implicitInstructions_[addr]->push_back(instruction);
}

References implicitInstructions_.

Referenced by SimProgramBuilder::build().

hasImplicitInstructionsAt()

bool InstructionMemory::hasImplicitInstructionsAt

(

InstructionAddress

addr

)

const

Definition at line 123 of file InstructionMemory.cc.

                                                                          {
    return implicitInstructions_.find(addr) != implicitInstructions_.end();
}

References implicitInstructions_.

Referenced by OTASimulationController::simulateCycle().

hasInstructionAt()

bool InstructionMemory::hasInstructionAt

(

InstructionAddress

addr

)

const

Returns true in case there is an implicit or explicit instruction at the given address.

Definition at line 117 of file InstructionMemory.cc.

                                                                 {
    return instructionMap_.find(addr) != instructionMap_.end();
}

References instructionMap_.

Referenced by OTASimulationController::simulateCycle().

implicitInstructionsAt()

const InstructionMemory::InstructionContainer & InstructionMemory::implicitInstructionsAt

(

InstructionAddress

addr

)

const

Definition at line 128 of file InstructionMemory.cc.

                                                                       {
    if (implicitInstructions_.find(addr) == implicitInstructions_.end()) {
        return emptyInstructions_;
    }

    const InstructionContainer* IC = implicitInstructions_.find(addr)->second;
    return *IC;
}

References emptyInstructions_, and implicitInstructions_.

Referenced by SimulationStatistics::calculate(), and OTASimulationController::simulateCycle().

instructionAt()

ExecutableInstruction& InstructionMemory::instructionAt

(

InstructionAddress

address

)

Referenced by OTASimulationController::simulateCycle().

instructionAtConst()

const ExecutableInstruction& InstructionMemory::instructionAtConst

(

InstructionAddress

address

)

const

Referenced by SimulationStatistics::calculate(), SimulatorFrontend::executableInstructionAt(), SimulatorFrontend::finishSimulation(), RFAccessTracker::handleEvent(), and SimulatorFrontend::lastExecInstruction().

operator=()

InstructionMemory& InstructionMemory::operator= ( const InstructionMemory &  )

private

Assignment not allowed.

resetExecutionCounts()

void InstructionMemory::resetExecutionCounts

(

)

Resets execution counters of all instructions.

Definition at line 105 of file InstructionMemory.cc.

                                        {
    for (InstructionContainer::iterator i = instructions_.begin();
         i != instructions_.end(); ++i) {
        (*i)->resetExecutionCounts();
    }
}

References instructions_.

Member Data Documentation

emptyInstructions_

InstructionContainer InstructionMemory::emptyInstructions_

private

Definition at line 90 of file InstructionMemory.hh.

Referenced by implicitInstructionsAt().

implicitInstructions_

std::map<InstructionAddress, InstructionContainer*> InstructionMemory::implicitInstructions_

private

Stores implicit instructions that should be executed after the explicit one in the same address.

Definition at line 98 of file InstructionMemory.hh.

Referenced by addImplicitExecutableInstruction(), hasImplicitInstructionsAt(), implicitInstructionsAt(), and ~InstructionMemory().

instructionMap_

std::map<InstructionAddress, ExecutableInstruction*> InstructionMemory::instructionMap_

private

Stores the explicit instruction addresses.

Definition at line 95 of file InstructionMemory.hh.

Referenced by addExecutableInstruction(), and hasInstructionAt().

instructions_

InstructionContainer InstructionMemory::instructions_

private

All the instructions of the memory.

Definition at line 88 of file InstructionMemory.hh.

Referenced by addExecutableInstruction(), resetExecutionCounts(), and ~InstructionMemory().

startAddress_

InstructionAddress InstructionMemory::startAddress_

private

The starting address of the instruction memory address space.

Definition at line 85 of file InstructionMemory.hh.

---

The documentation for this class was generated from the following files:

• InstructionMemory.hh
• InstructionMemory.cc
