Interpolation Class Reference

#include <Interpolation.hh>

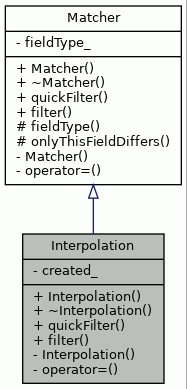

Inheritance diagram for Interpolation:

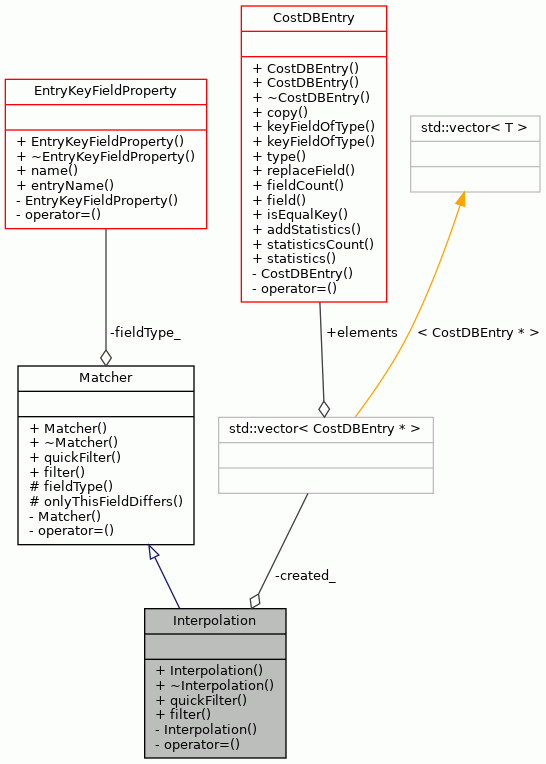

Collaboration diagram for Interpolation:

Classes
struct	Pair

Public Member Functions
	Interpolation (const EntryKeyFieldProperty *type)
virtual	~Interpolation ()
void	quickFilter (const CostDBEntryKey &, CostDBTypes::EntryTable &)
void	filter (const CostDBEntryKey &searchKey, CostDBTypes::EntryTable &components)
Public Member Functions inherited from Matcher
	Matcher (const EntryKeyFieldProperty *type)
virtual	~Matcher ()

Private Member Functions
	Interpolation (const Interpolation &)
	Copying not allowed. More...
Interpolation &	operator= (const Interpolation &)
	Assignment not allowed. More...

Private Attributes
CostDBTypes::EntryTable	created_
	Entries created during interpolation. More...

Additional Inherited Members
Protected Member Functions inherited from Matcher
const EntryKeyFieldProperty *	fieldType () const
bool	onlyThisFieldDiffers (const EntryKeyFieldProperty *type, const CostDBEntry &entry1, const CostDBEntry &entry2) const

Detailed Description

Implementation for searching database entries.

If a value equal to the search key in the requested field is not found, interpolation of the smaller and greater field value is tried.

Definition at line 49 of file Interpolation.hh.

Constructor & Destructor Documentation

Interpolation() [1/2]

Interpolation::Interpolation

(

const EntryKeyFieldProperty *

type

)

Constructor.

Parameters

type	Type of the field.

Definition at line 46 of file Interpolation.cc.

                                                              :
    Matcher(type) {
}

~Interpolation()

Interpolation::~Interpolation ( )

virtual

Destructor.

Deallocates memory reserved for entries created during interpolation.

Definition at line 55 of file Interpolation.cc.

                              {

    for (CostDBTypes::EntryTable::iterator i = created_.begin();
         i != created_.end(); i++) {

        assert(*i != NULL);
        delete *i;
        *i = NULL;
    }
}

References assert, and created_.

Interpolation() [2/2]

Interpolation::Interpolation ( const Interpolation &  )

private

Copying not allowed.

Member Function Documentation

filter()

void Interpolation::filter ( const CostDBEntryKey &  searchKey, CostDBTypes::EntryTable &  components  )

virtual

Searches for database entries.

If a value equal to the search key in the requested field is not found, interpolation of the smaller and greater field value is applied. Only the best matches are returned, i.e. equal match is chosen and no interpolation is done, or if two entries has only the field to which search is applied different, the closer one to the search key is chosen for interpolation.

Parameters

searchKey	Search key.
components	Entries from which to find. Updated to contain entries that matched the search request.

Exceptions

TypeMismatch	Interpolation was requested for field that cannot be interpolated.
KeyNotFound	Some CostDBEntryStats have no value caused by missing cost data.

Implements Matcher.

Definition at line 92 of file Interpolation.cc.

                                                                        {
    vector<Pair> entries;
    EntryKeyField searchField = searchKey.keyFieldOfType(*fieldType());
    for (CostDBTypes::EntryTable::iterator i = components.begin();
         i != components.end(); i++) {

        EntryKeyField field = (*i)->keyFieldOfType(*fieldType());
        bool newPair = true;
        for (vector<Pair>::iterator p = entries.begin();
             p != entries.end(); p++) {

            if ((p->smaller != 0 &&
                 !onlyThisFieldDiffers(fieldType(), *(p->smaller), *(*i))) ||
                (p->greater != 0 &&
                 !onlyThisFieldDiffers(fieldType(), *(p->greater), *(*i)))) {

                continue;
            }
            if (field.isEqual(searchField)) {
                p->smaller = *i;
                p->greater = 0;
            } else if (field.isSmaller(searchField)) {
                if (p->smaller == 0 ||
                    (p->smaller != 0 &&
                     field.isGreater(
                         p->smaller->keyFieldOfType(*fieldType())))) {

                    p->smaller = *i;
                }
            } else {
                if (!(field.isGreater(searchField))) {
                    throw TypeMismatch(__FILE__, __LINE__,
                                       "Interpolation::filter");
                }
                if (p->greater == 0 ||
                    (p->greater != 0 &&
                     field.isSmaller(
                         p->greater->keyFieldOfType(*fieldType())))) {

                    p->greater = *i;
                }
            }
            newPair = false;
            break;
        }
        if (newPair) {
            Pair pair;
            if (field.isEqual(searchField)) {
                pair.smaller = *i;
                pair.greater = 0;
            } else if (field.isSmaller(searchField)) {
                pair.smaller = *i;
                pair.greater = 0;
            } else {
                if (!(field.isGreater(searchField))) {
                    throw TypeMismatch(__FILE__, __LINE__,
                                       "Interpolation::filter");
                }
                pair.greater = *i;
                pair.smaller = 0;
            }
            entries.push_back(pair);
        }
    }
    CostDBTypes::EntryTable filtered;
    for (vector<Pair>::iterator p = entries.begin(); p != entries.end(); p++) {
        if (p->smaller != 0 &&
            p->smaller->keyFieldOfType(*fieldType()).isEqual(searchField)) {
            filtered.push_back(p->smaller);
        } else if (p->smaller != 0 && p->greater != 0) {
            CostDBEntry* newEntry = new CostDBEntry(
                *p->smaller, *p->greater, searchField);
            filtered.push_back(newEntry);
            created_.push_back(newEntry);
        }
    }
    components = filtered;
}

References created_, Matcher::fieldType(), Interpolation::Pair::greater, EntryKeyField::isEqual(), EntryKeyField::isGreater(), EntryKeyField::isSmaller(), CostDBEntryKey::keyFieldOfType(), Matcher::onlyThisFieldDiffers(), and Interpolation::Pair::smaller.

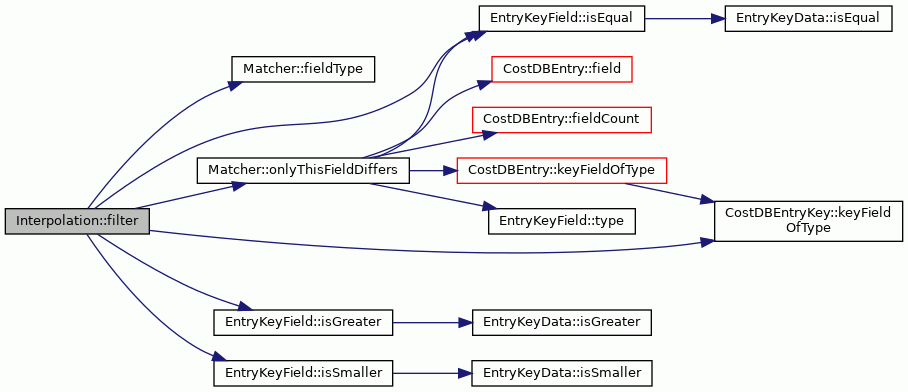

Here is the call graph for this function:

operator=()

Interpolation& Interpolation::operator= ( const Interpolation &  )

private

Assignment not allowed.

quickFilter()

void Interpolation::quickFilter ( const CostDBEntryKey &  , CostDBTypes::EntryTable &    )

virtual

Nothing to do since no entry can be removed in linear time.

Implements Matcher.

Definition at line 70 of file Interpolation.cc.

                                                                        {
}

Member Data Documentation

created_

CostDBTypes::EntryTable Interpolation::created_

private

Entries created during interpolation.

Definition at line 70 of file Interpolation.hh.

Referenced by filter(), and ~Interpolation().

---

The documentation for this class was generated from the following files:

• Interpolation.hh
• Interpolation.cc
