#include <LImmDstRegisterField.hh>

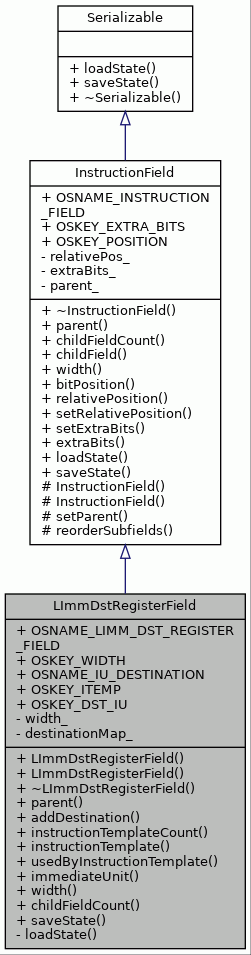

Inheritance diagram for LImmDstRegisterField:

Collaboration diagram for LImmDstRegisterField:

Public Member Functions
	LImmDstRegisterField (int width, BinaryEncoding &parent)

	LImmDstRegisterField (const ObjectState *state, BinaryEncoding &parent)

virtual	~LImmDstRegisterField ()

BinaryEncoding *	parent () const

void	addDestination (const std::string &instructionTemplate, const std::string &immediateUnit)

int	instructionTemplateCount () const

std::string	instructionTemplate (int index) const

bool	usedByInstructionTemplate (const std::string &instructionTemplate) const

std::string	immediateUnit (const std::string &instructionTemplate) const

virtual int	width () const

virtual int	childFieldCount () const

virtual ObjectState *	saveState () const

Public Member Functions inherited from InstructionField
virtual	~InstructionField ()

InstructionField *	parent () const

virtual InstructionField &	childField (int position) const

int	bitPosition () const

int	relativePosition () const

virtual void	setRelativePosition (int position)

void	setExtraBits (int bits)

int	extraBits () const

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_LIMM_DST_REGISTER_FIELD
	ObjectState name for long immediate destination register field. More...

static const std::string	OSKEY_WIDTH = "width"
	ObjectState attribute key for the width of the field. More...

static const std::string	OSNAME_IU_DESTINATION = "iu_dst"
	ObjectState name for a immediate unit destination. More...

static const std::string	OSKEY_ITEMP = "itemp"
	ObjectState attribute key for the name of the instruction template. More...

static const std::string	OSKEY_DST_IU = "iu"
	ObjectState attribute key for the name of the immediate unit. More...

Static Public Attributes inherited from InstructionField
static const std::string	OSNAME_INSTRUCTION_FIELD = "instr_field"
	ObjectState name for instruction field. More...

static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits. More...

static const std::string	OSKEY_POSITION = "position"
	ObjectState attribute key for the relative position of the field. More...

Private Types
typedef std::map< std::string, std::string >	StringMap
	Map type for strings. More...

Private Member Functions
void	loadState (const ObjectState *state)

Private Attributes
int	width_
	Width of the field. More...

StringMap	destinationMap_
	Maps instruction templates to immediate units. More...

Additional Inherited Members
Protected Member Functions inherited from InstructionField
	InstructionField (InstructionField *parent)

	InstructionField (const ObjectState state, InstructionField parent)

void	setParent (InstructionField *parent)

Static Protected Member Functions inherited from InstructionField
static void	reorderSubfields (ObjectState *state)

Detailed Description

Represets the instruction field that contains the register index where a long immediate is going to be written.

Definition at line 47 of file LImmDstRegisterField.hh.

Member Typedef Documentation

◆ StringMap

typedef std::map<std::string, std::string> LImmDstRegisterField::StringMap

private

Map type for strings.

Definition at line 82 of file LImmDstRegisterField.hh.

Constructor & Destructor Documentation

◆ LImmDstRegisterField() [1/2]

LImmDstRegisterField::LImmDstRegisterField	(	int	width,
		BinaryEncoding &	parent
	)

The constructor.

Registers the field automatically to the given parent.

Parameters

width	Width of the field.
parent	The parent BinaryEncoding instance.

Exceptions

OutOfRange If the given width is 0 or smaller.

Definition at line 59 of file LImmDstRegisterField.cc.

     : InstructionField(&parent), width_(width) {
     if (width < 1) {
         throw OutOfRange(__FILE__, __LINE__, __func__);
     }

     setParent(NULL);
     parent.addLongImmDstRegisterField(*this);
     setParent(&parent);
 }

References __func__, BinaryEncoding::addLongImmDstRegisterField(), parent(), InstructionField::setParent(), and width().

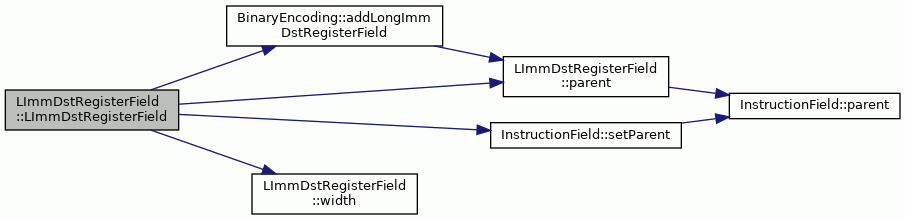

Here is the call graph for this function:

◆ LImmDstRegisterField() [2/2]

LImmDstRegisterField::LImmDstRegisterField	(	const ObjectState *	state,
		BinaryEncoding &	parent
	)

The constructor.

Loads the state of the object from the given ObjectState instance. Registers the field automatically to the given parent.

Parameters

state	The ObjectState instance.
parent	The parent BinaryEncoding instance.

Exceptions

ObjectStateLoadingException If the given ObjectState instance is erroneous.

Definition at line 81 of file LImmDstRegisterField.cc.

     : InstructionField(state, &parent), width_(0) {
     loadState(state);
     setParent(NULL);
     parent.addLongImmDstRegisterField(*this);
     setParent(&parent);
 }

References BinaryEncoding::addLongImmDstRegisterField(), loadState(), parent(), and InstructionField::setParent().

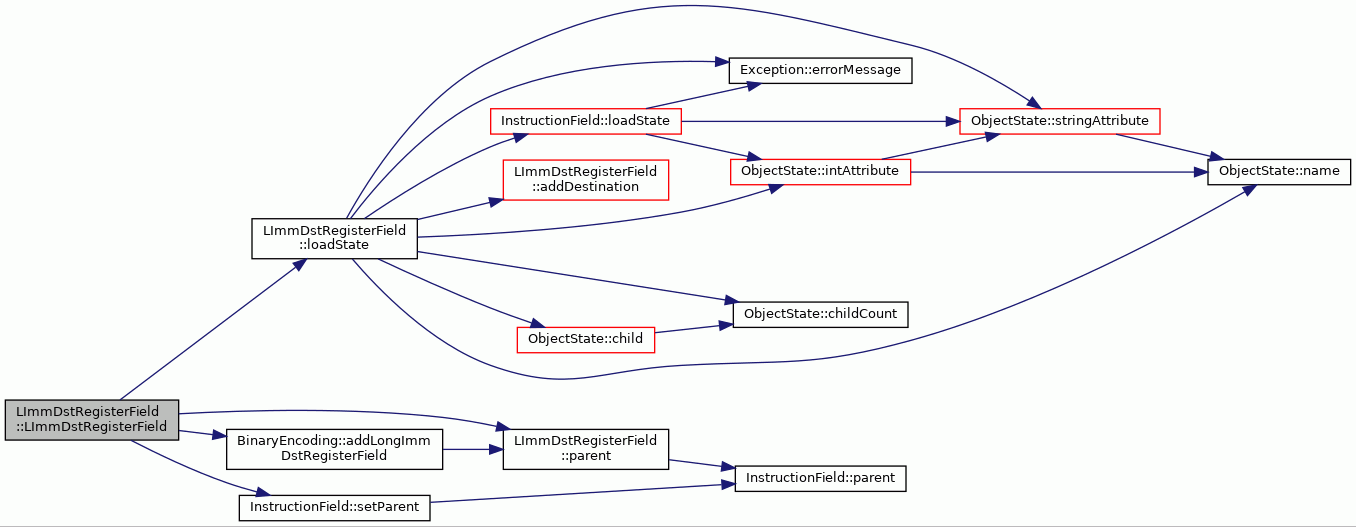

Here is the call graph for this function:

◆ ~LImmDstRegisterField()

LImmDstRegisterField::~LImmDstRegisterField ( )

virtual

The destructor.

Definition at line 93 of file LImmDstRegisterField.cc.

                                             {
     BinaryEncoding* parent = this->parent();
     setParent(NULL);
     parent->removeLongImmDstRegisterField(*this);
 }

References parent(), BinaryEncoding::removeLongImmDstRegisterField(), and InstructionField::setParent().

Here is the call graph for this function:

Member Function Documentation

◆ addDestination()

void LImmDstRegisterField::addDestination	(	const std::string &	instructionTemplate,
		const std::string &	immediateUnit
	)

Sets that the register index of the given immediate unit in the given instruction template is given in this field.

Parameters

instructionTemplate	The instruction template.
immediateUnit	The immediate unit.

Exceptions

NotAvailable If index of some other immediate unit is assigned to this field in the same instruction template.

Definition at line 129 of file LImmDstRegisterField.cc.

                                                                           {
     if (MapTools::containsKey(destinationMap_, instructionTemplate) &&
         MapTools::valueForKey<string>(destinationMap_, instructionTemplate)
         != immediateUnit) {
         throw NotAvailable(__FILE__, __LINE__, __func__);
     } else {
         destinationMap_.insert(
             std::pair<string, string>(instructionTemplate, immediateUnit));
     }
 }

References __func__, MapTools::containsKey(), destinationMap_, immediateUnit(), and instructionTemplate().

Referenced by BEMGenerator::addLongImmDstRegisterFields(), and loadState().

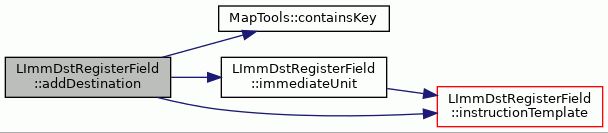

Here is the call graph for this function:

◆ childFieldCount()

int LImmDstRegisterField::childFieldCount ( ) const

virtual

Returns the number of child fields, that is always 0.

Returns: 0.

Implements InstructionField.

Definition at line 224 of file LImmDstRegisterField.cc.

                                             {
     return 0;
 }

◆ immediateUnit()

std::string LImmDstRegisterField::immediateUnit ( const std::string & instructionTemplate ) const

Returns the name of the immediate unit for which the field is assigned in the given instruction template.

Parameters

instructionTemplate Name of the instruction template.

Exceptions

NotAvailable If the field is not used in the given instruction template.

Definition at line 197 of file LImmDstRegisterField.cc.

                                                 {
     try {
         return MapTools::valueForKey<string>(
             destinationMap_, instructionTemplate);
     } catch (const Exception&) {
         throw NotAvailable(__FILE__, __LINE__, __func__);
     }
 }

References __func__, destinationMap_, and instructionTemplate().

Referenced by CodeCompressorPlugin::addBitsForDstRegisterField(), addDestination(), BEMValidator::checkLImmDstRegisterFields(), BinaryEncoding::longImmDstRegisterField(), and printLImmDstRegisterField().

Here is the call graph for this function:

◆ instructionTemplate()

std::string LImmDstRegisterField::instructionTemplate ( int index ) const

By the given index, returns an instruction template that uses this destination register field.

Parameters

index The index.

Exceptions

OutOfRange If the index is negative or not smaller than the number of instruction templates.

Definition at line 162 of file LImmDstRegisterField.cc.

                                                          {
     if (index < 0 || index >= instructionTemplateCount()) {
         throw OutOfRange(__FILE__, __LINE__, __func__);
     }

     StringMap::const_iterator iter = destinationMap_.begin();
     for (int i = 0; i < index; i++) {
         iter++;
     }

     return iter->first;
 }

References __func__, destinationMap_, and instructionTemplateCount().

Referenced by addDestination(), immediateUnit(), printLImmDstRegisterField(), and usedByInstructionTemplate().

Here is the call graph for this function:

◆ instructionTemplateCount()

int LImmDstRegisterField::instructionTemplateCount ( ) const

Returns the number of instruction templates that use this destination register field.

Returns: The number of instruction templates.

Definition at line 148 of file LImmDstRegisterField.cc.

                                                      {
     return destinationMap_.size();
 }

References destinationMap_.

Referenced by instructionTemplate(), and printLImmDstRegisterField().

◆ loadState()

void LImmDstRegisterField::loadState ( const ObjectState * state )

privatevirtual

Loads the state of the object from the given ObjectState instance.

Parameters

state The ObjectState instance.

Reimplemented from InstructionField.

Definition at line 260 of file LImmDstRegisterField.cc.

                                                         {
     if (state->name() != OSNAME_LIMM_DST_REGISTER_FIELD) {
         throw ObjectStateLoadingException(__FILE__, __LINE__, __func__);
     }

     InstructionField::loadState(state);

     try {
         width_ = state->intAttribute(OSKEY_WIDTH);
         for (int i = 0; i < state->childCount(); i++) {
             ObjectState* child = state->child(i);
             if (child->name() != OSNAME_IU_DESTINATION) {
                 throw ObjectStateLoadingException(
                     __FILE__, __LINE__, __func__);
             }
             string iTemp = child->stringAttribute(OSKEY_ITEMP);
             string iu = child->stringAttribute(OSKEY_DST_IU);
             addDestination(iTemp, iu);
         }
     } catch (const Exception& e) {
         throw ObjectStateLoadingException(
             __FILE__, __LINE__, __func__, e.errorMessage());
     }
 }

References __func__, addDestination(), ObjectState::child(), ObjectState::childCount(), Exception::errorMessage(), ObjectState::intAttribute(), InstructionField::loadState(), ObjectState::name(), OSKEY_DST_IU, OSKEY_ITEMP, OSKEY_WIDTH, OSNAME_IU_DESTINATION, OSNAME_LIMM_DST_REGISTER_FIELD, ObjectState::stringAttribute(), and width_.

Referenced by LImmDstRegisterField().

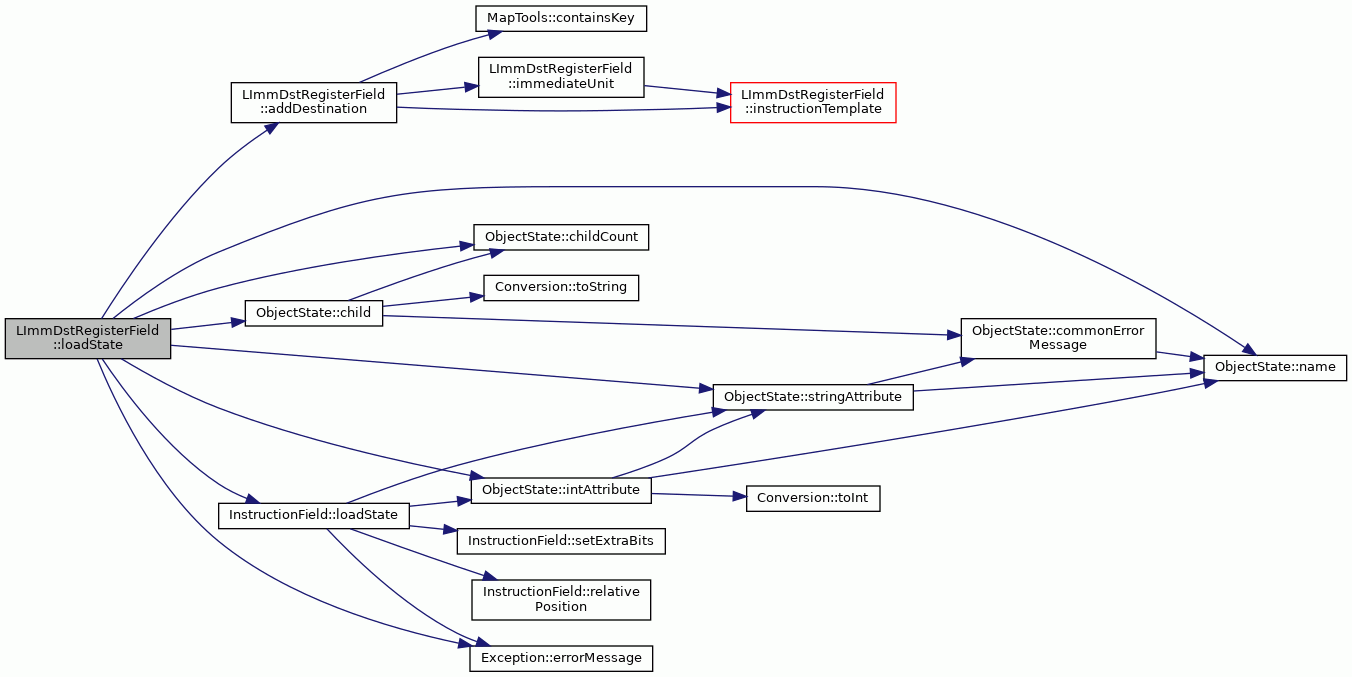

Here is the call graph for this function:

◆ parent()

BinaryEncoding * LImmDstRegisterField::parent ( ) const

Returns the parent BinaryEncoding instance.

Returns: The parent BinaryEncoding instance.

Definition at line 106 of file LImmDstRegisterField.cc.

                                    {
     InstructionField* parent = InstructionField::parent();
     if (parent != NULL) {
         BinaryEncoding* bem = dynamic_cast<BinaryEncoding*>(parent);
         assert(bem != NULL);
         return bem;
     } else {
         return NULL;
     }
 }

References assert, and InstructionField::parent().

Referenced by BinaryEncoding::addLongImmDstRegisterField(), LImmDstRegisterField(), BinaryEncoding::removeLongImmDstRegisterField(), and ~LImmDstRegisterField().

Here is the call graph for this function:

◆ saveState()

ObjectState * LImmDstRegisterField::saveState ( ) const

virtual

Saves the state of the object to an ObjectState instance.

Returns: The newly created ObjectState instance.

Reimplemented from InstructionField.

Definition at line 235 of file LImmDstRegisterField.cc.

                                       {

     ObjectState* state = InstructionField::saveState();
     state->setName(OSNAME_LIMM_DST_REGISTER_FIELD);
     state->setAttribute(OSKEY_WIDTH, width());

     // add destinations
     for (StringMap::const_iterator iter = destinationMap_.begin();
          iter != destinationMap_.end(); iter++) {
         ObjectState* dstState = new ObjectState(OSNAME_IU_DESTINATION);
         state->addChild(dstState);
         dstState->setAttribute(OSKEY_ITEMP, iter->first);
         dstState->setAttribute(OSKEY_DST_IU, iter->second);
     }

     return state;
 }

References ObjectState::addChild(), destinationMap_, OSKEY_DST_IU, OSKEY_ITEMP, OSKEY_WIDTH, OSNAME_IU_DESTINATION, OSNAME_LIMM_DST_REGISTER_FIELD, InstructionField::saveState(), ObjectState::setAttribute(), ObjectState::setName(), and width().

Referenced by BinaryEncoding::saveState().

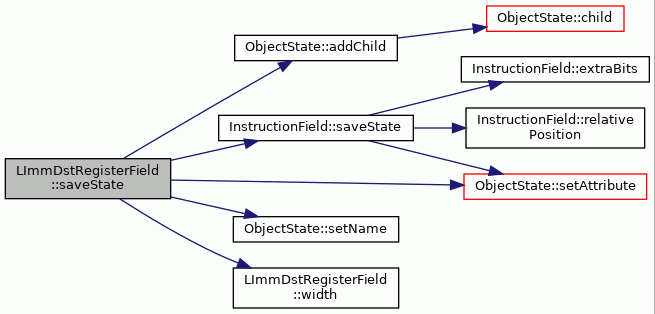

Here is the call graph for this function:

◆ usedByInstructionTemplate()

bool LImmDstRegisterField::usedByInstructionTemplate ( const std::string & instructionTemplate ) const

Tells whether the field is used by the given instruction template.

Parameters

instructionTemplate The instruction template.

Definition at line 181 of file LImmDstRegisterField.cc.

                                                 {

     return MapTools::containsKey(destinationMap_, instructionTemplate);
 }

References MapTools::containsKey(), destinationMap_, and instructionTemplate().

Referenced by BEMValidator::checkLImmDstRegisterFields(), and BinaryEncoding::longImmDstRegisterField().

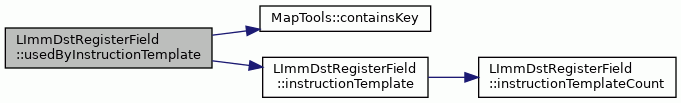

Here is the call graph for this function:

◆ width()

int LImmDstRegisterField::width ( ) const

virtual

Returns the width of the field.

Returns: The bit width of the field.

Implements InstructionField.

Definition at line 213 of file LImmDstRegisterField.cc.

                                   {
     return width_;
 }

References width_.

Referenced by CodeCompressorPlugin::addBitsForDstRegisterField(), CodeCompressorPlugin::bemInstructionBits(), BEMValidator::checkLImmDstRegisterFields(), CodeCompressorPlugin::firstMoveSlotIndex(), LImmDstRegisterField(), printInstructionLayout(), printLImmDstRegisterField(), saveState(), and BinaryEncoding::width().

Member Data Documentation

◆ destinationMap_

StringMap LImmDstRegisterField::destinationMap_

private

Maps instruction templates to immediate units.

Definition at line 89 of file LImmDstRegisterField.hh.

Referenced by addDestination(), immediateUnit(), instructionTemplate(), instructionTemplateCount(), saveState(), and usedByInstructionTemplate().

◆ OSKEY_DST_IU

const std::string LImmDstRegisterField::OSKEY_DST_IU = "iu"

static

ObjectState attribute key for the name of the immediate unit.

Definition at line 78 of file LImmDstRegisterField.hh.

Referenced by loadState(), BEMSerializer::longImmDstRegFieldToOM(), BEMSerializer::longImmDstRegisterFieldToFile(), and saveState().

◆ OSKEY_ITEMP

const std::string LImmDstRegisterField::OSKEY_ITEMP = "itemp"

static

ObjectState attribute key for the name of the instruction template.

Definition at line 76 of file LImmDstRegisterField.hh.

Referenced by loadState(), BEMSerializer::longImmDstRegFieldToOM(), BEMSerializer::longImmDstRegisterFieldToFile(), and saveState().

◆ OSKEY_WIDTH

const std::string LImmDstRegisterField::OSKEY_WIDTH = "width"

static

ObjectState attribute key for the width of the field.

Definition at line 72 of file LImmDstRegisterField.hh.

Referenced by loadState(), BEMSerializer::longImmDstRegFieldToOM(), BEMSerializer::longImmDstRegisterFieldToFile(), and saveState().

◆ OSNAME_IU_DESTINATION

const std::string LImmDstRegisterField::OSNAME_IU_DESTINATION = "iu_dst"

static

ObjectState name for a immediate unit destination.

Definition at line 74 of file LImmDstRegisterField.hh.

Referenced by loadState(), BEMSerializer::longImmDstRegFieldToOM(), BEMSerializer::longImmDstRegisterFieldToFile(), and saveState().

◆ OSNAME_LIMM_DST_REGISTER_FIELD

const std::string LImmDstRegisterField::OSNAME_LIMM_DST_REGISTER_FIELD

static

Initial value:

=

"dst_reg_field"

ObjectState name for long immediate destination register field.

Definition at line 70 of file LImmDstRegisterField.hh.

Referenced by BEMSerializer::convertToFileFormat(), loadState(), BinaryEncoding::loadState(), BEMSerializer::longImmDstRegFieldToOM(), and saveState().

◆ width_

int LImmDstRegisterField::width_

private

Width of the field.

Definition at line 87 of file LImmDstRegisterField.hh.

Referenced by loadState(), and width().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Attributes

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ StringMap

Constructor & Destructor Documentation

◆ LImmDstRegisterField() [1/2]

◆ LImmDstRegisterField() [2/2]

◆ ~LImmDstRegisterField()

Member Function Documentation

◆ addDestination()

◆ childFieldCount()

◆ immediateUnit()

◆ instructionTemplate()

◆ instructionTemplateCount()

◆ loadState()

◆ parent()

◆ saveState()

◆ usedByInstructionTemplate()

◆ width()

Member Data Documentation

◆ destinationMap_

◆ OSKEY_DST_IU

◆ OSKEY_ITEMP

◆ OSKEY_WIDTH

◆ OSNAME_IU_DESTINATION

◆ OSNAME_LIMM_DST_REGISTER_FIELD

◆ width_
