#include <LongImmediateUnitState.hh>

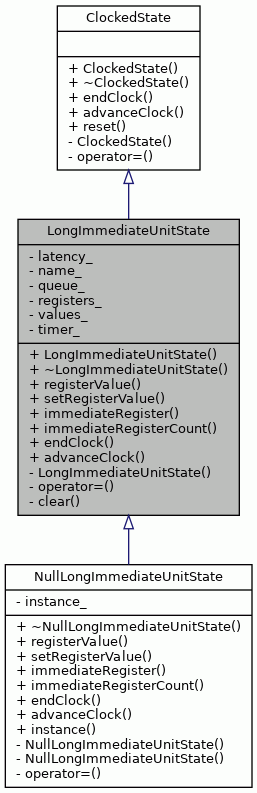

Inheritance diagram for LongImmediateUnitState:

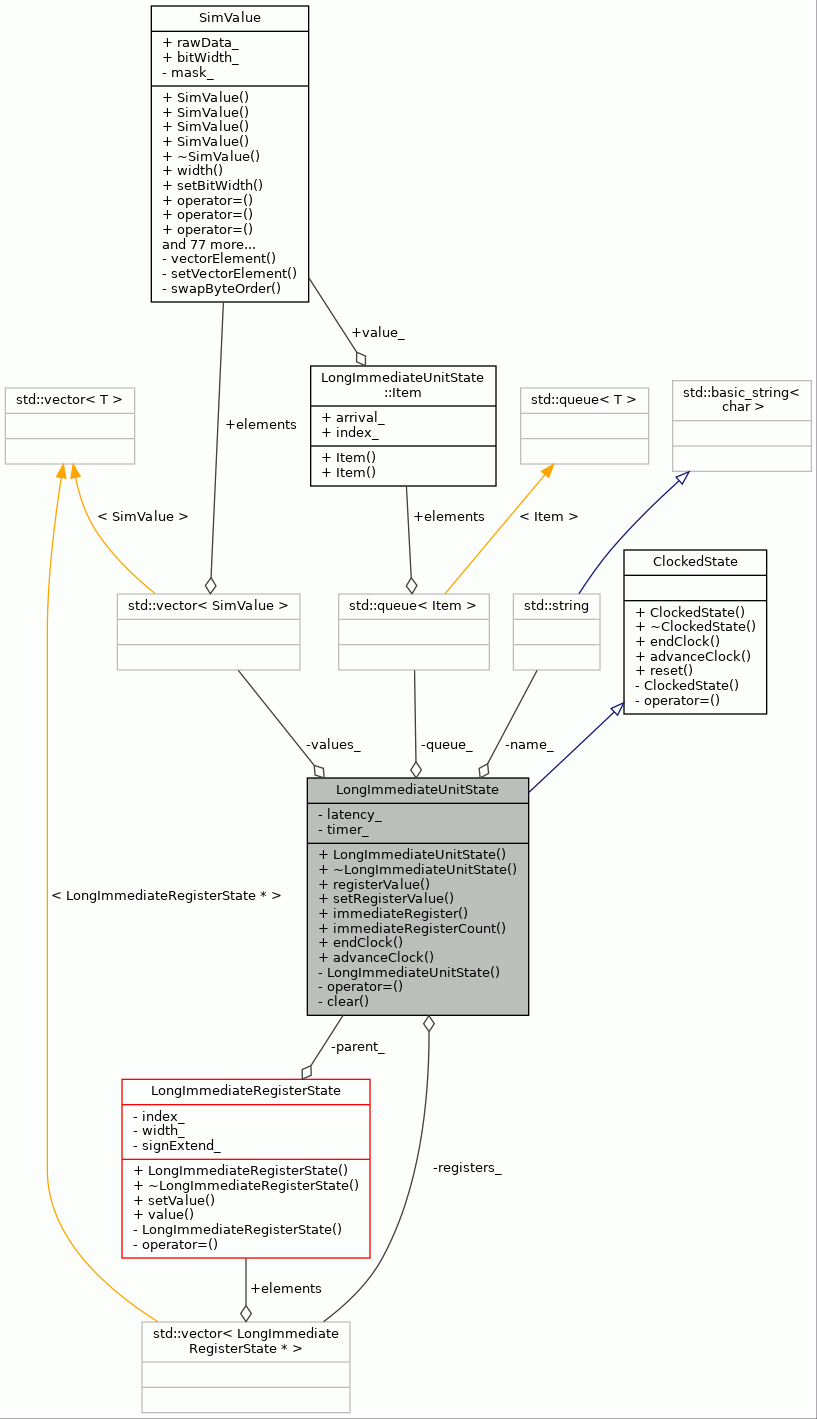

Collaboration diagram for LongImmediateUnitState:

Classes
struct	Item

Public Member Functions
	LongImmediateUnitState (int size, int latency, const std::string &name, int width, bool signExtend)

virtual	~LongImmediateUnitState ()

virtual SimValue &	registerValue (int index)

virtual void	setRegisterValue (int index, const SimValue &value)

virtual LongImmediateRegisterState &	immediateRegister (int i)

virtual int	immediateRegisterCount () const

virtual void	endClock ()

virtual void	advanceClock ()

Public Member Functions inherited from ClockedState
	ClockedState ()

virtual	~ClockedState ()

virtual void	reset ()
	this is called at (re)initialization of the simulation More...

Private Types
typedef std::queue< Item >	ItemQueue

typedef std::vector< LongImmediateRegisterState * >	RegisterContainer

typedef std::vector< SimValue >	ValueContainer

Private Member Functions
	LongImmediateUnitState (const LongImmediateUnitState &)
	Copying not allowed. More...

LongImmediateUnitState &	operator= (const LongImmediateUnitState &)
	Assignment not allowed. More...

void	clear ()

Private Attributes
int	latency_
	Latency of LongImmediateUnit. More...

std::string	name_
	Name of the unit. More...

ItemQueue	queue_
	Queue of register value update requests. More...

RegisterContainer	registers_
	Contains all long immediate registers of the unit. More...

ValueContainer	values_
	Contains all values of the registers. More...

unsigned	timer_ = 0
	Counter to time arrival of immediate values. Note: value is expected to wrap. More...

Detailed Description

Class that represents the states of long immediate units.

Definition at line 55 of file LongImmediateUnitState.hh.

Member Typedef Documentation

◆ ItemQueue

typedef std::queue<Item> LongImmediateUnitState::ItemQueue

private

Definition at line 101 of file LongImmediateUnitState.hh.

◆ RegisterContainer

typedef std::vector<LongImmediateRegisterState*> LongImmediateUnitState::RegisterContainer

private

Definition at line 102 of file LongImmediateUnitState.hh.

◆ ValueContainer

typedef std::vector<SimValue> LongImmediateUnitState::ValueContainer

private

Definition at line 103 of file LongImmediateUnitState.hh.

Constructor & Destructor Documentation

◆ LongImmediateUnitState() [1/2]

LongImmediateUnitState::LongImmediateUnitState	(	int	size,
		int	latency,
		const std::string &	name,
		int	width,
		bool	signExtend
	)

Constructor.

Parameters

size	Size of the unit.
latency	Latency of the unit.
name	Name of the unit.
width	The bit width of the registers in the unit.
signExtend	Whether the values written to the registers should be sign extended.

Definition at line 58 of file LongImmediateUnitState.cc.

                      :
     ClockedState(), latency_(latency), name_(name) {

     for (int i = 0; i < size; i++) {
         registers_.push_back(
             new LongImmediateRegisterState(this, i, width, signExtend));
     }
     SimValue val(width);
     values_.resize(size, val);
 }

References registers_, and values_.

◆ ~LongImmediateUnitState()

LongImmediateUnitState::~LongImmediateUnitState ( )

virtual

Destructor.

Definition at line 77 of file LongImmediateUnitState.cc.

                                                 {
     clear();
 }

References clear().

Here is the call graph for this function:

◆ LongImmediateUnitState() [2/2]

LongImmediateUnitState::LongImmediateUnitState ( const LongImmediateUnitState & )

private

Copying not allowed.

Member Function Documentation

◆ advanceClock()

void LongImmediateUnitState::advanceClock ( )

virtual

Advances clock by one cycle.

Register values are updated. This method is used to simulate the latency of the immediate unit state: register values are not updated immediately in case the latency is greater than zero.

Implements ClockedState.

Reimplemented in NullLongImmediateUnitState.

Definition at line 144 of file LongImmediateUnitState.cc.

                                      {
     timer_++;
     while (!queue_.empty() && queue_.front().arrival_ == timer_) {
         values_[queue_.front().index_] = queue_.front().value_;
         queue_.pop();
     }
 }

References queue_, timer_, and values_.

◆ clear()

void LongImmediateUnitState::clear ( )

private

Clears the containers.

Definition at line 85 of file LongImmediateUnitState.cc.

                               {
     SequenceTools::deleteAllItems(registers_);
     values_.clear();
 }

References SequenceTools::deleteAllItems(), registers_, and values_.

Referenced by ~LongImmediateUnitState().

Here is the call graph for this function:

◆ endClock()

void LongImmediateUnitState::endClock ( )

virtual

End of clock cycle.

Nothing is done.

Implements ClockedState.

Reimplemented in NullLongImmediateUnitState.

Definition at line 133 of file LongImmediateUnitState.cc.

133 {

134 }

◆ immediateRegister()

LongImmediateRegisterState & LongImmediateUnitState::immediateRegister ( int i )

virtual

Returns the register of the given index.

Parameters

index Index of the register.

Returns: Register of the given index.

Exceptions

OutOfRange If index is out of range.

Reimplemented in NullLongImmediateUnitState.

Definition at line 160 of file LongImmediateUnitState.cc.

                                                {
     if (i < 0 || i > static_cast<int>(registers_.size()) - 1) {
     string msg = "Index out of range.";
         throw OutOfRange(__FILE__, __LINE__, __func__, msg);
     }
     return *registers_[i];
 }

References __func__, and registers_.

Referenced by ProximRegisterWindow::loadImmediateUnit(), SimProgramBuilder::processInstruction(), and SimProgramBuilder::processSourceTerminal().

◆ immediateRegisterCount()

int LongImmediateUnitState::immediateRegisterCount ( ) const

virtual

Returns the count of the registers in the unit.

Returns: The count of the immediate registers.

Reimplemented in NullLongImmediateUnitState.

Definition at line 174 of file LongImmediateUnitState.cc.

                                                      {
     return registers_.size();
 }

References registers_.

Referenced by ProximIUDetailsCmd::Do(), and ProximRegisterWindow::loadImmediateUnit().

◆ operator=()

LongImmediateUnitState& LongImmediateUnitState::operator= ( const LongImmediateUnitState & )

private

Assignment not allowed.

◆ registerValue()

SimValue & LongImmediateUnitState::registerValue ( int index )

virtual

Returns the register value of the given index.

Parameters

index Index of the register.

Returns: Register value of the given index.

Exceptions

OutOfRange If index is out of range.

Reimplemented in NullLongImmediateUnitState.

Definition at line 98 of file LongImmediateUnitState.cc.

                                                {
     if (index < 0 || index > static_cast<int>(values_.size()) - 1) {
         string msg = "Index out of range.";
         throw OutOfRange(__FILE__, __LINE__, __func__, msg);
     }
     return values_[index];
 }

References __func__, and values_.

Referenced by ProximIUDetailsCmd::Do(), and LongImmediateRegisterState::value().

◆ setRegisterValue()

void LongImmediateUnitState::setRegisterValue	(	int	index,
		const SimValue &	value
	)

virtual

Sets the register value.

Parameters

index	Index of the register.
value	Value to be set.

Exceptions

OutOfRange If index is out of range.

Reimplemented in NullLongImmediateUnitState.

Definition at line 114 of file LongImmediateUnitState.cc.

                                                                          {
     if (index < 0 || index > static_cast<int>(values_.size()) - 1) {
         string msg = "Index out of range.";
         throw OutOfRange(__FILE__, __LINE__, __func__, msg);
     }

     if (latency_ == 0) {
         values_[index] = value;
     } else {
         queue_.emplace(value, index, timer_ + latency_);
     }
 }

References __func__, latency_, queue_, timer_, and values_.

Referenced by LongImmediateRegisterState::setValue().

Member Data Documentation

◆ latency_

int LongImmediateUnitState::latency_

private

Latency of LongImmediateUnit.

Definition at line 106 of file LongImmediateUnitState.hh.

Referenced by setRegisterValue().

◆ name_

std::string LongImmediateUnitState::name_

private

Name of the unit.

Definition at line 108 of file LongImmediateUnitState.hh.

◆ queue_

ItemQueue LongImmediateUnitState::queue_

private

Queue of register value update requests.

Definition at line 110 of file LongImmediateUnitState.hh.

Referenced by advanceClock(), and setRegisterValue().

◆ registers_

RegisterContainer LongImmediateUnitState::registers_

private

Contains all long immediate registers of the unit.

Definition at line 112 of file LongImmediateUnitState.hh.

Referenced by clear(), immediateRegister(), immediateRegisterCount(), and LongImmediateUnitState().

◆ timer_

unsigned LongImmediateUnitState::timer_ = 0

private

Counter to time arrival of immediate values. Note: value is expected to wrap.

Definition at line 117 of file LongImmediateUnitState.hh.

Referenced by advanceClock(), and setRegisterValue().

◆ values_

ValueContainer LongImmediateUnitState::values_

private

Contains all values of the registers.

Definition at line 114 of file LongImmediateUnitState.hh.

Referenced by advanceClock(), clear(), LongImmediateUnitState(), registerValue(), and setRegisterValue().
