#include <NullFUPortCode.hh>

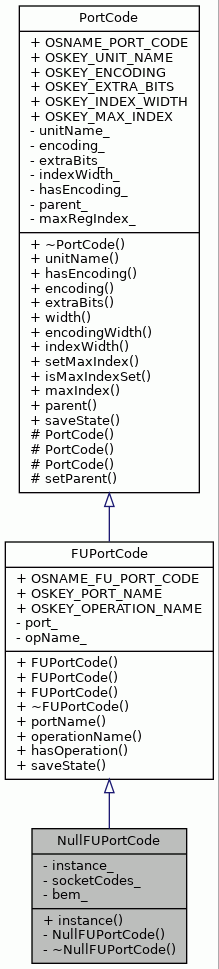

Inheritance diagram for NullFUPortCode:

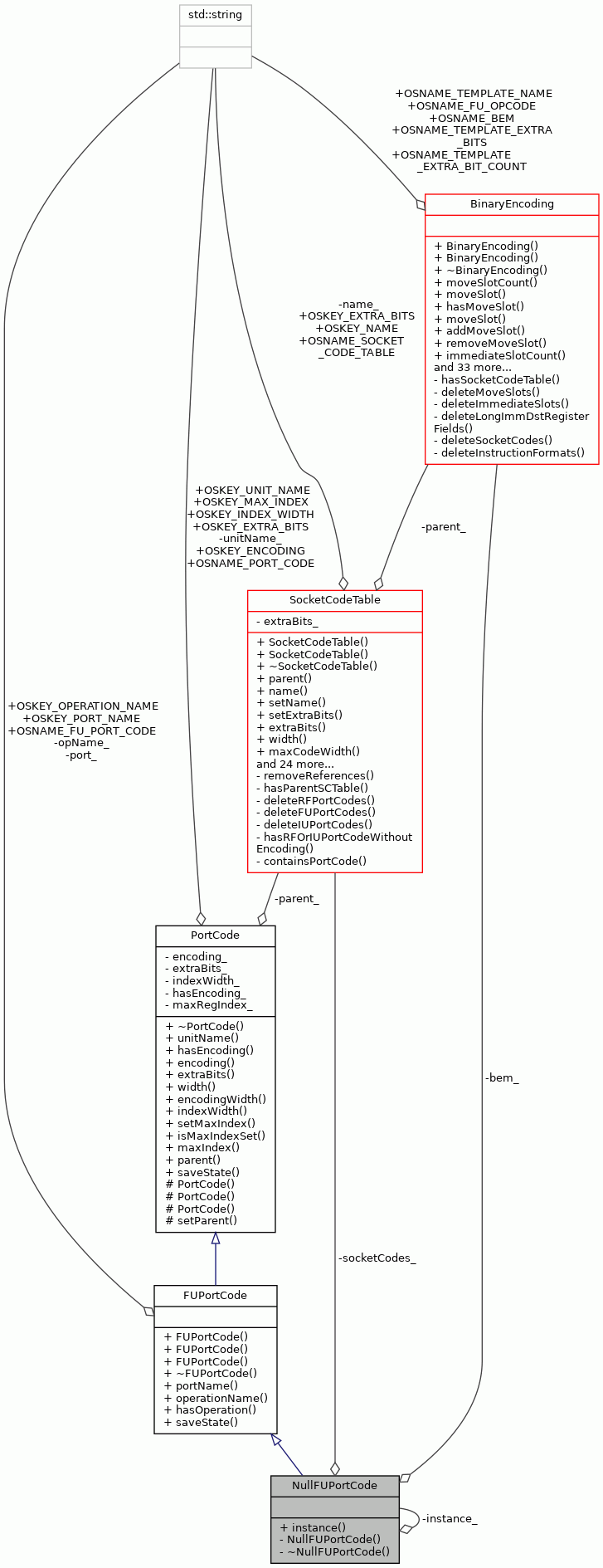

Collaboration diagram for NullFUPortCode:

Static Public Member Functions
static NullFUPortCode &	instance ()

Private Member Functions
	NullFUPortCode ()

virtual	~NullFUPortCode ()

Static Private Attributes
static NullFUPortCode	instance_
	The only instance.

static SocketCodeTable	socketCodes_
	The parent socket code table.

static BinaryEncoding	bem_
	The parent binary encoding.

Additional Inherited Members
Public Member Functions inherited from FUPortCode
	FUPortCode (const std::string &fu, const std::string &port, unsigned int encoding, unsigned int extraBits, SocketCodeTable &parent)

	FUPortCode (const std::string &fu, const std::string &port, const std::string &operation, unsigned int encoding, unsigned int extraBits, SocketCodeTable &parent)

	FUPortCode (const ObjectState *state, SocketCodeTable &parent)

virtual	~FUPortCode ()

std::string	portName () const

std::string	operationName () const

bool	hasOperation () const

virtual ObjectState *	saveState () const

Public Member Functions inherited from PortCode
virtual	~PortCode ()

std::string	unitName () const

bool	hasEncoding () const

unsigned int	encoding () const

unsigned int	extraBits () const

int	width () const

int	encodingWidth () const

int	indexWidth () const

void	setMaxIndex (unsigned regIndex)

bool	isMaxIndexSet () const

unsigned	maxIndex () const

SocketCodeTable *	parent () const

Static Public Attributes inherited from FUPortCode
static const std::string	OSNAME_FU_PORT_CODE = "fu_port_code"
	ObjectState name for FU port code.

static const std::string	OSKEY_PORT_NAME = "port"
	ObjectState attribute key for the name of the port.

static const std::string	OSKEY_OPERATION_NAME = "operation"
	ObjectState attribute key for the name of the operation.

Static Public Attributes inherited from PortCode
static const std::string	OSNAME_PORT_CODE = "port_code"
	ObjectState name for PortCode.

static const std::string	OSKEY_UNIT_NAME = "unit_name"
	ObjectState attribute key for the name of the unit.

static const std::string	OSKEY_ENCODING = "encoding"
	ObjectState attribute key for the encoding.

static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits.

static const std::string	OSKEY_INDEX_WIDTH = "index_width"
	ObjectState attribute key for the widht of register index.

static const std::string	OSKEY_MAX_INDEX = "max-index"
	ObjectState attribute key for the max-index attribute.

Protected Member Functions inherited from PortCode
	PortCode (const std::string &unitName, unsigned int encoding, unsigned int extraBits, int indexWidth)

	PortCode (const std::string &unitName, int indexWidth)

	PortCode (const ObjectState *state)

void	setParent (SocketCodeTable *parent)

Detailed Description

A null version of FUPortCode class.

Definition at line 44 of file NullFUPortCode.hh.

Constructor & Destructor Documentation

◆ NullFUPortCode()

NullFUPortCode::NullFUPortCode ( )

private

The constructor.

Definition at line 44 of file NullFUPortCode.cc.

                               :
    FUPortCode("NULL", "NULL", 0, false, socketCodes_) {
}

◆ ~NullFUPortCode()

NullFUPortCode::~NullFUPortCode ( )

privatevirtual

The destructor.

Definition at line 52 of file NullFUPortCode.cc.

52 {

53}

Member Function Documentation

◆ instance()

NullFUPortCode & NullFUPortCode::instance ( )

static

Returns the only instance of NullFUPortCode.

Returns: The only instance.

Definition at line 62 of file NullFUPortCode.cc.

                         {
    return instance_;
}

References instance_.

Referenced by SocketCodeTable::fuPortCode(), SocketCodeTable::fuPortCode(), SocketCodeTable::hasFUPortCode(), and SocketCodeTable::hasFUPortCode().

Member Data Documentation

◆ bem_

BinaryEncoding NullFUPortCode::bem_

staticprivate

The parent binary encoding.

Definition at line 57 of file NullFUPortCode.hh.

◆ instance_

NullFUPortCode NullFUPortCode::instance_

staticprivate

The only instance.

Definition at line 53 of file NullFUPortCode.hh.

Referenced by instance().

◆ socketCodes_

SocketCodeTable NullFUPortCode::socketCodes_

staticprivate

The parent socket code table.

Definition at line 55 of file NullFUPortCode.hh.

The documentation for this class was generated from the following files:
