#include <SocketCodeTable.hh>

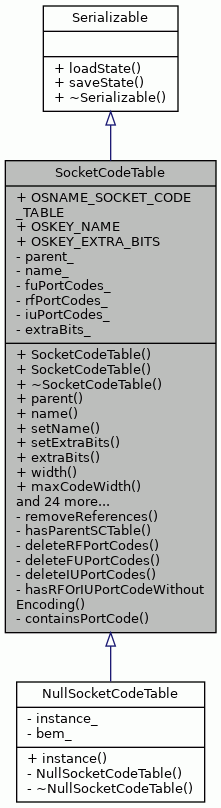

Inheritance diagram for SocketCodeTable:

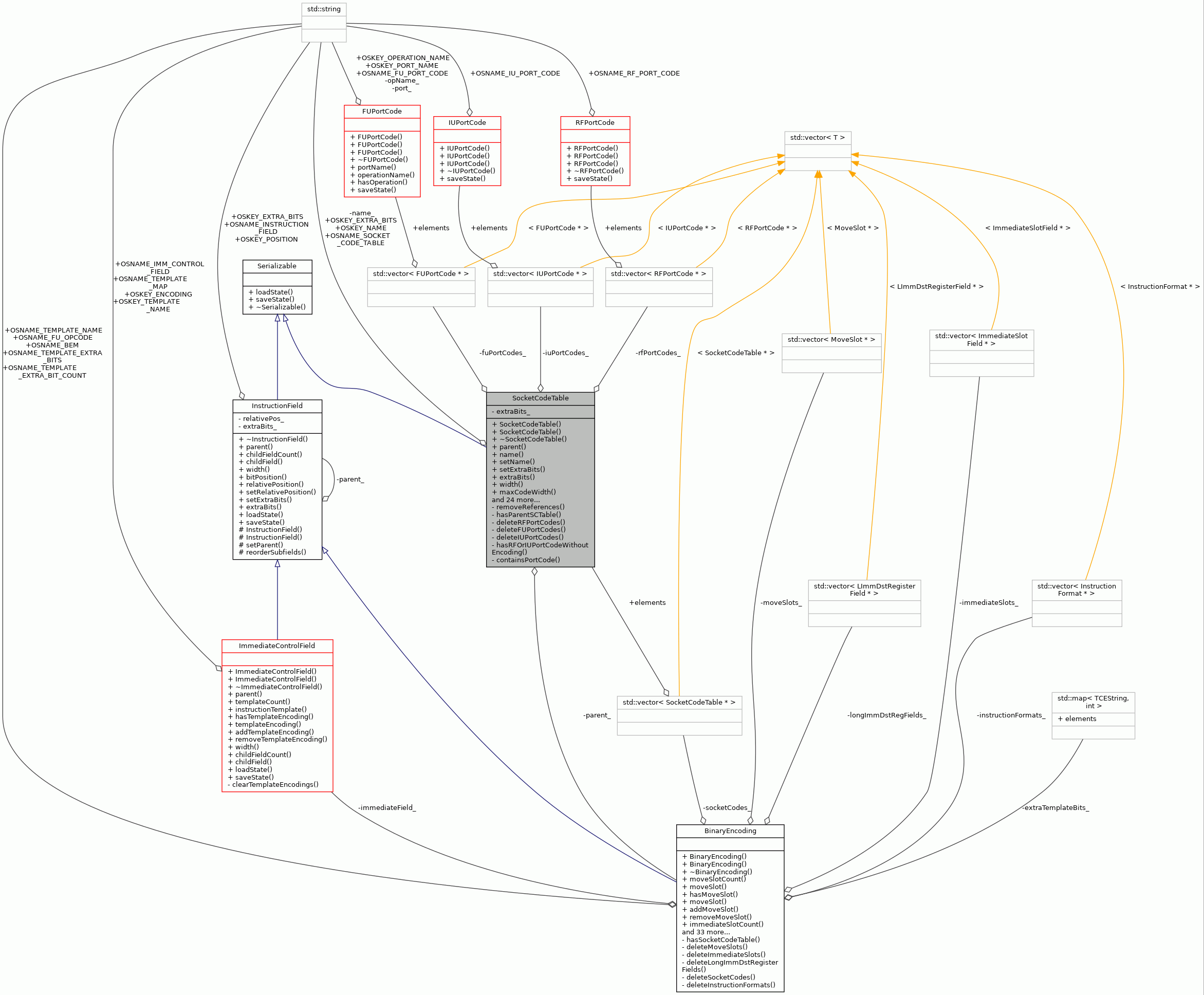

Collaboration diagram for SocketCodeTable:

Public Member Functions
	SocketCodeTable (const std::string &name, BinaryEncoding &parent)

	SocketCodeTable (const ObjectState *state, BinaryEncoding &parent)

virtual	~SocketCodeTable ()

BinaryEncoding *	parent () const

std::string	name () const

void	setName (const std::string &name)

void	setExtraBits (int bits)

int	extraBits () const

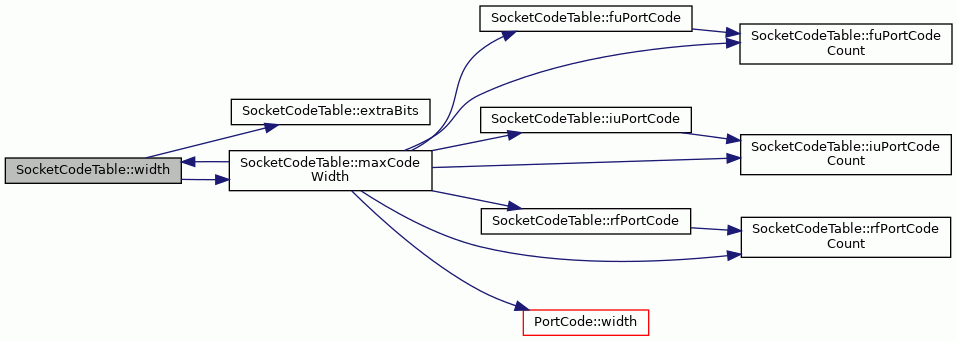

int	width () const

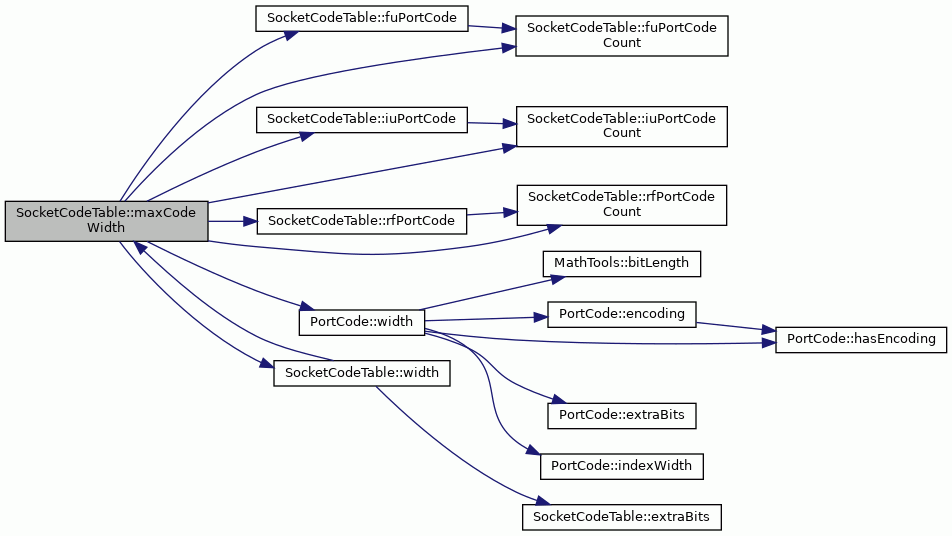

int	maxCodeWidth () const

void	addFUPortCode (FUPortCode &code)

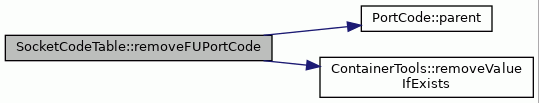

void	removeFUPortCode (FUPortCode &code)

int	fuPortCodeCount () const

FUPortCode &	fuPortCode (int index) const

bool	hasFUPortCode (const std::string &fu, const std::string &port) const

bool	hasFUPortCode (const std::string &fu, const std::string &port, const std::string &operation) const

FUPortCode &	fuPortCode (const std::string &fu, const std::string &port) const

FUPortCode &	fuPortCode (const std::string &fu, const std::string &port, const std::string &operation) const

void	addRFPortCode (RFPortCode &code)

void	removeRFPortCode (RFPortCode &code)

int	rfPortCodeCount () const

RFPortCode &	rfPortCode (int index) const

bool	hasRFPortCode (const std::string &regFile) const

RFPortCode &	rfPortCode (const std::string &regFile) const

void	addIUPortCode (IUPortCode &code)

void	removeIUPortCode (IUPortCode &code)

int	iuPortCodeCount () const

IUPortCode &	iuPortCode (int index) const

bool	hasIUPortCode (const std::string &immediateUnit) const

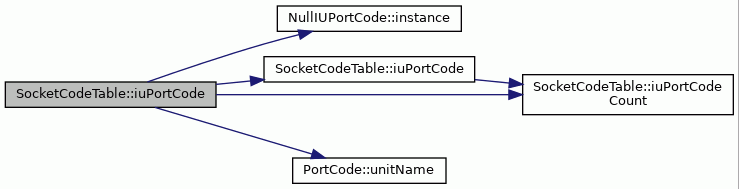

IUPortCode &	iuPortCode (const std::string &immediateUnit) const

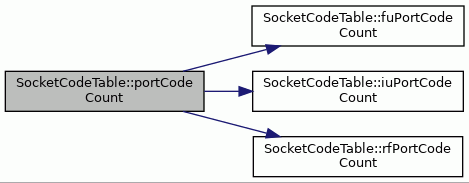

int	portCodeCount () const

PortCode &	portCode (int index) const

virtual void	loadState (const ObjectState *state)

virtual ObjectState *	saveState () const

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_SOCKET_CODE_TABLE = "sc_table"
	ObjectState name for socket code table. More...

static const std::string	OSKEY_NAME = "name"
	ObjectState attribute key for name of the table. More...

static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits. More...

Private Types
typedef std::vector< FUPortCode * >	FUPortCodeTable
	Container type for FU port codes. More...

typedef std::vector< RFPortCode * >	RFPortCodeTable
	Container type for RF port codes. More...

typedef std::vector< IUPortCode * >	IUPortCodeTable
	Container type for IU port codes. More...

Private Member Functions
void	removeReferences (SlotField &field) const

bool	hasParentSCTable (const std::string &name) const

void	deleteRFPortCodes ()

void	deleteFUPortCodes ()

void	deleteIUPortCodes ()

bool	hasRFOrIUPortCodeWithoutEncoding () const

bool	containsPortCode () const

Private Attributes
BinaryEncoding *	parent_
	The parent binary encoding map. More...

std::string	name_
	Name of the table. More...

FUPortCodeTable	fuPortCodes_
	FU port codes. More...

RFPortCodeTable	rfPortCodes_
	RF port codes. More...

IUPortCodeTable	iuPortCodes_
	IU port codes. More...

int	extraBits_
	The number of extra bits. More...

Detailed Description

If a socket is attached to several ports, each port is identified by a different control code. This control code forms the variable part of the socket encoding and is defined by SocketCodeTable class.

The SocketCodeTable class contains objects that represent port control codes, namely FUPortCode, RFPortCode and IUPortCode. Because a single SocketCodeTable instance is shared by several socket encodings, it is not owned by SocketEncoding objects. Instead, socket code tables are owned by BinaryEncoding class, which provides methods to access and handle them.

Port codes consists of one or two parts: port ID and/or register index. Port IDs are aligned to the left end of the field and register indices to the right end. That is, if port ID + register index do not take all the bits of the width reserved for the table, there are unused bits between port ID and register index.

Definition at line 68 of file SocketCodeTable.hh.

Member Typedef Documentation

◆ FUPortCodeTable

typedef std::vector<FUPortCode*> SocketCodeTable::FUPortCodeTable

private

Container type for FU port codes.

Definition at line 129 of file SocketCodeTable.hh.

◆ IUPortCodeTable

typedef std::vector<IUPortCode*> SocketCodeTable::IUPortCodeTable

private

Container type for IU port codes.

Definition at line 133 of file SocketCodeTable.hh.

◆ RFPortCodeTable

typedef std::vector<RFPortCode*> SocketCodeTable::RFPortCodeTable

private

Container type for RF port codes.

Definition at line 131 of file SocketCodeTable.hh.

Constructor & Destructor Documentation

◆ SocketCodeTable() [1/2]

SocketCodeTable::SocketCodeTable	(	const std::string &	name,
		BinaryEncoding &	parent
	)

The constructor.

Creates a code table and registers it to a binary encoding map.

Parameters

name	Name of the table.
parent	The encoding map.

Exceptions

ObjectAlreadyExists If the parent encoding map already contains a socket code table with the same name.

Definition at line 68 of file SocketCodeTable.cc.

     : parent_(NULL), name_(name), extraBits_(0) {
     parent.addSocketCodeTable(*this);
     parent_ = &parent;
 }

References BinaryEncoding::addSocketCodeTable(), parent(), and parent_.

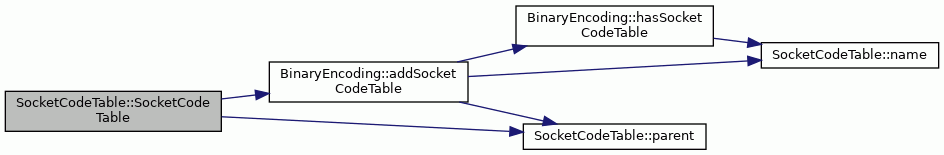

Here is the call graph for this function:

◆ SocketCodeTable() [2/2]

SocketCodeTable::SocketCodeTable	(	const ObjectState *	state,
		BinaryEncoding &	parent
	)

The constructor.

Loads the state of the table from the given ObjectState tree.

Parameters

state	The ObjectState tree.
parent	The parent binary encoding map.

Exceptions

ObjectStateLoadingException If an error occurs while loading the state.

Definition at line 85 of file SocketCodeTable.cc.

     : parent_(&parent), name_(""), extraBits_(0) {
     loadState(state);
     parent_ = NULL;
     parent.addSocketCodeTable(*this);
     parent_ = &parent;
 }

References BinaryEncoding::addSocketCodeTable(), loadState(), parent(), and parent_.

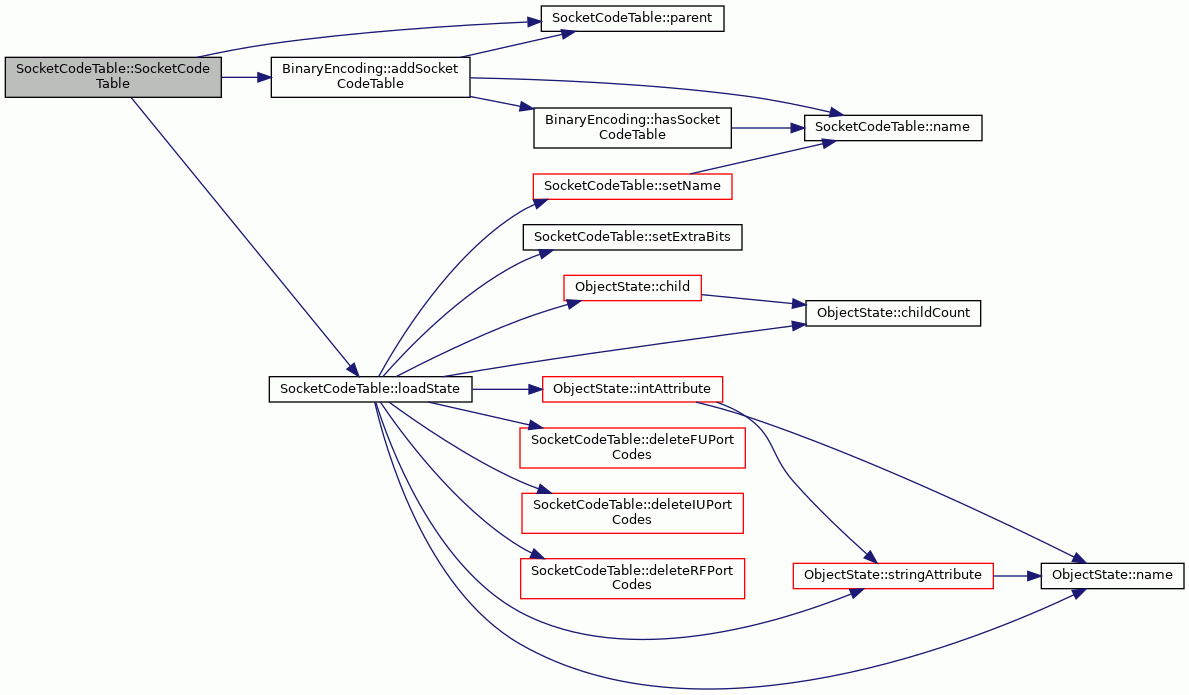

Here is the call graph for this function:

◆ ~SocketCodeTable()

SocketCodeTable::~SocketCodeTable ( )

virtual

The destructor.

Removes the all the references to the socket code table from socket encodings.

Definition at line 100 of file SocketCodeTable.cc.

                                   {

     BinaryEncoding* parent = this->parent();
     for (int i = 0; i < parent->moveSlotCount(); i++) {
     MoveSlot& slot = parent->moveSlot(i);
     SlotField& src = slot.sourceField();
     removeReferences(src);
     SlotField& dst = slot.destinationField();
     removeReferences(dst);
     }

     deleteRFPortCodes();
     deleteFUPortCodes();
     deleteIUPortCodes();

     parent_ = NULL;
     parent->removeSocketCodeTable(*this);
 }

References deleteFUPortCodes(), deleteIUPortCodes(), deleteRFPortCodes(), MoveSlot::destinationField(), BinaryEncoding::moveSlot(), BinaryEncoding::moveSlotCount(), parent(), parent_, removeReferences(), BinaryEncoding::removeSocketCodeTable(), and MoveSlot::sourceField().

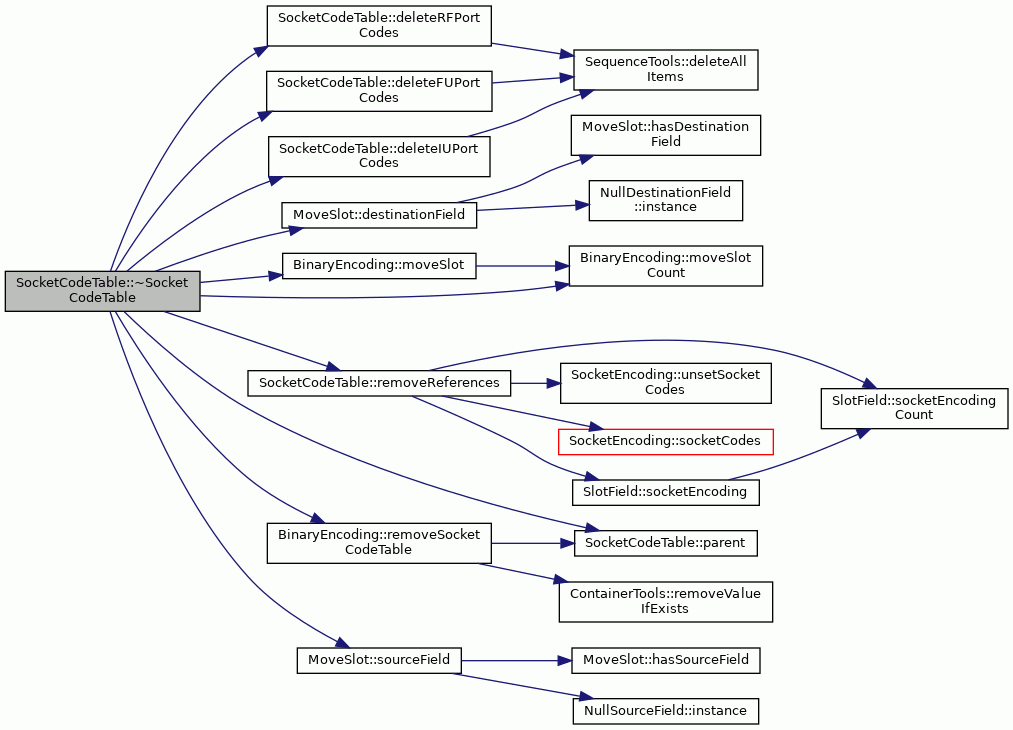

Here is the call graph for this function:

Member Function Documentation

◆ addFUPortCode()

void SocketCodeTable::addFUPortCode ( FUPortCode & code )

Adds the given control code that identifies a port of a function unit.

This method is to be called from the constructor of FUPortCode class.

Parameters

code	The code to be added.

Exceptions

ObjectAlreadyExists If the port is already encoded in this table or if the encoding is ambiguous with other encodings in the socket code table.

Definition at line 249 of file SocketCodeTable.cc.

                                                {
     const string procName = "SocketCodeTable::addFUPortCode";

     if (hasRFOrIUPortCodeWithoutEncoding()) {
         throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
     }

     if (!BEMTester::canAddPortEncoding(
         *this, code.encoding(), code.extraBits())) {
     throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
     }

     if (code.hasOperation()) {
     if (hasFUPortCode(
         code.unitName(), code.portName(), code.operationName())) {
         throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
     }
     } else {
     if (hasFUPortCode(code.unitName(), code.portName())) {
         throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
     }
     }

     fuPortCodes_.push_back(&code);
 }

References BEMTester::canAddPortEncoding(), PortCode::encoding(), PortCode::extraBits(), fuPortCodes_, hasFUPortCode(), FUPortCode::hasOperation(), hasRFOrIUPortCodeWithoutEncoding(), FUPortCode::operationName(), FUPortCode::portName(), and PortCode::unitName().

Referenced by FUPortCode::FUPortCode().

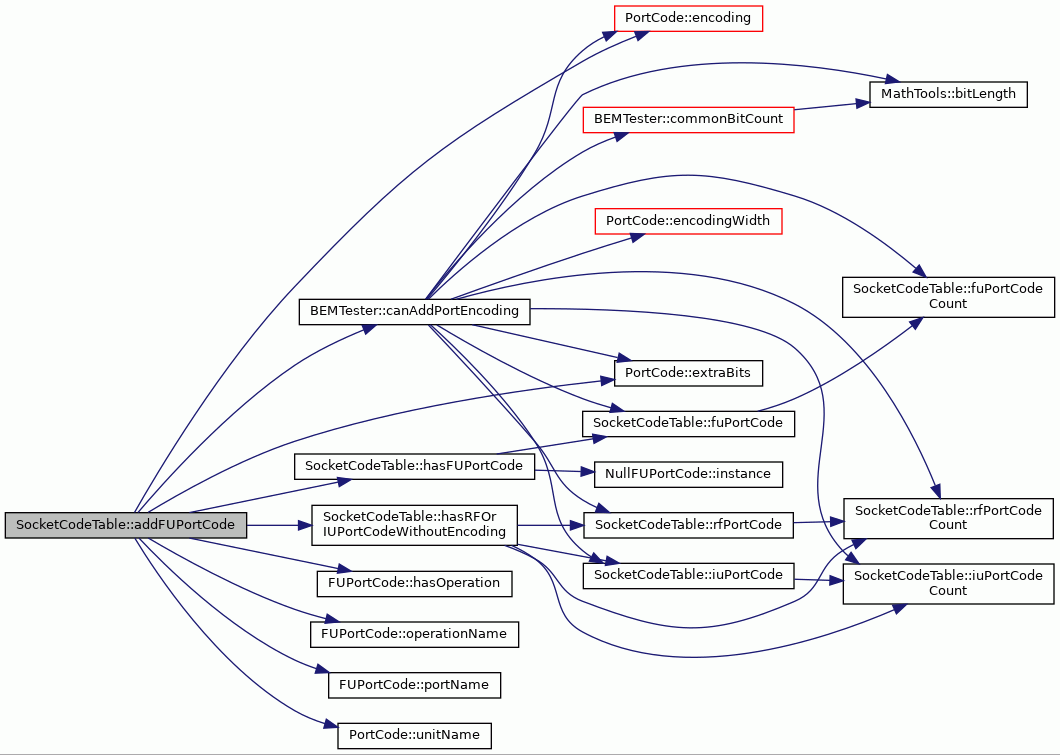

Here is the call graph for this function:

◆ addIUPortCode()

void SocketCodeTable::addIUPortCode ( IUPortCode & code )

Adds a control code that identifies an immediate unit.

In fact, the control code identifies a IU port, but which port is irrelevant, since all ports are identical and each must be attached to a different socket. This method is to be called from the constructor of IUPortCode class.

Parameters

code	The control code to be added.

Exceptions

ObjectAlreadyExists If the register file is already encoded in this table or if the encoding is ambiguous with another encoding in the socket code table.

Definition at line 544 of file SocketCodeTable.cc.

                                                {
     assert(code.parent() == NULL);
     const string procName = "SocketCodeTable::addIUPortCode";

     if (!code.hasEncoding() && containsPortCode()) {
         throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
     }

     if (code.hasEncoding()) {
         if (!BEMTester::canAddPortEncoding(
                 *this, code.encoding(), code.extraBits())) {
             throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
         }
     }

     if (hasIUPortCode(code.unitName())) {
     throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
     }

     iuPortCodes_.push_back(&code);
 }

References assert, BEMTester::canAddPortEncoding(), containsPortCode(), PortCode::encoding(), PortCode::extraBits(), PortCode::hasEncoding(), hasIUPortCode(), iuPortCodes_, PortCode::parent(), and PortCode::unitName().

Referenced by IUPortCode::IUPortCode().

Here is the call graph for this function:

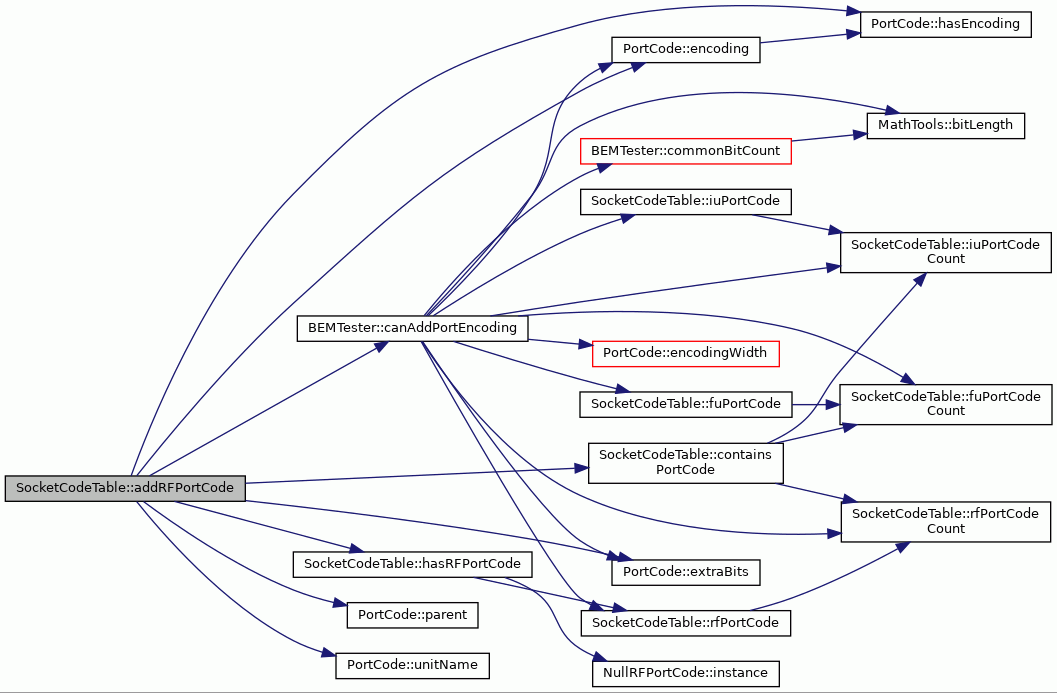

◆ addRFPortCode()

void SocketCodeTable::addRFPortCode ( RFPortCode & code )

Adds a control code that identifies a register file.

In fact, the control code identifies a RF port, but which port is irrelevant, since all ports are identical and each must be attached to a different socket. This method is to be called from the constructor of RFPortCode class.

Parameters

code	The control code to be added.

Exceptions

ObjectAlreadyExists If the register file is already encoded in this table or if the encoding is ambiguous with another encoding in the socket code table.

Definition at line 428 of file SocketCodeTable.cc.

                                                {
     assert(code.parent() == NULL);
     const string procName = "SocketCodeTable::addRFPortCode";

     if (!code.hasEncoding() && containsPortCode()) {
         throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
     }

     if (code.hasEncoding()) {
         if (!BEMTester::canAddPortEncoding(
                 *this, code.encoding(), code.extraBits())) {
             throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
         }
     }

     if (hasRFPortCode(code.unitName())) {
         throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
     }

     rfPortCodes_.push_back(&code);
 }

References assert, BEMTester::canAddPortEncoding(), containsPortCode(), PortCode::encoding(), PortCode::extraBits(), PortCode::hasEncoding(), hasRFPortCode(), PortCode::parent(), rfPortCodes_, and PortCode::unitName().

Referenced by RFPortCode::RFPortCode().

Here is the call graph for this function:

◆ containsPortCode()

bool SocketCodeTable::containsPortCode ( ) const

private

Tells whether the socket code table contains at least one port code.

Returns: True if the table contains at least one port code, otherwise false.

Definition at line 833 of file SocketCodeTable.cc.

                                         {
     if (fuPortCodeCount() != 0 || rfPortCodeCount() != 0 ||
         iuPortCodeCount() != 0) {
         return true;
     } else {
         return false;
     }
 }

References fuPortCodeCount(), iuPortCodeCount(), and rfPortCodeCount().

Referenced by addIUPortCode(), and addRFPortCode().

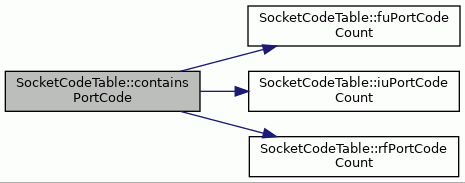

Here is the call graph for this function:

◆ deleteFUPortCodes()

void SocketCodeTable::deleteFUPortCodes ( )

private

Deletes all the FU port codes from the table.

Definition at line 793 of file SocketCodeTable.cc.

                                    {
     SequenceTools::deleteAllItems(fuPortCodes_);
 }

References SequenceTools::deleteAllItems(), and fuPortCodes_.

Referenced by loadState(), and ~SocketCodeTable().

Here is the call graph for this function:

◆ deleteIUPortCodes()

void SocketCodeTable::deleteIUPortCodes ( )

private

Deletes all the IU port codes from the table.

Definition at line 802 of file SocketCodeTable.cc.

                                    {
     SequenceTools::deleteAllItems(iuPortCodes_);
 }

References SequenceTools::deleteAllItems(), and iuPortCodes_.

Referenced by loadState(), and ~SocketCodeTable().

Here is the call graph for this function:

◆ deleteRFPortCodes()

void SocketCodeTable::deleteRFPortCodes ( )

private

Deletes all the RF port codes from the table.

Definition at line 784 of file SocketCodeTable.cc.

                                    {
     SequenceTools::deleteAllItems(rfPortCodes_);
 }

References SequenceTools::deleteAllItems(), and rfPortCodes_.

Referenced by loadState(), and ~SocketCodeTable().

Here is the call graph for this function:

◆ extraBits()

int SocketCodeTable::extraBits ( ) const

Returns the number of extra bits.

Returns: The number of extra bits.

Definition at line 189 of file SocketCodeTable.cc.

                                  {
     return extraBits_;
 }

References extraBits_.

Referenced by saveState(), and width().

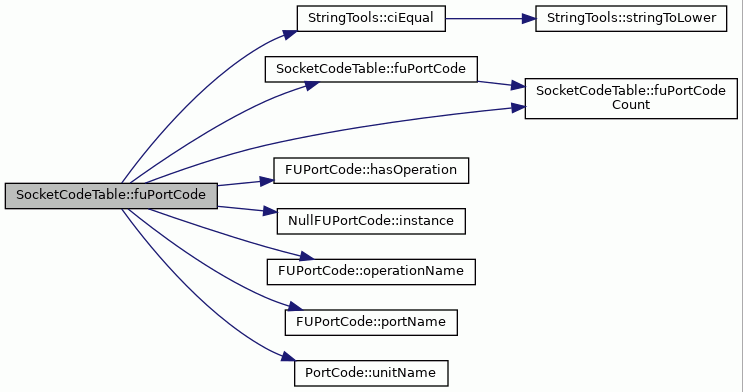

◆ fuPortCode() [1/3]

FUPortCode & SocketCodeTable::fuPortCode	(	const std::string &	fu,
		const std::string &	port
	)		const

Returns the code for the given port of the given function unit.

Returns a NullFUPortCode instance if the requested code is not found.

Parameters

fu	Name of the function unit.
port	Name of the port.

Returns: The control code for the requested port.

Definition at line 365 of file SocketCodeTable.cc.

                                  {

     int codes = fuPortCodeCount();
     for (int i = 0; i < codes; i++) {
     FUPortCode& code = fuPortCode(i);
     if (code.unitName() == fu && code.portName() == port &&
         !code.hasOperation()) {
         return code;
     }
     }

     return NullFUPortCode::instance();
 }

References fuPortCode(), fuPortCodeCount(), FUPortCode::hasOperation(), NullFUPortCode::instance(), FUPortCode::portName(), and PortCode::unitName().

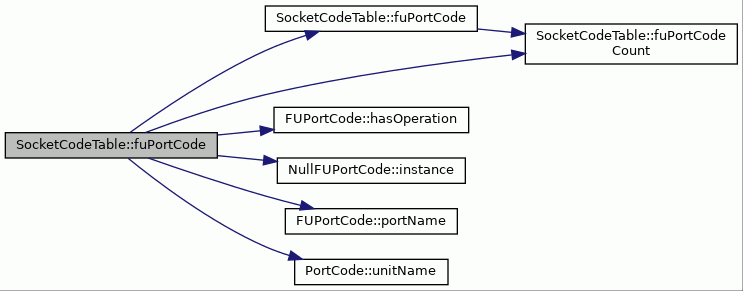

Here is the call graph for this function:

◆ fuPortCode() [2/3]

FUPortCode & SocketCodeTable::fuPortCode	(	const std::string &	fu,
		const std::string &	port,
		const std::string &	operation
	)		const

Returns the code that identifies the given operation and the port that carries it.

Returns a NullFUPortCode instance if the requested code is not found.

Parameters

fu	Name of the function unit.
port	Name of the port.
operation	Name of the operation.

Returns: The control code for the requested port.

Definition at line 394 of file SocketCodeTable.cc.

                                       {

     int codes = fuPortCodeCount();
     for (int i = 0; i < codes; i++) {
     FUPortCode& code = fuPortCode(i);
     if (code.unitName() == fu && code.portName() == port &&
         code.hasOperation() &&
             StringTools::ciEqual(code.operationName(), operation)) {
             return code;
         }
     }

     return NullFUPortCode::instance();
 }

References StringTools::ciEqual(), fuPortCode(), fuPortCodeCount(), FUPortCode::hasOperation(), NullFUPortCode::instance(), FUPortCode::operationName(), FUPortCode::portName(), and PortCode::unitName().

Here is the call graph for this function:

◆ fuPortCode() [3/3]

FUPortCode & SocketCodeTable::fuPortCode ( int index ) const

Returns the FU port code stored at the given position in the table.

Parameters

index The position.

Exceptions

OutOfRange If the index is negative or not smaller than the number of FU port codes in the table.

Definition at line 308 of file SocketCodeTable.cc.

                                            {
     if (index < 0 || index >= fuPortCodeCount()) {
     const string procName = "SocketCodeTable::fuPortCode";
     throw OutOfRange(__FILE__, __LINE__, procName);
     }

     return *fuPortCodes_[index];
 }

References fuPortCodeCount(), and fuPortCodes_.

Referenced by BEMTester::canAddPortEncoding(), CodeCompressorPlugin::encodeFUTerminal(), fuPortCode(), hasFUPortCode(), maxCodeWidth(), portCode(), printSlotFieldEncodings(), saveState(), DefaultDecoderGenerator::writeControlRulesOfFUInputPort(), and DefaultDecoderGenerator::writeControlRulesOfFUOutputPort().

Here is the call graph for this function:

◆ fuPortCodeCount()

int SocketCodeTable::fuPortCodeCount ( ) const

Returns the number of FU port codes in this table.

Returns: The number of FU port codes.

Definition at line 295 of file SocketCodeTable.cc.

                                        {
     return fuPortCodes_.size();
 }

References fuPortCodes_.

Referenced by BEMTester::canAddPortEncoding(), containsPortCode(), fuPortCode(), maxCodeWidth(), portCode(), portCodeCount(), printSlotFieldEncodings(), and saveState().

◆ hasFUPortCode() [1/2]

bool SocketCodeTable::hasFUPortCode	(	const std::string &	fu,
		const std::string &	port
	)		const

Tells whether the table has a control code for the port of the function unit.

Parameters

fu	Name of the function unit.
port	Name of the port.

Returns: True if the table has the control code, otherwise false.

Definition at line 326 of file SocketCodeTable.cc.

                                  {

     FUPortCode& code = fuPortCode(fu, port);
     return &code != &NullFUPortCode::instance();
 }

References fuPortCode(), and NullFUPortCode::instance().

Referenced by addFUPortCode(), BEMValidator::checkSocketCodeTable(), and CodeCompressorPlugin::encodeFUTerminal().

Here is the call graph for this function:

◆ hasFUPortCode() [2/2]

bool SocketCodeTable::hasFUPortCode	(	const std::string &	fu,
		const std::string &	port,
		const std::string &	operation
	)		const

Tells whether the table has a control code that identifies the given operation and the port that carries it.

Parameters

fu	Name of the function unit.
port	Name of the port.
operation	Name of the operation.

Returns: True if the table has the control code, otherwise false.

Definition at line 345 of file SocketCodeTable.cc.

                                       {

     FUPortCode& code = fuPortCode(fu, port, operation);
     return &code != &NullFUPortCode::instance();
 }

References fuPortCode(), and NullFUPortCode::instance().

Here is the call graph for this function:

◆ hasIUPortCode()

bool SocketCodeTable::hasIUPortCode ( const std::string & immediateUnit ) const

Tells whether the socket code table contains a control code for the given immediate unit.

Parameters

immediateUnit Name of the immediate unit.

Returns: True If the socket code table contains the control code, otherwise false.

Definition at line 618 of file SocketCodeTable.cc.

                                                                    {
     return &iuPortCode(immediateUnit) != &NullIUPortCode::instance();
 }

References NullIUPortCode::instance(), and iuPortCode().

Referenced by addIUPortCode(), BEMValidator::checkSocketCodeTable(), and CodeCompressorPlugin::encodeIUTerminal().

Here is the call graph for this function:

◆ hasParentSCTable()

bool SocketCodeTable::hasParentSCTable ( const std::string & name ) const

private

Tells whether the parent binary encoding table has a socket code table with the given name.

Parameters

name The name.

Returns: True if the parent has a socket code table with the given name, otherwise false.

Definition at line 768 of file SocketCodeTable.cc.

                                                              {
     BinaryEncoding* parent = this->parent();
     for (int i = 0; i < parent->socketCodeTableCount(); i++) {
         SocketCodeTable& table = parent->socketCodeTable(i);
         if (table.name() == name) {
             return true;
         }
     }
     return false;
 }

References name(), parent(), BinaryEncoding::socketCodeTable(), and BinaryEncoding::socketCodeTableCount().

Referenced by setName().

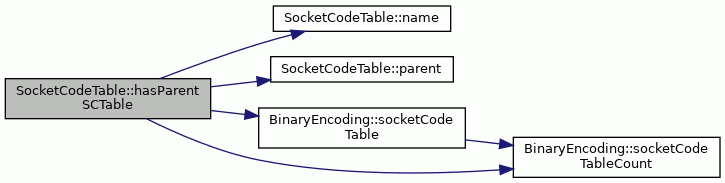

Here is the call graph for this function:

◆ hasRFOrIUPortCodeWithoutEncoding()

bool SocketCodeTable::hasRFOrIUPortCodeWithoutEncoding ( ) const

private

Tells whether the socket code table contains a RF or IU port code without port encoding.

Returns: True If the socket code table contains a RF or IU port code without port encoding, otherwise false.

Definition at line 815 of file SocketCodeTable.cc.

                                                         {
     if (rfPortCodeCount() == 1 && !rfPortCode(0).hasEncoding()) {
         return true;
     }
     if (iuPortCodeCount() == 1 && !iuPortCode(0).hasEncoding()) {
         return true;
     }
     return false;
 }

References iuPortCode(), iuPortCodeCount(), rfPortCode(), and rfPortCodeCount().

Referenced by addFUPortCode().

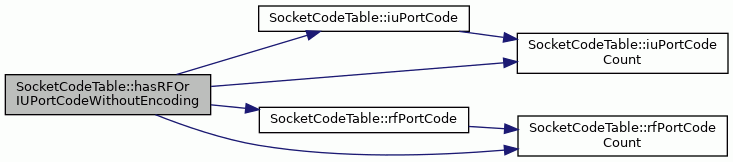

Here is the call graph for this function:

◆ hasRFPortCode()

bool SocketCodeTable::hasRFPortCode ( const std::string & regFile ) const

Tells whether the socket code table contains a control code for the given register file.

Parameters

regFile Name of the register file.

Returns: True If the socket code table contains the control code, otherwise false.

Definition at line 502 of file SocketCodeTable.cc.

                                                              {
     return &rfPortCode(regFile) != &NullRFPortCode::instance();
 }

References NullRFPortCode::instance(), and rfPortCode().

Referenced by addRFPortCode(), BEMValidator::checkSocketCodeTable(), and CodeCompressorPlugin::encodeRFTerminal().

Here is the call graph for this function:

◆ iuPortCode() [1/2]

IUPortCode & SocketCodeTable::iuPortCode ( const std::string & immediateUnit ) const

Returns the code for the given immediate unit.

Returns a NullIUPortCode instance if there is no code for the given register file in the table.

Parameters

immediateUnit Name of the immediate unit.

Definition at line 632 of file SocketCodeTable.cc.

                                                                 {
     int codes = iuPortCodeCount();
     for (int i = 0; i < codes; i++) {
     IUPortCode& code = iuPortCode(i);
     if (code.unitName() == immediateUnit) {
         return code;
     }
     }

     return NullIUPortCode::instance();
 }

References NullIUPortCode::instance(), iuPortCode(), iuPortCodeCount(), and PortCode::unitName().

Here is the call graph for this function:

◆ iuPortCode() [2/2]

IUPortCode & SocketCodeTable::iuPortCode ( int index ) const

Returns the IU code stored at the given position.

Parameters

index The position.

Exceptions

OutOfRange If the index is negative or not smaller than the number of IU codes in this table.

Definition at line 600 of file SocketCodeTable.cc.

                                            {
     if (index < 0 || index >= iuPortCodeCount()) {
         const string procName = "SocketCodeTable::iuPortCode";
         throw OutOfRange(__FILE__, __LINE__, procName);
     }

     return *iuPortCodes_[index];
 }

References iuPortCodeCount(), and iuPortCodes_.

Referenced by BEMTester::canAddPortEncoding(), CodeCompressorPlugin::encodeIUTerminal(), hasIUPortCode(), hasRFOrIUPortCodeWithoutEncoding(), iuPortCode(), maxCodeWidth(), portCode(), printSlotFieldEncodings(), saveState(), and DefaultDecoderGenerator::writeControlRulesOfRFReadPort().

Here is the call graph for this function:

◆ iuPortCodeCount()

int SocketCodeTable::iuPortCodeCount ( ) const

Returns the number of immediate unit sources or destinations encoded in this table.

Returns: The number of immediate unit sources or destinations.

Definition at line 587 of file SocketCodeTable.cc.

                                        {
     return iuPortCodes_.size();
 }

References iuPortCodes_.

Referenced by BEMTester::canAddPortEncoding(), containsPortCode(), hasRFOrIUPortCodeWithoutEncoding(), iuPortCode(), maxCodeWidth(), portCodeCount(), printSlotFieldEncodings(), and saveState().

◆ loadState()

void SocketCodeTable::loadState ( const ObjectState * state )

virtual

Loads the state of the socket code table from the given ObjectState instance.

Parameters

state The ObjectState instance.

Exceptions

ObjectStateLoadingException If an error occurs while loading the state.

Implements Serializable.

Definition at line 685 of file SocketCodeTable.cc.

                                                    {
     deleteFUPortCodes();
     deleteRFPortCodes();
     deleteIUPortCodes();

     try {
         setName(state->stringAttribute(OSKEY_NAME));
         setExtraBits(state->intAttribute(OSKEY_EXTRA_BITS));

         for (int i = 0; i < state->childCount(); i++) {
             ObjectState* child = state->child(i);
             if (child->name() == FUPortCode::OSNAME_FU_PORT_CODE) {
                 new FUPortCode(child, *this);
             } else if (child->name() == RFPortCode::OSNAME_RF_PORT_CODE) {
                 new RFPortCode(child, *this);
             } else if (child->name() == IUPortCode::OSNAME_IU_PORT_CODE) {
                 new IUPortCode(child, *this);
             }
         }
     } catch (const Exception& exception) {
         const string procName = "SocketCodeTable::loadState";
         throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
     }
 }

References ObjectState::child(), ObjectState::childCount(), deleteFUPortCodes(), deleteIUPortCodes(), deleteRFPortCodes(), ObjectState::intAttribute(), ObjectState::name(), OSKEY_EXTRA_BITS, OSKEY_NAME, FUPortCode::OSNAME_FU_PORT_CODE, IUPortCode::OSNAME_IU_PORT_CODE, RFPortCode::OSNAME_RF_PORT_CODE, setExtraBits(), setName(), and ObjectState::stringAttribute().

Referenced by SocketCodeTable().

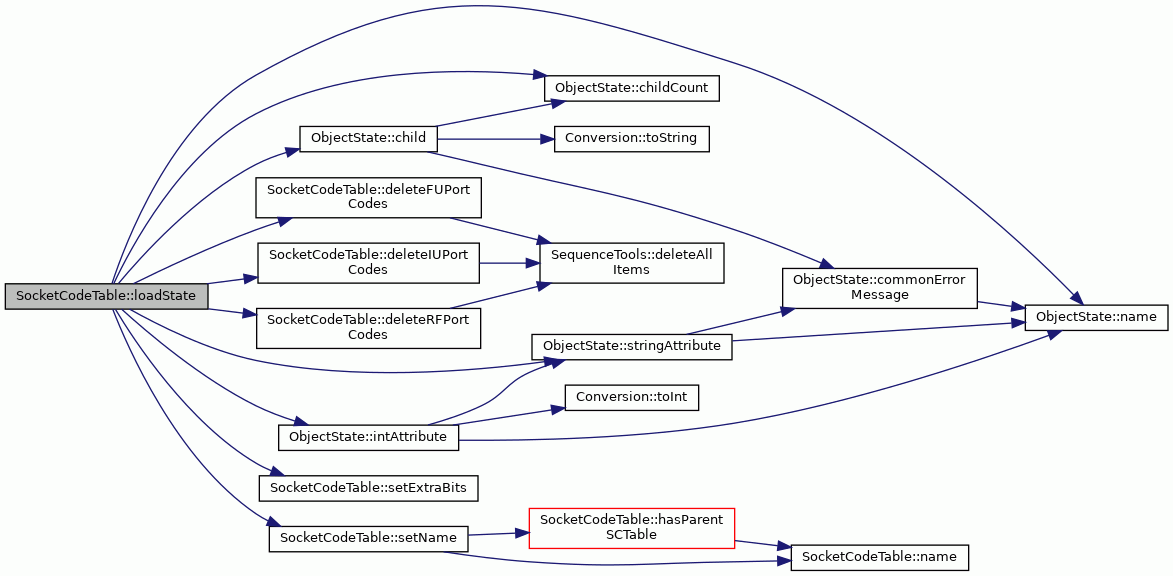

Here is the call graph for this function:

◆ maxCodeWidth()

int SocketCodeTable::maxCodeWidth ( ) const

Returns the bit width of the longest control code.

This does not account the extra bits of the socket table.

Returns: The bit width.

Definition at line 212 of file SocketCodeTable.cc.

                                     {
     int width(0);

     for (int i = 0; i < fuPortCodeCount(); i++) {
         FUPortCode& code = fuPortCode(i);
         if (width < code.width()) {
             width = code.width();
         }
     }

     for (int i = 0; i < rfPortCodeCount(); i++) {
         RFPortCode& code = rfPortCode(i);
         if (width < code.width()) {
             width = code.width();
         }
     }

     for (int i = 0; i < iuPortCodeCount(); i++) {
         IUPortCode& code = iuPortCode(i);
         if (width < code.width()) {
             width = code.width();
         }
     }
     return width;
 }

References fuPortCode(), fuPortCodeCount(), iuPortCode(), iuPortCodeCount(), rfPortCode(), rfPortCodeCount(), PortCode::width(), and width().

Referenced by width().

Here is the call graph for this function:

◆ name()

std::string SocketCodeTable::name ( ) const

Returns the name of the socket code table.

Returns: The name.

Definition at line 137 of file SocketCodeTable.cc.

                             {
     return name_;
 }

References name_.

Referenced by BinaryEncoding::addSocketCodeTable(), hasParentSCTable(), BinaryEncoding::hasSocketCodeTable(), saveState(), setName(), and BinaryEncoding::socketCodeTable().

◆ parent()

BinaryEncoding * SocketCodeTable::parent ( ) const

Returns the parent binary encoding map.

Returns: The parent binary encoding map.

Definition at line 126 of file SocketCodeTable.cc.

                               {
     return parent_;
 }

References parent_.

Referenced by BinaryEncoding::addSocketCodeTable(), hasParentSCTable(), BinaryEncoding::removeSocketCodeTable(), SocketCodeTable(), and ~SocketCodeTable().

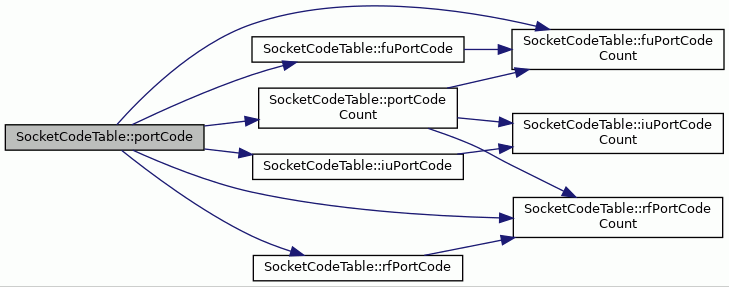

◆ portCode()

PortCode & SocketCodeTable::portCode ( int index ) const

Returns the port code stored at the given position.

The possible kinds of port codes are FUPortCode, RFPortCode and IUPortCode.

Parameters

index The position.

Exceptions

OutOfRange If the index is negative or not smaller than the number of portCodeCount().

Definition at line 662 of file SocketCodeTable.cc.

                                          {
     if (index < 0 || index >= portCodeCount()) {
         THROW_EXCEPTION(OutOfRange, "The given index is out of bounds. ");
     }

     if (index < fuPortCodeCount()) {
         return fuPortCode(index);
     } else if (index < fuPortCodeCount() + rfPortCodeCount()) {
         return rfPortCode(index - fuPortCodeCount());
     } else {
         return iuPortCode(index - fuPortCodeCount() - rfPortCodeCount());
     }
 }

References fuPortCode(), fuPortCodeCount(), iuPortCode(), portCodeCount(), rfPortCode(), rfPortCodeCount(), and THROW_EXCEPTION.

Referenced by BEMTester::conflictsWithSocketTableEncodings().

Here is the call graph for this function:

◆ portCodeCount()

int SocketCodeTable::portCodeCount ( ) const

Returns count of all types of port codes defined in the socket table.

Definition at line 648 of file SocketCodeTable.cc.

                                      {
     return fuPortCodeCount() + rfPortCodeCount() + iuPortCodeCount();
 }

References fuPortCodeCount(), iuPortCodeCount(), and rfPortCodeCount().

Referenced by BEMTester::conflictsWithSocketTableEncodings(), and portCode().

Here is the call graph for this function:

◆ removeFUPortCode()

void SocketCodeTable::removeFUPortCode ( FUPortCode & code )

Removes the given FU port code from the socket code table.

This method is to be called from the destructor of FUPortCode class.

Parameters

code	The code to be removed.

Definition at line 283 of file SocketCodeTable.cc.

                                                   {
     assert(code.parent() == NULL);
     assert(ContainerTools::removeValueIfExists(fuPortCodes_, &code));
 }

References assert, fuPortCodes_, PortCode::parent(), and ContainerTools::removeValueIfExists().

Referenced by FUPortCode::~FUPortCode().

Here is the call graph for this function:

◆ removeIUPortCode()

void SocketCodeTable::removeIUPortCode ( IUPortCode & code )

Removes the given IU port code.

This method is to be called from the destructor of IUPortCode.

Parameters

code	The code to be removed.

Definition at line 574 of file SocketCodeTable.cc.

                                                   {
     assert(code.parent() == NULL);
     assert(ContainerTools::removeValueIfExists(iuPortCodes_, &code));
 }

References assert, iuPortCodes_, PortCode::parent(), and ContainerTools::removeValueIfExists().

Referenced by IUPortCode::~IUPortCode().

Here is the call graph for this function:

◆ removeReferences()

void SocketCodeTable::removeReferences ( SlotField & field ) const

private

Removes all the references to this socket code table from the socket encodings of the given slot field.

Definition at line 749 of file SocketCodeTable.cc.

                                                         {
     for (int i = 0; i < field.socketEncodingCount(); i++) {
         SocketEncoding& encoding = field.socketEncoding(i);
         if (&encoding.socketCodes() == this) {
             encoding.unsetSocketCodes();
         }
     }
 }

References SocketEncoding::socketCodes(), SlotField::socketEncoding(), SlotField::socketEncodingCount(), and SocketEncoding::unsetSocketCodes().

Referenced by ~SocketCodeTable().

Here is the call graph for this function:

◆ removeRFPortCode()

void SocketCodeTable::removeRFPortCode ( RFPortCode & code )

Removes the given RF port code.

This method is to be called from the destructor of RFPortCode.

Parameters

code	The code to be removed.

Definition at line 458 of file SocketCodeTable.cc.

                                                   {
     assert(code.parent() == NULL);
     assert(ContainerTools::removeValueIfExists(rfPortCodes_, &code));
 }

References assert, PortCode::parent(), ContainerTools::removeValueIfExists(), and rfPortCodes_.

Referenced by RFPortCode::~RFPortCode().

Here is the call graph for this function:

◆ rfPortCode() [1/2]

RFPortCode & SocketCodeTable::rfPortCode ( const std::string & regFile ) const

Returns the code for the given register file.

Returns a NullRFPortCode instance if there is no code for the given register file in the table.

Parameters

regFile Name of the register file.

Definition at line 516 of file SocketCodeTable.cc.

                                                           {
     int codes = rfPortCodeCount();
     for (int i = 0; i < codes; i++) {
     RFPortCode& code = rfPortCode(i);
     if (code.unitName() == regFile) {
         return code;
     }
     }

     return NullRFPortCode::instance();
 }

References NullRFPortCode::instance(), rfPortCode(), rfPortCodeCount(), and PortCode::unitName().

Here is the call graph for this function:

◆ rfPortCode() [2/2]

RFPortCode & SocketCodeTable::rfPortCode ( int index ) const

Returns the RF code stored at the given position.

Parameters

index The position.

Exceptions

OutOfRange If the index is negative or not smaller than the number of RF codes in this table.

Definition at line 484 of file SocketCodeTable.cc.

                                            {
     if (index < 0 || index >= rfPortCodeCount()) {
     const string procName = "SocketCodeTable::rfPortCode";
     throw OutOfRange(__FILE__, __LINE__, procName);
     }

     return *rfPortCodes_[index];
 }

References rfPortCodeCount(), and rfPortCodes_.

Referenced by BEMTester::canAddPortEncoding(), CodeCompressorPlugin::encodeRFTerminal(), hasRFOrIUPortCodeWithoutEncoding(), hasRFPortCode(), maxCodeWidth(), portCode(), printSlotFieldEncodings(), rfPortCode(), saveState(), DefaultDecoderGenerator::writeControlRulesOfRFReadPort(), and DefaultDecoderGenerator::writeControlRulesOfRFWritePort().

Here is the call graph for this function:

◆ rfPortCodeCount()

int SocketCodeTable::rfPortCodeCount ( ) const

Returns the number of register file sources or destinations encoded in this table.

Returns: The number of register file sources or destinations.

Definition at line 471 of file SocketCodeTable.cc.

                                        {
     return rfPortCodes_.size();
 }

References rfPortCodes_.

Referenced by BEMTester::canAddPortEncoding(), containsPortCode(), hasRFOrIUPortCodeWithoutEncoding(), maxCodeWidth(), portCode(), portCodeCount(), printSlotFieldEncodings(), rfPortCode(), and saveState().

◆ saveState()

ObjectState * SocketCodeTable::saveState ( ) const

virtual

Saves the state of the socket code table to an ObjectState tree.

Returns: The newly created ObjectState tree.

Implements Serializable.

Definition at line 716 of file SocketCodeTable.cc.

                                  {

     ObjectState* state = new ObjectState(OSNAME_SOCKET_CODE_TABLE);
     state->setAttribute(OSKEY_NAME, name());
     state->setAttribute(OSKEY_EXTRA_BITS, extraBits());

     // add FU port codes
     for (int i = 0; i < fuPortCodeCount(); i++) {
         FUPortCode& code = fuPortCode(i);
         state->addChild(code.saveState());
     }

     // add RF port codes
     for (int i = 0; i < rfPortCodeCount(); i++) {
         RFPortCode& code = rfPortCode(i);
         state->addChild(code.saveState());
     }

     // add IU port codes
     for (int i = 0; i < iuPortCodeCount(); i++) {
         IUPortCode& code = iuPortCode(i);
         state->addChild(code.saveState());
     }

     return state;
 }

References ObjectState::addChild(), extraBits(), fuPortCode(), fuPortCodeCount(), iuPortCode(), iuPortCodeCount(), name(), OSKEY_EXTRA_BITS, OSKEY_NAME, OSNAME_SOCKET_CODE_TABLE, rfPortCode(), rfPortCodeCount(), IUPortCode::saveState(), RFPortCode::saveState(), FUPortCode::saveState(), and ObjectState::setAttribute().

Referenced by BinaryEncoding::saveState().

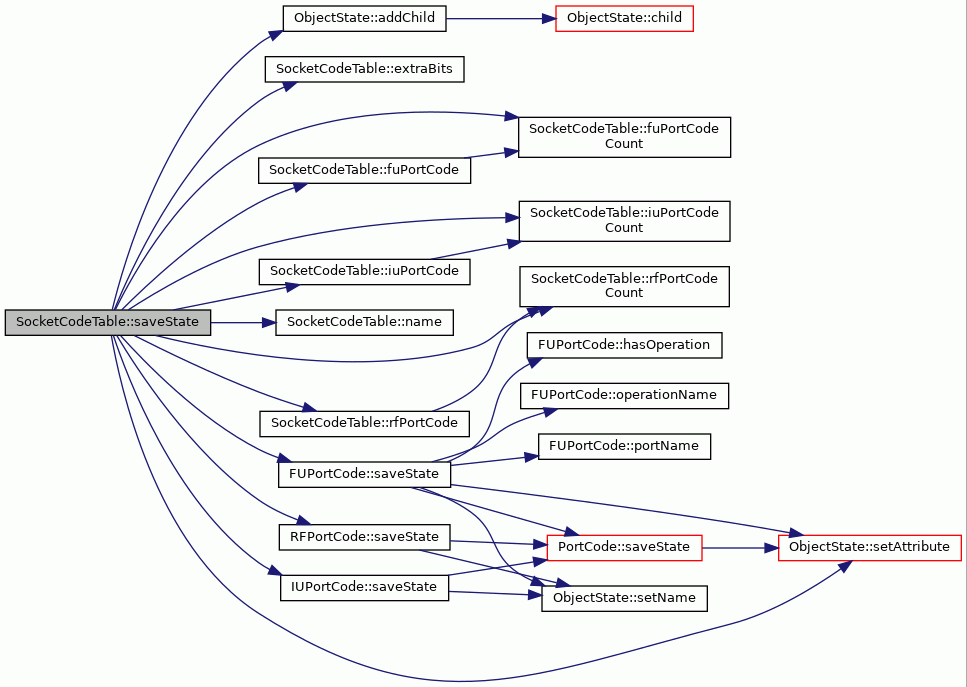

Here is the call graph for this function:

◆ setExtraBits()

void SocketCodeTable::setExtraBits ( int bits )

Sets the number of extra zero bits for the table.

The bit width of the table can be forced longer than necessary by defining some number of extra zero bits that always exists in the right end of the table field.

Parameters

bits	The number of extra zero bits.

Exceptions

OutOfRange If the given number is negative.

Definition at line 174 of file SocketCodeTable.cc.

                                       {
     if (bits < 0) {
     const string procName = "SocketCodeTable::setExtraBits";
     throw OutOfRange(__FILE__, __LINE__, procName);
     }

     extraBits_ = bits;
 }

References extraBits_.

Referenced by loadState().

◆ setName()

void SocketCodeTable::setName ( const std::string & name )

Sets new name for the socket code table.

Parameters

name	The new name.

Exceptions

ObjectAlreadyExists If the parent binary encoding map already has a socket code table with the same name.

Definition at line 150 of file SocketCodeTable.cc.

                                               {
     if (name == this->name()) {
     return ;
     }

     if (hasParentSCTable(name)) {
     const string procName = "SocketCodeTable::setName";
     throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
     }

     name_ = name;
 }

References hasParentSCTable(), name(), and name_.

Referenced by loadState().

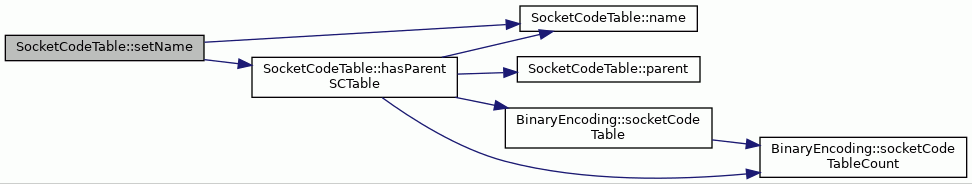

Here is the call graph for this function:

◆ width()

int SocketCodeTable::width ( ) const

Returns the bit width of the control codes in the table.

Returns: The bit width.

Definition at line 200 of file SocketCodeTable.cc.

                              {
     return maxCodeWidth() + extraBits();
 }

References extraBits(), and maxCodeWidth().

Referenced by BEMGenerator::addEncodings(), BEMTester::conflictsWithDestinationEncodings(), BEMTester::conflictsWithSourceEncodings(), CodeCompressorPlugin::encodeFUTerminal(), maxCodeWidth(), portCodeBits(), printSlotFieldEncodings(), DefaultDecoderGenerator::rfOpcodeFromSrcOrDstField(), CodeCompressorPlugin::socketCodeBits(), SocketEncoding::socketCodePosition(), BEMGenerator::socketCodeWidthsForBus(), and SocketEncoding::width().

Here is the call graph for this function:

Member Data Documentation

◆ extraBits_

int SocketCodeTable::extraBits_

private

The number of extra bits.

Definition at line 154 of file SocketCodeTable.hh.

Referenced by extraBits(), and setExtraBits().

◆ fuPortCodes_

FUPortCodeTable SocketCodeTable::fuPortCodes_

private

FU port codes.

Definition at line 148 of file SocketCodeTable.hh.

Referenced by addFUPortCode(), deleteFUPortCodes(), fuPortCode(), fuPortCodeCount(), and removeFUPortCode().

◆ iuPortCodes_

IUPortCodeTable SocketCodeTable::iuPortCodes_

private

IU port codes.

Definition at line 152 of file SocketCodeTable.hh.

Referenced by addIUPortCode(), deleteIUPortCodes(), iuPortCode(), iuPortCodeCount(), and removeIUPortCode().

◆ name_

std::string SocketCodeTable::name_

private

Name of the table.

Definition at line 146 of file SocketCodeTable.hh.

Referenced by name(), and setName().

◆ OSKEY_EXTRA_BITS

const std::string SocketCodeTable::OSKEY_EXTRA_BITS = "extra_bits"

static

ObjectState attribute key for the number of extra bits.

Definition at line 125 of file SocketCodeTable.hh.

Referenced by loadState(), saveState(), BEMSerializer::socketCodeTableToFile(), and BEMSerializer::socketCodeTableToOM().

◆ OSKEY_NAME

const std::string SocketCodeTable::OSKEY_NAME = "name"

static

ObjectState attribute key for name of the table.

Definition at line 123 of file SocketCodeTable.hh.

Referenced by loadState(), saveState(), BEMSerializer::socketCodeTableToFile(), and BEMSerializer::socketCodeTableToOM().

◆ OSNAME_SOCKET_CODE_TABLE

const std::string SocketCodeTable::OSNAME_SOCKET_CODE_TABLE = "sc_table"

static

ObjectState name for socket code table.

Definition at line 121 of file SocketCodeTable.hh.

Referenced by BEMSerializer::convertToFileFormat(), BinaryEncoding::loadState(), saveState(), and BEMSerializer::socketCodeTableToOM().

◆ parent_

BinaryEncoding* SocketCodeTable::parent_

private

The parent binary encoding map.

Definition at line 144 of file SocketCodeTable.hh.

Referenced by parent(), SocketCodeTable(), and ~SocketCodeTable().

◆ rfPortCodes_

RFPortCodeTable SocketCodeTable::rfPortCodes_

private

RF port codes.

Definition at line 150 of file SocketCodeTable.hh.

Referenced by addRFPortCode(), deleteRFPortCodes(), removeRFPortCode(), rfPortCode(), and rfPortCodeCount().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ FUPortCodeTable

◆ IUPortCodeTable

◆ RFPortCodeTable

Constructor & Destructor Documentation

◆ SocketCodeTable() [1/2]

◆ SocketCodeTable() [2/2]

◆ ~SocketCodeTable()

Member Function Documentation

◆ addFUPortCode()

◆ addIUPortCode()

◆ addRFPortCode()

◆ containsPortCode()

◆ deleteFUPortCodes()

◆ deleteIUPortCodes()

◆ deleteRFPortCodes()

◆ extraBits()

◆ fuPortCode() [1/3]

◆ fuPortCode() [2/3]

◆ fuPortCode() [3/3]

◆ fuPortCodeCount()

◆ hasFUPortCode() [1/2]

◆ hasFUPortCode() [2/2]

◆ hasIUPortCode()

◆ hasParentSCTable()

◆ hasRFOrIUPortCodeWithoutEncoding()

◆ hasRFPortCode()

◆ iuPortCode() [1/2]

◆ iuPortCode() [2/2]

◆ iuPortCodeCount()

◆ loadState()

◆ maxCodeWidth()

◆ name()

◆ parent()

◆ portCode()

◆ portCodeCount()

◆ removeFUPortCode()

◆ removeIUPortCode()

◆ removeReferences()

◆ removeRFPortCode()

◆ rfPortCode() [1/2]

◆ rfPortCode() [2/2]

◆ rfPortCodeCount()

◆ saveState()

◆ setExtraBits()

◆ setName()

◆ width()

Member Data Documentation

◆ extraBits_

◆ fuPortCodes_

◆ iuPortCodes_

◆ name_

◆ OSKEY_EXTRA_BITS

◆ OSKEY_NAME

◆ OSNAME_SOCKET_CODE_TABLE

◆ parent_

◆ rfPortCodes_
