#include <OperationImplementationResourceDialog.hh>

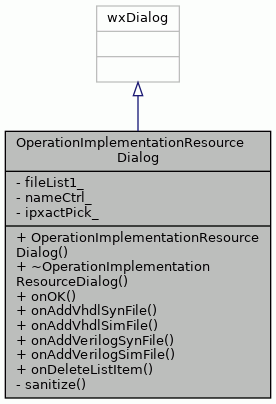

Inheritance diagram for OperationImplementationResourceDialog:

Collaboration diagram for OperationImplementationResourceDialog:

Public Member Functions
	OperationImplementationResourceDialog ()

virtual	~OperationImplementationResourceDialog ()=default

void	onOK (wxCommandEvent &)

void	onAddVhdlSynFile (wxFileDirPickerEvent &)

void	onAddVhdlSimFile (wxFileDirPickerEvent &)

void	onAddVerilogSynFile (wxFileDirPickerEvent &)

void	onAddVerilogSimFile (wxFileDirPickerEvent &)

void	onDeleteListItem (wxCommandEvent &)

Private Member Functions
std::string	sanitize (const wxString &path)

Private Attributes
wxListCtrl *	fileList1_

wxTextCtrl *	nameCtrl_

wxFilePickerCtrl *	ipxactPick_

Detailed Description

Definition at line 44 of file OperationImplementationResourceDialog.hh.

Constructor & Destructor Documentation

◆ OperationImplementationResourceDialog()

OperationImplementationResourceDialog::OperationImplementationResourceDialog ( )

◆ ~OperationImplementationResourceDialog()

virtual OperationImplementationResourceDialog::~OperationImplementationResourceDialog ( )

virtualdefault

Member Function Documentation

◆ onAddVerilogSimFile()

void OperationImplementationResourceDialog::onAddVerilogSimFile ( wxFileDirPickerEvent & e )

Definition at line 251 of file OperationImplementationResourceDialog.cc.

                              {
     HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();
     int idx = fileList1_->GetItemCount();
     fileList1_->InsertItem(idx, sanitize(e.GetPath()));
     fileList1_->SetItem(idx, 1, manager->formatString(
                 HDB::BlockImplementationFile::Verilogsim));
 }

References fileList1_, HDB::HDBManager::formatString(), sanitize(), and HDB::BlockImplementationFile::Verilogsim.

Here is the call graph for this function:

◆ onAddVerilogSynFile()

void OperationImplementationResourceDialog::onAddVerilogSynFile ( wxFileDirPickerEvent & e )

Definition at line 241 of file OperationImplementationResourceDialog.cc.

                              {
     HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();
     int idx = fileList1_->GetItemCount();
     fileList1_->InsertItem(idx, sanitize(e.GetPath()));
     fileList1_->SetItem(idx, 1, manager->formatString(
                 HDB::BlockImplementationFile::Verilog));
 }

References fileList1_, HDB::HDBManager::formatString(), sanitize(), and HDB::BlockImplementationFile::Verilog.

Here is the call graph for this function:

◆ onAddVhdlSimFile()

void OperationImplementationResourceDialog::onAddVhdlSimFile ( wxFileDirPickerEvent & e )

Definition at line 231 of file OperationImplementationResourceDialog.cc.

                              {
     HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();
     int idx = fileList1_->GetItemCount();
     fileList1_->InsertItem(idx, sanitize(e.GetPath()));
     fileList1_->SetItem(idx, 1, manager->formatString(
                 HDB::BlockImplementationFile::VHDLsim));
 }

References fileList1_, HDB::HDBManager::formatString(), sanitize(), and HDB::BlockImplementationFile::VHDLsim.

Here is the call graph for this function:

◆ onAddVhdlSynFile()

void OperationImplementationResourceDialog::onAddVhdlSynFile ( wxFileDirPickerEvent & e )

Definition at line 221 of file OperationImplementationResourceDialog.cc.

                              {
     HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();
     int idx = fileList1_->GetItemCount();
     fileList1_->InsertItem(idx, sanitize(e.GetPath()));
     fileList1_->SetItem(idx, 1, manager->formatString(
                 HDB::BlockImplementationFile::VHDL));
 }

References fileList1_, HDB::HDBManager::formatString(), sanitize(), and HDB::BlockImplementationFile::VHDL.

Here is the call graph for this function:

◆ onDeleteListItem()

void OperationImplementationResourceDialog::onDeleteListItem ( wxCommandEvent & )

Definition at line 261 of file OperationImplementationResourceDialog.cc.

                                                                        {
     long item = -1;

     for (;;)
     {
         item = fileList1_->GetNextItem(
             item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);
         if (item == -1)
             break;
         fileList1_->DeleteItem(item);
         if (fileList1_->GetItemCount() == 0 ||
             item == fileList1_->GetItemCount())
             break;
     }
 }

References fileList1_.

◆ onOK()

void OperationImplementationResourceDialog::onOK ( wxCommandEvent & )

Definition at line 152 of file OperationImplementationResourceDialog.cc.

                                                            {
     HDB::OperationImplementationResource resource;
     HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();

     resource.name = nameCtrl_->GetLineText(0);
     if (resource.name.length() < 1) {
         wxMessageBox( wxT("Give the resource a name."),
             wxT("Error"), wxICON_ERROR);
             return;
     }

     long items = fileList1_->GetItemCount();
     for (int i = 0; i < items; ++i) {
         std::string file = fileList1_->GetItemText(i, 0).ToStdString();
         std::string type = fileList1_->GetItemText(i, 1).ToStdString();
         if (type == manager->formatString(
                 HDB::BlockImplementationFile::VHDL)) {
             resource.synFiles.emplace_back(file);
             resource.synFormats.emplace_back(type);
         } else if (type == manager->formatString(
                 HDB::BlockImplementationFile::VHDLsim)) {
             resource.simFiles.emplace_back(file);
             resource.simFormats.emplace_back(type);
         }
         else if (type == manager->formatString(
                 HDB::BlockImplementationFile::Verilog)) {
             resource.synFiles.emplace_back(file);
             resource.synFormats.emplace_back(type);
         }
         else if (type == manager->formatString(
                 HDB::BlockImplementationFile::Verilogsim)) {
             resource.simFiles.emplace_back(file);
             resource.simFormats.emplace_back(type);
         } else {
             wxMessageBox( wxT("Unknown file type."),
             wxT("Error"), wxICON_ERROR);
             return;
         }
     }

     resource.ipxact = sanitize(ipxactPick_->GetPath());
     if (resource.ipxact.length() < 1) {
         wxMessageBox(wxT("Give the IP-XACT component file."),
             wxT("Error"), wxICON_ERROR);
         return;
     }

     manager->addOperationImplementationResource(resource);
     wxGetApp().mainFrame().browser()->update();
     EndModal(wxID_OK);
 }

References HDB::HDBManager::addOperationImplementationResource(), fileList1_, HDB::HDBManager::formatString(), HDB::OperationImplementationResource::ipxact, ipxactPick_, HDB::OperationImplementationResource::name, nameCtrl_, sanitize(), HDB::OperationImplementationResource::simFiles, HDB::OperationImplementationResource::simFormats, HDB::OperationImplementationResource::synFiles, HDB::OperationImplementationResource::synFormats, HDB::BlockImplementationFile::Verilog, HDB::BlockImplementationFile::Verilogsim, HDB::BlockImplementationFile::VHDL, and HDB::BlockImplementationFile::VHDLsim.

Here is the call graph for this function:

◆ sanitize()

std::string OperationImplementationResourceDialog::sanitize ( const wxString & path )

private

Definition at line 205 of file OperationImplementationResourceDialog.cc.

                                                                     {
     HDB::HDBManager* manager = wxGetApp().mainFrame().hdbManager();
     std::string es(path);
     std::string s(manager->fileName());
     size_t i = s.rfind('/', s.length());
     if (i != std::string::npos) {
         s = s.substr(0, i+1);
         if (es.find(s) == 0) {
             return es.substr(s.length());
         }
     }
     return es;
 }
