ProDeOptionsDialog Class Reference

#include <ProDeOptionsDialog.hh>

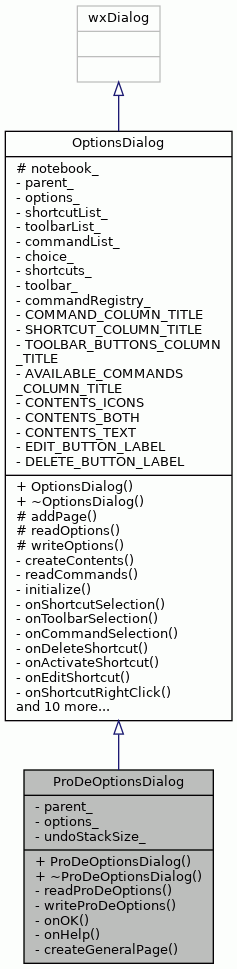

Inheritance diagram for ProDeOptionsDialog:

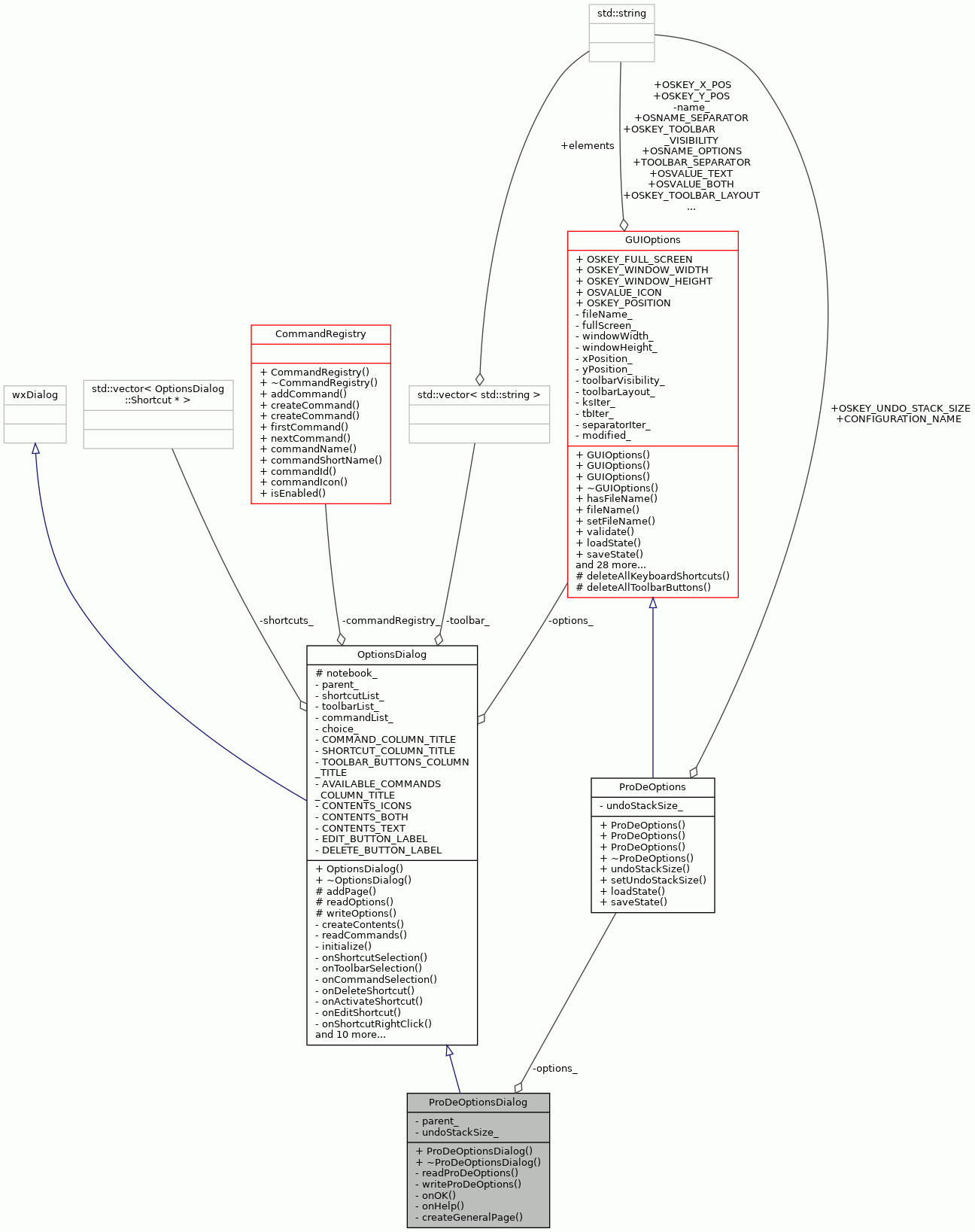

Collaboration diagram for ProDeOptionsDialog:

Public Member Functions
	ProDeOptionsDialog (wxWindow *parent, ProDeOptions &options, CommandRegistry &registry)
virtual	~ProDeOptionsDialog ()
Public Member Functions inherited from OptionsDialog
	OptionsDialog (wxWindow *parent, GUIOptions &options, CommandRegistry &commandRegisry)
virtual	~OptionsDialog ()

Private Types
enum	{ ID_UNDO_LEVELS, ID_LABEL_UNDO_LEVELS }

Private Member Functions
void	readProDeOptions ()
void	writeProDeOptions ()
void	onOK (wxCommandEvent &event)
void	onHelp (wxCommandEvent &event)
wxSizer *	createGeneralPage (wxWindow *parent, bool callFit, bool set_sizer)

Private Attributes
wxWindow *	parent_
	parent window of the dialog More...
ProDeOptions &	options_
	current editor options More...
wxSpinCtrl *	undoStackSize_
	Undo levels. More...

Additional Inherited Members
Protected Member Functions inherited from OptionsDialog
void	addPage (wxPanel *page, const wxString &title)
virtual void	readOptions ()
virtual void	writeOptions ()
Protected Attributes inherited from OptionsDialog
wxNotebook *	notebook_
	Notebook containing dialog pages. More...

Detailed Description

Dialog for editing ProDeOptions.

Definition at line 48 of file ProDeOptionsDialog.hh.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Enumerator
ID_UNDO_LEVELS
ID_LABEL_UNDO_LEVELS

Definition at line 75 of file ProDeOptionsDialog.hh.

         {
        ID_UNDO_LEVELS,
        ID_LABEL_UNDO_LEVELS
    };

Constructor & Destructor Documentation

ProDeOptionsDialog()

ProDeOptionsDialog::ProDeOptionsDialog	(	wxWindow *	parent,
		ProDeOptions &	options,
		CommandRegistry &	registry
	)

The Constructor.

Parameters

parent	Parent window of the dialog.
options	Options to be modified.

Definition at line 62 of file ProDeOptionsDialog.cc.

                                                                       :
    OptionsDialog(parent, options, registry),
    parent_(parent), options_(options) {

    wxPanel* generalPage = new wxPanel(notebook_, -1);
    createGeneralPage(generalPage, true, true);
    addPage(generalPage, _T("General"));

    undoStackSize_ = dynamic_cast<wxSpinCtrl*>(FindWindow(ID_UNDO_LEVELS));

    readProDeOptions();

}

~ProDeOptionsDialog()

ProDeOptionsDialog::~ProDeOptionsDialog ( )

virtual

The Destructor.

Definition at line 81 of file ProDeOptionsDialog.cc.

                                        {
}

Member Function Documentation

createGeneralPage()

wxSizer * ProDeOptionsDialog::createGeneralPage ( wxWindow *  parent, bool  call_fit, bool  set_sizer  )

private

Creates the 'General' page for the dialog.

This function was initially generated by wxDesigner.

Returns

Main sizer of the created contents.

Parameters

parent	The dialog window.
call_fit	If true, fits the contents inside the dialog.
set_sizer	If true, sets the main sizer as dialog contents.

Definition at line 133 of file ProDeOptionsDialog.cc.

                                                      {

    wxBoxSizer *item0 = new wxBoxSizer( wxHORIZONTAL );

    item0->Add( 50, 20, 0, wxALIGN_CENTER|wxALL, 5 );

    wxStaticText *item1 = new wxStaticText( parent, ID_LABEL_UNDO_LEVELS, wxT("Undo levels:"), wxDefaultPosition, wxDefaultSize, 0 );
    item0->Add( item1, 0, wxALIGN_CENTER|wxALL, 5 );

    wxSpinCtrl *item2 = new wxSpinCtrl( parent, ID_UNDO_LEVELS, wxT("1"), wxDefaultPosition, wxSize(-1,-1), 0, 1, 100, 0 );
    item0->Add( item2, 0, wxALIGN_CENTER|wxALL, 5 );

    if (set_sizer)
    {
        parent->SetSizer( item0 );
        if (call_fit)
            item0->SetSizeHints( parent );
    }

    return item0;
}

References ID_LABEL_UNDO_LEVELS, and ID_UNDO_LEVELS.

onHelp()

void ProDeOptionsDialog::onHelp ( wxCommandEvent &  event )

private

onOK()

void ProDeOptionsDialog::onOK ( wxCommandEvent &  event )

private

Validates input in the controls, and updates the options.

Definition at line 106 of file ProDeOptionsDialog.cc.

                                        {

    if (!Validate()) {
        return;
    }

    if (!TransferDataFromWindow()) {
        return;
    }

    writeOptions();
    writeProDeOptions();

    EndModal(wxID_OK);
}

References OptionsDialog::writeOptions(), and writeProDeOptions().

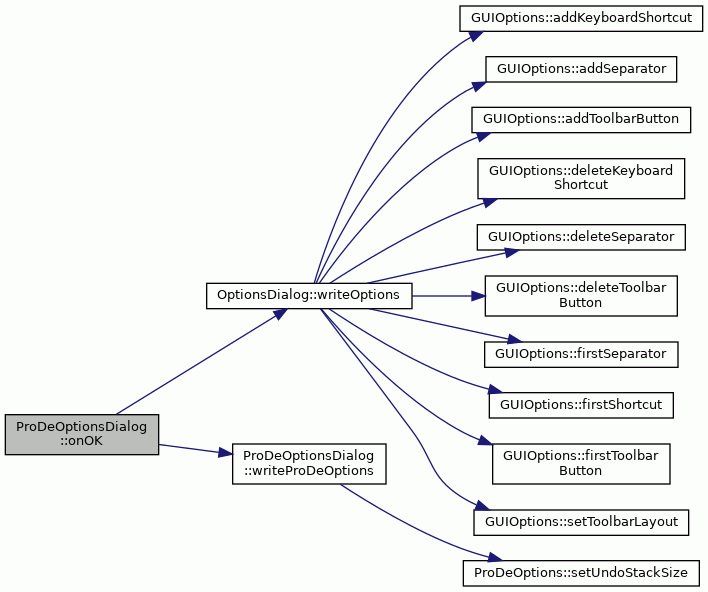

Here is the call graph for this function:

readProDeOptions()

void ProDeOptionsDialog::readProDeOptions ( )

private

Reads the options in options_ to dialog attributes.

Definition at line 88 of file ProDeOptionsDialog.cc.

                                     {
    undoStackSize_->SetValue(options_.undoStackSize());
}

References options_, ProDeOptions::undoStackSize(), and undoStackSize_.

Here is the call graph for this function:

writeProDeOptions()

void ProDeOptionsDialog::writeProDeOptions ( )

private

Writes the options from dialog attributes to the current options object.

Definition at line 97 of file ProDeOptionsDialog.cc.

                                      {
    options_.setUndoStackSize(undoStackSize_->GetValue());
}

References options_, ProDeOptions::setUndoStackSize(), and undoStackSize_.

Referenced by onOK().

Here is the call graph for this function:

Member Data Documentation

options_

ProDeOptions& ProDeOptionsDialog::options_

private

current editor options

Definition at line 69 of file ProDeOptionsDialog.hh.

Referenced by readProDeOptions(), and writeProDeOptions().

parent_

wxWindow* ProDeOptionsDialog::parent_

private

parent window of the dialog

Definition at line 67 of file ProDeOptionsDialog.hh.

undoStackSize_

wxSpinCtrl* ProDeOptionsDialog::undoStackSize_

private

Undo levels.

Definition at line 72 of file ProDeOptionsDialog.hh.

Referenced by readProDeOptions(), and writeProDeOptions().

---

The documentation for this class was generated from the following files:

• ProDeOptionsDialog.hh
• ProDeOptionsDialog.cc
