#include <GUIOptions.hh>

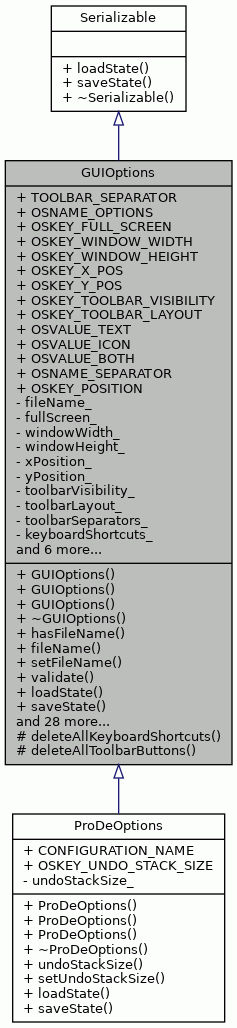

Inheritance diagram for GUIOptions:

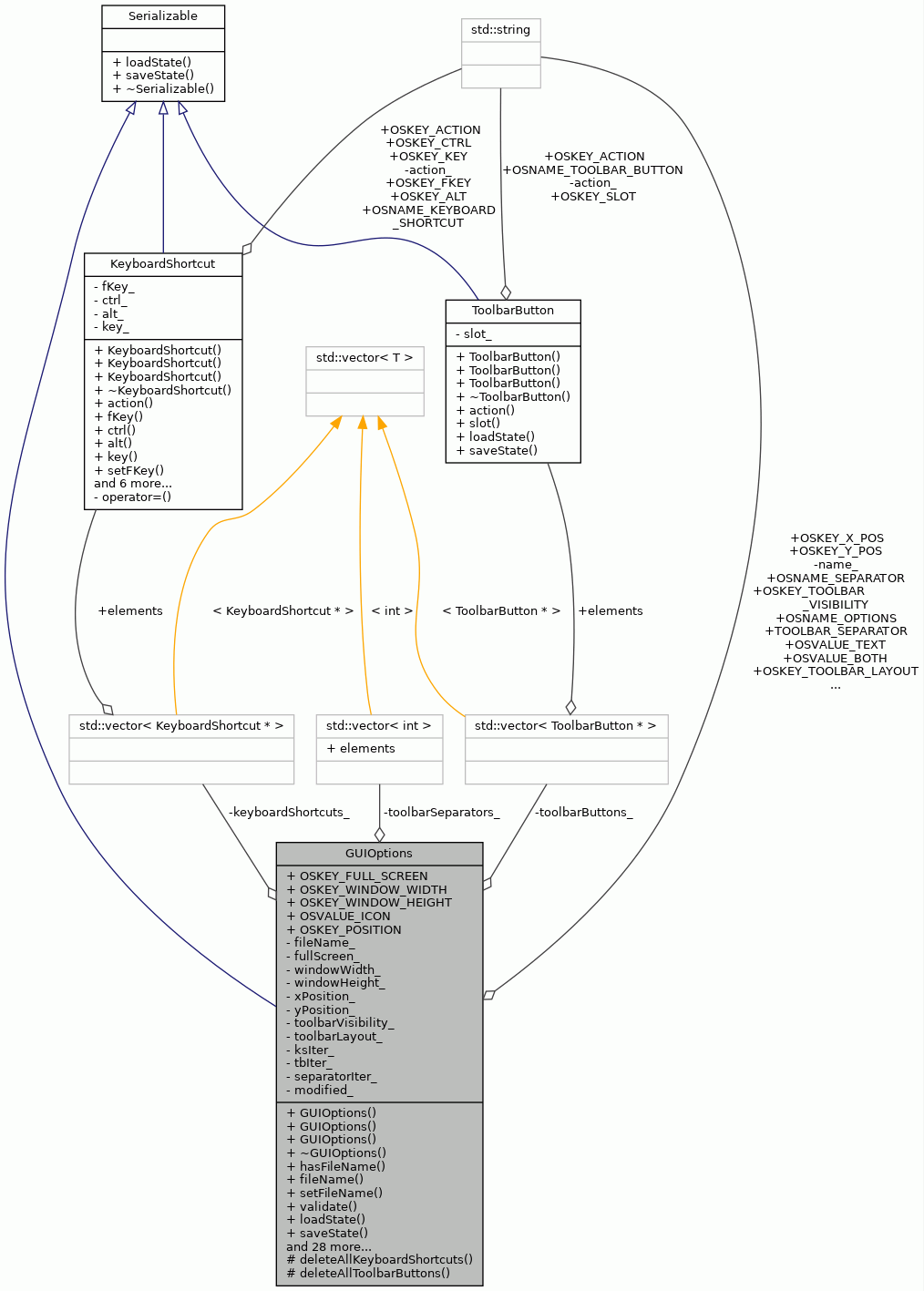

Collaboration diagram for GUIOptions:

Public Types
enum	ToolbarLayout { TEXT, ICON, BOTH }

Public Member Functions
	GUIOptions (std::string name)

	GUIOptions (const GUIOptions &old)

	GUIOptions (const ObjectState *state)

virtual	~GUIOptions ()

bool	hasFileName () const

std::string	fileName () const

void	setFileName (const std::string &fileName)

virtual void	validate () const

virtual void	loadState (const ObjectState *state)

virtual ObjectState *	saveState () const

bool	fullScreen () const

int	windowWidth () const

int	windowHeight () const

int	xPosition () const

int	yPosition () const

bool	toolbarVisibility () const

ToolbarLayout	toolbarLayout () const

void	setFullScreen (bool fullScreen)

void	setWindowSize (int width, int height)

void	setWindowPosition (int x, int y)

void	setToolbarVisibility (bool visible)

void	setToolbarLayout (ToolbarLayout layout)

void	addKeyboardShortcut (KeyboardShortcut *shortcut)

void	addToolbarButton (ToolbarButton *button)

void	addSeparator (int position)

void	deleteKeyboardShortcut (KeyboardShortcut *shortcut)

void	deleteToolbarButton (ToolbarButton *button)

void	deleteSeparator (int position)

KeyboardShortcut *	keyboardShortcut (const std::string commandName) const

KeyboardShortcut *	firstShortcut () const

KeyboardShortcut *	nextShortcut () const

ToolbarButton *	firstToolbarButton () const

ToolbarButton *	nextToolbarButton () const

int	firstSeparator () const

int	nextSeparator () const

void	clearModified ()

bool	isModified () const

wxToolBar *	createToolbar (wxWindow *parent, CommandRegistry &registry, const wxString &iconsPath)

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	TOOLBAR_SEPARATOR = "-- separator --"
	Toolbar separator name. More...

static const std::string	OSNAME_OPTIONS = "options"
	ObjectState name for the options. More...

static const std::string	OSKEY_FULL_SCREEN = "fscreen"
	ObjectState attribute key for full screen feature. More...

static const std::string	OSKEY_WINDOW_WIDTH = "wwidth"
	ObjectState attribute key for window width. More...

static const std::string	OSKEY_WINDOW_HEIGHT = "wheight"
	ObjectState attribute key for window height. More...

static const std::string	OSKEY_X_POS = "xpos"
	ObjectState attribute key for window x position. More...

static const std::string	OSKEY_Y_POS = "ypos"
	ObjectState attribute key for window y position. More...

static const std::string	OSKEY_TOOLBAR_VISIBILITY = "tbvisib"
	ObjectState attribute key for toolbar visibility. More...

static const std::string	OSKEY_TOOLBAR_LAYOUT = "tblayout"
	ObjectState attribute key for toolbar layout. More...

static const std::string	OSVALUE_TEXT = "text"
	ObjectState attribute value for text layout. More...

static const std::string	OSVALUE_ICON = "icon"
	ObjectState attribute value for icon layout. More...

static const std::string	OSVALUE_BOTH = "both"
	ObjectState attribute value for text & icon layout. More...

static const std::string	OSNAME_SEPARATOR = "separator"
	ObjectState name for separator. More...

static const std::string	OSKEY_POSITION = "pos"
	ObjectState attribute key for separator position. More...

Protected Member Functions
void	deleteAllKeyboardShortcuts ()

void	deleteAllToolbarButtons ()

Private Types
typedef std::vector< int >	SeparatorTable
	Table for the toolbar separator positions. More...

typedef std::vector< KeyboardShortcut * >	KSTable
	Table for keyboard shortcuts. More...

typedef std::vector< ToolbarButton * >	TBTable
	Table for toolbar buttons. More...

Private Attributes
std::string	fileName_
	File name assigned to these options. More...

bool	fullScreen_
	If true, the application window will open in full screen mode. More...

int	windowWidth_
	Default width of the window. More...

int	windowHeight_
	Default height of the window. More...

int	xPosition_
	Default x position of left side of the application window. More...

int	yPosition_
	Default y position of the upper side of the application window. More...

bool	toolbarVisibility_
	If true, the toolbar is visible. More...

ToolbarLayout	toolbarLayout_
	Layout of the toolbar. More...

SeparatorTable	toolbarSeparators_
	Toolbar separators. More...

KSTable	keyboardShortcuts_
	Keyboard shortcuts. More...

TBTable	toolbarButtons_
	Toolbar buttons. More...

KSTable::const_iterator	ksIter_
	Iterator used in firstShortcut and nextShortcut functions. More...

TBTable::const_iterator	tbIter_
	Iterator used in firstToolbarButton and nextToolbarButton functions. More...

SeparatorTable::const_iterator	separatorIter_
	Iterator used in firstSeparator and nextSeparator functions. More...

bool	modified_
	Indicates whether the options are modified or not. More...

std::string	name_
	Name of the options. More...

Detailed Description

Represents the options of a GUI.

Base class for GUI options. This class provides handling of options common to all GUIs. If a GUI needs application specific options, specialized options class can be derived from this class. See design documentation for details. This class implements the Serializable interface because the options are going to be stored in an xml configuration file.

Definition at line 58 of file GUIOptions.hh.

Member Typedef Documentation

◆ KSTable

typedef std::vector<KeyboardShortcut*> GUIOptions::KSTable

private

Table for keyboard shortcuts.

Definition at line 164 of file GUIOptions.hh.

◆ SeparatorTable

typedef std::vector<int> GUIOptions::SeparatorTable

private

Table for the toolbar separator positions.

Definition at line 162 of file GUIOptions.hh.

◆ TBTable

typedef std::vector<ToolbarButton*> GUIOptions::TBTable

private

Table for toolbar buttons.

Definition at line 166 of file GUIOptions.hh.

Member Enumeration Documentation

◆ ToolbarLayout

enum GUIOptions::ToolbarLayout

Layout of the buttons in the toolbar.

Enumerator
TEXT	Buttons contains only text.
ICON	Buttons contains only icon.
BOTH	Buttons contains text and icon.

Definition at line 64 of file GUIOptions.hh.

                        {
         TEXT, ///< Buttons contains only text.
         ICON, ///< Buttons contains only icon.
         BOTH  ///< Buttons contains text and icon.
     };

Constructor & Destructor Documentation

◆ GUIOptions() [1/3]

GUIOptions::GUIOptions ( std::string name )

Constructor.

Definition at line 68 of file GUIOptions.cc.

                                      :
     fullScreen_(false),  windowWidth_(400), windowHeight_(400), xPosition_(0),
     yPosition_(0), toolbarVisibility_(false), toolbarLayout_(BOTH),
     modified_(false), name_(name) {
 }

◆ GUIOptions() [2/3]

GUIOptions::GUIOptions ( const GUIOptions & old )

Copy constructor.

This constructor creates identical options with the given options class.

Definition at line 93 of file GUIOptions.cc.

                                            : Serializable() {

     fullScreen_ = old.fullScreen_;
     windowWidth_ = old.windowWidth_;
     windowHeight_ = old.windowHeight_;
     xPosition_ = old.xPosition_;
     yPosition_ = old.yPosition_;
     toolbarVisibility_ = old.toolbarVisibility_;
     toolbarLayout_ = old.toolbarLayout_;
     toolbarSeparators_ = old.toolbarSeparators_;
     modified_ = old.modified_;

 #ifdef KB_SC_EDITING
     // deep copy keyboard shortcuts
     for (KSTable::const_iterator iter = old.keyboardShortcuts_.begin();
          iter != old.keyboardShortcuts_.end(); iter++) {

         keyboardShortcuts_.push_back(new KeyboardShortcut(**iter));
     }
 #endif

     // deep copy toolbar buttons
     for (TBTable::const_iterator iter = old.toolbarButtons_.begin();
          iter != old.toolbarButtons_.end(); iter++) {
         toolbarButtons_.push_back(new ToolbarButton(**iter));
     }
 }

References fullScreen_, keyboardShortcuts_, modified_, toolbarButtons_, toolbarLayout_, toolbarSeparators_, toolbarVisibility_, windowHeight_, windowWidth_, xPosition_, and yPosition_.

◆ GUIOptions() [3/3]

GUIOptions::GUIOptions ( const ObjectState * state )

Constructor.

Loads the state from the given ObjectState tree.

Parameters

state The ObjectState tree.

Exceptions

ObjectStateLoadingException If the given ObjectState tree is invalid.

Definition at line 84 of file GUIOptions.cc.

                                                : modified_(false) {
     loadState(state);
 }

References loadState().

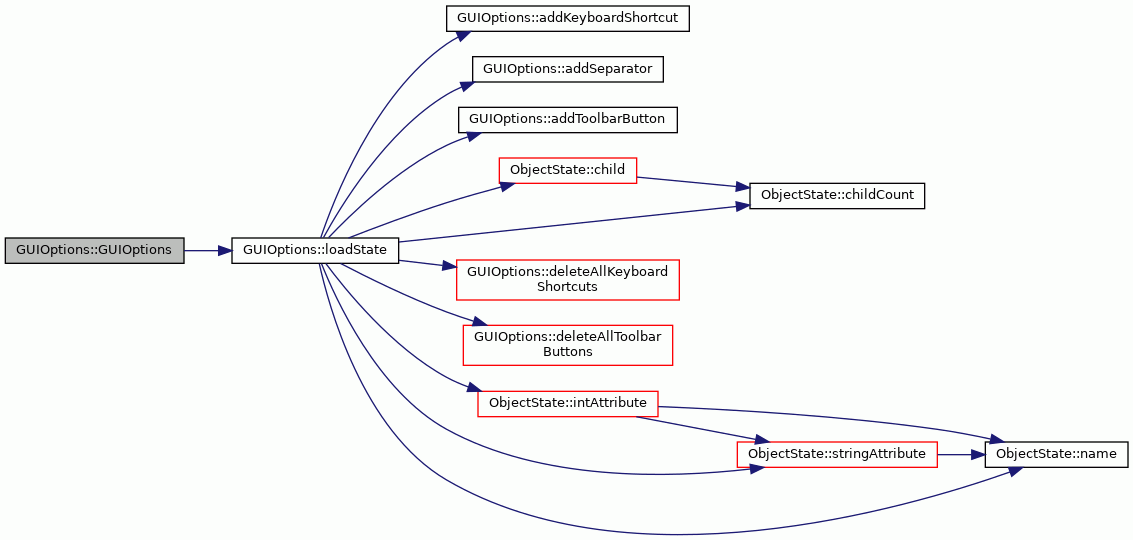

Here is the call graph for this function:

◆ ~GUIOptions()

GUIOptions::~GUIOptions ( )

virtual

Destructor.

Definition at line 125 of file GUIOptions.cc.

                         {
     deleteAllToolbarButtons();
     deleteAllKeyboardShortcuts();
 }

References deleteAllKeyboardShortcuts(), and deleteAllToolbarButtons().

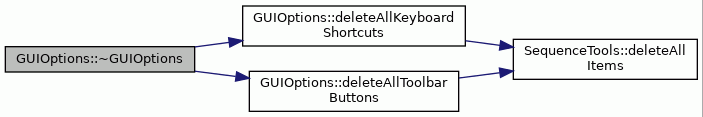

Here is the call graph for this function:

Member Function Documentation

◆ addKeyboardShortcut()

void GUIOptions::addKeyboardShortcut ( KeyboardShortcut * shortcut )

Adds a keyboard shortcut.

Parameters

shortcut Keyboard shortcut to be added.

Definition at line 280 of file GUIOptions.cc.

                                                           {
     keyboardShortcuts_.push_back(shortcut);
     modified_ = true;
 }

References keyboardShortcuts_, and modified_.

Referenced by Proxim::createDefaultOptions(), ProDe::createDefaultOptions(), loadState(), and OptionsDialog::writeOptions().

◆ addSeparator()

void GUIOptions::addSeparator ( int position )

Adds a separator to the toolbar to the given position.

Parameters

position Number of the slot left side of which the separator is drawn.

Definition at line 305 of file GUIOptions.cc.

                                      {
     toolbarSeparators_.push_back(position);
     modified_ = true;
 }

References modified_, and toolbarSeparators_.

Referenced by Proxim::createDefaultOptions(), ProDe::createDefaultOptions(), loadState(), and OptionsDialog::writeOptions().

◆ addToolbarButton()

void GUIOptions::addToolbarButton ( ToolbarButton * button )

Adds the given button to the toolbar.

Parameters

button Button to be added.

Definition at line 292 of file GUIOptions.cc.

                                                   {
     toolbarButtons_.push_back(button);
     modified_ = true;
 }

References modified_, and toolbarButtons_.

Referenced by Proxim::createDefaultOptions(), ProDe::createDefaultOptions(), loadState(), and OptionsDialog::writeOptions().

◆ clearModified()

void GUIOptions::clearModified ( )

Clears the modified flag.

The isModified method returns false after calling this method.

Definition at line 502 of file GUIOptions.cc.

                           {
     modified_ = false;
 }

References modified_.

Referenced by Proxim::loadOptions(), and ProDe::OnInit().

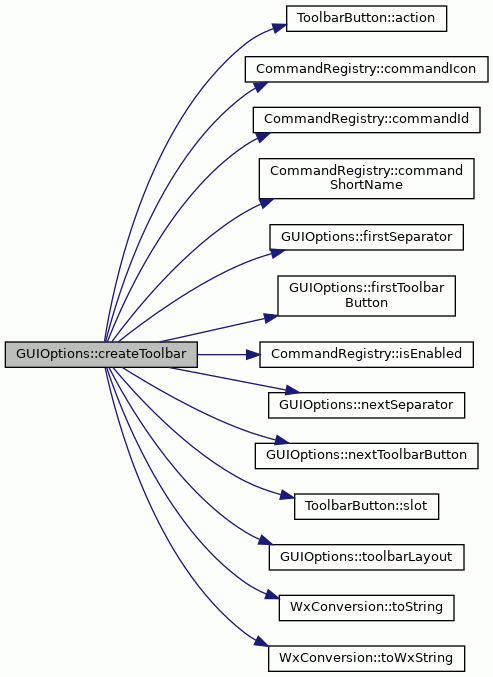

◆ createToolbar()

wxToolBar * GUIOptions::createToolbar	(	wxWindow *	parent,
		CommandRegistry &	registry,
		const wxString &	iconsPath
	)

Creates a toolbar defined in the options.

Parameters

parent	Parent window of the created toolbar.
registry	Command registry containing the toolbar commands.
iconPath	Path of the toolbar icon files.

Returns: A new toolbar corresponding to the one defined in the options.

Definition at line 768 of file GUIOptions.cc.

                                {

     int layout = toolbarLayout();
     long style = 0;

     // check toolbar layout from options
     if (layout == GUIOptions::BOTH) {
         style = wxTB_HORIZONTAL | wxNO_BORDER | wxTB_TEXT;
     } else if (layout == GUIOptions::ICON) {
         style = wxTB_HORIZONTAL | wxNO_BORDER;
     } else if (layout == GUIOptions::TEXT) {
         style = wxTB_HORIZONTAL | wxNO_BORDER | wxTB_TEXT | wxTB_NOICONS;
     } else {
         assert(false);
     }

     // create a new toolbar
     wxToolBar* toolbar = new wxToolBar(
         parent, -1, wxDefaultPosition, wxDefaultSize, style);

     bool found = true;
     int slot = 0;
     wxBitmap icon;

     // Add buttons and separators for each slot, until a slot without
     // button or separator is found.
     while (found) {

         found = false;

         // check if a toolbar button exists for the slot
         ToolbarButton* tool = firstToolbarButton();
         while (tool != NULL) {
             if (tool->slot() == slot) {
                 // button found for the slot, add it
                 found = true;

                 wxString iconPath = iconsPath;
                 iconPath.Append(WxConversion::toWxString(
                                     FileSystem::DIRECTORY_SEPARATOR));
                 iconPath.Append(
                     WxConversion::toWxString(
                         registry.commandIcon(tool->action())));

                 if (!icon.LoadFile(iconPath, wxBITMAP_TYPE_PNG)) {
                     std::cerr << "Toolbar icon file "
                               << WxConversion::toString(iconPath)
                               << " not found!"
                               << std::endl;

                     icon.Create(32, 32);
                 }

                 toolbar->AddTool(registry.commandId(tool->action()),
                                   WxConversion::toWxString(
                                   registry.commandShortName(tool->action())),
                                   icon, wxNullBitmap, wxITEM_NORMAL,
                                   WxConversion::toWxString(
                                   tool->action()),
                                   WxConversion::toWxString(
                                   tool->action()));
                 found = true;
                 // disable button if command is not executable at the moment
                 if (!registry.isEnabled(tool->action())) {
                     toolbar->EnableTool(registry.commandId(tool->action()),
                                          false);
                 }
             }
             tool = nextToolbarButton();
         }


         // check if a separator exists for the slot
         int separator = firstSeparator();
         while (separator != -1) {
             if (separator == slot) {
                 // separator found for the slot, add it
                 toolbar->AddSeparator();
                 found = true;
             }
             separator = nextSeparator();
         }
         slot++;
     }

     toolbar->Realize();
     return toolbar;
 }

References ToolbarButton::action(), assert, BOTH, CommandRegistry::commandIcon(), CommandRegistry::commandId(), CommandRegistry::commandShortName(), FileSystem::DIRECTORY_SEPARATOR, firstSeparator(), firstToolbarButton(), ICON, CommandRegistry::isEnabled(), nextSeparator(), nextToolbarButton(), ToolbarButton::slot(), TEXT, toolbarLayout(), WxConversion::toString(), and WxConversion::toWxString().

Here is the call graph for this function:

◆ deleteAllKeyboardShortcuts()

void GUIOptions::deleteAllKeyboardShortcuts ( )

protected

Deletes all the keyboard shortcuts.

Definition at line 745 of file GUIOptions.cc.

                                        {
     SequenceTools::deleteAllItems(keyboardShortcuts_);
 }

References SequenceTools::deleteAllItems(), and keyboardShortcuts_.

Referenced by ProDeOptions::loadState(), loadState(), and ~GUIOptions().

Here is the call graph for this function:

◆ deleteAllToolbarButtons()

void GUIOptions::deleteAllToolbarButtons ( )

protected

Deletes all the toolbar buttons.

Definition at line 754 of file GUIOptions.cc.

                                     {
     SequenceTools::deleteAllItems(toolbarButtons_);
 }

References SequenceTools::deleteAllItems(), and toolbarButtons_.

Referenced by ProDeOptions::loadState(), loadState(), and ~GUIOptions().

Here is the call graph for this function:

◆ deleteKeyboardShortcut()

void GUIOptions::deleteKeyboardShortcut ( KeyboardShortcut * shortcut )

Deletes the given keyboard shortcut.

Parameters

shortcut The keyboard shortcut to be deleted.

Definition at line 317 of file GUIOptions.cc.

                                                              {
     KSTable::iterator iter = keyboardShortcuts_.begin();
     while (iter != keyboardShortcuts_.end()) {
         if (*iter == shortcut) {
             keyboardShortcuts_.erase(iter);
             delete shortcut;
             modified_ = true;
             return;
         }
         iter++;
     }
 }

References keyboardShortcuts_, and modified_.

Referenced by OptionsDialog::writeOptions().

◆ deleteSeparator()

void GUIOptions::deleteSeparator ( int position )

Deletes a separator from the given position.

Parameters

position The slot position left side of which the separator is deleted.

Definition at line 358 of file GUIOptions.cc.

                                         {
     SeparatorTable::iterator iter = toolbarSeparators_.begin();
     while (iter != toolbarSeparators_.end()) {
         if (*iter == position) {
             toolbarSeparators_.erase(iter);
             modified_ = true;
             return;
         }
         iter++;
     }
 }

References modified_, and toolbarSeparators_.

Referenced by OptionsDialog::writeOptions().

◆ deleteToolbarButton()

void GUIOptions::deleteToolbarButton ( ToolbarButton * button )

Deletes the given toolbar button.

Parameters

button The toolbar button to be deleted.

Definition at line 337 of file GUIOptions.cc.

                                                      {
     TBTable::iterator iter = toolbarButtons_.begin();
     while (iter != toolbarButtons_.end()) {
         if (*iter == button) {
             toolbarButtons_.erase(iter);
             delete button;
             modified_ = true;
             return;
         }
         iter++;
     }
 }

References modified_, and toolbarButtons_.

Referenced by OptionsDialog::writeOptions().

◆ fileName()

string GUIOptions::fileName ( ) const

Returns the file name assigned to these options.

Returns: The file name assigned to these options.

Definition at line 621 of file GUIOptions.cc.

                            {
     return fileName_;
 }

References fileName_.

Referenced by setFileName().

◆ firstSeparator()

int GUIOptions::firstSeparator ( ) const

Returns position of the first toolbar separator. Position is the position of the slot left side of which the separator is. If there are no separators, returns -1.

Returns: Position of the first toolbar separator.

Definition at line 468 of file GUIOptions.cc.

                                  {
     separatorIter_ = toolbarSeparators_.begin();
     if (separatorIter_ != toolbarSeparators_.end()) {
         return *separatorIter_;
     } else {
         return -1;
     }
 }

References separatorIter_, and toolbarSeparators_.

Referenced by createToolbar(), OptionsDialog::readOptions(), and OptionsDialog::writeOptions().

◆ firstShortcut()

KeyboardShortcut * GUIOptions::firstShortcut ( ) const

Returns the first keyboard shortcut. If there are no keyboard shortcuts, returns null pointer.

Returns: The first keyboard shortcut.

Definition at line 397 of file GUIOptions.cc.

                                 {
     ksIter_ = keyboardShortcuts_.begin();
     if (ksIter_ != keyboardShortcuts_.end()) {
         return *ksIter_;
     } else {
         return NULL;
     }
 }

References keyboardShortcuts_, and ksIter_.

Referenced by OptionsDialog::readOptions(), and OptionsDialog::writeOptions().

◆ firstToolbarButton()

ToolbarButton * GUIOptions::firstToolbarButton ( ) const

Returns the first toolbar button. Returns null pointer if there are no toolbar buttons.

Returns: The first toolbar button.

Definition at line 432 of file GUIOptions.cc.

                                      {
     tbIter_ = toolbarButtons_.begin();
     if (tbIter_ != toolbarButtons_.end()) {
         return *tbIter_;
     } else {
         return NULL;
     }
 }

References tbIter_, and toolbarButtons_.

Referenced by createToolbar(), OptionsDialog::readOptions(), validate(), and OptionsDialog::writeOptions().

◆ fullScreen()

bool GUIOptions::fullScreen ( ) const

Returns true, if the application window opens in full screen mode as default, otherwise false.

Returns: True, if the application window opens in full screen mode as default, otherwise false.

Definition at line 139 of file GUIOptions.cc.

                              {
     return fullScreen_;
 }

References fullScreen_.

Referenced by setFullScreen().

◆ hasFileName()

bool GUIOptions::hasFileName ( ) const

Checks whether these options has file name assigned.

Returns: True if these options has file name assigned, otherwise false.

Definition at line 607 of file GUIOptions.cc.

                               {
     if (fileName_ == "") {
         return false;
     }
     return true;
 }

References fileName_.

◆ isModified()

bool GUIOptions::isModified ( ) const

Returns true if the options are modified.

Returns: True if the options are modified.

Definition at line 513 of file GUIOptions.cc.

                              {
     return modified_;
 }

References modified_.

◆ keyboardShortcut()

KeyboardShortcut * GUIOptions::keyboardShortcut ( const std::string commandName ) const

Returns keyboard shortcut for the command with given name.

Parameters

commandName Name of the command to search shortcut for.

Returns: NULL if a shortcut doesn't exist for the command.

Definition at line 377 of file GUIOptions.cc.

                                                               {

     KSTable::const_iterator iter = keyboardShortcuts_.begin();

     for (; iter != keyboardShortcuts_.end(); iter++) {
         if ((*iter)->action() == commandName) {
             return *iter;
         }
     }

     return NULL;
 }

References keyboardShortcuts_.

◆ loadState()

void GUIOptions::loadState ( const ObjectState * state )

virtual

Loads the state of the object from the given ObjectState object.

Parameters

state ObjectState from which the state is loaded.

Exceptions

ObjectStateLoadingException If the given ObjectState instance is invalid.

Implements Serializable.

Reimplemented in ProDeOptions.

Definition at line 645 of file GUIOptions.cc.

                                               {
     const string procName = "GUIOptions::loadState";

     if (state->name() != OSNAME_OPTIONS) {
         throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
     }

     try {
         fullScreen_ = state->intAttribute(OSKEY_FULL_SCREEN);
         windowWidth_ = state->intAttribute(OSKEY_WINDOW_WIDTH);
         windowHeight_ = state->intAttribute(OSKEY_WINDOW_HEIGHT);
         xPosition_ = state->intAttribute(OSKEY_X_POS);
         yPosition_ = state->intAttribute(OSKEY_Y_POS);
         toolbarVisibility_ = state->intAttribute(OSKEY_TOOLBAR_VISIBILITY);

         string layout = state->stringAttribute(OSKEY_TOOLBAR_LAYOUT);
         if (layout == OSVALUE_TEXT) {
             toolbarLayout_ = TEXT;
         } else if (layout == OSVALUE_ICON) {
             toolbarLayout_ = ICON;
         } else if (layout == OSVALUE_BOTH) {
             toolbarLayout_ = BOTH;
         } else {
             throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
         }

         // get toolbar separators, keyboard shortcuts and toolbar buttons
         for (int i = 0; i < state->childCount(); i++) {
             ObjectState* child = state->child(i);
             if (child->name() == OSNAME_SEPARATOR) {
                 addSeparator(child->intAttribute(OSKEY_POSITION));

             } else if (child->name() ==
                        KeyboardShortcut::OSNAME_KEYBOARD_SHORTCUT) {
                 addKeyboardShortcut(new KeyboardShortcut(child));
             } else if (child->name() == ToolbarButton::OSNAME_TOOLBAR_BUTTON) {
                 addToolbarButton(new ToolbarButton(child));
             } else {
                 throw ObjectStateLoadingException(__FILE__, __LINE__,
                                                   procName);
             }
         }
     } catch (...) {
         deleteAllKeyboardShortcuts();
         deleteAllToolbarButtons();
         throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
     }
 }

References addKeyboardShortcut(), addSeparator(), addToolbarButton(), BOTH, ObjectState::child(), ObjectState::childCount(), deleteAllKeyboardShortcuts(), deleteAllToolbarButtons(), fullScreen_, ICON, ObjectState::intAttribute(), ObjectState::name(), OSKEY_FULL_SCREEN, OSKEY_POSITION, OSKEY_TOOLBAR_LAYOUT, OSKEY_TOOLBAR_VISIBILITY, OSKEY_WINDOW_HEIGHT, OSKEY_WINDOW_WIDTH, OSKEY_X_POS, OSKEY_Y_POS, KeyboardShortcut::OSNAME_KEYBOARD_SHORTCUT, OSNAME_OPTIONS, OSNAME_SEPARATOR, ToolbarButton::OSNAME_TOOLBAR_BUTTON, OSVALUE_BOTH, OSVALUE_ICON, OSVALUE_TEXT, ObjectState::stringAttribute(), TEXT, toolbarLayout_, toolbarVisibility_, windowHeight_, windowWidth_, xPosition_, and yPosition_.

Referenced by GUIOptions(), and ProDeOptions::loadState().

Here is the call graph for this function:

◆ nextSeparator()

int GUIOptions::nextSeparator ( ) const

Returns always position of the next toolbar separator. If there are no more separators, returns -1.

Returns: Position of the next toolbar separator.

Definition at line 485 of file GUIOptions.cc.

                                 {
     assert(separatorIter_ != toolbarSeparators_.end());
     separatorIter_++;
     if (separatorIter_ != toolbarSeparators_.end()) {
         return *separatorIter_;
     } else {
         return -1;
     }
 }

References assert, separatorIter_, and toolbarSeparators_.

Referenced by createToolbar(), and OptionsDialog::readOptions().

◆ nextShortcut()

KeyboardShortcut * GUIOptions::nextShortcut ( ) const

Returns the always the next keyboard shortcut after firstShortcut has been called. Returns null pointer after the last keyboard shortcut.

Returns: The next keyboard shortcut.

Definition at line 414 of file GUIOptions.cc.

                                {
     assert(ksIter_ != keyboardShortcuts_.end());
     ksIter_++;
     if (ksIter_ != keyboardShortcuts_.end()) {
         return *ksIter_;
     } else {
         return NULL;
     }
 }

References assert, keyboardShortcuts_, and ksIter_.

Referenced by OptionsDialog::readOptions().

◆ nextToolbarButton()

ToolbarButton * GUIOptions::nextToolbarButton ( ) const

Returns always the next toolbar button after the firstToolbarButton has been called.

Returns: The next toolbar button.

Definition at line 449 of file GUIOptions.cc.

                                     {
     assert(tbIter_ != toolbarButtons_.end());
     tbIter_++;
     if (tbIter_ != toolbarButtons_.end()) {
         return *tbIter_;
     } else {
         return NULL;
     }
 }

References assert, tbIter_, and toolbarButtons_.

Referenced by createToolbar(), OptionsDialog::readOptions(), and validate().

◆ saveState()

ObjectState * GUIOptions::saveState ( ) const

virtual

Creates an ObjectState object and saves the state of the object into it.

Returns: The created ObjectState object.

Implements Serializable.

Reimplemented in ProDeOptions.

Definition at line 700 of file GUIOptions.cc.

                             {

     ObjectState* state = new ObjectState(OSNAME_OPTIONS);

     state->setAttribute(OSKEY_FULL_SCREEN, fullScreen_);
     state->setAttribute(OSKEY_WINDOW_WIDTH, windowWidth_);
     state->setAttribute(OSKEY_WINDOW_HEIGHT, windowHeight_);
     state->setAttribute(OSKEY_X_POS, xPosition_);
     state->setAttribute(OSKEY_Y_POS, yPosition_);
     state->setAttribute(OSKEY_TOOLBAR_VISIBILITY, toolbarVisibility_);

     if (toolbarLayout_ == TEXT) {
         state->setAttribute(OSKEY_TOOLBAR_LAYOUT, OSVALUE_TEXT);
     } else if (toolbarLayout_ == ICON) {
         state->setAttribute(OSKEY_TOOLBAR_LAYOUT, OSVALUE_ICON);
     } else {
         state->setAttribute(OSKEY_TOOLBAR_LAYOUT, OSVALUE_BOTH);
     }

     // add toolbar separators
     for (int i = 0; i < (int)toolbarSeparators_.size(); i++) {
         ObjectState* separator = new ObjectState(OSNAME_SEPARATOR);
         state->addChild(separator);
         separator->setAttribute(OSKEY_POSITION, toolbarSeparators_[i]);
     }

     // add keyboard shortcuts
     for (int i = 0; i < (int)keyboardShortcuts_.size(); i++) {
         KeyboardShortcut* sc = keyboardShortcuts_[i];
         state->addChild(sc->saveState());
     }

     // add toolbar buttons
     for (int i = 0; i < (int)toolbarButtons_.size(); i++) {
         ToolbarButton* button = toolbarButtons_[i];
         state->addChild(button->saveState());
     }

     return state;
 }

References ObjectState::addChild(), fullScreen_, ICON, keyboardShortcuts_, OSKEY_FULL_SCREEN, OSKEY_POSITION, OSKEY_TOOLBAR_LAYOUT, OSKEY_TOOLBAR_VISIBILITY, OSKEY_WINDOW_HEIGHT, OSKEY_WINDOW_WIDTH, OSKEY_X_POS, OSKEY_Y_POS, OSNAME_OPTIONS, OSNAME_SEPARATOR, OSVALUE_BOTH, OSVALUE_ICON, OSVALUE_TEXT, ToolbarButton::saveState(), KeyboardShortcut::saveState(), ObjectState::setAttribute(), TEXT, toolbarButtons_, toolbarLayout_, toolbarSeparators_, toolbarVisibility_, windowHeight_, windowWidth_, xPosition_, and yPosition_.

Referenced by ProDeOptions::saveState().

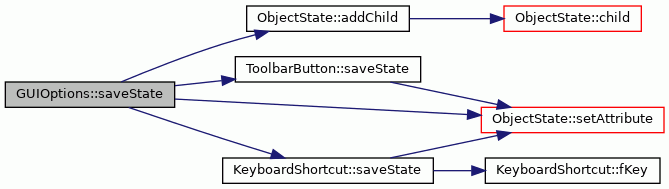

Here is the call graph for this function:

◆ setFileName()

void GUIOptions::setFileName ( const std::string & fileName )

Sets the file name assigned into these options.

Parameters

fileName The file name assigned into these options.

Definition at line 632 of file GUIOptions.cc.

                                                  {
     fileName_ = fileName;
 }

References fileName(), and fileName_.

Referenced by Proxim::createDefaultOptions(), Proxim::loadOptions(), and ProDe::OnInit().

Here is the call graph for this function:

◆ setFullScreen()

void GUIOptions::setFullScreen ( bool fullScreen )

Sets or unsets the default full screen mode of the application window.

Parameters

fullScreen If true, the full screen mode is set, otherwise unset.

Definition at line 216 of file GUIOptions.cc.

                                          {
     fullScreen_ = fullScreen;
     modified_ = true;
 }

References fullScreen(), fullScreen_, and modified_.

Referenced by ProDe::createDefaultOptions().

Here is the call graph for this function:

◆ setToolbarLayout()

void GUIOptions::setToolbarLayout ( ToolbarLayout layout )

Sets the layout of the toolbar buttons.

Parameters

layout Layout of the toolbar buttons.

Definition at line 268 of file GUIOptions.cc.

                                                  {
     toolbarLayout_ = layout;
     modified_ = true;
 }

References modified_, and toolbarLayout_.

Referenced by Proxim::createDefaultOptions(), ProDe::createDefaultOptions(), and OptionsDialog::writeOptions().

◆ setToolbarVisibility()

void GUIOptions::setToolbarVisibility ( bool visible )

Sets the visibility mode of the toolbar.

Parameters

visible If true, the toolbar is visible, otherwise it is hidden.

Definition at line 256 of file GUIOptions.cc.

                                              {
     toolbarVisibility_ = visible;
     modified_ = true;
 }

References modified_, and toolbarVisibility_.

Referenced by Proxim::createDefaultOptions(), and ProDe::createDefaultOptions().

◆ setWindowPosition()

void GUIOptions::setWindowPosition	(	int	x,
		int	y
	)

Sets the default position of the window.

Parameters

x	X-coordinate of left side of the application window.
y	Y-coordinate of upper side of the application window.

Definition at line 243 of file GUIOptions.cc.

                                           {
     xPosition_ = x;
     yPosition_ = y;
     modified_ = true;
 }

References modified_, xPosition_, and yPosition_.

Referenced by ProDe::createDefaultOptions().

◆ setWindowSize()

void GUIOptions::setWindowSize	(	int	width,
		int	height
	)

Sets the default application window size.

Parameters

width	Pixel width of the window.
height	Pixel height of the window.

Definition at line 229 of file GUIOptions.cc.

                                                {
     windowWidth_ = width;
     windowHeight_ = height;
     modified_ = true;
 }

References modified_, windowHeight_, and windowWidth_.

Referenced by ProDe::createDefaultOptions().

◆ toolbarLayout()

GUIOptions::ToolbarLayout GUIOptions::toolbarLayout ( ) const

Returns the layout mode of the toolbar.

Returns: Layout mode of the toolbar.

Definition at line 205 of file GUIOptions.cc.

                                 {
     return toolbarLayout_;
 }

References toolbarLayout_.

Referenced by createToolbar(), and OptionsDialog::readOptions().

◆ toolbarVisibility()

bool GUIOptions::toolbarVisibility ( ) const

Returns true if the toolbar is visible by default, otherwise false.

Returns: True if the toolbar is visible by default, otherwise false.

Definition at line 194 of file GUIOptions.cc.

                                     {
     return toolbarVisibility_;
 }

References toolbarVisibility_.

◆ validate()

void GUIOptions::validate ( ) const

virtual

Validates the state of the options.

Checks that there is no gaps in toolbar item positions and no two items at the same position. Additionally checks that there is no same keyboard shortcuts for several actions and no two keyboard shortcuts for the same action.

Exceptions

InvalidData If the options are in invalid state.

Definition at line 529 of file GUIOptions.cc.

                            {
     const string procName = "GUIOptions::validate";
     int buttons = toolbarButtons_.size();
     int separators = toolbarSeparators_.size();

     // check that there is no gaps in toolbar item positions
     for (int i = 0; i < buttons + separators; i++) {
         bool buttonfound = false;
         bool separatorfound = false;
         ToolbarButton* button = firstToolbarButton();
         while (button != NULL) {
             if (button->slot() == i) {
                 if (buttonfound) {
                     string errorMsg = "There is at least two toolbar items ";
                     errorMsg += "at position \'" + Conversion::toString(i) +
                         "\'.";
                     throw InvalidData(__FILE__, __LINE__, procName,
                                         errorMsg);
                 }
                 buttonfound = true;
             }
             button = nextToolbarButton();
         }

         for (int sepIndex = 0; sepIndex < separators; sepIndex++) {
             if (toolbarSeparators_[sepIndex] == i) {
                 if (separatorfound || buttonfound) {
                     string errorMsg = "There is at least two toolbar items ";
                     errorMsg += "at position \'" + Conversion::toString(i) +
                         "\'.";
                     throw InvalidData(__FILE__, __LINE__, procName,
                                         errorMsg);
                 }
                 separatorfound = true;
             }
         }

         if (!buttonfound && !separatorfound) {
             string errorMsg = "There is no separator or button at slot "
                 "position \'" + Conversion::toString(i) + "\'.";
             throw InvalidData(__FILE__, __LINE__, procName, errorMsg);
         }

     }

     // check that there is no same keyboard shortcuts for several actions and
     // no two keyboard shortcuts for same action
     KSTable::const_iterator ksIter = keyboardShortcuts_.begin();
     while (ksIter != keyboardShortcuts_.end()) {
         KeyboardShortcut* observable = *ksIter;
         string action = observable->action();
         KSTable::const_iterator seekerIter = keyboardShortcuts_.begin();

         while (seekerIter != keyboardShortcuts_.end()) {
             KeyboardShortcut* sc = *seekerIter;
             if (action == sc->action() && sc != observable) {
                 string errorMsg = "Action \'" + action + "\' is assigned for"
                     + " two or more keyboard shortcuts.";
                 throw InvalidData(__FILE__, __LINE__, procName, errorMsg);
             }
             if (observable->equals(*sc) && observable != sc) {
                 string errorMsg = "Same keyboard shortcut is used for \'" +
                     observable->action() + "\' and \'" + sc->action() +
                     "\' actions.";
                 throw InvalidData(__FILE__, __LINE__, procName, errorMsg);
             }
             seekerIter++;
         }
         ksIter++;
     }
 }

References KeyboardShortcut::action(), KeyboardShortcut::equals(), firstToolbarButton(), keyboardShortcuts_, nextToolbarButton(), ToolbarButton::slot(), toolbarButtons_, toolbarSeparators_, and Conversion::toString().

Referenced by Proxim::loadOptions(), and ProDe::OnInit().

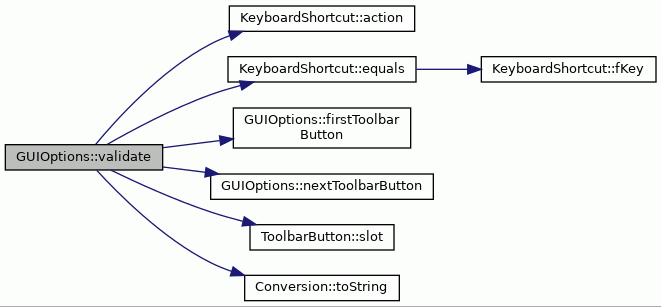

Here is the call graph for this function:

◆ windowHeight()

int GUIOptions::windowHeight ( ) const

Returns the default height of the application window.

Returns: The default height of the application window.

Definition at line 161 of file GUIOptions.cc.

                                {
     return windowHeight_;
 }

References windowHeight_.

Referenced by ProDe::OnInit().

◆ windowWidth()

int GUIOptions::windowWidth ( ) const

Returns the default width of the application window.

Returns: The default width of the application window.

Definition at line 150 of file GUIOptions.cc.

                               {
     return windowWidth_;
 }

References windowWidth_.

Referenced by ProDe::OnInit().

◆ xPosition()

int GUIOptions::xPosition ( ) const

Returns the default x position of left side of the application window.

Returns: The default x position of left side of the application window.

Definition at line 172 of file GUIOptions.cc.

                             {
     return xPosition_;
 }

References xPosition_.

Referenced by ProDe::OnInit().

◆ yPosition()

int GUIOptions::yPosition ( ) const

Returns the default y position of upper side of the application window.

Returns: The default y position of upper side of the application window.

Definition at line 183 of file GUIOptions.cc.

                             {
     return yPosition_;
 }

References yPosition_.

Referenced by ProDe::OnInit().

Member Data Documentation

◆ fileName_

std::string GUIOptions::fileName_

private

File name assigned to these options.

Definition at line 169 of file GUIOptions.hh.

Referenced by fileName(), hasFileName(), and setFileName().

◆ fullScreen_

bool GUIOptions::fullScreen_

private

If true, the application window will open in full screen mode.

Definition at line 171 of file GUIOptions.hh.

Referenced by fullScreen(), GUIOptions(), loadState(), saveState(), and setFullScreen().

◆ keyboardShortcuts_

KSTable GUIOptions::keyboardShortcuts_

private

Keyboard shortcuts.

Definition at line 187 of file GUIOptions.hh.

Referenced by addKeyboardShortcut(), deleteAllKeyboardShortcuts(), deleteKeyboardShortcut(), firstShortcut(), GUIOptions(), keyboardShortcut(), nextShortcut(), saveState(), and validate().

◆ ksIter_

KSTable::const_iterator GUIOptions::ksIter_

mutableprivate

Iterator used in firstShortcut and nextShortcut functions.

Definition at line 192 of file GUIOptions.hh.

Referenced by firstShortcut(), and nextShortcut().

◆ modified_

bool GUIOptions::modified_

private

Indicates whether the options are modified or not.

Definition at line 199 of file GUIOptions.hh.

Referenced by addKeyboardShortcut(), addSeparator(), addToolbarButton(), clearModified(), deleteKeyboardShortcut(), deleteSeparator(), deleteToolbarButton(), GUIOptions(), isModified(), setFullScreen(), setToolbarLayout(), setToolbarVisibility(), setWindowPosition(), and setWindowSize().

◆ name_

std::string GUIOptions::name_

private

Name of the options.

Definition at line 201 of file GUIOptions.hh.

◆ OSKEY_FULL_SCREEN

const string GUIOptions::OSKEY_FULL_SCREEN = "fscreen"

static

ObjectState attribute key for full screen feature.

Definition at line 131 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), GUIOptionsSerializer::convertToOptionsObjectFormat(), loadState(), saveState(), and GUIOptionsSerializer::setWindowProperties().

◆ OSKEY_POSITION

const string GUIOptions::OSKEY_POSITION = "pos"

static

ObjectState attribute key for separator position.

Definition at line 153 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), loadState(), saveState(), and GUIOptionsSerializer::setToolbarProperties().

◆ OSKEY_TOOLBAR_LAYOUT

const string GUIOptions::OSKEY_TOOLBAR_LAYOUT = "tblayout"

static

ObjectState attribute key for toolbar layout.

Definition at line 143 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), GUIOptionsSerializer::convertToOptionsObjectFormat(), loadState(), saveState(), and GUIOptionsSerializer::setToolbarProperties().

◆ OSKEY_TOOLBAR_VISIBILITY

const string GUIOptions::OSKEY_TOOLBAR_VISIBILITY = "tbvisib"

static

ObjectState attribute key for toolbar visibility.

Definition at line 141 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), GUIOptionsSerializer::convertToOptionsObjectFormat(), loadState(), saveState(), and GUIOptionsSerializer::setToolbarProperties().

◆ OSKEY_WINDOW_HEIGHT

const string GUIOptions::OSKEY_WINDOW_HEIGHT = "wheight"

static

ObjectState attribute key for window height.

Definition at line 135 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), GUIOptionsSerializer::convertToOptionsObjectFormat(), loadState(), saveState(), and GUIOptionsSerializer::setWindowProperties().

◆ OSKEY_WINDOW_WIDTH

const string GUIOptions::OSKEY_WINDOW_WIDTH = "wwidth"

static

ObjectState attribute key for window width.

Definition at line 133 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), GUIOptionsSerializer::convertToOptionsObjectFormat(), loadState(), saveState(), and GUIOptionsSerializer::setWindowProperties().

◆ OSKEY_X_POS

const string GUIOptions::OSKEY_X_POS = "xpos"

static

ObjectState attribute key for window x position.

Definition at line 137 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), GUIOptionsSerializer::convertToOptionsObjectFormat(), loadState(), saveState(), and GUIOptionsSerializer::setWindowProperties().

◆ OSKEY_Y_POS

const string GUIOptions::OSKEY_Y_POS = "ypos"

static

ObjectState attribute key for window y position.

Definition at line 139 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), GUIOptionsSerializer::convertToOptionsObjectFormat(), loadState(), saveState(), and GUIOptionsSerializer::setWindowProperties().

◆ OSNAME_OPTIONS

const string GUIOptions::OSNAME_OPTIONS = "options"

static

ObjectState name for the options.

Definition at line 129 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToOptionsObjectFormat(), loadState(), and saveState().

◆ OSNAME_SEPARATOR

const string GUIOptions::OSNAME_SEPARATOR = "separator"

static

ObjectState name for separator.

Definition at line 151 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), loadState(), saveState(), and GUIOptionsSerializer::setToolbarProperties().

◆ OSVALUE_BOTH

const string GUIOptions::OSVALUE_BOTH = "both"

static

ObjectState attribute value for text & icon layout.

Definition at line 149 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToOptionsObjectFormat(), loadState(), saveState(), and GUIOptionsSerializer::setToolbarProperties().

◆ OSVALUE_ICON

const string GUIOptions::OSVALUE_ICON = "icon"

static

ObjectState attribute value for icon layout.

Definition at line 147 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), loadState(), saveState(), and GUIOptionsSerializer::setToolbarProperties().

◆ OSVALUE_TEXT

const string GUIOptions::OSVALUE_TEXT = "text"

static

ObjectState attribute value for text layout.

Definition at line 145 of file GUIOptions.hh.

Referenced by GUIOptionsSerializer::convertToConfigFileFormat(), loadState(), saveState(), and GUIOptionsSerializer::setToolbarProperties().

◆ separatorIter_

SeparatorTable::const_iterator GUIOptions::separatorIter_

mutableprivate

Iterator used in firstSeparator and nextSeparator functions.

Definition at line 196 of file GUIOptions.hh.

Referenced by firstSeparator(), and nextSeparator().

◆ tbIter_

TBTable::const_iterator GUIOptions::tbIter_

mutableprivate

Iterator used in firstToolbarButton and nextToolbarButton functions.

Definition at line 194 of file GUIOptions.hh.

Referenced by firstToolbarButton(), and nextToolbarButton().

◆ TOOLBAR_SEPARATOR

const string GUIOptions::TOOLBAR_SEPARATOR = "-- separator --"

static

Toolbar separator name.

Definition at line 127 of file GUIOptions.hh.

Referenced by OptionsDialog::readOptions(), OptionsDialog::TransferDataToWindow(), and OptionsDialog::writeOptions().

◆ toolbarButtons_

TBTable GUIOptions::toolbarButtons_

private

Toolbar buttons.

Definition at line 189 of file GUIOptions.hh.

Referenced by addToolbarButton(), deleteAllToolbarButtons(), deleteToolbarButton(), firstToolbarButton(), GUIOptions(), nextToolbarButton(), saveState(), and validate().

◆ toolbarLayout_

ToolbarLayout GUIOptions::toolbarLayout_

private

Layout of the toolbar.

Definition at line 183 of file GUIOptions.hh.

Referenced by GUIOptions(), loadState(), saveState(), setToolbarLayout(), and toolbarLayout().

◆ toolbarSeparators_

SeparatorTable GUIOptions::toolbarSeparators_

private

Toolbar separators.

Definition at line 185 of file GUIOptions.hh.

Referenced by addSeparator(), deleteSeparator(), firstSeparator(), GUIOptions(), nextSeparator(), saveState(), and validate().

◆ toolbarVisibility_

bool GUIOptions::toolbarVisibility_

private

If true, the toolbar is visible.

Definition at line 181 of file GUIOptions.hh.

Referenced by GUIOptions(), loadState(), saveState(), setToolbarVisibility(), and toolbarVisibility().

◆ windowHeight_

int GUIOptions::windowHeight_

private

Default height of the window.

Definition at line 175 of file GUIOptions.hh.

Referenced by GUIOptions(), loadState(), saveState(), setWindowSize(), and windowHeight().

◆ windowWidth_

int GUIOptions::windowWidth_

private

Default width of the window.

Definition at line 173 of file GUIOptions.hh.

Referenced by GUIOptions(), loadState(), saveState(), setWindowSize(), and windowWidth().

◆ xPosition_

int GUIOptions::xPosition_

private

Default x position of left side of the application window.

Definition at line 177 of file GUIOptions.hh.

Referenced by GUIOptions(), loadState(), saveState(), setWindowPosition(), and xPosition().

◆ yPosition_

int GUIOptions::yPosition_

private

Default y position of the upper side of the application window.

Definition at line 179 of file GUIOptions.hh.

Referenced by GUIOptions(), loadState(), saveState(), setWindowPosition(), and yPosition().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Private Types

Private Attributes

Detailed Description

Member Typedef Documentation

◆ KSTable

◆ SeparatorTable

◆ TBTable

Member Enumeration Documentation

◆ ToolbarLayout

Constructor & Destructor Documentation

◆ GUIOptions() [1/3]

◆ GUIOptions() [2/3]

◆ GUIOptions() [3/3]

◆ ~GUIOptions()

Member Function Documentation

◆ addKeyboardShortcut()

◆ addSeparator()

◆ addToolbarButton()

◆ clearModified()

◆ createToolbar()

◆ deleteAllKeyboardShortcuts()

◆ deleteAllToolbarButtons()

◆ deleteKeyboardShortcut()

◆ deleteSeparator()

◆ deleteToolbarButton()

◆ fileName()

◆ firstSeparator()

◆ firstShortcut()

◆ firstToolbarButton()

◆ fullScreen()

◆ hasFileName()

◆ isModified()

◆ keyboardShortcut()

◆ loadState()

◆ nextSeparator()

◆ nextShortcut()

◆ nextToolbarButton()

◆ saveState()

◆ setFileName()

◆ setFullScreen()

◆ setToolbarLayout()

◆ setToolbarVisibility()

◆ setWindowPosition()

◆ setWindowSize()

◆ toolbarLayout()

◆ toolbarVisibility()

◆ validate()

◆ windowHeight()

◆ windowWidth()

◆ xPosition()

◆ yPosition()

Member Data Documentation

◆ fileName_

◆ fullScreen_

◆ keyboardShortcuts_

◆ ksIter_

◆ modified_

◆ name_

◆ OSKEY_FULL_SCREEN

◆ OSKEY_POSITION

◆ OSKEY_TOOLBAR_LAYOUT

◆ OSKEY_TOOLBAR_VISIBILITY

◆ OSKEY_WINDOW_HEIGHT

◆ OSKEY_WINDOW_WIDTH

◆ OSKEY_X_POS

◆ OSKEY_Y_POS

◆ OSNAME_OPTIONS

◆ OSNAME_SEPARATOR

◆ OSVALUE_BOTH

◆ OSVALUE_ICON

◆ OSVALUE_TEXT

◆ separatorIter_

◆ tbIter_

◆ TOOLBAR_SEPARATOR

◆ toolbarButtons_

◆ toolbarLayout_
