ProDeOptionsSerializer Class Reference

#include <ProDeOptionsSerializer.hh>

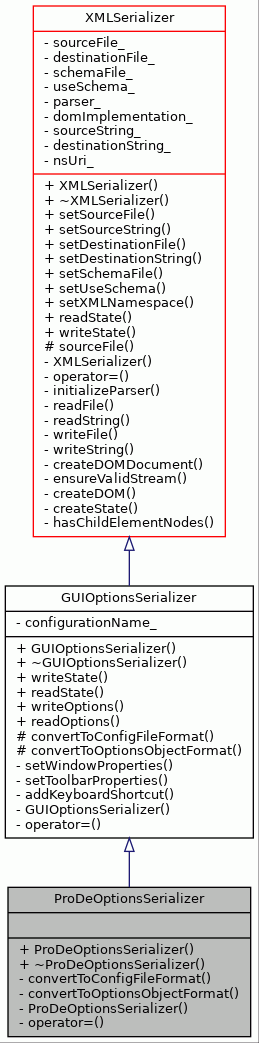

Inheritance diagram for ProDeOptionsSerializer:

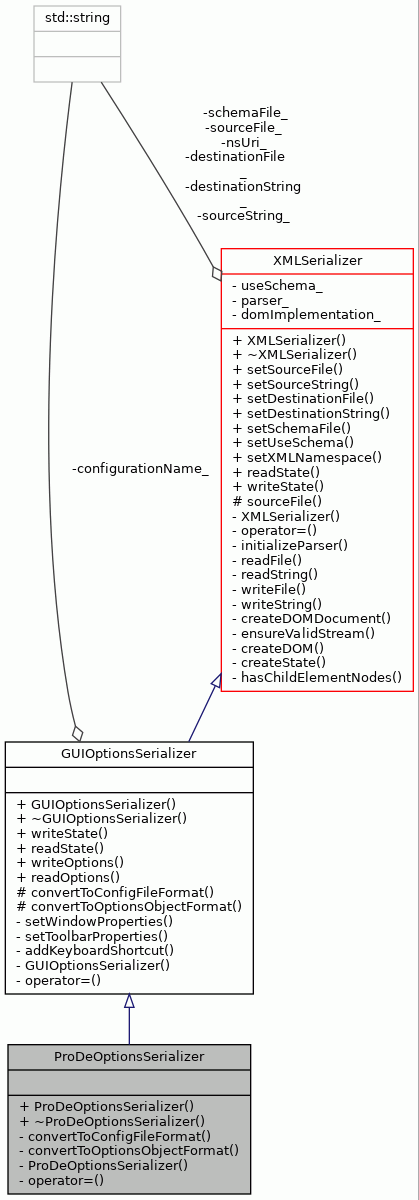

Collaboration diagram for ProDeOptionsSerializer:

Public Member Functions
	ProDeOptionsSerializer ()
virtual	~ProDeOptionsSerializer ()
Public Member Functions inherited from GUIOptionsSerializer
	GUIOptionsSerializer (std::string configurationName)
virtual	~GUIOptionsSerializer ()
void	writeState (const ObjectState *optionsState)
ObjectState *	readState ()
void	writeOptions (const GUIOptions &options)
GUIOptions *	readOptions ()
Public Member Functions inherited from XMLSerializer
	XMLSerializer ()
virtual	~XMLSerializer ()
void	setSourceFile (const std::string &fileName)
void	setSourceString (const std::string &source)
void	setDestinationFile (const std::string &fileName)
void	setDestinationString (std::string &destination)
void	setSchemaFile (const std::string &fileName)
void	setUseSchema (bool useSchema)
void	setXMLNamespace (std::string nsUri)
Public Member Functions inherited from TCETools::Serializer
virtual	~Serializer ()

Private Member Functions
ObjectState *	convertToConfigFileFormat (const ObjectState *options) const
ObjectState *	convertToOptionsObjectFormat (const ObjectState *root) const
	ProDeOptionsSerializer (const ProDeOptionsSerializer &)
	Copying not allowed. More...
ProDeOptionsSerializer &	operator= (const ProDeOptionsSerializer &)
	Assignment not allowed. More...

Additional Inherited Members
Protected Member Functions inherited from XMLSerializer
std::string	sourceFile () const

Detailed Description

Reads/writes ProDe options from/to an XML file.

Definition at line 43 of file ProDeOptionsSerializer.hh.

Constructor & Destructor Documentation

ProDeOptionsSerializer() [1/2]

ProDeOptionsSerializer::ProDeOptionsSerializer

(

)

Constructor.

Definition at line 53 of file ProDeOptionsSerializer.cc.

                                               :
    GUIOptionsSerializer(ProDeOptions::CONFIGURATION_NAME) {
}

~ProDeOptionsSerializer()

ProDeOptionsSerializer::~ProDeOptionsSerializer ( )

virtual

Destructor.

Definition at line 61 of file ProDeOptionsSerializer.cc.

                                                {
}

ProDeOptionsSerializer() [2/2]

ProDeOptionsSerializer::ProDeOptionsSerializer ( const ProDeOptionsSerializer &  )

private

Copying not allowed.

Member Function Documentation

convertToConfigFileFormat()

ObjectState * ProDeOptionsSerializer::convertToConfigFileFormat ( const ObjectState *  options ) const

privatevirtual

Converts the given ObjectState tree created by ProDeOptions::saveState to the format of configuration file.

Parameters

options

ObjectState tree to be converted.

Returns

The newly created ObjectState tree which matches with configuration file format.

Reimplemented from GUIOptionsSerializer.

Definition at line 74 of file ProDeOptionsSerializer.cc.

                                      {

    ObjectState* root =
        GUIOptionsSerializer::convertToConfigFileFormat(options);

    // add undo stack size
    ObjectState* undoStack = new ObjectState(UNDO);
    root->addChild(undoStack);
    undoStack->setAttribute(
        UNDO_SIZE, options->stringAttribute(
          ProDeOptions::OSKEY_UNDO_STACK_SIZE));

    return root;
}

References ObjectState::addChild(), GUIOptionsSerializer::convertToConfigFileFormat(), options, ProDeOptions::OSKEY_UNDO_STACK_SIZE, ObjectState::setAttribute(), UNDO, and UNDO_SIZE.

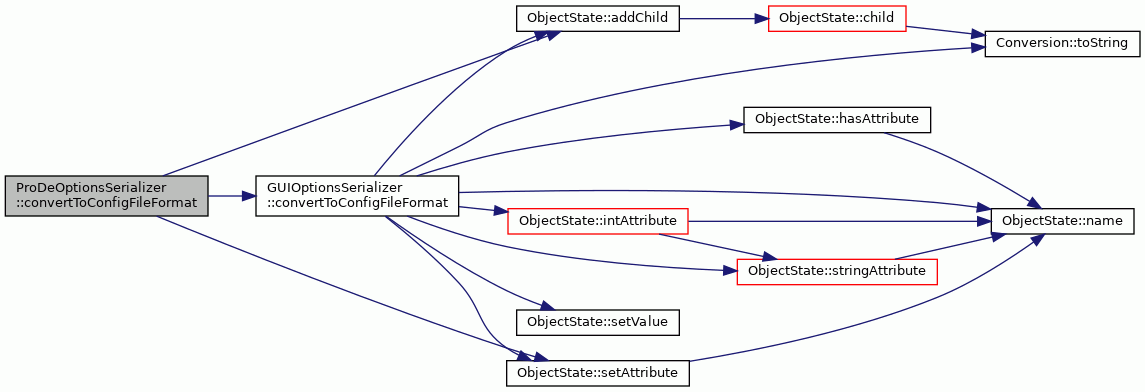

Here is the call graph for this function:

convertToOptionsObjectFormat()

ObjectState * ProDeOptionsSerializer::convertToOptionsObjectFormat ( const ObjectState *  root ) const

privatevirtual

Creates a new ObjectState tree which can be given to ProDeOptions constructor. The tree is created according to the given tree which matches with the syntax of the options file.

Parameters

root	Root node of the ObjectState tree to be converted.

Reimplemented from GUIOptionsSerializer.

Definition at line 99 of file ProDeOptionsSerializer.cc.

                                   {

    ObjectState* options =
        GUIOptionsSerializer::convertToOptionsObjectFormat(root);

    // set undo stack size
    if (root->hasChild(UNDO)) {
        ObjectState* undo = root->childByName(UNDO);
        options->setAttribute(
            ProDeOptions::OSKEY_UNDO_STACK_SIZE,
            undo->stringAttribute(UNDO_SIZE));
    } else {
        options->setAttribute(
            ProDeOptions::OSKEY_UNDO_STACK_SIZE, DEFAULT_UNDO_SIZE);
    }

    return options;
}

References ObjectState::childByName(), GUIOptionsSerializer::convertToOptionsObjectFormat(), DEFAULT_UNDO_SIZE, ObjectState::hasChild(), options, ProDeOptions::OSKEY_UNDO_STACK_SIZE, ObjectState::stringAttribute(), UNDO, and UNDO_SIZE.

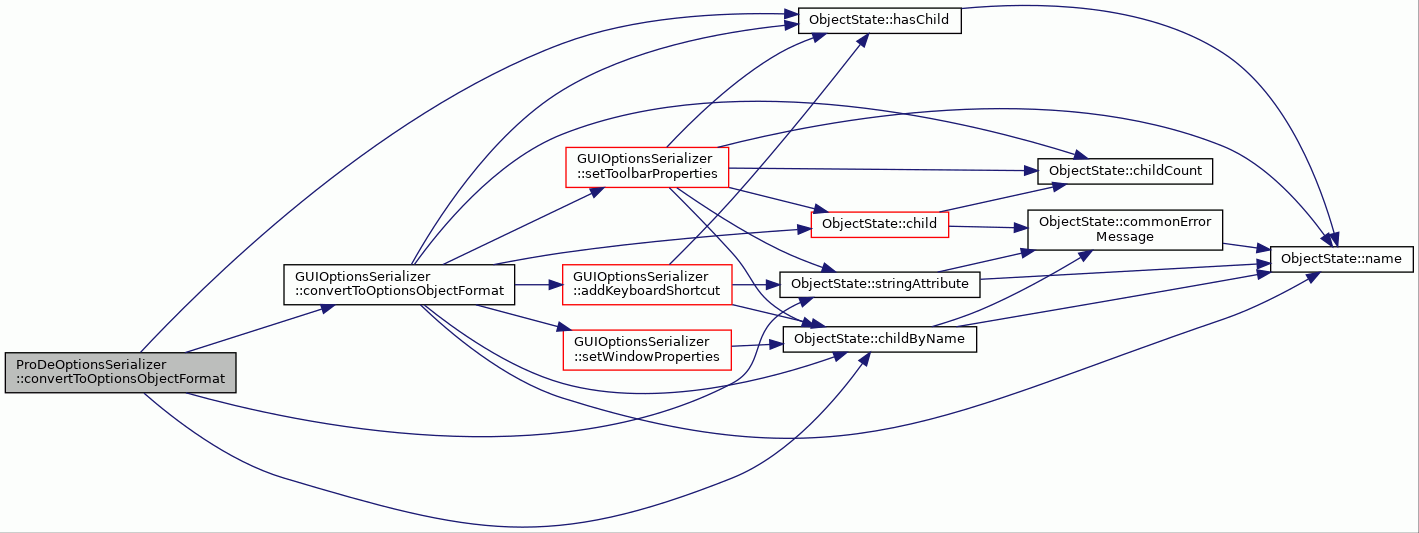

Here is the call graph for this function:

operator=()

ProDeOptionsSerializer& ProDeOptionsSerializer::operator= ( const ProDeOptionsSerializer &  )

private

Assignment not allowed.

---

The documentation for this class was generated from the following files:

• ProDeOptionsSerializer.hh
• ProDeOptionsSerializer.cc
