ProcessorImplementationWindow Class Reference

#include <ProcessorImplementationWindow.hh>

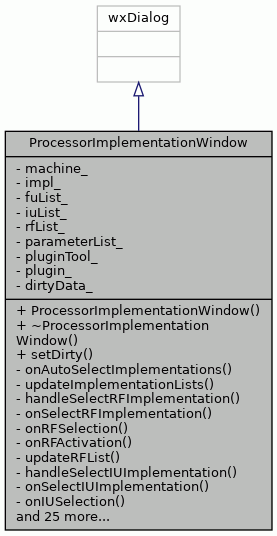

Inheritance diagram for ProcessorImplementationWindow:
Inheritance graph

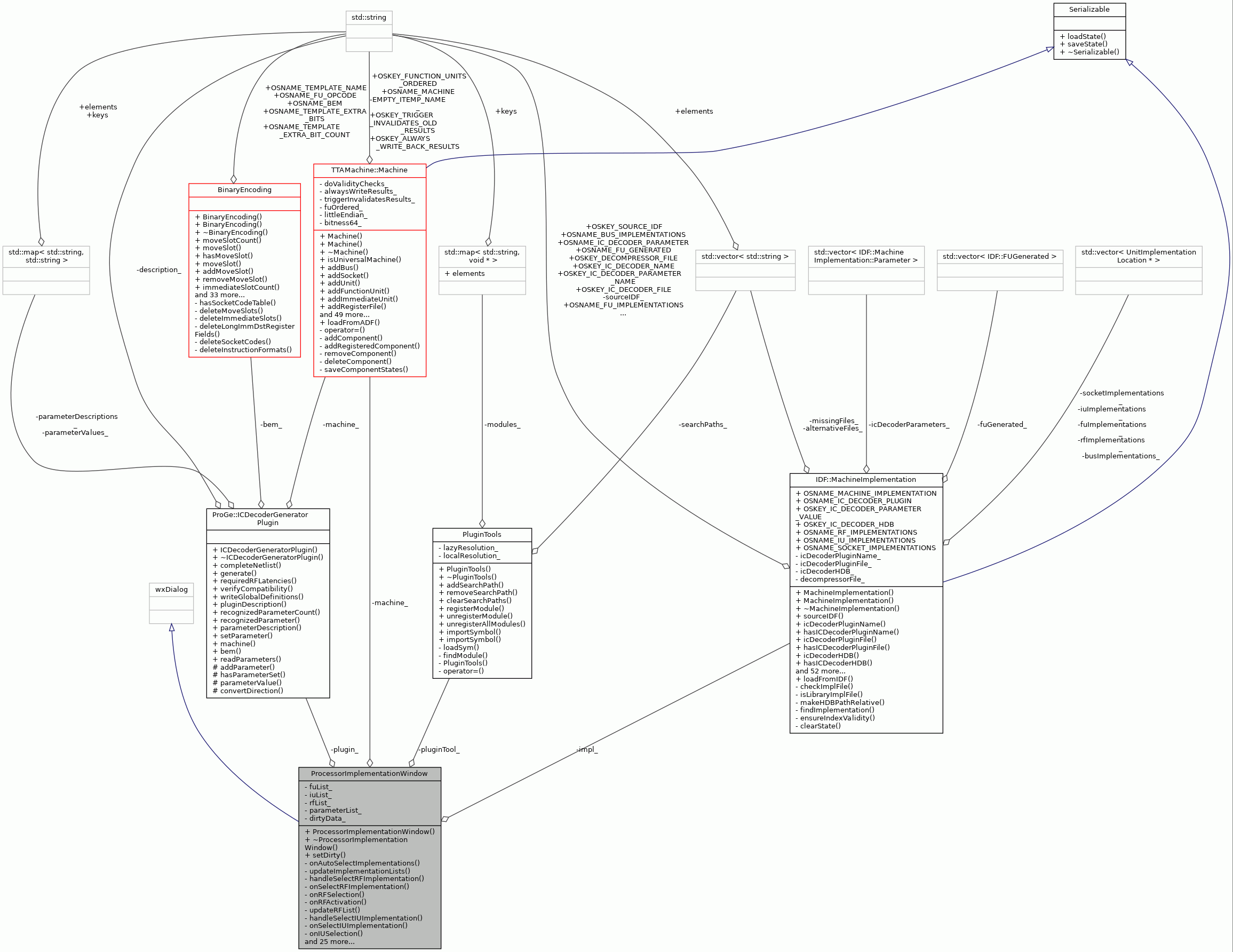

Collaboration diagram for ProcessorImplementationWindow:
Collaboration graph

Public Member Functions

 ProcessorImplementationWindow (wxWindow *parent, TTAMachine::Machine &machine, IDF::MachineImplementation &impl)

virtual ~ProcessorImplementationWindow ()

void setDirty (bool dirty=true)


Private Types

enum  {
  ID_LOAD_IDF, ID_SAVE_IDF, ID_GENERATE_PROCESSOR, ID_FU_LIST,
  ID_IU_LIST, ID_RF_LIST, ID_AUTO_SELECT_IMPL, ID_SELECT_FU_IMPL,
  ID_SELECT_IU_IMPL, ID_SELECT_RF_IMPL, ID_BROWSE_DECOMPRESSOR, ID_BROWSE_IC_DEC_PLUGIN,
  ID_BROWSE_IC_DEC_HDB, ID_DECOMPRESSOR_PATH, ID_IC_DEC_PLUGIN_FILE, ID_IC_DEC_PLUGIN_NAME,
  ID_IC_DEC_PLUGIN_DESC, ID_IC_DEC_HDB_FILE, ID_PARAMETER_LIST, ID_PARAMETER_VALUE,
  ID_SET_VALUE, ID_NOTEBOOK, ID_GENERATE, ID_CLOSE,
  ID_TEXT, ID_LINE
}


Private Member Functions

void onAutoSelectImplementations (wxCommandEvent &event)

void updateImplementationLists ()

void handleSelectRFImplementation (long item)

void onSelectRFImplementation (wxCommandEvent &event)

void onRFSelection (wxListEvent &event)

void onRFActivation (wxListEvent &event)

void updateRFList (const std::string &rfName, int index)

void handleSelectIUImplementation (long item)

void onSelectIUImplementation (wxCommandEvent &event)

void onIUSelection (wxListEvent &event)

void onIUActivation (wxListEvent &event)

void handleSelectFUImplementation (long item)

void onSelectFUImplementation (wxCommandEvent &event)

void onFUSelection (wxListEvent &event)

void onFUActivation (wxListEvent &event)

void updateFUList (const std::string &fuName, int index)

void onSetParameterValue (wxCommandEvent &event)

void onBrowseDecompressor (wxCommandEvent &event)

void onBrowseICDecPlugin (wxCommandEvent &event)

void onBrowseICHDB (wxCommandEvent &event)

void loadICDecoderPlugin (const std::string &pluginName, const std::string &pluginFile)

void onParameterSelection (wxListEvent &event)

virtual bool TransferDataToWindow ()

void onLoadIDF (wxCommandEvent &event)

void onSaveIDF (wxCommandEvent &event)

void onClose (wxCommandEvent &event)

void onGenerateProcessor (wxCommandEvent &event)

void doSaveIDF ()

void checkImplementationFiles ()

wxSizer * createContents (wxWindow *parent, bool call_fit, bool set_sizer)

wxSizer * functionUnitPage (wxWindow *parent, bool call_fit, bool set_sizer=true)

wxSizer * registerFilePage (wxWindow *parent, bool call_fit, bool set_sizer=true)

wxSizer * immediateUnitPage (wxWindow *parent, bool call_fit, bool set_sizer=true)

wxSizer * decompressionPage (wxWindow *parent, bool call_fit, bool set_sizer=true)

wxSizer * icDecoderPluginPage (wxWindow *parent, bool call_fit, bool set_sizer=true)


Private Attributes

TTAMachine::Machine & machine_
 Machine that is being generated. More...

IDF::MachineImplementation & impl_
 MachineImplementation object containing the implementation information. More...

wxListCtrl * fuList_
 Pointer to the FU implementation list widget. More...

wxListCtrl * iuList_
 Pointer to the IU implementation list widget. More...

wxListCtrl * rfList_
 Pointer to the RF implementation list widget. More...

wxListCtrl * parameterList_
 Pointer to the ic decoder parameter list widget. More...

PluginTools pluginTool_
 Plugintool for loading IC/Decoder plugins. More...

ProGe::ICDecoderGeneratorPlugin * plugin_
 IC/Decoder plugin of the current machine implementation. More...

bool dirtyData_


Detailed Description

Processor implementation window.

Definition at line 55 of file ProcessorImplementationWindow.hh.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum
private
Enumerator
ID_LOAD_IDF
ID_SAVE_IDF
ID_GENERATE_PROCESSOR
ID_FU_LIST
ID_IU_LIST
ID_RF_LIST
ID_AUTO_SELECT_IMPL
ID_SELECT_FU_IMPL
ID_SELECT_IU_IMPL
ID_SELECT_RF_IMPL
ID_BROWSE_DECOMPRESSOR
ID_BROWSE_IC_DEC_PLUGIN
ID_BROWSE_IC_DEC_HDB
ID_DECOMPRESSOR_PATH
ID_IC_DEC_PLUGIN_FILE
ID_IC_DEC_PLUGIN_NAME
ID_IC_DEC_PLUGIN_DESC
ID_IC_DEC_HDB_FILE
ID_PARAMETER_LIST
ID_PARAMETER_VALUE
ID_SET_VALUE
ID_NOTEBOOK
ID_GENERATE
ID_CLOSE
ID_TEXT
ID_LINE

Definition at line 137 of file ProcessorImplementationWindow.hh.

137  {
138  ID_LOAD_IDF,
139  ID_SAVE_IDF,
140  ID_GENERATE_PROCESSOR,
141  ID_FU_LIST,
142  ID_IU_LIST,
143  ID_RF_LIST,
144  ID_AUTO_SELECT_IMPL,
145  ID_SELECT_FU_IMPL,
146  ID_SELECT_IU_IMPL,
147  ID_SELECT_RF_IMPL,
148  ID_BROWSE_DECOMPRESSOR,
149  ID_BROWSE_IC_DEC_PLUGIN,
150  ID_BROWSE_IC_DEC_HDB,
151  ID_DECOMPRESSOR_PATH,
152  ID_IC_DEC_PLUGIN_FILE,
153  ID_IC_DEC_PLUGIN_NAME,
154  ID_IC_DEC_PLUGIN_DESC,
155  ID_IC_DEC_HDB_FILE,
156  ID_PARAMETER_LIST,
157  ID_PARAMETER_VALUE,
158  ID_SET_VALUE,
159  ID_NOTEBOOK,
160  ID_GENERATE,
161  ID_CLOSE,
162  ID_TEXT,
163  ID_LINE
164  };

Constructor & Destructor Documentation

◆ ProcessorImplementationWindow()

ProcessorImplementationWindow::ProcessorImplementationWindow ( wxWindow *  parent,
TTAMachine::Machine &  machine,
IDF::MachineImplementation &  impl
)

Constructor.

Parameters
parentParent window of the page.
machineProcessor architecture.
implProcessor implementation definition.

Definition at line 123 of file ProcessorImplementationWindow.cc.

125  :
126  wxDialog(parent, -1, _T("Processor Implementation"),
127  wxDefaultPosition, wxDefaultSize,
128  wxDEFAULT_DIALOG_STYLE | wxRESIZE_BORDER),
129  machine_(machine), impl_(impl), plugin_(NULL), dirtyData_(false) {
130
131  createContents(this, true, true);
132  SetMinSize(wxSize(600, 500));
133
134  // Plugin name is always fixed, thus disable editing
135  dynamic_cast<wxTextCtrl*>(FindWindow(ID_IC_DEC_PLUGIN_NAME))->
136  Enable(false);
137
138  fuList_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_FU_LIST));
139  rfList_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_RF_LIST));
140  iuList_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_IU_LIST));
141  parameterList_ = dynamic_cast<wxListCtrl*>(FindWindow(ID_PARAMETER_LIST));
142
143  // Add FU and RF list columns.
144  fuList_->InsertColumn(0, _T("FU"), wxLIST_FORMAT_LEFT, 150);
145  fuList_->InsertColumn(1, _T("ID"), wxLIST_FORMAT_LEFT, 40);
146  fuList_->InsertColumn(2, _T("HDB"), wxLIST_FORMAT_LEFT, 400);
147
148  rfList_->InsertColumn(0, _T("RF"), wxLIST_FORMAT_LEFT, 150);
149  rfList_->InsertColumn(1, _T("ID"), wxLIST_FORMAT_LEFT, 40);
150  rfList_->InsertColumn(2, _T("HDB"), wxLIST_FORMAT_LEFT, 400);
151
152  iuList_->InsertColumn(0, _T("IU"), wxLIST_FORMAT_LEFT, 150);
153  iuList_->InsertColumn(1, _T("ID"), wxLIST_FORMAT_LEFT, 40);
154  iuList_->InsertColumn(2, _T("HDB"), wxLIST_FORMAT_LEFT, 400);
155
156  parameterList_->InsertColumn(0, _T("Name"), wxLIST_FORMAT_LEFT, 150);
157  parameterList_->InsertColumn(1, _T("Value"), wxLIST_FORMAT_LEFT, 100);
158  parameterList_->InsertColumn(
159  2, _T("Description"), wxLIST_FORMAT_LEFT, 300);
160
161  // Disable conditional buttons by default.
162  FindWindow(ID_SELECT_RF_IMPL)->Disable();
163  FindWindow(ID_SELECT_IU_IMPL)->Disable();
164  FindWindow(ID_SELECT_FU_IMPL)->Disable();
165  FindWindow(ID_SET_VALUE)->Disable();
166
167  // Load default plugin
168  std::string pluginFile = Environment::defaultICDecoderPlugin();
169  std::string pluginName = FileSystem::fileNameBody(pluginFile);
170  assert(pluginName.length() > 6);
171  pluginName = pluginName.substr(0, pluginName.length() - 6);
172
173  loadICDecoderPlugin(pluginName, pluginFile);
174
175 }

References assert, Environment::defaultICDecoderPlugin(), and FileSystem::fileNameBody().

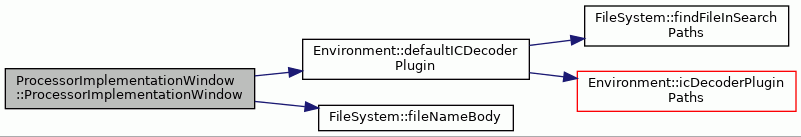

Here is the call graph for this function:

◆ ~ProcessorImplementationWindow()

ProcessorImplementationWindow::~ProcessorImplementationWindow ( )
virtual

Destructor.

Definition at line 181 of file ProcessorImplementationWindow.cc.

181  {
182 }

Member Function Documentation

◆ checkImplementationFiles()

void ProcessorImplementationWindow::checkImplementationFiles ( )
private

Checks if every file path defined in IDF is correct.

If one or more file paths are invalid, warning dialog is shown to user.

Definition at line 993 of file ProcessorImplementationWindow.cc.

993  {
994  size_t missingFileCount;
995  size_t alternativesCount;
996
997  // check implementation files, and try to fix paths for unresolved files
998  if (impl_.checkImplFiles(missingFileCount, alternativesCount)) {
999  // if all the files were located, exit method
1000  return;
1001  }
1002
1003  // every file was not found, get missing files and possible alternatives
1004  wxString missFileCountStr = WxConversion::toWxString(
1005  static_cast<int>(missingFileCount));
1006  wxString altFileCountStr = WxConversion::toWxString(
1007  static_cast<int>(alternativesCount));
1008
1009  // form message for the dialog
1010  wxString message = missFileCountStr;
1011  message.Append(_T(" file(s) defined in IDF couldn't be located from"));
1012  message.Append(_T(" absolute paths or under working directory.\n"));
1013  message.Append(_T("\n"));
1014
1015  if (alternativesCount > 0) {
1016  message.Append(altFileCountStr);
1017  message.Append(_T(" of them were replaced with file(s) found under"));
1018  message.Append(_T(" the default search paths."));
1019  } else {
1020  message.Append(_T("Any alternative file paths couldn't be"));
1021  message.Append(_T(" located for the missing files."));
1022  }
1023
1024  WarningDialog warningDialog(this, message);
1025  warningDialog.ShowModal();
1026 }

References WxConversion::toWxString().

Here is the call graph for this function:

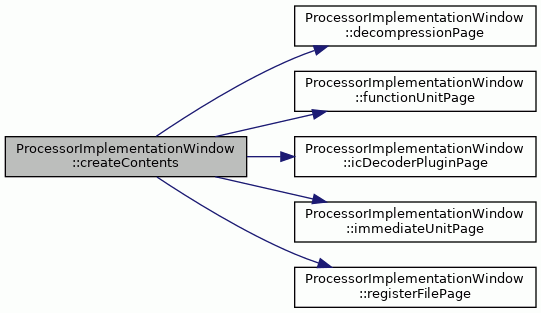

◆ createContents()

wxSizer * ProcessorImplementationWindow::createContents ( wxWindow *  parent,
bool  call_fit,
bool  set_sizer
)
private

Creates the dialog widgets.

Code geenrated by wxDesigner. Do not modify manually.

Parameters
parentParent window of the created widget hierarchy.
call_fitFit parent window size.
set_sizerSet the created top level sizer as the parent win contents.

Definition at line 1039 of file ProcessorImplementationWindow.cc.

1040 {
1041  wxFlexGridSizer *item0 = new wxFlexGridSizer( 1, 0, 0 );
1042  item0->AddGrowableCol( 0 );
1043  item0->AddGrowableRow( 0 );
1044
1045  wxNotebook *item2 = new wxNotebook( parent, ID_NOTEBOOK, wxDefaultPosition, wxDefaultSize, 0 );
1046 #if !wxCHECK_VERSION(2,5,2)
1047  wxNotebookSizer *item1 = new wxNotebookSizer( item2 );
1048 #else
1049  wxWindow *item1 = item2;
1050 #endif
1051
1052  wxPanel *item3 = new wxPanel( item2, -1 );
1053  ProcessorImplementationWindow::registerFilePage( item3, FALSE );
1054  item2->AddPage( item3, wxT("Register Files") );
1055
1056  wxPanel *item4 = new wxPanel( item2, -1 );
1057  ProcessorImplementationWindow::immediateUnitPage( item4, FALSE );
1058  item2->AddPage( item4, wxT("Immediate Units") );
1059
1060  wxPanel *item5 = new wxPanel( item2, -1 );
1061  ProcessorImplementationWindow::functionUnitPage( item5, FALSE );
1062  item2->AddPage( item5, wxT("Function Units") );
1063
1064  wxPanel *item6 = new wxPanel( item2, -1 );
1065  ProcessorImplementationWindow::decompressionPage( item6, FALSE );
1066  item2->AddPage( item6, wxT("Instruction Compression") );
1067
1068  wxPanel *item7 = new wxPanel( item2, -1 );
1069  ProcessorImplementationWindow::icDecoderPluginPage( item7, FALSE );
1070  item2->AddPage( item7, wxT("IC / Decoder Plugin") );
1071
1072  item0->Add( item1, 0, wxFIXED_MINSIZE|wxGROW|wxALL, 5 );
1073
1074  wxStaticLine *item8 = new wxStaticLine( parent, ID_LINE, wxDefaultPosition, wxSize(200,-1), wxLI_HORIZONTAL );
1075  item0->Add( item8, 0, wxFIXED_MINSIZE|wxGROW|wxALL, 5 );
1076
1077  wxGridSizer *item9 = new wxGridSizer( 2, 0, 0 );
1078
1079  wxBoxSizer *item10 = new wxBoxSizer( wxHORIZONTAL );
1080
1081  wxButton *item11 = new wxButton( parent, ID_LOAD_IDF, wxT("Load IDF..."), wxDefaultPosition, wxDefaultSize, 0 );
1082  item10->Add( item11, 0, wxFIXED_MINSIZE|wxALIGN_CENTER_VERTICAL|wxALL, 5 );
1083
1084  wxButton *item12 = new wxButton( parent, ID_SAVE_IDF, wxT("Save IDF..."), wxDefaultPosition, wxDefaultSize, 0 );
1085  item10->Add( item12, 0, wxFIXED_MINSIZE|wxALIGN_CENTER|wxALL, 5 );
1086
1087  wxButton *item13 = new wxButton( parent, ID_GENERATE, wxT("Generate Processor"), wxDefaultPosition, wxDefaultSize, 0 );
1088  item10->Add( item13, 0, wxFIXED_MINSIZE|wxALIGN_CENTER|wxALL, 5 );
1089
1090  item9->Add( item10, 0, wxFIXED_MINSIZE|wxALIGN_CENTER_VERTICAL, 5 );
1091
1092  wxBoxSizer *item14 = new wxBoxSizer( wxHORIZONTAL );
1093
1094  wxButton *item15 = new wxButton( parent, ID_CLOSE, wxT("Close"), wxDefaultPosition, wxDefaultSize, 0 );
1095  item14->Add( item15, 0, wxFIXED_MINSIZE|wxALIGN_CENTER|wxALL, 5 );
1096
1097  item9->Add( item14, 0, wxFIXED_MINSIZE|wxALIGN_CENTER_VERTICAL, 5 );
1098
1099  item0->Add( item9, 0, wxFIXED_MINSIZE|wxGROW|wxALL, 5 );
1100
1101  if (set_sizer)
1102  {
1103  parent->SetSizer( item0 );
1104  if (call_fit)
1105  item0->SetSizeHints( parent );
1106  }
1107
1108  return item0;
1109 }

References decompressionPage(), FALSE, functionUnitPage(), icDecoderPluginPage(), immediateUnitPage(), and registerFilePage().

Here is the call graph for this function:

◆ decompressionPage()

wxSizer * ProcessorImplementationWindow::decompressionPage ( wxWindow *  parent,
bool  call_fit,
bool  set_sizer = true
)
private

Definition at line 1167 of file ProcessorImplementationWindow.cc.

1168 {
1169  wxFlexGridSizer *item0 = new wxFlexGridSizer( 1, 0, 0 );
1170  item0->AddGrowableCol( 0 );
1171
1172  item0->Add( 20, 20, 0, wxALIGN_CENTER|wxALL, 5 );
1173
1174  wxStaticBox *item2 = new wxStaticBox( parent, -1, wxT("Instruction Decompressor:") );
1175  wxStaticBoxSizer *item1 = new wxStaticBoxSizer( item2, wxVERTICAL );
1176
1177  wxFlexGridSizer *item3 = new wxFlexGridSizer( 2, 0, 0 );
1178
1179  wxStaticText *item4 = new wxStaticText( parent, ID_TEXT, wxT("Decompressor block file:"), wxDefaultPosition, wxDefaultSize, 0 );
1180  item3->Add( item4, 0, wxALL, 5 );
1181
1182  item3->Add( 20, 20, 0, wxALIGN_CENTER|wxALL, 5 );
1183
1184  wxTextCtrl *item5 = new wxTextCtrl( parent, ID_DECOMPRESSOR_PATH, wxT(""), wxDefaultPosition, wxSize(250,-1), wxTE_READONLY );
1185  item3->Add( item5, 0, wxALIGN_CENTER|wxALL, 5 );
1186
1187  wxButton *item6 = new wxButton( parent, ID_BROWSE_DECOMPRESSOR, wxT("Browse..."), wxDefaultPosition, wxDefaultSize, 0 );
1188  item3->Add( item6, 0, wxALIGN_CENTER|wxALL, 5 );
1189
1190  item1->Add( item3, 0, wxGROW|wxALL, 5 );
1191
1192  item0->Add( item1, 0, wxGROW|wxALL, 5 );
1193
1194  item0->Add( 20, 20, 0, wxALIGN_CENTER|wxALL, 5 );
1195
1196  if (set_sizer)
1197  {
1198  parent->SetSizer( item0 );
1199  if (call_fit)
1200  item0->SetSizeHints( parent );
1201  }
1202
1203  return item0;
1204 }

Referenced by createContents().

◆ doSaveIDF()

void ProcessorImplementationWindow::doSaveIDF ( )
private

Definition at line 719 of file ProcessorImplementationWindow.cc.

719  {
720  wxString message = _T("Save implementation.");
721  wxString defaultDir = _T(".");
722
723  wxDocument* doc = wxGetApp().docManager()->GetCurrentDocument();
724  wxString defaultFile;
725  if (doc != NULL) {
726  defaultFile = doc->GetFilename();
727  defaultFile.erase(defaultFile.rfind('.'));
728  defaultFile += _T(".idf");
729
730  // set default save location to same where the .adf file is
731  string absolutePathToADF = FileSystem::absolutePathOf(
732  WxConversion::toString(defaultFile));
733  defaultDir = WxConversion::toWxString(
734  FileSystem::directoryOfPath(absolutePathToADF));
735  defaultFile = WxConversion::toWxString(
736  FileSystem::fileOfPath(WxConversion::toString(defaultFile)));
737  } else {
738  defaultFile = _T(".idf");
739  }
740
741  wxString fileTypes = _T("Implementation Definition File (.idf)|*.idf");
742
743  wxFileDialog dialog(
744  this, message, defaultDir, defaultFile, fileTypes,
745  wxSAVE | wxOVERWRITE_PROMPT);
746
747  if (dialog.ShowModal() == wxID_OK) {
748  string path = WxConversion::toString(dialog.GetPath());
749  try {
750  // Make local and default file paths relative.
751  std::vector<string> searchPaths;
752  searchPaths.push_back(FileSystem::currentWorkingDir());
753  std::vector<string> hdbSearchPaths = Environment::hdbPaths();
754  impl_.makeImplFilesRelative(searchPaths);
755
756  IDFSerializer serializer;
757  serializer.setDestinationFile(path);
758  serializer.writeMachineImplementation(impl_);
759  setDirty(false);
760  } catch (Exception& e) {
761  wxString message = _T("Error writing '");
762  message.Append(WxConversion::toWxString(path));
763  message.Append(_T("':"));
764  message.Append(WxConversion::toWxString(e.errorMessage()));
765  ErrorDialog dialog(this, message);
766  dialog.ShowModal();
767  }
768  }
769 }

References FileSystem::absolutePathOf(), FileSystem::currentWorkingDir(), FileSystem::directoryOfPath(), Exception::errorMessage(), FileSystem::fileOfPath(), Environment::hdbPaths(), XMLSerializer::setDestinationFile(), WxConversion::toString(), WxConversion::toWxString(), and IDF::IDFSerializer::writeMachineImplementation().

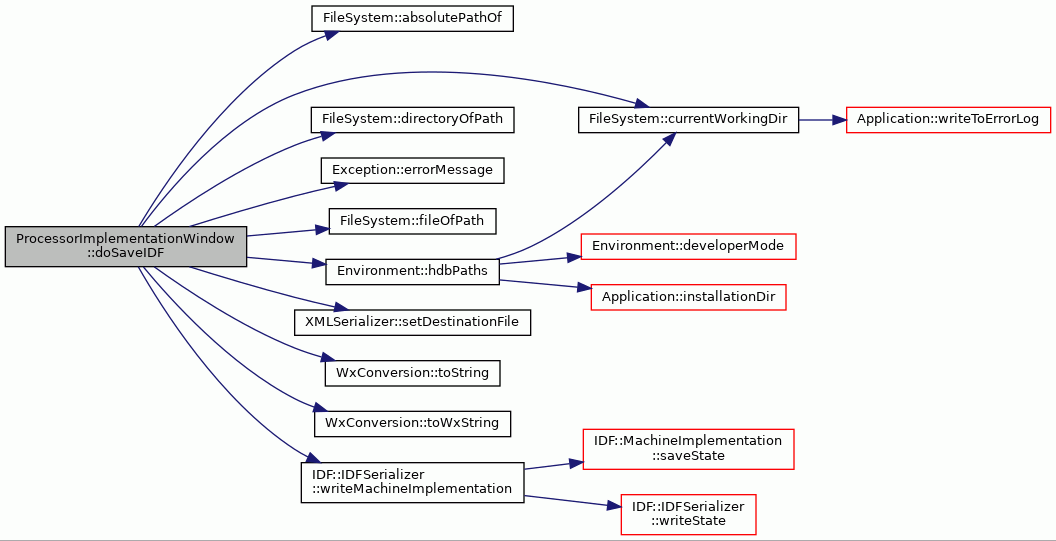

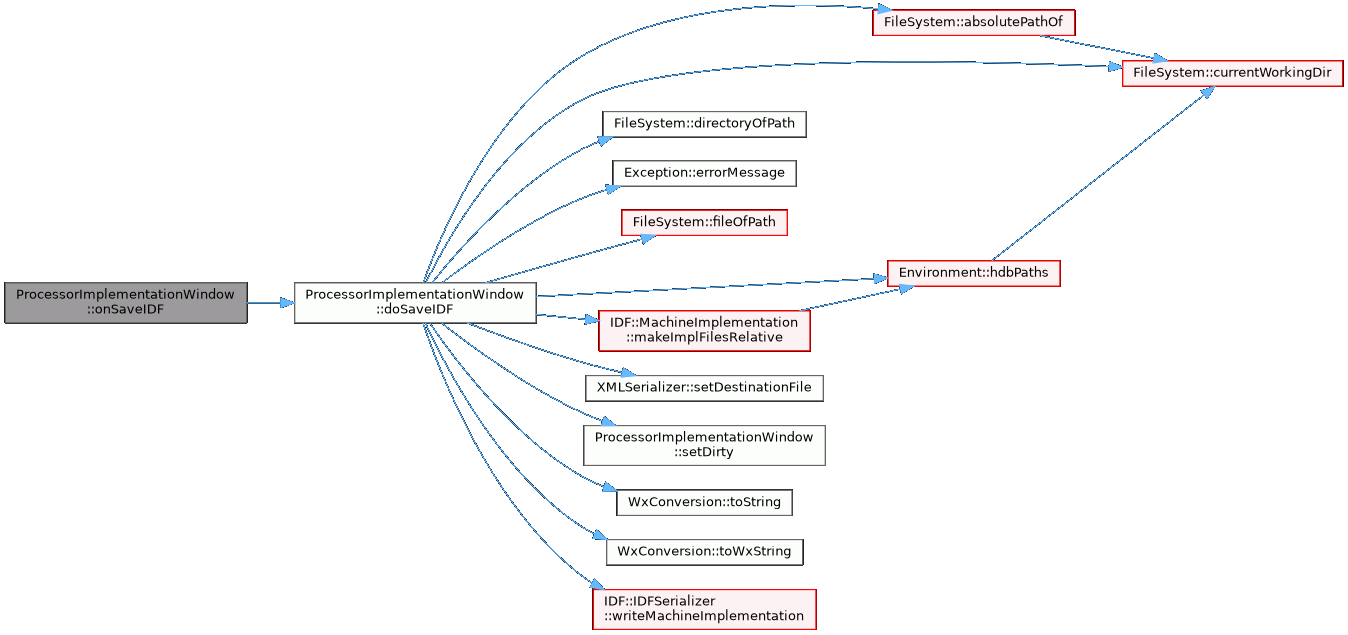

Here is the call graph for this function:

◆ functionUnitPage()

wxSizer * ProcessorImplementationWindow::functionUnitPage ( wxWindow *  parent,
bool  call_fit,
bool  set_sizer = true
)
private

Definition at line 1139 of file ProcessorImplementationWindow.cc.

1140 {
1141  wxFlexGridSizer *item0 = new wxFlexGridSizer( 1, 0, 0 );
1142  item0->AddGrowableCol( 0 );
1143  item0->AddGrowableRow( 0 );
1144
1145  wxListCtrl *item1 = new wxListCtrl( parent, ID_FU_LIST, wxDefaultPosition, wxDefaultSize, wxLC_REPORT|wxLC_SINGLE_SEL|wxSUNKEN_BORDER );
1146  item0->Add( item1, 0, wxGROW|wxALL, 5 );
1147
1148  wxBoxSizer *buttonSizer = new wxBoxSizer( wxHORIZONTAL );
1149  wxButton *autoSelButton = new wxButton( parent, ID_AUTO_SELECT_IMPL, wxT("Auto Select Implementations"), wxDefaultPosition, wxDefaultSize, 0 );
1150  buttonSizer->Add( autoSelButton, 0, wxALIGN_CENTER_VERTICAL|wxALL, 5 );
1151
1152  wxButton *item2 = new wxButton( parent, ID_SELECT_FU_IMPL, wxT("Select implementation..."), wxDefaultPosition, wxDefaultSize, 0 );
1153  buttonSizer->Add( item2, 0, wxALIGN_CENTER_VERTICAL|wxALL, 5 );
1154
1155  item0->Add( buttonSizer, 0, wxALIGN_CENTER_VERTICAL|wxALL, 5 );
1156
1157  if (set_sizer)
1158  {
1159  parent->SetSizer( item0 );
1160  if (call_fit)
1161  item0->SetSizeHints( parent );
1162  }
1163
1164  return item0;
1165 }

Referenced by createContents().

◆ handleSelectFUImplementation()

void ProcessorImplementationWindow::handleSelectFUImplementation ( long  item)
private

Handle calling of the implementation selection dialog and it's return value

Definition at line 508 of file ProcessorImplementationWindow.cc.

508  {
509
510  const FunctionUnit& fu = *machine_.functionUnitNavigator().item(item);
511
512  if (impl_.hasFUImplementation(fu.name())) {
513  BlockImplementationDialog dialog(
514  this, fu, impl_.fuImplementation(fu.name()));
515
516  if (dialog.ShowModal() == wxID_OK) {
517  setDirty();
518  updateFUList(fu.name(), item);
519  }
520  } else {
521  UnitImplementationLocation* location =
522  new FUImplementationLocation("", -1, fu.name());
523
524  BlockImplementationDialog dialog(this, fu, *location);
525  if (dialog.ShowModal() == wxID_OK) {
526  impl_.addFUImplementation(location);
527  setDirty();
528  updateFUList(fu.name(), item);
529  } else {
530  delete location;
531  }
532  }
533 }

References TTAMachine::Component::name().

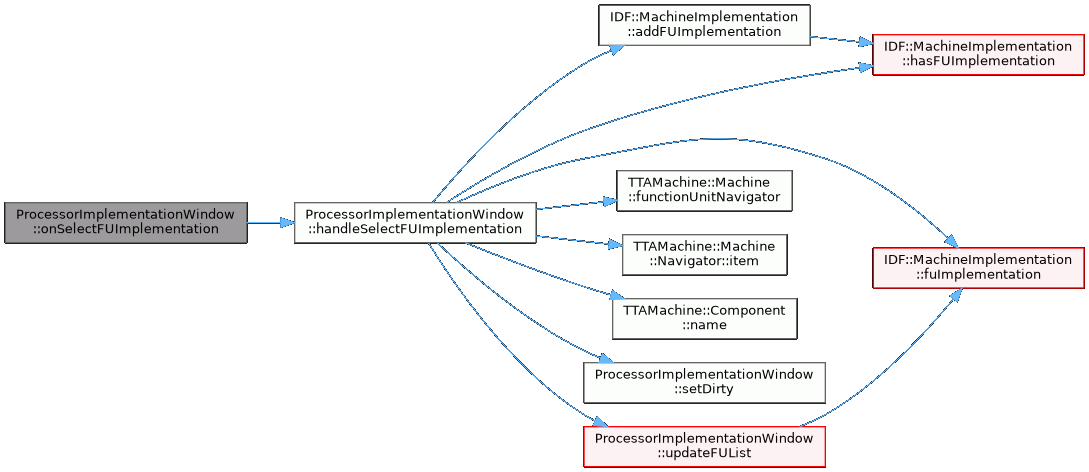

Here is the call graph for this function:

◆ handleSelectIUImplementation()

void ProcessorImplementationWindow::handleSelectIUImplementation ( long  item)
private

Definition at line 434 of file ProcessorImplementationWindow.cc.

434  {
435
436  const ImmediateUnit& iu = *machine_.immediateUnitNavigator().item(item);
437  if (impl_.hasIUImplementation(iu.name())) {
438  BlockImplementationDialog dialog(
439  this, iu, impl_.iuImplementation(iu.name()));
440
441  if (dialog.ShowModal() == wxID_OK) {
442  setDirty();
443  }
444  } else {
445  UnitImplementationLocation* location =
446  new RFImplementationLocation("", -1, iu.name());
447
448  BlockImplementationDialog dialog(this, iu, *location);
449  if (dialog.ShowModal() == wxID_OK) {
450  impl_.addIUImplementation(location);
451  setDirty();
452  } else {
453  delete location;
454  }
455  }
456  TransferDataToWindow();
457 }

References TTAMachine::Component::name().

Here is the call graph for this function:

◆ handleSelectRFImplementation()

void ProcessorImplementationWindow::handleSelectRFImplementation ( long  item)
private

Call the dialog to select RF implementation and handle the return values of the dialog.

Definition at line 381 of file ProcessorImplementationWindow.cc.

381  {
382
383  const RegisterFile& rf = *machine_.registerFileNavigator().item(item);
384  if (impl_.hasRFImplementation(rf.name())) {
385  BlockImplementationDialog dialog(
386  this, rf, impl_.rfImplementation(rf.name()));
387
388  if (dialog.ShowModal() == wxID_OK) {
389  setDirty();
390  updateRFList(rf.name(), item);
391  }
392  } else {
393  UnitImplementationLocation* location =
394  new RFImplementationLocation("", -1, rf.name());
395
396  BlockImplementationDialog dialog(this, rf, *location);
397  if (dialog.ShowModal() == wxID_OK) {
398  impl_.addRFImplementation(location);
399  setDirty();
400  updateRFList(rf.name(), item);
401  } else {
402  delete location;
403  }
404  }
405 }

References TTAMachine::Component::name().

Here is the call graph for this function:

◆ icDecoderPluginPage()

wxSizer * ProcessorImplementationWindow::icDecoderPluginPage ( wxWindow *  parent,
bool  call_fit,
bool  set_sizer = true
)
private

Definition at line 1206 of file ProcessorImplementationWindow.cc.

1207 {
1208  wxFlexGridSizer *item0 = new wxFlexGridSizer( 1, 0, 0 );
1209  item0->AddGrowableCol( 0 );
1210  item0->AddGrowableRow( 0 );
1211
1212  wxFlexGridSizer *item1 = new wxFlexGridSizer( 1, 0, 0 );
1213  item1->AddGrowableCol( 0 );
1214  item1->AddGrowableRow( 1 );
1215
1216  wxFlexGridSizer *item2 = new wxFlexGridSizer( 3, 0, 0 );
1217
1218  wxStaticText *item3 = new wxStaticText( parent, ID_TEXT, wxT("Plugin file:"), wxDefaultPosition, wxDefaultSize, 0 );
1219  item2->Add( item3, 0, wxALL, 5 );
1220
1221  wxTextCtrl *item4 = new wxTextCtrl( parent, ID_IC_DEC_PLUGIN_FILE, wxT(""), wxDefaultPosition, wxSize(80,-1), wxTE_READONLY );
1222  item2->Add( item4, 0, wxGROW|wxALL, 5 );
1223
1224  wxButton *item5 = new wxButton( parent, ID_BROWSE_IC_DEC_PLUGIN, wxT("Browse..."), wxDefaultPosition, wxDefaultSize, 0 );
1225  item2->Add( item5, 0, wxALIGN_CENTER|wxALL, 5 );
1226
1227  wxStaticText *item6 = new wxStaticText( parent, ID_TEXT, wxT("HDB file:"), wxDefaultPosition, wxDefaultSize, 0 );
1228  item2->Add( item6, 0, wxALL, 5 );
1229
1230  wxTextCtrl *item7 = new wxTextCtrl( parent, ID_IC_DEC_HDB_FILE, wxT(""), wxDefaultPosition, wxSize(80,-1), 0 );
1231  item2->Add( item7, 0, wxGROW|wxALL, 5 );
1232
1233  wxButton *item8 = new wxButton( parent, ID_BROWSE_IC_DEC_HDB, wxT("Browse..."), wxDefaultPosition, wxDefaultSize, 0 );
1234  item2->Add( item8, 0, wxALIGN_CENTER|wxALL, 5 );
1235
1236  wxStaticText *item9 = new wxStaticText( parent, ID_TEXT, wxT("Plugin name:"), wxDefaultPosition, wxDefaultSize, 0 );
1237  item2->Add( item9, 0, wxALL, 5 );
1238
1239  wxTextCtrl *item10 = new wxTextCtrl( parent, ID_IC_DEC_PLUGIN_NAME, wxT(""), wxDefaultPosition, wxSize(80,-1), wxTE_READONLY );
1240  item2->Add( item10, 0, wxGROW|wxALL, 5 );
1241
1242  item2->Add( 20, 20, 0, wxALIGN_CENTER|wxALL, 5 );
1243
1244  wxStaticText *item11 = new wxStaticText( parent, ID_TEXT, wxT("Description:"), wxDefaultPosition, wxDefaultSize, 0 );
1245  item2->Add( item11, 0, wxALL, 5 );
1246
1247  wxTextCtrl *item12 = new wxTextCtrl( parent, ID_IC_DEC_PLUGIN_DESC, wxT(""), wxDefaultPosition, wxSize(320,80), wxTE_MULTILINE|wxTE_READONLY );
1248  item2->Add( item12, 0, wxGROW|wxALL, 5 );
1249
1250  item1->Add( item2, 0, wxFIXED_MINSIZE|wxGROW|wxALL, 5 );
1251
1252  wxFlexGridSizer *item13 = new wxFlexGridSizer( 1, 0, 0 );
1253  item13->AddGrowableCol( 0 );
1254  item13->AddGrowableRow( 1 );
1255
1256  wxStaticText *item14 = new wxStaticText( parent, ID_TEXT, wxT("Plugin parameters:"), wxDefaultPosition, wxDefaultSize, 0 );
1257  item13->Add( item14, 0, wxALL, 5 );
1258
1259  wxListCtrl *item15 = new wxListCtrl( parent, ID_PARAMETER_LIST, wxDefaultPosition, wxDefaultSize, wxLC_REPORT|wxLC_SINGLE_SEL|wxSUNKEN_BORDER );
1260  item13->Add( item15, 0, wxGROW|wxALL, 5 );
1261
1262  wxBoxSizer *item16 = new wxBoxSizer( wxHORIZONTAL );
1263
1264  wxStaticText *item17 = new wxStaticText( parent, ID_TEXT, wxT("New value:"), wxDefaultPosition, wxDefaultSize, 0 );
1265  item16->Add( item17, 0, wxALIGN_CENTER|wxALL, 5 );
1266
1267  wxTextCtrl *item18 = new wxTextCtrl( parent, ID_PARAMETER_VALUE, wxT(""), wxDefaultPosition, wxSize(200,-1), 0 );
1268  item16->Add( item18, 0, wxALIGN_CENTER|wxALL, 5 );
1269
1270  wxButton *item19 = new wxButton( parent, ID_SET_VALUE, wxT("Set"), wxDefaultPosition, wxDefaultSize, 0 );
1271  item16->Add( item19, 0, wxALIGN_CENTER|wxALL, 5 );
1272
1273  item13->Add( item16, 0, wxALIGN_CENTER, 5 );
1274
1275  item1->Add( item13, 0, wxFIXED_MINSIZE|wxGROW|wxALL, 5 );
1276
1277  item0->Add( item1, 0, wxGROW|wxALL, 5 );
1278
1279  if (set_sizer)
1280  {
1281  parent->SetSizer( item0 );
1282  if (call_fit)
1283  item0->SetSizeHints( parent );
1284  }
1285
1286  return item0;
1287 }

Referenced by createContents().

◆ immediateUnitPage()

wxSizer * ProcessorImplementationWindow::immediateUnitPage ( wxWindow *  parent,
bool  call_fit,
bool  set_sizer = true
)
private

Definition at line 1289 of file ProcessorImplementationWindow.cc.

1290 {
1291  wxFlexGridSizer *item0 = new wxFlexGridSizer( 1, 0, 0 );
1292  item0->AddGrowableCol( 0 );
1293  item0->AddGrowableRow( 0 );
1294
1295  wxListCtrl *item1 = new wxListCtrl( parent, ID_IU_LIST, wxDefaultPosition, wxDefaultSize, wxLC_REPORT|wxLC_SINGLE_SEL|wxSUNKEN_BORDER );
1296  item0->Add( item1, 0, wxGROW|wxALL, 5 );
1297
1298  wxBoxSizer *buttonSizer = new wxBoxSizer( wxHORIZONTAL );
1299  wxButton *autoSelButton = new wxButton( parent, ID_AUTO_SELECT_IMPL, wxT("Auto Select Implementations"), wxDefaultPosition, wxDefaultSize, 0 );
1300  buttonSizer->Add( autoSelButton, 0, wxALL, 5 );
1301
1302  wxButton *item2 = new wxButton( parent, ID_SELECT_IU_IMPL, wxT("Select implementation..."), wxDefaultPosition, wxDefaultSize, 0 );
1303  buttonSizer->Add( item2, 0, wxALL, 5 );
1304
1305  item0->Add( buttonSizer, 0, wxALL, 5 );
1306
1307  if (set_sizer)
1308  {
1309  parent->SetSizer( item0 );
1310  if (call_fit)
1311  item0->SetSizeHints( parent );
1312  }
1313
1314  return item0;
1315 }

Referenced by createContents().

◆ loadICDecoderPlugin()

void ProcessorImplementationWindow::loadICDecoderPlugin ( const std::string &  pluginName,
const std::string &  pluginFile
)
private

Loads an IC/Decoder plugin.

Parameters
pluginNameName of the plugin.
pluginFileFull path to the plugin file.

Definition at line 893 of file ProcessorImplementationWindow.cc.

895  {
896
897  if (plugin_ != NULL) {
898  delete plugin_;
899  plugin_ = NULL;
900  }
901
902  // initialize the plugin tool
903  vector<string> pluginPaths = Environment::icDecoderPluginPaths();
904  for (vector<string>::const_iterator iter = pluginPaths.begin();
905  iter != pluginPaths.end(); iter++) {
906  try {
907  pluginTool_.addSearchPath(*iter);
908  } catch (const FileNotFound&) {
909  }
910  }
911
912  try {
913  pluginTool_.registerModule(pluginFile);
914  } catch (const FileNotFound&) {
915  wxString message = _T("Plugin file '");
916  message.Append(WxConversion::toWxString(pluginFile));
917  message.Append(_T("' doesn't exist"));
918  ErrorDialog dialog(this, message);
919  dialog.ShowModal();
920  return;
921  } catch (Exception& e) {
922  wxString message = _T("Error loading plugin file '");
923  message.Append(WxConversion::toWxString(pluginFile));
924  message.Append(_T("':\n"));
925  message.Append(WxConversion::toWxString(e.errorMessage()));
926  ErrorDialog dialog(this, message);
927  dialog.ShowModal();
928  return;
929  }
930
931  ICDecoderGeneratorPlugin* (*creator)(
932  TTAMachine::Machine&, BinaryEncoding&);
933
934  try {
935  pluginTool_.importSymbol(
936  "create_generator_plugin_" + pluginName, creator, pluginFile);
937
938  BEMGenerator generator(machine_);
939  BinaryEncoding* bem = generator.generate();
940  plugin_ = creator(machine_, *bem);
941  delete bem;
942  } catch (Exception& e) {
943  wxString message = _T("Error loading plugin '");
944  message.Append(WxConversion::toWxString(pluginName));
945  message.Append(_T("' from '"));
946  message.Append(WxConversion::toWxString(pluginFile));
947  message.Append(_T("':\n"));
948  message.Append(WxConversion::toWxString(e.errorMessage()));
949  ErrorDialog dialog(this, message);
950  dialog.ShowModal();
951  return;
952  }
953
954  try {
955  impl_.setICDecoderPluginFile(pluginFile);
956  } catch (FileNotFound& e) {
957  }
958  impl_.setICDecoderPluginName(pluginName);
959  assert(plugin_ != NULL);
960  return;
961 }

References assert, Exception::errorMessage(), BEMGenerator::generate(), Environment::icDecoderPluginPaths(), and WxConversion::toWxString().

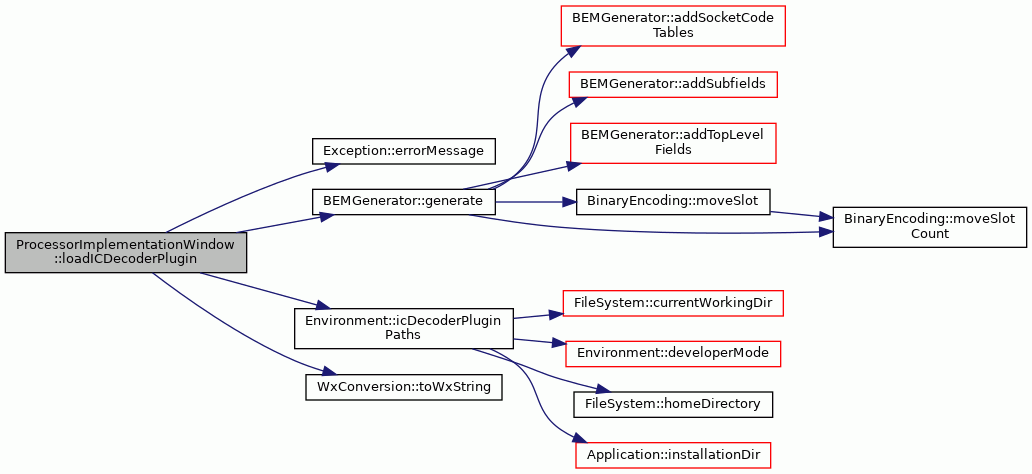

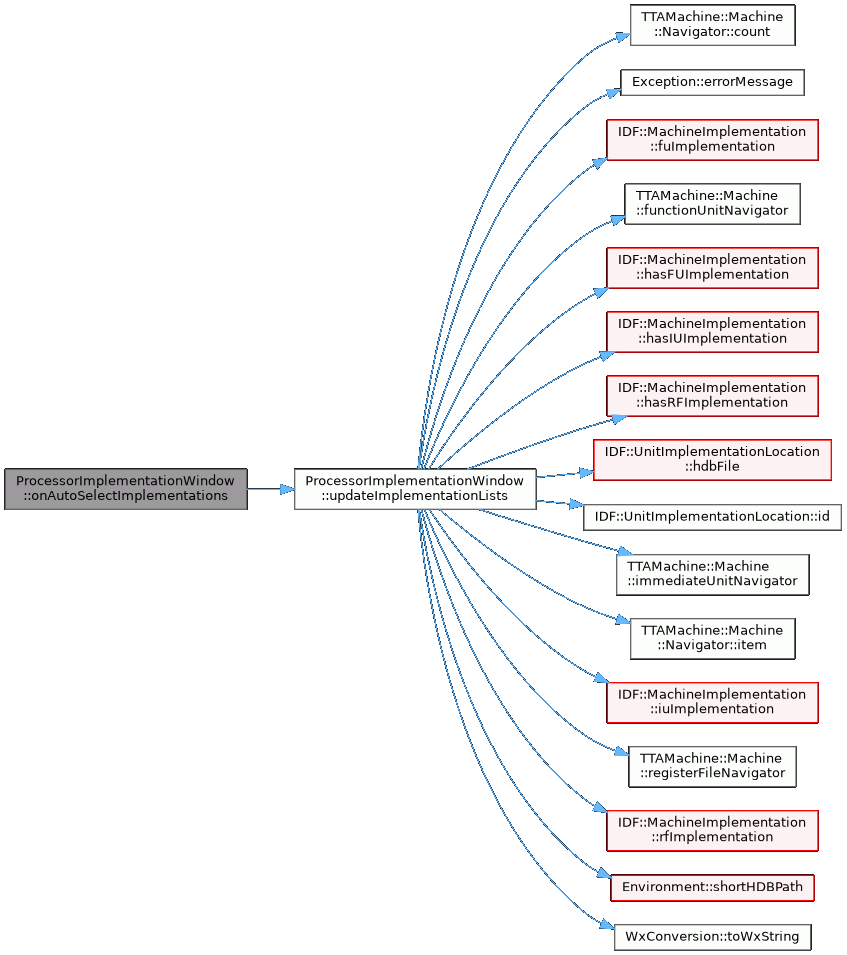

Here is the call graph for this function:

◆ onAutoSelectImplementations()

void ProcessorImplementationWindow::onAutoSelectImplementations ( wxCommandEvent &  event)
private

Event handler for the automatic implementation selection button.

Definition at line 288 of file ProcessorImplementationWindow.cc.

288  {
289  AutoSelectImplementationsDialog dialog(this, machine_, impl_);
290  dialog.ShowModal();
291  updateImplementationLists();
292 }

◆ onBrowseDecompressor()

void ProcessorImplementationWindow::onBrowseDecompressor ( wxCommandEvent &  event)
private

Event handler for the decompressor block Browse... button.

Definition at line 785 of file ProcessorImplementationWindow.cc.

785  {
786  wxFileDialog dialog(
787  this, _T("Choose a file"), _T(""), _T(""),
788  _T("Decompressor block files (*.vhdl;*.vhd)|*.vhdl;*.vhd|"
789  "All files|*"),
790  (wxOPEN | wxFILE_MUST_EXIST));
791
792  if (dialog.ShowModal() == wxID_OK) {
793  setDirty(true);
794  string decompressorFile =
795  WxConversion::toString(dialog.GetPath());
796
797  impl_.setDecompressorFile(decompressorFile);
798  }
799
800  TransferDataToWindow();
801 }

References WxConversion::toString().

Here is the call graph for this function:

◆ onBrowseICDecPlugin()

void ProcessorImplementationWindow::onBrowseICDecPlugin ( wxCommandEvent &  event)
private

Event handler for the ic/decoder plugin Browse... button.

Definition at line 808 of file ProcessorImplementationWindow.cc.

808  {
809
810  wxFileDialog dialog(
811  this, _T("Choose a file"), _T(""), _T(""),
812  _T("IC/Decoder plugins (*.so)|*.so|All files|*.*"),
813  (wxOPEN | wxFILE_MUST_EXIST));
814
815  if (dialog.ShowModal() == wxID_OK) {
816  setDirty(true);
817  string pluginFile =
818  WxConversion::toString(dialog.GetPath());
819
820  // An ugly way to determine the plugin name which should be the
821  // file name minus the "Plugin.so" ending.
822  string pluginName = FileSystem::fileOfPath(pluginFile);
823  pluginName = FileSystem::fileNameBody(pluginFile);
824  if (pluginName.length() < 6 ||
825  pluginName.substr(pluginName.length() - 6) != "Plugin") {
826
827  wxString message = _T("Unable to determine plugin name.\n");
828  message.Append(_T("Plugin file must be named "));
829  message.Append(_T("'<plugin name>Plugin.so'"));
830  ErrorDialog dialog(this, message);
831  dialog.ShowModal();
832  return;
833  }
834  pluginName = pluginName.substr(0, pluginName.length() - 6);
835  loadICDecoderPlugin(pluginName, pluginFile);
836  impl_.clearICDecoderParameters();
837  }
838
839  TransferDataToWindow();
840 }

References FileSystem::fileNameBody(), FileSystem::fileOfPath(), and WxConversion::toString().

Here is the call graph for this function:

◆ onBrowseICHDB()

void ProcessorImplementationWindow::onBrowseICHDB ( wxCommandEvent &  event)
private

Event handler for the ic/ hdb Browse... button.

Definition at line 847 of file ProcessorImplementationWindow.cc.

847  {
848
849  wxFileDialog dialog(
850  this, _T("Choose a file"), _T(""), _T(""),
851  _T("HDB Files (*.hdb)|*.hdb|All files|*.*"),
852  (wxOPEN | wxFILE_MUST_EXIST));
853
854  if (dialog.ShowModal() == wxID_OK) {
855  setDirty(true);
856  string hdbFile = WxConversion::toString(dialog.GetPath());
857  impl_.setICDecoderHDB(hdbFile);
858  }
859
860  TransferDataToWindow();
861 }

References WxConversion::toString().

Here is the call graph for this function:

◆ onClose()

void ProcessorImplementationWindow::onClose ( wxCommandEvent &  event)
private

Event handler for the Close button.

Definition at line 697 of file ProcessorImplementationWindow.cc.

697  {
698  if (dirtyData_) {
699  wxString message = _T("Save before exit?\n");
700
701  wxMessageDialog dialog(this, message, message, wxYES|wxCANCEL|wxNO);
702  int rv = dialog.ShowModal();
703  switch(rv) {
704  case wxID_NO:
705  break;
706  case wxID_YES:
707  doSaveIDF();
708  return;
709  case wxID_CANCEL:
710  default:
711  return;
712  }
713  }
714  Close();
715 }

◆ onFUActivation()

void ProcessorImplementationWindow::onFUActivation ( wxListEvent &  e)
private

Event handler for the FU Select implementation doubleclick.

Definition at line 557 of file ProcessorImplementationWindow.cc.

557  {
558  handleSelectFUImplementation(e.GetIndex());
559 }

◆ onFUSelection()

void ProcessorImplementationWindow::onFUSelection ( wxListEvent &  event)
private

Event handler for the FU list selection changes.

Enables and disables the select FU implementation button.

Definition at line 595 of file ProcessorImplementationWindow.cc.

595  {
596  if (fuList_->GetSelectedItemCount() == 1) {
597  FindWindow(ID_SELECT_FU_IMPL)->Enable();
598  } else {
599  FindWindow(ID_SELECT_FU_IMPL)->Disable();
600  }
601 }

◆ onGenerateProcessor()

void ProcessorImplementationWindow::onGenerateProcessor ( wxCommandEvent &  event)
private

Event handler for the Generate Processor... button.

Definition at line 967 of file ProcessorImplementationWindow.cc.

967  {
968
969  IDFValidator validator(impl_, machine_);
970  if (!validator.validate()) {
971  wxString message;
972  for (int i = 0; i < validator.errorCount(); i++) {
973  message.Append(
974  WxConversion::toWxString(validator.errorMessage(i)));
975
976  message.Append(_T("\n"));
977  }
978  ErrorDialog dialog(this, message);
979  dialog.ShowModal();
980  return;
981  }
982
983  GenerateProcessorDialog dialog(this, machine_, impl_);
984  dialog.ShowModal();
985 }

References IDFValidator::errorCount(), IDFValidator::errorMessage(), WxConversion::toWxString(), and IDFValidator::validate().

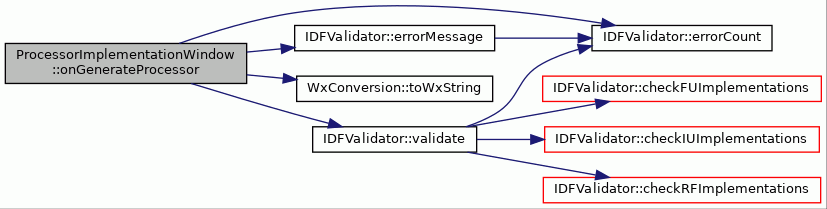

Here is the call graph for this function:

◆ onIUActivation()

void ProcessorImplementationWindow::onIUActivation ( wxListEvent &  e)
private

Event handler for the IU Select implementation doubleclick.

Definition at line 481 of file ProcessorImplementationWindow.cc.

481  {
482  handleSelectIUImplementation(e.GetIndex());
483 }

◆ onIUSelection()

void ProcessorImplementationWindow::onIUSelection ( wxListEvent &  event)
private

Event handler for the IU list selection changes.

Enables and disables the select IU implementation button.

Definition at line 581 of file ProcessorImplementationWindow.cc.

581  {
582  if (iuList_->GetSelectedItemCount() == 1) {
583  FindWindow(ID_SELECT_IU_IMPL)->Enable();
584  } else {
585  FindWindow(ID_SELECT_IU_IMPL)->Disable();
586  }
587 }

◆ onLoadIDF()

void ProcessorImplementationWindow::onLoadIDF ( wxCommandEvent &  event)
private

Event handler for the Load IDF... button.

Definition at line 621 of file ProcessorImplementationWindow.cc.

621  {
622
623  wxFileDialog dialog(
624  this, _T("Choose a file"), _T(""), _T(""),
625  _T("Implemenation Definition Files files (*.idf)|*.idf|All files|*"),
626  (wxOPEN | wxFILE_MUST_EXIST));
627
628  if (dialog.ShowModal() == wxID_OK) {
629
630  ObjectState* old =impl_.saveState();
631
632  string idfFile =
633  WxConversion::toString(dialog.GetPath());
634
635  IDFSerializer serializer;
636  serializer.setSourceFile(idfFile);
637
638  try {
639  ObjectState* newIDF = serializer.readState();
640  impl_.loadState(newIDF);
641  delete newIDF;
642  } catch (Exception& e) {
643  impl_.loadState(old);
644  wxString message = _T("Error reading idf '");
645  message.Append(WxConversion::toWxString(idfFile));
646  message.Append(_T("':\n"));
647  message.Append(WxConversion::toWxString(e.errorMessage()));
648  ErrorDialog errorDialog(this, message);
649  errorDialog.ShowModal();
650  return;
651  }
652
653  IDFValidator validator(impl_, machine_);
654  if (!validator.validate()) {
655  wxString message = _T("Warning:\n");
656  for (int i = 0; i < validator.errorCount(); i++) {
657  message.Append(
658  WxConversion::toWxString(validator.errorMessage(i)));
659
660  message.Append(_T("\n"));
661  }
662  WarningDialog warningDialog(this, message);
663  warningDialog.ShowModal();
664
665  // Remove implementations of units that doesn't exist in the
666  // architecture.
667  IDFValidator::removeUnknownImplementations(impl_, machine_);
668  }
669
670  // check and possibly correct file paths defined in IDF
671  checkImplementationFiles();
672
673  try {
674  if (impl_.hasICDecoderPluginName() &&
675  impl_.hasICDecoderPluginFile()) {
676
677  loadICDecoderPlugin(
678  impl_.icDecoderPluginName(),
679  impl_.icDecoderPluginFile());
680  }
681  } catch (Exception& e) {
682  wxString msg = _T("Warning: could not load IC decoder plugin!");
683  WarningDialog warningDialog(this, msg);
684  warningDialog.ShowModal();
685  }
686
687  TransferDataToWindow();
688  delete old;
689  }
690 }

References IDFValidator::errorCount(), IDFValidator::errorMessage(), Exception::errorMessage(), IDF::IDFSerializer::readState(), IDFValidator::removeUnknownImplementations(), XMLSerializer::setSourceFile(), WxConversion::toString(), WxConversion::toWxString(), and IDFValidator::validate().

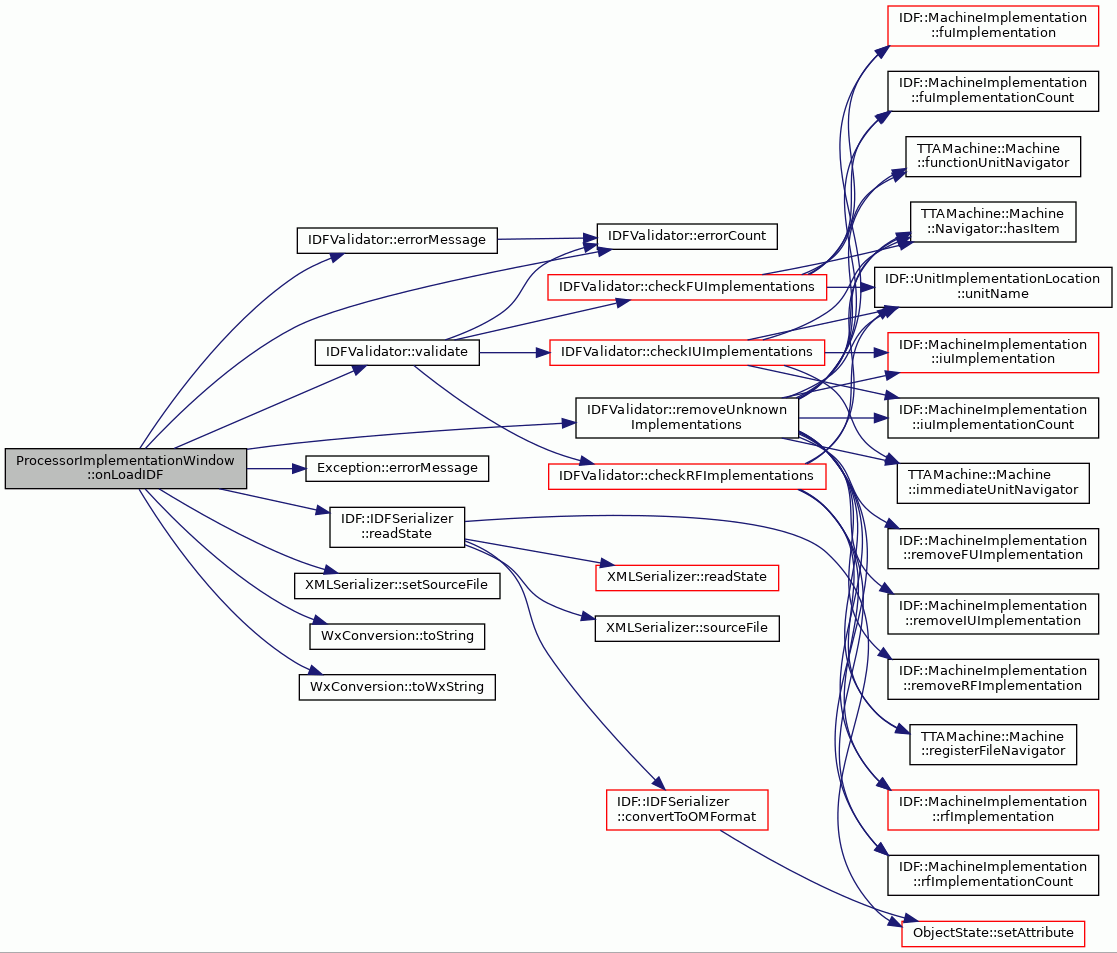

Here is the call graph for this function:

◆ onParameterSelection()

void ProcessorImplementationWindow::onParameterSelection ( wxListEvent &  event)
private

Event handler for the ic/decoder parameter list selection changes.

Enables and disables the set parameter value button.

Definition at line 609 of file ProcessorImplementationWindow.cc.

609  {
610  if (parameterList_->GetSelectedItemCount() == 1) {
611  FindWindow(ID_SET_VALUE)->Enable();
612  } else {
613  FindWindow(ID_SET_VALUE)->Disable();
614  }
615 }

◆ onRFActivation()

void ProcessorImplementationWindow::onRFActivation ( wxListEvent &  e)
private

Event handler for the RF Select implementation button.

Definition at line 429 of file ProcessorImplementationWindow.cc.

429  {
430  handleSelectRFImplementation(e.GetIndex());
431 }

◆ onRFSelection()

void ProcessorImplementationWindow::onRFSelection ( wxListEvent &  event)
private

Event handler for the RF list selection changes.

Enables and disables the select RF implementation button.

Definition at line 567 of file ProcessorImplementationWindow.cc.

567  {
568  if (rfList_->GetSelectedItemCount() == 1) {
569  FindWindow(ID_SELECT_RF_IMPL)->Enable();
570  } else {
571  FindWindow(ID_SELECT_RF_IMPL)->Disable();
572  }
573 }

◆ onSaveIDF()

void ProcessorImplementationWindow::onSaveIDF ( wxCommandEvent &  event)
private

Event handler for the Save IDF button.

Definition at line 777 of file ProcessorImplementationWindow.cc.

777  {
778  doSaveIDF();
779 }

◆ onSelectFUImplementation()

void ProcessorImplementationWindow::onSelectFUImplementation ( wxCommandEvent &  event)
private

Event handler for the FU Select implementation button.

Definition at line 540 of file ProcessorImplementationWindow.cc.

540  {
541  long item = -1;
542  item = fuList_->GetNextItem(
543  item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);
544
545  if (item == -1) {
546  // No fu selected.
547  return;
548  }
549
550  handleSelectFUImplementation(item);
551 }

◆ onSelectIUImplementation()

void ProcessorImplementationWindow::onSelectIUImplementation ( wxCommandEvent &  event)
private

Event handler for the IU Select implementation button.

Definition at line 464 of file ProcessorImplementationWindow.cc.

464  {
465  long item = -1;
466  item = iuList_->GetNextItem(
467  item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);
468
469  if (item == -1) {
470  // No iu selected.
471  return;
472  }
473
474  handleSelectIUImplementation(item);
475 }

◆ onSelectRFImplementation()

void ProcessorImplementationWindow::onSelectRFImplementation ( wxCommandEvent &  event)
private

Event handler for the RF Select implementation button.

Definition at line 412 of file ProcessorImplementationWindow.cc.

412  {
413  long item = -1;
414  item = rfList_->GetNextItem(
415  item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);
416
417  if (item == -1) {
418  // No rf selected.
419  return;
420  }
421
422  handleSelectRFImplementation(item);
423 }

◆ onSetParameterValue()

void ProcessorImplementationWindow::onSetParameterValue ( wxCommandEvent &  event)
private

Event handler for the ic/decoder parameter value setting button.

Definition at line 868 of file ProcessorImplementationWindow.cc.

868  {
869
870  long item = -1;
871  item = parameterList_->GetNextItem(
872  item, wxLIST_NEXT_ALL, wxLIST_STATE_SELECTED);
873
874  if (item < 0) return;
875
876  wxTextCtrl* valueCtrl = dynamic_cast<wxTextCtrl*>(
877  FindWindow(ID_PARAMETER_VALUE));
878
879  std::string name = plugin_->recognizedParameter(item);
880  std::string value = WxConversion::toString(valueCtrl->GetValue());
881  impl_.setICDecoderParameter(name, value);
882  TransferDataToWindow();
883 }

References WxConversion::toString().

Here is the call graph for this function:

◆ registerFilePage()

wxSizer * ProcessorImplementationWindow::registerFilePage ( wxWindow *  parent,
bool  call_fit,
bool  set_sizer = true
)
private

Definition at line 1111 of file ProcessorImplementationWindow.cc.

1112 {
1113  wxFlexGridSizer *item0 = new wxFlexGridSizer( 1, 0, 0 );
1114  item0->AddGrowableCol( 0 );
1115  item0->AddGrowableRow( 0 );
1116
1117  wxListCtrl *item1 = new wxListCtrl( parent, ID_RF_LIST, wxDefaultPosition, wxDefaultSize, wxLC_REPORT|wxLC_SINGLE_SEL|wxSUNKEN_BORDER );
1118  item0->Add( item1, 0, wxGROW|wxALL, 5 );
1119
1120  wxBoxSizer *buttonSizer = new wxBoxSizer( wxHORIZONTAL );
1121  wxButton *autoSelButton = new wxButton( parent, ID_AUTO_SELECT_IMPL, wxT("Auto Select Implementations"), wxDefaultPosition, wxDefaultSize, 0 );
1122  buttonSizer->Add( autoSelButton, 0, wxALIGN_CENTER_VERTICAL|wxALL, 5 );
1123
1124  wxButton *item2 = new wxButton( parent, ID_SELECT_RF_IMPL, wxT("Select implementation..."), wxDefaultPosition, wxDefaultSize, 0 );
1125  buttonSizer->Add( item2, 0, wxALIGN_CENTER_VERTICAL|wxALL, 5 );
1126
1127  item0->Add( buttonSizer, 0, wxALIGN_CENTER_VERTICAL|wxALL, 5 );
1128
1129  if (set_sizer)
1130  {
1131  parent->SetSizer( item0 );
1132  if (call_fit)
1133  item0->SetSizeHints( parent );
1134  }
1135
1136  return item0;
1137 }

Referenced by createContents().

◆ setDirty()

void ProcessorImplementationWindow::setDirty ( bool  dirty = true)
inline

Definition at line 63 of file ProcessorImplementationWindow.hh.

63 { dirtyData_ = dirty; }

References dirtyData_.

◆ TransferDataToWindow()

bool ProcessorImplementationWindow::TransferDataToWindow ( )
privatevirtual

Transfers data from the current MachineImplementation object to the dialog widgets.

Definition at line 189 of file ProcessorImplementationWindow.cc.

189  {
190
191  updateImplementationLists();
192  parameterList_->DeleteAllItems();
193
194  if (impl_.hasICDecoderPluginFile()) {
195  try {
196  dynamic_cast<wxTextCtrl*>(FindWindow(ID_IC_DEC_PLUGIN_FILE))->
197  SetValue(WxConversion::toWxString(impl_.icDecoderPluginFile()));
198  } catch (FileNotFound& e) {
199  dynamic_cast<wxTextCtrl*>(FindWindow(ID_IC_DEC_PLUGIN_FILE))->
200  SetValue(WxConversion::toWxString("File not found"));
201  }
202  }
203
204  if (impl_.hasICDecoderPluginName()) {
205  dynamic_cast<wxTextCtrl*>(FindWindow(ID_IC_DEC_PLUGIN_NAME))->
206  SetValue(WxConversion::toWxString(impl_.icDecoderPluginName()));
207  }
208
209  if (impl_.hasICDecoderHDB()) {
210  try {
211  dynamic_cast<wxTextCtrl*>(FindWindow(ID_IC_DEC_HDB_FILE))->
212  SetValue(WxConversion::toWxString(impl_.icDecoderHDB()));
213  } catch (FileNotFound& e) {
214  dynamic_cast<wxTextCtrl*>(FindWindow(ID_IC_DEC_HDB_FILE))->
215  SetValue(WxConversion::toWxString("File not found"));
216  }
217  }
218
219
220  wxTextCtrl* descCtrl = dynamic_cast<wxTextCtrl*>(
221  FindWindow(ID_IC_DEC_PLUGIN_DESC));
222
223  // Set IC&decoder generator plugin attributes.
224  if (plugin_ != NULL) {
225
226  descCtrl->SetValue(
227  WxConversion::toWxString(plugin_->pluginDescription()));
228
229  // IC / Decoder plugin parameters.
230  for (int i = 0; i < plugin_->recognizedParameterCount(); i++) {
231  string paramName = plugin_->recognizedParameter(i);
232  string paramValue =
233  impl_.icDecoderParameterValue(plugin_->recognizedParameter(i));
234  string paramDesc = plugin_->parameterDescription(paramName);
235  parameterList_->InsertItem(i, WxConversion::toWxString(paramName));
236  parameterList_->SetItem(
237  i, 1, WxConversion::toWxString(paramValue));
238  parameterList_->SetItem(
239  i, 2, WxConversion::toWxString(paramDesc));
240  }
241  parameterList_->SetColumnWidth(2, wxLIST_AUTOSIZE);
242  } else {
243  descCtrl->SetValue(_T("\n No IC / Decoder plugin loaded."));
244  }
245
246  if (impl_.hasDecompressorFile()) {
247  try {
248  dynamic_cast<wxTextCtrl*>(FindWindow(ID_DECOMPRESSOR_PATH))->
249  SetValue(WxConversion::toWxString(impl_.decompressorFile()));
250  } catch (FileNotFound& e) {
251  wxString message =
252  _T("Unable to set decompressor block file:\n");
253
254  WarningDialog dialog(this, message);
255  dialog.ShowModal();
256  }
257  }
258
259  return true;
260 }

References WxConversion::toWxString().

Here is the call graph for this function:

◆ updateFUList()

void ProcessorImplementationWindow::updateFUList ( const std::string &  fuName,
int  index
)
private

Update the list of FU implementations for single FU

Definition at line 488 of file ProcessorImplementationWindow.cc.

488  {
489  const FUImplementationLocation fuImpl =
490  impl_.fuImplementation(fuName);
491
492  string hdb;
493  int id = 0;
494  try {
495  hdb = Environment::shortHDBPath(fuImpl.hdbFile());
496  id = fuImpl.id();
497  } catch (FileNotFound& e) {
498  hdb = "Warning: " + e.errorMessage();
499  }
500
501  fuList_->SetItem(index, 1, WxConversion::toWxString(id));
502  fuList_->SetItem(index, 2, WxConversion::toWxString(hdb));
503 }

References Exception::errorMessage(), IDF::UnitImplementationLocation::hdbFile(), IDF::UnitImplementationLocation::id(), Environment::shortHDBPath(), and WxConversion::toWxString().

Here is the call graph for this function:

◆ updateImplementationLists()

void ProcessorImplementationWindow::updateImplementationLists ( )
private

Updates the list views on RF, IU and FU pages.

Definition at line 298 of file ProcessorImplementationWindow.cc.

298  {
299  fuList_->DeleteAllItems();
300  rfList_->DeleteAllItems();
301  iuList_->DeleteAllItems();
302
303  // FU implementation list.
304  Machine::FunctionUnitNavigator fuNav =
305  machine_.functionUnitNavigator();
306
307  for (int i = 0; i < fuNav.count(); i++) {
308  string fuName = fuNav.item(i)->name();
309  fuList_->InsertItem(i, WxConversion::toWxString(fuName));
310  if (impl_.hasFUImplementation(fuName)) {
311  const FUImplementationLocation fuImpl =
312  impl_.fuImplementation(fuName);
313
314  string hdb;
315  int id = 0;
316  try {
317  hdb = Environment::shortHDBPath(fuImpl.hdbFile());
318  id = fuImpl.id();
319  } catch (FileNotFound& e) {
320  hdb = "Warning: " + e.errorMessage();
321  }
322
323  fuList_->SetItem(i, 1, WxConversion::toWxString(id));
324  fuList_->SetItem(i, 2, WxConversion::toWxString(hdb));
325  }
326  }
327
328  // RF implementation list.
329  const Machine::RegisterFileNavigator rfNav =
330  machine_.registerFileNavigator();
331
332  for (int i = 0; i < rfNav.count(); i++) {
333  string rfName = rfNav.item(i)->name();
334  rfList_->InsertItem(i, WxConversion::toWxString(rfName));
335  if (impl_.hasRFImplementation(rfName)) {
336  const RFImplementationLocation rfImpl =
337  impl_.rfImplementation(rfName);
338
339  string hdb;
340  int id = 0;
341  try {
342  hdb = Environment::shortHDBPath(rfImpl.hdbFile());
343  id = rfImpl.id();
344  } catch (FileNotFound& e) {
345  hdb = "Warning: " + e.errorMessage();
346  }
347  rfList_->SetItem(i, 1, WxConversion::toWxString(id));
348  rfList_->SetItem(i, 2, WxConversion::toWxString(hdb));
349  }
350  }
351
352  // IU implementation list.
353  const Machine::ImmediateUnitNavigator iuNav =
354  machine_.immediateUnitNavigator();
355
356  for (int i = 0; i < iuNav.count(); i++) {
357  string iuName = iuNav.item(i)->name();
358  iuList_->InsertItem(i, WxConversion::toWxString(iuName));
359  if (impl_.hasIUImplementation(iuName)) {
360  const RFImplementationLocation iuImpl =
361  impl_.iuImplementation(iuName);
362
363  string hdb;
364  int id = 0;
365  try {
366  hdb = Environment::shortHDBPath(iuImpl.hdbFile());
367  id = iuImpl.id();
368  } catch (FileNotFound& e) {
369  hdb = "Warning: " + e.errorMessage();
370  }
371  iuList_->SetItem(i, 1, WxConversion::toWxString(id));
372  iuList_->SetItem(i, 2, WxConversion::toWxString(hdb));
373  }
374  }
375 }

References TTAMachine::Machine::Navigator< ComponentType >::count(), Exception::errorMessage(), IDF::UnitImplementationLocation::hdbFile(), IDF::UnitImplementationLocation::id(), TTAMachine::Machine::Navigator< ComponentType >::item(), Environment::shortHDBPath(), and WxConversion::toWxString().

Here is the call graph for this function:

◆ updateRFList()

void ProcessorImplementationWindow::updateRFList ( const std::string &  rfName,
int  index
)
private

Update the list of FU implementations for single RF

Definition at line 266 of file ProcessorImplementationWindow.cc.

266  {
267  const RFImplementationLocation rfImpl =
268  impl_.rfImplementation(rfName);
269
270  string hdb;
271  int id = 0;
272  try {
273  hdb = Environment::shortHDBPath(rfImpl.hdbFile());
274  id = rfImpl.id();
275  } catch (FileNotFound& e) {
276  hdb = "Warning: " + e.errorMessage();
277  }
278  rfList_->SetItem(index, 1, WxConversion::toWxString(id));
279  rfList_->SetItem(index, 2, WxConversion::toWxString(hdb));
280 }

References Exception::errorMessage(), IDF::UnitImplementationLocation::hdbFile(), IDF::UnitImplementationLocation::id(), Environment::shortHDBPath(), and WxConversion::toWxString().

Here is the call graph for this function:

Member Data Documentation

◆ dirtyData_

bool ProcessorImplementationWindow::dirtyData_
private

Definition at line 166 of file ProcessorImplementationWindow.hh.

Referenced by setDirty().

◆ fuList_

wxListCtrl* ProcessorImplementationWindow::fuList_
private

Pointer to the FU implementation list widget.

Definition at line 123 of file ProcessorImplementationWindow.hh.

◆ impl_

IDF::MachineImplementation& ProcessorImplementationWindow::impl_
private

MachineImplementation object containing the implementation information.

Definition at line 120 of file ProcessorImplementationWindow.hh.

◆ iuList_

wxListCtrl* ProcessorImplementationWindow::iuList_
private

Pointer to the IU implementation list widget.

Definition at line 125 of file ProcessorImplementationWindow.hh.

◆ machine_

TTAMachine::Machine& ProcessorImplementationWindow::machine_
private

Machine that is being generated.

Definition at line 118 of file ProcessorImplementationWindow.hh.

◆ parameterList_

wxListCtrl* ProcessorImplementationWindow::parameterList_
private

Pointer to the ic decoder parameter list widget.

Definition at line 129 of file ProcessorImplementationWindow.hh.

◆ plugin_

ProGe::ICDecoderGeneratorPlugin* ProcessorImplementationWindow::plugin_
private

IC/Decoder plugin of the current machine implementation.

Definition at line 134 of file ProcessorImplementationWindow.hh.

◆ pluginTool_

PluginTools ProcessorImplementationWindow::pluginTool_
private

Plugintool for loading IC/Decoder plugins.

Definition at line 132 of file ProcessorImplementationWindow.hh.

◆ rfList_

wxListCtrl* ProcessorImplementationWindow::rfList_
private

Pointer to the RF implementation list widget.

Definition at line 127 of file ProcessorImplementationWindow.hh.

The documentation for this class was generated from the following files:
IDF::UnitImplementationLocation
Definition: UnitImplementationLocation.hh:48
ProcessorImplementationWindow::ID_IC_DEC_PLUGIN_NAME
@ ID_IC_DEC_PLUGIN_NAME
Definition: ProcessorImplementationWindow.hh:153
IDF::MachineImplementation::icDecoderHDB
std::string icDecoderHDB() const
Definition: MachineImplementation.cc:179
WarningDialog
Definition: WarningDialog.hh:42
IDF::RFImplementationLocation
UnitImplementationLocation RFImplementationLocation
Definition: ComponentImplementationSelector.hh:57
BinaryEncoding
Definition: BinaryEncoding.hh:61
ProcessorImplementationWindow::ID_SELECT_RF_IMPL
@ ID_SELECT_RF_IMPL
Definition: ProcessorImplementationWindow.hh:147
IDF::IDFSerializer::readState
virtual ObjectState * readState()
Definition: IDFSerializer.cc:111
IDF::MachineImplementation::hasRFImplementation
bool hasRFImplementation(const std::string &unitName) const
Definition: MachineImplementation.cc:245
IDF::MachineImplementation::hasICDecoderPluginFile
bool hasICDecoderPluginFile() const
Definition: MachineImplementation.cc:168
WxConversion::toWxString
static wxString toWxString(const std::string &source)
FileNotFound
Definition: Exception.hh:224
IDF::MachineImplementation::loadState
virtual void loadState(const ObjectState *state)
Definition: MachineImplementation.cc:762
ProcessorImplementationWindow::parameterList_
wxListCtrl * parameterList_
Pointer to the ic decoder parameter list widget.
Definition: ProcessorImplementationWindow.hh:129
TTAMachine::Component::name
virtual TCEString name() const
Definition: MachinePart.cc:125
ProcessorImplementationWindow::ID_PARAMETER_LIST
@ ID_PARAMETER_LIST
Definition: ProcessorImplementationWindow.hh:156
XMLSerializer::setSourceFile
void setSourceFile(const std::string &fileName)
Definition: XMLSerializer.cc:115
machine
TTAMachine::Machine * machine
the architecture definition of the estimated processor
Definition: EstimatorCmdLineUI.cc:59
ProcessorImplementationWindow::ID_BROWSE_IC_DEC_PLUGIN
@ ID_BROWSE_IC_DEC_PLUGIN
Definition: ProcessorImplementationWindow.hh:149
ProcessorImplementationWindow::ID_SAVE_IDF
@ ID_SAVE_IDF
Definition: ProcessorImplementationWindow.hh:139
ProcessorImplementationWindow::ID_IC_DEC_HDB_FILE
@ ID_IC_DEC_HDB_FILE
Definition: ProcessorImplementationWindow.hh:155
GenerateProcessorDialog
Definition: GenerateProcessorDialog.hh:56
ProGe::ICDecoderGeneratorPlugin
Definition: ICDecoderGeneratorPlugin.hh:68
IDF::MachineImplementation::iuImplementation
RFImplementationLocation & iuImplementation(const std::string &iu) const
Definition: MachineImplementation.cc:399
ProcessorImplementationWindow::icDecoderPluginPage
wxSizer * icDecoderPluginPage(wxWindow *parent, bool call_fit, bool set_sizer=true)
Definition: ProcessorImplementationWindow.cc:1206
ObjectState
Definition: ObjectState.hh:59
AutoSelectImplementationsDialog
Definition: AutoSelectImplementationsDialog.hh:59
Environment::icDecoderPluginPaths
static std::vector< std::string > icDecoderPluginPaths(bool libraryPathsOnly=false)
Definition: Environment.cc:635
FindWindow
Definition: FindWindow.hh:49
ProcessorImplementationWindow::ID_LOAD_IDF
@ ID_LOAD_IDF
Definition: ProcessorImplementationWindow.hh:138
TTAMachine::Machine::Navigator::count
int count() const
FileSystem::absolutePathOf
static std::string absolutePathOf(const std::string &pathName)
Definition: FileSystem.cc:303
ProcessorImplementationWindow::iuList_
wxListCtrl * iuList_
Pointer to the IU implementation list widget.
Definition: ProcessorImplementationWindow.hh:125
IDF::MachineImplementation::hasDecompressorFile
bool hasDecompressorFile() const
Definition: MachineImplementation.cc:219
FileSystem::fileOfPath
static std::string fileOfPath(const std::string pathName)
Definition: FileSystem.cc:101
IDF::MachineImplementation::hasFUImplementation
bool hasFUImplementation(const std::string &unitName) const
Definition: MachineImplementation.cc:231
ProcessorImplementationWindow::ID_CLOSE
@ ID_CLOSE
Definition: ProcessorImplementationWindow.hh:161
Environment::defaultICDecoderPlugin
static std::string defaultICDecoderPlugin()
Definition: Environment.cc:1012
IDF::MachineImplementation::hasIUImplementation
bool hasIUImplementation(const std::string &unitName) const
Definition: MachineImplementation.cc:259
ProcessorImplementationWindow::ID_GENERATE_PROCESSOR
@ ID_GENERATE_PROCESSOR
Definition: ProcessorImplementationWindow.hh:140
ProcessorImplementationWindow::ID_IC_DEC_PLUGIN_DESC
@ ID_IC_DEC_PLUGIN_DESC
Definition: ProcessorImplementationWindow.hh:154
ProcessorImplementationWindow::ID_BROWSE_DECOMPRESSOR
@ ID_BROWSE_DECOMPRESSOR
Definition: ProcessorImplementationWindow.hh:148
BEMGenerator
Definition: BEMGenerator.hh:61
ProcessorImplementationWindow::handleSelectIUImplementation
void handleSelectIUImplementation(long item)
Definition: ProcessorImplementationWindow.cc:434
ProcessorImplementationWindow::TransferDataToWindow
virtual bool TransferDataToWindow()
Definition: ProcessorImplementationWindow.cc:189
ProGe::ICDecoderGeneratorPlugin::pluginDescription
std::string pluginDescription() const
Definition: ICDecoderGeneratorPlugin.cc:70
IDF::MachineImplementation::rfImplementation
RFImplementationLocation & rfImplementation(const std::string &rf) const
Definition: MachineImplementation.cc:377
assert
#define assert(condition)
Definition: Application.hh:86
TTAMachine::FunctionUnit
Definition: FunctionUnit.hh:55
IDF::MachineImplementation::icDecoderParameterValue
std::string icDecoderParameterValue(const std::string &name) const
Definition: MachineImplementation.cc:1415
ProcessorImplementationWindow::registerFilePage
wxSizer * registerFilePage(wxWindow *parent, bool call_fit, bool set_sizer=true)
Definition: ProcessorImplementationWindow.cc:1111
ProcessorImplementationWindow::ID_PARAMETER_VALUE
@ ID_PARAMETER_VALUE
Definition: ProcessorImplementationWindow.hh:157
IDF::MachineImplementation::saveState
virtual ObjectState * saveState() const
Definition: MachineImplementation.cc:862
IDF::MachineImplementation::setICDecoderHDB
void setICDecoderHDB(const std::string &file)
Definition: MachineImplementation.cc:1488
ProGe::ICDecoderGeneratorPlugin::recognizedParameter
std::string recognizedParameter(int index) const
Definition: ICDecoderGeneratorPlugin.cc:95
IDF::MachineImplementation::makeImplFilesRelative
void makeImplFilesRelative(const std::vector< std::string > &sPaths)
Definition: MachineImplementation.cc:967
ErrorDialog
Definition: ErrorDialog.hh:42
PluginTools::importSymbol
void importSymbol(const std::string &symbolName, T *&target, const std::string &module)
Environment::hdbPaths
static std::vector< std::string > hdbPaths(bool libraryPathsOnly=false)
Definition: Environment.cc:683
TTAMachine::Machine::immediateUnitNavigator
virtual ImmediateUnitNavigator immediateUnitNavigator() const
Definition: Machine.cc:416
IDF::MachineImplementation::clearICDecoderParameters
void clearICDecoderParameters()
Definition: MachineImplementation.cc:1512
IDF::MachineImplementation::setICDecoderPluginName
void setICDecoderPluginName(const std::string &name)
Definition: MachineImplementation.cc:1462
IDF::MachineImplementation::setDecompressorFile
void setDecompressorFile(const std::string &file)
Definition: MachineImplementation.cc:1502
Environment::shortHDBPath
static TCEString shortHDBPath(const TCEString &hdbPath)
Definition: Environment.cc:707
ProcessorImplementationWindow::pluginTool_
PluginTools pluginTool_
Plugintool for loading IC/Decoder plugins.
Definition: ProcessorImplementationWindow.hh:132
IDFValidator
Definition: IDFValidator.hh:52
XMLSerializer::setDestinationFile
void setDestinationFile(const std::string &fileName)
Definition: XMLSerializer.cc:142
FileSystem::directoryOfPath
static std::string directoryOfPath(const std::string fileName)
Definition: FileSystem.cc:79
PluginTools::registerModule
void registerModule(const std::string &module)
Definition: PluginTools.cc:138
TTAMachine::Machine::functionUnitNavigator
virtual FunctionUnitNavigator functionUnitNavigator() const
Definition: Machine.cc:380
IDF::FUImplementationLocation
UnitImplementationLocation FUImplementationLocation
Definition: ComponentImplementationSelector.hh:55
ProcessorImplementationWindow::ID_SELECT_FU_IMPL
@ ID_SELECT_FU_IMPL
Definition: ProcessorImplementationWindow.hh:145
ProcessorImplementationWindow::setDirty
void setDirty(bool dirty=true)
Definition: ProcessorImplementationWindow.hh:63
IDF::MachineImplementation::decompressorFile
std::string decompressorFile() const
Definition: MachineImplementation.cc:205
ProcessorImplementationWindow::ID_GENERATE
@ ID_GENERATE
Definition: ProcessorImplementationWindow.hh:160
ProcessorImplementationWindow::createContents
wxSizer * createContents(wxWindow *parent, bool call_fit, bool set_sizer)
Definition: ProcessorImplementationWindow.cc:1039
ProcessorImplementationWindow::ID_IU_LIST
@ ID_IU_LIST
Definition: ProcessorImplementationWindow.hh:142
IDF::MachineImplementation::addRFImplementation
void addRFImplementation(RFImplementationLocation *implementation)
Definition: MachineImplementation.cc:554
ProcessorImplementationWindow::checkImplementationFiles
void checkImplementationFiles()
Definition: ProcessorImplementationWindow.cc:993
Exception
Definition: Exception.hh:54
ProcessorImplementationWindow::rfList_
wxListCtrl * rfList_
Pointer to the RF implementation list widget.
Definition: ProcessorImplementationWindow.hh:127
ProcessorImplementationWindow::ID_BROWSE_IC_DEC_HDB
@ ID_BROWSE_IC_DEC_HDB
Definition: ProcessorImplementationWindow.hh:150
ProcessorImplementationWindow::ID_RF_LIST
@ ID_RF_LIST
Definition: ProcessorImplementationWindow.hh:143
ProcessorImplementationWindow::plugin_
ProGe::ICDecoderGeneratorPlugin * plugin_
IC/Decoder plugin of the current machine implementation.
Definition: ProcessorImplementationWindow.hh:134
ProcessorImplementationWindow::ID_DECOMPRESSOR_PATH
@ ID_DECOMPRESSOR_PATH
Definition: ProcessorImplementationWindow.hh:151
ProcessorImplementationWindow::fuList_
wxListCtrl * fuList_
Pointer to the FU implementation list widget.
Definition: ProcessorImplementationWindow.hh:123
Exception::errorMessage
std::string errorMessage() const
Definition: Exception.cc:123
ProcessorImplementationWindow::decompressionPage
wxSizer * decompressionPage(wxWindow *parent, bool call_fit, bool set_sizer=true)
Definition: ProcessorImplementationWindow.cc:1167
ProcessorImplementationWindow::ID_AUTO_SELECT_IMPL
@ ID_AUTO_SELECT_IMPL
Definition: ProcessorImplementationWindow.hh:144
IDF::MachineImplementation::setICDecoderParameter
void setICDecoderParameter(const std::string &name, const std::string &value)
Definition: MachineImplementation.cc:1437
ProcessorImplementationWindow::updateImplementationLists
void updateImplementationLists()
Definition: ProcessorImplementationWindow.cc:298
TTAMachine::Machine::registerFileNavigator
virtual RegisterFileNavigator registerFileNavigator() const
Definition: Machine.cc:450
ProcessorImplementationWindow::updateFUList
void updateFUList(const std::string &fuName, int index)
Definition: ProcessorImplementationWindow.cc:488
ProcessorImplementationWindow::loadICDecoderPlugin
void loadICDecoderPlugin(const std::string &pluginName, const std::string &pluginFile)
Definition: ProcessorImplementationWindow.cc:893
IDF::MachineImplementation::icDecoderPluginFile
std::string icDecoderPluginFile() const
Definition: MachineImplementation.cc:153
ProcessorImplementationWindow::handleSelectFUImplementation
void handleSelectFUImplementation(long item)
Definition: ProcessorImplementationWindow.cc:508
ProcessorImplementationWindow::ID_IC_DEC_PLUGIN_FILE
@ ID_IC_DEC_PLUGIN_FILE
Definition: ProcessorImplementationWindow.hh:152
ProcessorImplementationWindow::impl_
IDF::MachineImplementation & impl_
MachineImplementation object containing the implementation information.
Definition: ProcessorImplementationWindow.hh:120
ProGe::ICDecoderGeneratorPlugin::parameterDescription
std::string parameterDescription(const std::string &paramName) const
Definition: ICDecoderGeneratorPlugin.cc:121
IDF::UnitImplementationLocation::id
virtual int id() const
Definition: UnitImplementationLocation.cc:127
IDF::MachineImplementation::addFUImplementation
void addFUImplementation(FUImplementationLocation *implementation)
Definition: MachineImplementation.cc:533
FALSE
const string FALSE
Value used for false in attribute and element values.
Definition: GUIOptionsSerializer.cc:67
PluginTools::addSearchPath
void addSearchPath(const std::string &searchPath)
Definition: PluginTools.cc:95
BlockImplementationDialog
Definition: BlockImplementationDialog.hh:49
ProcessorImplementationWindow::ID_FU_LIST
@ ID_FU_LIST
Definition: ProcessorImplementationWindow.hh:141
IDFValidator::removeUnknownImplementations
static void removeUnknownImplementations(IDF::MachineImplementation &idf, const TTAMachine::Machine &machine)
Definition: IDFValidator.cc:223
ProcessorImplementationWindow::ID_LINE
@ ID_LINE
Definition: ProcessorImplementationWindow.hh:163
FileSystem::currentWorkingDir
static std::string currentWorkingDir()
Definition: FileSystem.cc:142
TTAMachine::Machine::Navigator::item
ComponentType * item(int index) const
ProcessorImplementationWindow::ID_NOTEBOOK
@ ID_NOTEBOOK
Definition: ProcessorImplementationWindow.hh:159
IDF::UnitImplementationLocation::hdbFile
virtual std::string hdbFile() const
Definition: UnitImplementationLocation.cc:99
TTAMachine::RegisterFile
Definition: RegisterFile.hh:47
IDF::MachineImplementation::hasICDecoderPluginName
bool hasICDecoderPluginName() const
Definition: MachineImplementation.cc:142
IDF::IDFSerializer::writeMachineImplementation
void writeMachineImplementation(const MachineImplementation &implementation)
Definition: IDFSerializer.cc:163
IDF::MachineImplementation::setICDecoderPluginFile
void setICDecoderPluginFile(const std::string &file)
Definition: MachineImplementation.cc:1474
IDF::MachineImplementation::fuImplementation
FUImplementationLocation & fuImplementation(const std::string &fu) const
Definition: MachineImplementation.cc:355
ProcessorImplementationWindow::functionUnitPage
wxSizer * functionUnitPage(wxWindow *parent, bool call_fit, bool set_sizer=true)
Definition: ProcessorImplementationWindow.cc:1139
IDF::IDFSerializer
Definition: IDFSerializer.hh:45
ProcessorImplementationWindow::doSaveIDF
void doSaveIDF()
Definition: ProcessorImplementationWindow.cc:719
IDF::MachineImplementation::checkImplFiles
bool checkImplFiles(size_t &missingFiles, size_t &alternativeFiles)
Definition: MachineImplementation.cc:1066
ProcessorImplementationWindow::ID_TEXT
@ ID_TEXT
Definition: ProcessorImplementationWindow.hh:162
ProcessorImplementationWindow::machine_
TTAMachine::Machine & machine_
Machine that is being generated.
Definition: ProcessorImplementationWindow.hh:118
ProcessorImplementationWindow::dirtyData_
bool dirtyData_
Definition: ProcessorImplementationWindow.hh:166
FileSystem::fileNameBody
static std::string fileNameBody(const std::string &fileName)
Definition: FileSystem.cc:291
ProcessorImplementationWindow::handleSelectRFImplementation
void handleSelectRFImplementation(long item)
Definition: ProcessorImplementationWindow.cc:381
WxConversion::toString
static std::string toString(const wxString &source)
ProcessorImplementationWindow::immediateUnitPage
wxSizer * immediateUnitPage(wxWindow *parent, bool call_fit, bool set_sizer=true)
Definition: ProcessorImplementationWindow.cc:1289
ProcessorImplementationWindow::ID_SET_VALUE
@ ID_SET_VALUE
Definition: ProcessorImplementationWindow.hh:158
IDF::MachineImplementation::icDecoderPluginName
std::string icDecoderPluginName() const
Definition: MachineImplementation.cc:132
TTAMachine::Machine::Navigator
Definition: Machine.hh:186
IDF::MachineImplementation::hasICDecoderHDB
bool hasICDecoderHDB() const
Definition: MachineImplementation.cc:193
ProcessorImplementationWindow::updateRFList
void updateRFList(const std::string &rfName, int index)
Definition: ProcessorImplementationWindow.cc:266
IDF::MachineImplementation::addIUImplementation
void addIUImplementation(RFImplementationLocation *implementation)
Definition: MachineImplementation.cc:575
ProcessorImplementationWindow::ID_SELECT_IU_IMPL
@ ID_SELECT_IU_IMPL
Definition: ProcessorImplementationWindow.hh:146
ProGe::ICDecoderGeneratorPlugin::recognizedParameterCount
int recognizedParameterCount() const
Definition: ICDecoderGeneratorPlugin.cc:81
TTAMachine::Machine
Definition: Machine.hh:73
TTAMachine::ImmediateUnit
Definition: ImmediateUnit.hh:50
Generated by   doxygen 1.8.17
