ProgramGraph Class Reference

#include <ProgramGraph.hh>

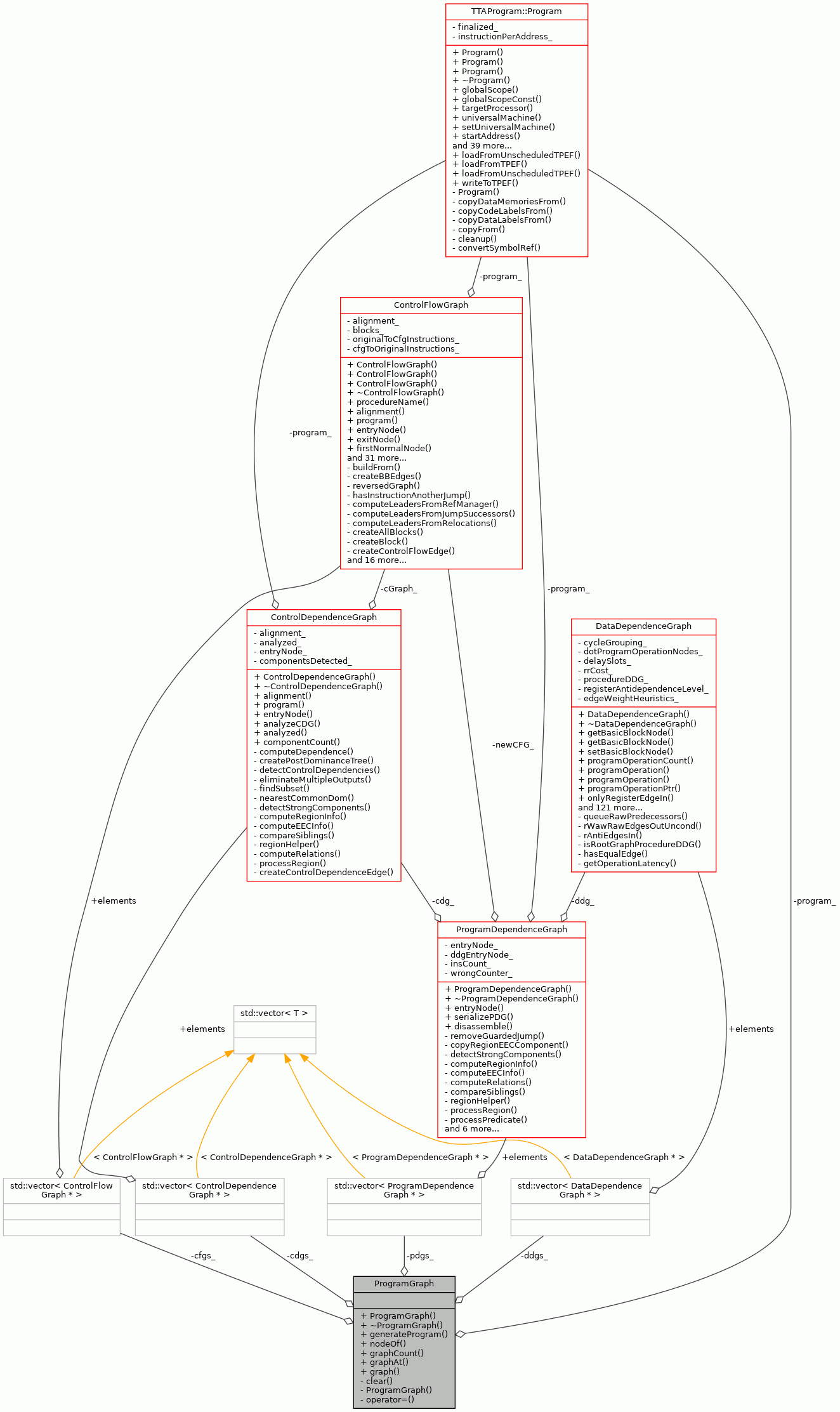

Collaboration diagram for ProgramGraph:

Public Member Functions
	ProgramGraph (TTAProgram::Program &program, const TTAMachine::Machine &mach)
virtual	~ProgramGraph ()
TTAProgram::Program &	generateProgram () const
MoveNode &	nodeOf (const TTAProgram::Move &) const
int	graphCount () const
ProgramDependenceGraph *	graphAt (int)
ProgramDependenceGraph *	graph (const std::string)

Private Member Functions
void	clear ()
	ProgramGraph (const ProgramGraph &)
	Copying forbidden. More...
ProgramGraph &	operator= (const ProgramGraph &)
	Assignment forbidden. More...

Private Attributes
TTAProgram::Program &	program_
	Original program. More...
std::vector< ControlFlowGraph * >	cfgs_
	Vector of CFG's for each procedure. More...
std::vector< ControlDependenceGraph * >	cdgs_
	Vector of CDG's for each procedure. More...
std::vector< DataDependenceGraph * >	ddgs_
	Vector of DDG's for each procedure. More...
std::vector< ProgramDependenceGraph * >	pdgs_
	Vector of PDG's for each procedure. More...

Detailed Description

Definition at line 60 of file ProgramGraph.hh.

Constructor & Destructor Documentation

ProgramGraph() [1/2]

ProgramGraph::ProgramGraph	(	TTAProgram::Program &	program,
		const TTAMachine::Machine &	mach
	)

Constructor.

Creates a new ProgramGraph from Program

Parameters

program

Program in POM

Definition at line 54 of file ProgramGraph.cc.

    : program_(program){
    try {
        for (int i = 0; i < program.procedureCount(); i++) {
            ControlFlowGraph* cfg = NULL;
            cfg = new ControlFlowGraph(program.procedure(i));
            cfgs_.push_back(cfg);
            ControlDependenceGraph* cdg = NULL;
            try {
                cdg = new ControlDependenceGraph(*cfg);
                cdgs_.push_back(cdg);
            } catch (const InvalidData& e) {
                delete cdg;
                continue;
            }
            DataDependenceGraphBuilder builder;
            DataDependenceGraph* ddg = NULL;
            ddg = builder.build(*cfg, DataDependenceGraph::ALL_ANTIDEPS,mach);
            ddgs_.push_back(ddg);
            ProgramDependenceGraph* pdg = NULL;
            pdg = new ProgramDependenceGraph(*cdg, *ddg);
            pdgs_.push_back(pdg);
        }
    } catch (Exception&) {
        clear();
        throw;
    }
}

References DataDependenceGraph::ALL_ANTIDEPS, DataDependenceGraphBuilder::build(), cdgs_, cfgs_, clear(), ddgs_, pdgs_, program, and ProgramDependenceGraph::ProgramDependenceGraph().

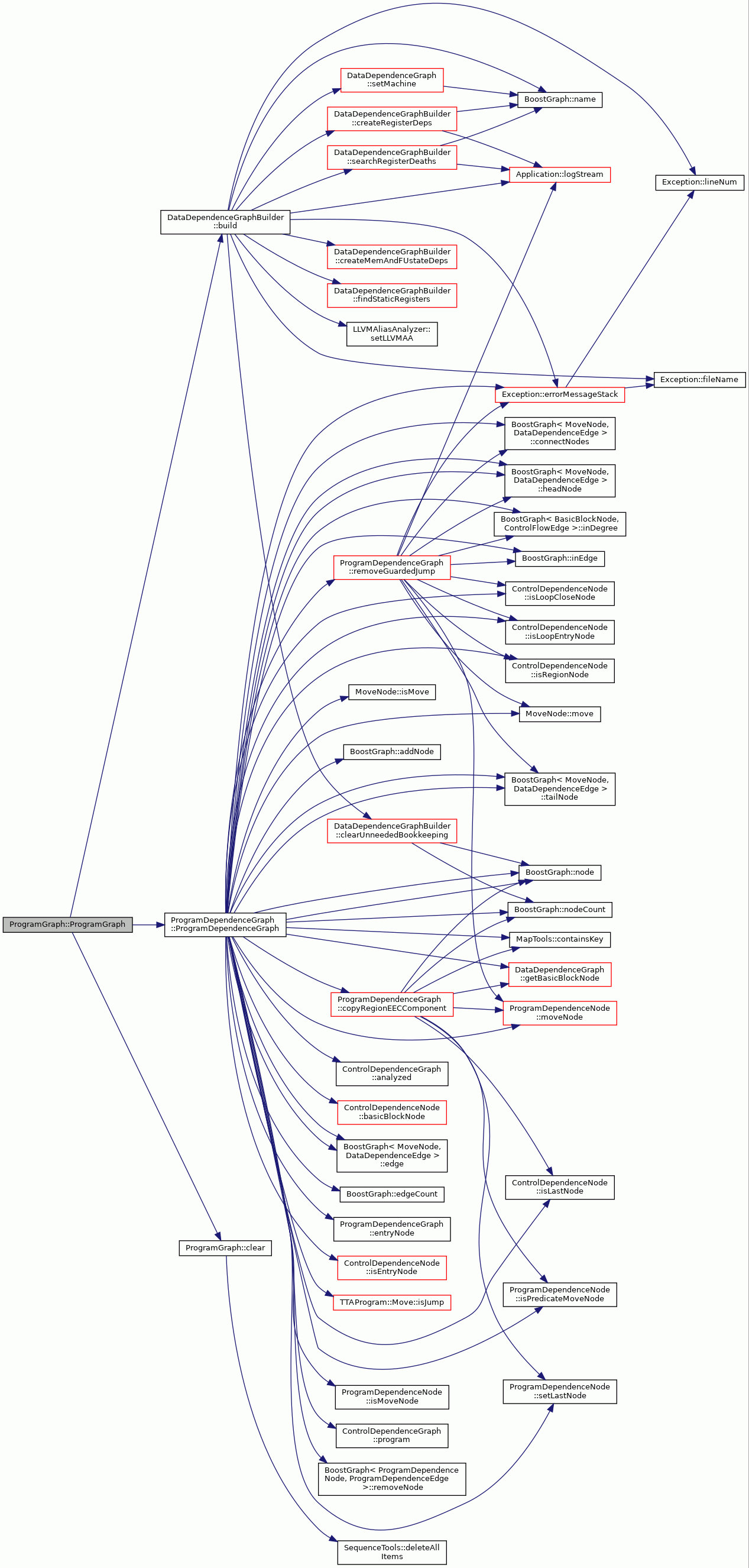

Here is the call graph for this function:

~ProgramGraph()

ProgramGraph::~ProgramGraph ( )

virtual

Destructor.

Removes the graphs.

Definition at line 99 of file ProgramGraph.cc.

                            {
    clear();
}

References clear().

Here is the call graph for this function:

ProgramGraph() [2/2]

ProgramGraph::ProgramGraph ( const ProgramGraph &  )

private

Copying forbidden.

Member Function Documentation

clear()

void ProgramGraph::clear ( )

private

Deletes all graphs owned by this.

Definition at line 87 of file ProgramGraph.cc.

                         {
    SequenceTools::deleteAllItems(pdgs_);
    SequenceTools::deleteAllItems(ddgs_);
    SequenceTools::deleteAllItems(cdgs_);
    SequenceTools::deleteAllItems(cfgs_);
}

References cdgs_, cfgs_, ddgs_, SequenceTools::deleteAllItems(), and pdgs_.

Referenced by ProgramGraph(), and ~ProgramGraph().

Here is the call graph for this function:

generateProgram()

TTAProgram::Program & ProgramGraph::generateProgram

(

)

const

Convert Program Graph to Program Object Model and returns POM

Returns

POM

TODO: convert PDG to POM this is basically scheduling

Definition at line 109 of file ProgramGraph.cc.

                                    {
    ///TODO: convert PDG to POM
    /// this is basically scheduling
    return TTAProgram::NullProgram::instance();
}

References TTAProgram::NullProgram::instance().

Here is the call graph for this function:

graph()

ProgramDependenceGraph * ProgramGraph::graph

(

const std::string

name

)

Returns a PDG for procedure identified by procedure name.

Parameters

name	name of a procedure

Returns

PDG for given procedure

Definition at line 157 of file ProgramGraph.cc.

                                        {
    for (int i = 0; i < graphCount(); i++) {
        if (pdgs_.at(i)->name() == name) {
            return pdgs_.at(i);
        }
    }
    throw InvalidData(__FILE__, __LINE__, __func__, "Can not find graph of "
        "procedure " + name);
}

References __func__, graphCount(), BoostGraph< ProgramDependenceNode, ProgramDependenceEdge >::name(), and pdgs_.

Here is the call graph for this function:

graphAt()

ProgramDependenceGraph * ProgramGraph::graphAt

(

int

i

)

Returns a PDG for procedure identified by index.

Parameters

i	index of a procedure

Returns

PDG for given procedure

Definition at line 143 of file ProgramGraph.cc.

                           {
    if (i < 0 || i >= graphCount()){
        throw InvalidData(__FILE__, __LINE__, __func__, "Trying to access"
            " graph out of a scope!");
    }
    return pdgs_.at(i);
}

References __func__, graphCount(), and pdgs_.

Here is the call graph for this function:

graphCount()

int ProgramGraph::graphCount

(

)

const

Returns number of PDG's in a program graph, equals number of procedures in program.

Returns

number of PDG's in a graph

Definition at line 133 of file ProgramGraph.cc.

                               {
    return pdgs_.size();
}

References pdgs_.

Referenced by graph(), and graphAt().

nodeOf()

MoveNode & ProgramGraph::nodeOf

(

const TTAProgram::Move &

)

const

Returns MoveNode of program representation corresponding to Move of POM.

Parameters

move	move from POM

Returns

MoveNode corresponding to move

TODO: find a move and return corresponding MoveNode

Definition at line 122 of file ProgramGraph.cc.

                                               {
    ///TODO: find a move and return corresponding MoveNode
    return *(new MoveNode());
}

operator=()

ProgramGraph& ProgramGraph::operator= ( const ProgramGraph &  )

private

Assignment forbidden.

Member Data Documentation

cdgs_

std::vector<ControlDependenceGraph*> ProgramGraph::cdgs_

private

Vector of CDG's for each procedure.

Definition at line 86 of file ProgramGraph.hh.

Referenced by clear(), and ProgramGraph().

cfgs_

std::vector<ControlFlowGraph*> ProgramGraph::cfgs_

private

Vector of CFG's for each procedure.

Definition at line 84 of file ProgramGraph.hh.

Referenced by clear(), and ProgramGraph().

ddgs_

std::vector<DataDependenceGraph*> ProgramGraph::ddgs_

private

Vector of DDG's for each procedure.

Definition at line 88 of file ProgramGraph.hh.

Referenced by clear(), and ProgramGraph().

pdgs_

std::vector<ProgramDependenceGraph*> ProgramGraph::pdgs_

private

Vector of PDG's for each procedure.

Definition at line 90 of file ProgramGraph.hh.

Referenced by clear(), graph(), graphAt(), graphCount(), and ProgramGraph().

program_

TTAProgram::Program& ProgramGraph::program_

private

Original program.

Definition at line 81 of file ProgramGraph.hh.

---

The documentation for this class was generated from the following files:

• ProgramGraph.hh
• ProgramGraph.cc
