ProximFUDetailsCmd Class Reference

#include <ProximFUDetailsCmd.hh>

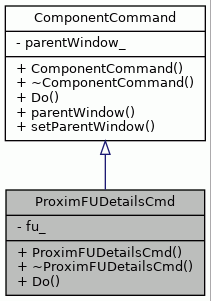

Inheritance diagram for ProximFUDetailsCmd:

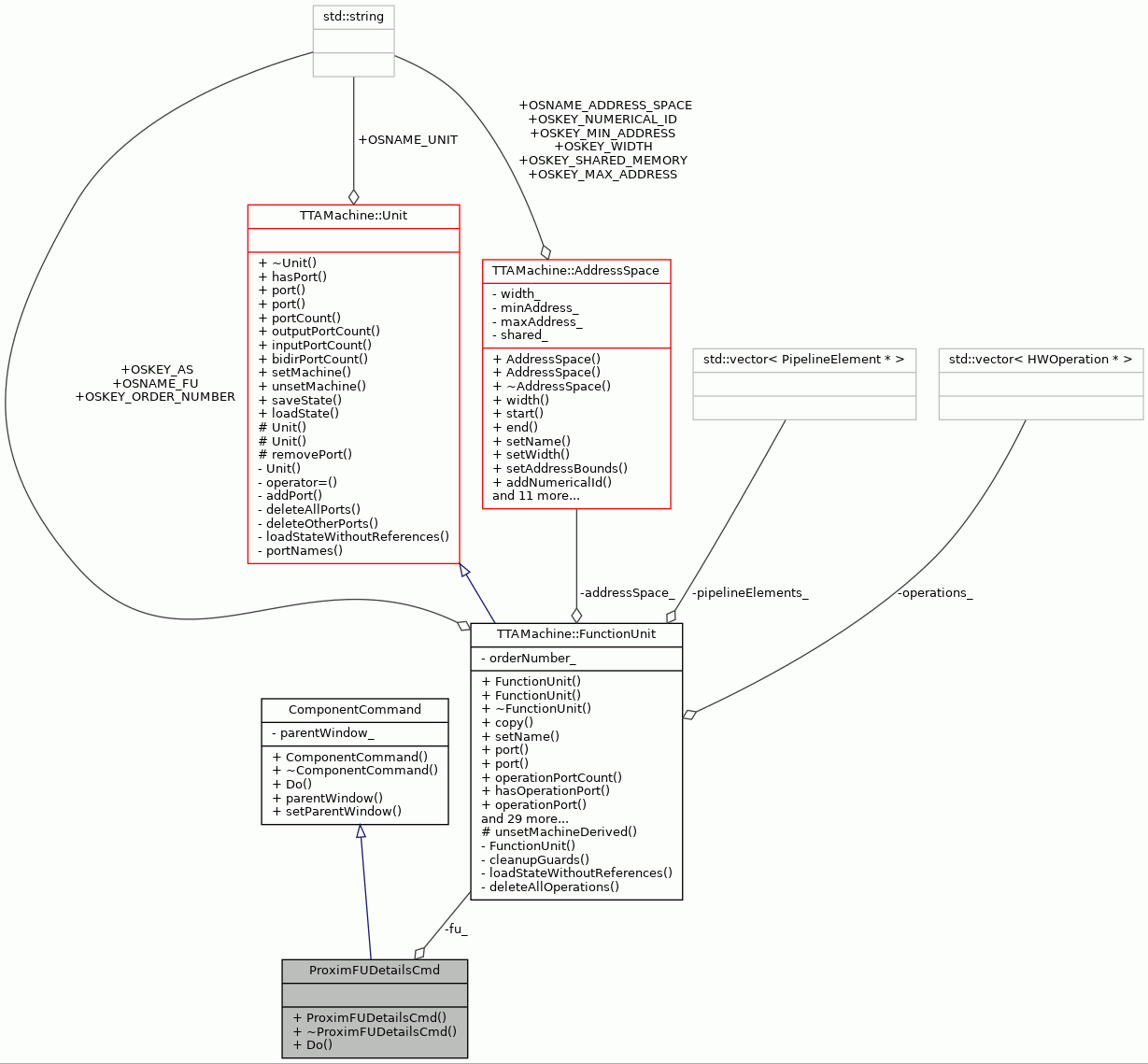

Collaboration diagram for ProximFUDetailsCmd:

Public Member Functions
	ProximFUDetailsCmd (const TTAMachine::FunctionUnit &fu)
virtual	~ProximFUDetailsCmd ()
virtual bool	Do ()
Public Member Functions inherited from ComponentCommand
	ComponentCommand ()
virtual	~ComponentCommand ()
wxWindow *	parentWindow ()
void	setParentWindow (wxWindow *window)

Private Attributes
const TTAMachine::FunctionUnit &	fu_
	Function unit to display. More...

Detailed Description

Command for displaying function unit details in the machine state window component details pane.

Definition at line 46 of file ProximFUDetailsCmd.hh.

Constructor & Destructor Documentation

ProximFUDetailsCmd()

ProximFUDetailsCmd::ProximFUDetailsCmd

(

const TTAMachine::FunctionUnit &

fu

)

The Constructor.

Parameters

fu	Function unit to display.

Definition at line 55 of file ProximFUDetailsCmd.cc.

                                                                       :
    ComponentCommand(), fu_(fu) {
}

~ProximFUDetailsCmd()

ProximFUDetailsCmd::~ProximFUDetailsCmd ( )

virtual

The Destructor.

Definition at line 63 of file ProximFUDetailsCmd.cc.

                                        {
}

Member Function Documentation

Do()

bool ProximFUDetailsCmd::Do ( )

virtual

Executes the command.

Implements ComponentCommand.

Definition at line 70 of file ProximFUDetailsCmd.cc.

                       {

    string fuName = fu_.name();

    ProximMachineStateWindow* machineWin = ProximToolbox::machineStateWindow();

    const UtilizationStats& stats =
        ProximToolbox::frontend()->utilizationStatistics();

    MachineState& machineState = ProximToolbox::frontend()->machineState();

    // Append component type and name to the details widget.
    machineWin->appendDetails(ProximConstants::MACH_WIN_FU_LABEL);
    machineWin->appendDetails(fuName + "\n\n");

    // Append ports to the details widget.
    machineWin->appendDetails(ProximConstants::MACH_WIN_PORTS_TITLE + "\n");
    for (int i = 0; i < fu_.portCount(); i++) {
        string portName = fu_.port(i)->name();
        const PortState& portState = machineState.portState(portName, fuName);
        machineWin->appendDetails("  " + portName + ":\t");
        machineWin->appendDetails(
            Conversion::toString(portState.value().uIntWordValue()) + "\n");
    }

    // Append trigger count to the utlization widget.
    machineWin->appendUtilizationData(
        ProximConstants::MACH_WIN_TRIGGER_COUNT_LABEL);
    double triggerCount = stats.triggerCount(fuName);
    machineWin->appendUtilizationData(Conversion::toString(triggerCount));
    machineWin->appendUtilizationData("\n\n");

    // Append operation usage to the utilization widget.
    machineWin->appendUtilizationData(
        ProximConstants::MACH_WIN_EXECUTION_COUNT_LABEL);
    machineWin->appendUtilizationData("\n");

    for (int i = 0; i < fu_.operationCount(); i++) {
        string opName = StringTools::stringToUpper(fu_.operation(i)->name());
        ClockCycleCount execCount = stats.operationExecutions(fuName, opName);
        double percent = 0;
        if (triggerCount > 0) {
            percent = 100 * (execCount / triggerCount);
        }
        machineWin->appendUtilizationData(
            "  " + opName + ": " +
            Conversion::toString(execCount) + "  (" +
            Conversion::toString(percent) + "%)\n");
    }

    return true;
}

References ProximMachineStateWindow::appendDetails(), ProximMachineStateWindow::appendUtilizationData(), ProximToolbox::frontend(), fu_, ProximConstants::MACH_WIN_EXECUTION_COUNT_LABEL, ProximConstants::MACH_WIN_FU_LABEL, ProximConstants::MACH_WIN_PORTS_TITLE, ProximConstants::MACH_WIN_TRIGGER_COUNT_LABEL, SimulatorFrontend::machineState(), ProximToolbox::machineStateWindow(), TTAMachine::HWOperation::name(), TTAMachine::Port::name(), TTAMachine::Component::name(), TTAMachine::FunctionUnit::operation(), TTAMachine::FunctionUnit::operationCount(), UtilizationStats::operationExecutions(), TTAMachine::FunctionUnit::port(), TTAMachine::Unit::portCount(), MachineState::portState(), StringTools::stringToUpper(), Conversion::toString(), UtilizationStats::triggerCount(), SimValue::uIntWordValue(), SimulatorFrontend::utilizationStatistics(), and RegisterState::value().

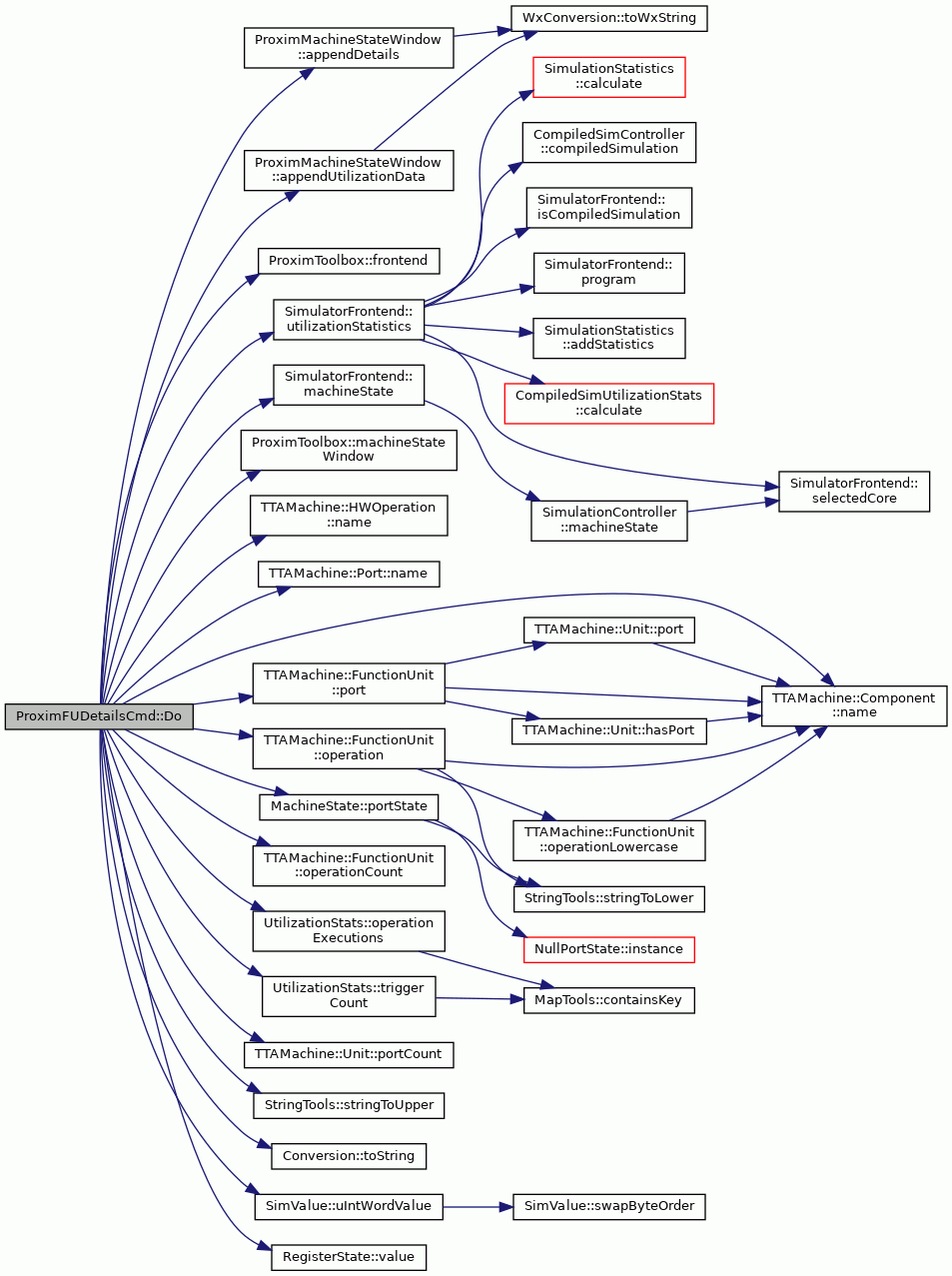

Here is the call graph for this function:

Member Data Documentation

fu_

const TTAMachine::FunctionUnit& ProximFUDetailsCmd::fu_

private

Function unit to display.

Definition at line 53 of file ProximFUDetailsCmd.hh.

Referenced by Do().

---

The documentation for this class was generated from the following files:

• ProximFUDetailsCmd.hh
• ProximFUDetailsCmd.cc
