ProximNextICmd Class Reference

#include <ProximNextICmd.hh>

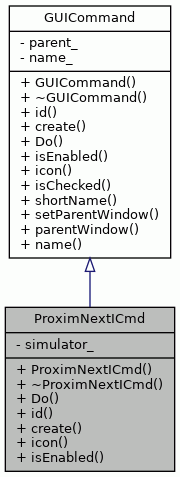

Inheritance diagram for ProximNextICmd:

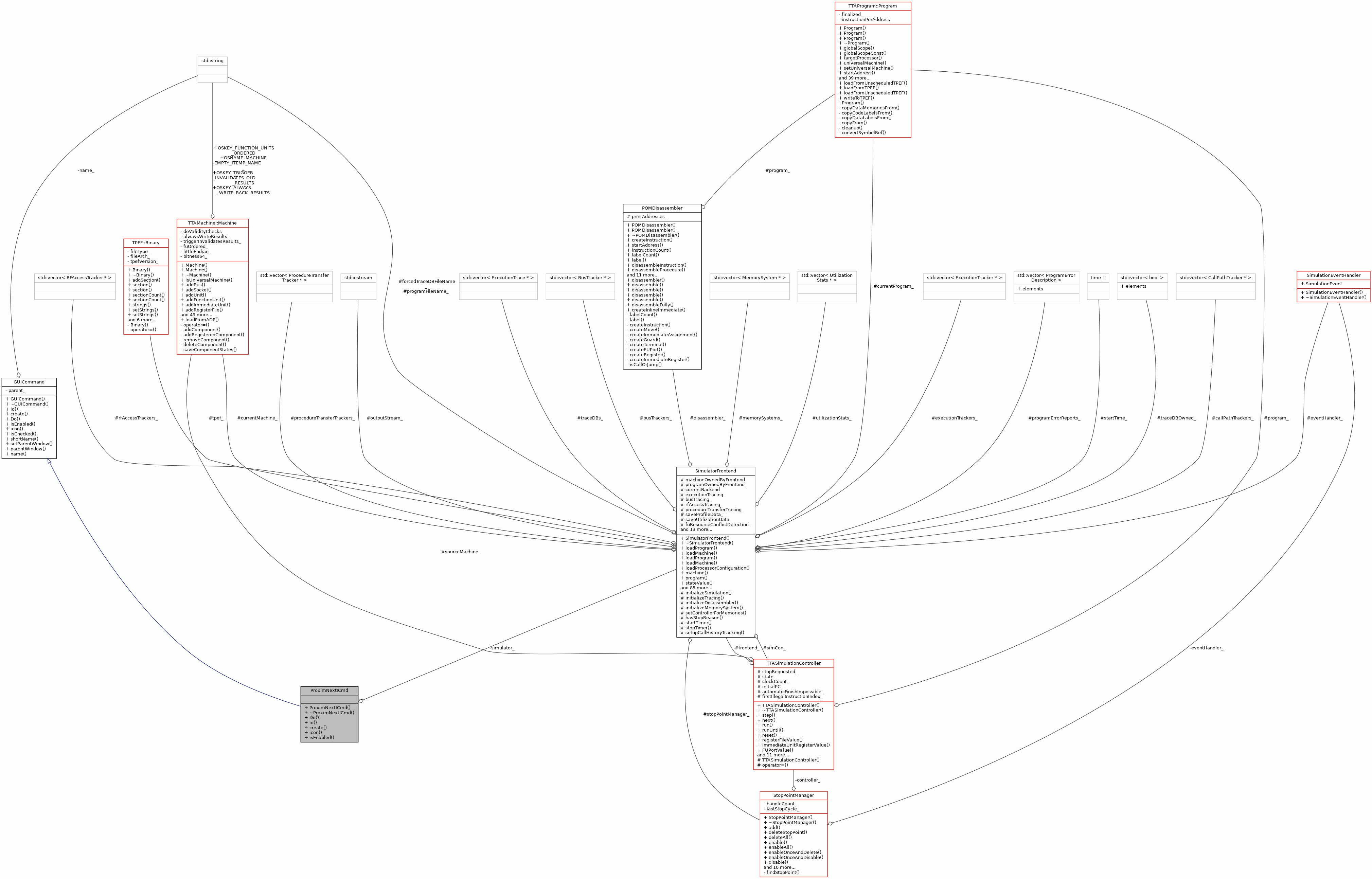

Collaboration diagram for ProximNextICmd:

Public Member Functions
	ProximNextICmd ()
virtual	~ProximNextICmd ()
virtual bool	Do ()
virtual int	id () const
virtual ProximNextICmd *	create () const
virtual std::string	icon () const
virtual bool	isEnabled ()
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
virtual std::string	shortName () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Private Attributes
SimulatorFrontend *	simulator_

Detailed Description

Proxim simulation command for advancing to the next machine instruction in current procedure.

Definition at line 44 of file ProximNextICmd.hh.

Constructor & Destructor Documentation

ProximNextICmd()

ProximNextICmd::ProximNextICmd

(

)

The Constructor.

Definition at line 42 of file ProximNextICmd.cc.

                              :
    GUICommand(ProximConstants::COMMAND_NAME_NEXTI, NULL) {

    simulator_ = wxGetApp().simulation()->frontend();
}

References simulator_.

Referenced by create().

~ProximNextICmd()

ProximNextICmd::~ProximNextICmd ( )

virtual

The Destructor.

Definition at line 51 of file ProximNextICmd.cc.

                                {
}

Member Function Documentation

create()

ProximNextICmd * ProximNextICmd::create ( ) const

virtual

Creates and returns a new isntance of this command.

Returns

Newly created instance of this command.

Implements GUICommand.

Definition at line 92 of file ProximNextICmd.cc.

                             {
    return new ProximNextICmd();
}

References ProximNextICmd().

Here is the call graph for this function:

Do()

bool ProximNextICmd::Do ( )

virtual

Executes the command.

Implements GUICommand.

Definition at line 59 of file ProximNextICmd.cc.

                   {
    wxGetApp().simulation()->lineReader().input(
        ProximConstants::SCL_NEXT_INSTRUCTION);
    return true;
}

References ProximConstants::SCL_NEXT_INSTRUCTION.

icon()

std::string ProximNextICmd::icon ( ) const

virtual

Returns full path to the command icon file.

Returns

Full path to the command icon file.

Implements GUICommand.

Definition at line 72 of file ProximNextICmd.cc.

                           {
    return "nexti.png";
}

id()

int ProximNextICmd::id ( ) const

virtual

Returns ID of this command.

Implements GUICommand.

Definition at line 81 of file ProximNextICmd.cc.

                         {
    return ProximConstants::COMMAND_NEXTI;
}

References ProximConstants::COMMAND_NEXTI.

isEnabled()

bool ProximNextICmd::isEnabled ( )

virtual

Returns true if the command is enabled, false otherwise.

Returns

True if the simulation is initialized or stopped.

Implements GUICommand.

Definition at line 103 of file ProximNextICmd.cc.

                          {

    if (simulator_ != NULL &&
        (simulator_->isSimulationInitialized() ||
         simulator_->isSimulationStopped())) {

    return true;
    } else {
    return false;
    }
}

References SimulatorFrontend::isSimulationInitialized(), SimulatorFrontend::isSimulationStopped(), and simulator_.

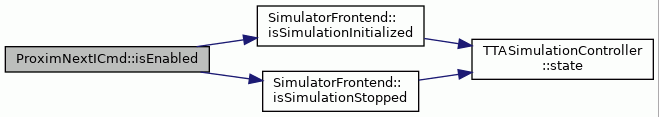

Here is the call graph for this function:

Member Data Documentation

simulator_

SimulatorFrontend* ProximNextICmd::simulator_

private

Definition at line 55 of file ProximNextICmd.hh.

Referenced by isEnabled(), and ProximNextICmd().

---

The documentation for this class was generated from the following files:

• ProximNextICmd.hh
• ProximNextICmd.cc
