RFPortCheck Class Reference

#include <RFPortCheck.hh>

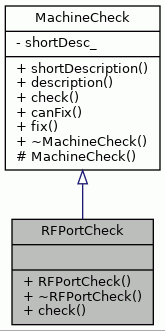

Inheritance diagram for RFPortCheck:

Collaboration diagram for RFPortCheck:

Public Member Functions
	RFPortCheck ()
virtual	~RFPortCheck ()
virtual bool	check (const TTAMachine::Machine &mach, MachineCheckResults &results) const
Public Member Functions inherited from MachineCheck
virtual std::string	shortDescription () const
virtual std::string	description () const
virtual bool	canFix (const TTAMachine::Machine &mach) const
virtual std::string	fix (TTAMachine::Machine &mach) const
virtual	~MachineCheck ()

Additional Inherited Members
Protected Member Functions inherited from MachineCheck
	MachineCheck (const std::string &shortDesc_)

Detailed Description

Checks that the ports of the register files are sensible.

Currently checks only that there is at least one input port in the register file.

Definition at line 44 of file RFPortCheck.hh.

Constructor & Destructor Documentation

RFPortCheck()

RFPortCheck::RFPortCheck

(

)

The constructor.

Definition at line 47 of file RFPortCheck.cc.

                         : MachineCheck("Sanity checks for RF ports.") {
}

~RFPortCheck()

RFPortCheck::~RFPortCheck ( )

virtual

The destructor.

Definition at line 53 of file RFPortCheck.cc.

                          {
}

Member Function Documentation

check()

bool RFPortCheck::check ( const TTAMachine::Machine &  mach, MachineCheckResults &  results  ) const

virtual

Sanity checks the RF ports of the target machine.

Parameters

mach	Machine to be checked.
results	Check results.

Returns

True if the check passed

Todo:

Check if there is no read ports and the register file has at least one register which is not a predicate reg (read by GCU).

Implements MachineCheck.

Definition at line 64 of file RFPortCheck.cc.

                                        {

    bool checksOk = true;
    Machine::RegisterFileNavigator RFs = mach.registerFileNavigator();
    for (int i = 0; i < RFs.count(); i++) {
        const TTAMachine::RegisterFile& rf = *RFs.item(i);
        int inputPorts = 0;
        const int ports = rf.portCount();
        for (int p = 0; p < ports; ++p) {
            const TTAMachine::RFPort* port = rf.port(p);
            if (port->isInput()) {
                ++inputPorts;
                break;
            }
        }
        if (inputPorts == 0) {
            results.addError(
                *this,
                (boost::format(
                    "Register file '%s' does not have any input ports.").
                 str()));
            checksOk = false;
        }
    }

    /// @todo Check if there is no read ports and the register file has
    /// at least one register which is not a predicate reg (read by GCU).

    return checksOk;
}

References MachineCheckResults::addError(), TTAMachine::Machine::Navigator< ComponentType >::count(), TTAMachine::Port::isInput(), TTAMachine::Machine::Navigator< ComponentType >::item(), TTAMachine::BaseRegisterFile::port(), TTAMachine::Unit::portCount(), and TTAMachine::Machine::registerFileNavigator().

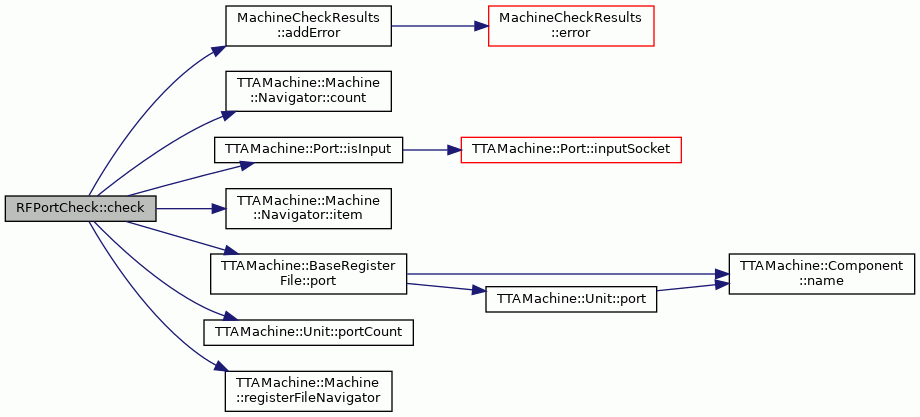

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• RFPortCheck.hh
• RFPortCheck.cc
