#include <RFPortCode.hh>

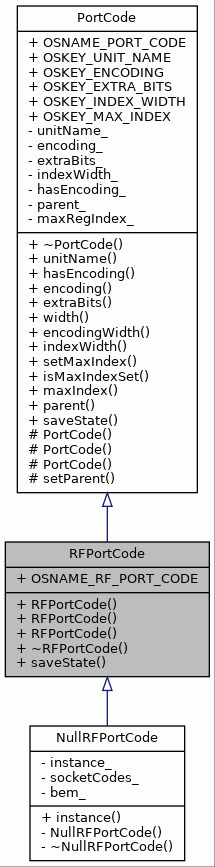

Inheritance diagram for RFPortCode:

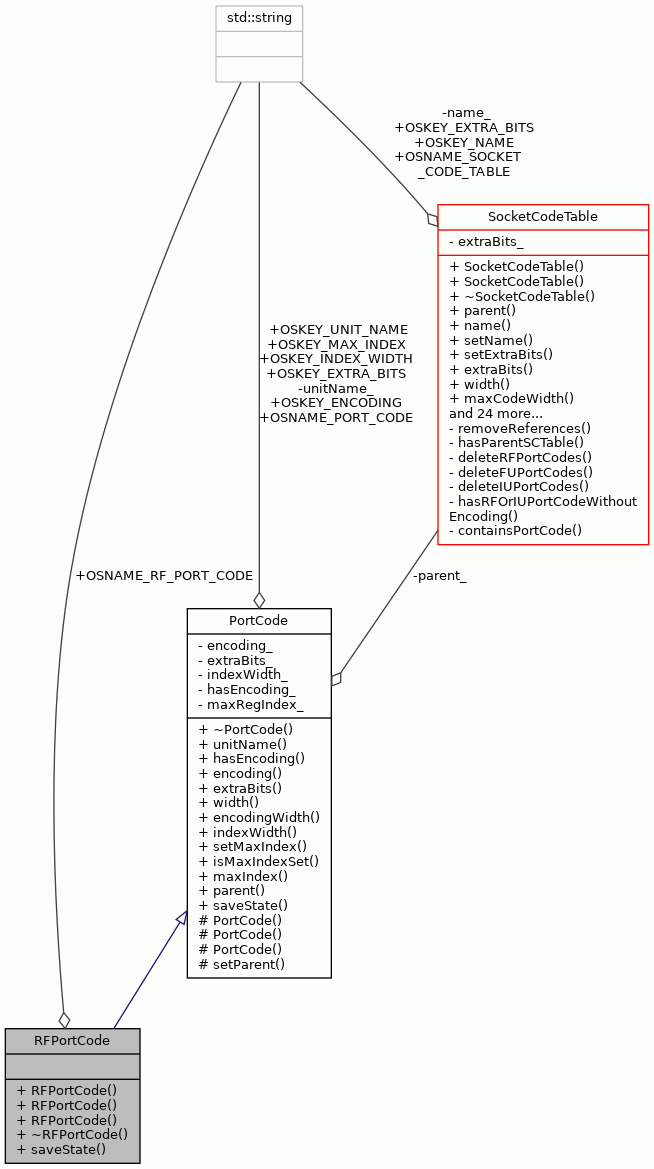

Collaboration diagram for RFPortCode:

Public Member Functions
	RFPortCode (const std::string &regFile, unsigned int encoding, unsigned int extraBits, int indexWidth, SocketCodeTable &parent)

	RFPortCode (const std::string &regFile, int indexWidth, SocketCodeTable &parent)

	RFPortCode (const ObjectState *state, SocketCodeTable &parent)

virtual	~RFPortCode ()

virtual ObjectState *	saveState () const

Public Member Functions inherited from PortCode
virtual	~PortCode ()

std::string	unitName () const

bool	hasEncoding () const

unsigned int	encoding () const

unsigned int	extraBits () const

int	width () const

int	encodingWidth () const

int	indexWidth () const

void	setMaxIndex (unsigned regIndex)

bool	isMaxIndexSet () const

unsigned	maxIndex () const

SocketCodeTable *	parent () const

Static Public Attributes
static const std::string	OSNAME_RF_PORT_CODE = "rf_port_code"
	ObjectState name for RF port code. More...

Static Public Attributes inherited from PortCode
static const std::string	OSNAME_PORT_CODE = "port_code"
	ObjectState name for PortCode. More...

static const std::string	OSKEY_UNIT_NAME = "unit_name"
	ObjectState attribute key for the name of the unit. More...

static const std::string	OSKEY_ENCODING = "encoding"
	ObjectState attribute key for the encoding. More...

static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits. More...

static const std::string	OSKEY_INDEX_WIDTH = "index_width"
	ObjectState attribute key for the widht of register index. More...

static const std::string	OSKEY_MAX_INDEX = "max-index"
	ObjectState attribute key for the max-index attribute. More...

Additional Inherited Members
Protected Member Functions inherited from PortCode
	PortCode (const std::string &unitName, unsigned int encoding, unsigned int extraBits, int indexWidth)

	PortCode (const std::string &unitName, int indexWidth)

	PortCode (const ObjectState *state)

void	setParent (SocketCodeTable *parent)

Detailed Description

RFPortCode class defines a binary encoding for a register file port.

Definition at line 44 of file RFPortCode.hh.

Constructor & Destructor Documentation

◆ RFPortCode() [1/3]

RFPortCode::RFPortCode	(	const std::string &	regFile,
		unsigned int	encoding,
		unsigned int	extraBits,
		int	indexWidth,
		SocketCodeTable &	parent
	)

The constructor.

Registers the created instance to the given socket code table automatically.

Parameters

regFile	Name of the register file.
encoding	The encoding for the register file port.
extraBits	The number of extra zero bits in the encoding.
indexWidth	The number of bits reserved for the register index.
parent	The parent socket code table.

Exceptions

ObjectAlreadyExists	If the socket code table has an encoding defined for the same port already, or if the encoding is ambiguous with another encoding in the same socket code table.
OutOfRange	If some of the given values is out of range.

Definition at line 60 of file RFPortCode.cc.

     : PortCode(regFile, encoding, extraBits, indexWidth) {
     setParent(NULL);
     parent.addRFPortCode(*this);
     setParent(&parent);
 }

References SocketCodeTable::addRFPortCode(), PortCode::parent(), and PortCode::setParent().

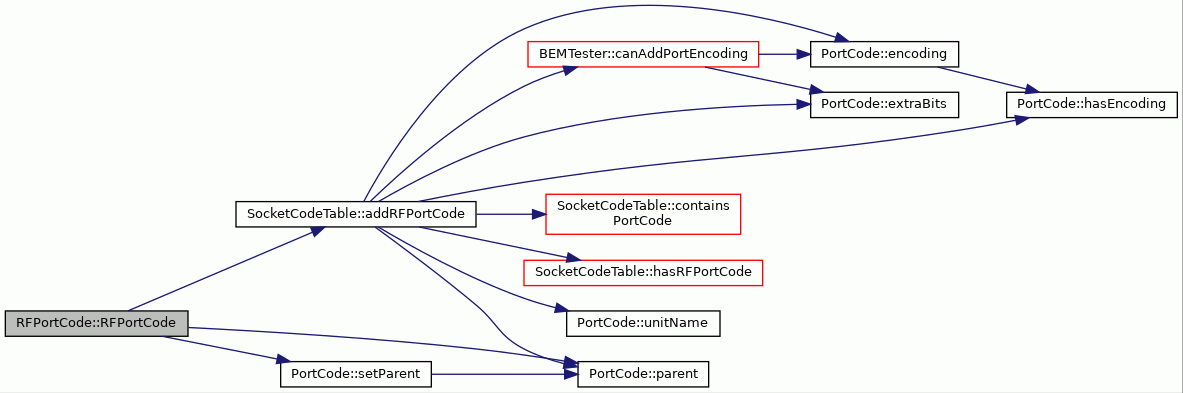

Here is the call graph for this function:

◆ RFPortCode() [2/3]

RFPortCode::RFPortCode	(	const std::string &	regFile,
		int	indexWidth,
		SocketCodeTable &	parent
	)

The constructor.

Creates an RF port code without port encoding. That is, the port code consists of mere register index. This is useful when the parent socket code table does not have other port codes. Registers the created instance to the given socket code table automatically.

Parameters

regFile	Name of the register file.
indexWidth	The number of bits reserved for the register index.
parent	The parent socket code table.

Exceptions

ObjectAlreadyExists	If the socket code table has an encoding defined for the same port already, or if the encoding is ambiguous with another encoding in the same socket code table.
OutOfRange	If the given index width is negative.

Definition at line 86 of file RFPortCode.cc.

     : PortCode(regFile, indexWidth) {
     setParent(NULL);
     parent.addRFPortCode(*this);
     setParent(&parent);
 }

References SocketCodeTable::addRFPortCode(), PortCode::parent(), and PortCode::setParent().

Here is the call graph for this function:

◆ RFPortCode() [3/3]

RFPortCode::RFPortCode	(	const ObjectState *	state,
		SocketCodeTable &	parent
	)

The constructor.

Loads the state of the object from the given ObjectState tree.

Parameters

state	The ObjectState tree.
parent	The parent encoding map.

Exceptions

ObjectStateLoadingException	If an error occurs while loading the state.
ObjectAlreadyExists	If the socket code table has an encoding defined for the same port already, or if the encoding is ambiguous with another encoding in the same socket code table.

Definition at line 108 of file RFPortCode.cc.

     : PortCode(state) {
     if (state->name() != OSNAME_RF_PORT_CODE) {
     const string procName = "RFPortCode::RFPortCode";
     throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
     }

     setParent(NULL);
     parent.addRFPortCode(*this);
     setParent(&parent);
 }

References SocketCodeTable::addRFPortCode(), ObjectState::name(), OSNAME_RF_PORT_CODE, PortCode::parent(), and PortCode::setParent().

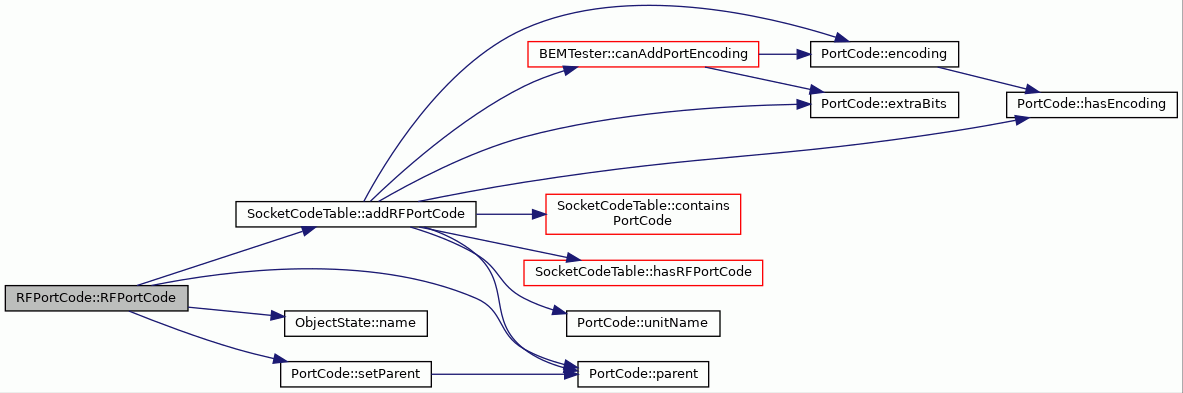

Here is the call graph for this function:

◆ ~RFPortCode()

RFPortCode::~RFPortCode ( )

virtual

The destructor.

Definition at line 123 of file RFPortCode.cc.

                         {
     SocketCodeTable* parent = this->parent();
     setParent(NULL);
     parent->removeRFPortCode(*this);
 }

References PortCode::parent(), SocketCodeTable::removeRFPortCode(), and PortCode::setParent().

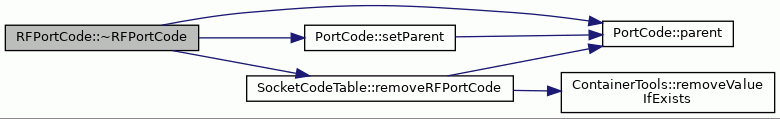

Here is the call graph for this function:

Member Function Documentation

◆ saveState()

ObjectState * RFPortCode::saveState ( ) const

virtual

Saves the state of the object to an ObjectState tree.

Returns: The newly created ObjectState tree.

Reimplemented from PortCode.

Definition at line 136 of file RFPortCode.cc.

                             {
     ObjectState* state = PortCode::saveState();
     state->setName(OSNAME_RF_PORT_CODE);
     return state;
 }

References OSNAME_RF_PORT_CODE, PortCode::saveState(), and ObjectState::setName().

Referenced by SocketCodeTable::saveState().

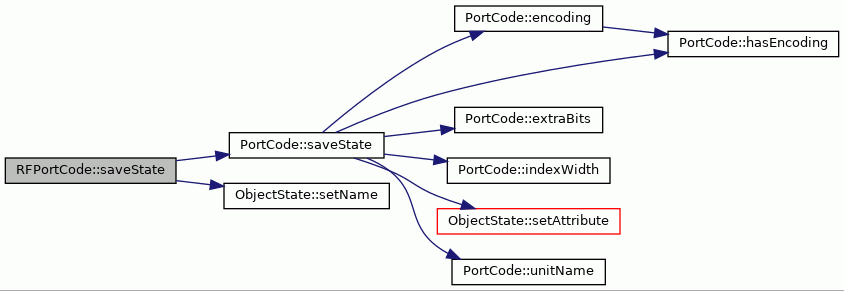

Here is the call graph for this function:

Member Data Documentation

◆ OSNAME_RF_PORT_CODE

const std::string RFPortCode::OSNAME_RF_PORT_CODE = "rf_port_code"

static

ObjectState name for RF port code.

Definition at line 57 of file RFPortCode.hh.

Referenced by SocketCodeTable::loadState(), RFPortCode(), saveState(), BEMSerializer::socketCodeTableToFile(), and BEMSerializer::socketCodeTableToOM().

The documentation for this class was generated from the following files:
