SelectCmd Class Reference

#include <SelectCmd.hh>

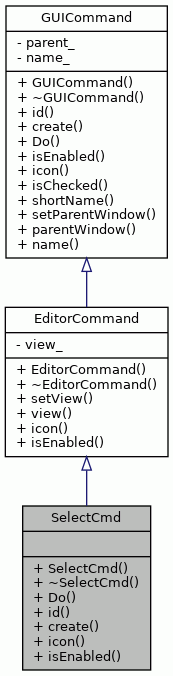

Inheritance diagram for SelectCmd:

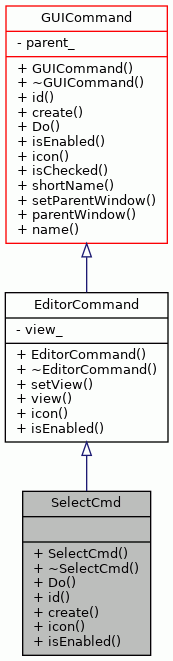

Collaboration diagram for SelectCmd:

Public Member Functions
	SelectCmd ()
virtual	~SelectCmd ()
virtual bool	Do ()
virtual int	id () const
virtual SelectCmd *	create () const
virtual std::string	icon () const
bool	isEnabled ()
Public Member Functions inherited from EditorCommand
	EditorCommand (std::string name, wxWindow *parent=NULL)
virtual	~EditorCommand ()
void	setView (wxView *view)
wxView *	view () const
Public Member Functions inherited from GUICommand
	GUICommand (std::string name, wxWindow *parent)
virtual	~GUICommand ()
virtual bool	isChecked () const
virtual std::string	shortName () const
void	setParentWindow (wxWindow *view)
wxWindow *	parentWindow () const
std::string	name () const

Detailed Description

EditorCommand for changing the canvas tool to the SelectTool.

Definition at line 41 of file SelectCmd.hh.

Constructor & Destructor Documentation

SelectCmd()

SelectCmd::SelectCmd

(

)

The Constructor.

Definition at line 45 of file SelectCmd.cc.

                    :
    EditorCommand(ProDeConstants::CMD_NAME_SELECT) {

}

Referenced by create().

~SelectCmd()

SelectCmd::~SelectCmd ( )

virtual

The Destructor.

Definition at line 54 of file SelectCmd.cc.

                      {
}

Member Function Documentation

create()

SelectCmd * SelectCmd::create ( ) const

virtual

Creates and returns a new instance of this command.

Returns

Newly created instance of this command.

Implements GUICommand.

Definition at line 92 of file SelectCmd.cc.

                        {
    return new SelectCmd();
}

References SelectCmd().

Here is the call graph for this function:

Do()

bool SelectCmd::Do ( )

virtual

Executes the command.

Returns

True, if the command was succesfully executed, false otherwise.

Implements GUICommand.

Definition at line 64 of file SelectCmd.cc.

              {
    MDFView* mdfView = dynamic_cast<MDFView*>(view());
    ChildFrame* frame = dynamic_cast<ChildFrame*>(mdfView->GetFrame());
    assert(frame != NULL);
    mdfView->clearSelection();
    SelectTool* tool = new SelectTool(frame, mdfView);
    mdfView->canvas()->setTool(tool);
    return true;
}

References assert, MDFView::canvas(), MDFView::clearSelection(), MachineCanvas::setTool(), and EditorCommand::view().

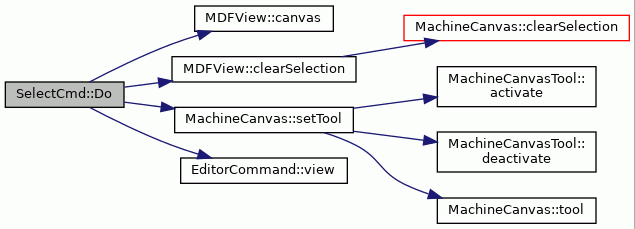

Here is the call graph for this function:

icon()

string SelectCmd::icon ( ) const

virtual

Returns path to the command's icon file.

Returns

Full path to the command's icon file.

Reimplemented from EditorCommand.

Definition at line 103 of file SelectCmd.cc.

                      {
    return ProDeConstants::CMD_ICON_SELECT;
}

References ProDeConstants::CMD_ICON_SELECT.

id()

int SelectCmd::id ( ) const

virtual

Returns id of this command.

Returns

ID for this command to be used in menus and toolbars.

Implements GUICommand.

Definition at line 81 of file SelectCmd.cc.

                    {
    return ProDeConstants::COMMAND_SELECT;
}

References ProDeConstants::COMMAND_SELECT.

isEnabled()

bool SelectCmd::isEnabled ( )

virtual

Returns true when the command is executable, false when not.

This command is executable when a document is open.

Returns

True, if a document is open.

Reimplemented from EditorCommand.

Definition at line 116 of file SelectCmd.cc.

                     {
    wxDocManager* manager = wxGetApp().docManager();
    if (manager->GetCurrentView() != NULL) {
        return true;
    }
    return false;
}

---

The documentation for this class was generated from the following files:

• SelectCmd.hh
• SelectCmd.cc
