SoftwareBypasser Class Reference

#include <SoftwareBypasser.hh>

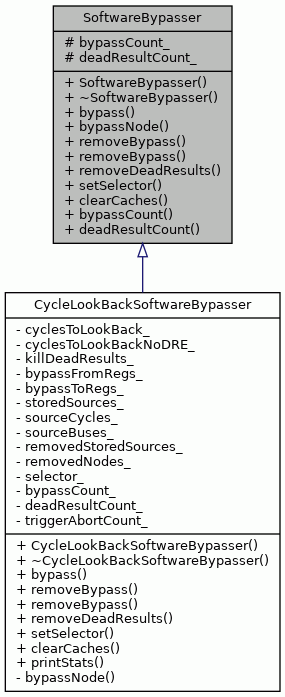

Inheritance diagram for SoftwareBypasser:

Collaboration diagram for SoftwareBypasser:

Public Member Functions
	SoftwareBypasser ()
virtual	~SoftwareBypasser ()
virtual int	bypass (MoveNodeGroup &candidates, DataDependenceGraph &ddg, ResourceManager &rm, bool bypassTrigger)=0
virtual int	bypassNode (MoveNode &moveNode, int &lastOperandCycle, DataDependenceGraph &ddg, ResourceManager &rm)=0
virtual void	removeBypass (MoveNodeGroup &candidates, DataDependenceGraph &ddg, ResourceManager &rm)=0
virtual void	removeBypass (MoveNode &moveNode, DataDependenceGraph &ddg, ResourceManager &rm, bool restoreSource=true)=0
virtual int	removeDeadResults (MoveNodeGroup &candidates, DataDependenceGraph &ddg, ResourceManager &rm, std::set< std::pair< TTAProgram::Move *, int > > &removedMoves)=0
virtual void	setSelector (MoveNodeSelector *selector)
virtual void	clearCaches (DataDependenceGraph &ddg, bool removeDeadResults)=0
int	bypassCount ()
int	deadResultCount ()

Protected Attributes
int	bypassCount_
int	deadResultCount_

Detailed Description

Classes that implement this interface are able to software bypass moves.

Definition at line 52 of file SoftwareBypasser.hh.

Constructor & Destructor Documentation

SoftwareBypasser()

SoftwareBypasser::SoftwareBypasser

(

)

Empty constructor.

Definition at line 42 of file SoftwareBypasser.cc.

                                   : bypassCount_(0), deadResultCount_(0){
}

~SoftwareBypasser()

SoftwareBypasser::~SoftwareBypasser ( )

virtual

Empty destructor.

Definition at line 48 of file SoftwareBypasser.cc.

                                    {
}

Member Function Documentation

bypass()

int SoftwareBypasser::bypass ( MoveNodeGroup &  candidates, DataDependenceGraph &  ddg, ResourceManager &  rm, bool  bypassTrigger  )

pure virtual

Apply software bypassing to as many moves in the given MoveNodeGroup as possible.

The given DDG can be used to inspect whether software bypassing is possible.

Parameters

candidates	The moves to which apply software bypassing, if possible.
ddg	The data dependence grap in which the movenodes belong to.
rm	The resource manager which is used to check for resource availability.
bypassTrigger	whether to bypass the trigger or not.

Returns

The count of bypassed moves.

Implemented in CycleLookBackSoftwareBypasser.

Definition at line 65 of file SoftwareBypasser.cc.

            {

    // use the arguments just to avoid compiler warnings with strict flags
    candidates.nodeCount();
    ddg.nodeCount();
    rm.machine();
    return 0;
}

References ResourceManager::machine(), MoveNodeGroup::nodeCount(), and BoostGraph< GraphNode, GraphEdge >::nodeCount().

Referenced by BasicBlockScheduler::scheduleOperation().

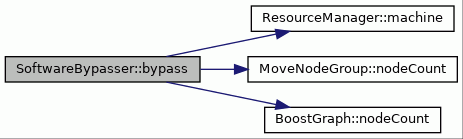

Here is the call graph for this function:

bypassCount()

int SoftwareBypasser::bypassCount ( )

inline

Definition at line 89 of file SoftwareBypasser.hh.

{ return bypassCount_; }

References bypassCount_.

bypassNode()

virtual int SoftwareBypasser::bypassNode ( MoveNode &  moveNode, int &  lastOperandCycle, DataDependenceGraph &  ddg, ResourceManager &  rm  )

pure virtual

Implemented in CycleLookBackSoftwareBypasser.

Referenced by BasicBlockScheduler::handleDDG().

clearCaches()

virtual void SoftwareBypasser::clearCaches ( DataDependenceGraph &  ddg, bool  removeDeadResults  )

pure virtual

Implemented in CycleLookBackSoftwareBypasser.

Referenced by BasicBlockScheduler::handleDDG(), BasicBlockScheduler::handleLoopDDG(), and BasicBlockScheduler::unscheduleAllNodes().

deadResultCount()

int SoftwareBypasser::deadResultCount ( )

inline

Definition at line 90 of file SoftwareBypasser.hh.

{ return deadResultCount_; }

References deadResultCount_.

removeBypass() [1/2]

virtual void SoftwareBypasser::removeBypass ( MoveNode &  moveNode, DataDependenceGraph &  ddg, ResourceManager &  rm, bool  restoreSource = true  )

pure virtual

Implemented in CycleLookBackSoftwareBypasser.

removeBypass() [2/2]

void SoftwareBypasser::removeBypass ( MoveNodeGroup &  candidates, DataDependenceGraph &  ddg, ResourceManager &  rm  )

pure virtual

Remove software bypassing from as many moves in the given MoveNodeGroup as possible.

Parameters

candidates	The moves from which to remove software bypassing, if possible.
ddg	The data dependence grap in which the movenodes belong to.
rm	The resource manager which is used to check for resource availability.

Implemented in CycleLookBackSoftwareBypasser.

Definition at line 89 of file SoftwareBypasser.cc.

                         {

    // use the arguments just to avoid compiler warnings with strict flags
    candidates.nodeCount();
    ddg.nodeCount();
    rm.machine();
    return;
}

References ResourceManager::machine(), MoveNodeGroup::nodeCount(), and BoostGraph< GraphNode, GraphEdge >::nodeCount().

Referenced by BasicBlockScheduler::handleDDG(), BasicBlockScheduler::scheduleOperation(), and BasicBlockScheduler::unscheduleAllNodes().

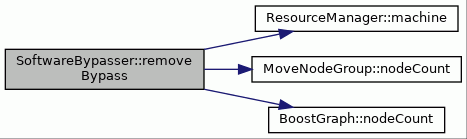

Here is the call graph for this function:

removeDeadResults()

int SoftwareBypasser::removeDeadResults ( MoveNodeGroup &  candidates, DataDependenceGraph &  ddg, ResourceManager &  rm, std::set< std::pair< TTAProgram::Move *, int > > &  removedMoves  )

pure virtual

Remove dead result moves for each bypassed move of given MoveNodeGroup if possible. That is, no other result reads of result exists. This assumes that result moves in MoveNodeGroup are also scheduled.

Parameters

candidates	The moves for which remove dead result writes
ddg	The data dependence grap in which the movenodes belong to.
rm	The resource manager which is used to check for resource availability.
removedMoves	The dead result eliminated moves and their original cycles, to allow rescheduling of moves that were previously resource (RF write port usually) constrained by the removed moves.

Returns

number of dead results killed

Implemented in CycleLookBackSoftwareBypasser.

Definition at line 116 of file SoftwareBypasser.cc.

                                                          {

    // use the arguments just to avoid compiler warnings with strict flags
    candidates.nodeCount();
    ddg.nodeCount();
    rm.machine();
    removedMoves.begin();
    return 0;
}

References ResourceManager::machine(), MoveNodeGroup::nodeCount(), and BoostGraph< GraphNode, GraphEdge >::nodeCount().

Referenced by BasicBlockScheduler::handleDDG(), and BasicBlockScheduler::scheduleOperation().

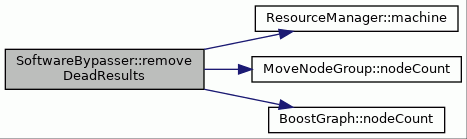

Here is the call graph for this function:

setSelector()

void SoftwareBypasser::setSelector ( MoveNodeSelector *  selector )

virtual

Reimplemented in CycleLookBackSoftwareBypasser.

Definition at line 143 of file SoftwareBypasser.cc.

                                               {
}

Referenced by BasicBlockScheduler::handleDDG(), and BasicBlockScheduler::handleLoopDDG().

Member Data Documentation

bypassCount_

int SoftwareBypasser::bypassCount_

protected

Definition at line 92 of file SoftwareBypasser.hh.

Referenced by bypassCount().

deadResultCount_

int SoftwareBypasser::deadResultCount_

protected

Definition at line 93 of file SoftwareBypasser.hh.

Referenced by deadResultCount().

---

The documentation for this class was generated from the following files:

• SoftwareBypasser.hh
• SoftwareBypasser.cc
