MoveNodeGroup Class Reference

#include <MoveNodeGroup.hh>

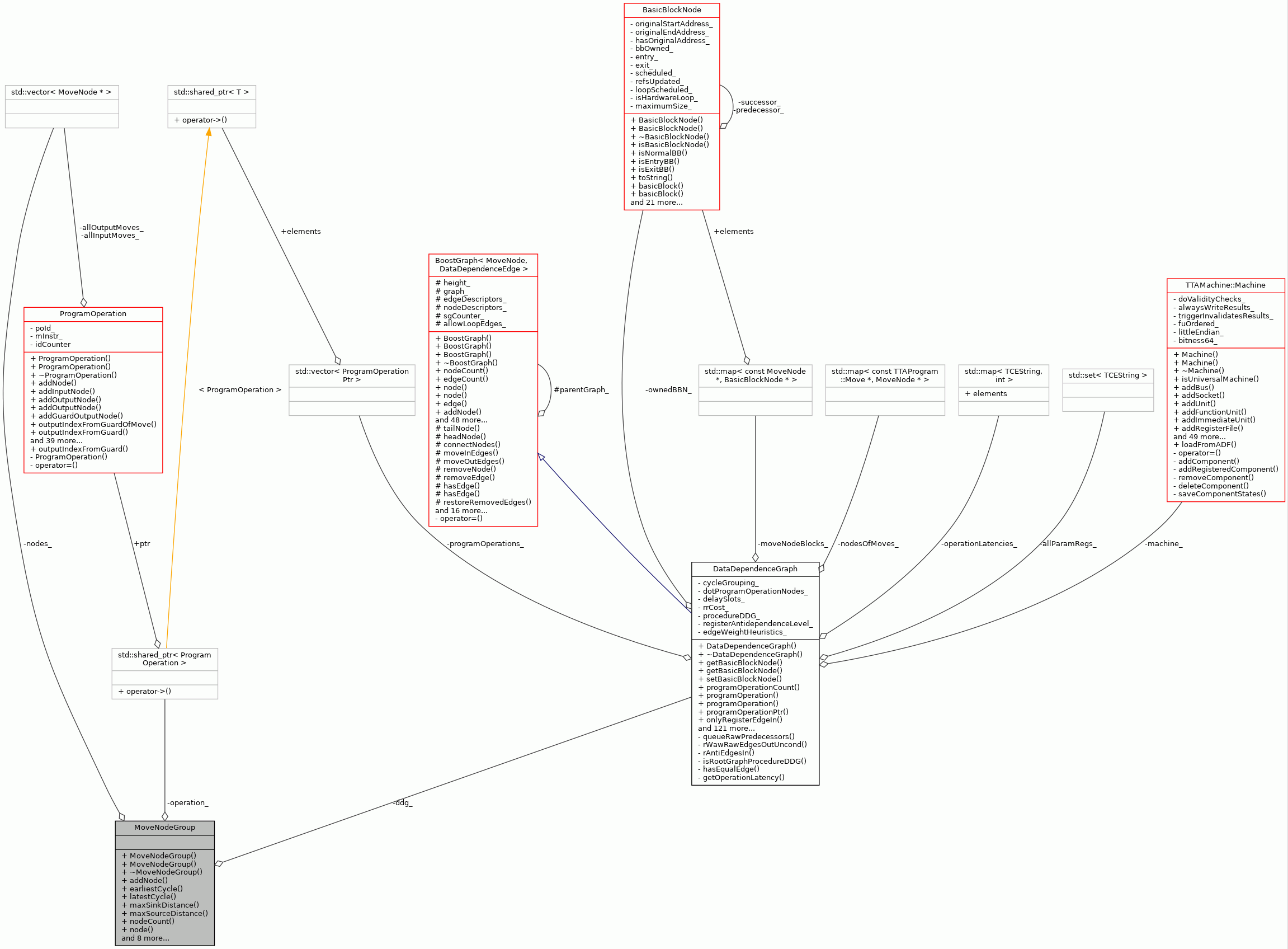

Collaboration diagram for MoveNodeGroup:

Public Member Functions
	MoveNodeGroup ()
	MoveNodeGroup (const DataDependenceGraph &ddg)
virtual	~MoveNodeGroup ()
void	addNode (MoveNode &node)
int	earliestCycle (bool assumeBypassing=false) const
int	latestCycle () const
int	maxSinkDistance () const
int	maxSourceDistance () const
int	nodeCount () const
MoveNode &	node (int index) const
bool	isPlaced () const
bool	isScheduled () const
std::string	toString () const
bool	isAlive () const
void	setProgramOperationPtr (ProgramOperationPtr op)
	in case this MNG contains strictly the nodes of a single operation, it can be set and queried with these methods More...
bool	isOperation () const
ProgramOperationPtr	programOperationPtr () const
bool	writesJumpGuard () const

Private Attributes
std::vector< MoveNode * >	nodes_
const DataDependenceGraph *	ddg_
	The data dependence graph the moves in this group belong to (optional). More...
ProgramOperationPtr	operation_
	in case this MNG contains strictly the nodes of a single operation this can be set to point to it (optional) More...

Detailed Description

Class which contains group of moves which are to be scheduled.

Definition at line 48 of file MoveNodeGroup.hh.

Constructor & Destructor Documentation

MoveNodeGroup() [1/2]

MoveNodeGroup::MoveNodeGroup

(

)

Constructor.

Definition at line 45 of file MoveNodeGroup.cc.

                             : ddg_(NULL) {
}

MoveNodeGroup() [2/2]

MoveNodeGroup::MoveNodeGroup

(

const DataDependenceGraph &

ddg

)

Constructor.

Parameters

ddg	The data dependence graph the moves in the group belong to.

Definition at line 53 of file MoveNodeGroup.cc.

                                                           :
    ddg_(&ddg) {
}

~MoveNodeGroup()

MoveNodeGroup::~MoveNodeGroup ( )

virtual

Destructor.

Definition at line 61 of file MoveNodeGroup.cc.

                              {
}

Member Function Documentation

addNode()

void MoveNodeGroup::addNode

(

MoveNode &

node

)

Adds a node to the MoveNodeGroup.

Parameters

node	The MoveNode being added to the group.

Definition at line 70 of file MoveNodeGroup.cc.

                                     {
    nodes_.push_back(&node);
}

References node(), and nodes_.

Referenced by MoveNodeGroupBuilder::build(), BasicBlockScheduler::handleLoopDDG(), BUMoveNodeSelector::mightBeReady(), and CriticalPathBBMoveNodeSelector::mightBeReady().

Here is the call graph for this function:

earliestCycle()

int MoveNodeGroup::earliestCycle

(

bool

assumeBypassing = false

)

const

Calculates the earliest cycle in which dependences make it possible to try schedule the leader node.

In case the MoveNodeGroup is not (known) to be part of a DDG, or at least one of the predecessors of the MoveNodeGroup are unscheduled, this function returns INT_MAX. If the node is a root node, the function returns 0.

Todo:

What is the "leader node", in general, in an unassigned operation?

Parameters

assumeBypassing

If set to true, assume we can software bypass all inputs from the original source.

Returns

The earliest possible cycle all nodes could be scheduled according to their precedences.

Definition at line 103 of file MoveNodeGroup.cc.

                                                       {

    if (ddg_ == NULL)
        return INT_MAX;

    int cycle = 0;
    // check the predecessors of all nodes in the MoveNodeGroup
    for (std::size_t i = 0; i < nodes_.size(); ++i) {
        MoveNode& node = *nodes_.at(i);
        int nodeCycle =
            ddg_->earliestCycle(
                node, UINT_MAX, false, false, false, false, false,
                assumeBypassing);

        Application::logStream() << "EC " << nodeCycle << " for "
                                 << node.toString() << std::endl;

        // the result read moves have unscheduled predecessors in case
        // the operand moves are not yet scheduled, ignore that
        if (nodeCycle == INT_MAX) {
            if (!node.isSourceOperation()) {
                return INT_MAX;
            }
        } else {
            cycle = std::max(nodeCycle, cycle);
        }
    }

    return cycle;
}

References ddg_, DataDependenceGraph::earliestCycle(), MoveNode::isSourceOperation(), Application::logStream(), node(), nodes_, and MoveNode::toString().

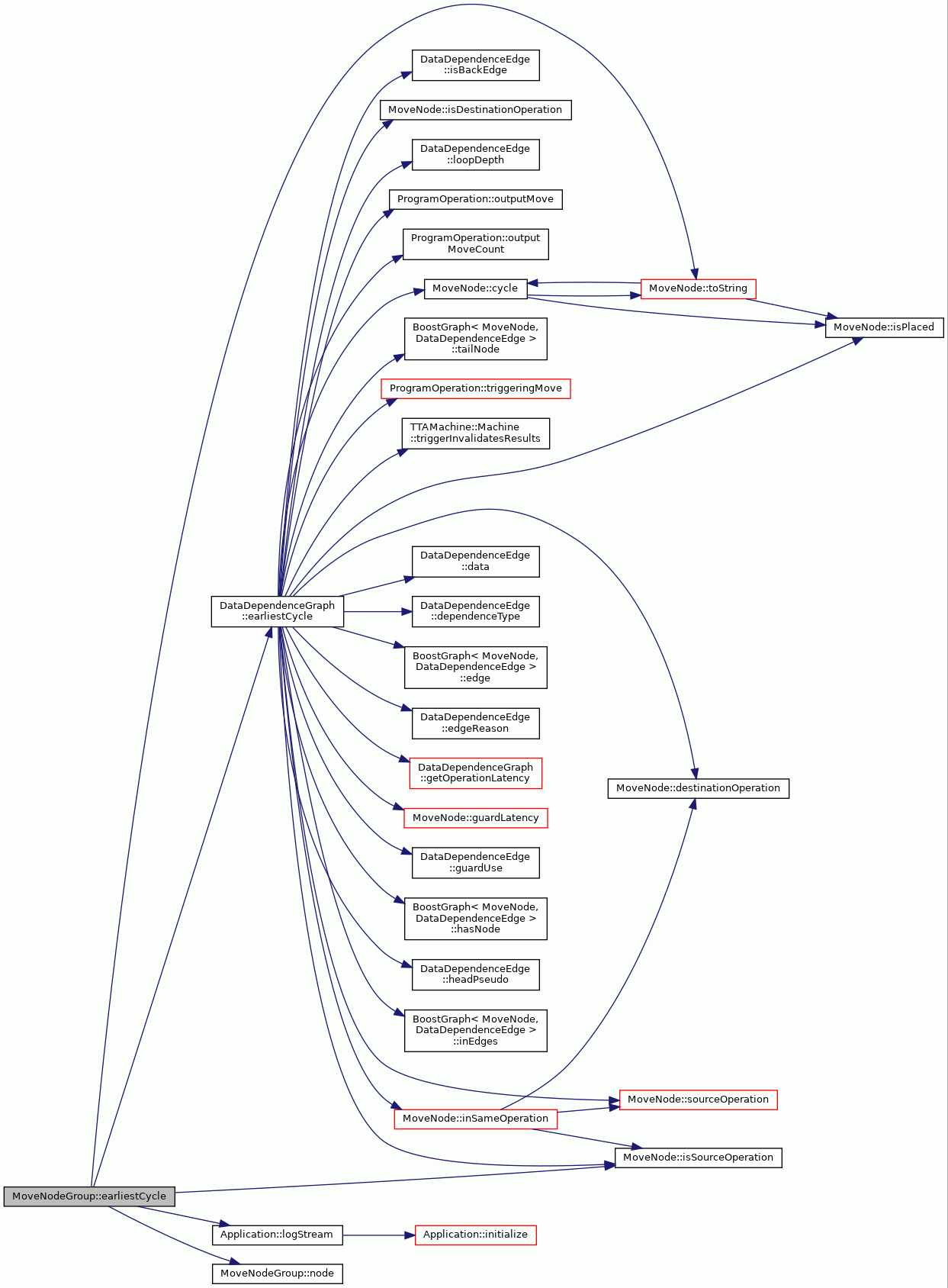

Here is the call graph for this function:

isAlive()

bool MoveNodeGroup::isAlive

(

)

const

Returns true if all moves in the move group are alive.

An empty MoveNodeGroup is considered always alive.

Returns

True if scheduled.

Definition at line 190 of file MoveNodeGroup.cc.

                             {
    if (ddg_ != NULL) {
        for (std::size_t i = 0; i < nodes_.size(); ++i) {
            if (!ddg_->hasNode(*nodes_.at(i))) {
                return false;
            }
        }
    }
    return true;
}

References ddg_, BoostGraph< GraphNode, GraphEdge >::hasNode(), and nodes_.

Referenced by BUMoveNodeSelector::candidates(), and CriticalPathBBMoveNodeSelector::candidates().

Here is the call graph for this function:

isOperation()

bool MoveNodeGroup::isOperation ( ) const

inline

Definition at line 74 of file MoveNodeGroup.hh.

{ return operation_ != NULL; }

References operation_.

Referenced by LLVMTCEDataDependenceGraphBuilder::buildLocalDDG(), and toString().

isPlaced()

bool MoveNodeGroup::isPlaced

(

)

const

Definition at line 173 of file MoveNodeGroup.cc.

                              {
    for (std::size_t i = 0; i < nodes_.size(); ++i) {
        if (!nodes_.at(i)->isPlaced())
            return false;
    }
    return true;
}

References nodes_.

isScheduled()

bool MoveNodeGroup::isScheduled

(

)

const

Returns true if all moves in the move group have been scheduled.

An empty MoveNodeGroup is considered always scheduled.

Returns

True if scheduled.

Definition at line 164 of file MoveNodeGroup.cc.

                                 {
    for (std::size_t i = 0; i < nodes_.size(); ++i) {
        if (!nodes_.at(i)->isScheduled())
            return false;
    }
    return true;
}

References nodes_.

Referenced by BUMoveNodeSelector::candidates(), CriticalPathBBMoveNodeSelector::candidates(), SequentialScheduler::handleBasicBlock(), BUBasicBlockScheduler::handleDDG(), BasicBlockScheduler::handleDDG(), BUBasicBlockScheduler::handleLoopDDG(), BasicBlockScheduler::handleLoopDDG(), RLPriorityCriticalPath::operator()(), RLPriorityNodeId::operator()(), and RLBUPriorityCriticalPath::operator()().

latestCycle()

int MoveNodeGroup::latestCycle

(

)

const

Calculates the last cycle in which dependences make it possible to try schedule the leader node.

Returns

The earliest possible cycle

Definition at line 81 of file MoveNodeGroup.cc.

                                 {
    abortWithError("Not yet implemented");
    return 0;
}

References abortWithError.

maxSinkDistance()

int MoveNodeGroup::maxSinkDistance

(

)

const

Returns the maximum distance from any movenode in the group to any sink.

Calling this may cause forever loop if the DDG has loops.

Returns

maximum distance from any movenode in the group to any sink.

Definition at line 209 of file MoveNodeGroup.cc.

                                     {
    if (ddg_ == NULL) {
        return 0;
    }
    int maxSD = 0;
    for (int i = 0; i < nodeCount(); i++) {
        int sinkDistance = ddg_->maxSinkDistance(node(i));
        maxSD = std::max (maxSD, sinkDistance);
    }
    return maxSD;
}

References ddg_, BoostGraph< GraphNode, GraphEdge >::maxSinkDistance(), node(), and nodeCount().

Referenced by RLPriorityCriticalPath::operator()(), and RLBUPriorityCriticalPath::operator()().

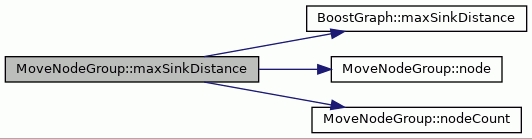

Here is the call graph for this function:

maxSourceDistance()

int MoveNodeGroup::maxSourceDistance

(

)

const

Returns the maximum distance from any source node to any movenode in the group.

Calling this may cause forever loop if the DDG has loops.

Returns

maximum distance from any source node to any node in the group.

Definition at line 230 of file MoveNodeGroup.cc.

                                       {
    if (ddg_ == NULL) {
        return 0;
    }
    int maxSD = 0;
    for (int i = 0; i < nodeCount(); i++) {
        int sourceDistance = ddg_->maxSourceDistance(node(i));
        maxSD = std::max (maxSD, sourceDistance);
    }
    return maxSD;
}

References ddg_, BoostGraph< GraphNode, GraphEdge >::maxSourceDistance(), node(), and nodeCount().

Referenced by RLBUPriorityCriticalPath::operator()().

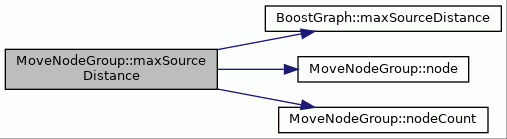

Here is the call graph for this function:

node()

MoveNode & MoveNodeGroup::node

(

int

index

)

const

Returns one MoveNode contained in this group.

Parameters

index

The index of node which to return

Returns

The node being returned.

Definition at line 152 of file MoveNodeGroup.cc.

                                   {
    return *nodes_.at(index);
}

References nodes_.

Referenced by addNode(), LLVMTCEDataDependenceGraphBuilder::buildLocalDDG(), CycleLookBackSoftwareBypasser::bypass(), earliestCycle(), SequentialScheduler::handleBasicBlock(), BUBasicBlockScheduler::handleDDG(), BasicBlockScheduler::handleDDG(), BUBasicBlockScheduler::handleLoopDDG(), BasicBlockScheduler::handleLoopDDG(), BF2Scheduler::handleLoopDDG(), BUMoveNodeSelector::isReadyToBeScheduled(), maxSinkDistance(), maxSourceDistance(), ResourceConstraintAnalyzer::memoryBoundScheduleResourceUsage(), BasicBlockScheduler::notifyScheduled(), RLPriorityCriticalPath::operator()(), RLPriorityNodeId::operator()(), RLBUPriorityCriticalPath::operator()(), CycleLookBackSoftwareBypasser::removeBypass(), CycleLookBackSoftwareBypasser::removeDeadResults(), BF2Scheduler::scheduleDDG(), SequentialScheduler::scheduleOperandWrites(), BasicBlockScheduler::scheduleOperandWrites(), BUBasicBlockScheduler::scheduleOperandWrites(), SequentialScheduler::scheduleOperation(), BasicBlockScheduler::scheduleOperation(), BUBasicBlockScheduler::scheduleOperation(), SequentialScheduler::scheduleResultReads(), BasicBlockScheduler::scheduleResultReads(), BUBasicBlockScheduler::scheduleResultReads(), toString(), BasicBlockScheduler::tryToDelayOperands(), and SequentialMoveNodeSelector::~SequentialMoveNodeSelector().

nodeCount()

int MoveNodeGroup::nodeCount

(

)

const

Returns the number of movenodes in the group

Returns

The number of nodes.

Definition at line 140 of file MoveNodeGroup.cc.

                               {
    return nodes_.size();
}

References nodes_.

Referenced by MoveNodeGroupBuilder::build(), LLVMTCEDataDependenceGraphBuilder::buildLocalDDG(), CycleLookBackSoftwareBypasser::bypass(), SoftwareBypasser::bypass(), SequentialScheduler::handleBasicBlock(), BUBasicBlockScheduler::handleDDG(), BasicBlockScheduler::handleDDG(), BUBasicBlockScheduler::handleLoopDDG(), BasicBlockScheduler::handleLoopDDG(), BF2Scheduler::handleLoopDDG(), BUMoveNodeSelector::isReadyToBeScheduled(), maxSinkDistance(), maxSourceDistance(), ResourceConstraintAnalyzer::memoryBoundScheduleResourceUsage(), BUMoveNodeSelector::mightBeReady(), BasicBlockScheduler::notifyScheduled(), CycleLookBackSoftwareBypasser::removeBypass(), SoftwareBypasser::removeBypass(), CycleLookBackSoftwareBypasser::removeDeadResults(), SoftwareBypasser::removeDeadResults(), BF2Scheduler::scheduleDDG(), SequentialScheduler::scheduleOperandWrites(), BasicBlockScheduler::scheduleOperandWrites(), BUBasicBlockScheduler::scheduleOperandWrites(), SequentialScheduler::scheduleOperation(), BasicBlockScheduler::scheduleOperation(), BUBasicBlockScheduler::scheduleOperation(), SequentialScheduler::scheduleResultReads(), BasicBlockScheduler::scheduleResultReads(), BUBasicBlockScheduler::scheduleResultReads(), toString(), BasicBlockScheduler::tryToDelayOperands(), and SequentialMoveNodeSelector::~SequentialMoveNodeSelector().

programOperationPtr()

ProgramOperationPtr MoveNodeGroup::programOperationPtr ( ) const

inline

Definition at line 75 of file MoveNodeGroup.hh.

{ return operation_; }

References operation_.

Referenced by LLVMTCEDataDependenceGraphBuilder::buildLocalDDG(), ResourceConstraintAnalyzer::memoryBoundScheduleResourceUsage(), and toString().

setProgramOperationPtr()

void MoveNodeGroup::setProgramOperationPtr ( ProgramOperationPtr  op )

inline

in case this MNG contains strictly the nodes of a single operation, it can be set and queried with these methods

Definition at line 73 of file MoveNodeGroup.hh.

{ operation_ = op; }

References operation_.

Referenced by MoveNodeGroupBuilder::build().

toString()

std::string MoveNodeGroup::toString

(

)

const

Returns the disassembly of moves in NodeGroup as a string.

Returns

string with disasembly of NodeGroup moves.

Definition at line 248 of file MoveNodeGroup.cc.

                              {
    std::string result = "";
    for (int i = 0; i < nodeCount(); i++) {
        result += node(i).toString() + " ; ";
    }

    if (isOperation()) {
        result += "[PO: " + programOperationPtr()->toString() + "] ";
    }
    return result;
}

References isOperation(), node(), nodeCount(), programOperationPtr(), and MoveNode::toString().

Referenced by MoveNodeGroupBuilder::build(), BasicBlockScheduler::scheduleOperandWrites(), SequentialScheduler::scheduleOperation(), BasicBlockScheduler::scheduleOperation(), and BUBasicBlockScheduler::scheduleOperation().

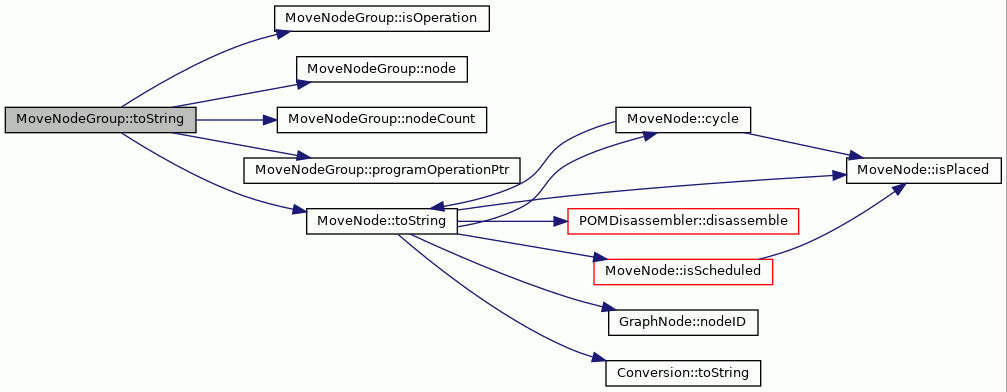

Here is the call graph for this function:

writesJumpGuard()

bool MoveNodeGroup::writesJumpGuard

(

)

const

Definition at line 260 of file MoveNodeGroup.cc.

                                          {
    if (ddg_ == nullptr) return false;
    for (auto n: nodes_) {
        if (!ddg_->hasNode(*n)) continue;
        DataDependenceGraph::EdgeSet outEdges = ddg_->outEdges(*n);
        for (auto e: outEdges) {
            if (e->guardUse() && e->edgeReason() == DataDependenceEdge::EDGE_REGISTER &&
                !e->isFalseDep() && !e->headPseudo() && !e->tailPseudo()) {
                MoveNode& head = ddg_->headNode(*e);
                if (head.isMove() && head.move().isControlFlowMove()) {
                    return true;
                }
            }
        }
    }
    return false;
}

References ddg_, DataDependenceEdge::EDGE_REGISTER, BoostGraph< GraphNode, GraphEdge >::hasNode(), BoostGraph< GraphNode, GraphEdge >::headNode(), TTAProgram::Move::isControlFlowMove(), MoveNode::isMove(), MoveNode::move(), nodes_, and BoostGraph< GraphNode, GraphEdge >::outEdges().

Referenced by RLBUPriorityCriticalPath::operator()().

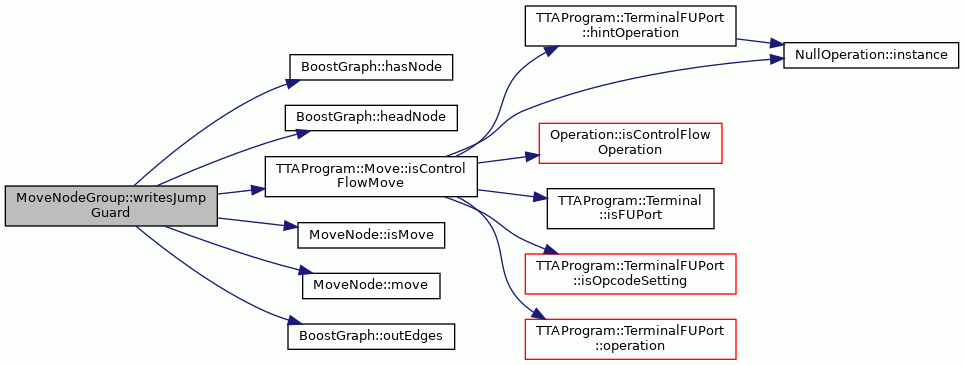

Here is the call graph for this function:

Member Data Documentation

ddg_

const DataDependenceGraph* MoveNodeGroup::ddg_

private

The data dependence graph the moves in this group belong to (optional).

Definition at line 82 of file MoveNodeGroup.hh.

Referenced by earliestCycle(), isAlive(), maxSinkDistance(), maxSourceDistance(), and writesJumpGuard().

nodes_

std::vector<MoveNode*> MoveNodeGroup::nodes_

private

Definition at line 79 of file MoveNodeGroup.hh.

Referenced by addNode(), earliestCycle(), isAlive(), isPlaced(), isScheduled(), node(), nodeCount(), and writesJumpGuard().

operation_

ProgramOperationPtr MoveNodeGroup::operation_

private

in case this MNG contains strictly the nodes of a single operation this can be set to point to it (optional)

Definition at line 85 of file MoveNodeGroup.hh.

Referenced by isOperation(), programOperationPtr(), and setProgramOperationPtr().

---

The documentation for this class was generated from the following files:

• MoveNodeGroup.hh
• MoveNodeGroup.cc
