#include <SourceField.hh>

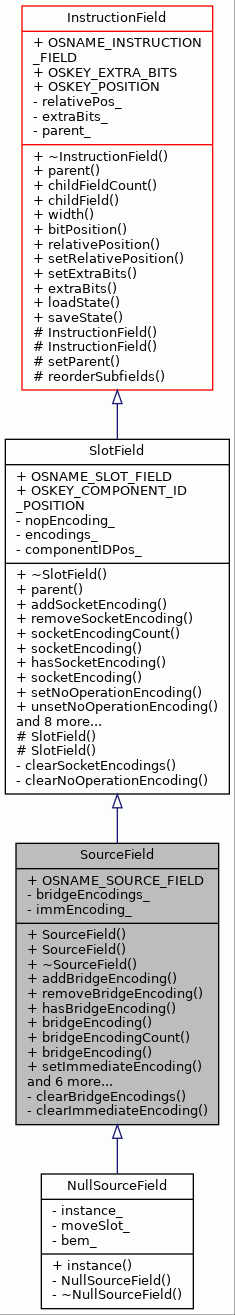

Inheritance diagram for SourceField:

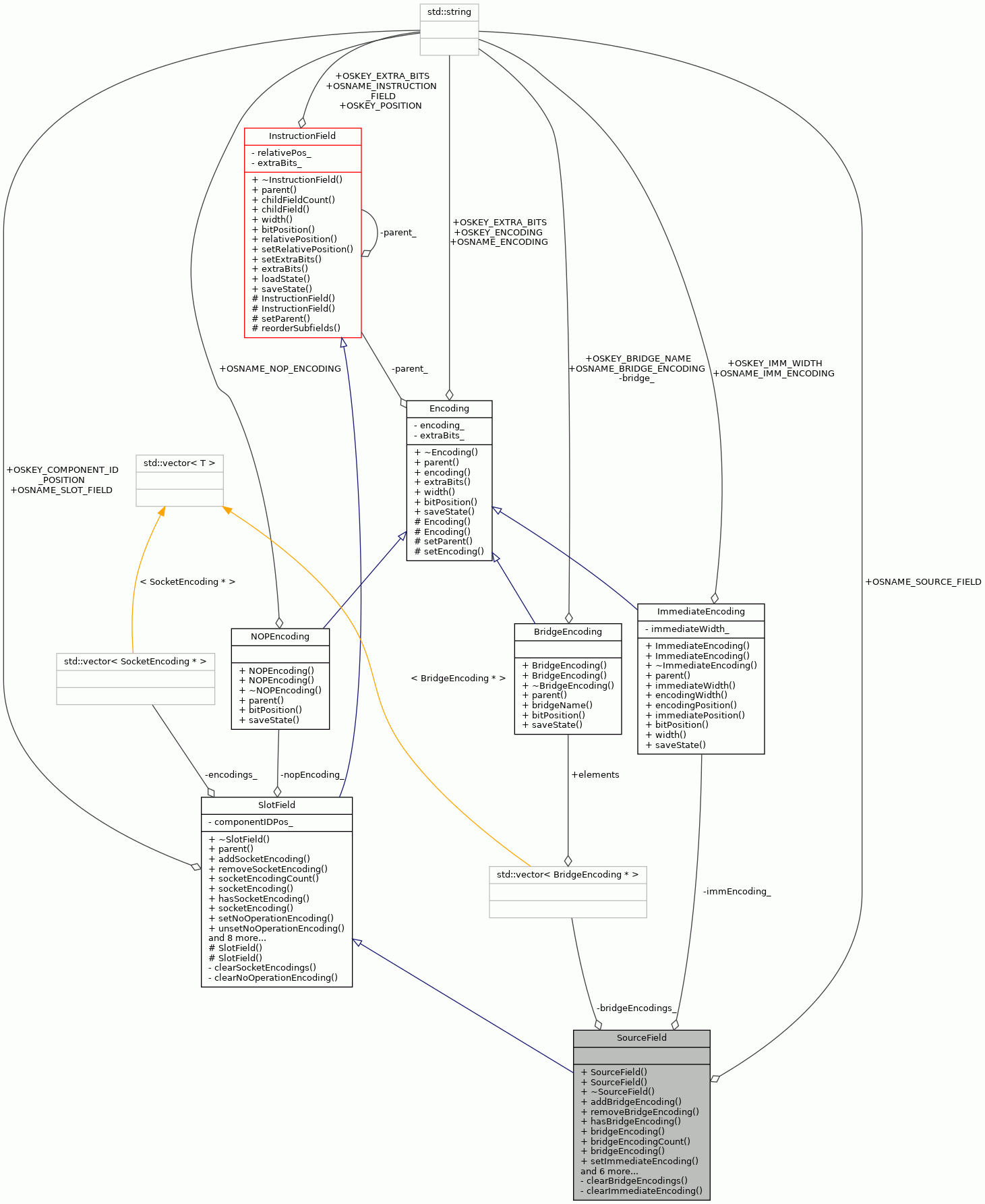

Collaboration diagram for SourceField:

Public Member Functions
	SourceField (BinaryEncoding::Position componentIDPos, MoveSlot &parent)

	SourceField (const ObjectState *state, MoveSlot &parent)

virtual	~SourceField ()

void	addBridgeEncoding (BridgeEncoding &encoding)

void	removeBridgeEncoding (BridgeEncoding &encoding)

bool	hasBridgeEncoding (const std::string &bridge) const

BridgeEncoding &	bridgeEncoding (const std::string &bridge) const

int	bridgeEncodingCount () const

BridgeEncoding &	bridgeEncoding (int index) const

void	setImmediateEncoding (ImmediateEncoding &encoding)

void	unsetImmediateEncoding ()

bool	hasImmediateEncoding () const

ImmediateEncoding &	immediateEncoding () const

virtual int	width () const

virtual void	loadState (const ObjectState *state)

virtual ObjectState *	saveState () const

Public Member Functions inherited from SlotField
virtual	~SlotField ()

MoveSlot *	parent () const

void	addSocketEncoding (SocketEncoding &encoding)

void	removeSocketEncoding (SocketEncoding &encoding)

int	socketEncodingCount () const

SocketEncoding &	socketEncoding (int index) const

bool	hasSocketEncoding (const std::string &socket) const

SocketEncoding &	socketEncoding (const std::string &socket) const

void	setNoOperationEncoding (NOPEncoding &encoding)

void	unsetNoOperationEncoding ()

bool	hasNoOperationEncoding () const

NOPEncoding &	noOperationEncoding () const

BinaryEncoding::Position	componentIDPosition () const

virtual int	childFieldCount () const

virtual InstructionField &	childField (int position) const

Public Member Functions inherited from InstructionField
virtual	~InstructionField ()

InstructionField *	parent () const

int	bitPosition () const

int	relativePosition () const

virtual void	setRelativePosition (int position)

void	setExtraBits (int bits)

int	extraBits () const

Public Member Functions inherited from Serializable
virtual	~Serializable ()

Static Public Attributes
static const std::string	OSNAME_SOURCE_FIELD = "source_field"
	ObjectState name for source field. More...

Static Public Attributes inherited from SlotField
static const std::string	OSNAME_SLOT_FIELD = "slot_field"
	ObjectState name for slot field. More...

static const std::string	OSKEY_COMPONENT_ID_POSITION = "comp_id_pos"
	ObjectState attribute key for component ID position. More...

Static Public Attributes inherited from InstructionField
static const std::string	OSNAME_INSTRUCTION_FIELD = "instr_field"
	ObjectState name for instruction field. More...

static const std::string	OSKEY_EXTRA_BITS = "extra_bits"
	ObjectState attribute key for the number of extra bits. More...

static const std::string	OSKEY_POSITION = "position"
	ObjectState attribute key for the relative position of the field. More...

Private Types
typedef std::vector< BridgeEncoding * >	BridgeEncodingTable
	Container type for bridge encodings. More...

Private Member Functions
void	clearBridgeEncodings ()

void	clearImmediateEncoding ()

Private Attributes
BridgeEncodingTable	bridgeEncodings_
	Container for bridge encodings. More...

ImmediateEncoding *	immEncoding_
	The immediate encoding. More...

Additional Inherited Members
Protected Member Functions inherited from SlotField
	SlotField (BinaryEncoding::Position componentIDPos, MoveSlot &parent)

	SlotField (const ObjectState *state, MoveSlot &parent)

Protected Member Functions inherited from InstructionField
	InstructionField (InstructionField *parent)

	InstructionField (const ObjectState state, InstructionField parent)

void	setParent (InstructionField *parent)

Static Protected Member Functions inherited from InstructionField
static void	reorderSubfields (ObjectState *state)

Detailed Description

SourceField class represents the source field of a move slot.

It is a specialisation of InstructionField class. In addition to socket encodings, a source field may encode an inline immediate or up to two bridge sources.

Definition at line 48 of file SourceField.hh.

Member Typedef Documentation

◆ BridgeEncodingTable

typedef std::vector<BridgeEncoding*> SourceField::BridgeEncodingTable

private

Container type for bridge encodings.

Definition at line 78 of file SourceField.hh.

Constructor & Destructor Documentation

◆ SourceField() [1/2]

SourceField::SourceField	(	BinaryEncoding::Position	componentIDPos,
		MoveSlot &	parent
	)

The constructor.

Creates a source field and registers it into the given move slot.

Parameters

componentIDPos	Position of the socket or bridge ID within the source field.
parent	The parent move slot.

Exceptions

ObjectAlreadyExists	If the given move slot already has a source field.
IllegalParameters	If the given component ID position is not the same with other source fields in the binary encoding map.

Definition at line 65 of file SourceField.cc.

     : SlotField(componentIDPos, parent), immEncoding_(NULL) {
     BinaryEncoding* bem = parent.parent();
     for (int i = 0; i < bem->moveSlotCount(); i++) {
     MoveSlot& slot = bem->moveSlot(i);
     if (slot.hasSourceField() &&
         (slot.sourceField().componentIDPosition() != componentIDPos)) {
         const string procName = "SourceField::SourceField";
         throw IllegalParameters(__FILE__, __LINE__, procName);
     } else {
         break;
     }
     }

     setParent(NULL);
     parent.setSourceField(*this);
     setParent(&parent);
 }

References SlotField::componentIDPosition(), MoveSlot::hasSourceField(), BinaryEncoding::moveSlot(), BinaryEncoding::moveSlotCount(), SlotField::parent(), MoveSlot::parent(), InstructionField::setParent(), MoveSlot::setSourceField(), and MoveSlot::sourceField().

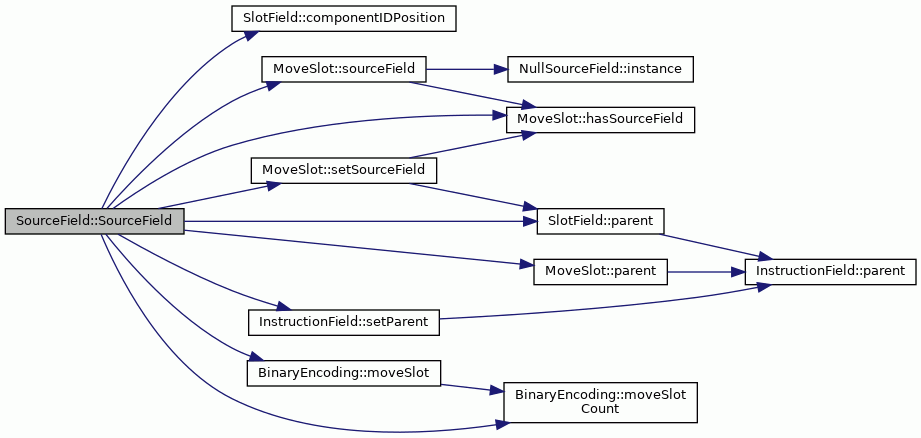

Here is the call graph for this function:

◆ SourceField() [2/2]

SourceField::SourceField	(	const ObjectState *	state,
		MoveSlot &	parent
	)

The constructor.

Loads the state of the object from the given ObjectState tree.

Parameters

state	The ObjectState tree.
parent	The parent move slot.

Exceptions

ObjectStateLoadingException	If an error occurs while loading the state.
ObjectAlreadyExists	If the given move slot already has a source field.

Definition at line 97 of file SourceField.cc.

     : SlotField(state, parent), immEncoding_(NULL) {
     loadState(state);
     setParent(NULL);
     parent.setSourceField(*this);
     setParent(&parent);
 }

References loadState(), SlotField::parent(), InstructionField::setParent(), and MoveSlot::setSourceField().

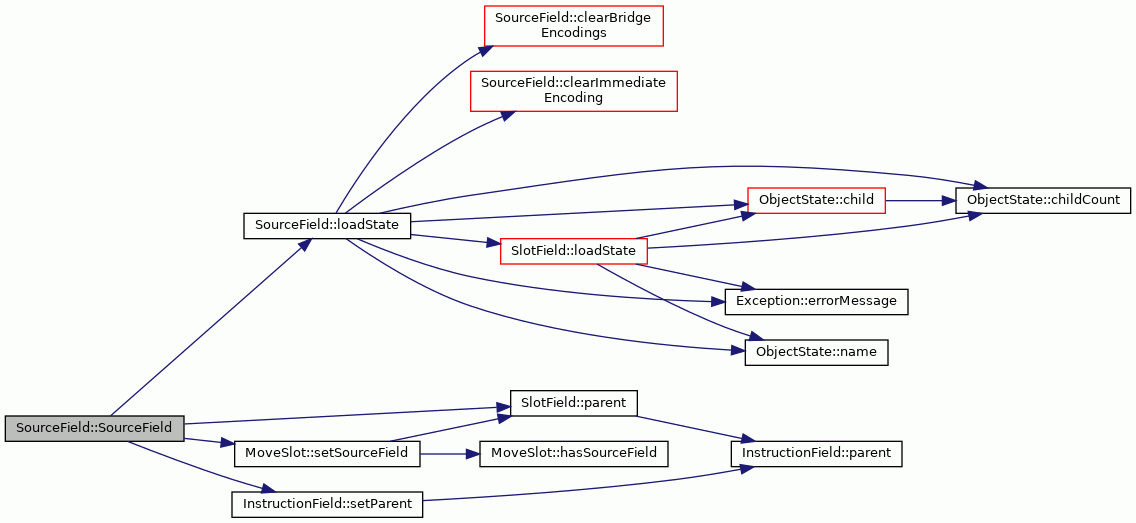

Here is the call graph for this function:

◆ ~SourceField()

SourceField::~SourceField ( )

virtual

The destructor.

Definition at line 108 of file SourceField.cc.

                           {
     clearBridgeEncodings();
     clearImmediateEncoding();
     MoveSlot* parent = this->parent();
     setParent(NULL);
     parent->unsetSourceField();
 }

References clearBridgeEncodings(), clearImmediateEncoding(), SlotField::parent(), InstructionField::setParent(), and MoveSlot::unsetSourceField().

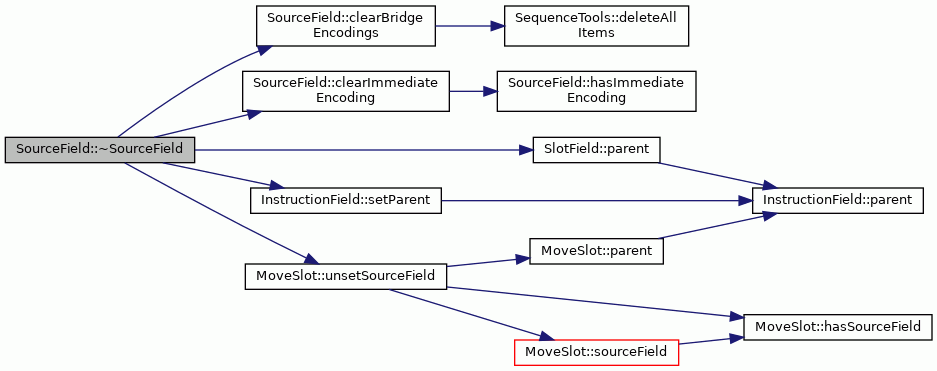

Here is the call graph for this function:

Member Function Documentation

◆ addBridgeEncoding()

void SourceField::addBridgeEncoding ( BridgeEncoding & encoding )

Adds the given encoding for a bridge to the source field.

This method is to be called from the constructor of BridgeEncoding class.

Parameters

encoding The encoding to be added.

Exceptions

ObjectAlreadyExists If the field already has an encoding for the given bridge or if the encoding is ambiguous with another encoding or if the source field has encodings for two bridges already.

Definition at line 130 of file SourceField.cc.

                                                        {
     assert(encoding.parent() == NULL);
     string bridge = encoding.bridgeName();

     const string procName = "SourceField::addBridgeEncoding";

     if (hasBridgeEncoding(bridge) ||
     !BEMTester::canAddComponentEncoding(
         *this, encoding.encoding(), encoding.extraBits()) ||
     bridgeEncodingCount() == 2) {
     throw ObjectAlreadyExists(__FILE__, __LINE__, procName);
     }

     bridgeEncodings_.push_back(&encoding);
 }

References assert, bridgeEncodingCount(), bridgeEncodings_, BridgeEncoding::bridgeName(), BEMTester::canAddComponentEncoding(), Encoding::encoding(), Encoding::extraBits(), hasBridgeEncoding(), and BridgeEncoding::parent().

Referenced by BridgeEncoding::BridgeEncoding().

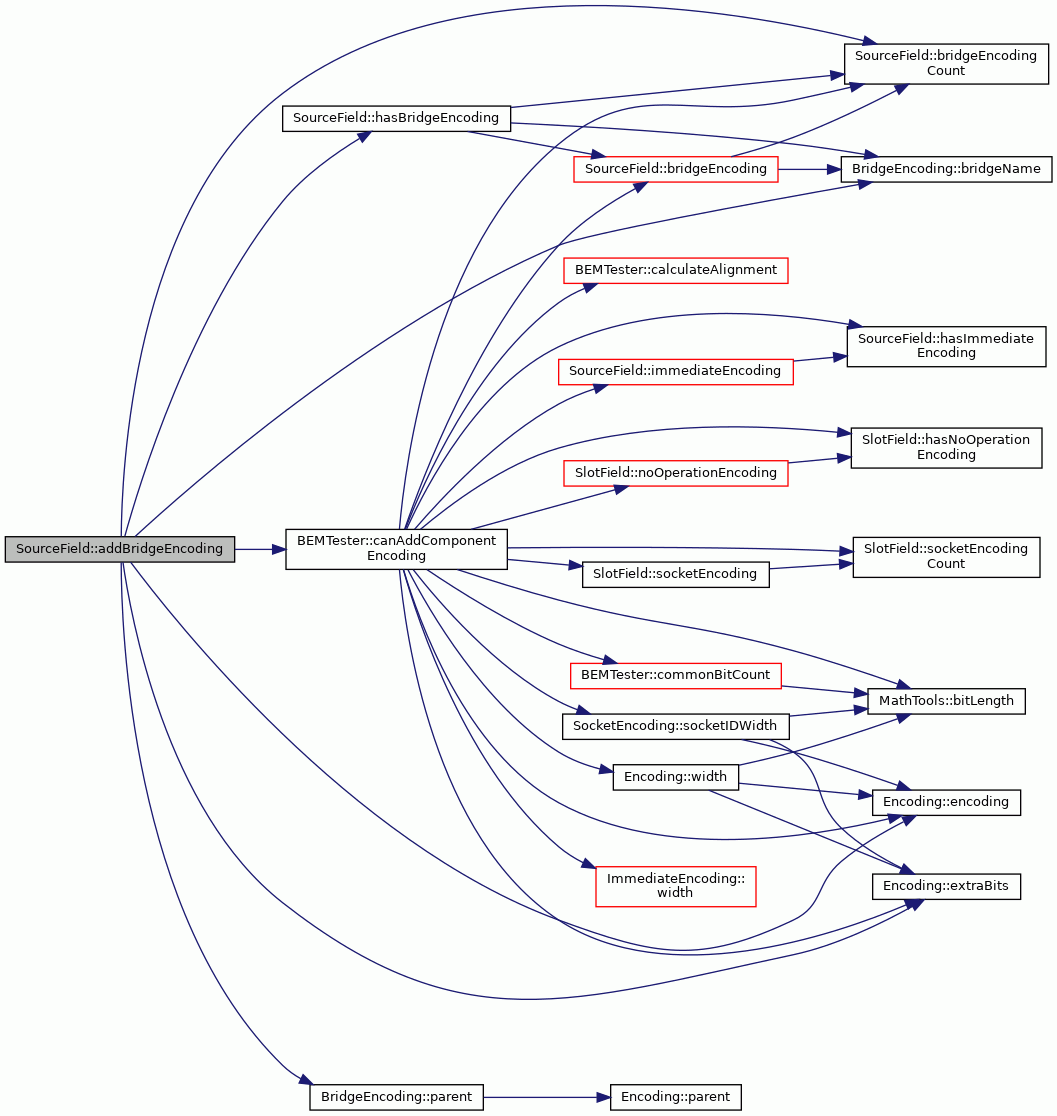

Here is the call graph for this function:

◆ bridgeEncoding() [1/2]

BridgeEncoding & SourceField::bridgeEncoding ( const std::string & bridge ) const

Returns the encoding for the given bridge.

Parameters

bridge Name of the bridge.

Returns: The bridge encoding for the given bridge or NullBridgeEncoding instance if there is no encoding for the given bridge.

Definition at line 191 of file SourceField.cc.

                                                          {
     int encodingCount = bridgeEncodingCount();
     for (int i = 0; i < encodingCount; i++) {
         BridgeEncoding& encoding = bridgeEncoding(i);
         if (encoding.bridgeName() == bridge) {
             return encoding;
         }
     }
     return NullBridgeEncoding::instance();
 }

References bridgeEncodingCount(), BridgeEncoding::bridgeName(), and NullBridgeEncoding::instance().

Referenced by BEMTester::canAddComponentEncoding(), hasBridgeEncoding(), printSourceFieldEncodings(), saveState(), and width().

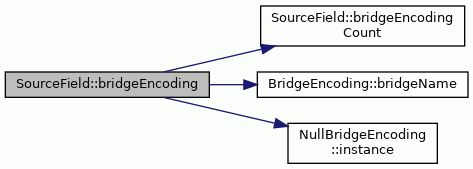

Here is the call graph for this function:

◆ bridgeEncoding() [2/2]

BridgeEncoding & SourceField::bridgeEncoding ( int index ) const

Returns the bridge encoding stored at the given position.

Parameters

index The position.

Exceptions

OutOfRange If the given index is negative or not smaller than the number of bridge encodings.

Definition at line 222 of file SourceField.cc.

                                            {
     if (index < 0 || index >= bridgeEncodingCount()) {
     const string procName = "SourceField::bridgeEncoding";
     throw OutOfRange(__FILE__, __LINE__, procName);
     }

     return *bridgeEncodings_[index];
 }

References bridgeEncodingCount(), and bridgeEncodings_.

Here is the call graph for this function:

◆ bridgeEncodingCount()

int SourceField::bridgeEncodingCount ( ) const

Returns the number of bridge encodings defined for this source field.

Returns: The number of bridge encodings.

Definition at line 209 of file SourceField.cc.

                                        {
     return bridgeEncodings_.size();
 }

References bridgeEncodings_.

Referenced by addBridgeEncoding(), bridgeEncoding(), BEMTester::canAddComponentEncoding(), hasBridgeEncoding(), printSourceFieldEncodings(), saveState(), and width().

◆ clearBridgeEncodings()

void SourceField::clearBridgeEncodings ( )

private

Clears all the bridge encodings from the source field.

Definition at line 396 of file SourceField.cc.

                                   {
     SequenceTools::deleteAllItems(bridgeEncodings_);
 }

References bridgeEncodings_, and SequenceTools::deleteAllItems().

Referenced by loadState(), and ~SourceField().

Here is the call graph for this function:

◆ clearImmediateEncoding()

void SourceField::clearImmediateEncoding ( )

private

Deletes the immediate encoding if one exists.

Definition at line 405 of file SourceField.cc.

                                     {
     if (hasImmediateEncoding()) {
         delete immEncoding_;
     }
 }

References hasImmediateEncoding(), and immEncoding_.

Referenced by loadState(), and ~SourceField().

Here is the call graph for this function:

◆ hasBridgeEncoding()

bool SourceField::hasBridgeEncoding ( const std::string & bridge ) const

Tells whether the source field has an encoding defined for the given bridge.

Parameters

bridge Name of the bridge.

Returns: True if there is an encoding for the given bridge, otherwise false.

Definition at line 169 of file SourceField.cc.

                                                             {

     int bridgeEncodings = bridgeEncodingCount();
     for (int i = 0; i < bridgeEncodings; i++) {
     BridgeEncoding& encoding = bridgeEncoding(i);
     if (encoding.bridgeName() == bridge) {
         return true;
     }
     }

     return false;
 }

References bridgeEncoding(), bridgeEncodingCount(), and BridgeEncoding::bridgeName().

Referenced by addBridgeEncoding(), and BEMValidator::checkSourceField().

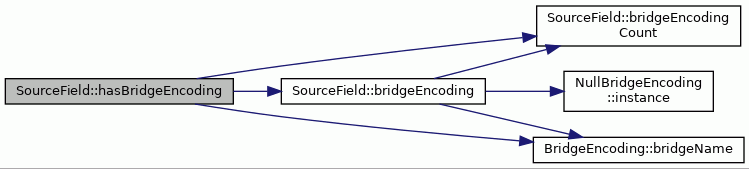

Here is the call graph for this function:

◆ hasImmediateEncoding()

bool SourceField::hasImmediateEncoding ( ) const

Tells whether the source field has an immediate encoding.

Returns: True if the source field has an immediate encoding, otherwise false.

Definition at line 279 of file SourceField.cc.

                                         {
     return immEncoding_ != NULL;
 }

References immEncoding_.

Referenced by BEMTester::canAddComponentEncoding(), BEMValidator::checkSourceField(), clearImmediateEncoding(), BEMTester::conflictsWithSourceEncodings(), immediateEncoding(), printSourceFieldEncodings(), saveState(), setImmediateEncoding(), unsetImmediateEncoding(), width(), and DefaultDecoderGenerator::writeBusControlRulesOfSImmSocketOfBus().

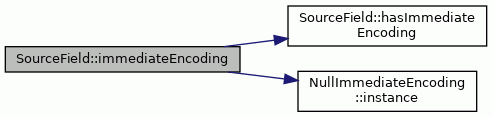

◆ immediateEncoding()

ImmediateEncoding & SourceField::immediateEncoding ( ) const

Returns the immediate encoding.

Returns NullImmediateEncoding instance if the source field does not have an immediate encoding.

Returns: The immediate encoding.

Definition at line 293 of file SourceField.cc.

                                      {
     if (hasImmediateEncoding()) {
         return *immEncoding_;
     } else {
         return NullImmediateEncoding::instance();
     }
 }

References hasImmediateEncoding(), immEncoding_, and NullImmediateEncoding::instance().

Referenced by BEMTester::canAddComponentEncoding(), BEMTester::conflictsWithSourceEncodings(), CodeCompressorPlugin::encodeImmediateTerminal(), printSourceFieldEncodings(), saveState(), unsetImmediateEncoding(), width(), DefaultDecoderGenerator::writeBusControlRulesOfSImmSocketOfBus(), and DefaultDecoderGenerator::writeSimmDataSignal().

Here is the call graph for this function:

◆ loadState()

void SourceField::loadState ( const ObjectState * state )

virtual

Loads the state of the object from the given ObjectState tree.

Parameters

state The ObjectState tree.

Exceptions

ObjectStateLoadingException If an error occurs while loading the state.

Reimplemented from SlotField.

Definition at line 336 of file SourceField.cc.

                                                {
     const string procName = "SourceField::loadState";

     if (state->name() != OSNAME_SOURCE_FIELD) {
     throw ObjectStateLoadingException(__FILE__, __LINE__, procName);
     }

     clearBridgeEncodings();
     clearImmediateEncoding();
     SlotField::loadState(state);

     try {
     for (int i = 0; i < state->childCount(); i++) {
         ObjectState* child = state->child(i);
         if (child->name() == BridgeEncoding::OSNAME_BRIDGE_ENCODING) {
         new BridgeEncoding(child, *this);
         } else if (child->name() ==
                        ImmediateEncoding::OSNAME_IMM_ENCODING) {
                 new ImmediateEncoding(child, *this);
             }
         }
     } catch (const Exception& exception) {
     throw ObjectStateLoadingException(
         __FILE__, __LINE__, procName, exception.errorMessage());
     }

     // TODO: check that the positions of the encodings match with the
     // ones given in the ObjectState instances
 }

References ObjectState::child(), ObjectState::childCount(), clearBridgeEncodings(), clearImmediateEncoding(), Exception::errorMessage(), SlotField::loadState(), ObjectState::name(), BridgeEncoding::OSNAME_BRIDGE_ENCODING, ImmediateEncoding::OSNAME_IMM_ENCODING, and OSNAME_SOURCE_FIELD.

Referenced by SourceField().

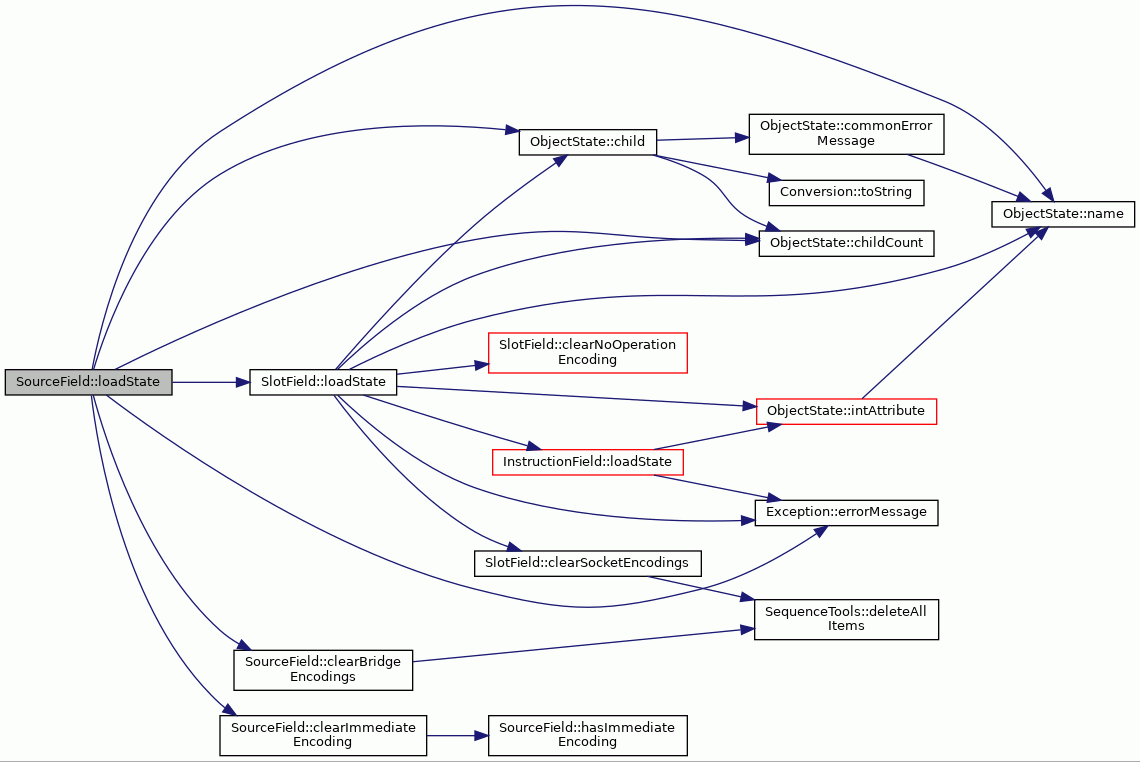

Here is the call graph for this function:

◆ removeBridgeEncoding()

void SourceField::removeBridgeEncoding ( BridgeEncoding & encoding )

Removes the given bridge encoding from the source field.

This method is to be called from the destructor of BridgeEncoding class.

Parameters

encoding The encoding to be removed.

Definition at line 154 of file SourceField.cc.

                                                           {
     assert(encoding.parent() == NULL);
     assert(ContainerTools::removeValueIfExists(bridgeEncodings_, &encoding));
 }

References assert, bridgeEncodings_, BridgeEncoding::parent(), and ContainerTools::removeValueIfExists().

Referenced by BridgeEncoding::~BridgeEncoding().

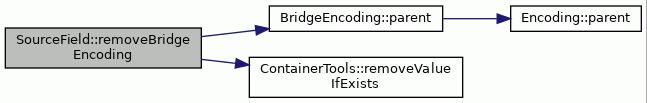

Here is the call graph for this function:

◆ saveState()

ObjectState * SourceField::saveState ( ) const

virtual

Saves the state of the object to an ObjectState tree.

Returns: The newly created ObjectState tree.

Reimplemented from SlotField.

Definition at line 372 of file SourceField.cc.

                              {

     ObjectState* state = SlotField::saveState();
     state->setName(OSNAME_SOURCE_FIELD);

     // add bridge encodings
     for (int i = 0; i < bridgeEncodingCount(); i++) {
     BridgeEncoding& enc = bridgeEncoding(i);
     state->addChild(enc.saveState());
     }

     // add immediate encoding
     if (hasImmediateEncoding()) {
         state->addChild(immediateEncoding().saveState());
     }

     return state;
 }

References ObjectState::addChild(), bridgeEncoding(), bridgeEncodingCount(), hasImmediateEncoding(), immediateEncoding(), OSNAME_SOURCE_FIELD, BridgeEncoding::saveState(), SlotField::saveState(), and ObjectState::setName().

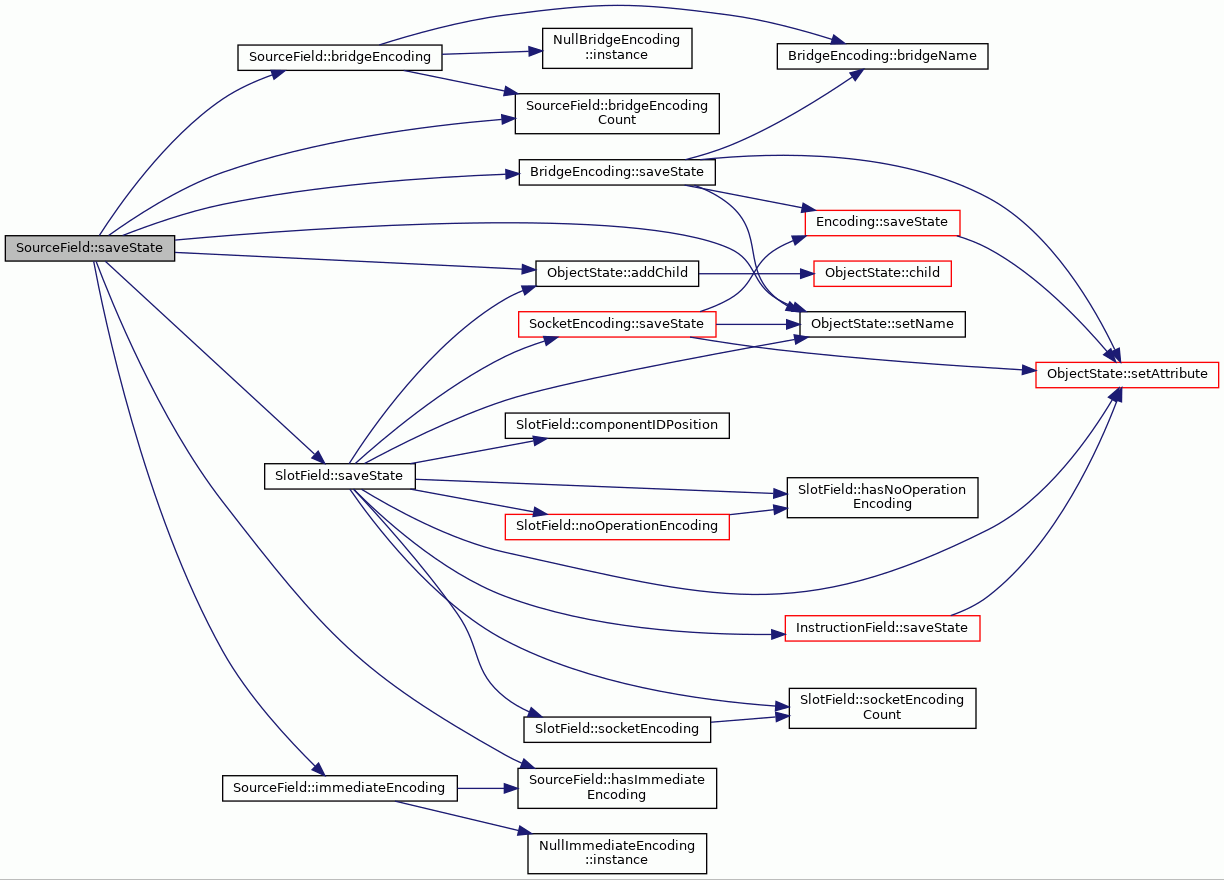

Here is the call graph for this function:

◆ setImmediateEncoding()

void SourceField::setImmediateEncoding ( ImmediateEncoding & encoding )

Sets the given encoding for inline immediates.

This method is to be called from the constructor of ImmediateEncoding.

Parameters

encoding The encoding to be set.

Exceptions

ObjectAlreadyExists If the source field has an immediate encoding already or if the given encoding is ambiguous with some socket or bridge encoding.

Definition at line 243 of file SourceField.cc.

                                                              {
     assert(encoding.parent() == NULL);

     if (hasImmediateEncoding() ||
         !BEMTester::canAddComponentEncoding(
             *this, encoding.encoding(), encoding.extraBits())) {
         BEMTextGenerator textGen;
         format text = textGen.text(BEMTextGenerator::TXT_ILLEGAL_IMM_ENC);
         text % parent()->name();
         const string procName = "SourceField::setImmediateEncoding";
         throw ObjectAlreadyExists(__FILE__, __LINE__, procName, text.str());
     }

     immEncoding_ = &encoding;
 }

References assert, BEMTester::canAddComponentEncoding(), Encoding::encoding(), Encoding::extraBits(), hasImmediateEncoding(), immEncoding_, MoveSlot::name(), ImmediateEncoding::parent(), SlotField::parent(), Texts::TextGenerator::text(), and BEMTextGenerator::TXT_ILLEGAL_IMM_ENC.

Referenced by ImmediateEncoding::ImmediateEncoding().

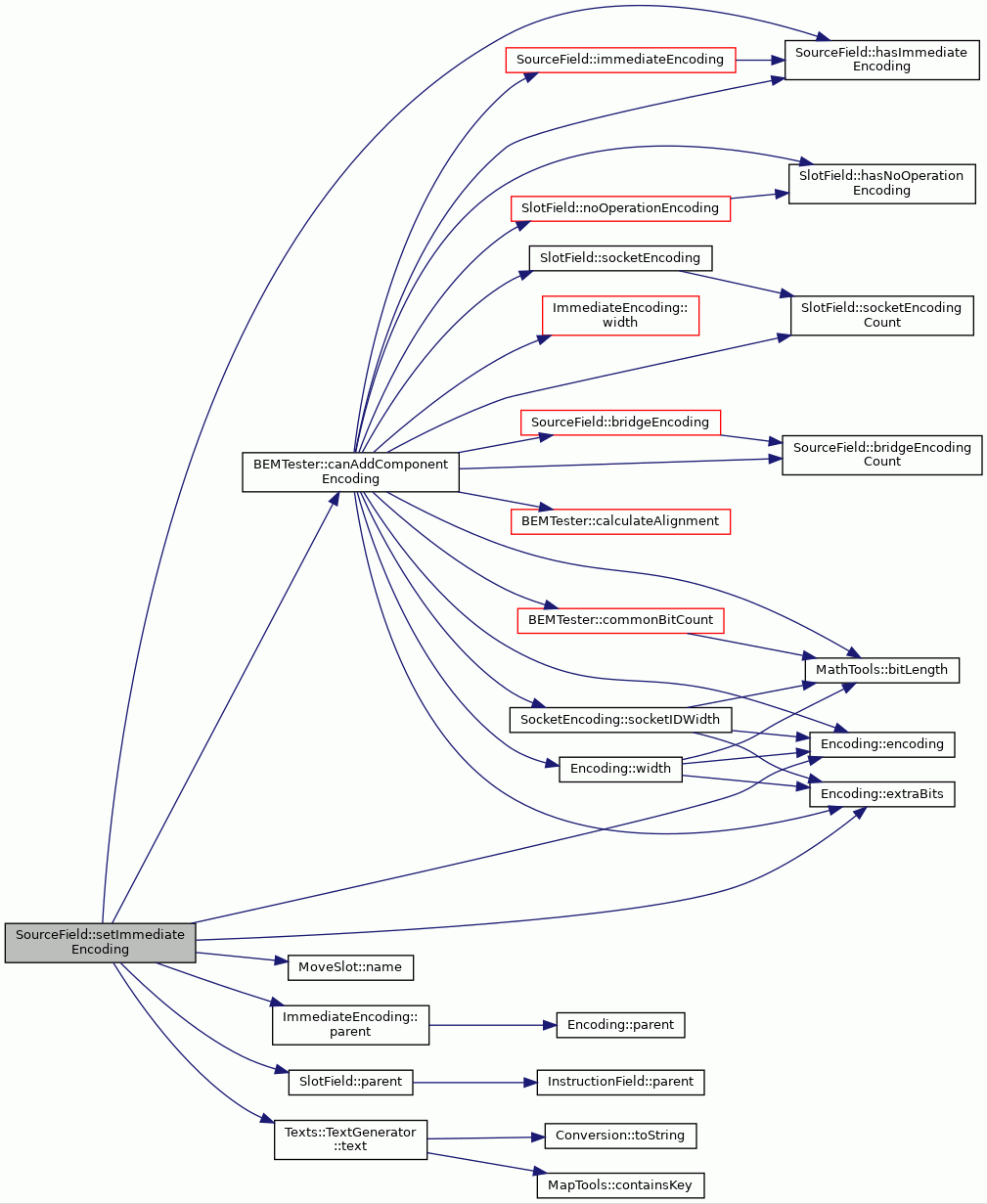

Here is the call graph for this function:

◆ unsetImmediateEncoding()

void SourceField::unsetImmediateEncoding ( )

Unsets the immediate encoding.

This method is to be called from the destructor of ImmediateEncoding.

Definition at line 265 of file SourceField.cc.

                                     {
     assert(hasImmediateEncoding());
     assert(immediateEncoding().parent() == NULL);
     immEncoding_ = NULL;
 }

References assert, hasImmediateEncoding(), immediateEncoding(), immEncoding_, and SlotField::parent().

Referenced by ImmediateEncoding::~ImmediateEncoding().

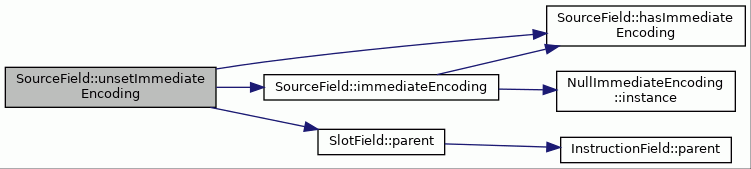

Here is the call graph for this function:

◆ width()

int SourceField::width ( ) const

virtual

Returns the bit width of the source field.

Returns: The bit width.

Reimplemented from SlotField.

Definition at line 308 of file SourceField.cc.

                          {

     int maxEncodingWidth = SlotField::width() - extraBits();

     for (int i = 0; i < bridgeEncodingCount(); i++) {
     BridgeEncoding& encoding = bridgeEncoding(i);
     if (encoding.width() > maxEncodingWidth) {
         maxEncodingWidth = encoding.width();
     }
     }

     if (hasImmediateEncoding() && immediateEncoding().width() >
         maxEncodingWidth) {
         maxEncodingWidth = immediateEncoding().width();
     }

     return maxEncodingWidth + extraBits();
 }

References bridgeEncoding(), bridgeEncodingCount(), InstructionField::extraBits(), hasImmediateEncoding(), immediateEncoding(), Encoding::width(), ImmediateEncoding::width(), and SlotField::width().

Referenced by CodeCompressorPlugin::addBitsForSourceField(), BridgeEncoding::bitPosition(), BEMTester::canAddComponentPriorityEncoding(), CodeCompressorPlugin::encodeImmediateTerminal(), CodeCompressorPlugin::encodeMove(), CodeCompressorPlugin::encodeNOP(), ImmediateEncoding::encodingPosition(), ImmediateEncoding::immediatePosition(), printMoveSlotLayout(), printSourceFieldEncodings(), MoveSlot::width(), DefaultDecoderGenerator::writeInstructionDismembering(), and DefaultDecoderGenerator::writeMoveFieldSignals().

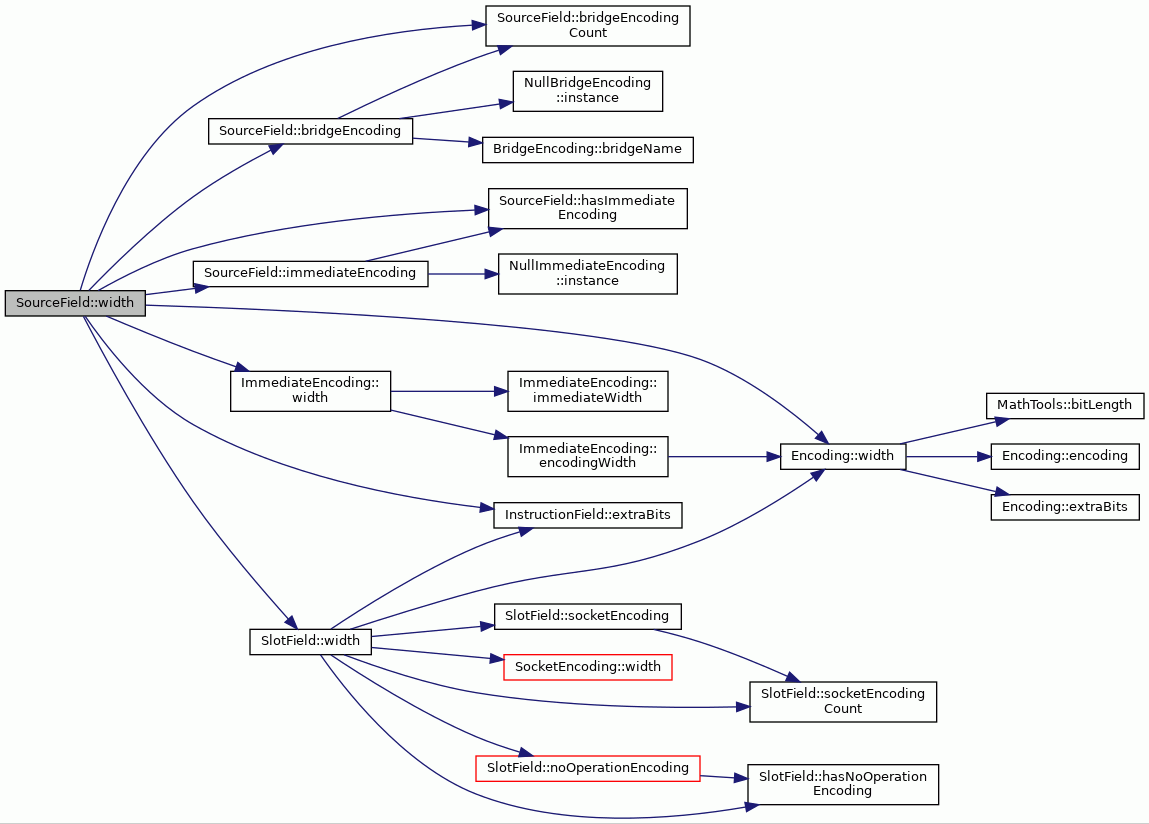

Here is the call graph for this function:

Member Data Documentation

◆ bridgeEncodings_

BridgeEncodingTable SourceField::bridgeEncodings_

private

Container for bridge encodings.

Definition at line 84 of file SourceField.hh.

Referenced by addBridgeEncoding(), bridgeEncoding(), bridgeEncodingCount(), clearBridgeEncodings(), and removeBridgeEncoding().

◆ immEncoding_

ImmediateEncoding* SourceField::immEncoding_

private

The immediate encoding.

Definition at line 86 of file SourceField.hh.

Referenced by clearImmediateEncoding(), hasImmediateEncoding(), immediateEncoding(), setImmediateEncoding(), and unsetImmediateEncoding().

◆ OSNAME_SOURCE_FIELD

const std::string SourceField::OSNAME_SOURCE_FIELD = "source_field"

static

ObjectState name for source field.

Definition at line 74 of file SourceField.hh.

Referenced by loadState(), MoveSlot::loadState(), BEMSerializer::moveSlotToFile(), saveState(), and BEMSerializer::sourceFieldToOM().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Attributes

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ BridgeEncodingTable

Constructor & Destructor Documentation

◆ SourceField() [1/2]

◆ SourceField() [2/2]

◆ ~SourceField()

Member Function Documentation

◆ addBridgeEncoding()

◆ bridgeEncoding() [1/2]

◆ bridgeEncoding() [2/2]

◆ bridgeEncodingCount()

◆ clearBridgeEncodings()

◆ clearImmediateEncoding()

◆ hasBridgeEncoding()

◆ hasImmediateEncoding()

◆ immediateEncoding()

◆ loadState()

◆ removeBridgeEncoding()

◆ saveState()

◆ setImmediateEncoding()

◆ unsetImmediateEncoding()

◆ width()

Member Data Documentation

◆ bridgeEncodings_

◆ immEncoding_

◆ OSNAME_SOURCE_FIELD
