TCEDAGToDAGISel Class Reference

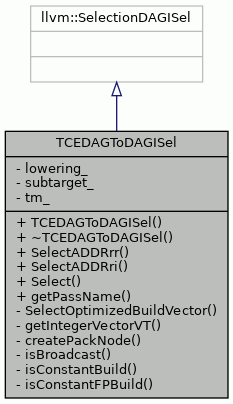

Inheritance diagram for TCEDAGToDAGISel:

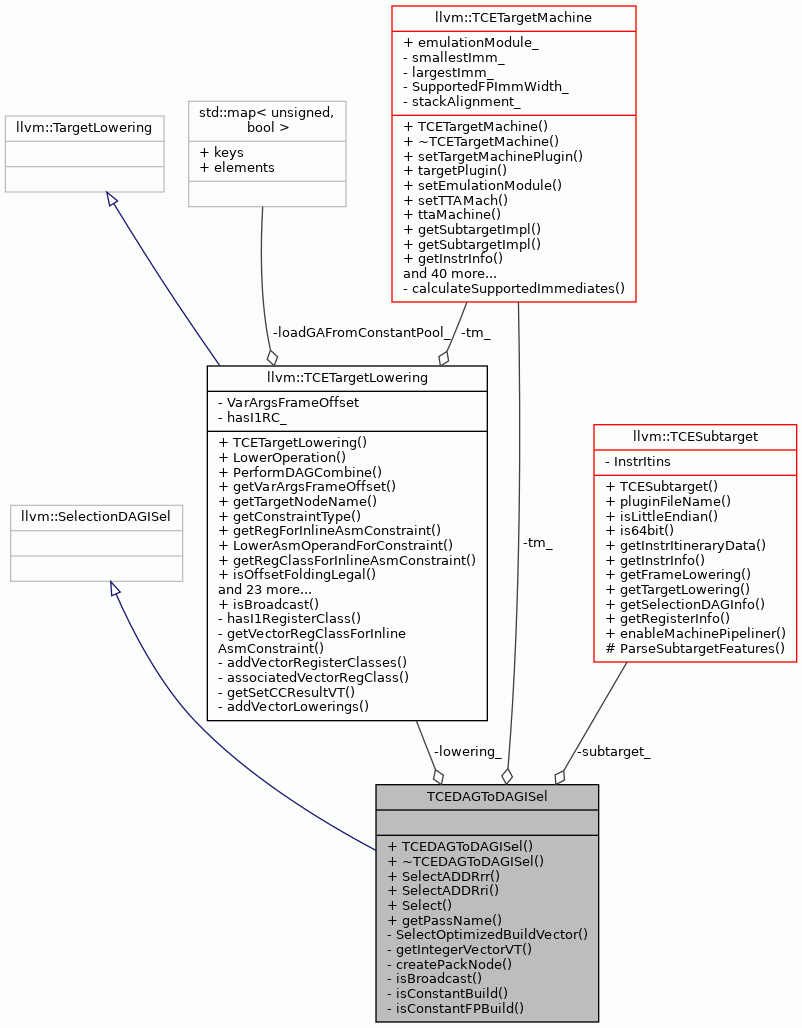

Collaboration diagram for TCEDAGToDAGISel:

Public Member Functions
	TCEDAGToDAGISel (llvm::TCETargetMachine &tm)
virtual	~TCEDAGToDAGISel ()
bool	SelectADDRrr (SDValue N, SDValue &R1, SDValue &R2)
bool	SelectADDRri (SDValue N, SDValue &Base, SDValue &Offset)
void	Select (llvm::SDNode *op) override
virtual StringRef	getPassName () const override

Private Member Functions
void	SelectOptimizedBuildVector (SDNode *n)
EVT	getIntegerVectorVT (EVT vt)
MachineSDNode *	createPackNode (SDNode *n, const EVT &vt, int laneCount, SDValue *vals)

Static Private Member Functions
static bool	isBroadcast (SDNode *n)
static bool	isConstantBuild (SDNode *n)
static bool	isConstantFPBuild (SDNode *n)

Private Attributes
llvm::TCETargetLowering &	lowering_
const llvm::TCESubtarget &	subtarget_
llvm::TCETargetMachine *	tm_

Detailed Description

Definition at line 57 of file TCEDAGToDAGISel.cc.

Constructor & Destructor Documentation

TCEDAGToDAGISel()

TCEDAGToDAGISel::TCEDAGToDAGISel ( llvm::TCETargetMachine &  tm )

explicit

Constructor.

Definition at line 93 of file TCEDAGToDAGISel.cc.

                                                    :
    SelectionDAGISel(tm),
    lowering_(*static_cast<TCETargetLowering*>(tm.getTargetLowering())),
    subtarget_(*tm.getSubtargetImpl()), tm_(&tm) {
}

~TCEDAGToDAGISel()

TCEDAGToDAGISel::~TCEDAGToDAGISel ( )

virtual

Destructor.

Definition at line 102 of file TCEDAGToDAGISel.cc.

                                  {
}

Member Function Documentation

createPackNode()

MachineSDNode* TCEDAGToDAGISel::createPackNode ( SDNode *  n, const EVT &  vt, int  laneCount, SDValue *  vals  )

private

getIntegerVectorVT()

EVT TCEDAGToDAGISel::getIntegerVectorVT ( EVT  vt )

private

getPassName()

virtual StringRef TCEDAGToDAGISel::getPassName ( ) const

inlineoverridevirtual

Definition at line 67 of file TCEDAGToDAGISel.cc.

                                                   {
        return "TCE DAG->DAG Pattern Instruction Selection";
    }

isBroadcast()

bool TCEDAGToDAGISel::isBroadcast ( SDNode *  n )

staticprivate

Definition at line 289 of file TCEDAGToDAGISel.cc.

                                      {
    return TCETargetLowering::isBroadcast(n);
}

isConstantBuild()

bool TCEDAGToDAGISel::isConstantBuild ( SDNode *  n )

staticprivate

Definition at line 294 of file TCEDAGToDAGISel.cc.

                                          {
    int operandCount = n->getNumOperands();
    for (unsigned i = 1; i <operandCount; i++) {
        SDValue val2 = n->getOperand(i);
        SDNode *n2 = val2.getNode();
        if (n2->getOpcode() != ISD::Constant ) {
            return false;
        }
    }
    return true;
}

isConstantFPBuild()

bool TCEDAGToDAGISel::isConstantFPBuild ( SDNode *  n )

staticprivate

Definition at line 307 of file TCEDAGToDAGISel.cc.

                                            {
    int operandCount = n->getNumOperands();
    for (unsigned i = 1; i <operandCount; i++) {
        SDValue val2 = n->getOperand(i);
        SDNode *n2 = val2.getNode();
        if (n2->getOpcode() != ISD::ConstantFP) {
            return false;
        }
    }
    return true;
}

Select()

void TCEDAGToDAGISel::Select ( llvm::SDNode *  op )

override

Handles custom instruction selections.

Parameters

op	Operation to select.

Definition at line 120 of file TCEDAGToDAGISel.cc.

                                 {
    // Custom nodes are already selected
    if (n->isMachineOpcode()) {
        n->setNodeId(-1);
        return;
    }

    SDLoc dl(n);
    if (n->getOpcode() >= ISD::BUILTIN_OP_END &&
        n->getOpcode() < TCEISD::FIRST_NUMBER) {
        // Already selected.
        return;
    } else if (n->getOpcode() == ISD::BR) {
        SDValue chain = n->getOperand(0);

        MachineBasicBlock* dest =
            cast<BasicBlockSDNode>(n->getOperand(1))->getBasicBlock();
        SELECT_NODE_AND_RETURN(
        n, TCE::TCEBR, MVT::Other, CurDAG->getBasicBlock(dest), chain);
    } else if (n->getOpcode() == ISD::FrameIndex) {
        int fi = cast<FrameIndexSDNode>(n)->getIndex();

        if (n->hasOneUse()) {
            SELECT_NODE_AND_RETURN(
                n, MOVE_IMM, DEFAULT_TYPE,
                CurDAG->getTargetFrameIndex(fi, DEFAULT_TYPE));
        } else {
            auto fiN = CurDAG->getMachineNode(
                MOVE_IMM, dl, DEFAULT_TYPE,
                CurDAG->getTargetFrameIndex(fi, DEFAULT_TYPE));
            ReplaceNode(n, fiN);
            return;
        }
    } else if (n->getOpcode() == ISD::VSELECT ||
               (n->getOpcode() == ISD::SELECT &&
                !n->getOperand(1).getValueType().isVector())) {
        SDNode* node2 = dyn_cast<SDNode>(n->getOperand(0));
        if (node2->getOpcode() == ISD::SETCC) {
            SDValue val1 = n->getOperand(1);
            SDValue val2 = n->getOperand(2);

            SDValue n2val1 = node2->getOperand(0);
            SDValue n2val2 = node2->getOperand(1);

            if (val1 == n2val1 && val2 == n2val2 && node2->hasOneUse()) {
                int opc;
                ISD::CondCode cc = cast<CondCodeSDNode>(
                    node2->getOperand(2))->get();

                switch (cc) {
                case ISD::SETLT:
                case ISD::SETLE:
                case ISD::SETOLT:
                case ISD::SETOLE:
                    opc = tm_->getMinOpcode(n);
                    if (opc != -1) {
                        SELECT_NODE_AND_RETURN(
                            n,opc, n->getSimpleValueType(0), val1, val2);
                    }
                    break;
                case ISD::SETGT:
                case ISD::SETGE:
                case ISD::SETOGT:
                case ISD::SETOGE: // todo: what is ordered here? nan handling?
                    opc = tm_->getMaxOpcode(n);
                    if (opc != -1) {
                        SELECT_NODE_AND_RETURN(
                            n, opc, n->getSimpleValueType(0), val1, val2);
                    }
                    break;
                case ISD::SETULT:
                case ISD::SETULE:
                    opc = tm_->getMinuOpcode(n);
                    if (opc != -1) {
                        SELECT_NODE_AND_RETURN(
                            n, opc, n->getSimpleValueType(0), val1, val2);
                    }
                    break;
                case ISD::SETUGT:
                case ISD::SETUGE:
                    opc = tm_->getMaxuOpcode(n);
                    if (opc != -1) {
                        SELECT_NODE_AND_RETURN(
                            n, opc, n->getSimpleValueType(0), val1, val2);
                    }
                    break;
                default:
                    break;
                }
            }
        }
    } else if (n->getOpcode() == ISD::SHL ||
               n->getOpcode() == ISD::SRA ||
               n->getOpcode() == ISD::SRL) {
        SDValue shifted = n->getOperand(0);
        SDValue shifter = n->getOperand(1);
        EVT shiftedVt = shifted.getValueType();
        EVT shifterVt = shifter.getValueType();

    } else if (n->getOpcode() == ISD::AND ||
               n->getOpcode() == ISD::OR ||
               n->getOpcode() == ISD::XOR) {
        SDValue lhs = n->getOperand(0);
        SDValue rhs = n->getOperand(1);
        EVT lhsVt = lhs.getValueType();
        EVT rhsVt = rhs.getValueType();
    }

    SelectCode(n);
}

References DEFAULT_TYPE, TCEISD::FIRST_NUMBER, llvm::TCETargetMachine::getMaxOpcode(), llvm::TCETargetMachine::getMaxuOpcode(), llvm::TCETargetMachine::getMinOpcode(), llvm::TCETargetMachine::getMinuOpcode(), MOVE_IMM, SELECT_NODE_AND_RETURN, and tm_.

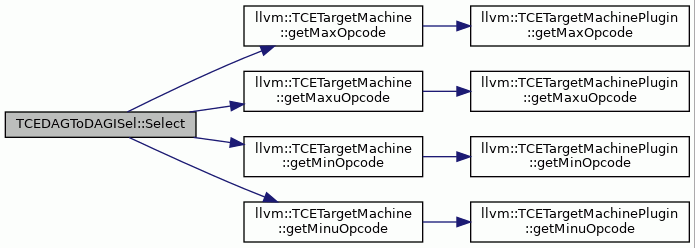

Here is the call graph for this function:

SelectADDRri()

bool TCEDAGToDAGISel::SelectADDRri	(	SDValue	addr,
		SDValue &	base,
		SDValue &	offset
	)

Handles ADDRri operands.

Definition at line 237 of file TCEDAGToDAGISel.cc.

                                                  {

    if (FrameIndexSDNode* fin = dyn_cast<FrameIndexSDNode>(addr)) {
        base = CurDAG->getTargetFrameIndex(fin->getIndex(), DEFAULT_TYPE);
        offset = CurDAG->getTargetConstant(0, SDLoc(), DEFAULT_TYPE);
        return true;
    } else if (addr.getOpcode() == ISD::TargetExternalSymbol ||
               addr.getOpcode() == ISD::TargetGlobalAddress) {

        return false;  // direct calls.
    }
    base = addr;
    offset = CurDAG->getTargetConstant(0, SDLoc(), DEFAULT_TYPE);
    return true;
}

References DEFAULT_TYPE.

SelectADDRrr()

bool TCEDAGToDAGISel::SelectADDRrr	(	SDValue	addr,
		SDValue &	r1,
		SDValue &	r2
	)

Handles ADDRrr operands.

Definition at line 258 of file TCEDAGToDAGISel.cc.

                                            {

    if (addr.getOpcode() == ISD::TargetGlobalAddress) {
        //r1 = addr.getOperand(0);
        //r2 = CurDAG->getTargetConstant(cn->getValue(), MVT::i32);
        //return true:
        return false;
    } else if (addr.getOpcode() == ISD::TargetExternalSymbol) {
        return false;
    } else if (addr.getOpcode() == ISD::FrameIndex) {
        return false;
    }

    r1 = addr;

    r2 = CurDAG->getTargetConstant(0, SDLoc(), DEFAULT_TYPE);
    return true;
}

References DEFAULT_TYPE.

SelectOptimizedBuildVector()

void TCEDAGToDAGISel::SelectOptimizedBuildVector ( SDNode *  n )

private

Member Data Documentation

lowering_

llvm::TCETargetLowering& TCEDAGToDAGISel::lowering_

private

Definition at line 83 of file TCEDAGToDAGISel.cc.

subtarget_

const llvm::TCESubtarget& TCEDAGToDAGISel::subtarget_

private

Definition at line 84 of file TCEDAGToDAGISel.cc.

tm_

llvm::TCETargetMachine* TCEDAGToDAGISel::tm_

private

Definition at line 85 of file TCEDAGToDAGISel.cc.

Referenced by Select().

---

The documentation for this class was generated from the following file:

• TCEDAGToDAGISel.cc
