#include <AOutSectionReader.hh>

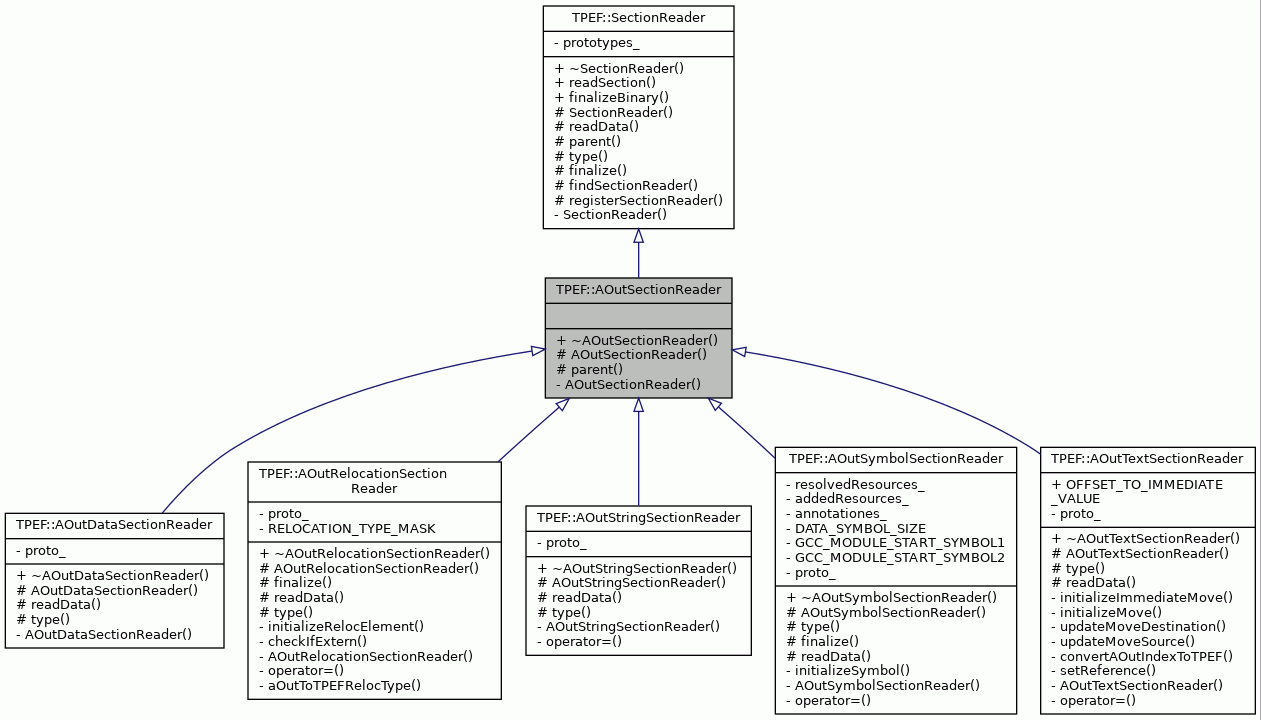

Inheritance diagram for TPEF::AOutSectionReader:

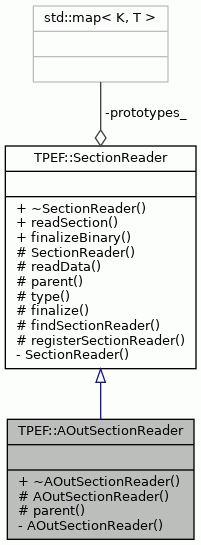

Collaboration diagram for TPEF::AOutSectionReader:

Public Member Functions
virtual	~AOutSectionReader ()

Public Member Functions inherited from TPEF::SectionReader
virtual	~SectionReader ()

Protected Member Functions
	AOutSectionReader ()

virtual BinaryReader *	parent () const

Protected Member Functions inherited from TPEF::SectionReader
	SectionReader ()

virtual void	readData (BinaryStream &stream, Section *section) const =0
	Does actual reading part for constructing section. More...

virtual Section::SectionType	type () const =0
	Returns type (TPEF) section which actual section reader reads. More...

virtual void	finalize (Section *section) const

Private Member Functions
	AOutSectionReader (const AOutSectionReader &)
	Copying is not allowed. More...

Additional Inherited Members
Public Types inherited from TPEF::SectionReader
typedef BinaryReader::Length	Length

Static Public Member Functions inherited from TPEF::SectionReader
static void	readSection (BinaryStream &stream, Section section, BinaryReader reader)

static void	finalizeBinary (Binary binaryToFinalize, BinaryReader reader)

Static Protected Member Functions inherited from TPEF::SectionReader
static const SectionReader *	findSectionReader (const Section::SectionType type, const BinaryReader *bReader)

static void	registerSectionReader (const SectionReader *sReader)

Detailed Description

Abstract base class for AOutSectionReaders.

Definition at line 45 of file AOutSectionReader.hh.

Constructor & Destructor Documentation

◆ ~AOutSectionReader()

TPEF::AOutSectionReader::~AOutSectionReader ( )

virtual

Destructor

Definition at line 48 of file AOutSectionReader.cc.

48 {

49 }

◆ AOutSectionReader() [1/2]

TPEF::AOutSectionReader::AOutSectionReader ( )

protected

Constructor

Definition at line 41 of file AOutSectionReader.cc.

                                      :
     SectionReader() {
 }

◆ AOutSectionReader() [2/2]

TPEF::AOutSectionReader::AOutSectionReader ( const AOutSectionReader & )

private

Copying is not allowed.

Member Function Documentation

◆ parent()

BinaryReader * TPEF::AOutSectionReader::parent ( ) const

protectedvirtual

Returns binary reader instance which uses AOutSectionReader classes.

Returns: Binary reader which uses AOutSectionReader classes.

Implements TPEF::SectionReader.

Definition at line 57 of file AOutSectionReader.cc.

                                 {
     return AOutReader::instance();
 }

References TPEF::AOutReader::instance().

Referenced by TPEF::AOutRelocationSectionReader::finalize(), TPEF::AOutSymbolSectionReader::finalize(), TPEF::AOutSymbolSectionReader::initializeSymbol(), TPEF::AOutStringSectionReader::readData(), TPEF::AOutDataSectionReader::readData(), TPEF::AOutTextSectionReader::readData(), TPEF::AOutRelocationSectionReader::readData(), and TPEF::AOutSymbolSectionReader::readData().

Here is the call graph for this function:

The documentation for this class was generated from the following files:
