#include <AOutReader.hh>

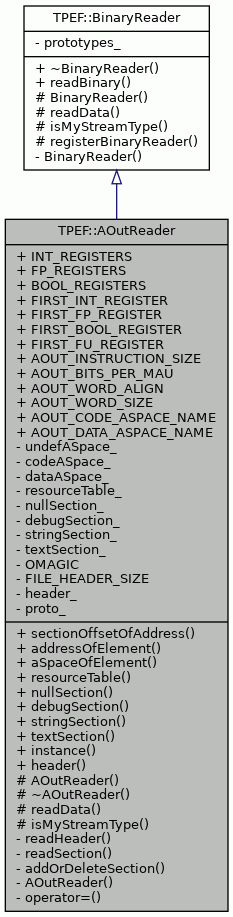

Inheritance diagram for TPEF::AOutReader:

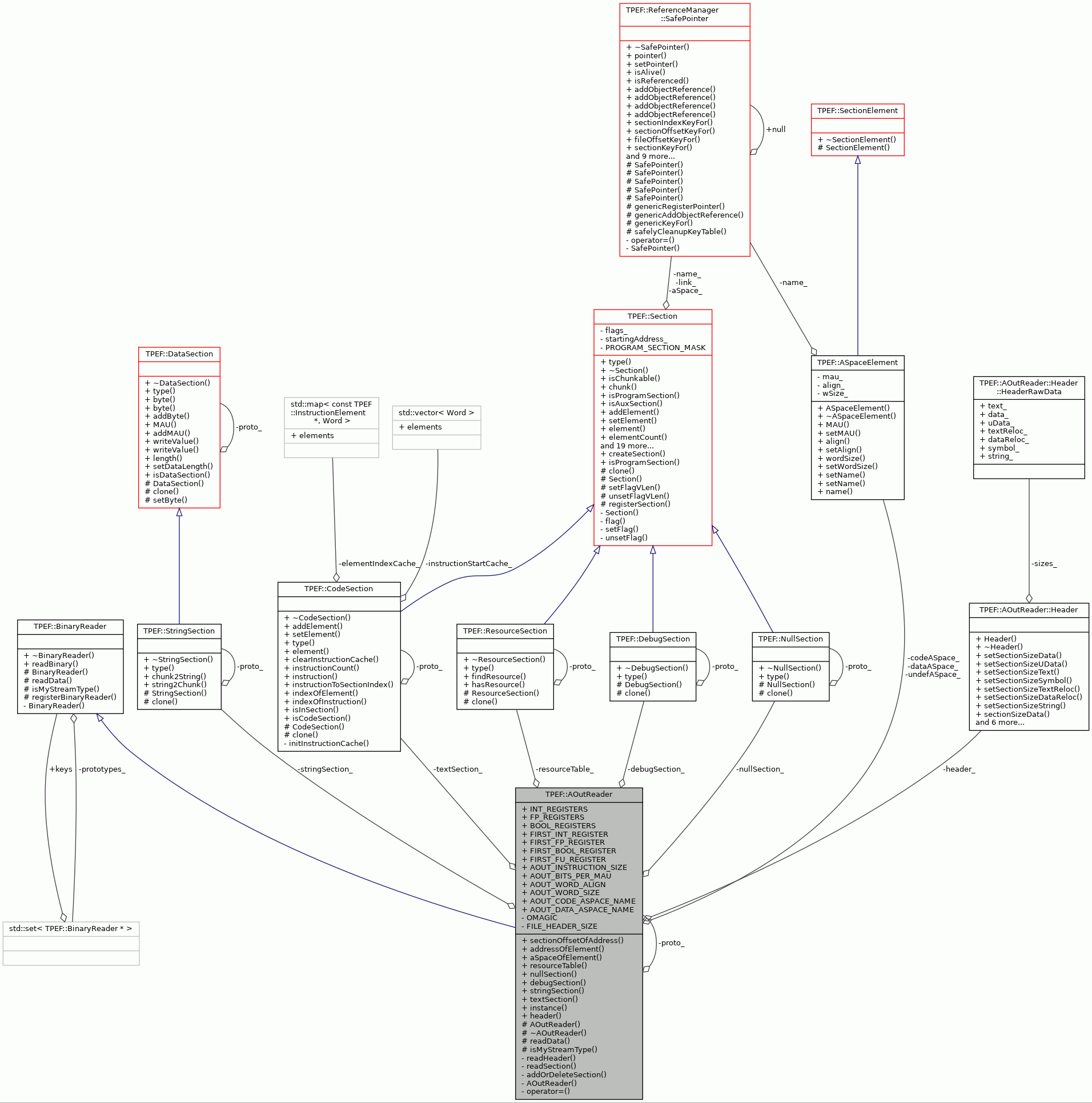

Collaboration diagram for TPEF::AOutReader:

Classes
class	Header

Public Types
enum	SymbolType { N_UNDF = 0x0, N_ABS = 0x2, N_TEXT = 0x4, N_DATA = 0x6, N_BSS = 0x8, N_COMM = 0x12, N_FN = 0x1e, N_EXT = 0x1, N_TYPE = 0x1e, N_TJ = 0x76, N_JTE = 0x96, N_MEM = 0xb6, N_FC = 0xd6, N_STAB = 0xe0, N_GSYM = 0x20, N_FNAME = 0x22, N_FUN = 0x24, N_STSYM = 0x26, N_LCSYM = 0x28, N_MAIN = 0x2a, N_RSYM = 0x40, N_SLINE = 0x44, N_SSYM = 0x60, N_SO = 0x64, N_LSYM = 0x80, N_BINCL = 0x82, N_SOL = 0x84, N_PSYM = 0xa0, N_EINCL = 0xa2, N_LBRAC = 0xc0, N_EXCL = 0xc2, N_RBRAC = 0xe0, N_BCOMM = 0xe2, N_ECOMM = 0xe4, N_ECOML = 0xe8, N_LENG = 0xfe, N_PC = 0x30, N_M2C = 0x42, N_SCOPE = 0xc4, N_BROWS = 0x48, N_PRTAB = 0xd2, N_ANN = 0xa4 }

enum	AOutSectionID { ST_UNDEF = 0x00, ST_TEXT = N_TEXT, ST_DATA = N_DATA, ST_UDATA = N_BSS, ST_SYMBOL = 0x10, ST_STRING = 0x12 }

Public Types inherited from TPEF::BinaryReader
typedef unsigned long	Length

Public Member Functions
SectionOffset	sectionOffsetOfAddress (AddressImage address) const

AddressImage	addressOfElement (SectionElement *elem) const

ASpaceElement *	aSpaceOfElement (SectionElement *elem) const

ResourceSection *	resourceTable () const

NullSection *	nullSection () const

DebugSection *	debugSection () const

StringSection *	stringSection () const

CodeSection *	textSection () const

Public Member Functions inherited from TPEF::BinaryReader
virtual	~BinaryReader ()

Static Public Member Functions
static BinaryReader *	instance ()

static const Header &	header ()

Static Public Member Functions inherited from TPEF::BinaryReader
static Binary *	readBinary (BinaryStream &stream)

Static Public Attributes
static const Word	INT_REGISTERS = 1024
	Number of integer registers. More...

static const Word	FP_REGISTERS = 1024
	Number of floating-point registers. More...

static const Word	BOOL_REGISTERS = 1
	Number of Boolean registers. More...

static const Word	FIRST_INT_REGISTER = 0
	Index of the first integer register in a.out. More...

static const Word	FIRST_FP_REGISTER = FIRST_INT_REGISTER + INT_REGISTERS
	Index of the first floating-point register. More...

static const Word	FIRST_BOOL_REGISTER = FIRST_FP_REGISTER + FP_REGISTERS
	Index of the first Boolean register. More...

static const Word	FIRST_FU_REGISTER = FIRST_BOOL_REGISTER + BOOL_REGISTERS
	Index of the first function unit register. More...

static const Byte	AOUT_INSTRUCTION_SIZE = 8
	Size of one instruction in a.out file. More...

static const Byte	AOUT_BITS_PER_MAU = 8
	Minimum addressable word of address space. More...

static const Byte	AOUT_WORD_ALIGN = 4
	Aligment of address space. More...

static const Byte	AOUT_WORD_SIZE = 4
	Word size of address space. More...

static const char *	AOUT_CODE_ASPACE_NAME = "universal_instructions"
	Name of universal machines code address space. More...

static const char *	AOUT_DATA_ASPACE_NAME = "universal_data"
	Name of universal machines data address space. More...

Protected Member Functions
	AOutReader ()

virtual	~AOutReader ()

virtual Binary *	readData (BinaryStream &stream) const

virtual bool	isMyStreamType (BinaryStream &stream) const

Protected Member Functions inherited from TPEF::BinaryReader
	BinaryReader ()

Private Member Functions
void	readHeader (BinaryStream &stream) const

void	readSection (BinaryStream &stream, FileOffset startPosition, Section *section, Length length) const

void	addOrDeleteSection (Section section, Binary binary) const

	AOutReader (const AOutReader &)
	Copying not allowed. More...

AOutReader &	operator= (const AOutReader &)
	Assignment not allowed. More...

Private Attributes
ASpaceElement *	undefASpace_
	Undefined address space. More...

ASpaceElement *	codeASpace_
	Address space of text section. More...

ASpaceElement *	dataASpace_
	Address space of data sections. More...

Static Private Attributes
static ResourceSection *	resourceTable_ = NULL

static NullSection *	nullSection_ = NULL

static DebugSection *	debugSection_ = NULL

static StringSection *	stringSection_ = NULL

static CodeSection *	textSection_ = NULL

static const HalfWord	OMAGIC = 0x0107
	Move a.out format identifier. More...

static const Byte	FILE_HEADER_SIZE = 8 * sizeof(Word)
	Size of file header. More...

static Header	header_
	Header of a.out file. More...

static AOutReader *	proto_ = NULL
	Prototype instance of AOutReader registered into BinaryReader. More...

Additional Inherited Members
Static Protected Member Functions inherited from TPEF::BinaryReader
static void	registerBinaryReader (BinaryReader *reader)

Detailed Description

Reads binary file that is in TTA a.out format.

Definition at line 54 of file AOutReader.hh.

Member Enumeration Documentation

◆ AOutSectionID

enum TPEF::AOutReader::AOutSectionID

Names for a.out sections.

Sections are expected in this order in a.out file. Since there is only one section of each type, these names can be used as section identifiers.

Enumerator
ST_UNDEF	Undefined section.
ST_TEXT	Text section.
ST_DATA	Data section.
ST_UDATA	Uninitialized data section.
ST_SYMBOL	Symbol table.
ST_STRING	String table.

Definition at line 114 of file AOutReader.hh.

                        {
         ST_UNDEF =  0x00,     ///< Undefined section.
         ST_TEXT =   N_TEXT,   ///< Text section.
         ST_DATA =   N_DATA,   ///< Data section.
         ST_UDATA =  N_BSS,    ///< Uninitialized data section.
         ST_SYMBOL = 0x10,     ///< Symbol table.
         ST_STRING = 0x12      ///< String table.
     };

◆ SymbolType

enum TPEF::AOutReader::SymbolType

TODO: get these from tce-frontend a.out symbols. (from MOVE/sched/exec.h)

Enumerator
N_UNDF	Undefined.
N_ABS	Absolute.
N_TEXT	Text.
N_DATA	Data.
N_BSS	BSS.
N_COMM	Common (internal to ld).
N_FN	File name.
N_EXT	Mask bit for external.
N_TYPE	Mask bits for resolving symbol type.
N_TJ	Table jump.
N_JTE	Jump table entry.
N_MEM	Memory reference.
N_FC	Function call.
N_STAB	Mask for stabs.
N_GSYM	Global.
N_FNAME	Procedure name (f77).
N_FUN	Procedure.
N_STSYM	Static.
N_LCSYM	.lcomm.
N_MAIN	Name of main rutine.
N_RSYM	Register.
N_SLINE	Source line.
N_SSYM	Structure.
N_SO	Source file name.
N_LSYM	Local.
N_BINCL	Header file.
N_SOL	#included file name.
N_PSYM	Parameter.
N_EINCL	End of include file.
N_LBRAC	Left bracket.
N_EXCL	Excluded include file.
N_RBRAC	Right bracket.
N_BCOMM	Begin common.
N_ECOMM	End common.
N_ECOML	End common (local name).
N_LENG	Second symbol table entry with length.
N_PC	Global pascal symbol.
N_M2C	Compilation unit symbol table entry.
N_SCOPE	Scope information.
N_BROWS	Sun source code browser.
N_PRTAB	TCE processors resource entry.
N_ANN	TCE annotation entry.

Definition at line 61 of file AOutReader.hh.

                     {
         N_UNDF  = 0x0,  ///< Undefined.
         N_ABS   = 0x2,  ///< Absolute.
         N_TEXT  = 0x4,  ///< Text.
         N_DATA  = 0x6,  ///< Data.
         N_BSS   = 0x8,  ///< BSS.
         N_COMM  = 0x12, ///< Common (internal to ld).
         N_FN    = 0x1e, ///< File name.
         N_EXT   = 0x1,  ///< Mask bit for external.
         N_TYPE  = 0x1e, ///< Mask bits for resolving symbol type.
         N_TJ    = 0x76, ///< Table jump.
         N_JTE   = 0x96, ///< Jump table entry.
         N_MEM   = 0xb6, ///< Memory reference.
         N_FC    = 0xd6, ///< Function call.
         N_STAB  = 0xe0, ///< Mask for stabs.
         N_GSYM  = 0x20, ///< Global.
         N_FNAME = 0x22, ///< Procedure name (f77).
         N_FUN   = 0x24, ///< Procedure.
         N_STSYM = 0x26, ///< Static.
         N_LCSYM = 0x28, ///< .lcomm.
         N_MAIN  = 0x2a, ///< Name of main rutine.
         N_RSYM  = 0x40, ///< Register.
         N_SLINE = 0x44, ///< Source line.
         N_SSYM  = 0x60, ///< Structure.
         N_SO    = 0x64, ///< Source file name.
         N_LSYM  = 0x80, ///< Local.
         N_BINCL = 0x82, ///< Header file.
         N_SOL   = 0x84, ///< #included file name.
         N_PSYM  = 0xa0, ///< Parameter.
         N_EINCL = 0xa2, ///< End of include file.
         N_LBRAC = 0xc0, ///< Left bracket.
         N_EXCL  = 0xc2, ///< Excluded include file.
         N_RBRAC = 0xe0, ///< Right bracket.
         N_BCOMM = 0xe2, ///< Begin common.
         N_ECOMM = 0xe4, ///< End common.
         N_ECOML = 0xe8, ///< End common (local name).
         N_LENG  = 0xfe, ///< Second symbol table entry with length.
         N_PC    = 0x30, ///< Global pascal symbol.
         N_M2C   = 0x42, ///< Compilation unit symbol table entry.
         N_SCOPE = 0xc4, ///< Scope information.
         N_BROWS = 0x48, ///< Sun source code browser.
         N_PRTAB = 0xd2, ///< TCE processors resource entry.
         N_ANN   = 0xa4  ///< TCE annotation entry.
     };

Constructor & Destructor Documentation

◆ AOutReader() [1/2]

TPEF::AOutReader::AOutReader ( )

protected

Constructor.

Creates Header and registers itself to BinaryReader.

Definition at line 101 of file AOutReader.cc.

                        : BinaryReader(),
     codeASpace_(NULL), dataASpace_(NULL) {

     BinaryReader::registerBinaryReader(this);
 }

References TPEF::BinaryReader::registerBinaryReader().

Here is the call graph for this function:

◆ ~AOutReader()

TPEF::AOutReader::~AOutReader ( )

protectedvirtual

Destructor.

Definition at line 110 of file AOutReader.cc.

                         {

     if (proto_ != NULL) {
         auto proto = proto_;
         proto_ = NULL;
         delete proto;
     }
 }

References proto_.

◆ AOutReader() [2/2]

TPEF::AOutReader::AOutReader ( const AOutReader & )

private

Copying not allowed.

Member Function Documentation

◆ addOrDeleteSection()

void TPEF::AOutReader::addOrDeleteSection	(	Section *	section,
		Binary *	binary
	)		const

private

Referenced by readData().

◆ addressOfElement()

AddressImage TPEF::AOutReader::addressOfElement ( SectionElement * elem ) const

Referenced by TPEF::AOutRelocationSectionReader::finalize().

◆ aSpaceOfElement()

ASpaceElement* TPEF::AOutReader::aSpaceOfElement ( SectionElement * elem ) const

Referenced by TPEF::AOutRelocationSectionReader::finalize().

◆ debugSection()

DebugSection* TPEF::AOutReader::debugSection ( ) const

Referenced by TPEF::AOutSymbolSectionReader::initializeSymbol().

◆ header()

static const Header& TPEF::AOutReader::header ( )

static

Referenced by TPEF::AOutSymbolSectionReader::initializeSymbol(), TPEF::AOutStringSectionReader::readData(), TPEF::AOutDataSectionReader::readData(), TPEF::AOutTextSectionReader::readData(), TPEF::AOutRelocationSectionReader::readData(), and TPEF::AOutSymbolSectionReader::readData().

◆ instance()

static BinaryReader* TPEF::AOutReader::instance ( )

static

Referenced by TPEF::AOutSectionReader::parent().

◆ isMyStreamType()

bool TPEF::AOutReader::isMyStreamType ( BinaryStream & stream ) const

protectedvirtual

Checks whether AOutReader can read from the given stream.

The test simply consists of checking that file size is at least the size of a.out header. Then it checks whether the third and fourth Byte of stream match the magic number of a.out files. Only 'old impure format' files (not read-only text and not page-aligned for on demand load) are accepted.

This method does not modify the stream position.

Parameters

stream The stream to test.

Returns: True if stream contains data in a.out format, false otherwise.

Exceptions

UnreachableStream If there occurs an exception with stream.

Implements TPEF::BinaryReader.

Definition at line 341 of file AOutReader.cc.

                                                      {
     unsigned long startPos = stream.readPosition();

     try {
         if (stream.sizeOfFile() < FILE_HEADER_SIZE) {
             return false;
         } else {
             stream.readHalfWord();
             Word magic = stream.readHalfWord();

             stream.setReadPosition(startPos);

             if(magic == OMAGIC) {
                 return true;
             } else {
                 return false;
             }
         }

     } catch (EndOfFile& e) {
         stream.setReadPosition(startPos);
         return false;
     }
 }

References FILE_HEADER_SIZE, OMAGIC, TPEF::BinaryStream::readHalfWord(), TPEF::BinaryStream::readPosition(), TPEF::BinaryStream::setReadPosition(), and TPEF::BinaryStream::sizeOfFile().

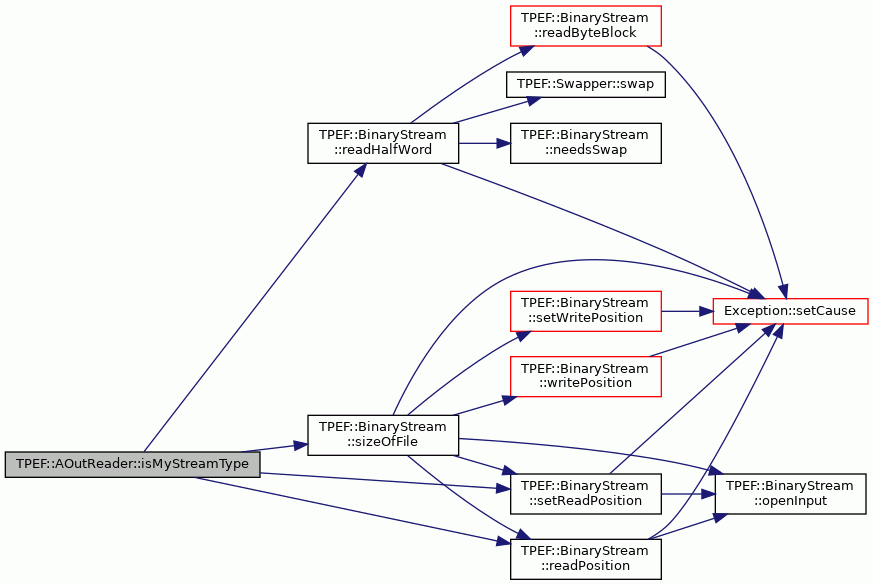

Here is the call graph for this function:

◆ nullSection()

NullSection* TPEF::AOutReader::nullSection ( ) const

Referenced by TPEF::AOutSymbolSectionReader::initializeSymbol(), and TPEF::AOutSymbolSectionReader::readData().

◆ operator=()

AOutReader& TPEF::AOutReader::operator= ( const AOutReader & )

private

Assignment not allowed.

◆ readData()

Binary * TPEF::AOutReader::readData ( BinaryStream & stream ) const

protectedvirtual

Does the actual work of reading binary file from stream.

Reads a.out binary file and creates valid TPEF object hierarchy out of it.

Parameters

stream Stream to be read from.

Returns: Pointer to the Binary object created.

Exceptions

UnreachableStream	If reading of section fails.
KeyAlreadyExists	Key was in use when trying to register object.
EndOfFile	If end of file were reached while it shouldn't.
OutOfRange	Some of read values were out of range.
WrongSubclass	Some class couldn't do what it was asked for.
UnexpectedValue	If there was unexpected value when reading.

Implements TPEF::BinaryReader.

Definition at line 134 of file AOutReader.cc.

                                                {
     Binary* newBin = NULL;
     newBin = new Binary();

     // read section sizes and other file header data
     readHeader(stream);

     // create all a.out sections and
     nullSection_ =
         dynamic_cast<NullSection*>(
             Section::createSection(Section::ST_NULL));
     nullSection_->setLink(nullSection_);

     textSection_ = dynamic_cast<CodeSection*>(
         Section::createSection(Section::ST_CODE));

     DataSection* dataSection = dynamic_cast<DataSection*>(
         Section::createSection(Section::ST_DATA));

     UDataSection* uDataSection = dynamic_cast<UDataSection*>(
         Section::createSection(Section::ST_UDATA));

     stringSection_ = dynamic_cast<StringSection*>(
         Section::createSection(Section::ST_STRTAB));
     stringSection_->setLink(nullSection_);

     Section* symbolTable = Section::createSection(Section::ST_SYMTAB);

     RelocSection* textRelocSection = dynamic_cast<RelocSection*>(
         Section::createSection(Section::ST_RELOC));

     RelocSection* dataRelocSection = dynamic_cast<RelocSection*>(
         Section::createSection(Section::ST_RELOC));

     debugSection_ = dynamic_cast<DebugSection*>(
         Section::createSection(Section::ST_DEBUG));
     debugSection_->setLink(stringSection_);


     // create TPEF needed sections (NullSection and ASpaceSection)
     // and processors resource table
     resourceTable_ = dynamic_cast<ResourceSection*>
         (Section::createSection(Section::ST_MR));

     ASpaceSection* aSpaceSection = dynamic_cast<ASpaceSection*>(
         Section::createSection(Section::ST_ADDRSP));

     newBin->setStrings(stringSection_);
     SectionOffsetKey nullString(ST_STRING, 0);

     undefASpace_ = new ASpaceElement();

     codeASpace_ = new ASpaceElement();
     codeASpace_->setMAU(AOUT_BITS_PER_MAU);
     codeASpace_->setAlign(AOUT_WORD_ALIGN);
     codeASpace_->setWordSize(AOUT_WORD_SIZE);

     dataASpace_ = new ASpaceElement();
     dataASpace_->setMAU(AOUT_BITS_PER_MAU);
     dataASpace_->setAlign(AOUT_WORD_ALIGN);
     dataASpace_->setWordSize(AOUT_WORD_SIZE);

     aSpaceSection->setUndefinedASpace(undefASpace_);
     aSpaceSection->addElement(undefASpace_);
     aSpaceSection->addElement(codeASpace_);
     aSpaceSection->addElement(dataASpace_);
     aSpaceSection->setLink(stringSection_);

     // set addresses and address spaces

     // code section starts from address zero
     textSection_->setASpace(codeASpace_);
     textSection_->setStartingAddress(0);
     textSection_->setLink(resourceTable_);

     // after that comes data section
     dataSection->setASpace(dataASpace_);
     dataSection->setStartingAddress(header_.sectionSizeText());
     dataSection->setLink(nullSection_);

     // and at last uninitilized data section after that
     uDataSection->setASpace(dataASpace_);
     uDataSection->setStartingAddress(
         (header_.sectionSizeData() + header_.sectionSizeText()));
     uDataSection->setLink(nullSection_);

     //  undefined address spaces for all aux sections
     nullSection_->setASpace(undefASpace_);
     debugSection_->setASpace(undefASpace_);
     aSpaceSection->setASpace(undefASpace_);
     stringSection_->setASpace(undefASpace_);
     symbolTable->setASpace(undefASpace_);
     textRelocSection->setASpace(undefASpace_);
     dataRelocSection->setASpace(undefASpace_);

     resourceTable_->setASpace(undefASpace_);
     resourceTable_->setLink(stringSection_);

     FileOffset textSection_Start = stream.readPosition();

     FileOffset dataSectionStart =
         textSection_Start + header_.sectionSizeText();

     FileOffset textRelocationTableStart =
         dataSectionStart + header_.sectionSizeData();

     FileOffset dataRelocationTableStart =
         textRelocationTableStart + header_.sectionSizeTextReloc();

     FileOffset symbolTableStart =
         dataRelocationTableStart + header_.sectionSizeDataReloc();

     FileOffset stringTableStart =
         symbolTableStart + header_.sectionSizeSymbol();

     // reading sections and creating reference keys
     SafePointer::addObjectReference(SectionKey(ST_UDATA), uDataSection);
     uDataSection->setDataLength(header_.sectionSizeUData());

     SafePointer::addObjectReference(SectionKey(ST_STRING), stringSection_);
     readSection(stream, stringTableStart, stringSection_,
                 header_.sectionSizeString());

     SafePointer::addObjectReference(SectionKey(ST_TEXT), textSection_);
     readSection(stream, textSection_Start,
                 textSection_, header_.sectionSizeText());

     SafePointer::addObjectReference(SectionKey(ST_DATA), dataSection);
     readSection(stream, dataSectionStart,
                 dataSection, header_.sectionSizeData());

     SafePointer::addObjectReference(SectionKey(ST_SYMBOL), symbolTable);
     symbolTable->setLink(stringSection_);
     readSection(stream, symbolTableStart,
                 symbolTable, header_.sectionSizeSymbol());

     // relocation sections are not referenced anywhere by SectionId
     textRelocSection->setLink(symbolTable);
     textRelocSection->setReferencedSection(textSection_);
     readSection(stream, textRelocationTableStart,
                 textRelocSection, header_.sectionSizeTextReloc());

     dataRelocSection->setLink(symbolTable);
     dataRelocSection->setReferencedSection(dataSection);
     readSection(stream, dataRelocationTableStart,
                 dataRelocSection, header_.sectionSizeDataReloc());

     // add sections necessary sections and sections that contained elements
     newBin->addSection(nullSection_);
     newBin->addSection(aSpaceSection);

     // set names for sections and address spaces
     symbolTable->setName(stringSection_->string2Chunk("Symbols"));
     resourceTable_->setName(
         stringSection_->string2Chunk("Universal resources"));
     dataSection->setName(stringSection_->string2Chunk("Initialized data"));
     textSection_->setName(stringSection_->string2Chunk("Code"));
     aSpaceSection->setName(stringSection_->string2Chunk("Address spaces"));
     nullSection_->setName(stringSection_->string2Chunk("Null section"));
     uDataSection->setName(stringSection_->string2Chunk("Uninitilized data"));
     textRelocSection->setName(
         stringSection_->string2Chunk("Relocated immediates"));
     dataRelocSection->setName(stringSection_->string2Chunk("Relocated data"));
     stringSection_->setName(stringSection_->string2Chunk("Strings of TPEF"));
     debugSection_->setName(stringSection_->string2Chunk("A.out stabs"));

     undefASpace_->setName(stringSection_->string2Chunk(""));
     codeASpace_->setName(stringSection_->string2Chunk(AOUT_CODE_ASPACE_NAME));
     dataASpace_->setName(stringSection_->string2Chunk(AOUT_DATA_ASPACE_NAME));

     addOrDeleteSection(textSection_, newBin);
     addOrDeleteSection(textRelocSection, newBin);
     addOrDeleteSection(symbolTable, newBin);
     addOrDeleteSection(dataSection, newBin);
     addOrDeleteSection(dataRelocSection, newBin);
     addOrDeleteSection(uDataSection, newBin);
     addOrDeleteSection(resourceTable_, newBin);
     addOrDeleteSection(debugSection_, newBin);

     // there should be always at least one starting zero
     assert(stringSection_->length() > 0);
     newBin->addSection(stringSection_);

     // can't be sure about these, but external clients will fix
     // values if needed
     newBin->setType(Binary::FT_OBJSEQ);
     newBin->setArch(Binary::FA_TTA_TUT);

     return newBin;
 }

References TPEF::Section::addElement(), TPEF::ReferenceManager::SafePointer::addObjectReference(), addOrDeleteSection(), TPEF::Binary::addSection(), AOUT_BITS_PER_MAU, AOUT_CODE_ASPACE_NAME, AOUT_DATA_ASPACE_NAME, AOUT_WORD_ALIGN, AOUT_WORD_SIZE, assert, codeASpace_, TPEF::Section::createSection(), dataASpace_, debugSection_, TPEF::Binary::FA_TTA_TUT, TPEF::Binary::FT_OBJSEQ, header_, TPEF::DataSection::length(), nullSection_, readHeader(), TPEF::BinaryStream::readPosition(), readSection(), resourceTable_, TPEF::AOutReader::Header::sectionSizeData(), TPEF::AOutReader::Header::sectionSizeDataReloc(), TPEF::AOutReader::Header::sectionSizeString(), TPEF::AOutReader::Header::sectionSizeSymbol(), TPEF::AOutReader::Header::sectionSizeText(), TPEF::AOutReader::Header::sectionSizeTextReloc(), TPEF::AOutReader::Header::sectionSizeUData(), TPEF::ASpaceElement::setAlign(), TPEF::Binary::setArch(), TPEF::Section::setASpace(), TPEF::RawSection::setDataLength(), TPEF::Section::setLink(), TPEF::ASpaceElement::setMAU(), TPEF::ASpaceElement::setName(), TPEF::Section::setName(), TPEF::RelocSection::setReferencedSection(), TPEF::Section::setStartingAddress(), TPEF::Binary::setStrings(), TPEF::Binary::setType(), TPEF::ASpaceSection::setUndefinedASpace(), TPEF::ASpaceElement::setWordSize(), TPEF::Section::ST_ADDRSP, TPEF::Section::ST_CODE, TPEF::Section::ST_DATA, ST_DATA, TPEF::Section::ST_DEBUG, TPEF::Section::ST_MR, TPEF::Section::ST_NULL, TPEF::Section::ST_RELOC, ST_STRING, TPEF::Section::ST_STRTAB, ST_SYMBOL, TPEF::Section::ST_SYMTAB, ST_TEXT, TPEF::Section::ST_UDATA, ST_UDATA, TPEF::StringSection::string2Chunk(), stringSection_, textSection_, and undefASpace_.

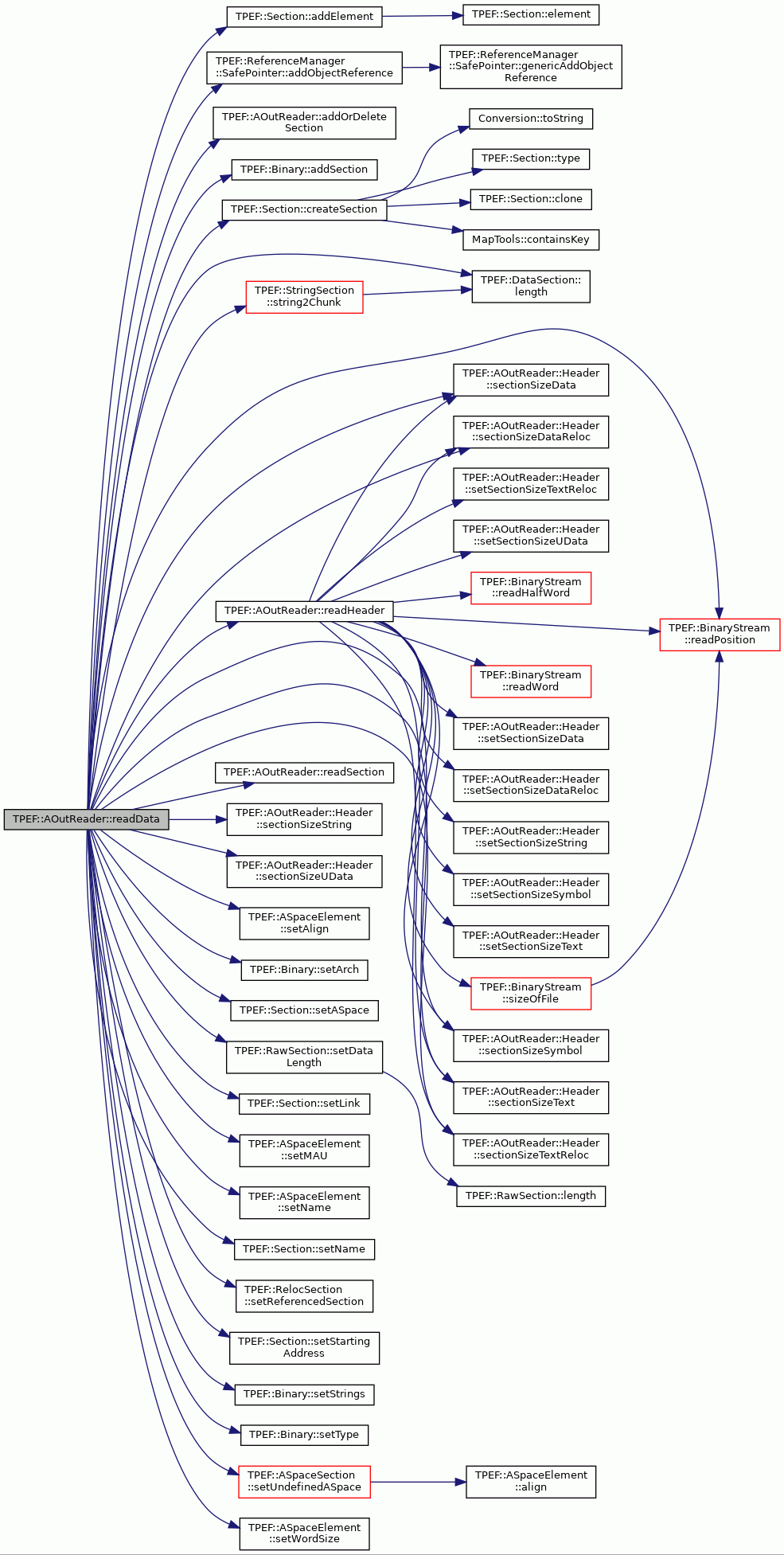

Here is the call graph for this function:

◆ readHeader()

void TPEF::AOutReader::readHeader ( BinaryStream & stream ) const

private

Reads file header from the stream and stores it to a specific object.

Parameters

stream Stream to be read from.

Exceptions

UnreachableStream	If there occurs a problem with stream.
EndOfFile	If end of file were reached where it shouldn't.

Definition at line 374 of file AOutReader.cc.

                                                  {
     // test magic number again just in case...
     stream.readHalfWord();
     assert(stream.readHalfWord() == OMAGIC);

     header_.setSectionSizeText(stream.readWord());
     header_.setSectionSizeData(stream.readWord());
     header_.setSectionSizeUData(stream.readWord());
     header_.setSectionSizeSymbol(stream.readWord());

     // virtual address of the entry point of the program is ignored
     assert(stream.readWord() == 0);

     header_.setSectionSizeTextReloc(stream.readWord());
     header_.setSectionSizeDataReloc(stream.readWord());

     SectionOffset currentPosition = stream.readPosition();

     // calculate the size of string table
     SectionOffset beginOfStrTable = currentPosition +
         header_.sectionSizeText() + header_.sectionSizeData() +
         header_.sectionSizeSymbol() + header_.sectionSizeTextReloc() +
         header_.sectionSizeDataReloc();

     header_.setSectionSizeString(stream.sizeOfFile() -
                                  beginOfStrTable);
 }

Referenced by readData().

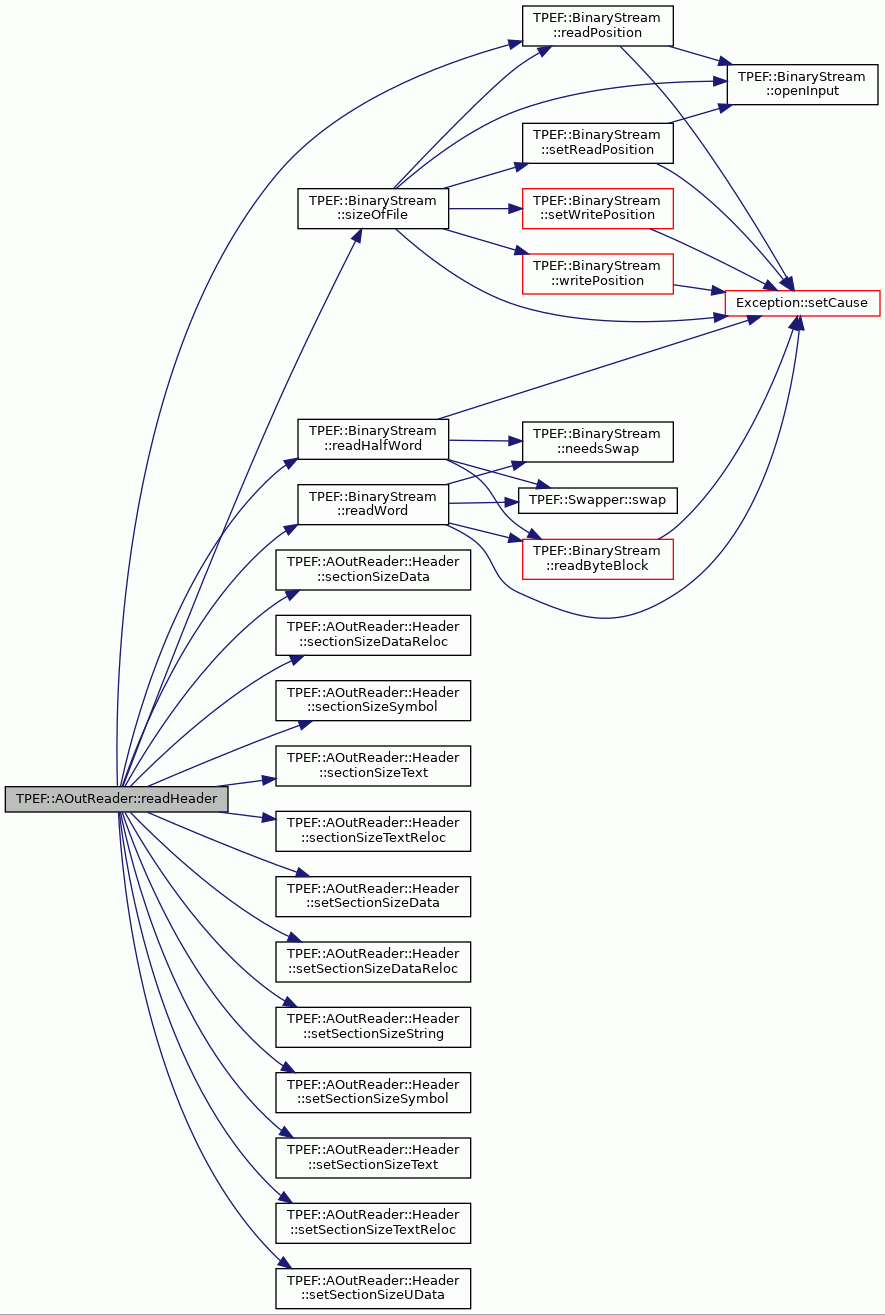

Here is the call graph for this function:

◆ readSection()

void TPEF::AOutReader::readSection	(	BinaryStream &	stream,
		FileOffset	startPosition,
		Section *	section,
		Length	length
	)		const

private

Referenced by readData().

◆ resourceTable()

ResourceSection* TPEF::AOutReader::resourceTable ( ) const

◆ sectionOffsetOfAddress()

SectionOffset TPEF::AOutReader::sectionOffsetOfAddress ( AddressImage address ) const

Referenced by TPEF::AOutRelocationSectionReader::initializeRelocElement(), and TPEF::AOutSymbolSectionReader::initializeSymbol().

◆ stringSection()

StringSection* TPEF::AOutReader::stringSection ( ) const

◆ textSection()

CodeSection* TPEF::AOutReader::textSection ( ) const

Member Data Documentation

◆ AOUT_BITS_PER_MAU

const Byte TPEF::AOutReader::AOUT_BITS_PER_MAU = 8

static

Minimum addressable word of address space.

Definition at line 143 of file AOutReader.hh.

Referenced by readData().

◆ AOUT_CODE_ASPACE_NAME

const char * TPEF::AOutReader::AOUT_CODE_ASPACE_NAME = "universal_instructions"

static

Name of universal machines code address space.

Definition at line 150 of file AOutReader.hh.

Referenced by readData().

◆ AOUT_DATA_ASPACE_NAME

const char * TPEF::AOutReader::AOUT_DATA_ASPACE_NAME = "universal_data"

static

Name of universal machines data address space.

Definition at line 152 of file AOutReader.hh.

Referenced by readData().

◆ AOUT_INSTRUCTION_SIZE

const Byte TPEF::AOutReader::AOUT_INSTRUCTION_SIZE = 8

static

Size of one instruction in a.out file.

Definition at line 140 of file AOutReader.hh.

◆ AOUT_WORD_ALIGN

const Byte TPEF::AOutReader::AOUT_WORD_ALIGN = 4

static

Aligment of address space.

Definition at line 145 of file AOutReader.hh.

Referenced by readData().

◆ AOUT_WORD_SIZE

const Byte TPEF::AOutReader::AOUT_WORD_SIZE = 4

static

Word size of address space.

Definition at line 147 of file AOutReader.hh.

Referenced by readData().

◆ BOOL_REGISTERS

const Word TPEF::AOutReader::BOOL_REGISTERS = 1

static

Number of Boolean registers.

Definition at line 128 of file AOutReader.hh.

◆ codeASpace_

ASpaceElement* TPEF::AOutReader::codeASpace_

mutableprivate

Address space of text section.

Definition at line 237 of file AOutReader.hh.

Referenced by readData().

◆ dataASpace_

ASpaceElement* TPEF::AOutReader::dataASpace_

mutableprivate

Address space of data sections.

Definition at line 239 of file AOutReader.hh.

Referenced by readData().

◆ debugSection_

DebugSection * TPEF::AOutReader::debugSection_ = NULL

staticprivate

Definition at line 248 of file AOutReader.hh.

Referenced by readData().

◆ FILE_HEADER_SIZE

const Byte TPEF::AOutReader::FILE_HEADER_SIZE = 8 * sizeof(Word)

staticprivate

Size of file header.

Definition at line 259 of file AOutReader.hh.

Referenced by isMyStreamType().

◆ FIRST_BOOL_REGISTER

const Word TPEF::AOutReader::FIRST_BOOL_REGISTER = FIRST_FP_REGISTER + FP_REGISTERS

static

Index of the first Boolean register.

Definition at line 135 of file AOutReader.hh.

Referenced by TPEF::AOutTextSectionReader::convertAOutIndexToTPEF(), TPEF::AOutTextSectionReader::updateMoveDestination(), and TPEF::AOutTextSectionReader::updateMoveSource().

◆ FIRST_FP_REGISTER

const Word TPEF::AOutReader::FIRST_FP_REGISTER = FIRST_INT_REGISTER + INT_REGISTERS

static

Index of the first floating-point register.

Definition at line 133 of file AOutReader.hh.

Referenced by TPEF::AOutTextSectionReader::convertAOutIndexToTPEF(), TPEF::AOutTextSectionReader::updateMoveDestination(), and TPEF::AOutTextSectionReader::updateMoveSource().

◆ FIRST_FU_REGISTER

const Word TPEF::AOutReader::FIRST_FU_REGISTER = FIRST_BOOL_REGISTER + BOOL_REGISTERS

static

Index of the first function unit register.

Definition at line 137 of file AOutReader.hh.

Referenced by TPEF::AOutTextSectionReader::convertAOutIndexToTPEF(), TPEF::AOutSymbolSectionReader::readData(), TPEF::AOutTextSectionReader::updateMoveDestination(), and TPEF::AOutTextSectionReader::updateMoveSource().

◆ FIRST_INT_REGISTER

const Word TPEF::AOutReader::FIRST_INT_REGISTER = 0

static

Index of the first integer register in a.out.

Definition at line 131 of file AOutReader.hh.

Referenced by TPEF::AOutTextSectionReader::convertAOutIndexToTPEF().

◆ FP_REGISTERS

const Word TPEF::AOutReader::FP_REGISTERS = 1024

static

Number of floating-point registers.

Definition at line 126 of file AOutReader.hh.

◆ header_

AOutReader::Header TPEF::AOutReader::header_

staticprivate

Header of a.out file.

Definition at line 262 of file AOutReader.hh.

Referenced by readData(), and readHeader().

◆ INT_REGISTERS

const Word TPEF::AOutReader::INT_REGISTERS = 1024

static

Number of integer registers.

Definition at line 124 of file AOutReader.hh.

◆ nullSection_

NullSection * TPEF::AOutReader::nullSection_ = NULL

staticprivate

Definition at line 245 of file AOutReader.hh.

Referenced by readData().

◆ OMAGIC

const HalfWord TPEF::AOutReader::OMAGIC = 0x0107

staticprivate

Move a.out format identifier.

Definition at line 257 of file AOutReader.hh.

Referenced by isMyStreamType(), and readHeader().

◆ proto_

AOutReader * TPEF::AOutReader::proto_ = NULL

staticprivate

Prototype instance of AOutReader registered into BinaryReader.

AOutReader class.

Definition at line 264 of file AOutReader.hh.

Referenced by ~AOutReader().

◆ resourceTable_

ResourceSection * TPEF::AOutReader::resourceTable_ = NULL

staticprivate

Definition at line 242 of file AOutReader.hh.

Referenced by readData().

◆ stringSection_

StringSection * TPEF::AOutReader::stringSection_ = NULL

staticprivate

Definition at line 251 of file AOutReader.hh.

Referenced by readData().

◆ textSection_

CodeSection * TPEF::AOutReader::textSection_ = NULL

staticprivate

Definition at line 254 of file AOutReader.hh.

Referenced by readData().

◆ undefASpace_

ASpaceElement* TPEF::AOutReader::undefASpace_

mutableprivate

Undefined address space.

Definition at line 235 of file AOutReader.hh.

Referenced by readData().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ AOutSectionID

◆ SymbolType

Constructor & Destructor Documentation

◆ AOutReader() [1/2]

◆ ~AOutReader()

◆ AOutReader() [2/2]

Member Function Documentation

◆ addOrDeleteSection()

◆ addressOfElement()

◆ aSpaceOfElement()

◆ debugSection()

◆ header()

◆ instance()

◆ isMyStreamType()

◆ nullSection()

◆ operator=()

◆ readData()

◆ readHeader()

◆ readSection()

◆ resourceTable()

◆ sectionOffsetOfAddress()

◆ stringSection()

◆ textSection()

Member Data Documentation

◆ AOUT_BITS_PER_MAU

◆ AOUT_CODE_ASPACE_NAME

◆ AOUT_DATA_ASPACE_NAME

◆ AOUT_INSTRUCTION_SIZE

◆ AOUT_WORD_ALIGN

◆ AOUT_WORD_SIZE

◆ BOOL_REGISTERS

◆ codeASpace_

◆ dataASpace_

◆ debugSection_

◆ FILE_HEADER_SIZE

◆ FIRST_BOOL_REGISTER

◆ FIRST_FP_REGISTER

◆ FIRST_FU_REGISTER

◆ FIRST_INT_REGISTER

◆ FP_REGISTERS

◆ header_

◆ INT_REGISTERS

◆ nullSection_

◆ OMAGIC

◆ proto_

◆ resourceTable_

◆ stringSection_

◆ textSection_

◆ undefASpace_
