#include <DataSection.hh>

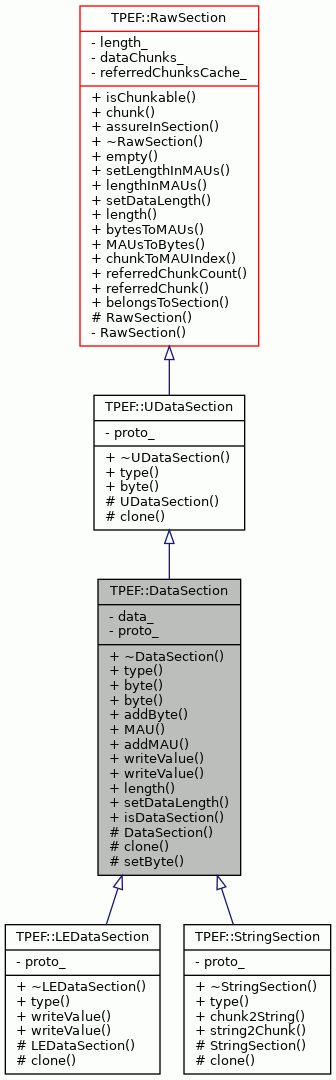

Inheritance diagram for TPEF::DataSection:

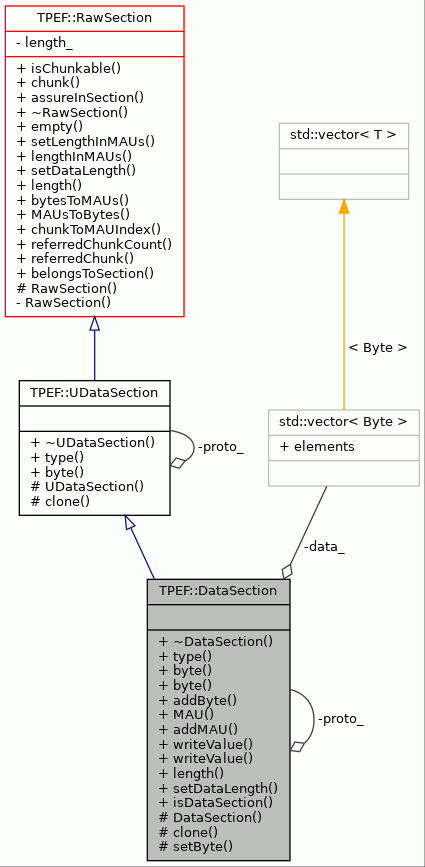

Collaboration diagram for TPEF::DataSection:

Public Member Functions
virtual	~DataSection ()

virtual SectionType	type () const

virtual Byte	byte (const Chunk *chunk) const

virtual Byte	byte (Word offset) const

virtual void	addByte (Byte aByte)

virtual MinimumAddressableUnit	MAU (Word index) const

virtual void	addMAU (MinimumAddressableUnit aMAU)

virtual void	writeValue (Word index, Word numOfMAUs, unsigned long value)

virtual void	writeValue (Word index, Word numOfMAUs, signed long value)

virtual Word	length () const

virtual void	setDataLength (Word length)

virtual bool	isDataSection () const override

Public Member Functions inherited from TPEF::UDataSection
virtual	~UDataSection ()

Public Member Functions inherited from TPEF::RawSection
virtual bool	isChunkable () const

virtual Chunk *	chunk (SectionOffset offset) const

virtual void	assureInSection (SectionOffset offset) const

virtual	~RawSection ()

bool	empty () const

virtual void	setLengthInMAUs (Word length)

virtual Word	lengthInMAUs () const

virtual Word	bytesToMAUs (Word byteCount) const

virtual Word	MAUsToBytes (Word mauCount) const

virtual Word	chunkToMAUIndex (const Chunk *chunk) const

Word	referredChunkCount () const

Chunk *	referredChunk (Word index) const

bool	belongsToSection (const Chunk *chunk) const

Public Member Functions inherited from TPEF::Section
virtual	~Section ()

bool	isProgramSection () const

bool	isAuxSection () const

virtual void	addElement (SectionElement *element)

virtual void	setElement (Word index, SectionElement *element)

SectionElement *	element (Word index) const

Word	elementCount () const

void	setFlagNoBits ()

void	unsetFlagNoBits ()

bool	noBits () const

bool	vLen () const

Byte	flags () const

void	setFlags (Byte flagByte)

void	setStartingAddress (AddressImage address)

AddressImage	startingAddress () const

void	setLink (const ReferenceManager::SafePointer *aLink)

void	setLink (Section *aLink)

Section *	link () const

void	setASpace (const ReferenceManager::SafePointer *addrSpace)

void	setASpace (ASpaceElement *addrSpace)

ASpaceElement *	aSpace () const

void	setName (const ReferenceManager::SafePointer *sectionName)

void	setName (Chunk *sectionName)

Chunk *	name () const

virtual bool	isCodeSection () const

Public Member Functions inherited from TPEF::SafePointable
virtual	~SafePointable ()

Protected Member Functions
	DataSection (bool init)

virtual Section *	clone () const

virtual void	setByte (Word offset, Byte aByte)

Protected Member Functions inherited from TPEF::UDataSection
	UDataSection (bool init)

Protected Member Functions inherited from TPEF::RawSection
	RawSection ()

Protected Member Functions inherited from TPEF::Section
	Section ()

void	setFlagVLen ()

void	unsetFlagVLen ()

Protected Member Functions inherited from TPEF::SafePointable
	SafePointable ()

Private Attributes
std::vector< Byte >	data_
	Contains the data of data section. More...

Static Private Attributes
static DataSection	proto_
	Prototype instance of section. More...

Additional Inherited Members
Public Types inherited from TPEF::Section
enum	SectionType { ST_NULL = 0x00, ST_STRTAB = 0x01, ST_SYMTAB = 0x02, ST_DEBUG = 0x03, ST_RELOC = 0x04, ST_LINENO = 0x05, ST_NOTE = 0x06, ST_ADDRSP = 0x07, ST_MR = 0x0A, ST_CODE = 0x81, ST_DATA = 0x82, ST_UDATA = 0x83, ST_LEDATA = 0x84, ST_DUMMY = 0xff }

enum	SectionFlag { SF_VLEN = 0x40, SF_NOBITS = 0x80 }

Static Public Member Functions inherited from TPEF::Section
static Section *	createSection (SectionType type)

static bool	isProgramSection (SectionType type)

Static Protected Member Functions inherited from TPEF::Section
static void	registerSection (const Section *section)

Detailed Description

Data section for initialized data.

Derives from uninitialized data section so, this is extension of UDataSection.

Definition at line 52 of file DataSection.hh.

Constructor & Destructor Documentation

◆ ~DataSection()

TPEF::DataSection::~DataSection ( )

virtual

Destructor.

Definition at line 64 of file DataSection.cc.

64 {

65 }

◆ DataSection()

TPEF::DataSection::DataSection ( bool init )

protected

Constructor.

Parameters

init	true if registeration is wanted

Definition at line 51 of file DataSection.cc.

                                   : UDataSection(false) {

     if (init) {
         Section::registerSection(this);
     }

     unsetFlagVLen();
     unsetFlagNoBits();
 }

References TPEF::Section::registerSection(), TPEF::Section::unsetFlagNoBits(), and TPEF::Section::unsetFlagVLen().

Referenced by clone().

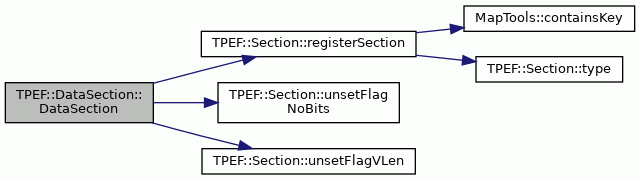

Here is the call graph for this function:

Member Function Documentation

◆ addByte()

void TPEF::DataSection::addByte ( Byte aByte )

virtual

Adds byte of data into section.

Method copies data that is given in parameter.

Parameters

aByte Byte that will be copied into the section.

Definition at line 200 of file DataSection.cc.

                                {
     data_.push_back(aByte);
 }

References data_.

Referenced by addMAU(), TTAProgram::ProgramWriter::createBinary(), TPEF::TPEFDataSectionReader::readData(), TPEF::TPEFStringSectionReader::readData(), TPEF::AOutStringSectionReader::readData(), TPEF::AOutDataSectionReader::readData(), setDataLength(), TPEF::StringSection::string2Chunk(), and MachineResourceManager::stringToChunk().

◆ addMAU()

void TPEF::DataSection::addMAU ( MinimumAddressableUnit aMAU )

virtual

Adds MAU to the end of section.

Parameters

aMAU	MAU that will be copied into the section.

Exceptions

OutOfRange If the given value could not fit to the bit count defined by the address space's MAU width (when interpreted as unsigned or signed integer).

Definition at line 150 of file DataSection.cc.

                                                {
     int mauBits = aSpace()->MAU();

     if (MathTools::requiredBits(aMAU) > mauBits) {
         if (MathTools::requiredBitsSigned(aMAU) > mauBits) {
             throw OutOfRange(
                 __FILE__, __LINE__, __func__,
                 "The given value does not fit to the MAU of address space.");
         }
     }

     // how many bits are left to last byte
     int modulo = mauBits % BYTE_BITWIDTH;

     // write first bits
     if (modulo != 0) {
         mauBits -= modulo;
         addByte(static_cast<Byte>(aMAU >> mauBits));
     }

     // move shifting to right for the next MAU
     mauBits -= BYTE_BITWIDTH;

     // write the rest
     for (; mauBits >= 0;
          mauBits = mauBits - BYTE_BITWIDTH) {

         addByte(static_cast<Byte>(aMAU >> mauBits));
     }
 }

References __func__, addByte(), TPEF::Section::aSpace(), BYTE_BITWIDTH, TPEF::ASpaceElement::MAU(), MathTools::requiredBits(), and MathTools::requiredBitsSigned().

Referenced by TTAProgram::ProgramWriter::createDataSections().

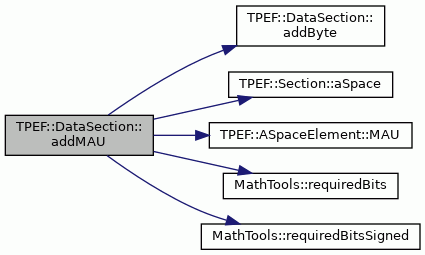

Here is the call graph for this function:

◆ byte() [1/2]

Byte TPEF::DataSection::byte ( const Chunk * chunk ) const

virtual

Returns byte from chunk's offset.

Parameters

chunk Chunk containing offset of data.

Returns: Byte from chunk offset.

Reimplemented from TPEF::UDataSection.

Definition at line 114 of file DataSection.cc.

                                           {
     return data_[chunk->offset()];
 }

References TPEF::RawSection::chunk(), data_, and TPEF::Chunk::offset().

Referenced by TPEF::TPEFStringSectionWriter::actualWriteData(), TPEF::TPEFDataSectionWriter::actualWriteData(), TPEF::TPEFStringSectionReader::readData(), TPEF::AOutStringSectionReader::readData(), TPEFDumper::section(), and ProgramImageGenerator::writeDataSection().

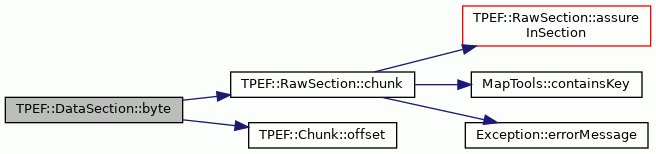

Here is the call graph for this function:

◆ byte() [2/2]

Byte TPEF::DataSection::byte ( Word offset ) const

virtual

Returns byte from byte offset.

Parameters

offset Offset of data.

Returns: Byte from offset.

Definition at line 188 of file DataSection.cc.

                                    {
     return data_[offset];
 }

References data_.

◆ clone()

Section * TPEF::DataSection::clone ( ) const

protectedvirtual

Creates an instance of DataSection.

Returns: Newly created section.

Reimplemented from TPEF::UDataSection.

Reimplemented in TPEF::LEDataSection, and TPEF::StringSection.

Definition at line 103 of file DataSection.cc.

                          {
     return new DataSection(false);
 }

References DataSection().

Here is the call graph for this function:

◆ isDataSection()

virtual bool TPEF::DataSection::isDataSection ( ) const

inlineoverridevirtual

Reimplemented from TPEF::Section.

Definition at line 71 of file DataSection.hh.

71 { return true; }

◆ length()

Word TPEF::DataSection::length ( ) const

virtual

Returns the size of the data section in bytes.

Returns: Length of data in bytes.

Reimplemented from TPEF::RawSection.

Definition at line 210 of file DataSection.cc.

                           {
     return data_.size();
 }

References data_.

Referenced by TPEF::TPEFStringSectionWriter::actualWriteData(), TPEF::TPEFDataSectionWriter::actualWriteData(), TPEF::StringSection::chunk2String(), TTAProgram::ProgramWriter::createDataSections(), TPEF::AOutRelocationSectionReader::finalize(), TPEF::AOutStringSectionReader::readData(), TPEF::AOutReader::readData(), TPEFDumper::section(), setDataLength(), TPEF::StringSection::string2Chunk(), and ProgramImageGenerator::writeDataSection().

◆ MAU()

MinimumAddressableUnit TPEF::DataSection::MAU ( Word index ) const

virtual

Returns one MAU from section by gived MAU index.

Parameters

index Index of MAU to return.

Returns: One MAU of data section.

Definition at line 125 of file DataSection.cc.

                                  {

     int byteOffset = MAUsToBytes(index);
     int mauInBytes = MAUsToBytes(1);

     MinimumAddressableUnit retVal = 0;

     // read all the bytes to retval
     for(int i = 0; i < mauInBytes; i++) {
         retVal = (retVal << BYTE_BITWIDTH) |
             static_cast<MinimumAddressableUnit>(byte(byteOffset+i));
     }

     return retVal;
 }

References BYTE_BITWIDTH, and TPEF::RawSection::MAUsToBytes().

Referenced by TTAProgram::TPEFProgramFactory::createDataMemories(), TPEF::TPEFRelocSectionReader::finalize(), and TPEFDumper::section().

Here is the call graph for this function:

◆ setByte()

void TPEF::DataSection::setByte	(	Word	offset,
		Byte	aByte
	)

protectedvirtual

Sets value of one byte of data section.

NOTE: Byte here is tpef file byte. (8bits).

Parameters

offset	Offset where to write the byte.
aByte	Value to write.

Definition at line 86 of file DataSection.cc.

                                             {
     if (offset >= data_.size()) {
         abortWithError(
             "Can't set byte " +
             Conversion::toString(static_cast<int>(aByte)) +
             " to offset: " + Conversion::toString(offset) +
             "\t data section size: " + Conversion::toString(data_.size()));
     }
     data_[offset] = aByte;
 }

References abortWithError, data_, and Conversion::toString().

Referenced by TPEF::LEDataSection::writeValue(), and writeValue().

Here is the call graph for this function:

◆ setDataLength()

void TPEF::DataSection::setDataLength ( Word aLength )

virtual

Tries to set data length.

Can be used only for making section bigger. Asserts if method is tried to use for making section smaller.

Initializes data with zeros.

Parameters

length Length to which section is expanded.

Reimplemented from TPEF::RawSection.

Definition at line 225 of file DataSection.cc.

                                        {
     assert(length() <= aLength);
     while (length() < aLength) {
         addByte(0);
     }
 }

References addByte(), assert, and length().

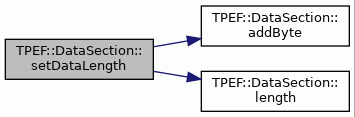

Here is the call graph for this function:

◆ type()

Section::SectionType TPEF::DataSection::type ( ) const

virtual

Returns section's type.

Returns: Type of section.

Reimplemented from TPEF::UDataSection.

Reimplemented in TPEF::LEDataSection, and TPEF::StringSection.

Definition at line 73 of file DataSection.cc.

                         {
     return ST_DATA;
 }

References TPEF::Section::ST_DATA.

◆ writeValue() [1/2]

void TPEF::DataSection::writeValue	(	Word	index,
		Word	numOfMAUs,
		signed long	value
	)

virtual

Writes signed value to data section.

For example, when we call writeValue(0, 4, -3) and MAU is 2bit start of data section will be 11 11 11 01.

MAUs are stored in data section like this: 00000011 000000011 00000011 00000001 (one MAU per byte)

If we call writeValue(0, 4, -3) and MAU is 10bit start of data section will be 1111111111 1111111111 1111111111 1111111101.

However the MAUs are stored in data section like this:

00000011 11111111|00000011 11111111|00000011 11111111|00000011 11111101| MAU1 | MAU2 | MAU3 | MAU4 |

Parameters

index	MAU offset to section where to we write value.
numOfMAUs	Number of MAUs that we use for storing value.
value	Value to write.

Reimplemented in TPEF::LEDataSection.

Definition at line 305 of file DataSection.cc.

                                                                      {

     int mauInBytes = MAUsToBytes(1);

     MinimumAddressableUnit mauMask =
         static_cast<unsigned int>(-1) >>
         (sizeof(mauMask)*BYTE_BITWIDTH - aSpace()->MAU());

     int shiftCount = 0;

     // start writing from end of area..
     for (int i = numOfMAUs - 1; i >= 0; i--) {
         int byteOffset = MAUsToBytes(index + i);

         MinimumAddressableUnit currentMAU =
             static_cast<MinimumAddressableUnit>(~0);

         if (shiftCount < static_cast<int>(sizeof(value)*BYTE_BITWIDTH)) {
             // I tried math tools... system tests went broken :(
             // ssooo... if it's not broken....
             currentMAU = (value >> shiftCount) & mauMask;
             shiftCount += aSpace()->MAU();
         }

         // write current MAU :)
         for (int j = mauInBytes-1; j >= 0; j--) {
             Byte currentByte = static_cast<Byte>(currentMAU);
             setByte(byteOffset + j,currentByte);
             currentMAU = currentMAU >> BYTE_BITWIDTH;
         }
     }
 }

References TPEF::Section::aSpace(), BYTE_BITWIDTH, TPEF::ASpaceElement::MAU(), TPEF::RawSection::MAUsToBytes(), and setByte().

Here is the call graph for this function:

◆ writeValue() [2/2]

void TPEF::DataSection::writeValue	(	Word	index,
		Word	numOfMAUs,
		unsigned long	value
	)

virtual

Writes unsigned value to data section.

Value is aligned to field as normal big endian value least significant bit is stored to last bit of last MAU.

If we call writeValue(0, 4, 3) and MAU is 2bit start of data section will be 00 00 00 11.

However the MAUs are stored in data section like this: 00000000|000000000|00000000|00000011 (one MAU per byte) MAU1 | MAU2 | MAU3 | MAU4

Parameters

index	MAU offset to section where to we write value.
numOfMAUs	Number of MAUs that we use for storing value.
value	Value to write.

Reimplemented in TPEF::LEDataSection.

Definition at line 250 of file DataSection.cc.

                                                                        {

     int mauInBytes = MAUsToBytes(1);

     MinimumAddressableUnit mauMask =
         static_cast<unsigned int>(-1) >>
         (sizeof(mauMask)*BYTE_BITWIDTH - aSpace()->MAU());

     int shiftCount = 0;

     // start writing from end of area..
     for (int i = numOfMAUs - 1; i >= 0; i--) {
         int byteOffset = MAUsToBytes(index + i);

         MinimumAddressableUnit currentMAU = 0;

         if (shiftCount < static_cast<int>(sizeof(value)*BYTE_BITWIDTH)) {
             // I tried math tools... system tests went broken :(
             // ssooo... if it's not broken....
             currentMAU = (value >> shiftCount) & mauMask;
         }

         shiftCount += aSpace()->MAU();

         // write current MAU :)
         for (int j = mauInBytes-1; j >= 0; j--) {
             Byte currentByte = static_cast<Byte>(currentMAU);
             setByte(byteOffset + j, currentByte);
             currentMAU = currentMAU >> BYTE_BITWIDTH;
         }
     }
 }

References TPEF::Section::aSpace(), BYTE_BITWIDTH, TPEF::ASpaceElement::MAU(), TPEF::RawSection::MAUsToBytes(), and setByte().

Referenced by TPEF::AOutRelocationSectionReader::finalize(), and DataSectionCreator::writeDataLineToTPEF().

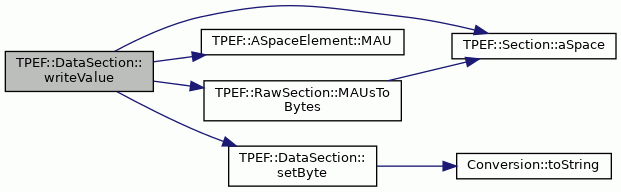

Here is the call graph for this function:

Member Data Documentation

◆ data_

std::vector<Byte> TPEF::DataSection::data_

private

Contains the data of data section.

Definition at line 83 of file DataSection.hh.

Referenced by addByte(), byte(), length(), and setByte().

◆ proto_

DataSection TPEF::DataSection::proto_

staticprivate

Prototype instance of section.

Definition at line 80 of file DataSection.hh.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~DataSection()

◆ DataSection()

Member Function Documentation

◆ addByte()

◆ addMAU()

◆ byte() [1/2]

◆ byte() [2/2]

◆ clone()

◆ isDataSection()

◆ length()

◆ MAU()

◆ setByte()

◆ setDataLength()

◆ type()

◆ writeValue() [1/2]

◆ writeValue() [2/2]

Member Data Documentation

◆ data_

◆ proto_
