#include <LEDataSection.hh>

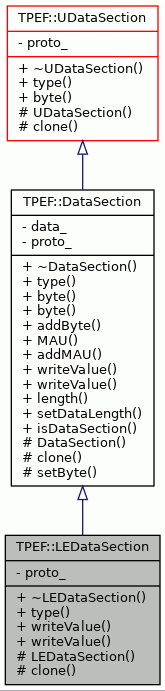

Inheritance diagram for TPEF::LEDataSection:

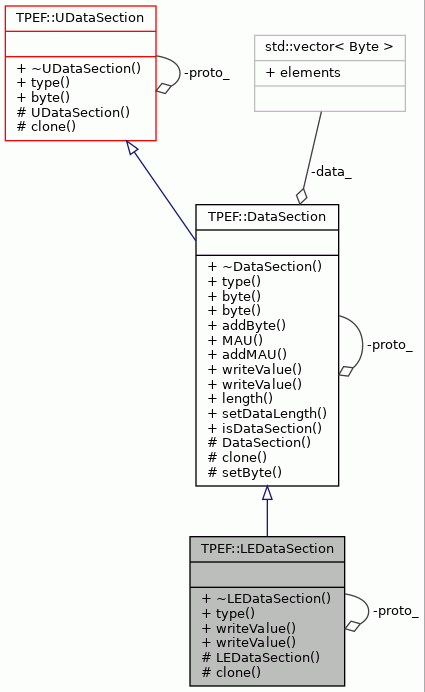

Collaboration diagram for TPEF::LEDataSection:

Public Member Functions
virtual	~LEDataSection ()

virtual SectionType	type () const

virtual void	writeValue (Word index, Word numOfMAUs, unsigned long value)

virtual void	writeValue (Word index, Word numOfMAUs, signed long value)

Public Member Functions inherited from TPEF::DataSection
virtual	~DataSection ()

virtual Byte	byte (const Chunk *chunk) const

virtual Byte	byte (Word offset) const

virtual void	addByte (Byte aByte)

virtual MinimumAddressableUnit	MAU (Word index) const

virtual void	addMAU (MinimumAddressableUnit aMAU)

virtual Word	length () const

virtual void	setDataLength (Word length)

virtual bool	isDataSection () const override

Public Member Functions inherited from TPEF::UDataSection
virtual	~UDataSection ()

Public Member Functions inherited from TPEF::RawSection
virtual bool	isChunkable () const

virtual Chunk *	chunk (SectionOffset offset) const

virtual void	assureInSection (SectionOffset offset) const

virtual	~RawSection ()

bool	empty () const

virtual void	setLengthInMAUs (Word length)

virtual Word	lengthInMAUs () const

virtual Word	bytesToMAUs (Word byteCount) const

virtual Word	MAUsToBytes (Word mauCount) const

virtual Word	chunkToMAUIndex (const Chunk *chunk) const

Word	referredChunkCount () const

Chunk *	referredChunk (Word index) const

bool	belongsToSection (const Chunk *chunk) const

Public Member Functions inherited from TPEF::Section
virtual	~Section ()

bool	isProgramSection () const

bool	isAuxSection () const

virtual void	addElement (SectionElement *element)

virtual void	setElement (Word index, SectionElement *element)

SectionElement *	element (Word index) const

Word	elementCount () const

void	setFlagNoBits ()

void	unsetFlagNoBits ()

bool	noBits () const

bool	vLen () const

Byte	flags () const

void	setFlags (Byte flagByte)

void	setStartingAddress (AddressImage address)

AddressImage	startingAddress () const

void	setLink (const ReferenceManager::SafePointer *aLink)

void	setLink (Section *aLink)

Section *	link () const

void	setASpace (const ReferenceManager::SafePointer *addrSpace)

void	setASpace (ASpaceElement *addrSpace)

ASpaceElement *	aSpace () const

void	setName (const ReferenceManager::SafePointer *sectionName)

void	setName (Chunk *sectionName)

Chunk *	name () const

virtual bool	isCodeSection () const

Public Member Functions inherited from TPEF::SafePointable
virtual	~SafePointable ()

Protected Member Functions
	LEDataSection (bool init)

virtual Section *	clone () const

Protected Member Functions inherited from TPEF::DataSection
	DataSection (bool init)

virtual void	setByte (Word offset, Byte aByte)

Protected Member Functions inherited from TPEF::UDataSection
	UDataSection (bool init)

Protected Member Functions inherited from TPEF::RawSection
	RawSection ()

Protected Member Functions inherited from TPEF::Section
	Section ()

void	setFlagVLen ()

void	unsetFlagVLen ()

Protected Member Functions inherited from TPEF::SafePointable
	SafePointable ()

Static Private Attributes
static LEDataSection	proto_
	Prototype instance of section. More...

Additional Inherited Members
Public Types inherited from TPEF::Section
enum	SectionType { ST_NULL = 0x00, ST_STRTAB = 0x01, ST_SYMTAB = 0x02, ST_DEBUG = 0x03, ST_RELOC = 0x04, ST_LINENO = 0x05, ST_NOTE = 0x06, ST_ADDRSP = 0x07, ST_MR = 0x0A, ST_CODE = 0x81, ST_DATA = 0x82, ST_UDATA = 0x83, ST_LEDATA = 0x84, ST_DUMMY = 0xff }

enum	SectionFlag { SF_VLEN = 0x40, SF_NOBITS = 0x80 }

Static Public Member Functions inherited from TPEF::Section
static Section *	createSection (SectionType type)

static bool	isProgramSection (SectionType type)

Static Protected Member Functions inherited from TPEF::Section
static void	registerSection (const Section *section)

Detailed Description

Data section for initialized data in Little-Endian ADFs

Derives from big-endian data section so, this is extension of DataSection.

Definition at line 52 of file LEDataSection.hh.

Constructor & Destructor Documentation

◆ ~LEDataSection()

TPEF::LEDataSection::~LEDataSection ( )

virtual

Destructor.

Definition at line 64 of file LEDataSection.cc.

64 {

65 }

◆ LEDataSection()

TPEF::LEDataSection::LEDataSection ( bool init )

protected

Constructor.

Parameters

init	true if registeration is wanted

Definition at line 51 of file LEDataSection.cc.

                                       : DataSection(false) {

     if (init) {
         Section::registerSection(this);
     }

     unsetFlagVLen();
     unsetFlagNoBits();
 }

References TPEF::Section::registerSection(), TPEF::Section::unsetFlagNoBits(), and TPEF::Section::unsetFlagVLen().

Referenced by clone().

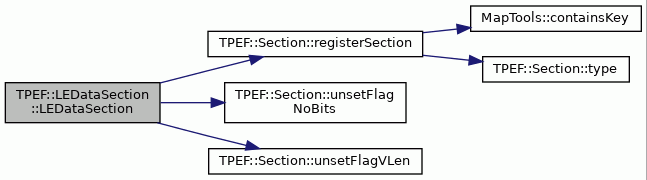

Here is the call graph for this function:

Member Function Documentation

◆ clone()

Section * TPEF::LEDataSection::clone ( ) const

protectedvirtual

Creates an instance of DataSection.

Returns: Newly created section.

Reimplemented from TPEF::DataSection.

Definition at line 83 of file LEDataSection.cc.

                            {

     return new LEDataSection(false);
 }

References LEDataSection().

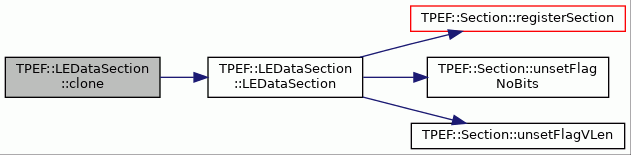

Here is the call graph for this function:

◆ type()

Section::SectionType TPEF::LEDataSection::type ( ) const

virtual

Returns section's type.

Returns: Type of section.

Reimplemented from TPEF::DataSection.

Definition at line 73 of file LEDataSection.cc.

                           {
     return ST_LEDATA;
 }

References TPEF::Section::ST_LEDATA.

◆ writeValue() [1/2]

void TPEF::LEDataSection::writeValue	(	Word	index,
		Word	numOfMAUs,
		signed long	value
	)

virtual

Writes signed value to data section.

For example, when we call writeValue(0, 4, -3) and MAU is 2bit start of data section will be 11 11 11 01.

MAUs are stored in data section like this: 00000011 000000011 00000011 00000001 (one MAU per byte)

If we call writeValue(0, 4, -3) and MAU is 10bit start of data section will be 1111111111 1111111111 1111111111 1111111101.

However the MAUs are stored in data section like this:

00000011 11111111|00000011 11111111|00000011 11111111|00000011 11111101| MAU1 | MAU2 | MAU3 | MAU4 |

Parameters

index	MAU offset to section where to we write value.
numOfMAUs	Number of MAUs that we use for storing value.
value	Value to write.

Reimplemented from TPEF::DataSection.

Definition at line 161 of file LEDataSection.cc.

                                                                        {

     int mauInBytes = MAUsToBytes(1);

     MinimumAddressableUnit mauMask =
         static_cast<unsigned int>(-1) >>
         (sizeof(mauMask)*BYTE_BITWIDTH - aSpace()->MAU());

     int shiftCount = 0;
     // start writing from beginning of area..
     for (unsigned int i = 0; i < numOfMAUs; i++) {
         int byteOffset = MAUsToBytes(index + i);

         MinimumAddressableUnit currentMAU =
             static_cast<MinimumAddressableUnit>(~0);

         if (shiftCount < static_cast<int>(sizeof(value)*BYTE_BITWIDTH)) {
             // I tried math tools... system tests went broken :(
             // ssooo... if it's not broken....
             currentMAU = (value >> shiftCount) & mauMask;
             shiftCount += aSpace()->MAU();
         }

         // write current MAU :)
         for (int j = mauInBytes-1; j >= 0; j--) {
             Byte currentByte = static_cast<Byte>(currentMAU);
             setByte(byteOffset + j,currentByte);
             currentMAU = currentMAU >> BYTE_BITWIDTH;
         }
     }
 }

References TPEF::Section::aSpace(), BYTE_BITWIDTH, TPEF::ASpaceElement::MAU(), TPEF::RawSection::MAUsToBytes(), and TPEF::DataSection::setByte().

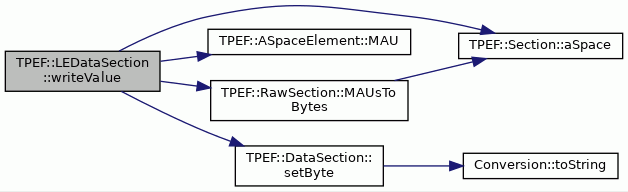

Here is the call graph for this function:

◆ writeValue() [2/2]

void TPEF::LEDataSection::writeValue	(	Word	index,
		Word	numOfMAUs,
		unsigned long	value
	)

virtual

Writes unsigned value to data section.

Value is aligned to field as normal big endian value least significant bit is stored to last bit of last MAU.

If we call writeValue(0, 4, 3) and MAU is 2bit start of data section will be 00 00 00 11.

However the MAUs are stored in data section like this: 00000000|000000000|00000000|00000011 (one MAU per byte) MAU1 | MAU2 | MAU3 | MAU4

Parameters

index	MAU offset to section where to we write value.
numOfMAUs	Number of MAUs that we use for storing value.
value	Value to write.

Reimplemented from TPEF::DataSection.

Definition at line 107 of file LEDataSection.cc.

                                                                          {

     int mauInBytes = MAUsToBytes(1);

     MinimumAddressableUnit mauMask =
         static_cast<unsigned int>(-1) >>
         (sizeof(mauMask)*BYTE_BITWIDTH - aSpace()->MAU());

     int shiftCount = 0;
     // start writing from beginning of area..
     for (unsigned int i = 0; i < numOfMAUs; i++) {
         int byteOffset = MAUsToBytes(index + i);

         MinimumAddressableUnit currentMAU = 0;

         if (shiftCount < static_cast<int>(sizeof(value)*BYTE_BITWIDTH)) {
             // I tried math tools... system tests went broken :(
             // ssooo... if it's not broken....
             currentMAU = (value >> shiftCount) & mauMask;
         }

         shiftCount += aSpace()->MAU();

         // write current MAU :)
         for (int j = mauInBytes-1; j >= 0; j--) {
             Byte currentByte = static_cast<Byte>(currentMAU);
             setByte(byteOffset + j, currentByte);
             currentMAU = currentMAU >> BYTE_BITWIDTH;
         }
     }
 }

References TPEF::Section::aSpace(), BYTE_BITWIDTH, TPEF::ASpaceElement::MAU(), TPEF::RawSection::MAUsToBytes(), and TPEF::DataSection::setByte().

Here is the call graph for this function:

Member Data Documentation

◆ proto_

LEDataSection TPEF::LEDataSection::proto_

staticprivate

Prototype instance of section.

Definition at line 66 of file LEDataSection.hh.
