#include <TPEFLineNumSectionWriter.hh>

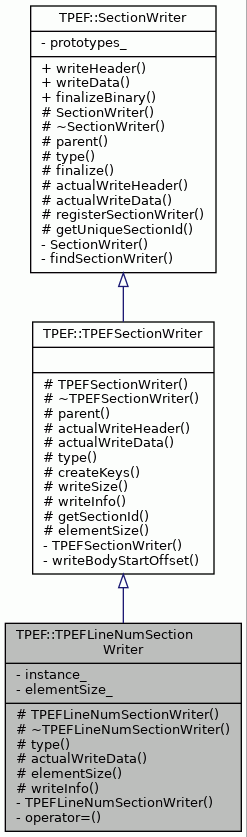

Inheritance diagram for TPEF::TPEFLineNumSectionWriter:

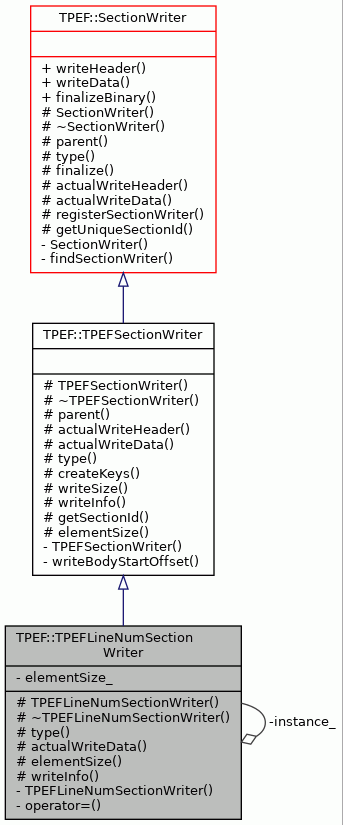

Collaboration diagram for TPEF::TPEFLineNumSectionWriter:

Protected Member Functions
	TPEFLineNumSectionWriter ()

virtual	~TPEFLineNumSectionWriter ()

virtual Section::SectionType	type () const

virtual void	actualWriteData (BinaryStream &stream, const Section *section) const

virtual Word	elementSize (const Section *section) const

virtual void	writeInfo (BinaryStream &stream, const Section *sect) const

Protected Member Functions inherited from TPEF::TPEFSectionWriter
	TPEFSectionWriter ()

virtual	~TPEFSectionWriter ()

virtual const BinaryWriter &	parent () const

virtual void	actualWriteHeader (BinaryStream &stream, const Section *sect) const

virtual void	createKeys (const Section *sect) const

virtual void	writeSize (BinaryStream &stream, const Section *sect) const

virtual SectionId	getSectionId () const

Protected Member Functions inherited from TPEF::SectionWriter
	SectionWriter ()

virtual	~SectionWriter ()

virtual void	finalize (BinaryStream &stream, Section *section) const

Private Member Functions
	TPEFLineNumSectionWriter (const TPEFLineNumSectionWriter &)
	Copying not allowed. More...

TPEFLineNumSectionWriter	operator= (const TPEFLineNumSectionWriter &)
	Assignment not allowed. More...

Static Private Attributes
static const TPEFLineNumSectionWriter	instance_
	An unique instance of class. More...

static const Word	elementSize_ = 6
	The fixed size address space element. More...

Additional Inherited Members
Static Public Member Functions inherited from TPEF::SectionWriter
static void	writeHeader (BinaryStream &stream, const Section sect, const BinaryWriter writer)

static void	writeData (BinaryStream &stream, const Section sect, const BinaryWriter writer)

static void	finalizeBinary (BinaryStream &stream, const Binary binaryToFinalize, const BinaryWriter writer)

Static Protected Member Functions inherited from TPEF::SectionWriter
static void	registerSectionWriter (const SectionWriter *sWriter)

static SectionId	getUniqueSectionId ()

Detailed Description

Writes TPEF line number section to stream.

Definition at line 46 of file TPEFLineNumSectionWriter.hh.

Constructor & Destructor Documentation

◆ TPEFLineNumSectionWriter() [1/2]

TPEF::TPEFLineNumSectionWriter::TPEFLineNumSectionWriter ( )

protected

Constructor.

Registers itself to SectionWriter.

Definition at line 66 of file TPEFLineNumSectionWriter.cc.

                                                    : TPEFSectionWriter() {
     registerSectionWriter(this);
 }

References TPEF::SectionWriter::registerSectionWriter().

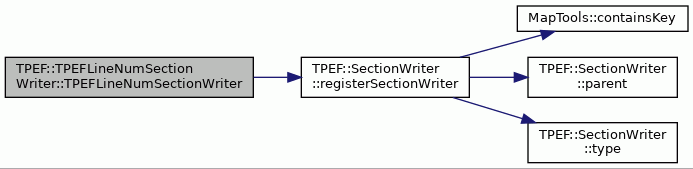

Here is the call graph for this function:

◆ ~TPEFLineNumSectionWriter()

TPEF::TPEFLineNumSectionWriter::~TPEFLineNumSectionWriter ( )

protectedvirtual

Destructor.

Definition at line 73 of file TPEFLineNumSectionWriter.cc.

73 {

74 }

◆ TPEFLineNumSectionWriter() [2/2]

TPEF::TPEFLineNumSectionWriter::TPEFLineNumSectionWriter ( const TPEFLineNumSectionWriter & )

private

Copying not allowed.

Member Function Documentation

◆ actualWriteData()

void TPEF::TPEFLineNumSectionWriter::actualWriteData	(	BinaryStream &	stream,
		const Section *	sect
	)		const

protectedvirtual

Writes the data of the section in to stream.

Parameters

stream	The stream to be written to.
sect	The section to be written.

Reimplemented from TPEF::TPEFSectionWriter.

Definition at line 93 of file TPEFLineNumSectionWriter.cc.

                                {

     FileOffset startOffset = stream.writePosition();
     // file offset to data of section
     SafePointer::addObjectReference(
         FileOffsetKey(startOffset), sect->element(0));

     for (Word i = 0; i < sect->elementCount(); i++) {
         LineNumProcedure* elem =
             dynamic_cast<LineNumProcedure*>(sect->element(i));
         assert(elem != NULL);

         if (elem->procedureSymbol() != NULL) {
             SectionIndexReplacer
                 replacer(elem->procedureSymbol(), sizeof(Word));
             replacer.resolve();
         } else {
             bool procedureSymbolMustBeSet = false;
             assert(procedureSymbolMustBeSet);
         }

         // line number zero represents procedure
         stream.writeHalfWord(0);

         // write line nums...
         for(Word lineIndex = 0; lineIndex < elem->lineCount(); lineIndex++) {

             const LineNumElement* lineElem = elem->line(lineIndex);

             // write each line
             SectionOffsetReplacer replacer(lineElem->instruction());
             replacer.resolve();
             stream.writeHalfWord(lineElem->lineNumber());
         }
     }
     SectionSizeReplacer::setSize(sect, stream.writePosition() - startOffset);
 }

References TPEF::ReferenceManager::SafePointer::addObjectReference(), assert, TPEF::Section::element(), TPEF::Section::elementCount(), TPEF::LineNumElement::instruction(), TPEF::LineNumProcedure::line(), TPEF::LineNumProcedure::lineCount(), TPEF::LineNumElement::lineNumber(), TPEF::LineNumProcedure::procedureSymbol(), TPEF::ValueReplacer::resolve(), TPEF::SectionSizeReplacer::setSize(), TPEF::BinaryStream::writeHalfWord(), and TPEF::BinaryStream::writePosition().

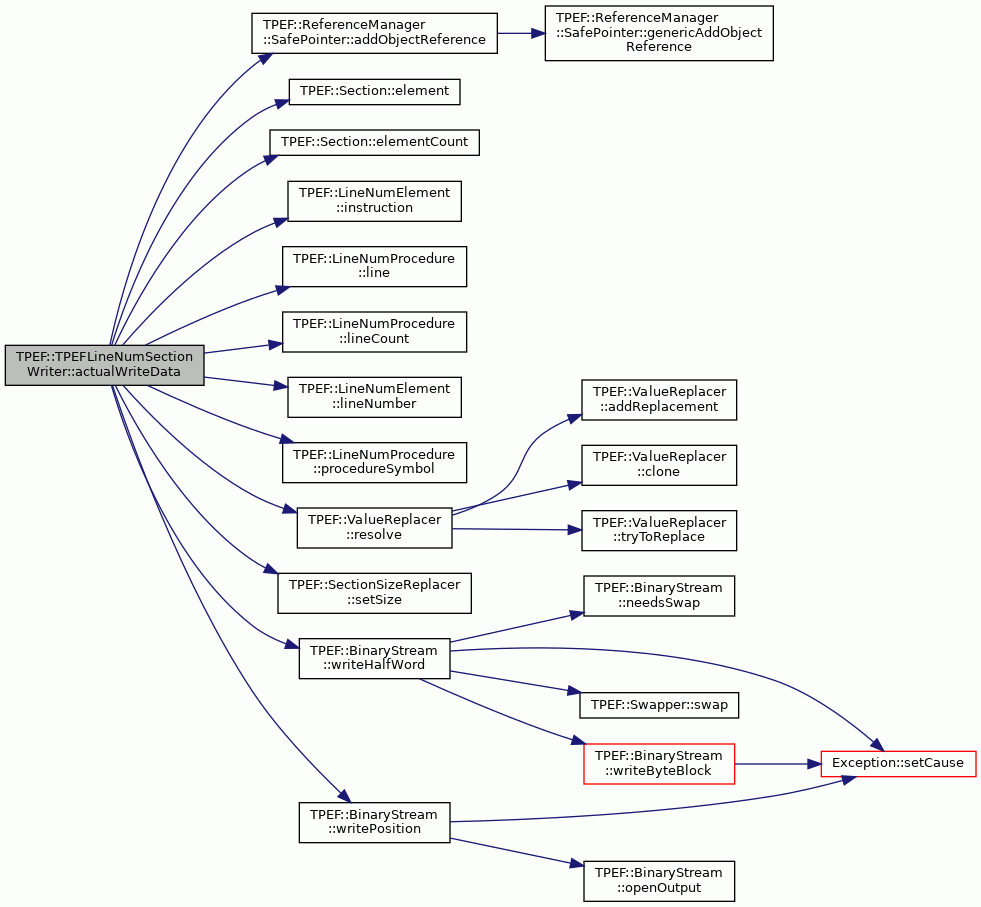

Here is the call graph for this function:

◆ elementSize()

Word TPEF::TPEFLineNumSectionWriter::elementSize ( const Section * section ) const

protectedvirtual

Returns the fixed size length of section elements.

Returns: The fixed size length of section elements.

Reimplemented from TPEF::TPEFSectionWriter.

Definition at line 139 of file TPEFLineNumSectionWriter.cc.

                                                             {
     return elementSize_;
 }

References elementSize_.

◆ operator=()

TPEFLineNumSectionWriter TPEF::TPEFLineNumSectionWriter::operator= ( const TPEFLineNumSectionWriter & )

private

Assignment not allowed.

◆ type()

Section::SectionType TPEF::TPEFLineNumSectionWriter::type ( ) const

protectedvirtual

Returns the section type this writer can write.

Returns: The section type writer can write.

Implements TPEF::TPEFSectionWriter.

Definition at line 82 of file TPEFLineNumSectionWriter.cc.

                                      {
     return Section::ST_LINENO;
 }

References TPEF::Section::ST_LINENO.

◆ writeInfo()

void TPEF::TPEFLineNumSectionWriter::writeInfo	(	BinaryStream &	stream,
		const Section *	sect
	)		const

protectedvirtual

Writes Info field of section header.

Parameters

stream	The stream where to write.
sect	Section to write.

Reimplemented from TPEF::TPEFSectionWriter.

Definition at line 150 of file TPEFLineNumSectionWriter.cc.

                                                      {

     const Section* codeSection =
         dynamic_cast<const LineNumSection*>(sect)->codeSection();

     SectionIdReplacer idReplacer(codeSection);
     idReplacer.resolve();

     stream.writeHalfWord(0);
 }

References TPEF::ValueReplacer::resolve(), and TPEF::BinaryStream::writeHalfWord().

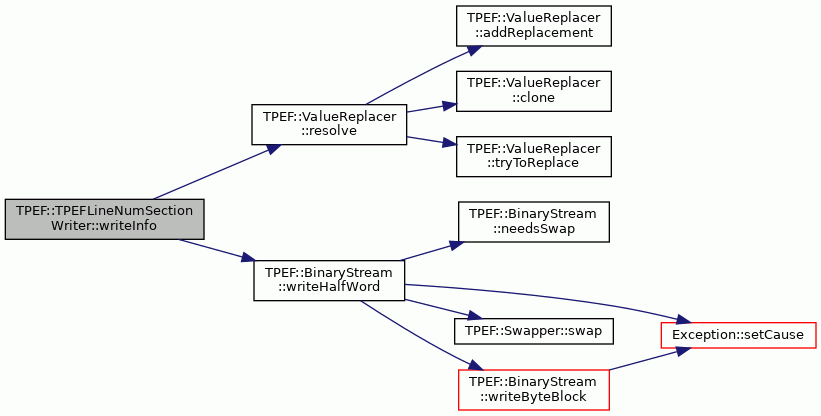

Here is the call graph for this function:

Member Data Documentation

◆ elementSize_

const Word TPEF::TPEFLineNumSectionWriter::elementSize_ = 6

staticprivate

The fixed size address space element.

Definition at line 70 of file TPEFLineNumSectionWriter.hh.

Referenced by elementSize().

◆ instance_

const TPEFLineNumSectionWriter TPEF::TPEFLineNumSectionWriter::instance_

staticprivate

An unique instance of class.

Definition at line 68 of file TPEFLineNumSectionWriter.hh.

The documentation for this class was generated from the following files:
