TPEF::SectionWriter Class Reference

#include <SectionWriter.hh>

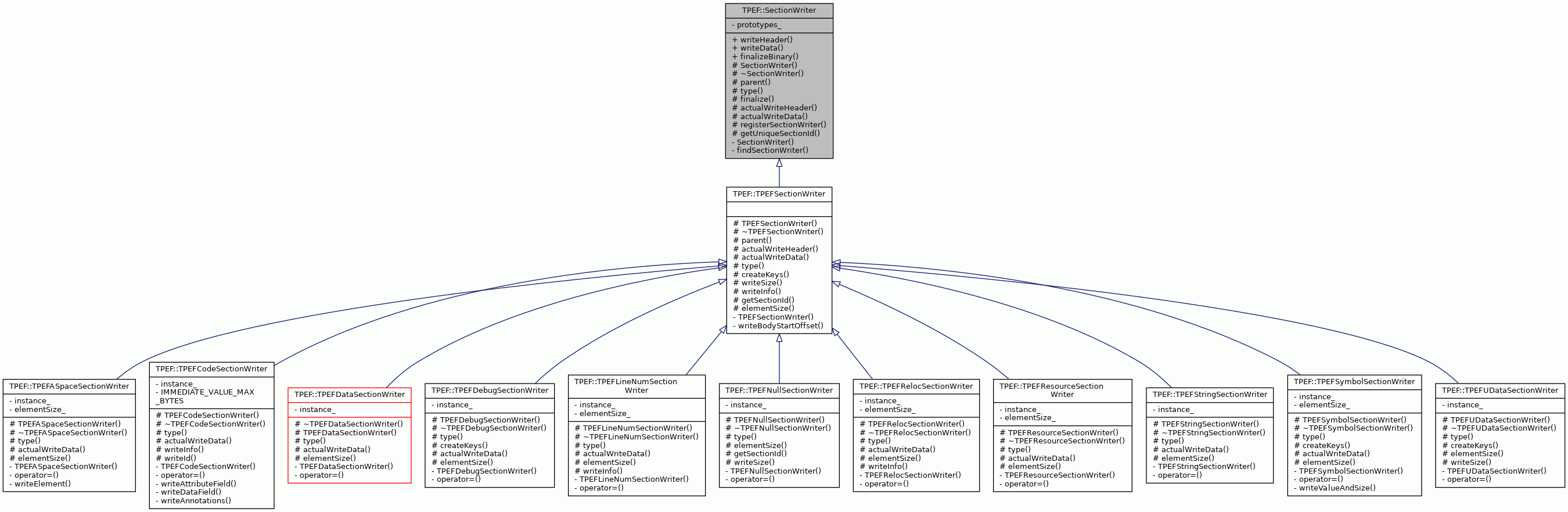

Inheritance diagram for TPEF::SectionWriter:

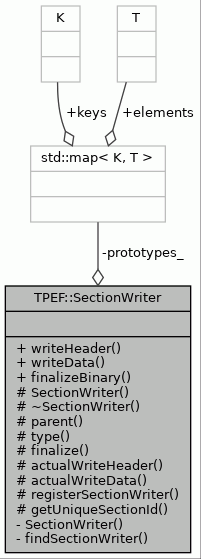

Collaboration diagram for TPEF::SectionWriter:

Static Public Member Functions
static void	writeHeader (BinaryStream &stream, const Section *sect, const BinaryWriter *writer)
static void	writeData (BinaryStream &stream, const Section *sect, const BinaryWriter *writer)
static void	finalizeBinary (BinaryStream &stream, const Binary *binaryToFinalize, const BinaryWriter *writer)

Protected Member Functions
	SectionWriter ()
virtual	~SectionWriter ()
virtual const BinaryWriter &	parent () const =0
	Gets parent of instance which for SectionWriter is created. More...
virtual Section::SectionType	type () const =0
	Returns SectionType that actual reader or writer instance can handle. More...
virtual void	finalize (BinaryStream &stream, Section *section) const
virtual void	actualWriteHeader (BinaryStream &stream, const Section *sect) const =0
	Does actual writing of sections header. More...
virtual void	actualWriteData (BinaryStream &stream, const Section *sect) const =0
	Does actual writing of sections data. More...

Static Protected Member Functions
static void	registerSectionWriter (const SectionWriter *sWriter)
static SectionId	getUniqueSectionId ()

Private Types
typedef std::pair< const Section::SectionType, const BinaryWriter * >	MapKey
	Key type for finding values in map of section writers. More...
typedef std::map< MapKey, const SectionWriter * >	MapType
	Map type that contains instances of registered section writers. More...

Private Member Functions
	SectionWriter (const SectionWriter &)

Static Private Member Functions
static const SectionWriter *	findSectionWriter (const Section::SectionType type, const BinaryWriter *bWriter)

Static Private Attributes
static MapType *	prototypes_ = NULL
	Contains section writers for all kinds of sections and all kinds of binrary fromats that are supported. More...

Detailed Description

Abstract base class for actual section writer classes.

SectionWriter base class stores instances of all registed section writer classes and serve registeration methods for actual SectionWriter instances. Actual section writer classes needs also static instance() method to work correctly.

Definition at line 58 of file SectionWriter.hh.

Member Typedef Documentation

MapKey

typedef std::pair<const Section::SectionType, const BinaryWriter*> TPEF::SectionWriter::MapKey

private

Key type for finding values in map of section writers.

Definition at line 104 of file SectionWriter.hh.

MapType

typedef std::map<MapKey, const SectionWriter*> TPEF::SectionWriter::MapType

private

Map type that contains instances of registered section writers.

Definition at line 107 of file SectionWriter.hh.

Constructor & Destructor Documentation

SectionWriter() [1/2]

TPEF::SectionWriter::SectionWriter ( )

protected

Constructor

Definition at line 44 of file SectionWriter.cc.

                             {
}

~SectionWriter()

TPEF::SectionWriter::~SectionWriter ( )

protectedvirtual

Destructor

Definition at line 50 of file SectionWriter.cc.

                              {
}

SectionWriter() [2/2]

TPEF::SectionWriter::SectionWriter ( const SectionWriter &  )

private

Member Function Documentation

actualWriteData()

virtual void TPEF::SectionWriter::actualWriteData ( BinaryStream &  stream, const Section *  sect  ) const

protectedpure virtual

Does actual writing of sections data.

Implemented in TPEF::TPEFSymbolSectionWriter, TPEF::TPEFDebugSectionWriter, TPEF::TPEFASpaceSectionWriter, TPEF::TPEFRelocSectionWriter, TPEF::TPEFResourceSectionWriter, TPEF::TPEFLineNumSectionWriter, TPEF::TPEFSectionWriter, TPEF::TPEFCodeSectionWriter, TPEF::TPEFDataSectionWriter, and TPEF::TPEFStringSectionWriter.

Referenced by writeData().

actualWriteHeader()

virtual void TPEF::SectionWriter::actualWriteHeader ( BinaryStream &  stream, const Section *  sect  ) const

protectedpure virtual

Does actual writing of sections header.

Implemented in TPEF::TPEFSectionWriter.

Referenced by writeHeader().

finalize()

void TPEF::SectionWriter::finalize ( BinaryStream &  stream, Section *  section  ) const

protectedvirtual

Default finalizer method.

This is used, if section does not have its own method defined.

Parameters

stream	Stream that contains binary to finalize.
section	Section to finalize.

Definition at line 192 of file SectionWriter.cc.

                                   {
}

Referenced by finalizeBinary().

finalizeBinary()

void TPEF::SectionWriter::finalizeBinary ( BinaryStream &  stream, const Binary *  bin, const BinaryWriter *  writer  )

static

Writes those values to stream, which can't be written before all objects are written down.

This is used for example when some section writer has to update data of other section or sections.

Parameters

stream	Stream that contains binary to finalize.
Binary	Binary file which needs finalization.
writer	Writer, which was used for writing binary.

Definition at line 99 of file SectionWriter.cc.

                                {

    for (Word i = 0; i < bin->sectionCount(); i++) {
        // get section and finalize it
        Section* sect =bin->section(i);

        try {
            const SectionWriter* sectionWriter =
                findSectionWriter(sect->type(), writer);
            sectionWriter->finalize(stream, sect);

        } catch (const InstanceNotFound &e) {
            // there is not always reader for every created section
            // and it's ok.
        }
    }
}

References finalize(), findSectionWriter(), TPEF::Binary::section(), TPEF::Binary::sectionCount(), and TPEF::Section::type().

Referenced by TPEF::BinaryWriter::writeBinary().

Here is the call graph for this function:

findSectionWriter()

const SectionWriter * TPEF::SectionWriter::findSectionWriter ( const Section::SectionType  type, const BinaryWriter *  bWriter  )

staticprivate

Finds SectionWriter instance by SectionType and BinaryWriter*.

Parameters

type	Type of section to find.
bWriter	BinaryWriter which requested finding section.

Returns

Instance which can write section.

Exceptions

InstanceNotFound

Writer instance was not found.

Definition at line 129 of file SectionWriter.cc.

                                                                {
    MapKey key(type, bWriter);

    if (prototypes_ == NULL ||
        !MapTools::containsKey(*prototypes_, key)) {
        throw InstanceNotFound(__FILE__, __LINE__,
                               "SectionWriter::findSectionWriter");
    }

    return (*prototypes_)[key];
}

References MapTools::containsKey(), prototypes_, and type().

Referenced by finalizeBinary(), writeData(), and writeHeader().

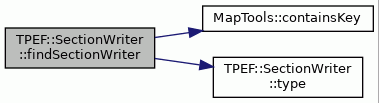

Here is the call graph for this function:

getUniqueSectionId()

SectionId TPEF::SectionWriter::getUniqueSectionId ( )

staticprotected

Generates a unique section identification code.

If several files are written out, the section identification codes of each file will be starting from a different numeric code. Never returns the reserved identification code for null/invalid section.

Definition at line 172 of file SectionWriter.cc.

                                  {

    // counter used to generate unique identification codes
    static SectionId counter = 0;

    counter++;
    // skip zero (reserved identification code) if the counter wraps around
    if (counter == 0) counter++;
    return counter;
}

Referenced by TPEF::TPEFSectionWriter::getSectionId().

parent()

virtual const BinaryWriter& TPEF::SectionWriter::parent ( ) const

protectedpure virtual

Gets parent of instance which for SectionWriter is created.

Implemented in TPEF::TPEFSectionWriter.

Referenced by registerSectionWriter().

registerSectionWriter()

void TPEF::SectionWriter::registerSectionWriter ( const SectionWriter *  sWriter )

staticprotected

Registers SectionWriter instance for writing specific section type.

Parameters

sWriter

Instance to register for writing.

Definition at line 148 of file SectionWriter.cc.

                                                                 {

    MapKey key(sWriter->type(), &sWriter->parent());

    // We can't create prototypes_ map statically, because we don't know
    // if it is initialized before this method is called.
    if (prototypes_ == NULL) {
        prototypes_ = new MapType();
    }

    assert(!MapTools::containsKey(*prototypes_, key));

    (*prototypes_)[key] = sWriter;

}

References assert, MapTools::containsKey(), parent(), prototypes_, and type().

Referenced by TPEF::TPEFASpaceSectionWriter::TPEFASpaceSectionWriter(), TPEF::TPEFCodeSectionWriter::TPEFCodeSectionWriter(), TPEF::TPEFDataSectionWriter::TPEFDataSectionWriter(), TPEF::TPEFDebugSectionWriter::TPEFDebugSectionWriter(), TPEF::TPEFLEDataSectionWriter::TPEFLEDataSectionWriter(), TPEF::TPEFLineNumSectionWriter::TPEFLineNumSectionWriter(), TPEF::TPEFNullSectionWriter::TPEFNullSectionWriter(), TPEF::TPEFRelocSectionWriter::TPEFRelocSectionWriter(), TPEF::TPEFResourceSectionWriter::TPEFResourceSectionWriter(), TPEF::TPEFStringSectionWriter::TPEFStringSectionWriter(), TPEF::TPEFSymbolSectionWriter::TPEFSymbolSectionWriter(), and TPEF::TPEFUDataSectionWriter::TPEFUDataSectionWriter().

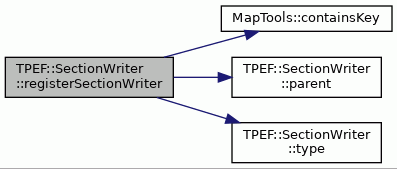

Here is the call graph for this function:

type()

virtual Section::SectionType TPEF::SectionWriter::type ( ) const

protectedpure virtual

Returns SectionType that actual reader or writer instance can handle.

Implemented in TPEF::TPEFSectionWriter, TPEF::TPEFUDataSectionWriter, TPEF::TPEFCodeSectionWriter, TPEF::TPEFDataSectionWriter, TPEF::TPEFASpaceSectionWriter, TPEF::TPEFRelocSectionWriter, TPEF::TPEFResourceSectionWriter, TPEF::TPEFStringSectionWriter, TPEF::TPEFSymbolSectionWriter, TPEF::TPEFDebugSectionWriter, TPEF::TPEFLineNumSectionWriter, TPEF::TPEFNullSectionWriter, and TPEF::TPEFLEDataSectionWriter.

Referenced by findSectionWriter(), and registerSectionWriter().

writeData()

void TPEF::SectionWriter::writeData ( BinaryStream &  stream, const Section *  sect, const BinaryWriter *  writer  )

static

Finds correct SectionWriter instance and command it to write section data.

Parameters

stream	Stream where to write.
sect	Section which data will be written.
writer	BinaryWriter which filetype we want to write.

Exceptions

InstanceNotFound

If there wasn't found any writer for section.

Definition at line 79 of file SectionWriter.cc.

                                {

    findSectionWriter(sect->type(), writer)->actualWriteData(stream, sect);
}

References actualWriteData(), findSectionWriter(), and TPEF::Section::type().

Referenced by TPEF::TPEFWriter::actualWriteBinary().

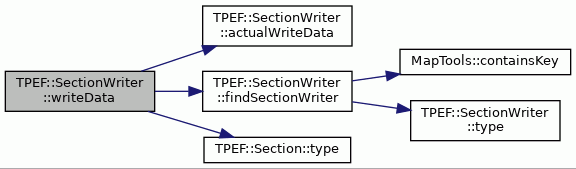

Here is the call graph for this function:

writeHeader()

void TPEF::SectionWriter::writeHeader ( BinaryStream &  stream, const Section *  sect, const BinaryWriter *  writer  )

static

Finds correct SectionWriter instance and use it to write section header.

Parameters

stream	Stream where to write.
sect	Section which header will be written.
writer	BinaryWriter which filetype we want to write.

Exceptions

InstanceNotFound

If there wasn't found any writer for section.

Definition at line 62 of file SectionWriter.cc.

                                {

    findSectionWriter(sect->type(), writer)->actualWriteHeader(stream, sect);
}

References actualWriteHeader(), findSectionWriter(), and TPEF::Section::type().

Referenced by TPEF::TPEFWriter::actualWriteBinary().

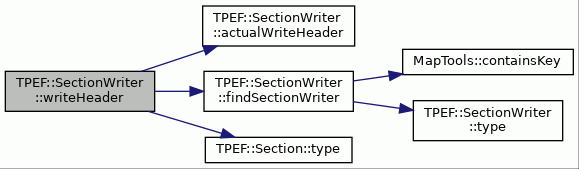

Here is the call graph for this function:

Member Data Documentation

prototypes_

SectionWriter::MapType * TPEF::SectionWriter::prototypes_ = NULL

staticprivate

Contains section writers for all kinds of sections and all kinds of binrary fromats that are supported.

Definition at line 116 of file SectionWriter.hh.

Referenced by findSectionWriter(), and registerSectionWriter().

---

The documentation for this class was generated from the following files:

• SectionWriter.hh
• SectionWriter.cc
