TPEF::TPEFNullSectionWriter Class Reference

#include <TPEFNullSectionWriter.hh>

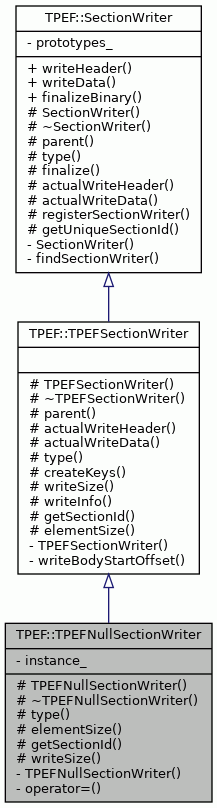

Inheritance diagram for TPEF::TPEFNullSectionWriter:

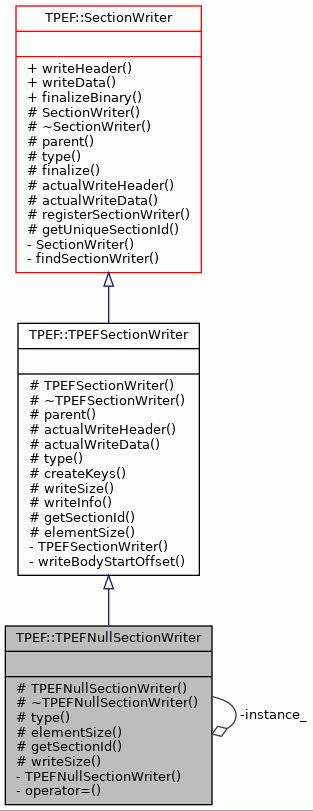

Collaboration diagram for TPEF::TPEFNullSectionWriter:

Protected Member Functions
	TPEFNullSectionWriter ()
virtual	~TPEFNullSectionWriter ()
virtual Section::SectionType	type () const
virtual Word	elementSize (const Section *section) const
virtual SectionId	getSectionId () const
virtual void	writeSize (BinaryStream &stream, const Section *sect) const
Protected Member Functions inherited from TPEF::TPEFSectionWriter
	TPEFSectionWriter ()
virtual	~TPEFSectionWriter ()
virtual const BinaryWriter &	parent () const
virtual void	actualWriteHeader (BinaryStream &stream, const Section *sect) const
virtual void	actualWriteData (BinaryStream &stream, const Section *sect) const
virtual void	createKeys (const Section *sect) const
virtual void	writeInfo (BinaryStream &stream, const Section *sect) const
Protected Member Functions inherited from TPEF::SectionWriter
	SectionWriter ()
virtual	~SectionWriter ()
virtual void	finalize (BinaryStream &stream, Section *section) const

Private Member Functions
	TPEFNullSectionWriter (const TPEFNullSectionWriter &)
	Copying not allowed. More...
TPEFNullSectionWriter	operator= (const TPEFNullSectionWriter &)
	Assignment not allowed. More...

Static Private Attributes
static const TPEFNullSectionWriter	instance_
	Unique instance of a class. More...

Additional Inherited Members
Static Public Member Functions inherited from TPEF::SectionWriter
static void	writeHeader (BinaryStream &stream, const Section *sect, const BinaryWriter *writer)
static void	writeData (BinaryStream &stream, const Section *sect, const BinaryWriter *writer)
static void	finalizeBinary (BinaryStream &stream, const Binary *binaryToFinalize, const BinaryWriter *writer)
Static Protected Member Functions inherited from TPEF::SectionWriter
static void	registerSectionWriter (const SectionWriter *sWriter)
static SectionId	getUniqueSectionId ()

Detailed Description

Writes Null section in to stream.

Definition at line 45 of file TPEFNullSectionWriter.hh.

Constructor & Destructor Documentation

TPEFNullSectionWriter() [1/2]

TPEF::TPEFNullSectionWriter::TPEFNullSectionWriter ( )

protected

Constructor.

Registers itself to SectionWriter.

Definition at line 54 of file TPEFNullSectionWriter.cc.

                                             : TPEFSectionWriter() {
    registerSectionWriter(this);
}

References TPEF::SectionWriter::registerSectionWriter().

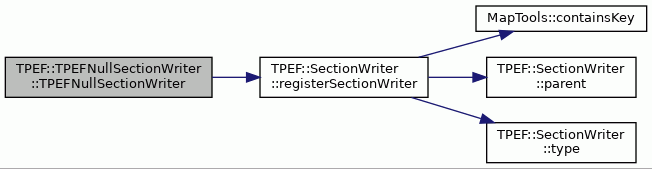

Here is the call graph for this function:

~TPEFNullSectionWriter()

TPEF::TPEFNullSectionWriter::~TPEFNullSectionWriter ( )

protectedvirtual

Destructor.

Definition at line 61 of file TPEFNullSectionWriter.cc.

                                              {
}

TPEFNullSectionWriter() [2/2]

TPEF::TPEFNullSectionWriter::TPEFNullSectionWriter ( const TPEFNullSectionWriter &  )

private

Copying not allowed.

Member Function Documentation

elementSize()

Word TPEF::TPEFNullSectionWriter::elementSize ( const Section *  section ) const

protectedvirtual

Returns the size of section elements. The null section has no elements, so the size of elements is undefined. Returns always zero.

Parameters

section

Section whose element size is to be written out (not used).

Returns

Zero.

Reimplemented from TPEF::TPEFSectionWriter.

Definition at line 82 of file TPEFNullSectionWriter.cc.

                                                       {
    return 0;
}

getSectionId()

SectionId TPEF::TPEFNullSectionWriter::getSectionId ( ) const

protectedvirtual

Returns the identification code of the section.

Zero is the numeric code reserved for identifying null sections.

Returns

Zero.

Reimplemented from TPEF::TPEFSectionWriter.

Definition at line 94 of file TPEFNullSectionWriter.cc.

                                          {
    return 0;
}

operator=()

TPEFNullSectionWriter TPEF::TPEFNullSectionWriter::operator= ( const TPEFNullSectionWriter &  )

private

Assignment not allowed.

type()

Section::SectionType TPEF::TPEFNullSectionWriter::type ( ) const

protectedvirtual

Returns which type of sections can be written out by this writer.

Returns

The type of section that writer can write out.

Implements TPEF::TPEFSectionWriter.

Definition at line 70 of file TPEFNullSectionWriter.cc.

                                  {
    return Section::ST_NULL;
}

References TPEF::Section::ST_NULL.

writeSize()

void TPEF::TPEFNullSectionWriter::writeSize ( BinaryStream &  stream, const Section *  sect  ) const

protectedvirtual

Writes the size of a null section into an output stream.

The size of a null section is always zero.

Parameters

stream	Output stream.
sect	Section whose size has to be written out (not used).

Reimplemented from TPEF::TPEFSectionWriter.

Definition at line 107 of file TPEFNullSectionWriter.cc.

                          {

    stream.writeWord(0);
}

References TPEF::BinaryStream::writeWord().

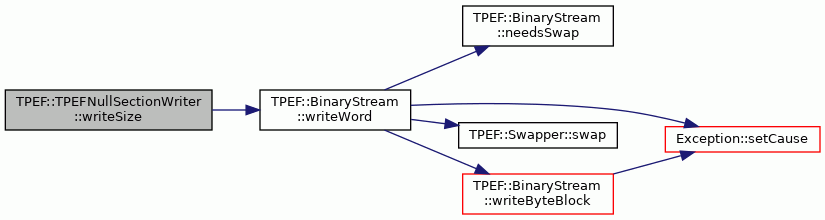

Here is the call graph for this function:

Member Data Documentation

instance_

const TPEFNullSectionWriter TPEF::TPEFNullSectionWriter::instance_

staticprivate

Unique instance of a class.

Definition at line 65 of file TPEFNullSectionWriter.hh.

---

The documentation for this class was generated from the following files:

• TPEFNullSectionWriter.hh
• TPEFNullSectionWriter.cc
